Dr. Trust Wrist Digital Blood Pressure Monitor User manual

1
Wrist Digital Blood Pressure Monitor
Instruction Manual
Wrist cuff is suitable for wrist circumference of 13.5to 21 cm

2
Table of contents
1. Introduction
1.1. Features of theWrist Digital BP Monitor
1.2. Important information about self-measurement
2. Important information on the subject of blood-pressure and its measurement
2.1. How does high/low blood-pressure arise?
2.2. Which values are normal?
3. The various components of the blood-pressure monitor
4. Putting the blood-pressure monitor into operation
4.1. Inserting the batteries
4.2. Reading the set date
4.3. Language selection, Setting the time and date and user selection
5. Carrying out a measurement
5.1. Before the measurement
5.2. Common sources of error
5.3. Fitting the cuff

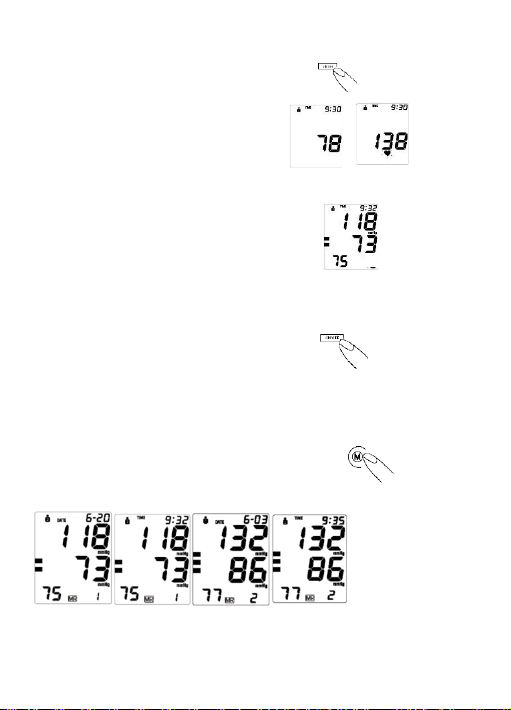

5.4. Measuring procedure
5.5. Discontinuing a measurement
5.6. Memory –storage and recall of the measurements
5.7. Novel features: Positioning Detection / movement detection in the measuring

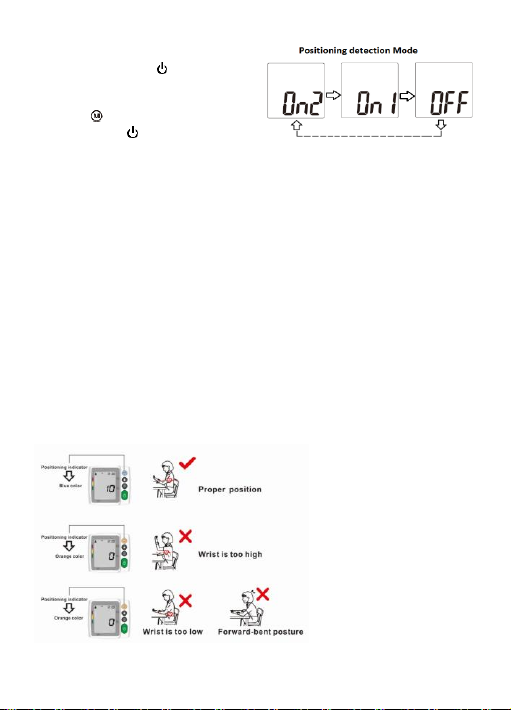

5.8. Usage/Instruction in Positioning Detection function
5.9. Memory –cancellation of all measurements
6. Error messages / malfunctions
7. Care and maintenance, recalibration
8. Guarantee
9. Safety , Care and Disposal
10. Reference to standards
11. Technical specifications

3
1. Introduction
1.1. Features of the Wrist Digital BP Monitor
The blood-pressure monitor Wrist Digital BP Monitor (with integrated time/date display) is a fully automatic,
digital blood-pressure measuring device for use on the wrist, which enables very fast and reliable
measurement of the systolic and diastolic blood-pressure as well as the pulse frequency by way of the
oscillometric method of measuring. The device offers a very high and clinical tested measurement accuracy
and has been designed to provide a maximum of user-friendliness. The device is intended for self-use in
home .
Before using, please read through this instruction manual carefully and then keep it in a safe place. For further
questions on the subject of blood-pressure and its measurement, please contact your doctor.
Attention!
1.2. Important information about self-measurement
•Substitution of a different component might result in measurement error.
•Do not use with neonatal patients.
•Do not intend to use with pregnant or pre-eclamptic patients
•Too frequent measurements can cause injury to the patient due to blood flow interference.
•The application of the cuff over a wound can cause further injury.
•The application of the cuff and its pressurization on any limb where intravascular access or therapy, or an
arteriovenous (A-V) shunt, is present because of temporary interference to blood flow and could result in
injury to the patient.
•Do not let the cuff and its pressurization on the arm on the side of a mastectomy
•Pressurization of the cuff can temporarily cause loss of function of simultaneously used monitoring ME
equipment on the same limb.
•The need to check that operation of the automated sphygmomanometer does not result in prolonged
impairment of patient blood circulation.
•Not intended to be used together with HF surgical equipment.
• Do not forget: self-measurement means control, not diagnosis or treatment. Unusual values must always be
discussed with your doctor. Under no circumstances should you alter the dosages of any drugs prescribed by
your doctor.
• The pulse display is not suitable for checking the frequency of heart pacemakers!
• In cases of cardiac irregularity (Arrhythmia), measurements made with this instrument should only be
evaluated after consultation with the doctor.
Electromagnetic interference
The device contains sensitive electronic components (Microcomputer). Therefore, avoid strong electrical or
electromagnetic fields in the direct vicinity of the device (e.g. mobile telephones, microwave cookers). These
can lead to temporary impairment of the measuring accuracy.

4
2. Important information on the subject of blood-pressure and its measurement
2.1. How does high/low blood-pressure arise?
The level of blood-pressure is determined in a part of the brain, the so-called circulatory centre, and adapted
to the respective situation by way of feedback via the nervous system. To adjust the blood-pressure, the
strength and frequency of the heart (Pulse), as well as the width of circulatory blood vessels is altered. The
latter is effected by way of fine muscles in the blood-vessel walls.
The level of arterial blood-pressure changes periodicallyduring the heart activity: During the «blood ejection»
(Systole) the value is maximal (systolic blood-pressure value), at the end of the heart’s «rest period»(Diastole)
minimal (diastolic blood-pressure value).
The blood-pressure values must lie within certain normal ranges in order to prevent particular diseases.
2.2. Which values are normal?
Blood pressure is too high if at rest, the diastolic pressure is above 90 mmHg and/or the systolic
blood-pressure is over 160 mmHg. In this case, please consult your doctor immediately. Long-term values at
this level endanger your health due to the associated advancing damage to the blood vessels in your body.
Should the systolic blood-pressure values lie between 140 mmHg and 160 mmHg and/or the diastolic blood-pressure
values lie between 90 mmHg and 100 mmHg, likewise, please consult your doctor. Furthermore, regular self-checks
will be necessary.
With blood-pressure values that are too low, i.e. systolic values under 100 mmHg and/or diastolic values
under 60 mmHg, likewise, please consult your doctor.
Even with normal blood-pressure values, a regular self-check with your blood-pressure monitor is
recommended. In this way you can detect possible changes in your values early and react appropriately. If you
are undergoing medical treatment to control your blood pressure, please keep a record of the level of your
blood pressure by carrying out regular self-measurements at specific times of the day. Show these values to
your doctor.
Never use the results of your measurements to alter independently the drug doses prescribed by your
doctor.

5
Table for classifying blood-pressure values (unit: mmHg) according to World Health Organization:
Range
Systolic
Diastolic
Measures
Blood-pressure
Blood-pressure
Hypotension
lower than 100
lower than 60
Consult your doctor
Blood pressure optimum
between 100 and 120
between 60 and 80
Self-check
Blood pressure normal
between 120 and 130
between 80 and 85
Self-check
Blood pressure slightly high
between 130 and 140
between 85and 90
Consult your doctor
Blood pressure too high
between 140 and 160
Between90and 100
Seek medical advice
Blood pressure far too high
between 160 and 180
Between100and 110
Seek medical advice
Blood pressure dangerously
high
Higher than 180
Higher than 110
Urgently seek medical
advice!
Further information
• If your values are mostly standard under resting conditions but exceptionally high under conditions of
physical or psychological stress, it is possible that you are suffering from so-called «labile hypertension».
Please consult your doctor if you suspect that this might be the case.
• Correctly measured diastolic blood-pressure values above 120mmHg require immediate medical treatment.

6

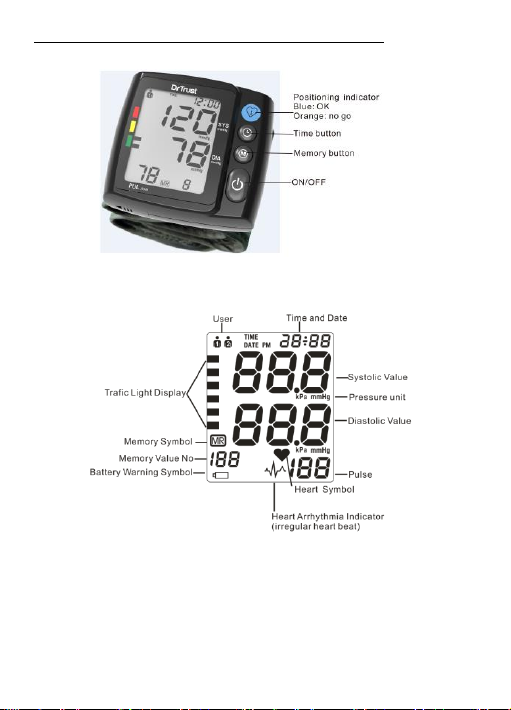

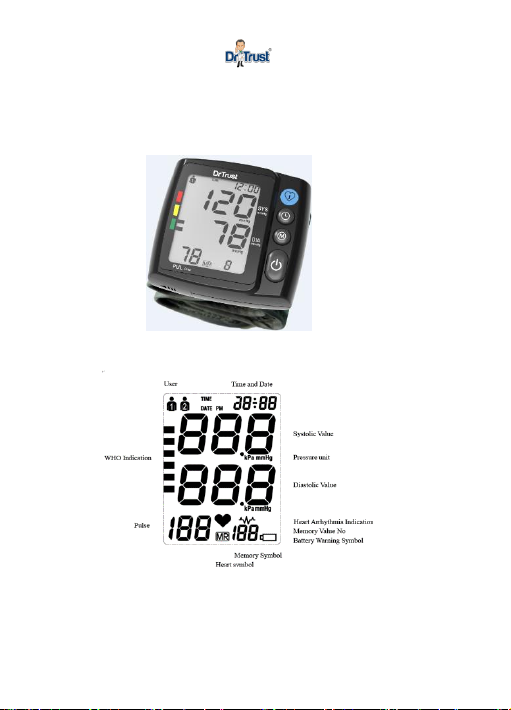

3. The various components of the blood-pressure monitor

7
4. Putting the blood-pressure monitor into operation
4.1. Inserting the batteries
a) Insert the batteries (2 x size AAA 1.5V), therebyobserving the indicated polarity.
b) If the battery warning appears in the display, the batteries are empty and must be replaced by new
ones.
Attention!• After the battery warning appears, the device is blocked until the batteries have been
replaced.
• Please use «AAA» Long-Life or Alkaline 1.5V Batteries. The use of 1.2V Accumulators is not
recommended.
• If the blood-pressure monitor is left unused for long periods, please remove the batteries from the device.
4.2. Reading the set date
Please press the TIME button, the date will be shown in the display.
4.3. Language Selection, User selection and setting the time, date
Talking Language selection: Bilingual of English and Hindi
There are two languages: English and Hindi.
Press the time button for around 3 seconds, uses icon will
shining. Then you just need to press time button several times
until entering the language selection mode (during this process
you will see the year icon, month icon, time icon and switchable
of mmHg and kPa icon shining, just ignore them and press time button.). Default language is English. Press
memory button to switch language to Hindi and to mute (voice off). Again press “ON/OFF” button to save
your selection and exit.
User selection:
This advanced blood pressure monitor allows you to track blood pressure readings for 2 individuals
independently.
a) Before measurement, make sure you set the unit for
the intended user. The unit can track results for 2 individuals. (User 1, User 2)
b) Press the TIME button for at least 3 seconds.
The display now indicates the set user, during
which the set user blink. To confirm , press ON/OFF button .

8
c) Click the MEMORY button to select User
d) We suggest the first person to take their pressure to be User 1.
Setting the time ,date

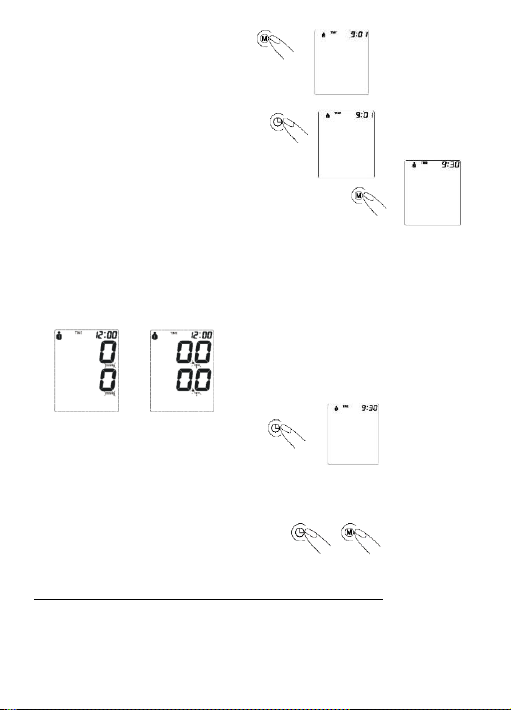

This blood-pressure monitor incorporates an integrated clock with date display. This has the advantage, that at
each measurement procedure, not only the blood-pressure values are stored, but also the exact moment of the
measurement.
After new batteries have been inserted, the clock begins to run from the following setting: 2010-06-20 09:30
O’clock.
You must then re-enter the date and current time. For this, please proceed as follows
1) Press the TIME button for at least 3 seconds firstly , user icon blink .
Then press TIME button again the display now indicates the set year, during
which the four characters blink.
2) The correct year can be entered by pressing the MEMORY button
3) Press the TIME button again. The display now
switches to the current date, during which the first
character (month) blinks.
4) The corresponding month can now be entered by
pressing the MEMORY button.
5) Press the TIME button again. The last two
characters (day) are now blinking
6) The corresponding day can now be entered by
pressing the MEMORY button.
7) Press the TIME button again. The display now
switches to the current time, during which the first
character (Hour) blinks

9
8) The corresponding hour can now be entered by
pressing the MEMORY button.
9) Press the TIME button again. The last two characters
(Minutes) now blink.
10) The exact time can now be entered by pressing the
MEMORY button
11) How to select pressure unit , switchable of mmHg and kPa ,
Finished the whole setting process mentioned above , Press the TIME button again ,
Display “mmHg”blink ,
To press “ MEMORY” button can switch “ pressure unit as “mmHg”or “kPa”,
To press the TIME button selects pressure unit .
12) Now after all settings have been made, press the
TIME button once again. The date is briefly displayed
and then the time. The input is now confirmed and the
clock begins to run.
☞Further Information
With each press of the button (TIME, MEMORY) one input is made (e.g. switching over from hours
to minutes mode, or altering the value by +1).
However, if you keep the respective button depressed, you can switch more quickly to find the desired value
respectively.
5. Carrying out a measurement
5.1. Before the measurement:
• Avoid eating, smoking as well as all forms of exertion directly before the measurement. All these factors

10
influence the measurement result. Try and find time to relax by sitting in an armchair in a quite atmosphere
for about ten minutes before the measurement.
• Measure always on the same wrist (normally left).
• Attempt to carry out the measurements regularly at the same time of day, since the blood-pressure changes
during the course of the day.
5.2. Common sources of error:
Comparable blood-pressure measurements always require the same conditions! These are normally
always quiet conditions.
• All efforts by the patient to support the arm can increase the blood-pressure. Make sure you are in a
comfortable, relaxed position and do not activate any of the muscles in the measurement. Use a cushion for
support if necessary.
•The performance of the automated sphygmomanometer can be affected by extremes of temperature, humidity
and altitude.
• If the wrist artery lies considerably lower (higher) than the heart, an erroneously higher (lower)
blood-pressure will be measured! (Each 15cm difference in height results in a measurement error of
10mmHg!)
• A loose cuff causes false measurement values.
• With repeated measurements, blood accumulates in the respective wrist which can lead to false results.
Correctly executed blood-pressure measurements should therefore first be repeated after a 5 minute pause or
after the armhas been held up in order to allow the accumulated blood to flow away (after at least 3 minutes).

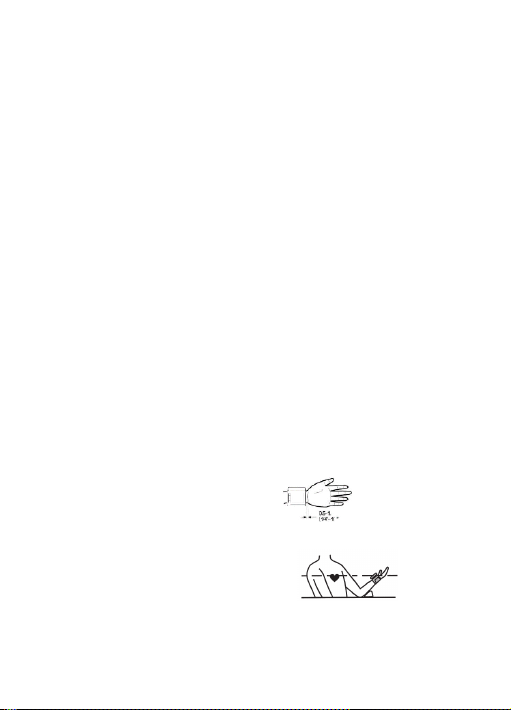

5.3. Fitting the cuff
a) Remove all eventual objects and jewellery (e.g. wristwatch) from the wrist in question. Draw the cuff over
the wrist.
b) The distance between the cuff and the hand should be approx. 10 mm.
c) Secure the cuff with the Velcro fastener, so that it lies
comfortably and not too tight, whereby no space should
remain between the cuff and the wrist.
d) Lay the arm on a table, with the palm upwards. Support the arm a little with a rest (cushion), so that the
cuff rests at about the same height as the heart. Take care, that the
cuff lies free. Remain so for 2 minutes sitting quietly,
before beginning with the measurement.
e) Let legs uncrossed, feet flat on the floor, back and arm supported.
