Dr. Trust 606 User manual

Dr Trust strives to enhance the quality of lifestyle by providing with the most
trusted and innovative health care and wellness products. Being a renowned
global leader in health care products, Dr Trust ensures that our technically
efficient team works dynamically and tirelessly to provide the best of the
medical devices to our clients. The products that we have to offer are suitably
designed for use at homes, laboratories and hospitals.
Our ground breaking solutions allow you to monitor your health in the easiest
ways possible. In today's era when all of our lives are too hassled to handle, it
becomes a bit difficult to pay attention to our health. But it has now become
easier with the coming of the monitoring devices which can be conveniently
used at homes and even on the go.
Driven by the passion for innovation, we at Dr Trust endeavour to provide our
customers with the latest medical inventions with an objective to promote
good health and wellness all around the world. All the medical devices and
health monitors provided by Dr Trust are supported by accurate, latest and
ground breaking technologies, innovated at our headquarters in NY, USA. All
our products adhere to the most stringent CE and FDA guidelines and are
strongly recommended by doctors and health practitioners. Our products are
designed in the utmost exemplary ways to ensure that their accuracy and
convenience are unrivalled. The ease of their use and operation makes them
even more suitable for users of all age groups.
17. ABOUT US
We bring to you a variety of best self medical devices, trusted and used by
Doctors, medical professionals and home users all over the world.
www.drtrustusa.com www.drtrustusa.com
Thank you for purchasing the Dr Trust Instascan Forehead & Ear Thermometer-
606. Please read the instruction manual carefully to observe the right usage
guide before using it. Also keep this instruction guide handy for future
reference.
18 1

www.drtrustusa.com www.drtrustusa.com
2 3
TABLE OF CONTENTS
10. Replacement of Batteries
9. Measuring Method
12. Troubleshooting
9.1 Forehead Temperature Measurement
13. EMC Information
9.2 Ear Temperature Measurement
17. About Us
9.3 Object Temperature Measurement
11. Cleaning and Maintenance
14. Storage
15. Measurement Notes
16. Customer Support
1.2 Safety Information
1.1 Product Intended Use
1. Introduction
2. Operation Principle of Dr. Trust Instascan-606
Thermometer
4. Technical Parameters
5. Key Components of the Thermometer
3. Product Key Features
6. Display Icons Definition
7. Function Keys
8. Settings
1. INTRODUCTIONS
Dr Trust Instascan Forehead & Ear Thermometer-606 measures the body
temperature through receiving the infrared energy radiation from the surface
of objects. It comes with body temperature mode, and object temperature
mode so that users can select the mode as per their need or choice.
The product is mainly composed with infrared temperature sensors, signal
receiving processor, buttons, buzzer, LCD display, battery, etc. The
measurement result directly shows on the LCD screen.
1.1. Product intended use
The infrared thermometer is intended for the measurement of human body
temperature by using the infrared energy emitted from the forehead and
eardrum. It ensures the safety of users with high level of speed and accuracy.
The thermometer can also be used to measure the temperature of objects by
detecting and measuring the emitted radiations. The device is designed to be
used for home healthcare, medical institutes and many other occasions.
1.2. Safety Information
Warnings:
the thermometer.
· After measuring extremely high or low temperature, don’t measure body
· Do not dip the thermometer into any liquid.
sweating and putting on skin cosmetics.
environment temperature changes too much, for example from outdoor to
· Don’t use it in strong electromagnetic interference environment.
· Don’t use in high or low temperature environment for a long time.
· No collision, falling and mixing sharp objects, it is forbidden to disassemble
· Avoid using the thermometer when drying the hair, drenching water,
· Don’t measure the temperature after doing sports, washing or in 30 minutes
indoor, please wait for about half an hour before measuring.
after dinner.
· Temperatures immediately, you should measure 10 minutes later.
· The measurement results cannot replace the physician diagnosis.
· The thermometer should be placed beyond the children’s reach.
· Never point the device at ones’ eyes when measuring.
· Do not try to change the product factory settings.
· Use the thermometer in a stable temperature environment. If the

www.drtrustusa.com www.drtrustusa.com
4 5
· Portable RF communications equipment (including peripherals such as
antenna cables and external antennas) should be used no closer than 30 cm
manufacturer. Otherwise, it could result in degradation of the performance
· Maximum laboratory error: ±0.2°C/0.4°F.
(12 inches) to any part of the thermometer, including cables specied by the
of this equipment.
· No special maintenance is needed during the use process.
2. OPERATION PRINCIPLE OF DR. TRUST INSTASCAN
-606 THERMOMETER
Any object in which temperature is higher than absolute zero degree will
transmit some infrared radiation energy according to its own temperature. The
radiation energy and its distribution per wavelength are closely associated
with its surface temperature. This thermometer measures the Infrared
radiations emitted by the body or object and facilitate the temperature
measurement.
3. PRODUCT KEY FEATURES
· Forehead, ear temperature, dual modes of measurement;
· Dual temperature units: °C and °F optional;
· Capacity of storing 32 sets measurements;
· Contact-type infrared thermometer;
· Clear and softy LCD display with high denition dual color backlight;
· Fever alarm function (default alarm value is 38.0°C and above);
· Automatic shut-down and power-saving;
4. TECHNICAL PARAMETERS

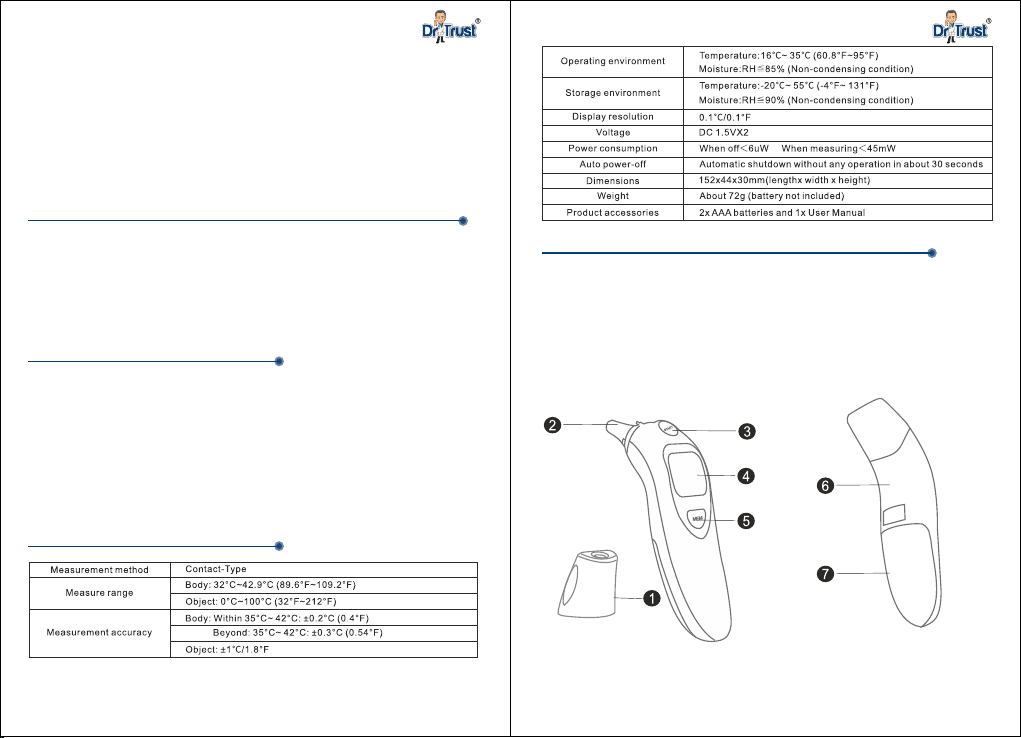

5. KEY COMPONENTS OF THE THERMOMETER
3. Start/ Measuring key
1. Protective Cover
7. Battery Cover
5. Memories key and Conversion key and Sound key
2. Infrared Probe
4. LCD display
6. Handle
Note: Unplug or plug the Protective cover, to switch the measuring Mode
(forehead and ear mode).

www.drtrustusa.com www.drtrustusa.com
6 7

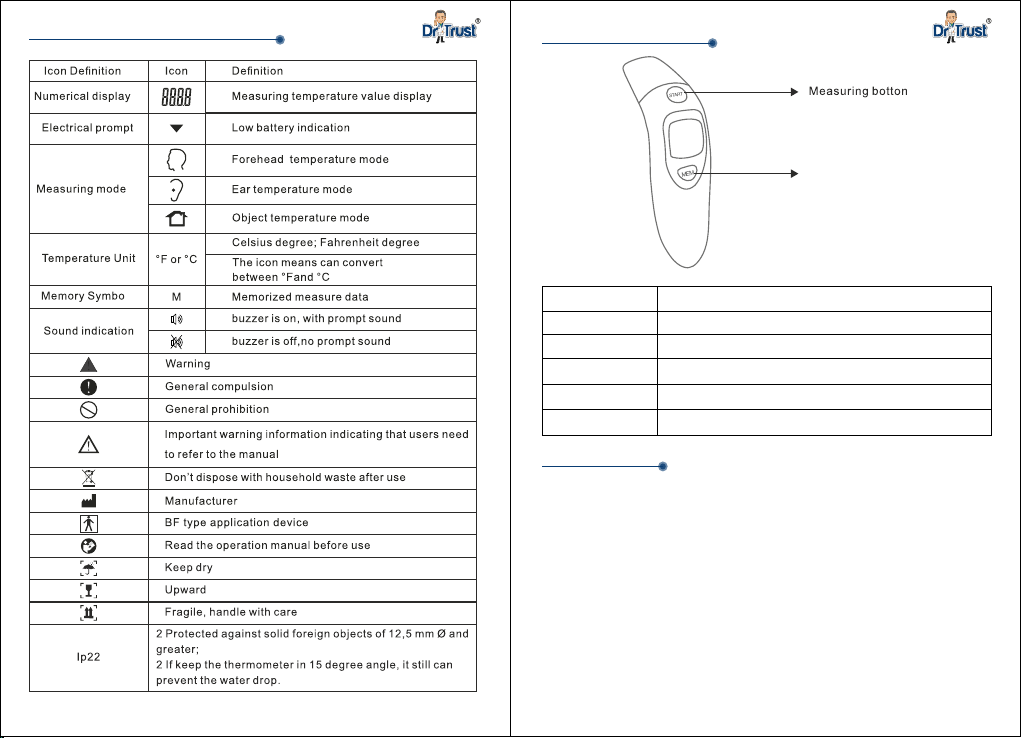

6. DISPLAY ICONS DEFINITION 7. FUNCTION KEYS
Function Button
Measuring Button
Memories Button
Conversion Button
Shutdown Button
Sound Button
Functional description
Press to measure
Press to get the latest 20 sets memories temp.
Keep pressing to adjust ° C / ° F, when setup
Keep pressing the Button, device will power off
Keep pressing the Button, voice will close or open up
8. SETTINGS
A: Temperature unit setting:
When power off, press the memory key for 5s until the “°C” or “°F”, display. Press
the memory key one more time to change into another unit.
Note: The default temperature unit is “°C”. The setting will come back to the
default when uninstall the battery.
B: Memory Mode:
When power off, press the Memory key to check the latest 32 sets of
measured values in the selected mode in order 1,2,3 and so on.
Note: The record will be deleted when the batteries are uninstalled.
C: Voice Setting:
When power on, keep pressing the Memory key for 4s, it beeps one time;
voice will close or open.
Memories Button, Conversion
Button, Sound Button, &
Shut Down Button

www.drtrustusa.com www.drtrustusa.com
8 9
Note:
The sound key can be set on/off per the environment condition. e.g. it can be
off when silence is appreciated.
D: Shutdown:
When power on, keep pressing the Memory key for about 8s, it will power
off.
9. MEASURING METHOD

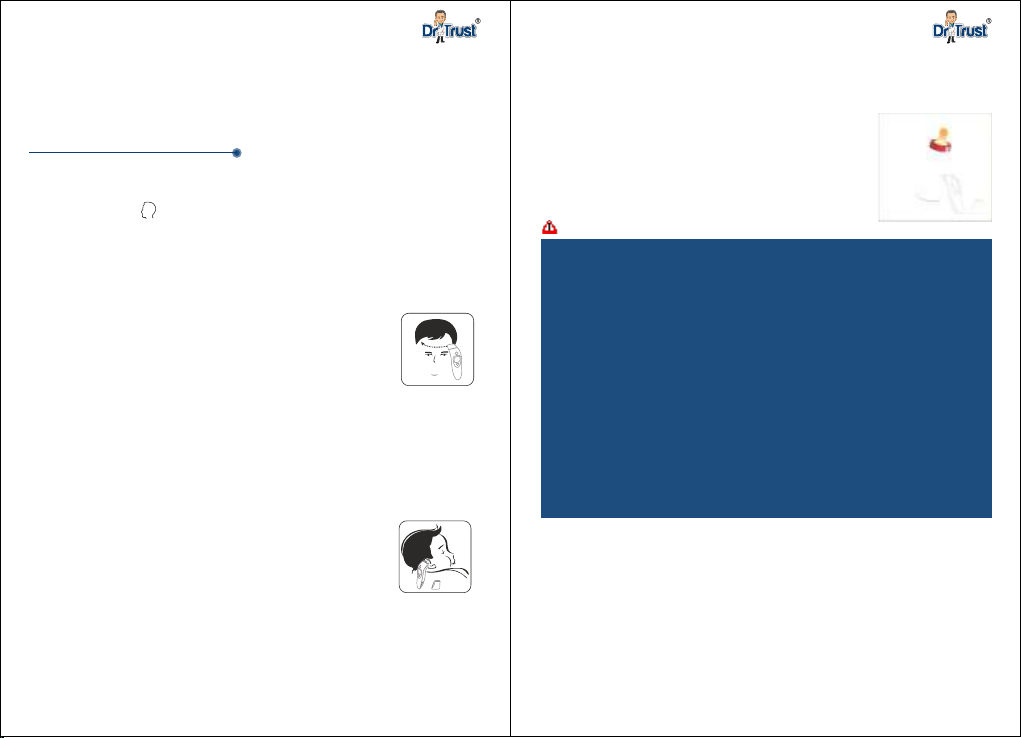

9.1. Forehead Temperature Measurement
· Install the batteries to power on the thermometer. Make sure the screen
· When buzzer beeps, the temperature will display on the LCD screen.
· Press & hold the start/ measurement key and scan the forehead.
should display “ “ before each measurement.
· Keep the probe cover contacting the forehead during the measurement.
· Hold the thermometer and point the device to the forehead.
Note:
· The probe cover should be there before starting the forehead
measurement.
measurement accuracy.
· Keep the probe clean, otherwise, it may affect the
9.2. Ear Temperature Measurement
· Take off the probe or mode conversion cover and insert the probe
into the ear.
· Press the measuring key to measure temperature directly.
· When the buzzer beeps, the temperature will display on the screen.
· Make sure that the probe cover is taken off to measure the
· Do not push hard into the ear to avoid hurting the eardrum.
temperature in the Ear mode
Note:
9.3. The Object Temperature Measurement
· Install the batteries and press the memory key for 10 seconds until the
side of the screen.
screen show all symbols with the object temperature mode on the left
· Point the thermometer to the object, keep the probe 3~5mm
to the object.
· Press the measuring key to measure directly, when the buzzer
beeps, the temperature will display on the screen.
Note
Make sure that the cover of mode conversion is taken off
and converted to the Ear and the object mode.
Cauon
· All operation should do when the thermometer is powered on;
· All settings will come to default when uninstall the battery. If need adjust
o
· When the measurement value is between 37.5-37.9 C, it is considered low
· All memory records will loss when uninstall the battery.
the settings, please power on and make the new settings.
· The thermometer will power off automatically after 30s without any
operation.
· When there is any wound in the ear measurement area, please do not use
· The measurement result from the thermometer is only for reference.
· Don’t push hard into the ear to avoid hurting the eardrum.
fever, advice to consult the doctor.
this thermometer to measure the temperature to avoid aggravating the
severity of the wound.
· Always keep the battery beyond the child's reach.
·O When the measured temperature value is 38 C or above, the
thermometer will send out as alarm and the backlight will be red while
the other value is green. When the measurement vale is between 37.5-
O
37.9 C, it is considered low fever, advice to consult the doctor. If no alarm
when used, please check whether the sound function is turn off.
Colour Fever Alarm Function
Note:

www.drtrustusa.com www.drtrustusa.com
10 11
10. REPLACEMENT OF BATTERIES
constant use.
· The battery life is approx. 3000 readings one year and 90 minutes when in
· Open the battery cover and remove the old battery.
· Put in new battery and take care of the direction of the electrodes.
Cauon
1. When not used for 1 month, please take out the battery to prevent
2. According to local regulations, properly handle the waste batteries to
avoid pollution.
leakage. It is forbidden to put waste battery in the re.
11. CLEANING AND MAINTENANCE
Please keep the inner cavity of the sensors and probes clean, otherwise it
may affect the measurement accuracy.
Cleaning Methods
with a little medical alcohol or water to wipe the dirt.
· The device only needs routine cleaning, and period or times can be
decided according to user’s need.
· For surface cleaning, use a clean soft cloth or cotton swab stick moistened
· For probe and sensor inner cavity cleaning, use clean soft cloth dipped
with a little medical alcohol to gently wipe the probe at the top of the
inner cavity or sensors, and do not use until the alcohol completely
our customer support for further queries.
evaporates.
· No Special maintenance in needed to the use process. Please contact to
Monitor Disinfection
· Switch off the monitor and disconnect it from the power line.
disinfectant solution.
· Wipe the display screen using a soft, clean cloth dampened with the
· Wipe the exterior surface of the equipment using a soft cloth dampened
with the disinfectant solution.
· Wipe off the disinfectant solution with a dry cloth after disinfection if
necessary
· Dry the monitor for at least 30 minutes in a ventilated and cool place.
Warning
· Please keep the inner cavity of the sensors and probes clean, otherwise it
will affect the measuring accuracy.
· If you spill liquid on the probe sensor or LCD, or they are accidentally
immersed in liquid, contact your service personnel or service engineer.
· Use a soft, dry cloth to clean the thermometer body and LCD display.
and disconnected from the power line.
· Before cleaning or disinfection make sure that the device is switched off
or any other liquid.
· After cleaning with isopropyl alcohol, allow the thermometer to air dry.
· Do not use abrasive cleaners. Never submerge this thermometer in water

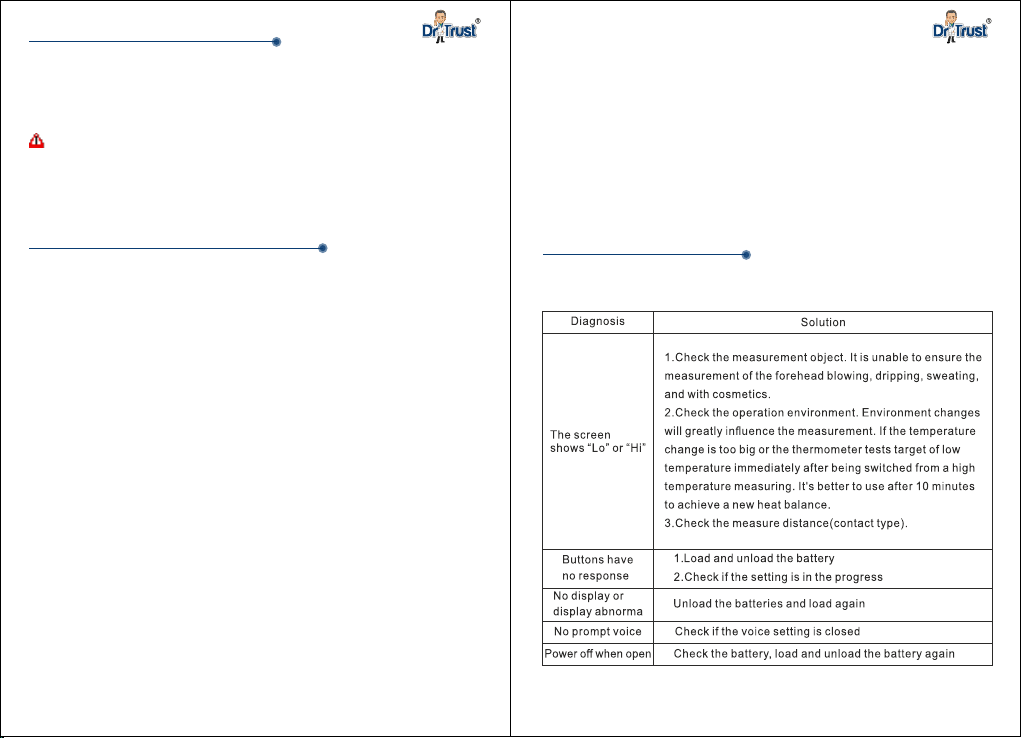

12. TROUBLESHOOTING
Table 4

www.drtrustusa.com www.drtrustusa.com
12 13
13. EMC INFORMATION
Table 5
The Dr Trust Instascan Forehead & Ear Thermometer-606 is intended for using in the
electromagnetic environment specied below. The customer or the user of the Dr Trust
Instascan Forehead & Ear Thermometer-606 should assure that it is used in such an
environment.
The Dr Trust Instascan Forehead & Ear
Thermometer-606 uses RF energy only for its
internal function. Therefore, its RF emissions
are very low and are not likely to cause and
interference in nearby electronic equipment.
The Dr Trust Instascan Forehead & Ear
Thermometer-606 is suitable for use in all
establishments other than domestic and
those directly connected to the public low-
voltage power supply network that supplies
buildings used for domestic purposes.
Table 6
The Dr Trust Instascan Forehead & Ear Thermometer-606 is intended for use in the
electromagnetic environment specied below. The customer or the user of the Dr Trust
Instascan Forehead & Ear Thermometer-606 should assure that it is used in such an
environment.
Mains power quality should
be that of a typical
commercial or hospital
environment. If the user of
the Dr Trust Instascan
Forehead & Ear
Thermometer-606 requires
continued operation during
power mains interruptions, it
is recommended that the Dr
Trust Instascan Forehead &
Ear Thermometer-606 be
powered from an
uninterruptible power
supply or a battery
Table 7
The Dr Trust Instascan Forehead & Ear Thermometer-606 is intended for use in the
electromagnetic environment specied below. The customer or the user of the Dr Trust
Instascan Forehead & Ear Thermometer-606 should assure that it is used in such an
environment.

www.drtrustusa.com www.drtrustusa.com
14 15
Portable and mobile RF
communications equipment should be
used no closer to any part of the Dr
Trust Instascan Forehead & Ear
Thermometer-606 including cables,
than the recommended separation
distance calculated from the equation
applicable to the frequency of the
transmitter.
d=2.3 P 800MHz to 2.5MHzHere P is
the maximum output power rating of
the transmitter in watts (W) according
to the transmitter manufacturer and d
is the recommended separation
distance in meters (m). Field strengths
fo r m  x ed R F t r ansm i t t ers, as
determined by an electromagnetic
site survey, should be less than the
compliance b level in each frequency
range. Interference may occur in the
vicinity of equipment marked with
the following symbol:
d=1.2 P 80MHz to 800MHz
NOTE 1 At 90MHz and 800MHz, the higher frequency range applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is
affected by absorption and reection from structures, objects and people.
Field strengths from xed transmitters, such as base stations for radio (cellular/cordless)
telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV
broadcast cannot be predicted theoretically with accuracy. To assess the
electromagnetic environment due to xed RF transmitters, an electromagnetic site
survey should be considered. If the measured eld strength in the location in which the
Dr Trust Instascan Forehead & Ear Thermometer-606 is used exceeds the applicable RF
compliance level above, the Dr Trust Instascan Forehead & Ear Thermometer-606 should
be observed to verify normal operation. If abnormal performance is observed,
additional measures may be necessary, such as reorienting or relocating the Dr Trust
Instascan Forehead & Ear Thermometer-606.

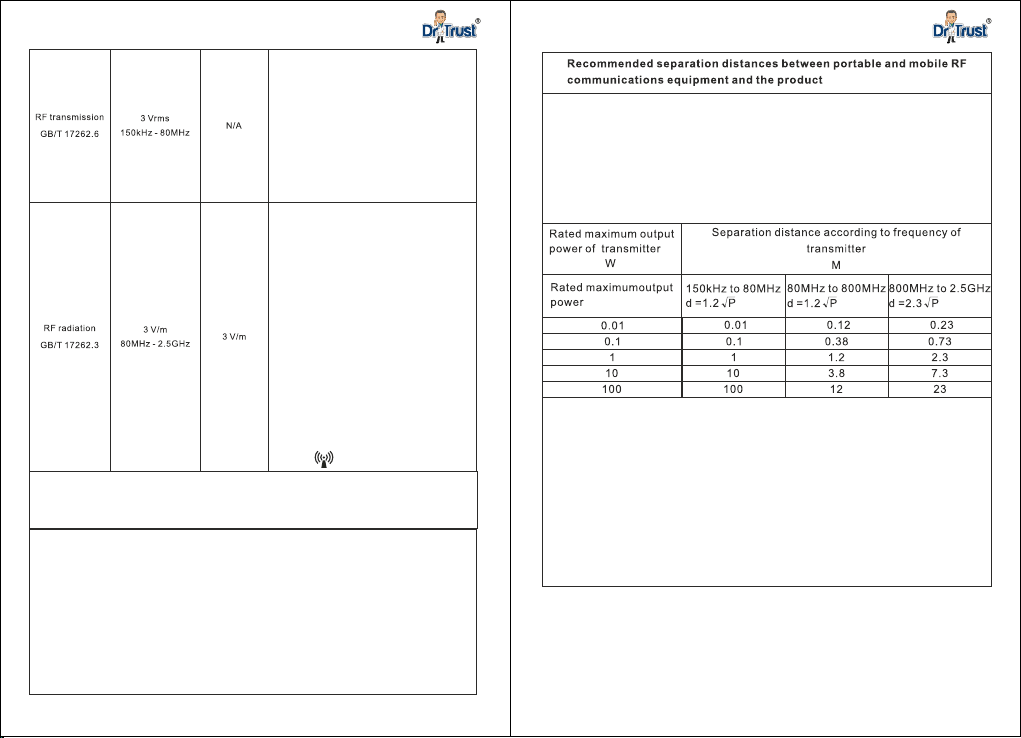

Table 8
The Dr Trust Instascan Forehead & Ear Thermometer-606 is intended for use in an
electromagnetic environment in which radiated RF disturbances are controlled. The
customer or the user of the Dr Trust Instascan Forehead & Ear Thermometer-606 can help
prevent electromagnetic interference by maintaining a minimum distance between
portable and mobile RF communications equipment (transmitters) and the Dr Trust
Instascan Forehead & Ear Thermometer-606 as recommended below, according to the
maximum output power of the communications equipment.
For transmitters rated at a maximum output power not listed above, the recommended
separation distance d in meters (m) can be estimated using the equation applicable to
the frequency of the transmitter, where P is the maximum output power rating of the
transmitter in watts (W) according to the transmitter manufacturer.
NOTE 1 At 80MHz and 800MHz, the separation distance for the higher frequency range
applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is
affected by absorption and reection from structures, objects and people.

www.drtrustusa.com www.drtrustusa.com
16 17
16. CUSTOMER SUPPORT
www.drtrustusa.com
[email protected]om
@drtrust
@drtrustisin
COPYRIGHT 2018 DR TRUST. ALL RIGHTS RESERVED
14. STORAGE
· Locations with high heat and humidity or those that are exposed to
· Areas close to heating equipment, dusty locations, or environments
· Wet locations.
Do not store the thermometer in the following types of places. Doing so may
damage the thermometer.
direct sunlight.
· Where there are high salt concentrations in the air.
15. MEASUREMENT NOTES
Always hold the thermometer by its handle.
temperature is to be measured.
going from ambient temperatures to a much higher (or lower)
temperature.
· Keep in mind that it will take up to 30 minutes for the sensor to stabilize if
· Point the thermometer toward the targeted area or object whose
· This is not recommended for measuring shiny or polished surfaces
· It cannot measure through transparent surfaces such as glass.
· Before measuring in object mode, be sure to clean surfaces that are
covered with frost, oil, grime, etc.
temperature measurement.
