Draper AeroLift 35 Manual

AeroLift 35
Installation & Operating Instructions
Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385
draperinc.com | 765.987.7999 | 800.238.7999
© 2018 All Rights Reserved | FORM: AeroLift35_Inst18
If you encounter any difficulties installing or servicing your AeroLift 35, call your
dealer or Draper, Inc. in Spiceland, Indiana, 765-987-7999 or fax [phone].
Caution:
1Read instructions completely before proceeding. Follow instructions carefully.
Installation contrary to instructions invalidates warranty.
2Do not obstruct operation of AeroLift 35 with fingers or any other
object. Serious injury or damage could result.
3It is not uncommon to overheat the motor during initial installation when
setting limits. The motor is thermally protected and will stop working
temporarily. DO NOT physically pull the unit down when this occurs. Once it
has cooled to a safe temperature, it will begin operating again.
4The AeroLift 35 is designed to accommodate ceiling suspended
equipment. Equipment should not be allowed to rest on ceiling closures
during operation (see “Installing Projector”).
5Entire bottom of unit must be unobstructed to permit proper operation.
6Unit must be installed level (use a carpenter’s level).
7Unit operates on 110-120V AC 60 Hz. current.
Note: Unit has been thoroughly inspected and tested at factory and found to be
operating properly prior to shipment.
Planning
1Based on screen location and projector specifications, determine proper
position for projector installation.
2Confirm that there is adequate space for installation and operation. Minimum
clearance above ceiling level varies according to height of projector, projector
mounting bracket, optional ceiling closure and optional Environmental Air
Space Housing.
3Arrange to provide service access to the unit.
4Total maximum capacity for the AeroLift 35 is 35 lbs.
(including closure, projector and bracket).
As Soon As AeroLift Arrives
1Open carton and inspect for damage.
2Locate the following parts:
A. The unit itself
B. Controls
C. Any optional equipment
3 Test lift prior to installation.
AeroLift 35
(with Closure panel)
Electrical Connections
Unit operates on 110-120V, 60 Hz. AC current. The AeroLift 35 is shipped closed.
After hanging the unit, make sure power is off and temporarily connect the unit to
power and to a switch, so the unit can be lowered to allow access inside.
Please note: Make sure electrical supply has been disconnected before
attempting to connect AeroLift to electricity.
Terminal strip for field connections is located inside a junction box on the end
of the unit. Unit is shipped with internal wiring complete to the terminal strip.
Once the unit has been lowered, turn off power and remove the J-box cover.
The terminal strip is attached to the cover. Disconnect temporary pigtail from
unit, then complete permanent wiring to electricity and to switches. Wire to
connect unit to power supply and to switches should be furnished by installer.

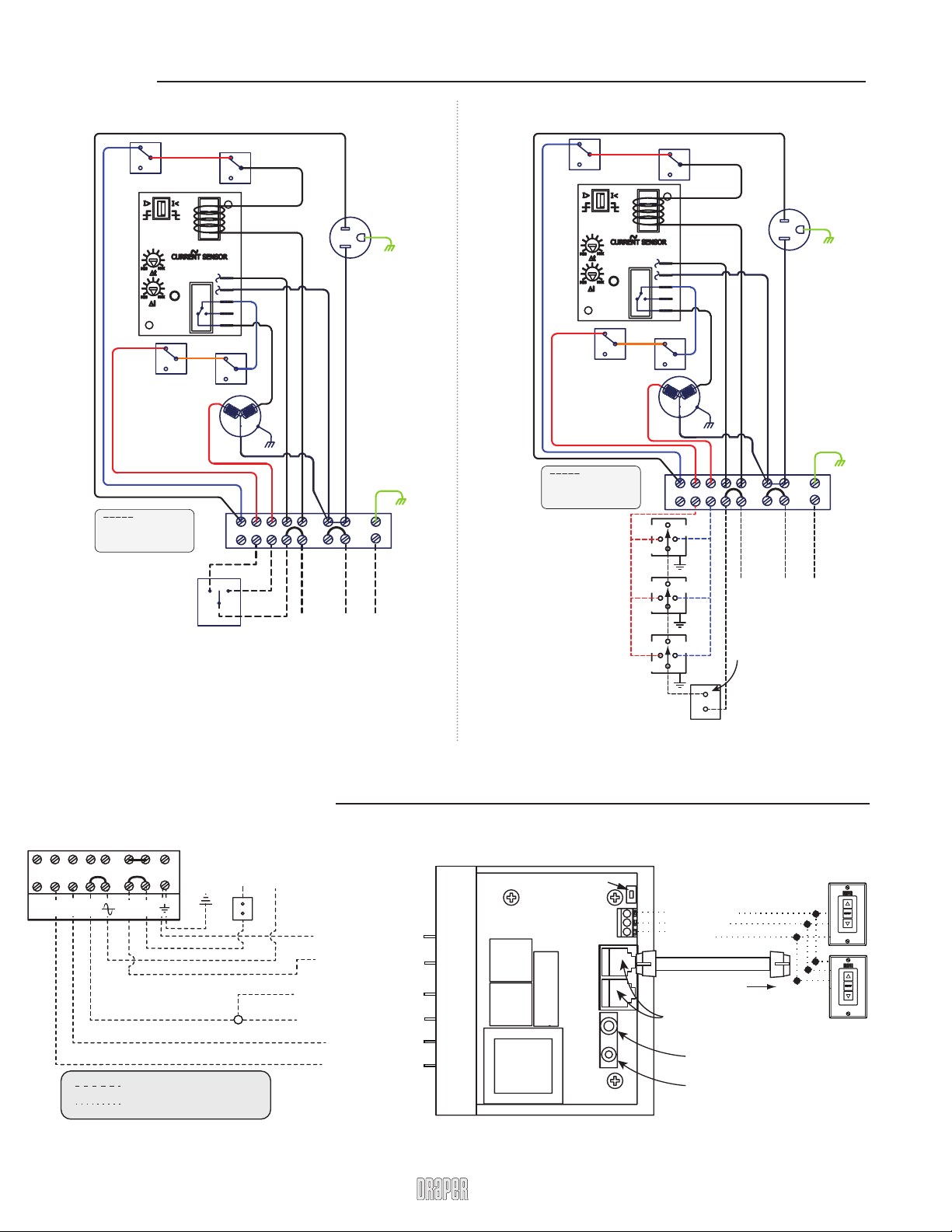

Connections should be made in accordance with wiring diagram, and wiring
should comply with national and local electrical codes. All operating switches
should be “off” before power is connected. AeroLift should be operated and
checked prior to installing projector and/or optional ceiling closure.
Hanging Unit
The AeroLift is provided with four (4) mounting angles for suspending or direct
mounting the unit from above, or direct mounting from the sides. These angles
provide up to 1½" of adjustment (side to side). The unit should be guy wired or
blocked to prevent swinging. All installations should observe the following guidelines:
1Installer must ensure that all fasteners and supports are of
adequate strength to securely support AeroLift 35 and
projector. It is recommended that hardware structure be able to
hold at least four times the combined weight of the lift, projector,
housing, closure and ceiling material attached to closure.
Caution: DO NOT hang from, "ride" or pull down on the unit.
This could create a failure and cause damage and/or injury.
2Fastening methods must be suitable for mounting surface,
and securely anchored so vibration or abusive pulling on unit
will not weaken installation.
3Bottom of unit must be unobstructed after installation.
Sufficient clearance must be allowed below projector or optional ceiling closure.
4Do not use unit to support adjacent ceiling, light fixtures, etc.
5Do not complete the ceiling below the unit until electrical connections have been
completed and unit has been operated successfully.
6Use slots on the projector plate and on the closure to adjust the unit to ensure
proper alignment of ceiling closure relative to ceiling opening.

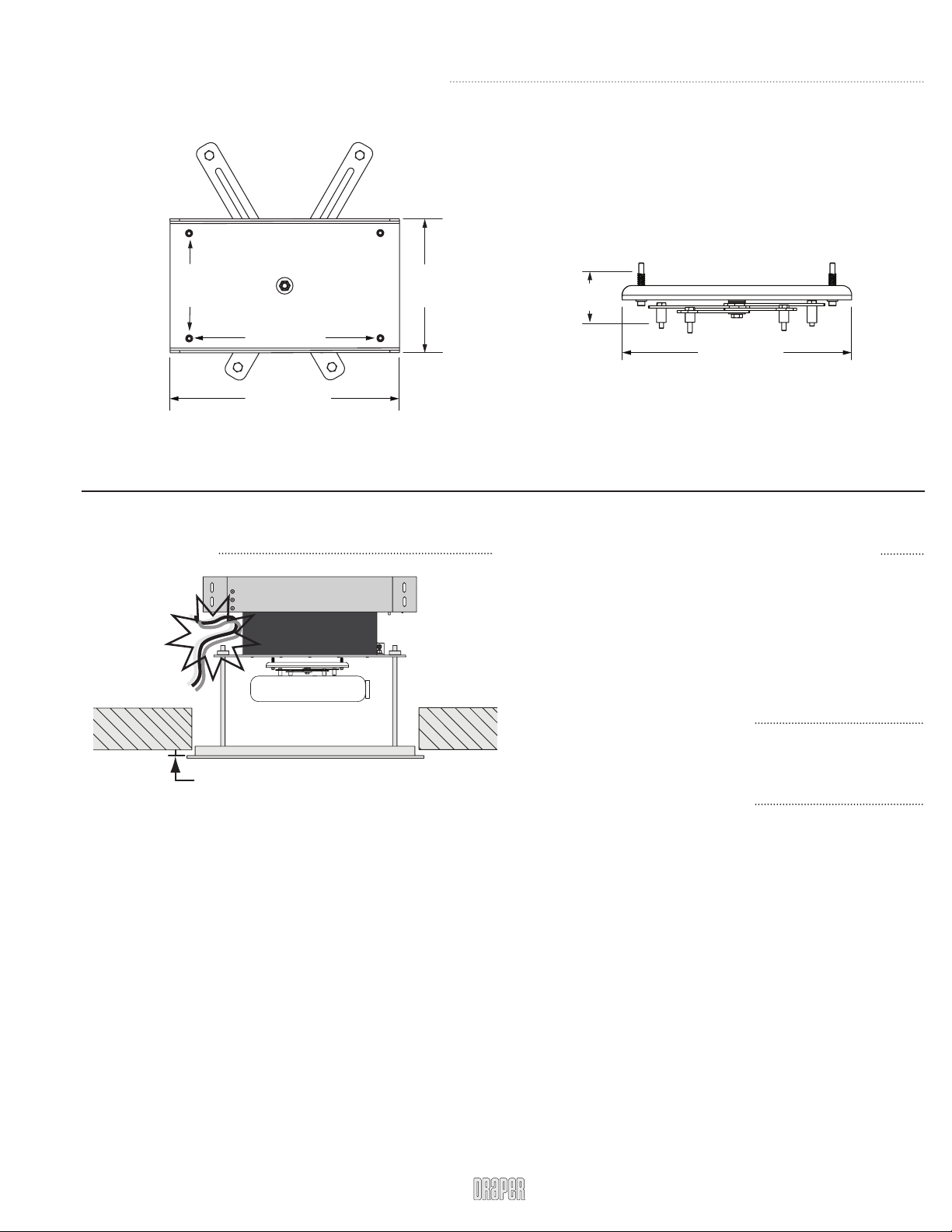

20"
101/8"
193/8"
187/8"
11/4"
3
/4"
221/4"
413/16"
121/2"
Top View
Side View
12½"
12½"
Front View
AeroLift 35
(Relevant Mounting Dimensions)
Top
Mounting
Hole
Side
Mounting
Slots
Top
Mounting
Hole
Anti-Slip
Hole
Side
Mounting
Slots
Figure B
Projector can be installed as shown or
turned 90° depending on projector size.

Limit Switch Adjustments
CAUTION: Be sure all switches are in “off” position before adjusting limit switches
Always be prepared to shut lift off manually when new adjustment is being tested.
Limit switches for the AeroLift 35 are preset at the factory. The “Up” (closed) limit switch
is set for fully closed. The “down” (show) limit switch is set for fully lowered. Once unit is
in place, the “down” limit switch may need to be changed to stop the AeroLift 35 closer
to the ceiling (that is, to raise the “down” position). Limit switches are located on the end
of roller, and are accessible by removing the cover of the junction box at the left end of
the unit. To adjust the limit switches, use a 5/32" screwdriver/allen wrench.
Caution: It is not uncommon to overheat the motor during initial installation
when setting limits. The motor is thermally protected and will stop working until it
has cooled to a safe temperature before it will start operating again. DO NOT
physically pull the unit down when this occurs.
Adjusting “Down” (SHOW position)
“Down” position may be adjusted by turning the DOWN limit switch adjustment socket
(see Fig. 2 below). Turning the socket clockwise will stop the AeroLift 35 closer to the
ceiling. Turning it counter-clockwise will cause the lift to stop at a lower point.
Adjusting “Up” (CLOSED position)
Because the “up” (“closed”) position is preset at the factory, Draper does not recommend
changing this position using the limit switch. The “up” position of the closure may be
changed by changing the length of threaded rod (see Fig. 5). If necessary, however,
“up” position may be adjusted by turning the UP limit switch adjustment socket (see Fig.
2 below). Turning the socket counterclockwise creates a higher, or more fully closed
position. Turning it clockwise creates a lower ‘UP” (closed) position.
Caution: Make sure limit switch is set so that the AeroLift 35 motor is NOT still
running after the lift is closed. If it continues to cycle once the lift is closed, a
failure may occur, making the unit descend rapidly and causing damage and/or
injury.
Please Note: If load is off-center of pan, you may need to adjust the pitch of the
fabric rollers. One setscrew is provided on each end of both fabric rollers (see
above drawing). Use these to adjust roller pitch to keep entire fabric panel taut, so
load is evenly distributed. Use
1
/ 8 " hex key to adjust.
Operation
When unit is first operated, be cautious! If unit fails to operate when the switch
is flipped “down”, return switch to “off” and re-check electrical connections
before proceeding. Cycle unit down and up several times to confirm satisfactory
operation.
110-120V Single Station Control
3-position up-off-down switch permits operation to be stopped at any point. Factory
adjusted limit switches automatically stop AeroLift when fully down or fully up.
Optional 110-120V Multiple Station Control
Switches are similar in appearance to 110-120V Single Station Control. AeroLift
stops when switch is released and may be restarted in either direction. Factory
adjusted limit switches automatically stop AeroLift when up or fully down.
Optional 24V Control
Three-button up-stop-down switches stop at any point desired, operate in any
sequence. Factory adjusted limit switches automatically stop AeroLift when fully up
or fully down.
Optional Infrared or Radio Frequency Remote Control
If ordered, a three-button transmitter is provided, with “up”, “down” and “stop”
buttons. Unit starts up or down when appropriate button is pressed, and may be
stopped by pressing “off” button. Factory set limit switches stop unit automatically
when projector is in “show” position. Multiple Station Control required for this
option.
Optional RS232/Ethernet
Serial communication and network communication optionally available.
Optional Key Operated Switching
Two kinds of key-operated switches are optionally available with this unit.
1 The key-operated power supply switch controls power to the AeroLift 35 and
switches. When it is “off”, the switches will not operate lift. Key may be removed
from the switch in either “on” or “off” position.
2 A three-position key switch permits the AeroLift 35 to be operated directly by key.
In this case, the screen’s operator must always have a key .
AeroLift 35 by Draper, Inc. page 2 of 4
Testing the Safety Limit Switches
The AeroLift 35 are equipped with two Safety Limit Switches (see "AeroLift—
Limit Switch Adjustment (Bottom View)" diagram on page 3). These switches
may be damaged during shipping or by rough handling on the job site.
Once the AeroLift has been installed in the ceiling, but
before the projector and closure are attached, the Safety
Limits must be tested.
Use a screwdriver or other tool to press and hold the limit switch. While hold-
ing down the limit switch, have someone operate the unit. If the unit runs up
while the limit switch is depressed, the limit switch is broken and must be
replaced. Operating the unit without a functioning Safety Limit Switch could cause
the unit's motor to continue operating after the lift is closed, leading to a failure and
the possibility of damage or injury. Make sure to test BOTH switches.
Please Note: As weight is applied to the AeroLift, the projector plate may
shift slightly. If this occurs, use setscrews on bottom of fabric roller brackets
to compensate for shift and level projector plate (see page 3).
Figure C
JUNCTION BOX
UP LIMIT DOWN LIMIT
Fabric Roller Adjustment Setscrew

AeroLift 35 by Draper, Inc. page 3 of 4
www
.draperinc.com [phone]
Installing Projector Using Universal Projector Mount
(Maximum Capacity 11.8 kg)
See Installation Instructions included with Universal Pojector Mount.
7"
(178mm)
2½"
(64mm)
10" (254mm)
12" (305mm)
12" (305mm)
5½"
(140mm)
7"
(178mm)
2½"
(64mm)
10" (254mm)
12" (305mm)
12" (305mm)
5½"
(140mm)
Figure D
AeroLift Clearance Installing Optional Environmental Air Space Housing
The Environmental Air Space Housing is shipped in pieces, and must be
assembled by the installer. The height of the Environmental Air Space Hous-
ing is set by drilling out the knockouts at the desired locations then using
screws to connect side panels. It is recommended that an access panel be
installed in the ceiling to allow future access. The optional environmental air
space housing must be installed to isolate the lift from the “other space used
for environmental air.” Includes trim ring for ceiling opening.
See installation instructions included with Environmental Air Space Housing.
Installing Optional Ceiling Closure
If your AeroLift is equipped with optional ceiling closure, it can be used as
is, or in conjunction with a square of existing ceiling tile.
See installation instructions included with ceiling closure.
Installing Optional Ceiling Trim Kit
The AeroLift is available with a ceiling trim kit, which consists of the lower
section of the Environmental Air Space Housing and the optional closure
panel. See installation instructions included with Ceiling Trim Kit.
Figure F
1
/8" Min. clearance
Caution: Make
sure there are
no obstructions
to the AeroLift's
operation

AeroLift 35 by Draper, Inc. page 4 of 4
www
.draperinc.com [phone]
Wiring Diagrams
Single Station Control Optional Multiple Station Control
To 110-120 Vac Line
LS2
LS1
LS2
LS1
BK
WH
BL
BK
OR
RD
12345 678TB
BK RD RD BK BK WH WH
GN/YL 14 AWG
GN
RD 14 AWG
BK 14 AWG
WH 14 AWG
GN14 AW
G
BK 14 AWG
RD
PROJECTOR
OUTLET
MOTOR
BK
WH
L1 NGRD
UP DOWN
COMMON
SWITCH
BL
14 AWG
BL
Dashed Wiring
By electrician.
BK
BL
LS2
LS1
LS2
LS1
BK
WH
BL
BK
OR
RD
12345 678TB
BK RD RD
BK
BL
RD
RD
BK
BK BK WH WH
GN/YL 14 AWG
GN
RD 14 AWG
BK 14 AWG
WH 14 AWG
GN14 AW
G
BK 14 AWG
RD
PROJECTOR
OUTLET
MOTOR
BK
WH
L1 NGRD
BL
14 AWG
BL
BL
Location of key
operated On-off
switch if furnished.
Dashed Wiring
By electrician.
To 110-120 Vac Line
RD
COM
DOWNUP
COM
DOWNUP
COM
DOWNUP
LVC-IV (Low Voltage & Wireless) Control
IR Eye Input
Low Voltage
Tr igger
3-28 VDC
RS232/485
Inputs/Outputs
Receiver
Button 3 Button Wall Switch
DOWN - Black
COM - White
UP - Red
W
all Switch
Electrically Straight
Data Cable to more
LVC-IV modules*
*A maximum of six (6)
LVC-IV modules can
be linked together.
FUSE - 3.15 AMP
250 VAC 5x20mm
Dashed wiring by electrician
Low voltage wiring by others
Green/Yellow (Ground)
White -Common to Lift &
110V-220V AC Neutral
Yellow-to
110V-220V
AC-Hot
Black-to
110V-220V
AC-Hot
Red-to LIFT(DOWN)
Brown-to LIFT (UP)
12345 678L1NGND
To 110 -120V
AC Line
Key Operated On-Off
switch (if furnished).
AeroLift Terminal Block
UP
N N
DN COM
