Draper AN50-90 User manual

50-90mm
AIR NAILER
■STOCK No.66492 ■PART No.AN50-90
• INSTRUCTIONS •
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE
SAFE AND EFFECTIVE USE OF THIS TOOL.
GENERAL INFORMATION
This manual has been compiled by Draper Tools and is an integrated part of the power tool equipment, which
should be kept with the machine.
This manual describes the purpose for which this tool has been designed and contains all the necessary
information to ensure its correct and safe use.We recommend that this manual is read before any operation of
the machine, before performing any kind of adjustment to the machine, and prior to any maintenance tasks. By
following all the general safety instructions contained in this manual, it will ensure both machine and operator
safety, together with longer life of the tool itself.
All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the
machine.
Whilst every effort has been made to ensure accuracy of information contained in this manual, the Draper Tool
policy of continuous improvement determines the right to make modifications without prior warning.
09/2001

50-90mm
AIR NAILER
■STOCK No.66492 ■PART No.AN50-90
CONTENTS: Page No.
Contents/Declaration .......................................................................................1
Specification/Guarantee...................................................................................2
General Safety Warnings..................................................................................3
Getting to Know Your Air Nailer........................................................................4
Operation & Use............................................................................................5-8
Maintenance/Troubleshooting .........................................................................8
Optional Accessories .......................................................................................9
- 1 -
We
Draper Tools Ltd. Hursley Road, Chandler’s Ford, Eastleigh, Hampshire.
SO53 1YF. England.
Declare under our sole responsibility that the product:
Part No:- AN50-90
Stock No- 66492
Description:- Air Nailer Kit
To which this declaration relates is in conformity with the following directive(s)
98/37/EC
With reference to: prEN792-13, ISO8662-1, ISO3744 & ISO11201
JOHN DRAPER
Managing Director 13/08/2001
DECLARATION OF CONFORMITY

- 2 -
The Draper Tools policy of continuous improvement determines the right to change specification
without notice.
Part No. .............................................................................................................. AN50-90
Stock No. ................................................................................................................ 66492
Operating air pressure ......................................................................................80-120PSI
Max. operating air pressure....................................................................................120PSI
Air inlet size ..........................................................................................................1⁄4"BSP
To drive nails length ..........................................................................................50-90mm
Head type..............................................................................................Round (full head)
Shank diameter ..............................................................................................2.87-4.1mm
Angle ..........................................................................................................................21°
Collated nail type........................................................................................Plastic coated
Firing modes ..................................................................................Single shot, Bump fire
Magazine capacity ..................................................................................................60pcs.
Dimensions ........................................................................................380 x 490 x 150mm
Weight......................................................................................................................3.6kg
Sound pressure level ..........................................................................................96 dB(A)
Sound power level ............................................................................................104 dB(A)
Vibration level ......................................................................................................4.6m/s2
ALWAYS WEAR EAR AND EYE PROTECTION
SPECIFICATION
AIR TOOL GUARANTEE
Draper air tools have been carefully tested and inspected before shipment and are
guaranteed to be free from defective materials and workmanship for 6 months from the
date of purchase except where tools are hired out when the guarantee period is ninety
days from the date of purchase.
Should the machine develop any fault, please return the complete tool to your nearest
authorized warranty repair agent or contact Draper Tools Limited, Chandler’s Ford,
Eastleigh, Hampshire, SO53 1YF. England. Telephone [phone].
If, upon inspection, it is found that the fault occurring is due to defective materials or
workmanship, repairs will be carried out free of charge. This guarantee does not apply
to normal wear and tear, nor does it cover any damage caused by misuse, careless or
unsafe handling, alterations, accident, or repairs attempted to made by any persons
other than the authorized Draper warranty repair agent.
This guarantee applies in lieu of any other guarantee expressed or implied and
variations of its terms are not authorized.
Your Draper guarantee is not effective unless you can produce upon request a dated
receipt or invoice to verify your proof of purchase within the guarantee period.
Please note that this guarantee is an additional benefit and does not affect your
statutory rights.
Draper Tools Limited

- 3 -
GENERAL SAFETY INSTRUCTIONS
FOR AIR TOOL PRODUCTS
WARNING
Please read the following instructions carefully, failure to do so could lead to serious
personal injury.
IMPORTANT
Draper Tools Limited recommends that this machine should not be modified or used for
any application other than that for which it was designed. If you are unsure of its relative
applications do not hesitate to contact us in writing and we will advise you.
1.Always wear safety goggles or glasses.
2. Always ensure machine is switched off before connecting to air supply.
3. Disconnect any machine form the air supply before changing blades or discs and
before servicing any type of machine.
4. Always keep your air tool clean and lubricated. Daily lubrication is essential to avoid
internal corrosion and possible failure.
5. Do not wear watches, rings, bracelets or loose clothing when using air tools.
6. Using only light weight coil hoses from a tool to the wall or compressor coupling . Do
not fit quick change couplings onto the machine as vibration can cause the coupling
to fail.
7. Do not overload the machine. Allow the tool to operate at it optimum speed for
maximum efficiency.
8. Do not increase the air pressure above the manufacturers recommended level, as
excessive overload can cause the machine casing to split. Also this creates excessive
wear on moving part and may cause possible failure.
9. In the interests of safety and possible damage to the machine/operator, always ensure
the machine has stopped before putting it down after use.
10. Always ensure the work piece is is firmly secures leaving both hands free to control
the machine.
11. Always ensure that accessories such as blades, discs, sockets, etc. are
rated/designed for use with the machine and are securely fastened correctly before
connecting the machine to the air supply.
12.When grinding, sanding or cutting always wear appropriate face mask or
respiratory equipment.

- 4 -
GETTING TO KNOW YOUR
AIR NAILER
Fig.1.
1. Hand grip.
2. Magazine.
3. Trigger.
4. 360º Rotating Exhaust.
5. Safety lever.
6. Shot mode selection nut.
7. Magazine latch.
8. Air inlet.
9. Mini oil can.
10. Hexagon wrenches.
11. Safety goggles.
12. Spark deflector.
✕✌
✜✌ ✖✌ ✛✌
✢✌
✕✔✌
✕✕✌
✙✌
✕✖✌
✗✌
✚✌
✘✌
Fig.1.

- 5 -
OPERATION & USE
AIR SUPPLY
This nailer operates at a maximum of 120PSI and should be controlled via a combined
regulator, oil and water separator such as the Draper 4222/3 unit which with proper
maintenance will ensure a constant supply of dry air and lubricating oil at all times.
See illustration below. Always check machine operating pressure before use.
Water in the compressor tank will cause serious corrosion to your air tools and should
be drained daily to avoid excessive water in your air supply. Dirty wet air rapidly
shorten the life of your air tool.
If you are using an air tool on a hose over 25ft. long, it is advisable to increase the bore
of the hose to the next larger size available, ie. 1⁄4" increases to 3⁄8". This will ensure
adequate pressure and volume of air to power the machine.
RECOMMENDED AIR SUPPLY
FITTING THE WHIP HOSE CONNECTION
To connect the nailer to an airline, a 1⁄4" BSP male whip hose will be required (Draper
Stock No.54438).Wind a length of PTFE tape (Draper Stock No.63389) around the
thread and tightly secure the hose in place for an airtight connection.

OPERATION & USE
LOADING THE MAGAZINE (Fig.2 - 4)
Note: Always disconnect the tool from the air
supply before any adjustments or
maintenance is carried out.
Pull the magazine latch ✪✌ back to the rear
of the magazine until it engages and locks in
place.
Load the nails (50-90mm) in through the rear
of the magazine at point ✫✌.Fig.3.
See Page 9 for the list of nails available.
To release, pull the latch towards the rear of
the magazine. Lift catch ✬✌ and slowly allow
the spring action to push the nails into place.
Fig.4.
CHECKING THE SAFETY LEVER (Fig.5 & 6)
Note: The air nailer is fitted with a trigger
lock.When the magazine is empty or nearing
empty, the safety lever becomes enabled,
stopping the firing operation.
Disconnect from the air supply. Ensure the
magazine is empty and lock the magazine
latch to the rear. The safety lever ✭✌ should
move in or out without any obstruction. To
test the safety lever is working correctly,
connect the tool to the air supply.
- 6 -
✪✌
✫✌
✬✌
✭✌
Fig.2
Fig.3
Fig.4
Fig.5

OPERATION & USE
- 7 -

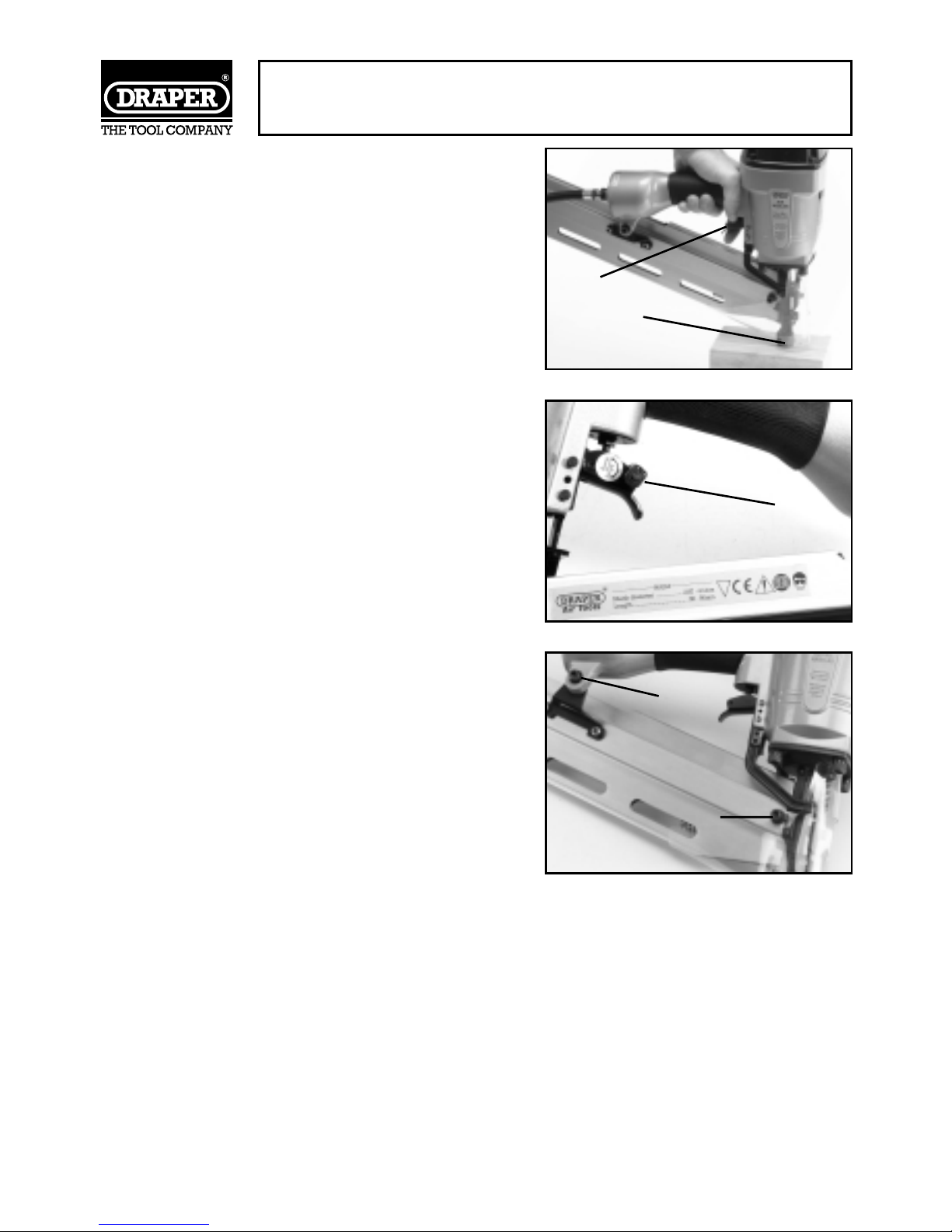

Push the safety lever ✮✌ against a scrap
piece of wood, without pulling the trigger
✯✌. The tool must not fire. Should this
happen, the tool must be replaced
immediately. Hold the tool away from the
piece of wood and the safety lever should
return to its original position. Pull the
trigger, the tool must not fire. Should this
happen the tool must be replaced
immediately. Press the lever in against a
scrap piece of wood and pull the trigger.
The tool should fire. This is correct.
FIRING ADJUSTMENT (Fig.7)
The AN50-90 has two firing modes:
SINGLE SHOT: This allows the trigger to be
pulled once after the safety lever has been
activated. Push down catch ✰✌ and
position to the left.
BUMP SHOT: This allows the trigger to be
pulled and the nails fired by activating the
safety lever. Push down catch ✰✌ and
position to the right.
CLEARING A JAM (Fig.8)
In the unlikely event of a nail becoming
jammed, disconnect the air supply and
remove nuts ✱✌ and ✲✌ and remove the
magazine. Once access to the chamber has
been cleared, remove the obstruction and
reconnect the magazine correctly and
secure the nuts.
✮✌
✰✌
✱✌
Fig.6
Fig.7
Fig.8
✯✌
✲✌

MAINTENANCE
- 8 -
PROBLEMS POSSIBLE CAUSES REMEDIES
Tool runs at normal speed ■Motor parts worn. ■Lubrication clutch housing.
but loses speed under load ■Cam clutch worn or stick due to lack of lubricant. ■Check for excess clutch oil. Clutch cases need only
be half full. Overfilling can cause drag on high
speed clutch parts, ie. a typical oiled/lubricated
wrench requires 1⁄2ounce of oil
GREASE LUBRICATED NOTE: Heat usually
indicates insufficient grease in chamber. Severe
operating conditions may require more frequent
lubrication.
Tool runs slowly. Air flows ■Motor parts jammed with dirt particles.
slightly from exhaust. ■Power regulator in closed position.
■Air flow block by dirt.
Tools will not run. Air flows ■One or more motor vanes stuck due to material
freely from exhaust. build up.
Tool will not shut off. ■‘O’ ring throttle valve dislodged from seat inlet valve. ■Replace ‘O’ ring or return to service centre.
Note: Repairs should be carried out by a qualified person.
DRAPER HELPLINE [phone].
TROUBLE SHOOTING
Some air tools have inbuilt regulators which can be used to control speed/torque performance, on
machines without inbuilt regulators this can be done by varying the pressure of your air supply
regulator.
MAINTENANCE:
Every day, before use, remove the tool from the air line, use an oil can and pour the equivalent of a
tablespoon of suitable oil into the machine (through the air intake). Operate at low speed to
ensure lubrication of all moving parts. If machine is in constant use or is to be used for long
periods of time a combination filter/lubricator must be fitted in the system. At all times the system
must be fitted with an air filter.
Recommended oils are Shell Tellus 22, Duckhams Zircon 32 or Castrol AWS32. Do not use
normal engine oil or similar.
Please note: failure to comply with the above Maintenance/Operating Instructions could
invalidate the Guarantee.
■Check air inlet filter for blockage.
■Pour air tool lubricating oil into air inlet as per
instructions.
■Operate tool in short bursts quickly reversing
rotation back and forth where applicable.
■Repeat above as needed. If this fails return to
service centre.
■Pour air tool lubricating tool into air inlet.
■Operate tool in short bursts of forward and/or
reverse rotation where applicable.
■Tap motor housing gently with plastic mallet.
■Disconnect supply. Free motor by rotating drive
shank manually where applicable.
■If tool remains jammed return to service centre.

OPTIONAL ACCESSORIES
- 9 -
STOCK No. PART No. DESCRIPTION LENGTH PACK
QUANTITY
66864 AAFN50 2500 NAILS 50mm 50mm 2500
66865 AAFN57 2500 NAILS 57mm 57mm 2500
66866 AAFN64 2000 NAILS 64mm 64mm 2000
66867 AAFN65 2000 NAILS 65mm 65mm 2000
66869 AAFN70 2000 NAILS 70mm 70mm 2000
66870 AAFN75 2000 NAILS 75mm 75mm 2000
66871 AAFN83 2000 NAILS 83mm 83mm 2000
66872 AAFN90 2000 NAILS 90mm 90mm 2000

NOTES
- 10 -

DRAPER TOOLS LIMITED,
Hursley Road, Chandler's Ford, Eastleigh, Hants. SO53 1YF. U.K.
Helpline: [phone].
Sales Desk: [phone].
General Enquiries: [phone].
Fax: [phone].
http://www.draper.co.uk
e-mail: [email protected]
©Published by Draper Tools Ltd.
No part of this publication may be reproduced,
stored in a retrieval system or transmitted in
any form or by any means, electronic, mechanical
photocopying, recording or otherwise without prior
permission in writing from Draper Tools Ltd.
YOUR DRAPER STOCKIST
