Draper HT5053 User manual

This manual has been compiled by Draper Tools and is an integrated part of the product with which it is enclosed and
should be kept with it for future references.
This manual describes the purpose for which the product has been designed and contains all the necessary information
to ensure its correct and safe use. We recommend that this manual is read before any operation or, before performing
any kind of adjustment to the product and prior to any maintenance tasks. By following all the general safety instructions
contained in this manual, it will ensure both product and operator safety, together with longer life of the product itself.
All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
Whilst every effort has been made to ensure accuracy of information contained in this manual, the Draper Tools policy of
continuous improvement determines the right to make modifications without prior warning.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE SAFE AND
EFFECTIVE USE OF THIS PRODUCT.
GENERAL INFORMATION
12/2004
INSTRUCTIONS FOR
500W
530mm Hedge Trimmer
Stock Nos.68077 Part Nos.HT5053

DECLARATION OF CONFORMITY
CONTENTS
Contents/Declaration ............................................................................................................... 1
Specification/Guarantee ........................................................................................................... 2
Power Supply ........................................................................................................................... 3
General Safety Instructions ....................................................................................................... 4
Added Safety Instructions ......................................................................................................... 5
Getting to Know Your Hedge Trimmer ...................................................................................... 6
Assembly .................................................................................................................................. 7
Operation and Use ...............................................................................................................
7-8
Maintenance ............................................................................................................................ 9
We :
Draper Tools Ltd.,
Hursley Road,
Chandler’s Ford,
Eastleigh, Hampshire.
SO53 1YF.
England.
Declare under our sole responsibility that the product:
Stock No:- 68077
Part No:- HT5053
Description:- Hedge Trimmer
To which this declaration relates is in conformity with the following directive(s) 98/37/EC,
73/23/EEC, 89/336/EEC & 2000/14/EC.
With reference to: EN50144-2-15:1997+prA1:1999, EN50144-1:1998, EN55014-1:1993+A1
:1997+A2:1999, EN55014-2:1997, EN61000-3-2:1995/A1:1998/A2:1998, EN61000-3-3:1995
J.N. Draper
Managing Director 06/12/2001
- 1 -

- 2 -
SPECIFICATION
GUARANTEE
Draper Tools have been carefully tested and inspected before shipment and are guaranteed to
be free from defective materials and workmanship for a period of 12 months from the date of
purchase except where tools are hired out when the guarantee period is ninety days from the
date of purchase.
Should the machine develop any fault, please return the complete tool to your nearest
authorized warranty repair agent or contact Draper Tools Limited, Chandler's Ford, Eastleigh,
Hampshire, SO53 1YF. England. Telephone: [phone].
If upon inspection it is found that the fault occurring is due to defective materials or
workmanship, repairs will be carried out free of charge. This guarantee does not apply to
normal wear and tear, nor does it cover any damage caused by misuse, careless or unsafe
handling, alterations, accident, or repairs attempted or made by any personnel other than the
authorised Draper warranty repair agent.
This guarantee applies in lieu of any other guarantee expressed or implied and variations of its
terms are not authorised.
Your Draper guarantee is not effective unless you can produce upon request a dated receipt or
invoice to verify your proof of purchase within the 12 month period.
Please note that this guarantee is an additional benefit and does not affect your statutory
rights.
Draper Tools Limited.
The Draper Tools policy of continuous improvement determines the right to change specification
without notice.
Stock No. .......................................................................................................................... 68077
Part No. ......................................................................................................................... HT5053
Voltage ..................................................................................................................... 230V/50Hz
Motor ................................................................................................................................ 500W
Blade length ................................................................................................................... 530mm
Blade cutting length ....................................................................................................... 500mm
Max. cutting diameter........................................................................................................ 14mm
Speed (no load)............................................................................................................. 1600rpm
Sound pressure level .................................................................................................. 83.4dB(A)
Sound power level ...................................................................................................... 96.4dB(A)
Vibration level .............................................................................................................. 2.66M/s2
Weight (machine only) ..................................................................................................... 3.5kg
SAFETY GOGGLES AND SUITABLE GLOVES MUST BE WORN.

- 3 -
CHARGER POWER SUPPLY
- Connecting to the Power Supply:
To eliminate the possibility of an electric shock your machine has been fitted with a BS approved, non
rewireable moulded plug and cable which incorporates a fuse, the value of which is indicated on the pin
face of the plug. If the plug is marked with the symbol and the fuse needs replacing, an
approved BS1362 fuse must be used of the same amp rating. If the plug is not marked, a fuse
with the symbol, BS Kitemark, or both and BS Kitemark, of the same amp rating
should be used.
- The fuse cover is detachable, never use the plug with the cover omitted. If a replacement fuse cover is
required, ensure it is the same colour as that visible on the pin face of the plug (i.e. red). Fuse covers are
available from your Draper Tools stockist.
If the fitted plug is not suitable, it should be cut off and destroyed. *The end of the cable should now be
suitably prepared and the correct type of plug fitted. See below.
-*WARNING:
A plug with bare flexible wires exposed is hazardous if engaged in a live power socket outlet.
-WARNING: THIS APPLIANCE IS DOUBLE INSULATED.
- The mains lead is coloured Blue – Neutral, Brown – Live.
- As these colours may not correspond with the coloured markings identifying the terminals in your plug,
proceed as follows:
- The wire which is coloured blue must be connected to the terminal which is marked with the letter ‘N’ or
coloured black or blue.
The wire which is coloured brown must be connected to the terminal which is marked with the letter ‘L’ or
coloured red or brown.
- EXTENSION LEAD CHART:
Extension lead sizes shown assure a voltage drop of not more than 5% at rated load of tool.
It is highy recommended that this machine is used in conjunction with an RCD (Residual current
device) Draper Stock No.69307.
131063
Ampere rating
(on Name plate)
Wire Size mm2
Extension cable length (Metres)
7.5
15
22.5
30
40
0.75
0.75
0.75
0.75
0.75
0.75
0.75
0.75
0.75
0.75
1.0
1.0
1.0
1.25
1.5
1.25
1.5
1.5
1.5
2.5

- 4 -
GENERAL SAFETY INSTRUCTIONS
WARNING:
Please read the following instructions carefully, failure to do so could lead to serious personal injury. When using electric tools, basic safety
precautions, including the following, should always be followed to reduce the risk of fire, electric shock and personal injury. Read all these
instructions before operating this product and save these instructions.
IMPORTANT:
Draper Tools Limited recommends that this machine should not be modified or used for any application other than that for which it was designed.
If you are unsure of its relative applications do not hesitate to contact us in writing and we will advise you.
IMPORTANT NOTE:
Residual Risk. Although the safety instructions and operating manuals for our tools contain extensive instructions on safe working with power
tools, every power tool involves a certain residual risk which can not be completely excluded by safety mechanisms. Power tools must therefore
always be operated with caution!
1. KNOW YOUR POWER TOOL:
Read and understand the owner's manual and labels
affixed to the tool. Learn its application and limitations
as well as the specific potential hazards peculiar to
this tool.
2. KEEP WORK AREA CLEAN:
Cluttered areas and benches invite accidents.
Floors must not be slippery due to oil or sawdust.
3. AVOID DANGEROUS ENVIRONMENTS:
Do not use power tools in damp or wet locations, or
expose them to rain. Keep work area well lit. Provide
adequate space surrounding the work area. Do not use
in environments with a potentially explosive atmosphere.
4. KEEP CHILDREN AWAY:
All visitors should be kept a safe distance from work area.
5. STORED TOOLS:
When not being used, all tools should be stored in a
dry, locked cupboard and out of the reach of children.
6. WEAR PROPER CLOTHING:
Do not wear loose clothing, neckties or jewellery (rings,
wristwatches) to catch in moving parts. NONSLIP
footwear is recommended. Wear protective hair covering
to contain long hair. Roll long sleeves above the elbow.
7. USE SAFETY GOGGLES (Head Protection):
Wear CE approved safety goggles at all times. Normal
spectacles only have impact resistant lenses, they are
NOT safety glasses. Also, use face or dust mask if
application is dusty and ear protectors (plugs or muffs)
during extended periods of operation.
8. NOISE LEVELS:
Some types of machines may have high noise levels
when working. In such cases ear protection must be worn.
9. VIBRATION LEVELS:
Hand held power tools produce different vibration
levels. You should always refer to the specifications and
relevant Health and Safety guide.
10. DUST EXTRACTION:
If your tool is fitted with a dust extraction fitting, always
ensure that it is connected and being used with a dust
extractor. Vacuum cleaners can be used if suitable for
the material being extracted.
11. PROTECT YOURSELF FROM ELECTRIC SHOCK:
When working with power tools, avoid contact with any
earthed items (e.g. pipes, radiators, hobs and
refrigerators, etc.). If you are using a power tool in
extreme conditions (e.g. high humidity or generating
metal dust), always use an RCD (residual current
device) at the power socket.
12. STAY ALERT:
Always watch what you are doing and use common
sense. Do not operate a power tool when you are tired
or under the influence of alcohol or drugs.
13. WHEN WORKING OUT OF DOORS:
Only use extension leads designed for that purpose.
14. ACCESS TO MAINS SOCKET:
If a stationary machine is fitted with a moulded plug and
cable, the machine should not be positioned so that
access to the mains socket is restricted.
15. DISCONNECT POWER TO THE TOOL:
When not in use, before servicing and when changing
accessories such as cutters, etc.
16. AVOID ACCIDENTAL STARTING:
Make sure the switch is in the OFF position before
plugging the machine into the power supply.
17. NEVER LEAVE MACHINE RUNNING UNATTENDED:
Turn power off. Do not leave machine until it comes to a
complete stop.
18. DO NOT ABUSE THE CORD:
Never carry the tool by the power cable or pull it from
the socket. Keep the power cable away from heat, oil
and sharp edges. If the supply cord is damaged, it must
be replaced by the manufacturer or its service agent or
a similarly qualified person in order to avoid hazard.
19. NEVER STAND ON TOOL:
Serious injury could occur if the tool is tipped or if the
cutting tool is accidentally contacted. Do not store
materials above or near the tool, so that it is necessary
to stand on the tool to reach them.
20. CHECK DAMAGED PARTS:
Before further use of the tool, a guard or other part that
is damaged should be carefully checked to determine
that it will operate properly and perform its intended
function. Check for alignment of moving parts, free
running of moving parts, breakage of parts, mounting
and any other conditions that may affect its operation.
A guard or other part that is damaged should be
repaired properly or replaced by an authorized service
centre unless otherwise indicated in this instruction
manual. Have defective switches replaced by an
authorized service facility. Do not use the tool if the
switch does not turn it on and off.
21. KEEP GUARDS IN PLACE:
And in working order.
22. MAINTAIN TOOLS WITH CARE:
Keep tools sharp and clean for the best and safest
performance. Follow instructions for lubricating and
changing accessories. All extension cables must be
checked at regular intervals and replaced if damaged.
Always keep the hand grips on the tool clean, dry and
free of oil and grease.
23. USE RECOMMENDED ACCESSORIES:
Consult the owners manual for recommended
accessories. Follow the instructions that accompany
the accessories. The use of improper accessories may
cause hazards.
24. REMOVE ADJUSTING KEYS AND WRENCHES:
Form a habit of checking to see that keys and adjusting
wrenches are removed from the tool before turning it on.
25. SECURE WORK:
Use clamps or a vice to hold work. This frees both hands
to operate the tool.
26. DO NOT OVERREACH:
Keep proper footing and balance at all times.
27. USE RIGHT TOOL:
Do not force the tool or attachment to do a job for which
it was not designed.
28. DO NOT FORCE TOOL:
It will do the job better and safer at the rate for which it
was designed.
29. DIRECTION OF FEED:
Feed work into a blade or cutter against the direction
of rotation of the blade or cutter only.
30. WHEN DRILLING OR SCREWING INTO WALLS:
Always make sure there is no danger of hitting any
hidden power cables, water or gas pipes in the wall.
31. HAVE YOUR TOOL REPAIRED BY A QUALIFIED PERSON:
This electric tool is in accordance with the relevant safety
requirements. Repairs should only be carried out by
qualified persons using original spare parts, otherwise
this may result in considerable danger to the user.

- 5 -
ADDED SAFETY INSTRUCTIONS
1. Keep the machine away from children.
2. Always remove the plug from the socket before carrying out adjustment,
servicing or maintenance.
3. The hedge trimmer must always be held with both hands.
4. Before using the hedge trimmer clear the work area of any foreign objects that could cause
a hazard. Check bush/hedge for any hidden hazards like wire fencing etc.
5. Should the blade become jammed, switch the hedge trimmer off immediately and unplug,
before investigating the cause. Once the cause of the jam has been cleared, take care when
switching the machine on again.
6. Appropriate safety equipment must be worn.
7. Ensure a RCD is used in conjunction with the hedge trimmer.
8. Keep the power cable away from the cutting blades at all times.
9. Do not use the trimmer during wet weather or on wet hedges etc.
10. Carry the hedge trimmer by the approriate handles.
11. Store the trimmer, when not in use, in a suitable dry location, out of the reach of children.
Always ensure the blade is well lubricated and covered by the blade cover.
12. Do not over reach. Do not work on slippery or uneven surfaces.

- 6 -
GETTING TO KNOW YOUR
HEDGE TRIMMER
(1) Cutting Blade.
(2) Safety Guard.
(3) On/Off Switch.
(4) Safety Switch.
(5) Front Hand Grip.
(6) Rear Hand Grip.
(7) BS Moulded Plug & Cable.
(8) Blade Guard.
- UNPACKING: After removing the packing material, make sure the product is in perfect
condition and that there are no visible damaged parts. If in doubt, do not use the hedge
trimmer and contact the dealer from whom it was purchased.
The packaging materials (plastic bags, polystyrene, etc.), must be disposed of in an
appropriate refuse collection container. These materials must not be left within the reach of
children as they are potential sources of danger.
(1)
(2)
(3)
(5)
(4)
(6)
(7)
(8)

- 7 -
ASSEMBLY
OPERATION AND USE
(B)
(A) (A)
(C)
(D)
FIG.1
FIG.2
NOTE: Remove the plug from the socket before carrying
out adjustment, servicing or maintenance.

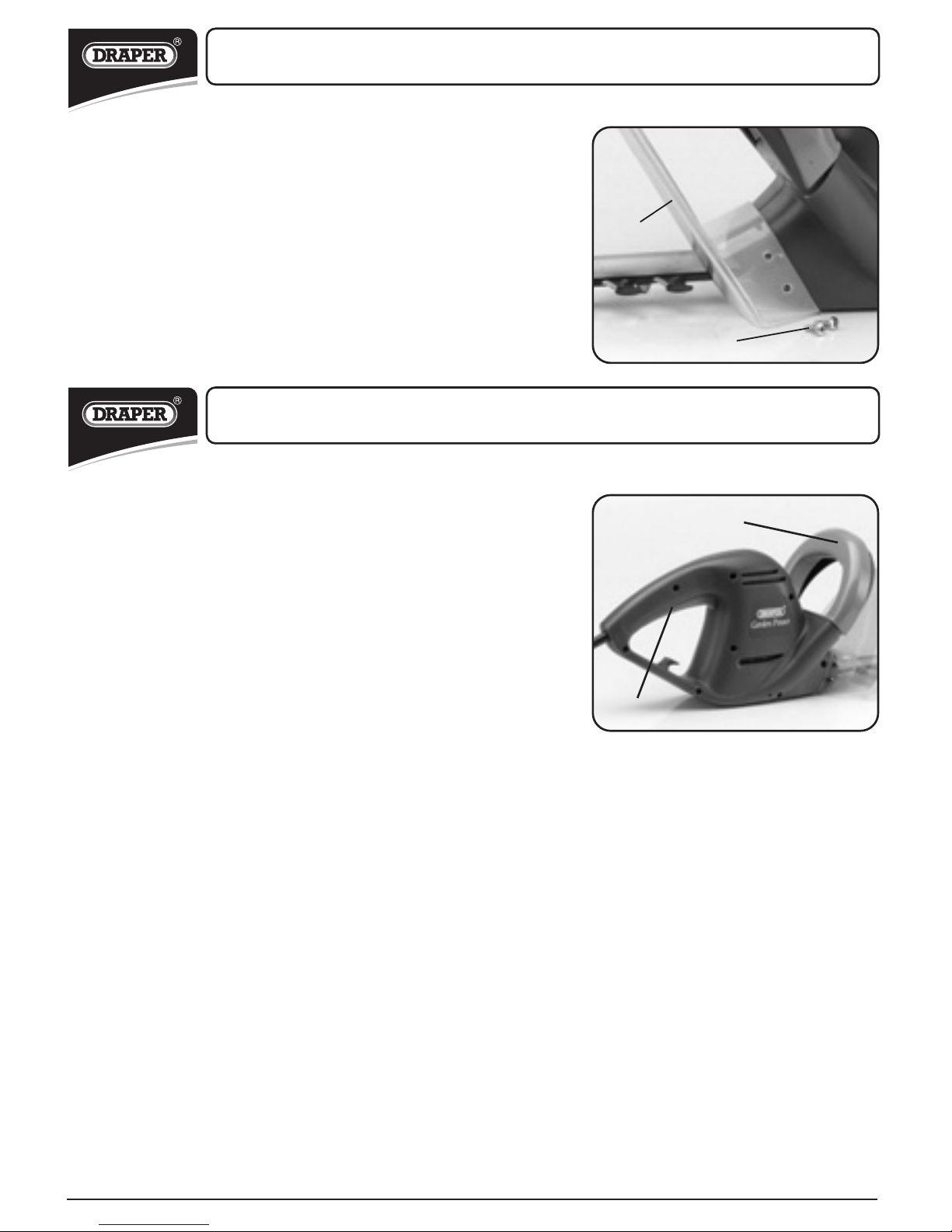

FITTING THE SAFETY GUARD (Fig.1):
Pass the guard (A) over the end of the blade, and slide
into position. Fix in place using screws (B). Two in each
side.
NOTE: Do not overtighten the screws and damage the
guard or housing
It is highy recommended that this machine is used in
conjunction with an RCD (Residual current device) Draper
Stock No.69307.
TWO PART SAFETY SWITCH (Fig.2):
To switch the hedge trimmer on, both the safety switches
must be operated together. Pull switch (C) and switch
(D) in any order. When either switch is released the safety
brake will operate, stopping the blade.
NOTE: This trimmer is fitted with a Quick Stop Blade
Brake (0.5 secs.).
Ensure the ground you are working on is flat and even. Be
careful not to lose your balance, when working up a step
ladder or any other form of raised platform, do not over
reach and always maintain a secure footing.
This hedge trimmer will enable you to cut or trim bushes
and hedges. Branches which are too thick for the hedge
trimmer, should be cut with an appropriate tool. Older
and thicker hedges are best cut in a sawing action. The
optimum cutting angle between the blade and the hedge
is between 15-30°.

- 8 -
OPERATION AND USE
(E)
(F)
(G)
FIG.3
FIG.4
FIG.5

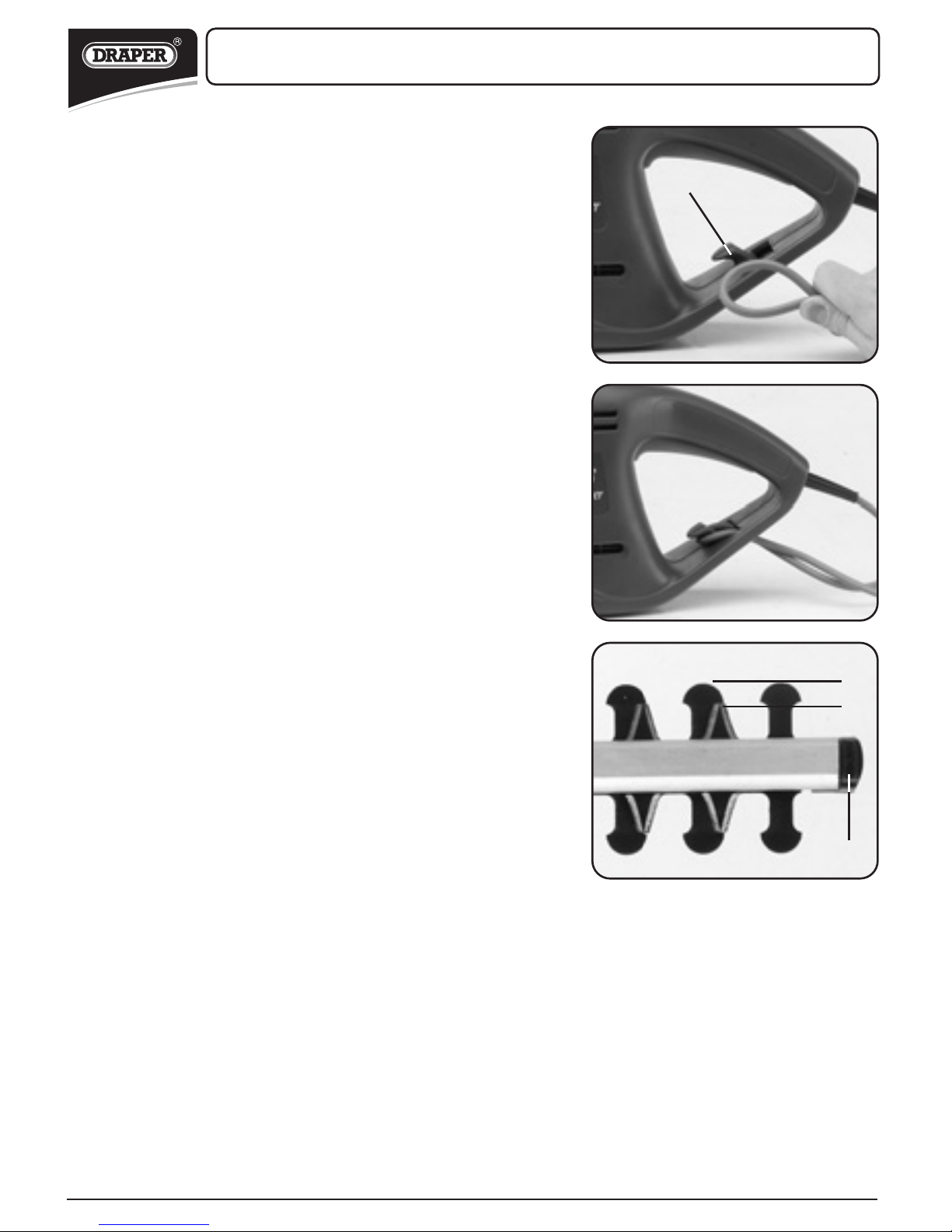

USING CABLE CLAMP (Figs.3 & 4):
To help prevent damage to the cable. The handle has a
cable clamp. Gather a small loop in the cable near the
handle end. Pass this through the hole in the under side of
the handle and loop it around peg (E).
BLADE SAFETY RAIL & IMPACT PROTECTION (Fig.5):
The cutting blade is set back from the edge of the safety
rail which reduces the risk of injuries due to accidental
contact with the blades. This gap is illustrated by (F).
The impact protection (G) is on the end of the rail and
helps absorb any contact between solid objects and the
blades (stops recoil from the blade striking a wall for
example).

- 9 -
FIG.6
MAINTENANCE
Remove the plug from the socket before carrying out
adjustment, servicing or maintenance.

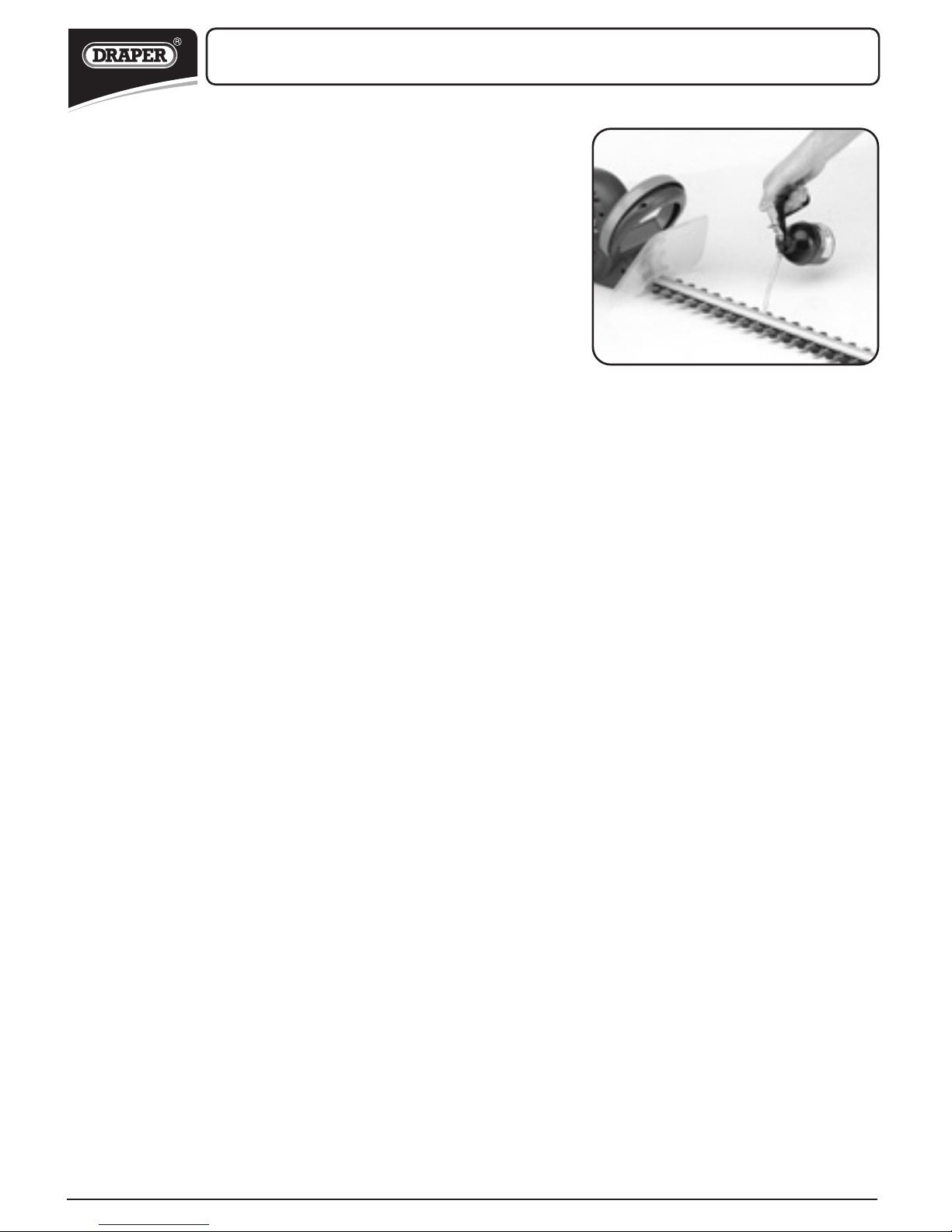

CLEANING AND LUBRICATING (Fig.6):
After every use, before storing the hedge trimmer away
the following should be carried out.
1. Remove all debris from the cutting blade
using a wire brush or other suitable tool.
2. Using an enviromentaly friendly oil
(Draper Stock No. 58670) lubricate the
cutting blade.
3. Operate the cutting blades to allow the oil
to work into the blades.
4. Carry out steps 2 & 3 several times more.
5. Store the hedge trimmer away with the
blade cover in place.
NOTE: This hedge trimmer is intended for trimming
hedges and bushes only and any other use consitutes
inappropriate use.

NOTES
- 10 -

CONTACTS
- DRAPER TOOLS LIMITED,
Hursley Road,
Chandler's Ford,
Eastleigh,
Hampshire.
SO53 1YF. U.K.
- Helpline: [phone].
- Sales Desk: [phone].
- General Enquiries: [phone].
- Fax: [phone]
- Internet: www.draper.co.uk
- E-mail: [email protected]
YOUR DRAPER STOCKIST
©Published by Draper Tools Limited.
No part of this publication may be reproduced, stored in a retrieval system or
transmitted in any form or by any means, electronic, mechanical photocopying,
recording or otherwise without prior permission in writing from Draper Tools Ltd.
