1. TITLE PAGE

1.1 INTRODUCTION:

USER MANUAL FOR: 12V DC DIESEL FUEL/WATER TRANSFER PUMP

Stock No’s: 54044

Part No’s: BWP13

As our user manuals are continually updated, users should make sure that they

use the very latest version.

Downloads are available from: http://drapertools.com/manuals

Draper Tools Limited

Hursley Road

Chandler’s Ford

Eastleigh

Hampshire

SO53 1YF

Website: drapertools.com

Product Helpline: +44 (0) 23 8049 4344

General Fax: +44 (0) 23 8026 0784

1.3 UNDERSTANDING THIS MANUALS SAFETY CONTENT:

WARNING! – Information that draws attention to the risk of injury or death.

CAUTION! – Information that draws attention to the risk of damage to the

product or surroundings.

Permission is granted to reproduce this publication for personal and educational

use only. Commercial copying, redistribution, hiring or lending is prohibited.

No part of this publication may be stored in a retrieval system or transmitted in

any other form or means without written permission from Draper Tools Limited.

In all cases this copyright notice must remain intact.

1.2 REVISIONS:

Date first published May 2018.

NOTES

- 15 -

2.1 CONTENTS

- 14 -

2. CONTENTS

- 3 -

NOTES

1. TITLE PAGE

1.1 INTRODUCTION ................................................................................................................. 1

1.2 REVISION HISTORY ..........................................................................................................2

1.3 UNDERSTANDING THIS MANUAL..................................................................................... 2

1.4 COPYRIGHT NOTICE......................................................................................................... 2

2. CONTENTS

2.1 CONTENTS......................................................................................................................... 3

3. GUARANTEE

3.1 GUARANTEE ...................................................................................................................... 4

4. INTRODUCTION

4.1 SCOPE ................................................................................................................................ 5

4.2 SPECIFICATION ................................................................................................................. 5

4.3 HANDLING AND STORAGE ............................................................................................... 5

5. HEALTH AND SAFETY INFORMATION

5.1 GENERAL SAFETY INSTRUCTIONS................................................................................. 6

5.2 CONNECTION TO THE POWER SUPPLY......................................................................... 6

6. TECHNICAL DESCRIPTION

6.1 IDENTIFICATION ................................................................................................................ 7

7. UNPACKING AND CHECKING

7.1 PACKAGING ....................................................................................................................... 8

7.2 WHAT’S IN THE BOX..........................................................................................................8

8. PREPARING THE PUMP

8.1 INSTALLATION.................................................................................................................... 9

9. TROUBLESHOOTING

9.1 TROUBLESHOOTING....................................................................................................... 10

10. MAINTENANCE

10.1 MAINTENANCE .............................................................................................................. 11

11. EXPLANATION OF SYMBOLS

11.1 EXPLANATION OF SYMBOLS........................................................................................ 12

12. DISPOSAL

12.1 DISPOSAL....................................................................................................................... 13

DECLARATION OF CONFORMITY ..............................................................................ENCLOSED

3. GUARANTEE

3.1 GUARANTEE

Draper tools have been carefully tested and inspected before shipment and are guaranteed to be

free from defective materials and workmanship.

Should the tool develop a fault, please return the complete tool to your nearest distributor or

contact:

Draper Tools Limited, Chandler's Ford, Eastleigh, Hampshire, SO53 1YF. England.

Telephone Sales Desk: (023) 8049 4333 or:

Product Helpline (023) 8049 4344.

A proof of purchase must be provided.

If upon inspection it is found that the fault occurring is due to defective materials or workmanship,

repairs will be carried out free of charge. This guarantee period covering parts/labour is 12 months

from the date of purchase except where tools are hired out when the guarantee period is 90 days

from the date of purchase. The guarantee is extended to 24 months for parts only. This guarantee

does not apply to normal wear and tear, nor does it cover any damage caused by misuse, careless

or unsafe handling, alterations, accidents, or repairs attempted or made by any personnel other

than the authorised Draper warranty repair agent.

Note: If the tool is found not to be within the terms of warranty, repairs and carriage charges will be

quoted and made accordingly.

This guarantee applies in lieu of any other guarantee expressed or implied and variations of its

terms are not authorised.

Your Draper guarantee is not effective unless you can produce upon request a dated receipt or

invoice to verify your proof of purchase within the guarantee period.

Please note that this guarantee is an additional benefit and does not affect your statutory rights.

Draper Tools Limited.

- 4 - - 13 -

12. DISPOSAL

12.1 DISPOSAL

At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is

disposed of according to national regulations.

Contact your local authority for details of collection schemes in your area.

In all circumstances:

– Do not dispose of power tools with domestic waste.

– Do not incinerate.

– Do not abandon in the environment.

– Do not dispose of WEEE* as unsorted municipal waste.

* Waste Electrical & Electronic Equipment.

4. INTRODUCTION

- 5 -

- 12 -

4.1 SCOPE

This pump is designed to pump standard diesel fuel or water. Do not pump "diesel alternatives"

with this pump.

4.2 SPECIFICATION

Stock no. ............................................................................................................................. 54044

Part no. ............................................................................................................................... BWP13

Motor:

Rated voltage .................................................................................................................12V DC

Rated input .......................................................................................................................... 50W

Maximum flow rate ..............................................................................................................30L/min

Power cable length..................................................................................................................... 3M

Suitable for what liquids .................................................................................... Diesel fuel & water

Dimensions............................................................................................... 51mmØ x 180mm height

Weight (machine) .................................................................................................................0.57kg

Supplied accessories: Hose (3M), hose clips x2, metal hose joining tube.

WARNING! Not to be used with petrol, alcohol or any other flammable liquid/fuel. Not for

use with bio diesel.

4.3 HANDLING AND STORAGE

When not in use this pump should be stored empty of any residual fluids. Ensure that the power

cable is stored in such a manner as to avoid any damage to the power cable.

Never carry the pump by holding its power cable. Never lift the pump by its power cable. When

lifting or carrying the pump be sure to hold the pump by its main body so as not to strain or

otherwise cause damage to the pumps power cable or water seals.

11. EXPLANATION OF SYMBOLS

WEEE

Do not dispose of Waste Electrical & Electronic

Equipment in with domestic rubbish.

Warning! Read the instruction manual.

11.1 EXPLANATION OF SYMBOLS

5. HEALTH AND SAFETY INFORMATION

- 6 - - 11 -

5.1 GENERAL SAFETY INSTRUCTIONS

1. Never use this pump with petrol, alcohol or any other type of flammable fuel or liquid.

2. Never operate this pump near any flammable liquids/fuels/gases.

3. Do not use to pump bio diesel as it can dry to a hard residue and impair the product.

4. When choosing a suitable site to use this product keep in mind that connecting the clamps of

the power cable can produce sparks. So keep away from any flammable liquids/fuels/gases.

5. Be aware of the safety guidelines for the safe use of batteries, contact the maker of your battery

for further information.

5.2 CONNECTION TO THE POWER SUPPLY

Ensure that the battery you use to power this pump is of a suitable type (12V).

Before connecting this pump to your chosen battery, ensure that the power switch is in the OFF

position.

Connect the black clamp to the negative terminal of your battery first, followed by the red positive

clamp to the batteries positive terminal.

10. MAINTENANCE

10.1 MAINTENANCE

After each use the pump and hose should be completely drained of fluids and allowed to dry prior

to storage.

The pump body should be cleaned with water and a cloth and the power cable inspected for

damage before storing until next use. When storing the kit lightly coat the hose clips in oil to

prevent rusting during storage. After use with diesel fuel, it is advisable to run the pump in clean

water for a few minutes to flush any residue from the pump.

- 7 -

6. TECHNICAL DESCRIPTION

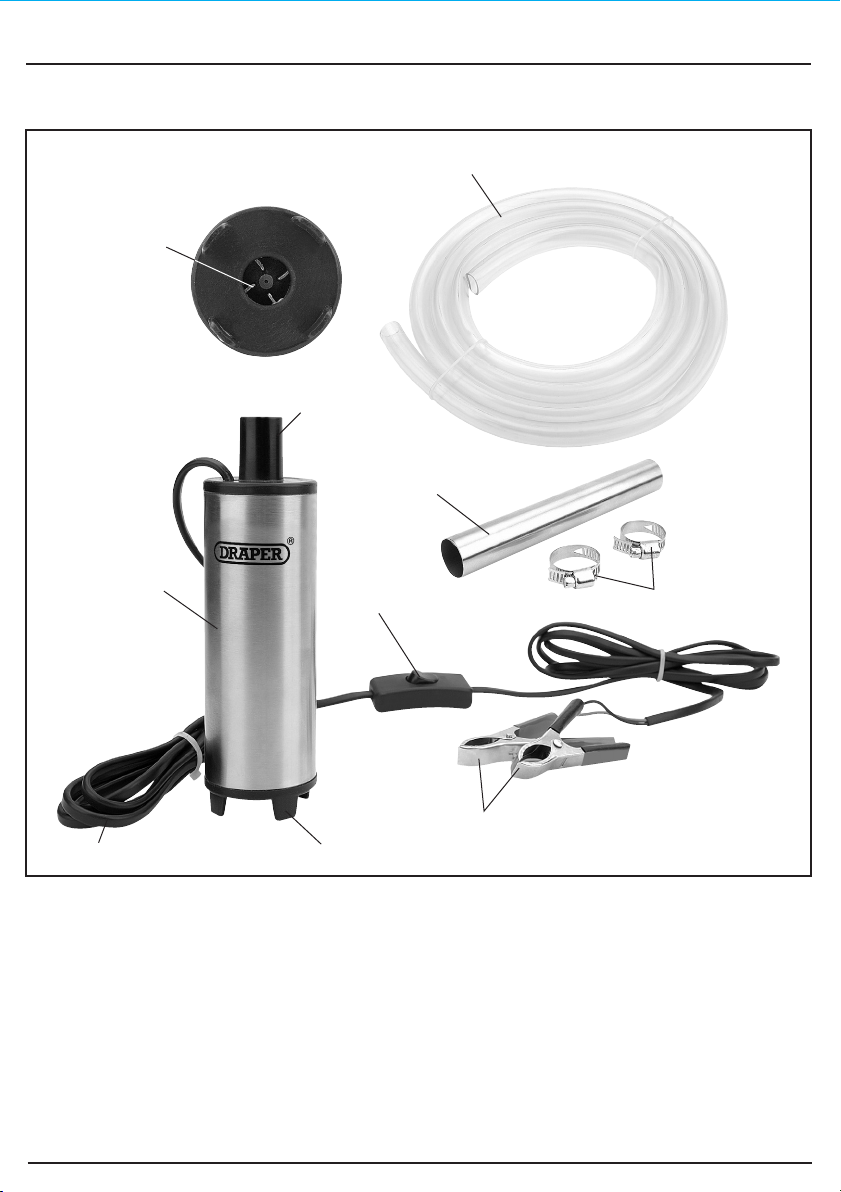

6.1 IDENTIFICATION

 Main pump body

 Support feet

 Outlet

 Power cable

 Impeller

 Power switch

 Battery terminal clamps

 Hose clamps x2

 Hose joining tube x1

 Length of hose (3M)





















- 10 -

9. TROUBLESHOOTING

Pump fails to pump 1. Battery flat.

2. Battery connection fault.

3. Debris jammed in impeller.

1. Re-charge battery.

2. Re-check battery connections.

3. Check and extract any debris stuck

in impeller.

Pump operates at a

reduced flow rate

Problem Cause Remedy

1. Impeller aperture blocked jammed

impeller.

1. Check and remove any debris

obstructing the impeller aperture or

impeller rotation.

1. Outlet hose detached from pump

outlet aperture.

1. Check and re-attach hose to pump

outlet pipe.

Pump turned on but

no liquid coming from

outlet pipe.

9.1 TROUBLESHOOTING

WARNING: For your safety always turn the main switch on the machine "off" and remove the

battery clips from the power supply before carrying out any maintenance or trouble shooting.

- 8 - - 9 -

8. PREPARING THE PUMP

FIG.1

7. UNPACKING AND CHECKING

7.1 PACKAGING

Carefully remove the pump and accessories from the packaging and examine them for any sign of

damage that may have happened during shipping. Lay the contents out and check them against

the parts shown below. If any part is damaged or missing; please contact the Draper Helpline (the

telephone number appears on the Title page) and do not attempt to use the pump.

The packaging material should be retained at least during the guarantee period: in case the

machine needs to be returned for repair.

Warning! Some of the packaging materials used may be harmful to children. Do not leave any of

these materials in the reach of children.

If any of the packaging is to be thrown away, make sure they are disposed of correctly; according

to local regulations.

7.2 WHAT´S IN THE BOX?

As well as the pump; there are several parts not fitted or attached to it.

 Hose clamps x2

 Hose joining pipe x1

 Hose 3M long







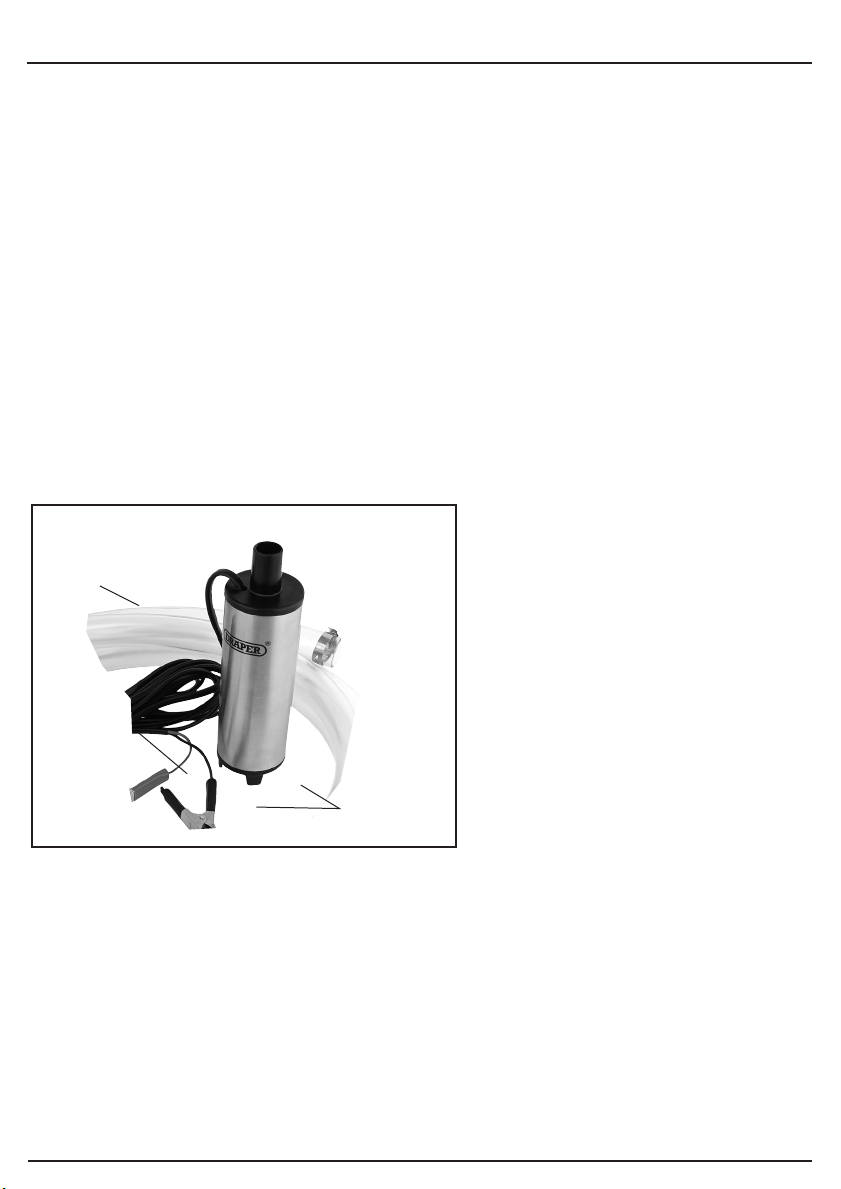

8.1 INSTALLATION - FIGS. 1-2

40mm

Minimum

The pump should be installed standing

vertically in the liquid to be pumped. If the

liquid is clean with no debris the pump can

be placed at the bottom of the container and

pumping can commence (see fig.2).

If however there is any debris in the liquid to

be pumped you must place the pump on a

stable level surface situated so as to avoid

the pump sucking up any debris and

potentially damaging or jamming the pump.

Once the pump is installed into the liquid to

be pumped care must be used in the

position chosen for the placement of the

battery power source, the battery should be

located on a safe, stable and level surface

away from the liquid that is being pumped.

Care must also be exercised in making sure

that the power on/off switch is not

positioned so that it may get wet and / or

have liquids interfere with its operation.

CAUTION

During use the level of the fluid being

pumped should be monitored.

Failure to monitor the fluid level can result in

an insufficient fluid level for pumping to

continue, resulting in the motor racing and

damage to the pump. The minimum fluid

level required for pumping is 40mm.

FIG.2

- 8 - - 9 -

8. PREPARING THE PUMP

FIG.1

7. UNPACKING AND CHECKING

7.1 PACKAGING

Carefully remove the pump and accessories from the packaging and examine them for any sign of

damage that may have happened during shipping. Lay the contents out and check them against

the parts shown below. If any part is damaged or missing; please contact the Draper Helpline (the

telephone number appears on the Title page) and do not attempt to use the pump.

The packaging material should be retained at least during the guarantee period: in case the

machine needs to be returned for repair.

Warning! Some of the packaging materials used may be harmful to children. Do not leave any of

these materials in the reach of children.

If any of the packaging is to be thrown away, make sure they are disposed of correctly; according

to local regulations.

7.2 WHAT´S IN THE BOX?

As well as the pump; there are several parts not fitted or attached to it.

 Hose clamps x2

 Hose joining pipe x1

 Hose 3M long







8.1 INSTALLATION - FIGS. 1-2

40mm

Minimum

The pump should be installed standing

vertically in the liquid to be pumped. If the

liquid is clean with no debris the pump can

be placed at the bottom of the container and

pumping can commence (see fig.2).

If however there is any debris in the liquid to

be pumped you must place the pump on a

stable level surface situated so as to avoid

the pump sucking up any debris and

potentially damaging or jamming the pump.

Once the pump is installed into the liquid to

be pumped care must be used in the

position chosen for the placement of the

battery power source, the battery should be

located on a safe, stable and level surface

away from the liquid that is being pumped.

Care must also be exercised in making sure

that the power on/off switch is not

positioned so that it may get wet and / or

have liquids interfere with its operation.

CAUTION

During use the level of the fluid being

pumped should be monitored.

Failure to monitor the fluid level can result in

an insufficient fluid level for pumping to

continue, resulting in the motor racing and

damage to the pump. The minimum fluid

level required for pumping is 40mm.

FIG.2

- 7 -

6. TECHNICAL DESCRIPTION

6.1 IDENTIFICATION

 Main pump body

 Support feet

 Outlet

 Power cable

 Impeller

 Power switch

 Battery terminal clamps

 Hose clamps x2

 Hose joining tube x1

 Length of hose (3M)





















- 10 -

9. TROUBLESHOOTING

Pump fails to pump 1. Battery flat.

2. Battery connection fault.

3. Debris jammed in impeller.

1. Re-charge battery.

2. Re-check battery connections.

3. Check and extract any debris stuck

in impeller.

Pump operates at a

reduced flow rate

Problem Cause Remedy

1. Impeller aperture blocked jammed

impeller.

1. Check and remove any debris

obstructing the impeller aperture or

impeller rotation.

1. Outlet hose detached from pump

outlet aperture.

1. Check and re-attach hose to pump

outlet pipe.

Pump turned on but

no liquid coming from

outlet pipe.

9.1 TROUBLESHOOTING

WARNING: For your safety always turn the main switch on the machine "off" and remove the

battery clips from the power supply before carrying out any maintenance or trouble shooting.

5. HEALTH AND SAFETY INFORMATION

- 6 - - 11 -

5.1 GENERAL SAFETY INSTRUCTIONS

1. Never use this pump with petrol, alcohol or any other type of flammable fuel or liquid.

2. Never operate this pump near any flammable liquids/fuels/gases.

3. Do not use to pump bio diesel as it can dry to a hard residue and impair the product.

4. When choosing a suitable site to use this product keep in mind that connecting the clamps of

the power cable can produce sparks. So keep away from any flammable liquids/fuels/gases.

5. Be aware of the safety guidelines for the safe use of batteries, contact the maker of your battery

for further information.

5.2 CONNECTION TO THE POWER SUPPLY

Ensure that the battery you use to power this pump is of a suitable type (12V).

Before connecting this pump to your chosen battery, ensure that the power switch is in the OFF

position.

Connect the black clamp to the negative terminal of your battery first, followed by the red positive

clamp to the batteries positive terminal.

10. MAINTENANCE

10.1 MAINTENANCE

After each use the pump and hose should be completely drained of fluids and allowed to dry prior

to storage.

The pump body should be cleaned with water and a cloth and the power cable inspected for

damage before storing until next use. When storing the kit lightly coat the hose clips in oil to

prevent rusting during storage. After use with diesel fuel, it is advisable to run the pump in clean

water for a few minutes to flush any residue from the pump.
