Draper WBP2A User manual

IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE SAFE AND
EFFECTIVE USE OF THIS PRODUCT.
GENERAL INFORMATION
These instructions accompanying the product are the original instructions. This document is part of the product, keep it
for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed, and
contains all the necessary information to ensure its correct and safe use. By following all the general safety instructions
contained in this manual, it will ensure both product and operator safety, together with longer life of the product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools
policy of continuous improvement determines the right to make modifications without prior warning.
INSTRUCTIONS FOR
350W Submersible
Water Butt Pumps
Stock No.36327 Part No.WBP2A
36376 WBP3A
38241 SWBP4A
Stock No.38241
Stock No.36327
Stock No.36376

1. TITLE PAGE
1.1 INTRODUCTION:
USER MANUAL FOR:
SUBMERSIBLE WATER BUTT PUMPS
Stock No’s: 36327, 36376, 38241.
Part No’s: WBP2A, WBP3A, SWBP4A.
Pump type: 230V AC 12V DC Li-ion Solar powered 12V DC
battery powered. with Li-ion battery.
1.2 REVISIONS:
As our user manuals are continually updated, users should make sure that they use the very
latest version.
Downloads are available from: http://www.drapertools.com/b2c/b2cmanuals.pgm
DRAPER TOOLS LIMITED WEBSITE: www.drapertools.com
HURSLEY ROAD PRODUCT HELPLINE: [phone]
CHANDLER’S FORD GENERAL FAX: [phone]
EASTLEIGH
HAMPSHIRE
SO53 1YF
UK
1.3 UNDERSTANDING THIS MANUALS SAFETY CONTENT:
WARNING! Information that draws attention to the risk of injury or death.
CAUTION! Information that draws attention to the risk of damage to the product or
surroundings.
NOTE! Important information.
1.4 COPYRIGHT © NOTICE:
Copyright © Draper Tools Limited.
Permission is granted to reproduce this publication for personal & educational use only.
Commercial copying, redistribution, hiring or lending is prohibited.
No part of this publication may be stored in a retrieval system or transmitted in any other
form or means without written permission from Draper Tools Limited.
In all cases this copyright notice must remain intact.
Date first published November 2014.

2. CONTENTS
3
2.1 CONTENTS
Page content Page
1 TITLE PAGE
1.1 INTRODUCTION ............................................................................................... 2
1.2 REVISION HISTORY........................................................................................... 2
1.3 UNDERSTANDING THIS MANUAL ................................................................... 2
1.4 COPYRIGHT NOTICE......................................................................................... 2
2 CONTENTS
2.1 CONTENTS ........................................................................................................ 3
3 GUARANTEE
3.1 GUARANTEE ..................................................................................................... 4
4 INTRODUCTION
4.1 SCOPE ............................................................................................................... 5
4.2 SPECIFICATION ................................................................................................. 5
4.3 HANDLING & STORAGE ................................................................................... 5
5 HEALTH & SAFETY INFORMATION
5.1 GENERAL SAFETY INSTRUCTIONS FOR WATER BUTT PUMP USE .................. 6
5.2 SPECIFIC SAFETY INSTRUCTIONS FOR PUMP USE ........................................... 7
5.3 CONNECTION TO THE POWER SUPPLY ........................................................... 7
6 TECHNICAL DESCRIPTION
6.1 IDENTIFICATION ............................................................................................... 8
7 UNPACKING & CHECKING
7.1 PACKAGING...................................................................................................... 10
8 ASSEMBLING THE WATER BUTT PUMP
8.1 EXTENSION TUBES............................................................................................ 11
9 OPERATING THE WATER BUTT PUMP
9.1 HORIZONTAL PUMPING DISTANCE ................................................................. 12
9.2 CONNECTION TO HOSE/CHARGING THE BATTERY ........................................ 12
9.3 INSTALLATION.................................................................................................. 13
9.4 POSITIONING THE PUMP.................................................................................. 13
9.5 FLOW REGULATING ......................................................................................... 13
10 MAINTENANCE
10.1 FILTER REMOVAL ............................................................................................. 14
11 TROUBLESHOOTING
11.1 TROUBLESHOOTING......................................................................................... 15
12 DISPOSAL
12.1 DISPOSAL.......................................................................................................... 16
13 EXPLANATION OF SYMBOLS
13.1 EXPLANATION OF SYMBOLS ........................................................................... 17
DECLARATION OF CONFORMITY .....................................................................................ENCLOSED

4
3. GUARANTEE
3.1 GUARANTEE
Draper tools have been carefully tested and inspected before shipment and are guaranteed to
be free from defective materials and workmanship.
Should the tool develop a fault, please return the complete tool to your nearest distributor or
contact Draper Tools Limited, Chandler's Ford, Eastleigh, Hampshire, SO53 1YF. England.
Telephone Sales Desk: [phone] or Product Helpline [phone].
A proof of purchase must be provided with the tool.
If upon inspection it is found that the fault occurring is due to defective materials or
workmanship, repairs will be carried out free of charge. This guarantee period covering
parts/labour is 12 months from the date of purchase except where tools are hired out when the
guarantee period is ninety days from the date of purchase. The guarantee is extended to 24
months for parts only. This guarantee does not apply to normal wear and tear, nor does it cover
any damage caused by misuse, careless or unsafe handling, alterations, accidents, or repairs
attempted or made by any personnel other than the authorised Draper warranty repair agent.
Note: If the tool is found not to be within the terms of warranty, repairs and carriage charges
will be quoted and made accordingly.
This guarantee applies in lieu of any other guarantee expressed or implied and variations of its
terms are not authorised.
Your Draper guarantee is not effective unless you can produce upon request a dated receipt or
invoice to verify your proof of purchase within the guarantee period.
Please note that this guarantee is an additional benefit and does not affect your statutory rights.
Draper Tools Limited.

5
4. INTRODUCTION
4.1 SCOPE
These pumps are designed for pumping rain water out of a water butt for garden/plant
watering.
4.2 SPECIFICATION
Stock No. ............................................36327 ........................... 36376..............................38241
Part No. ............................................ WBP2A ......................... WBP3A ....................... SWBP4A
Rated voltage ..............................230V AC 50Hz.................... 12V DC.......................... 12V DC
Rated input ........................................350W..............................65W................................. 65W
Maximum total head ..........................11M...............................11M................................. 11M
Maximum operating depth .................3M.................................3M.................................... 3M
Maximum output ........................... 2500L/hr ....................... 1700L/hr ...................... 1700L/hr
Maximum particle size Ø ................... 3mm ............................. 3mm ............................... 3mm
Maximum liquid temp. ......................35ºC...............................35ºC.................................35ºC
Output diameter .............................. 19mm ........................... 19mm ............................ 19mm
Ingress protection ..............................IPX8...............................IPX8................................. IPX8
Continuously rated .............................. No ................................. No .....................................No
Thermal overload protection ............ YES ............................... YES .................................. YES
*On time: 30mins
Off time: 10mins
WARNING: The pump must be supplied through a residual current device (RCD) having a
rated residual operating current not exceeding 30mA.
4.3 HANDLING & STORAGE
Although these machines are small in size, care must still be taken when handling and lifting.
Dropping these machines will have an effect on the accuracy and may also result in personal
injury. This machine is not a toy and must be respected.
The environment will have a negative result on its operation if you are not careful. If the air
is damp, components will rust. If these machines are unprotected from dust and debris;
components will become clogged: And if not cleaned and maintained correctly or regularly
the machine will not perform at its best.

5. HEALTH & SAFETY INFORMATION
6
5.1 GENERAL SAFETY INSTRUCTIONS FOR WATER BUTT PUMP USE
When carrying or lifting the submersible water butt pump always use the transport handle,
DO NOT carry or lift using the power cable.
The pump must not be used when people are in the water.
The pump must be supplied through a residual current device (RCD) having a rated residual
operating current not exceeding 30mA.
35°C maximum liquid temperature.
The electrical supply should be the same as that stated on the rating plate.
Submersible water pumps should always be transported, stored, and submersed vertically.
Always ensure that hands are dry when connecting and disconnecting the power supply.
Never operate the pump below the top of the water inlet.
The area being pumped should be kept clear, and nobody should enter the area while pump
is operating.
IMPORTANT: PLEASE READ BEFORE USE:
The following additional instructions must be followed at all times. Failure to do so could
invalidate the guarantee of this submersible water pump.
Clean water pumps are NOT suitable for use in dirty water.
NOTE: The pump, should be suspended using a rope or chain or stood on a brick to prevent
any gravel etc. being sucked into the pump.
If pump fails to operate, disconnect from mains supply. Remove the base (see page 6) and
gently turn the impeller using a screwdriver. Check for obstruction in the impeller, i.e.
stones/gravel etc.
If the power cable becomes damaged it must be changed by the manufacturer or it’s service
agents.
IMPORTANT: Any pump returned to Draper Tools Ltd under warranty must be CLEAN. If a
pump is received that has NOT been cleaned, it will be returned to you at your cost.

5.3 CONNECTION TO THE POWER SUPPLY
Make sure the power supply information on the machine’s rating plate are compatible with
the power supply you intend to connect it to.
This water pump comes supplied with a UK standard 3 pin plug fitted. It is designed for
connection to a domestic power supply rated at 230V AC.
Apart from replacing the fuse in the plug, no other electrical work is recommended on this
water pump.
5.2 SPECIFIC SAFETY INSTRUCTIONS FOR PUMP USE
Have this tool repaired by a qualified person. This tool is designed to confirm to the relevant
international and local standards and as such should be maintained and repaired by someone
qualified; using only original parts supplied by the manufacturer: This will ensure the tool
remains safe to use.
1. Before connecting to the power supply:
i. A residual current circuit breaker (RCD) must be used for all applications.
ii. The electrical supply should be the same as stated on the rating plate.
2. Surface mounted pumps should always be transported and stored horizontally on the base
plate.
3. Always ensure that hands are dry when connecting and disconnecting the power supply.
4. Never operate the pump dry.
5. The area being pumped should be kept clear, nobody should enter area while pump is
operating.
THE FOLLOWING ADDITIONAL INSTRUCTIONS MUST BE FOLLOWED AT ALL TIMES. FAILURE
TO DO SO COULD INVALIDATE THE GUARANTEE OF THIS SUBMERSIBLE WATER PUMP.
1. The float switch must be clamped in position using cable clamp recess (see page 9, fig.10).
2. Clean water pumps are not suitable for use in dirty water.
3. These water pumps are designed for pumping water only.
The addition of any chemicals, chlorine or additives to the water could damage the pump,
this would be considered misuse and would not be covered under warranty.
4. When using clean water pumps in a pond or where there is gravel, mud, leaves, etc.
NOTE: The pump, should be suspended using a rope or chain or stood on a brick to
prevent any gravel, etc., being sucked into the pump.
5. If the pump fails to operate, disconnect from mains supply. Remove output elbow and
turn the impeller using a screwdriver or finger. Check for obstruction in the impeller, i.e.
stones/gravel, etc.
6. The float switch fitted to this pump is not suitable for continuous use as an on/off switch.
IMPORTANT: ANY PUMP RETURNED TO DRAPER TOOLS UNDER WARRANTY MUST BE
CLEAN. IF A PUMP IS RECEIVED THAT IS NOT, OR HAS NOT BEEN CLEANED, IT WILL BE
RETURNED TO YOU AT YOUR COST.
7
5. HEALTH & SAFETY INFORMATION

8














6. TECHNICAL DESCRIPTION
6.1 IDENTIFICATION
 Extension pipe
connection.
 Filtered inlet.
 Straight extension
pieces.
 Curved extension
piece.
 Male hose
connector/pump
outlet.
 Hose.
 Flow control and
On/Off switch.
 Solar Panel.
 Ground spike.
 Charger
(not shown).
 Extension pipe
connection.
 Filtered inlet.
 Straight extension
pieces.
 Curved extension
piece.
 Male hose
connector/pump
outlet.
 Hose.
 Flow control and
On/Off switch.
 Charger (not
shown).
Stock No.38241
Stock No.36376



9
6. TECHNICAL DESCRIPTION
Stock No.36327



 

 Extension pipe
connection.
 Filtered inlet.
 Straight extension
piece × 2.
 Curved extension
piece.
 Male hose
connector/pump
outlet.
 Moulded plug
& cable.
 Float switch.



7. UNPACKING & CHECKING
7.1 PACKAGING
Carefully remove the product from the packaging and examine it for any sign of damage
that may have happened during shipping. Lay the contents out and check them against your
particular model, identified in the Technical Description sections on pages 8 and 9. If any
part is damaged or missing; please contact the Draper Helpline (the telephone number
appears on the Title page) and do not attempt to use the product.
The packaging material should be retained at least during the guarantee period: in case the
machine needs to be returned for repair.
Warning! Some of the packaging materials used may be harmful to children. Do not leave
any of these materials in the reach of children.
If any of the packaging is to be thrown away, make sure they are disposed of correctly;
according to local regulations.
10

11
NOTE: Remove the plug from the socket before
carrying out adjustment, servicing or maintenance.
8.1 EXTENSION TUBES - FIGS.1 - 2
Attach the straight extension piece  to the
threaded spigot  by tightening clockwise.
Ensure seal is installed correctly to achieve a water
tight connection.
Screw the curved extension piece  onto the straight
extension piece by tightening ring .
FIG.1
FIG.2
8. ASSEMBLING THE WATER BUTT PUMP






12
9. OPERATING THE WATER BUTT PUMP

9.1 HORIZONTAL PUMPING DISTANCE
The horizontal pumping distance is directly affected by the working head height (maximum
total head minus measured working head height, times factor of 10, equals the approximate
horizontal pumping distance in metres using solid delivery hose).
For example: maximum total head is 7M, minus actual working head of 3M,
equals 4M x 10 = 40M approximate pumping distance.
9.2 CONNECTION TO HOSE - FIGS. 3 - 4
Make connection to the pump outlet with a quick
connector  on a length of hose. On the other end of
the hose, connect an appropriate accessory suitable for
the intended application.
CHARGING THE BATTERY (36376, 38241 only)
To charge the battery connect the transformer plug
adaptor to the charging port on the battery pack and
then switch on the mains socket. The transformer plug
adaptors LED will light red to indicate charging and will
change to green once charged.
FIG.3
FIG.4




13
9. OPERATING THE WATER BUTT PUMP
9.3 INSTALLATION - FIG. 5
The pump must be fully submersed before the power
is switched on. Do not turn the pump on when its dry.
Models 36376 & 38241
These models include a Li-ion (Lithium Ion) battery.
This battery must be fully charged before use.
- Model 36376 achieves this by means of a mains
charger. Charging of the battery should always be
done indoors away from rain or other water.
- Model 38241 achieves charging of the battery by
means of the mains charger as detailed for the
model above. Model 38241 also benefits from a
solar panel, the solar panel when connected to the
battery will provide a trickle charge to the battery,
this is designed to be able to keep the battery
charge topped up (actual charge applied to battery
depends on available sunlight and suitable
positioning of the solar panel). On occasions of low
sun or sunlight not directly striking the solar panel
the use of the mains charger may be required to
complete the charging of the battery.

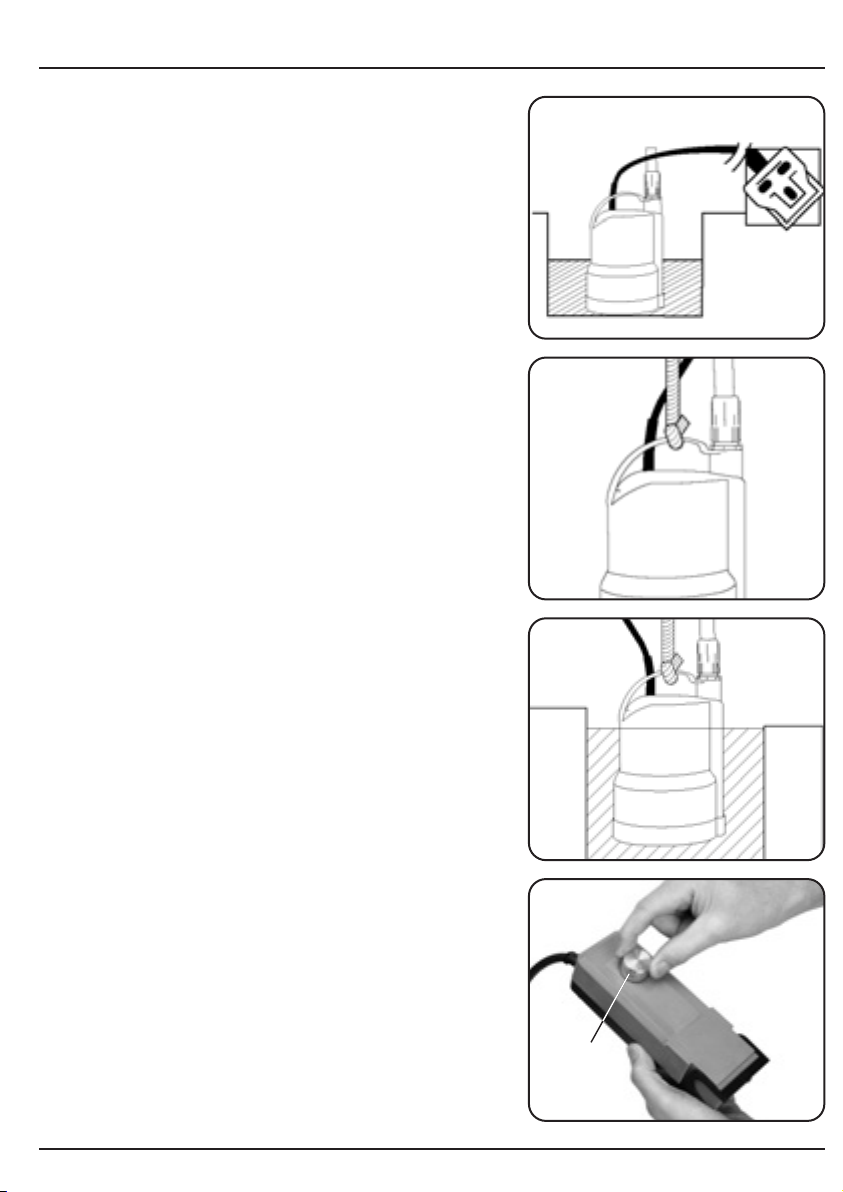

9.4 POSITIONING THE PUMP - FIGS. 6 - 7
When submersing or lifting the pump it is necessary
to use a rope or chain, this must only be attached to
the transport handle. If pumping water from a sandy
or muddy water butt, the pump can be suspended
using a rope or chain (not supplied) fixed to the
handle. Do not use any of the electric cables
for this purpose, alternatively, stand the pump on a
brick to raise it up from the dirt.
*Actual handle position on pump may differ from
illustration.
FIG.5 *
FIG.6 *
FIG.8
FIG.7 *
9.5 FLOW REGULATING - FIG. 8
When the pump is operating the flow of water can be
reduced. Turn flow control  to regulate accordingly.


10. MAINTENANCE
14

NOTE: Remove the plug from the socket before
carrying out adjustment, servicing or maintenance.
If the replacement of the power cable is necessary, this
has to be done by the manufacturer or his agent in
order to avoid a safety hazard.

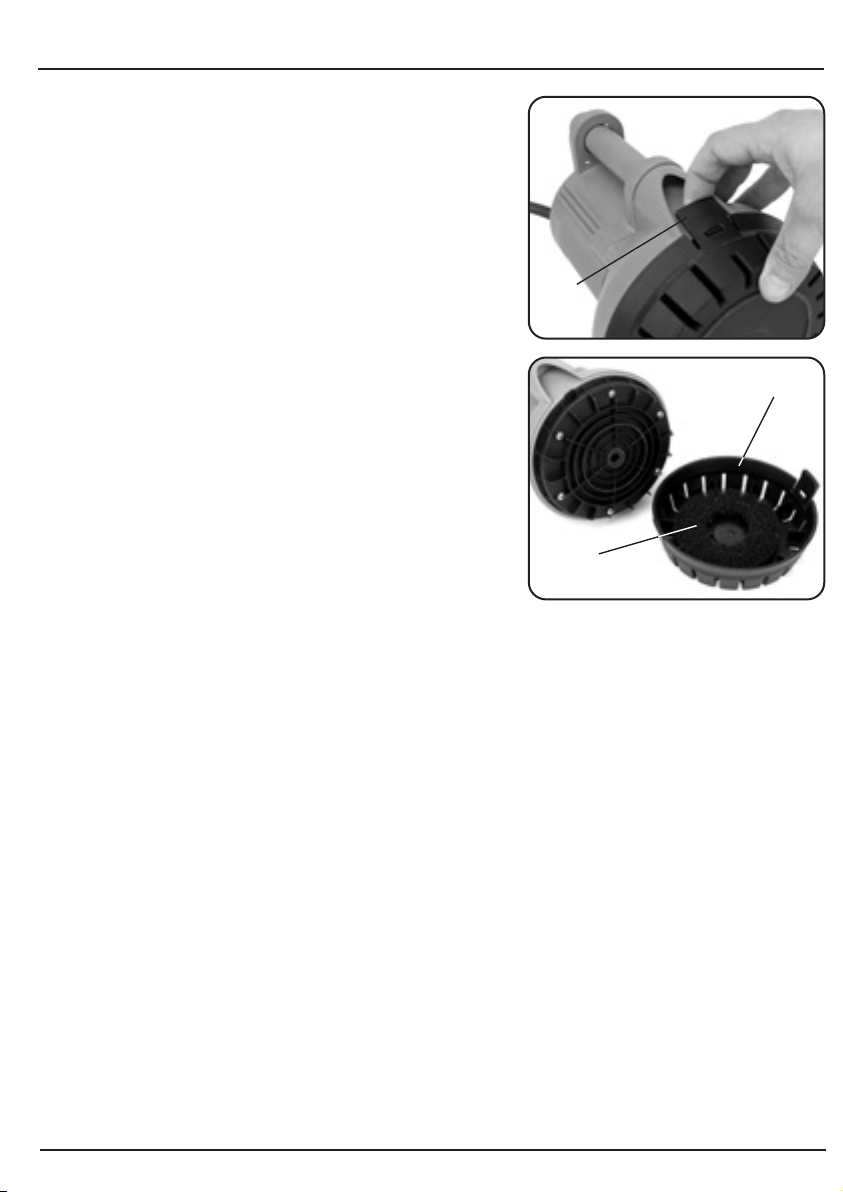

10.1 FILTER REMOVAL - FIGS. 9 - 10
From time to time it will be necessary to remove and
clean/replace the inlet filter.
With the pump disconnected from the power supply,
turn the unit over to expose the base .
Release clips  and to remove filter base, exposing
filter as shown.
Remove the filter  and rinse thoroughly with
clean water. Install the filter and secure the filter base.
Never use the pump with the filter and the cover
removed.
FIG.9
FIG.10




15
11. TROUBLESHOOTING
11.1 TROUBLESHOOTING
WARNING: For your own safety always turn the main switch on the machine "off" and
remove the plug from the power supply before carrying out any maintenance or trouble
shooting.
No power
Pump running but not
delivering water
1. Insufficient water
level.
2. Inlet clogged.
3. Hose crimped.
1. Raise water level
(where applicable).
2. Clean.
3. Straighten hose.
Problem Cause Remedy
1. Fuse.
2. Battery is not charged.
3. Other.
1. Reset/replace time delay
fuse or circuit breaker.
2. Charge the battery.
3. Return to service agent.
Pump stops running, due to
thermal overload coming
into operation.
1. Solid jammed in pump.
2. Excessive water
temperature.
3. Pump ran dry.
1. Raise water level (where
applicable). Clear
jammed solid from
pump inlet, raise pump
above any silt before
turning on again
2. Water temperature must
not exceed 35°C.
3. Adjust water level.

12. DISPOSAL
12.1 DISPOSAL
- At the end of the machine’s working life, or when it can no longer be repaired, ensure
that it is disposed of according to national regulations.
- Contact your local authority for details of collection schemes in your area.
In all circumstances:
• Do not dispose of power tools with domestic waste.
• Do not incinerate.
• Do not abandon in the environment.
• Do not dispose of WEEE*
as unsorted municipal waste.
* Waste Electrical & Electronic Equipment.
16

* Waste Electrical & Electronic Equipment.
17
13. EXPLANATION OF SYMBOLS
13.1 EXPLANATION OF SYMBOLS
WEEE
Do not dispose of Waste Electrical
& Electronic Equipment in with
domestic rubbish

18
NOTES

19
NOTES

CONTACTS
- DRAPER TOOLS LIMITED,
Hursley Road, Chandler's Ford,
Eastleigh, Hampshire. SO53 1YF. U.K.
- Helpline: [phone]
- Sales Desk: [phone]
- Website: www.drapertools.com
- E-mail: [email protected]
- Sales Fax: [phone]
- General Enquiries: [phone]
- Service/Warranty Repair Agent
For aftersales servicing or warranty repairs, please
contact the Draper Tools Helpline for details of an
agent in your local area.
YOUR DRAPER STOCKIST
KCDH180815
