Draper PWP27 User manual

INSTRUCTIONS FOR
2.5HP
Petrol Water Pump
Stock No.87680 Part No.PWP27
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE SAFE AND
EFFECTIVE USE OF THIS PRODUCT.
GENERAL INFORMATION
These instructions accompanying the product are the original instructions. This document is part of the product, keep it
for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed, and
contains all the necessary information to ensure its correct and safe use. By following all the general safety instructions
contained in this manual, it will ensure both product and operator safety, together with longer life of the product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools policy
of continuous improvement determines the right to make modifications without prior warning.

1. TITLE PAGE
1.1 INTRODUCTION:
USER MANUAL FOR:
2.5HP PETROL WATER PUMP.
Stock no. 87680.
Part no. PWP27.
1.2 REVISIONS:
As our user manuals are continually updated, users should make sure that they use the very
latest version.
Downloads are available from: http://www.drapertools.com/manuals
DRAPER TOOLS LIMITED WEBSITE: drapertools.com
HURSLEY ROAD PRODUCT HELPLINE: [phone]
CHANDLER’S FORD GENERAL FAX: [phone]
EASTLEIGH
HAMPSHIRE
SO53 1YF
UK
1.3 UNDERSTANDING THIS MANUALS SAFETY CONTENT:
WARNING! Information that draws attention to the risk of injury or death.
CAUTION! Information that draws attention to the risk of damage to the product or
surroundings.
NOTE! Important information.
1.4 COPYRIGHT © NOTICE:
Copyright © Draper Tools Limited.
Permission is granted to reproduce this publication for personal & educational use only.
Commercial copying, redistribution, hiring or lending is prohibited.
No part of this publication may be stored in a retrieval system or transmitted in any other
form or means without written permission from Draper Tools Limited.
In all cases this copyright notice must remain intact.
Date first published January 2016.

2. CONTENTS
2.1 CONTENTS
Page content Page
1 TITLE PAGE
1.1 INTRODUCTION ..................................................................................................... 2
1.2 REVISION HISTORY................................................................................................. 2
1.3 UNDERSTANDING THIS MANUAL ........................................................................ 2
1.4 COPYRIGHT NOTICE............................................................................................... 2
2 CONTENTS
2.1 CONTENTS .............................................................................................................. 3
3 GUARANTEE
3.1 GUARANTEE........................................................................................................... 4
4 INTRODUCTION
4.1 SCOPE ....................................................................................................................5
4.2 SPECIFICATION ....................................................................................................... 5
4.3 HANDLING & STORAGE ......................................................................................... 5
5 HEALTH & SAFETY INFORMATION
5.1 GENERAL SAFETY INSTRUCTIONS ...................................................................... 6-7
6 TECHNICAL DESCRIPTION
6.1 IDENTIFICATION..................................................................................................... 8
7 UNPACKING & CHECKING
7.1 PACKAGING............................................................................................................ 9
7.2 WHAT’S IN THE BOX.............................................................................................. 9
8 PREPARING THE WATER PUMP
8.1 HOSE CONNECTION ............................................................................................. 10
9 SETTING THE WATER PUMP
9.1 PREPARING THE PUMP ........................................................................................ 11
9.2 FUELLING.............................................................................................................. 11

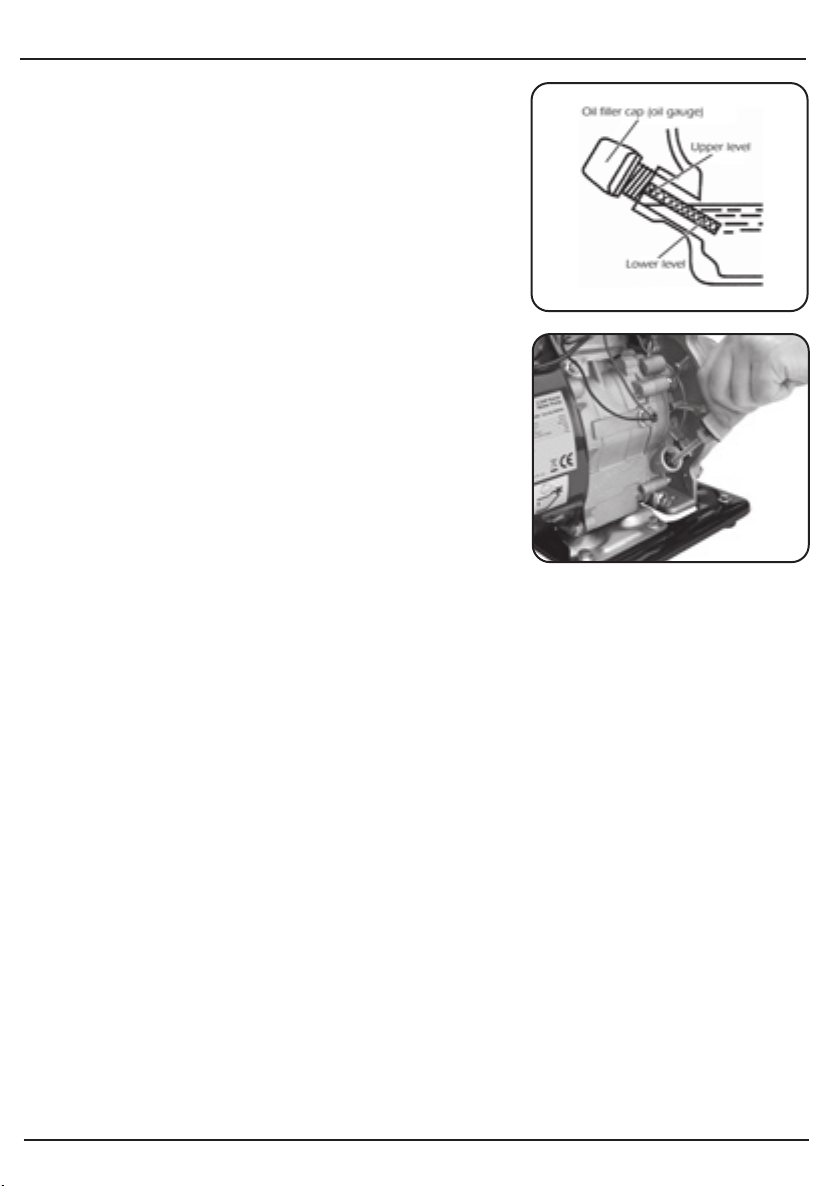

9.3 CHECKING THE ENGINE OIL................................................................................. 12
10 BASIC WATER PUMP OPERATION
10.1 PUMP PRIMING .................................................................................................... 13
10.2 STARTING THE MACHINE .................................................................................... 14
10.3 STOPPING THE MACHINE .................................................................................... 14
11 MAINTENANCE
11.1 AFTER THE FIRST 20 HOURS OPERATION ........................................................... 15
11.2 EVERY 50 HOURS OPERATION ............................................................................ 15
11.3 PERIODIC MAINTENANCE.................................................................................... 16
11.4 RISK OF FIRE ......................................................................................................... 17
11.5
RISK OF INJURY AND PROPERTY DAMAGE WHEN TRANSPORTING WATER PUMP .... 18
11.6 RISK OF BREATHING - INHALATION HAZARD .................................................... 18
11.7 RISK OF UNSAFE OPERATION.............................................................................. 18
11.8 RISK OF HOT SURFACES....................................................................................... 18
11.9 RISK OF MOVING PARTS...................................................................................... 19
11.10 RISK FROM LIFTING.............................................................................................. 19
12 OPTIONAL ACCESSORIES
12.1 DRAPER SUCTION HOSE ...................................................................................... 20
12.2 DRAPER HOSE CLAMPS........................................................................................ 20
12.3 DRAPER HOSE COUPLINGS.................................................................................. 20
12.4 DRAPER SPARK PLUG........................................................................................... 20
13 TROUBLE SHOOTING.......................................................................................................... 21
14 EXPLANATION OF SYMBOLS
14.1 EXPLANATION OF SYMBOLS............................................................................... 22
15 DISPOSAL
15.1 DISPOSAL.............................................................................................................. 23
DECLARATION OF CONFORMITY .................................................................................... ENCLOSED
3

3. GUARANTEE
3.1 GUARANTEE
Draper tools have been carefully tested and inspected before shipment and are guaranteed
to be free from defective materials and workmanship.
Should the tool develop a fault, please return the complete tool to your nearest distributor
or contact Draper Tools Limited, Chandler's Ford, Eastleigh, Hampshire, SO53 1YF. England.
Telephone Sales Desk: [phone] or Product Helpline [phone].
A proof of purchase must be provided with the tool.
If upon inspection it is found that the fault occurring is due to defective materials or
workmanship, repairs will be carried out free of charge. This guarantee period covering
parts/labour is 12 months from the date of purchase except where tools are hired out when
the guarantee period is 90 days from the date of purchase. The guarantee is extended to 24
months for parts only. This guarantee does not apply to normal wear and tear, nor does it
cover any damage caused by misuse, careless or unsafe handling, alterations, accidents, or
repairs attempted or made by any personnel other than the authorised Draper warranty
repair agent.
Note: If the tool is found not to be within the terms of warranty, repairs and carriage charges
will be quoted and made accordingly.
This guarantee applies in lieu of any other guarantee expressed or implied and variations of
its terms are not authorised.
Your Draper guarantee is not effective unless you can produce upon request a dated receipt
or invoice to verify your proof of purchase within the guarantee period.
Please note that this guarantee is an additional benefit and does not affect your statutory
rights.
Draper Tools Limited.
4

4. INTRODUCTION
4.1 SCOPE
Ideal for building sites and agricultural applications where mains power is not available.
4.2 SPECIFICATION
The Draper Tools policy of continuous improvement determines the right to change
specification without notice.
Stock no. .............................................................................................................................. 87680
Part no. ...............................................................................................................................PWP27
Engine ................................................................................................... 2.5HP 4 stroke side valve
Suction aperture ..................................................................................................................25mm
Output aperture ..................................................................................................................25mm
Max. flow........................................................................................................................... 85L/min
Max head height ....................................................................................................................10M
Max suction head height .........................................................................................................6M
Application ................................................................................................................ Clean water
Weight ................................................................................................................................... 11kg
4.3 HANDLING & STORAGE
CAUTION: Always use and store this water pump correctly, never use or store this pump on
it’s side as oil or fuel may leak and damage the pump or your property.
If the pump has been used always allow it to cool for at least 30 minutes before transporting
the pump and ensure that the pump has fully cooled before returning it to storage as a hot
engine and exhaust system could cause personal injury or ignite some materials.
To prevent fuel/oil spillage when transporting, the pump should be secured upright in it’s
normal operating position with the engine switch in the off position.
Take care not to drop or strike the pump when transporting. Never cover the pump when in
use.
Before storing the pump for a long period:-
1. Be sure that the storage area is free of excessive humidity and dust.
2. Drain the fuel, storage procedure below.
A. Unscrew the fuel tank cap, remove the filter screen and empty the fuel tank into an
approved petrol container using a commercially available hand siphon
(Draper Stock No.43650), re-install the filter screen and fuel tank cap.
B. Loosen the carburettor drain screw and drain the carburettor into a suitable container.
C. Remove the spark plug maintenance cover and remove the spark plug cap.
D. Turn the engine switch to the OFF position.
E. Pull the starter cord 3 or 4 times to empty the fuel pump of petrol, into a
suitable container.
F. Turn the engine switch to the OFF position and tighten the carburettor drain screw.
5

5. HEALTH & SAFETY INFORMATION
5.1 GENERAL SAFETY INSTRUCTIONS
NOTE: Water pumps are designed to give safe and dependable service if operated according
to instructions. Read and understand this owners manual fully before operating this pump.
You can help prevent accidents by being familiar with the pump controls and by observing
safe operating procedures.
OPERATOR RESPONSIBILITY
• Know how to stop the water pump quickly in case of emergency.
• Be sure that anyone who operates the water pump receives proper instruction in it’s safe
use.
WARNING!:
CARBON MONOXIDE HAZARDS
• Exhaust gases contain poisonous carbon monoxide, a colourless and odourless gas.
Breathing carbon monoxide can cause loss of consciousness and may lead to death.
NEVER run this water pump in an enclosed space or partly enclosed space.
ALWAYSensure a high level of ventilation in the area that you intend to use the water pump
to avoid the potential build up of carbon monoxide.
WARNING!:
FIRE AND BURN HAZARDS
• The exhaust system gets hot enough to ignite some materials.
- Keep the water pump at least 3 feet (1 metre) away from buildings and other equipment
during operation.
- Do not enclose the water pump in any structure.
- Keep flammable materials away from the water pump.
• The muffler becomes very hot during operation and remains hot for a while after stopping
the engine. Be careful not to touch the muffler while it is hot. Let the engine cool before
storing the water pump indoors.
• Petrol is extremely flammable and is explosive under certain conditions. Do not smoke or
allow flames or sparks where the water pump is refuelled or where petrol is stored. Refuel
in a well-ventilated area with the engine stopped.
• Fuel vapours are extremely flammable and may ignite after the engine has started. Make
sure that any spilled fuel has been wiped up before starting the water pump.
PUMP OPERATION
• Do not operate this product without being completely familiar on all safety aspects,
functions and most importantly how to stop the engine in an emergency.
• Never use the pump if the stop switch is FAULTY or not functional.
• Do not use the pump indoors; fumes can kill. Only operate in a well ventilated area and at
least 1M away from buildings.
• Never operate the pump without first priming it fully.
6

MAINTENANCE
• Never modify the pump in anyway.
• Always maintain the pump in good working order regularly serviced by an authorised
service agent.
• Only use replacement parts supplied by the manufacturer.
• Only use fresh, clean and good quality fuel in the engine.
• Never operate the pump without oil.
• Never refuel in close proximity to naked flames, sparks or other sources of ignition, e.g.
cigarettes.
• Allow the engine to cool before refuelling and avoid spillage while refuelling.
• Wipe up and correctly dispose of any fuel spillage immediately with a suitable medium.
• Move away from the refuelling areas before restarting the engine.
• Store fuel for short periods only. Store in a container specifically designed for
petrochemical applications away from heat and direct sun light.
• After each use clean the pump thoroughly.
• Regularly check external nuts and fixings to ensure vibration caused by normal use has
not begun to loosen them.
5. HEALTH & SAFETY INFORMATION
WARNING!:
DO NOT OPERATE THIS MACHINE IN ANY HAZARDOUS LOCATION
Such areas include when there is a risk of an explosion of petrol fumes, leaking gas or
explosive dust.
CAUTION:
ENGINE SPEED HAS BEEN FACTORY SET TO PROVIDE SAFE OPERATION
Tampering with the engine speed adjustment could result in overheating of attachments
and could cause a fire. Never attempt to "speed up" the engine to gain more performance
as this will result in the output being thrown out of their standard design parameters,
potentially endangering the user and causing irreversible damage to the water pump.
NOTE:
PROTECT YOUR WATER PUMP
This water pump is NOT WEATHERPROOF and should not be exposed to direct sunlight,
high ambient temperatures and damp, wet or high humidity conditions.
7

6. TECHNICAL DESCRIPTION
6.1 IDENTIFICATION
 Anti-vibration feet.
 Muffler [exhaust].
 Drain.
 Spark plug cap.
 Fuel tank cap.
 Fuel tank.
 Choke lever.
 Air filter housing.
 Recoil [pull] start handle.
 Throttle lever.
 Carry handle.
 HT lead.
 Outlet.
 Inlet [suction].
 Hose barb.
 Hose barb coupling.
 Oil level dipstick.
 Frame.
 Sump plug.
 Main engine switch.
 Fuel lever.




















8



7. UNPACKING & CHECKING
7.1 PACKAGING
Carefully remove the water pump from the packaging and examine it for any sign of damage
that may have happened during shipping. Lay the contents out and check them against the
parts shown below. If any part is damaged or missing; please contact the Draper Helpline
(the telephone number appears on the Title page) and do not attempt to use the water
pump.
The packaging material should be retained at least during the guarantee period: in case the
machine needs to be returned for repair.
Warning! Some of the packaging materials used may be harmful to children. Do not leave
any of these materials in the reach of children.
If any of the packaging is to be thrown away, make sure they are disposed of correctly;
according to local regulations.
7.2 WHAT´S IN THE BOX?
As well as the water pump; there are several parts not fitted or attached to it.
 Hose clamps x3 (size specific for model purchased)
 Strain filter.
9

8. PREPARING THE WATER PUMP
8.1 HOSE CONNECTION - FIGS. 1 - 2
To stop the hose collapsing on the suction side of the
pump; a solid wall (reinforced) hose must be used.
Please see optional accessories section for
recommended suction hose.
i. Unscrew hose barb coupling  from the pump
body.
ii. Slide the hose barb coupling over the hose barb
and attach the coupling to the pump.
iii. Slide hose clamp  over the solid wall hose
before pushing the hose onto hose barb ;
making certain it has gone over all the way.
iv. Use the hose clamp to grip the hose securely onto
the connector. Make certain the clamp is central on
the connector.
NOTE: Clamp the strain filter  to the other end of
the suction hose (fig.3). This helps avoid larger pieces
of debris being sucked through the pump and causing
damage.
FIG.1
FIG.2
FIG.3




10

9. SETTING THE WATER PUMP
9.1 PREPARING THE PUMP - FIGS. 4 - 7
It is important to check the pump before you
commence operating the unit.
IMPORTANT: Ensure that the engine has oil. When
leaving the factory, this water pump has NO OIL in the
engine.
NOTE: The water pump has a low oil sensor and will
not start if it has no oil (Fig.1).
9.2 FUELLING
Use unleaded petrol only.
1. Remove the petrol cap .
2. Ensure the fuel filter is in place - Do not pour fuel
into the tank without the fuel filter  in place.
3. Do not over fill - leave air gap at top of fuel level.
4. Always screw down fuel cap.
5. Clean up any spilled fuel immediately.
6. Move water pump at least 12 feet (4M) away from
the fuelling area before starting.
WARNING:
• Do not refill fuel tank while engine is running or is
hot.
• Check to ensure that the petrol cap has been
tightened and that fuel is not leaking.
• Be careful not to admit dust, dirt, water or other
foreign objects into the fuel.
• Wipe off spilt fuel thoroughly before starting
engine.
• Ensure you DO NOT fuel the pump in close
proximity to any open flames.
FIG.4
FIG.5
FIG.6
FIG.7


11

9.3 CHECKING THE ENGINE OIL - FIGS. 8 - 9
The motor of this pump is not filled with oil.
Prior to starting the motor ensure the crank case is
filled with SAE 10W-30 4 stroke oil.
Damage to the motor is not covered under warranty if
the motor is run without oil.
1. Before checking or refilling oil, be sure the pump is
put on a stable and level surface, ensuring the
engine has been switched OFF.
2. Remove the oil filter cap  by rotating the cap
anti-clockwise and inspect to see the oil level
(Fig.6).
3. If the oil level is below the lower level line, refill
with SAE 10W-30 4 stroke oil to the upper level
line.
NOTE: Do not screw in the oil filler cap  when
checking oil level, simply insert and pull the cap
straight out.
4. If the oil is contaminated or has discoloured, ensure
you change the oil. Refer to the ‘Engine oil
replacement’ section for instructions.
NOTE: This motor is fitted with a low oil sensor. If
the oil level is too low the motor will stop
operating or the motor will not start. It is advised
to check the oil level each time the pump is used.
9. SETTING THE WATER PUMP
FIG.8
FIG.9
12

10. BASIC WATER PUMP OPERATION
10.1 PUMP PRIMING
This pump is self priming, fill the pump outlet  with water then connect the hoses to the
pump as described in section 8. When the pump is started it will prime itself and then start
pumping water.
NOTE: The pump will take time to prime itself. This time is dependant on suction hose length
and could take as much as 10 minutes if the pump is further from the water source to be
pumped.
The pump should always be sited as close to the water that needs to be pumped as possible.
Ensure that all hose connections are tight. The self priming function will not work if air can
be sucked through poor hose connections.
Ensure the water pump is turned off before attempting to open the pump.
13

10. BASIC WATER PUMP OPERATION
10.2 STARTING THE MACHINE -
FIGS. 10 - 13
After all the instructions and warnings have been
followed and observed the engine is ready to start.
i. Slide the fuel lever  to the right; turning on
the fuel supply.
ii. Slide the throttle lever  to the lower
position; opening the throttle a little.
iii. Slide the choke lever  to the left; closing the
choke to help with the initial start up.
iv. Turn on the engine switch .
v. Sharply pull the recoil start handle ; do not
let go of the handle. Let the recoil handle
return slowly. Do not pull the rope out fully
while trying to start the engine.
When the engine is running and has warmed up;
i. Reopen the choke so that the engine runs
smoothly.
ii. Increase the throttle speed to begin pumping.
NOTE: Whenever the pump is not in use, lower the
idle or switch off the engine.
10.3 STOPPING THE MACHINE -
FIGS. 11 - 12
Before stopping the engine, the throttle should be
set to idle and the engine run for a couple of
minutes.
i. If the engine is only being stopped for a
moment; slide the fuel lever to the left and turn
the engine switch  off.
ii. If the engine is being stopped and later stored;
slide the fuel lever to the left and wait for the
engine to cut-out from fuel starvation before
turning the engine switch  off.
NOTE: In the event of an emergency, kill the
engine with switch .
FIG.10
FIG.11
FIG.12
FIG.13







14

11.1 AFTER THE FIRST 20 HOURS
OPERATION - FIG. 14
CHANGE THE ENGINE OIL.
i. Unscrew and remove the dipstick followed by
the sump plug . Catch the used oil in a
suitable container and dispose of it in an
approved manner.
ii. When all the oil has drained from the engine
block, replace the sump bolt and refill the
engine oil up to the maximum level.
iii. Oil grade SAE10W-30 or equivalent.
11.2 EVERY 50 HOURS OPERATION -
FIGS. 14 - 17
CHANGE THE AIR FILTER ELEMENT.
CAUTION: Do not run the engine without the air
filter element in place.
i. Unscrew the nut and remove the air filter
housing .
ii. Clean the filter element  in paraffin. When
dry soak the filter in clean engine oil.
Squeeze all the excess oil before refitting, and
assembling the housing.
SPARK PLUG INSPECTION
i. Remove spark plug connection  by hand.
ii. Remove spark plug  with plug spanner
provided.
iii. Inspect the spark plug. It should be a tan colour.
iv. Clean plug and adjust the gap 0.7 - 0.8mm.
v. Replace the spark plug with correct torque:
20Nm (2m.kg 14 ftlb).
vi. Replace spark plug if required.
FIG.14
FIG.15
Make sure that the pump is not running when carrying out maintenance work.
The ‘Draper’ water pump has been designed to operate over a long period of time.
Continuous satisfactory operation depends upon proper machine care, regular cleaning and
by following the periodic maintenance schedule. If the pump is operating in unusually dusty
or hot conditions the time between servicing the pump must be decreased.
Inspect the water pump periodically and if damaged have it repaired by a qualified person or
authorised service body. Do not use the pump with damaged parts.
11. MAINTENANCE
FIG.16





15

11. MAINTENANCE
11.3 PERIODIC MAINTENANCE
Regular maintenance is most important for the best performance and safe operation.
Item Remarks Pre-
operation
check
(daily)
Initial 1
months
or 20Hr
Every 3
months
or 50Hr
Every 6
months
or 100Hr
Every 12
months
or 300Hr
Spark plug
Check condition, adjust gap
and clean. Replace if necessary.
Engine oil Check oil level.
Air filter Clean. Replace if necessary.
Fuel filter Clean fuel drain filter.
Replace if necessary.
Valve clearance Check and adjust when
engine is cold.
Fuel line Check fuel hose for crack or
damage. Replace if necessary.
Exhaust system Check for leakage. Retighten
or replace gasket if necessary.
Carburettor Check choke operation.
Starting system Check key start ignition
operation.
Decarbonisation More frequently if necessary.
Fittings/
fasteners
Check all fittings and
fasteners correct if necessary.
Check muffler screen. Clean/
replace if necessary.
Replace.
16

11. MAINTENANCE
11.4 RISK OF FIRE
HAZARD
Attempting to fill the
fuel tank while the
engine is running.
Sparks, fire, hot objects
Improper storage of fuel
Tampering with factory
set engine speed
settings.
Inadequate ventilation
for water pump
Overfilling the fuel tank
– fuel spillage.
WHAT COULD HAPPEN HOW TO PREVENT IT
Fuel and fuel vapours can become ignited
by coming in contact with hot components
such as the muffler, engine exhaust gases, or
from an electrical spark.
Cigarettes, sparks, fires, or other hot objects
can cause fuel or fuel vapours to ignite.
Improperly stored fuel could lead to
accidental ignition. Fuel improperly secured
could get into the hands of children or other
unqualified persons.
Engine speed has been factory set to
provide safe operation. Tampering with the
engine speed adjustment could result in
overheating of attachments and could cause
a fire.
Materials placed against or near the water
pump or operating the water pump in areas
where the temperature exceeds 40°C.
ambient (such as storage rooms or garages)
can interfere with its proper ventilation
features causing overheating and possible
ignition of the materials or buildings.
Spilled fuel and its vapours can become
ignited from hot surfaces or sparks.
Turn engine off and allow it to cool before
adding fuel to the tank. Equip area of
operation with a fire extinguisher certified
to handle gasoline or fuel fires.
Add fuel to tank in well ventilated area.
Make sure there are no sources of ignition
near the water pump.
Store fuel in an approved container
designed to hold fuel. Store container in
secure location to prevent use by others.
Never attempt to “speed-up” the engine to
obtain more performance. Both the output
will be thrown out of standard by this
practice, endangering attachments and the
user.
Operate water pump in a clean, dry, well
ventilated area.
DO NOT OPERATE UNIT INDOORS OR IN
ANY CONFINED AREA.
Use care in filling the tank to avoid spilling
fuel. Make sure fuel cap is secured tightly
and check engine for fuel leaks before
starting engine. Move water pump away
from refuelling area or any spillage before
starting engine. Allow for fuel expansion.
Never refuel with the engine running.
17

11. MAINTENANCE
11.5 RISK OF INJURY AND PROPERTY DAMAGE WHEN TRANSPORTING
WATER PUMP
11.6 RISK OF BREATHING – INHALATION HAZARD
11.8 RISK OF HOT SURFACES
11.7 RISK OF UNSAFE OPERATION
HAZARD
Fire, inhalation, damage
to vehicle surfaces
WHAT COULD HAPPEN HOW TO PREVENT IT
Fuel or oil can leak or spill and could result
in fire or breathing hazard, serious injury or
death can result. Fuel or oil leaks can
damage carpet, paint or other surfaces in
vehicles or trailers.
The water pump is equipped with a fuel
drain valve, turn the valve to the off
position before transporting to avoid fuel
leaks. Transport fuel only in an approved
fuel container. Always place water pump on
a protective mat when transporting to
protect against damage to vehicle from
leaks. Remove water pump from vehicle
immediately upon arrival at your
destination.
HAZARD
Gasoline engines
produce toxic carbon
monoxide exhaust
fumes.
WHAT COULD HAPPEN HOW TO PREVENT IT
Breathing exhaust fumes will cause serious
injury or death.
Operate water pump in clean, dry, well
ventilated area.
Never operate unit in enclosed areas such as
garages, basements, storage, sheds, or in
any location occupied by humans or
animals. Keep children, pets and others
away from area of operating unit.
HAZARD
Contact with hot engine
and water pump
components.
WHAT COULD HAPPEN HOW TO PREVENT IT
Contact with hot surfaces, such as engines
exhaust components, could result in serious
burns.
During operation, touch only the control
surfaces of the water pump. Keep children
away from the water pump at all times.
They may not be able to recognize the
hazards of this product.
HAZARD
Operation of water
pump in careless manner.
WHAT COULD HAPPEN HOW TO PREVENT IT
All sources of energy include the potential
for injury. Unsafe operation or maintenance
of your water pump could lead to serious
injury or death to you or others.
• Review and understand all of the
operating instructions and warnings in
this manual.
• Become familiar with the operation and
controls of the water pump. Know how
to shut it off quickly.
• Equip area of operation with a fire
extinguisher certified to handle gasoline
or fuel fires.
• Keep children of others away from the
water pump at all times.
Operating water pump
while suspended Water pump will not operate properly and
will cause damage to the water pump and
could cause serious injury or death to you
or others.
Never operate water pump while
suspended or in an unlevel position. Always
operate generate on a flat, level surface.
18

11. MAINTENANCE
11.9 RISK OF MOVING PARTS
11.10 RISK FROM LIFTING
HAZARD
Contact with moving
parts can result in
serious injury.
WHAT COULD HAPPEN HOW TO PREVENT IT
The water pump contains parts which
rotate at high speed during operation.
These parts are covered by guarding to
prevent injury.
Never operate water pump with guarding
or cover plates removed. Avoid wearing
loose fitting clothing or jewellery which
could be caught by moving parts.
HAZARD
Lifting a very heavy
object.
WHAT COULD HAPPEN HOW TO PREVENT IT
Serious injury can result from attempting to
lift too heavy an object.
When lifting, always keep the object you
are lifting near the vertical axis of your
body. DO NOT use you back to lift heavy
loads. Both people should crouch down,
grab the underside of unit and use your
legs to carry the weight. Keep the object as
near the centre of your body’s gravity as
possible. Avoid twisting your bodies when
carrying the unit; instead, turn your whole
body using your feet.
19

Description Stock No. Part No.
1" suction hose 20469 APWP1
12. OPTIONAL ACCESSORIES
12.1 DRAPER SUCTION HOSE
Description Stock No. Part No.
1" hose clamps x2 22598 SHC1
12.2 DRAPER HOSE CLAMPS
Description Stock No. Part No.
1" hose couplings 23200 ASH1
12.3 DRAPER HOSE COUPLINGS
Description Stock No. Part No.
Spark plug 15955 Y-PG27-28
12.4 DRAPER SPARK PLUG
20
