Draper PFP3500 User manual

POND FILTRATION
PUMP
■STOCK No. 54876. ■PART No. PFP3500.
• INSTRUCTIONS •
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE
THE SAFE AND EFFECTIVE USE OF THIS PRODUCT.
11/2000

FILTRATION PUMP
■STOCK No.54876. ■PART No.PFP3500.
CONTENTS: Page No.
Specification/Guarantee...................................................................................3
Safety Warning .................................................................................................4
Power Supply ...................................................................................................5
Getting to Know your Filtration pump...............................................................6
Pump Operation ...............................................................................................7
Maintenance/Spare parts ..............................................................................8-9
DECLARATION OF CONFORMITY
We Draper Tools Ltd., Hursley Road, Chandler’s Ford, Eastleigh, Hampshire.
S053 1YF England.
Declare under our sole responsibility that the product:
Part No:- PFP3500 Stock No:- 54876
Description:- Pond Filtration Pump
To which this declaration relates is in conformity with the following
directive(s):- 73/23/CEE, 89/336/CEE and 93/68/CEE with reference to
EN60335-2-41.
JOHN DRAPER
Managing Director 04/98
-2-

SPECIFICATION
Whilst every effort has been made to ensure accuracy of information given in this
manual is correct at the time of going to print, the Draper Tools policy of continuous
improvement determines the right to change specification without notice.
Stock No. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54876
Part No. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .PFP3500
Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .230V
Wattage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85 W
Amperage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.8A
Max. Head Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3M
Max. Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3500L/hour
GUARANTEE
- 3 -
Draper filtration pumps have been carefully tested and inspected before shipment and
are guaranteed to be free from defective materials and workmanship for a period of 12
months from the date of purchase except where tools are hired out when the guarantee
period is ninety days from the date of purchase.
Should the unit develop any fault, please return the complete item to your nearest
authorized warranty repair agent or contact Draper Tools Limited, Hursley Road,
Chandler’s Ford, Eastleigh, Hampshire, SO53 1YF. England. Telephone: [phone].
If upon inspection it is found that the fault occurring is due to defective materials or
workmanship, repairs will be carried out free of charge. This guarantee does not apply to
normal wear and tear, nor does it cover any damage caused by misuse, careless or unsafe
handling, alterations, accident, or repairs attempted or made by any personnel other than
the authorized Draper warranty repair agent.
This guarantee applies in lieu of any other guarantee expressed or implied and variations
of its terms are not authorized.
Your Draper guarantee is not effective unless you can produce upon request a dated
receipt or invoice to verify your proof of purchase within the 12 month period.
Please note that this guarantee is an additional benefit and does not affect your statutory
rights.
Draper Tools Limited, Hursley Road, Chandler’s Ford, Eastleigh, Hampshire.
SO53 1YF. U.K.

SAFETY WARNING
WARNING
Please read the following instructions carefully, failure to do so could lead to serious
personal injury.
IMPORTANT
Draper Tools Limited recommends that this machine should not be modified or used
for any application other than that for which it was designed. If you are unsure of its
relative applications do not hesitate to contact us in writing and we will advise you.
- 4 -
SAFETY INSTRUCTIONS FOR
FILTRATION PUMPS
1. Ensure all electrical connections are
securely made to the correct terminals.
2. The electrical cable (and extension
cable if used) should be adequately
protected from damage. For
permanent installation with a mains
supply, it is necessary to comply with
the regulations of your local electricity
authority.
3. Your attention is drawn to the fact that
special rules may exist for pumps
intended to be used in or at garden
ponds and similar places. If in doubt
on any electrical aspects, consult your
local authority or a qualified
electrician.
4. Close supervision is necessary when
any pump is used by or near children.
5. To avoid injury, do not contact moving
parts or hot parts such as heaters,
reflectors, lamp bulbs, and the like.
6. Always unplug a pump from an outlet
when not in use, before putting on or
taking off parts, and before cleaning.
Never yank cord to pull plug from
outlet. Grasp the plug and pull to
disconnect.
7. Do not use pump for other than its
intended use.
8. Do not install or store the pump where
it will be exposed to temperatures
below freezing.
9. Make sure a pump mounted on a tank
is securely installed before operating
it.
10. If an extension cord is necessary, a
cord with a proper rating should be
used. A cord rated for less amperes or
watts than the pump rating may
overheat. Care should be taken to
arrange the cord so it will not be
tripped over or pulled.
11. SAVE THESE INSTRUCTIONS.
When removing the pump from the pond - DO NOT PULL THE PUMP FROM THE POND
BY ITS ELECTRICAL CABLE.
IMPORTANT
For your safety, a Residual Current Device
(RCD) also known as a Residual Current Circuit
Breaker (RCCB), with a tripping current not
exceeding 30mA must be installed in the
supply circuit.

CONNECTING YOUR PUMP TO THE POWER SUPPLY: (230V ONLY)
To eliminate the possibility of an electric shock, your pump has been fitted with a BS
approved, non-rewirable moulded plug and cable which incorporates a fuse, the value
of which is 3 amps. Should the fuse need to be replaced, an approved BS1362 fuse
must be used of the same rating, marked thus . The fuse cover is detachable, never
use the plug with the cover omitted. If a replacement fuse cover is required, ensure it is
of the same colour as that visible on the pin face of the plug (i.e. red). Fuse covers are
available from your Draper Tools stockist.
If the fitted plug is not suitable, it should be cut off and destroyed. *The end of the
cable should now be suitably prepared and the correct type of plug fitted. See below.
WARNING:
A plug with bare flexible wires exposed is hazardous if engaged in a live power socket
outlet.
WARNING: THIS APPLIANCE MUST BE EARTHED.
Green and Yellow - Earth, Blue - Neutral, Brown - Live.
As these colours may not correspond with the coloured markings identifying the
terminals in your plug, proceed as follows:
The wire which is coloured green and yellow must be connected to the terminal in the
plug which is marked with the letter ‘E’ or by the earth symbol or coloured green
or green and yellow.
The wire which is coloured blue must be connected to the terminal which is marked
with the letter ‘N’ or coloured black or blue.
The wire which is coloured brown must be connected to the terminal which is marked
with the letter ‘L’ or coloured red or brown.
EXTENSION LEAD CHART:
Extension lead sizes shown assure a voltage drop of not more than 5% at rated
load of tool.
POWER SUPPLY
- 5 -
Ampere rating 3 6 10 13
(on name plate)
Extension cable length
7.5 0.75 0.75 1.0 1.25
15m 0.75 0.75 1.0 1.5
22.5m 0.75 0.75 1.0 1.5
30m 0.75 0.75 1.25 1.5
45m 0.75 1.25 1.5 2.5
Wire size mm2
IMPORTANT: A residual current circuit breaker (RCD) must be used when pumping from
ponds or swimming pools and is recommended for all applications.

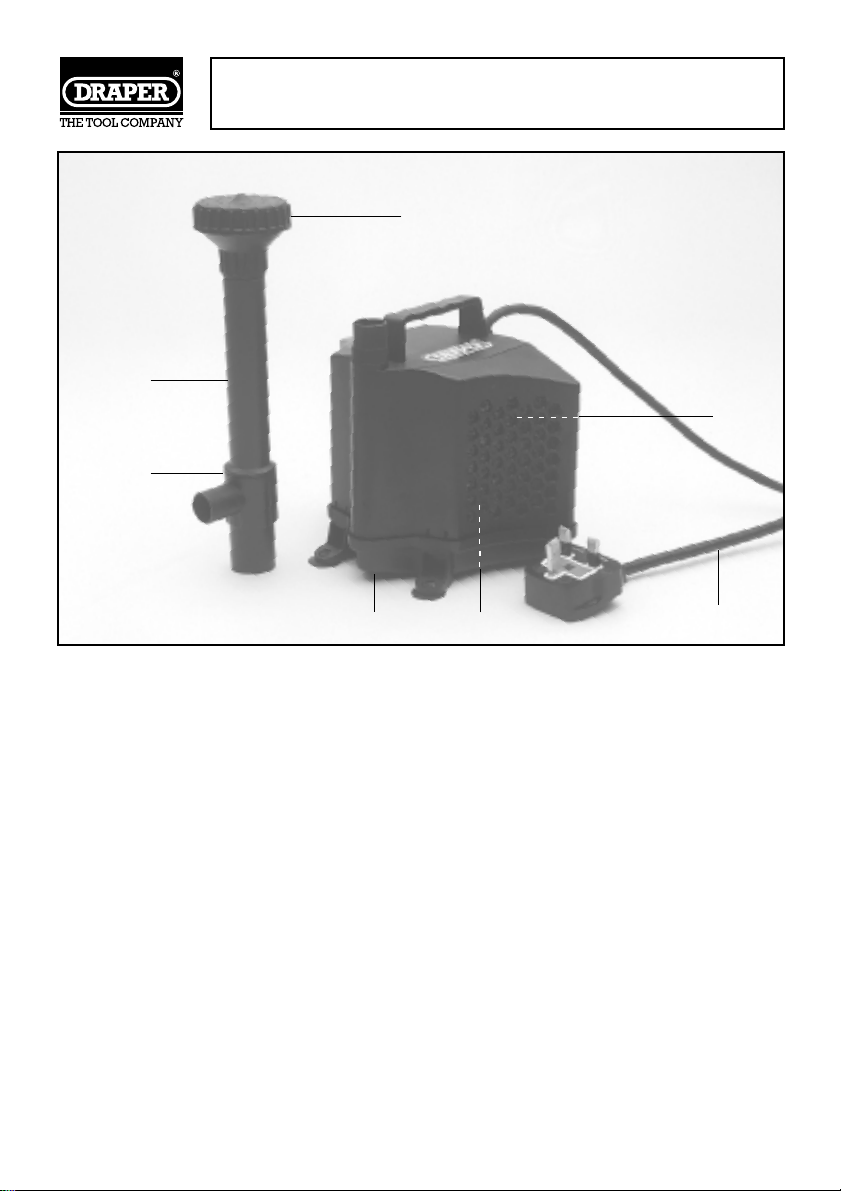

GETTING TO KNOW YOUR
FILTRATION PUMP
-6-
1. Motor.
2. Filter cover.
3. Filter.
4. Moulded plug and cable.
5. Telescopic extension tube.
6. Spray head.
7.Waterfall flow control.
✕✌
✖✌ ✗✌ ✘✌
✙✌
✚✌
✛✌

PUMP OPERATION
-7-

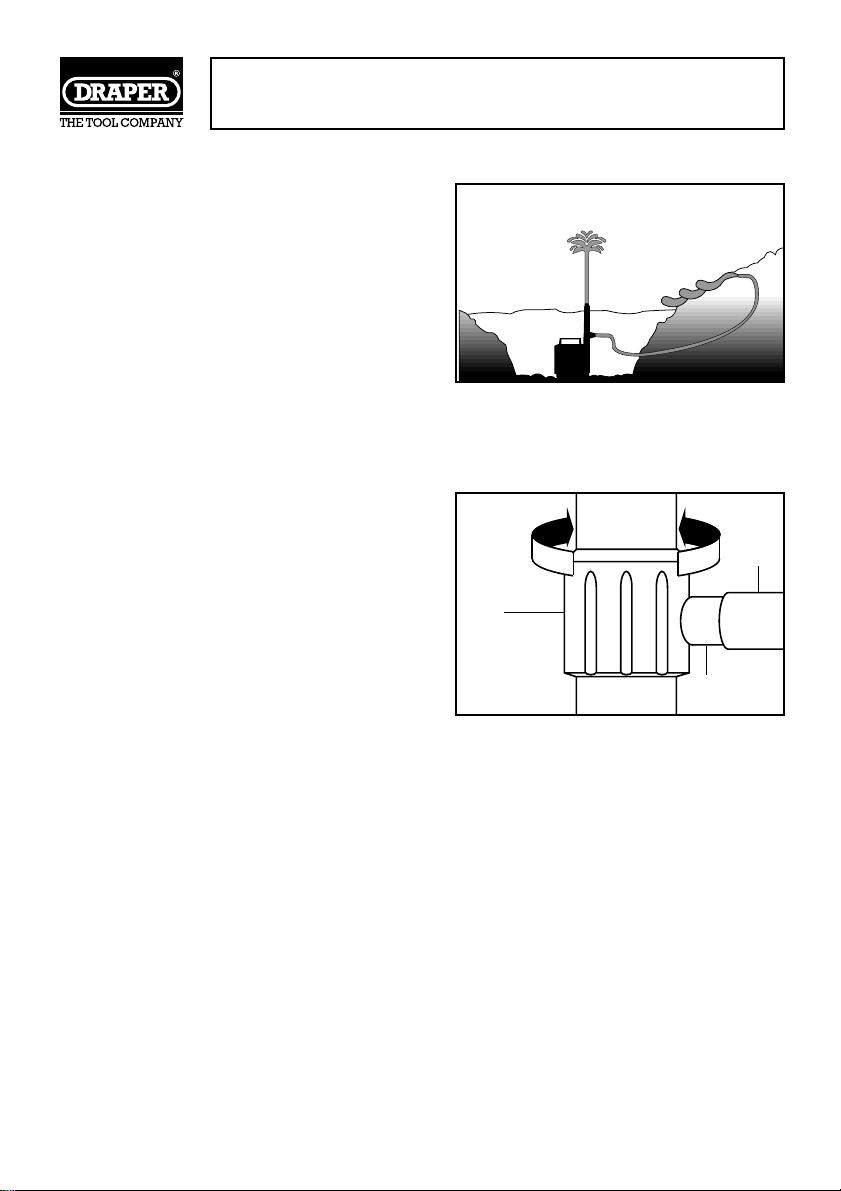

INSTALLATION
Fit the telescopic tube onto the pump and
select the desired spray head and attach to
the tube. The spray head must always be
above the water level. Place the pump on a
solid and level platform.
(FIG 1).
WATER FLOW
A waterfall (or other water effect),
can be produced by connecting a
hose ✫✌ to the tee joint✬✌ on the
telescopic tube.
The flow of water on the waterfall can
be regulated by turning the teejoint ✪✌
(FIG 2).
Fig2.
✪✌
✫✌
✬✌
Fig1.

Important: Disconnect from the mains supply before carrying out any
maintenance procedures.
This filtration pump has a watertight syncronus motor, so requires only a small amount
of maintenance.
1. The pre-chambered filters and rotor should be cleaned every week, or when the
water flow drops excessively.
Important: If the filters are not kept clean/clear, then pump failure may occur. This is
not covered by the guarantee.
2. To clean the sponges, grip the pump and turn it completely so that the bottom is
upwards. Remove the support base ✭✌ (FIG 3) by pressing the four clamps ✮✌
located in the area of the feet; take out the two sponges ✯✌ housed in the pump and
wash them in fast running water.
3. To clean the rotor you must first remove the pre-chamber. Take the pre-chamber ✰✌
in the area of the two fins ✱✌ and pull it out vertically: freed in this way, the rotor ✳✌
can be removed and washed in water, using a soft brush to remove the more
ground in dirt.
4. If the water from the spray head functions unevenly, this means that the holes or
slots in it are obstructed; remove the spray head from the tube and wash it in water,
using a stiff brush to remove scale deposits.
DO NOT USE CHEMICAL DETERGENTS OR HOME CLEANING PRODUCTS.
MAINTENANCE
- 8 -
✭✌
✰✌
✱✌
✳✌
✯✌
✱✌ ✮✌
FIG 3.

- 9 -

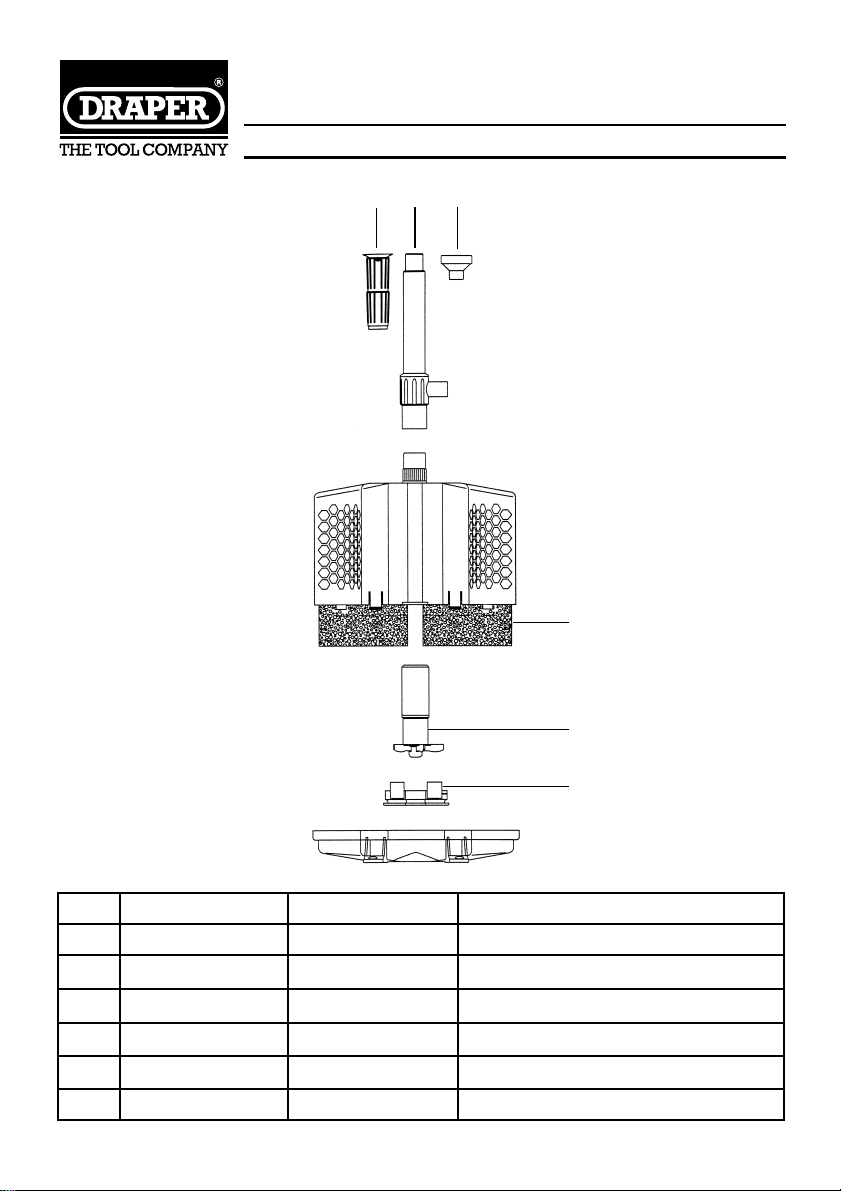

KEY No. PART No. STOCK No. DESCRIPTION
1 YPFP-R8243 55387 Spray Head (Dome)
2 YPFP-R8308 55408 Telescopic Extension Tube
3 YPFP-R50067 55409 Spray Head (Three Tier)
4 YPFP-R3801 55410 Filter (2)
5 YPFP-R52500/BKA 55411 Rotor
6 YPFP-R1444 55412 Rotor Cover
✕✌ ✖✌ ✗✌
✘✌
✙✌
✚✌
SPARE PARTS LISTING
■ STOCK No.54876 ■ PART No.PFP3500
PARTS LISTING/DRAWING 06/2000
