OPERATING AND
INSTALLATION MANUAL

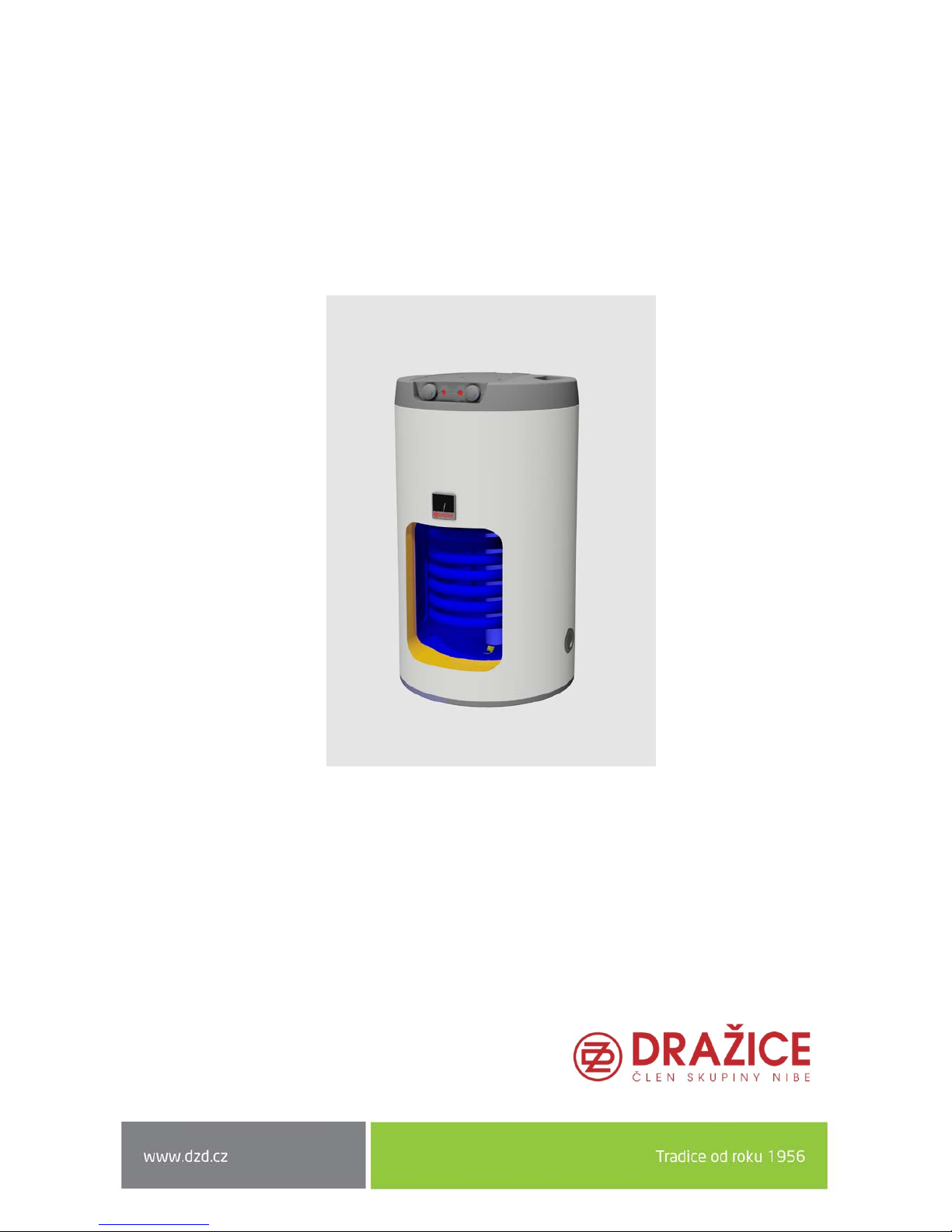

STATIONARY ELECTRICAL HOT WATER TANKS
OKCE 100 NTR/2,2 kW
OKCE 125 NTR/2,2 kW
Družstevní závody Dražice - strojírna s.r.o.
Dražice 69, 294 71 Benátky nad Jizerou
Phone.: [phone]
Fax: +420 / 326 370 980
e-mail: [e-mail]

- 2 -
CONTENTS
1PRODUCT TECHNICAL SPECIFICATION....................................................................................................... 4
1.1 FUNCTION DESCRIPTION ................................................................................................................... 4
1.2 PRODUCT DESCRIPTION .................................................................................................................... 4
1.3 DESIGN AND BASIC DIMENSIONS OF TANK....................................................................................... 5
1.4 TECHNICAL PARAMETERS.................................................................................................................. 6
2OPERATION AND FITTING INSTRUCTIONS.................................................................................................7
2.1 OPERATING CONDITIONS .................................................................................................................. 7
2.2 ELECTRICAL INSTALLATION................................................................................................................ 7
2.2.1 ELECTRIC INSTALLATION FOR:OKCE 100 S/2.2 kW; OKCE 125 S/2.2 kW;.................................7
2.3 PLUMBING FIXTURE........................................................................................................................... 8
2.4 PRESSURE LOSSES.............................................................................................................................. 9
2.5 CONNECTION OF INDIRECT TANK TO HOT WATER SYSTEM.............................................................. 9
2.6 EXAMPLES OF tankS CONNECTION.................................................................................................. 10
2.7 FIRST COMMISSIONING................................................................................................................... 12
2.8 CLEANING OF TANK AND EXCHANGE OF ANODE ROD.................................................................... 12
2.9 SPARE PARTS.................................................................................................................................... 13
3OPERATION OF THERMOSTAT................................................................................................................. 13
3.1 SERVICING........................................................................................................................................ 13
3.1.1 OPERATING DEVICES OF THE HEATER ..................................................................................... 13
3.1.2 TEMPERATURE SETTING .......................................................................................................... 13
3.2 MOST FREQUENT FUNCTION FAILURES AND THEIR CAUSES .......................................................... 14
4IMPORTANT NOTICES .............................................................................................................................. 15
4.1 INSTALLATION REGULATIONS.......................................................................................................... 15
4.2 DISPOSAL OF PACKAGING MATERIAL AND NON-FUNCTIONING PRODUCT.................................... 16

- 3 -
Meaning of pictograms used in the Manual
Important information for heater users.
Abiding by the recommendations of the manufacturer serves to ensure trouble-free
operation and the long service life of the product.
Caution!
Important notice to be observed.
CAREFULLY READ THIS MANUAL BEFORE INSTALLING THE WATER HEATER!
Dear Customer,
The Works Cooperative of Dražice – Machine Plant, Ltd., would like
to thank you for your decision to use a product of our brand. With
this guide, we will introduce you to the use, construction,
maintenance and other information on electrical water heaters.
The manufacturer reserves the right for engineering modification of the product. The product is designed for
permanent contact with drinkable water.
It is recommended to use the product in indoor environment with air temperatures from +2°C to 45°C and a
relative humidity up to 80%. 80%.
Product’s reliability and safety is proven by tests implemented by the Engineering Test Institute in Brno.

- 4 -
1PRODUCT TECHNICAL SPECIFICATION
1.1 FUNCTION DESCRIPTION
The construction of the OKC 100,125 NTR series tanks and their variety allow economic preparation of hot
service water (HSW) using different energy sources. Their nominal performance provides sufficient amount
of hot water for flat units, premises, restaurants, and similar establishments. HSW can be heated by electric
energy, different types of central heating boilers, and combinations of those.
Service water heating via thermal energy through heat exchanger
Closing valves of the heat exchanger must be opened which ensures heating water flow from the hot water
heating system. Together with a closing valve, it is recommended to install an air outlet valve at the inlet to
the heat exchanger in order to bleed the heat exchanger as needed, in particular before the beginning of
the heating season. The time it takes to heat up using the heat exchanger depends on the temperature and
flow of water in the hot water heating system.
1.2 PRODUCT DESCRIPTION
The tank receptacle is welded from a steel plate; the exchangers from a steel tube and, as a unit, it is
entirely coated with hot water resistant enamel. A flange is welded onto the upper bottom of the
receptacle with a flange lid screwed to it. A sealing ring is inserted between the flange lid and the flange.
Thermowells for placing a heating element and sensors of regulation thermostat and safety fuse are
located in the flange lid. Electric wiring is placed underneath the plastic removable cover. The temperature
of water can be set using the thermostat.
For additional corrosion protection a magnesium anode is mounted in the upper part of the tank to adjust
the electric potential inside the receptacle, thus reducing the risk of its corrosion. Tanks have hot and cold
water outlets welded on, and a circulation opening. The tank is insulated with polyurethane foam of 40 -
65 mm thickness. The shell of the tank is steel plate coated with powder dye; connecting pieces are metal
coated. The entire heater stands on three rectification screws with a possibility of levelling floor
unevenness within the range of 10 mm. The heater is to be placed on the ground. The receptacle is tested
with pressure of 0.9 MPa, and exchangers with pressure of 1.5 MPa.
NTR version has one heat exchanger located in the lower part of the tank, and uses one source of heating
water for heating.

- 5 -
A902 1062
B893 1059
C145 145
D524 524
E195 195
F635 765
L535 635
Typ
OKCE 100 NTR/2,2 kW
OKCE 125 NTR/2,2 kW
1.3 DESIGN AND BASIC DIMENSIONS OF TANK
OKCE 100 NTR/2,2 kW, OKCE 125 NTR/2,2 kW
Figure 1
①1" outer
②3/4" inner
③3/4" outer
④1/2" inner
Cold water inlet
Hot utility water

- 6 -
1.4 TECHNICAL PARAMETERS
MODEL OKCE 100 NTR/2,2kW OKCE 125 NTR/2,2 kW
Capacity [l] 88 113
Weight without water [kg] 59 71
TANK OPERATING PRESSURE [MPa] 0,6
HEAT EXCHANGER OPERATING PRESSURE [MPa] 1
MAX TEMPERATURE OF HEATING WATER [°C] 110
MAX TEMPERATURE OF HOT WATER [°C] 80
Heating surface of bottom heat exchanger [m2]11,45
BOTTOM HEAT EXCHANGER POWER AT HEATING
WATER TEMPERATURE OF 80
℃
AND FLOW OF 720
l/h [kW]
24 32
PERMANENT HOT WATER POWER [l/h] 610 990
TIME OF HEATING BY EXCHANGER FROM 10°C TO 60
°C [min] 14 14
TIME OF HEATING BY ELECTRICITY FROM 10°C TO 60
°C [h] 33,5
INPUT [kW] 2,2
ELECTRICAL CONNECTION OF CONTROL ELEMENTS 1 PE-N 230 V/50 Hz
ELECTRICAL PROTECTION IP 42
STATIC LOSS [W] 42 54
Table 1

- 7 -
2OPERATION AND FITTING INSTRUCTIONS
2.1 OPERATING CONDITIONS
The tank shall only be used in accordance with the conditions specified on the power plate
and in instructions for electric wiring. Besides the legally acknowledged national regulations
and standards, also conditions for connection defined in the local electric and water works
have to be adhered to, as well as the installation and operation manual.
The temperature at the place of the tank installation must be higher than +2°C; and the
room must not freeze. The appliance has to be mounted at a convenient place; it means that
the appliance must be easily available for potential necessary maintenance, repair or
replacement, as the case may be.
If water is strongly calcareous we recommend that any of the common decalcifying devices
was installed with the appliance, or that the thermostat was set to the minimum operating
temperature of 60oC (setting to position “ECO“). For proper operation, drinkable water of
adequate quality shall be used. To avoid potential sediments we recommend that the device
was installed together with a water filter.
2.2 ELECTRICAL INSTALLATION
2.2.1 ELECTRIC INSTALLATION FOR:OKCE 100 S/2.2 KW; OKCE 125 S/2.2 KW;
The wiring diagram is attached to the tank on the side of the electric installation guard.
Connection, repairs, and wiring inspections may only be carried out by a company authorised to such
activity.
Expert connection must be confirmed on the warranty certificate.
The tank is connected to the 230 V/50 Hz electrical network using a fixed moving conductor with a switch
that turns off all network poles and the circuit breaker (protector). The degree of protection of electric
parts of the heater is IP 44.
Wiring diagram:
Figure 2

- 8 -
2.3 PLUMBING FIXTURE
Power water connects to pipes with ¾“ thread in the bottom part of the tank. Blue - cold
water supply, red – hot water outlet. For potential disconnection of the tank, the sanitary
water inlets and outlets must be provided with screw coupling Js 3/4“. The safety valve is
mounted on the cold water inlet identified with a blue ring.
Every hot utility water pressure tank shall be equipped with membrane spring loaded with
safety valve. Nominal clearance of safety valves is defined by standard. Safety valve shall be
easily accessible, fitted as close as possible to the tank. The inlet pipes must have at least the
same clearance as the safety valve. Safety valve is placed high enough to secure dripping
water drain by gravity. We recommend that safety valve is mounted on a branch. This allows
easier exchange without having to drain the water from the heater. Safety valves with fixed
pressure settings from the manufacturer are used for the assembly. Starting pressure of a
safety valve must be identical to the maximum allowed heater pressure, and at least 20 %
higher than the maximum pressure in the water main (Table 2). If the water main pressure
exceeds that value, reduction valve must be added to the system. No closing armature may
be mounted between the tank and the safety valve.
During assembly, follow the guide provided by the safety equipment manufacturer.
It is necessary to check the safety valve each time before putting it into operation. It is
checked by manual moving of the membrane from the seat, turning the make-and-break
device button always in the direction of the arrow. After being turned, the button must click
back into a notch. Proper function of the make-and-break device results in water draining
through the safety valve outlet pipe. In common operation, such a check needs to be
implemented at least once a month, and after each heater shutdown for more than 5 days.
Water may be dripping off the drain pipe of the safety valve; the pipe must be open into the
air, pointed down; environment temperatures must not drop below zero. When draining the
tank, use the recommended drain valve. First of all, close water inlet in the tank.
Find necessary pressure values in the below Table 2. For proper safety valve operation, a backflow valve
shall be mounted on the inlet pipes, preventing spontaneous heater draining of the tank and hot water
penetration back into the water main. We recommend that the hot water distribution from the heater was
as short as possible to minimise heat losses. At least one demountable joint must be mounted between the
tank and every supply pipe.
Adequate piping and fittings with sufficiently dimensioned maximum temperature and pressure values
must be used.

- 9 -
Type
12 3 4 5
Exchanger 1m2 724 51 86 130
Exchanger 1.45m2 932 68 115 174
Pressure loss mbar
tHV = 60 °C
Amount of heating water m3/h
11,5 235
10
20
50
100
200
Výměník s teplosměnou
plochou 1 m2
Výměník s teplosměnou
plochou 1,45 m2
Průtok topné vody m3/h
Odpor topné vody
mbar
4
Tanks must be provided with discharge valve
mounted on the cold sanitary water inlet to the tank
for potential disassembly or repair.
When assembling the security equipment, follow
the standard.
SAFETY VALVE
START-UP
PRESSURE
[MPa]
ALLOWABLE
OPERATING
OVERPRESSUR
E OF WATER
HEATER [MPa]
MAXIMUM
PRESSURE IN
COLD WATER
PIPES [MPa]
0,6
0,6
up to 0.48
0,7
0,7
up to 0.56
1
1
up to 0.8
Table 2
2.4 PRESSURE LOSSES
2.5 CONNECTION OF INDIRECT TANK TO HOT WATER SYSTEM
a) Water heating by electric energy
When the tank is connected to power supply, the heating element heats water. The element is turned on
and off by a thermostat. After reaching the temperature set, the thermostat switches off the electric circuit
and thus discontinues water heating. The control light signals if the element is in operation (light is on) or if
it is off (the light goes out). In case of longer operation without using the heated volume, the thermostat
has to be set to position 5°C to 8°C (set the “snowflake” symbol on the thermostat selector) to avoid its
freezing, or electricity supply to the heater has to be switched off. In combined tanks, the stop valve on the
inlet to the exchanger has to be closed at the inlet to the heat exchanger which prevents heating the water
in the hot water heating system.
Exchanger with heat
transfer surface 1.45 m2
Exchanger with heat
transfer surface 1 m2
Heating water flow m3/hour
Heating water resistance
mbar

- 10 -
b) Service water heating via thermal energy through heat exchanger
Closing valves of the heat exchanger must be opened which ensures heating water flow from the hot water
heating system. Together with the closing valve, it is recommended to install an air outlet valve at the inlet
to the heat exchanger in order to bleed the heat exchanger as needed, in particular before the beginning of
the heating season (Figure 4). The time it takes to heat up using the heat exchanger depends on the
temperature and flow of water in the hot water heating system. A combined heater is made in universal
design – depending on the need of connecting the closing valves to the heating element either from the
right, or from the left.
It is recommended that heating water inlet and outlet are provided with shutoff valves ( in
case the tank has to be demounted). The valves have to be as close to the heater as possible
to avoid higher thermal losses.
2.6 EXAMPLES OF TANKS CONNECTION
Connecting a tank to heating system
The tank is placed on the floor next to the heating source or in its proximity. The heating circuit shall be
connected to marked tank exchanger inputs and outputs, and bleeder valve installed at the highest point. It
is necessary to install a filter into the circuit in order to protect pumps, three-way valve, backflow flaps and
the exchanger from sedimentation. It is recommended to flush the heating circuit before the assembly. All
wiring connections must be properly insulated from heat.
If the system works with priority heating of HSW using a three-way valve, always follow the installation
instructions of the three-way valve’s manufacturer.
Connecting a tank to HSW system
Cold water shall be connected to an inlet marked with a blue ring and writing “HSW INLET”.Hot water is
connected to outlet marked with red circle or inscription "HSW OUTLET". If the hot sanitary water (HSW)
distribution is equipped with circulation circuit, it shall be connected to the outlet marked with
“CIRCULATION”. For potential drain of heater, the HSW inlet has to be provided with a “T” fixture with a
drain valve. Each individually lockable tank must be on the cold water inlet provided with a stop gate, test
tap, safety valve with a reverse flap and a pressure gauge.

- 11 -
Example of group connection of tanks by Tichellman method for equal HSW withdrawal of from all tanks
OV – Heating water TUV - Hot service water
SV - Cold water 1 - Return valve
C – Circulation 2 – Pump
Figure 3
Figure 4

- 12 -
2.7 FIRST COMMISSIONING
Once the tank is connected to water supply system and power supply, and safety valve tested (accordingly
with the manual attached to the valve), the heater can be put in operation.
Procedure:
a) check the water main and wiring; Check proper placement of thermostat sensors. The sensors in
the well must be inserted all the way in; first the operating and then the safety thermostat.
b) open the hot water valve on the combination faucet;
c) open the cold water inlet valve to the tank;
d) once water starts draining through the hot water valve, filling of the tank is completed and the
valve must be closed;
e) if a flange lid leak is discovered, the flange lid bolts need to be tightened;
f) fasten the electric installation cover;
g) when hot sanitary water is heated by electric energy, switch on the power supply (the valve on the
heating water inlet to the heating insert must be closed in combined tanks).
h) when sanitary water is heated with electric energy from hot water heating system, turn off
electricity an open the valves on the heating water inlet and outlet, possibly de-aerate the
exchanger.
i) once the operation restarts, keep flushing the tank until the cloud disappears;
j) make sure to fill in properly the warranty certificate.
2.8 CLEANING OF TANK AND EXCHANGE OF ANODE ROD
Repetitive water heating causes limestone sediment on both the enamelled tank walls and chiefly the
flange lid. Lime scale settling depends on hardness of heated water, its temperature and on the volume of
hot water used.
We recommend checking and cleaning the tank from scale and eventual replacement of
the anode rod after two years of operation.
The anode life is theoretically calculated for two years of operation; however, it changes with water
hardness and chemical composition in the place of use. Based on such an inspection, the next term of
anode rod exchange may be determined. Have a company in charge of service affairs deal with the cleaning
and exchanging of the anode. When draining water from the tank, the combination faucet valve for hot
water must be open, preventing the occurrence of under-pressure in the tank receptacle which would stop
water from draining.

- 13 -
To prevent the occurrence of bacteria (e.g. Legionella pneumophila) within stack heating it
is recommended, if absolutely necessary, to increase the temperature of hot service water
(HSW) periodically for a transitional period of time to at least 70
℃
. It is also possible to
make use of another way of disinfecting HSW.
2.9 SPARE PARTS
- flange lid - flange lid seal - insulation flange lid
- thermostat and thermal fuse -magnesium anode control button for the thermostat
- control lights with wires - temperature indicator - set of M12 (or M10) bolts
- heating element
When ordering spare parts, give part name, type, and type number from the heater label.
3OPERATION OF THERMOSTAT
3.1 SERVICING
3.1.1 OPERATING DEVICES OF THE HEATER
The service devices of 100 and 125 litre tanks are located under the plastic guard of the control panel
(Figure 5).
Thermostat knob Electric circuit closing indicator lamp Tipping plastic guard
Figure 5
3.1.2 TEMPERATURE SETTING
Water temperature is set by turning the thermostat knob. The desired symbol is adjusted against the fixed
point on the control panel (Figure 6).

- 14 -

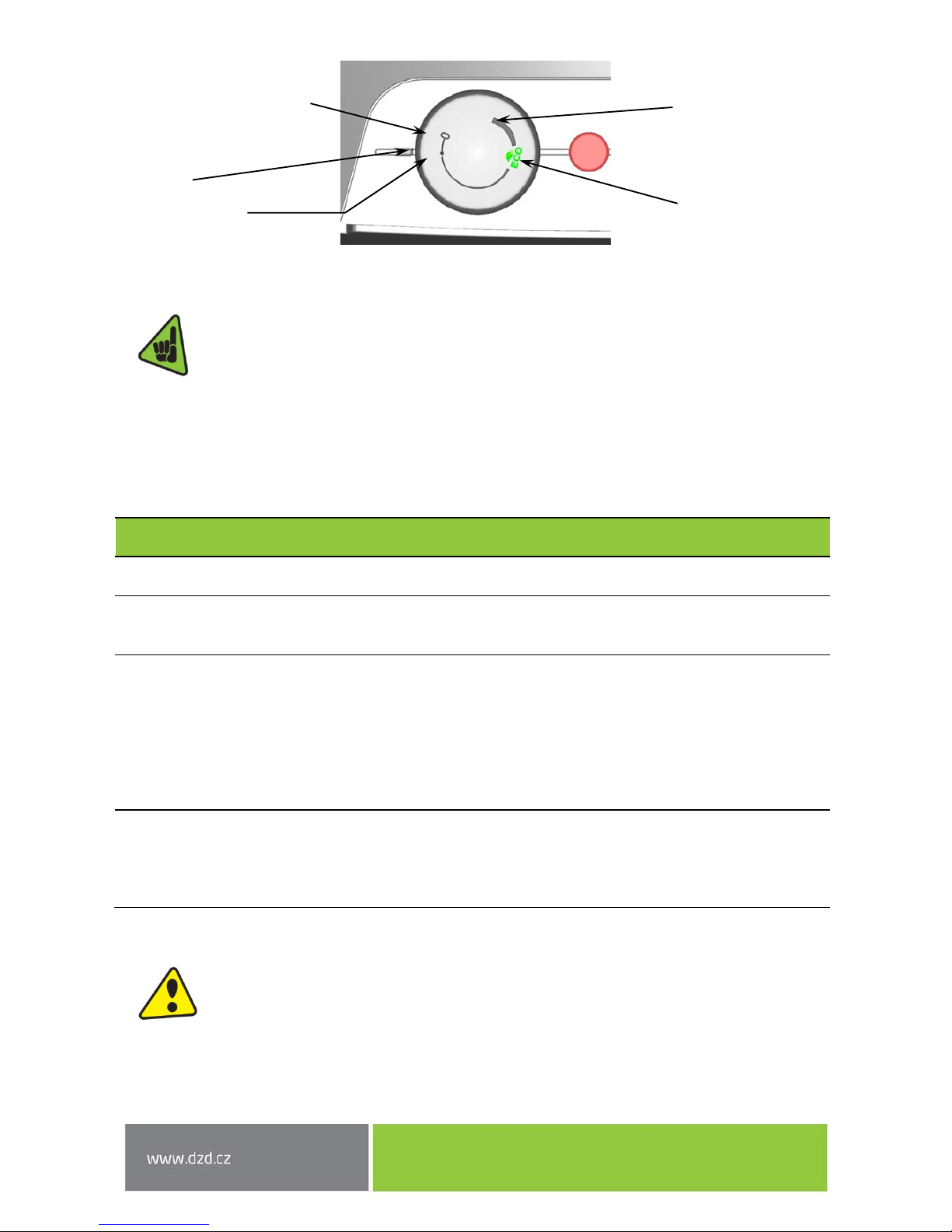

Figure 6
Adjusting the thermostat knob to the left backstop does not mean permanent shutoff of the
heating element.
When the heater is in use without blocking the daily rate, we do not recommend the
temperature to be set above 65℃. Select the "ECO“ symbol as the maximum.
3.2 MOST FREQUENT FUNCTION FAILURES AND THEIR CAUSES
FAILURE SYMPTOM
INDICATOR
SOLUTION
Water is cold
•Light on
•Heating element failure
Water is not warm
enough
•Light on
•failure of one of the heating
coils in the element
Water is cold
•Light off
•Thermostat failure
•The safety thermostat shut
off the power supply.
•Electric supply outside the
heater interrupted
Temperature of water is
not corresponding with
the temperature set on
the control
•Light on
•Thermostat failure
Table 3
Do not attempt to repair the failure yourselves. Seek either expert or service help. It does
not take much for an expert to remove the defect. When organizing repair state the model
designation and serial number that is to be found on the power plate of your water tank.
lower limit of temp. scope
(around 5°C)
fixed point on the control
panel
"anti-freezing" temperature
(about 8°C)
upper temperature range
limit (about 74
℃
)
"ideal" temperature (about
55
℃
)

- 15 -
4IMPORTANT NOTICES
4.1 INSTALLATION REGULATIONS
Without a proof issued by a professional company about performed electrical and plumbing
fixture the warranty shall be void.
It is necessary to check the protective magnesium anode periodically and replace it if
necessary.
No closing armature may be mounted between the tank and the safety valve.
If the overpressure in the eater main exceeds 0.48 MPa, a reduction valve must be mounted
before the safety valve.
All outlets of hot water must be equipped with combination faucets.
Before the first filling of water heater it is recommended to tighten the nuts of the flange
joint of the tank.
It is not allowed to handle the thermostat, aside from temperature resetting with a control
button.
All electric installation handling, setting, and regulation feature exchange, may only be
implemented by a service company.
The thermal fuse must not be turned off! In case of a thermostat defect, the thermal fuse
interrupts electric power supply to the heating element if the water temperature in the
heater exceeds 95°C.
As an exception, the thermal fuse may also switch off due to water overheating caused by
overheating the hot water heating system boiler (in case of a combined heater).
We recommend that the tank is only operated on one energy source.
Both the electric and water installation must follow and meet the requirements and
regulations relevant in the country of use!

- 16 -
4.2 DISPOSAL OF PACKAGING MATERIAL AND NON-
FUNCTIONING PRODUCT
A service fee for providing return and recovery of packaging material has
been paid for the packaging in which the product was delivered. The service
fee was paid pursuant to Act No 477/2001 Coll., as amended, at EKO-KOM
a.s. The client number of the company is F06020274. Take the water boiler
packages to a waste disposal place determined by the town. When the
operation terminates, disassemble and transport the discarded and
unserviceable heater to a waste recycling centre (collecting yard), or contact
the manufacturer.
31-03-2016
