DRC D-Imaging User manual

No. 1 choice
of Gem & Jewellery business owners.
CONFIDENTIAL
This information is the property of DRC Techno.
Any reproduction, publication or distribution to a third party is strictly forbidden
DRC TECHNO
D-Imaging
USER MANUAL v 1.0

P a g e | 1
WWW.DRCTECHNO.COM
Thank you for choosing D-Imaging, a high tech camera for diamonds, assesses the 3Cs; clarity,
cut and colour of a diamond in 3D. Witness the crystal clear magic which lies in the little cuts of
the stones. With an advanced diamond photography system, D-Imaging has made it easier to
view the diamonds inside out. It provides images as well as videos of diamonds. The machine
scans all kinds of jewellery with 360-degree auto - rotate operation.
About Company
DRC Techno was founded in the year 2012 is a successful R&D and innovation company
based in Surat, Gujarat, India. What makes us distinct is our key focus and attention on our
customer values and satisfaction. Our dedicated engineers and developers are top-notch in their
endeavour, giving customers the value for their money. We have fully functional labs for different
types of prototypes design and production. From manufacturing to retail, we support and
strengthen the diamond industry at every stage of the supply chain by providing low cost, high-
value, scalable solutions, integrating technology and business innovation alongside efficient
customer support.
DRC Techno is an organization with a social touch actively engaged in research and
development of techno-commercial solutions for trade, industries and society at large. Alongside
participating & engaging into activities that ensure the access to education for children who are
marginalized or deprived of their basic right to quality education and empowerment.

P a g e | 2
WWW.DRCTECHNO.COM
Table of Contents
1. Safety First ……………………………………………………………………………………………………………………………………….. 3
1.1 Symbol definitions ……………………………………………………………………………………………………………………… 3
2. System Requirement & Specification ……………………………………………………………………………………………….. 4
2.1 Power Supply ……………………………………………………………………………………………………………………………… 4
3. Camera & Computer System ……………………………………………………………………………………………………………. 5
3.1 Camera & accessories ………………………………………………………………………………………………………………… 5
3.2 Computer System ………………………………………………………………………………………………………………………. 6
4. Device description …………………………………………………………………………………………………………………………… 7
5. Accessories ………………………………………………………………………………………………………………………………………. 8
6. Device Installation ………………………………………………………………………………………………………………………….. 10
7. Device operating instructions …………………………………………………………………………………………………………. 10
7.1 Click Movie/Image ……………………………………………………………………………………………………………………. 11
7.2 Crop Settings ……………………………………………………………………………………………………………………………. 15
7.3 Rectangle Style …………………………………………………………………………………………………………………………. 16
7.4 Rotation …………………………………………………………………………………………………………………………………… 17
7.5 Light/Camera Profile ………………………………………………………………………………………………………………… 19
7.6 User …………………………………………………………………………………………………………………………………………. 22
8. Troubleshoot …………………………………………………………………………………………………………………………………. 23
9. FAQ ……………………………………………………………………………………………………………………………………………….. 24
10. Warranty ……………………………………………………………………………………………………………………………………… 25
10.1 Limited Warranty …………………………………………………………………………………………………………………… 25
10.2 Exclusion ………………………………………………………………………………………………………………………………… 25
10.3 Warranty Claim Process …………………………………………………………………………………………………………. 26
10.4 Software License ……………………………………………………………………………………………………………………. 26
11. Terms and Conditions ………………………………………………………………………………………………………………….. 27
12. Caution (Laser Radiation) …………………………………………………………………………………………………………….. 33
13. Disclaimer ……………………………………………………………………………………………………………………………………. 33
Notes …………………………………………………………………………………………………………………………………………………. 34

P a g e | 3
WWW.DRCTECHNO.COM
1. Safety First
At DRC Techno the safety of all individuals working with the equipment is important and
recommends reading the safety information mentioned below before attempting to operate the
system or perform any other process. Failure to observe these instructions can lead to injury or
damage to the Device.
1.1 Symbol definitions
1. Observe and follow all written & sign warnings, and caution indicators given in this document.
2. All the procedures of the machine should be performed by trained or authorized personnel
only unless specified in the document.
No.
Symbol
Description
1.
This symbol indicates a possible damage or loss of data
that may have occur and cause permanent loss of the
device if handled by an unauthorized person.
2.
This symbol indicates the rays of invisible laser radiation.
Avoid exposing your eyes and skin to direct or scattered
radiation. Proper eye and skin protection required.
3.
To reduce the risk of electric shock or damage to the
equipment:
1. Do not disable the power cord grounding plug, it is an
important safety feature.
2. Plug the power cord into a grounded (earthed) electrical
outlet that is easily accessible at all times.
3. Unplug the power cord from the power supply to
disconnect power to the equipment.
Place the power cord where it is not damaged by or
pressed by items placed near it. Pay attention to the plug,
electrical outlet, and the point where the cord extends to
the server.

P a g e | 4
WWW.DRCTECHNO.COM
2. Device Specification
M/c
Size(mm)
Weight (kg)
D-Imaging
220 x 662 x 245
13.12
Vacuum Pump
106 x 161 x 122
2.3
2.1 Power Supply
Input Voltage Range: 230 V AC
Input Current>= 3A
Operating AC Frequency Range: 50 Hz
Typical Response Time< = 5 s
Temperature Range: 5 to 35 °C

P a g e | 5
WWW.DRCTECHNO.COM
3. Camera & Computer System
Supply of Computer system, Steam Cleaner, Camera & its accessories are under
customer’s scope and for the same OEM is liable for the services. Following is the
list/requirements
3.1 Camera & accessories
Description
Manufacturer
Camera
Camera Canon –6D Mark II DSLR
(Body Only)
Canon
-
-
Adapter Kit - ACK-E6 for above
camera
Canon
Lens - EF-100mm,F2.8 L Macro USM
Canon

P a g e | 6
WWW.DRCTECHNO.COM
3.2 Computer System

Internal Network access with Internetconnectivity

Without any ITrestriction1

Two active HDD partition C: andD:
Software Installed - Win-zip, Ammyy Admin, Team Viewer, MS-Office

Internet Browsers- Google Chrome, Mozilla Firefox
System
Description
Manufacturer
Processor
Intel® Core™ i7-4790,3.6 GHz
Processor (8M Cache,
LGA1150), or Higher
Intel or Any Standard
company made
RAM
8GB DDR3 RAM
Any Standard company
made
Graphic-card
2 GB or Higher Graphics Card
NVidia or Any Standard
company made
Operating
system
64 Bit Windows 7 Professional &
above
Microsoft Window
Peripheral
Connections
3 USB & 1 HDMI
Any Standard company
made
Hard-drive
500 GB SATA
Any Standard company
made
Monitor
21.5-inchDiagonalIPSLED
BacklitFullHD Monitor Or
advance preferred DELL
Any Standard company
made
Peripherals
Mouse & Key Boards
Any Standard company
made
Cabinet
Any Standard company
made

P a g e | 7
WWW.DRCTECHNO.COM
4. Device Description
USB Port
Vacuum Pump Socket
Power Cable
Power Button
Camera Mount
Diamond Stage

P a g e | 8
WWW.DRCTECHNO.COM
5. Accessories
Vacuum Pump
Software Key
Power Cable
USB Cable

P a g e | 9
WWW.DRCTECHNO.COM
ASM-reflector-
ACR-stand
stand
Background-
Stand-DR
Loop
Reflector-
Stand-DR

P a g e | 10
WWW.DRCTECHNO.COM
6. Device Installation
1. Connect power cord & Vacuum Pump and
switch on power.
2. Place the camera (need to purchase separately) on
the camera mount and also place the diamond on the
stage along with the reflectors.
3. Connect the PC (need to purchase separately) to the
machine, power on the PC and start the software.

P a g e | 11
WWW.DRCTECHNO.COM
7. Device operating instructions
1. Switch on the “Instrument” and “Computer System”
2. Start the Software and wait for the machine to load. Kindly confirm all hardware peripherals
(Camera, Motor, Vacuum etc.) detected completely and displaying in software.
3. Put the diamond inside the Machine and close the door
7.1 Click Movie/Image
Click on Camera Preview Icon for a live view.

P a g e | 12
WWW.DRCTECHNO.COM
Double click on the live Camera Viewer to Zoom the Camera.
Click on Auto focus Icon to adjust the focus of Camera automatically.

P a g e | 13
WWW.DRCTECHNO.COM
Click on any of the below icon to focus manually.
After clicking the image, an icon will display with multiple options. Select any one from
the displayed option and click on the Single Photo Icon to save the image of the Diamond.

P a g e | 14
WWW.DRCTECHNO.COM
Click on the Preview Icon for a Preview of the Image (Inside rectangle).
Click on the Start Video button to start recording of the diamond.

P a g e | 15
WWW.DRCTECHNO.COM
7.2 Crop Settings
Click on the up, down, left, right arrows respectively to move the rectangle on any of the
sides
To increase or decrease the speed of the rectangle displacement, change the value of
Box inside the Arrow.

P a g e | 16
WWW.DRCTECHNO.COM
Click on the Save Icon to save current value of the size of the rectangle.
7.3 Rectangle Style
To change the style of the rectangle, click on different icons as shown below

P a g e | 17
WWW.DRCTECHNO.COM
7.4 Rotation
Click on the arrow Icon to Rotate the Diamond clockwise or anticlockwise.
Click on 3600clockwise or anticlockwise Icon to rotate Diamond in the desired degree

P a g e | 18
WWW.DRCTECHNO.COM

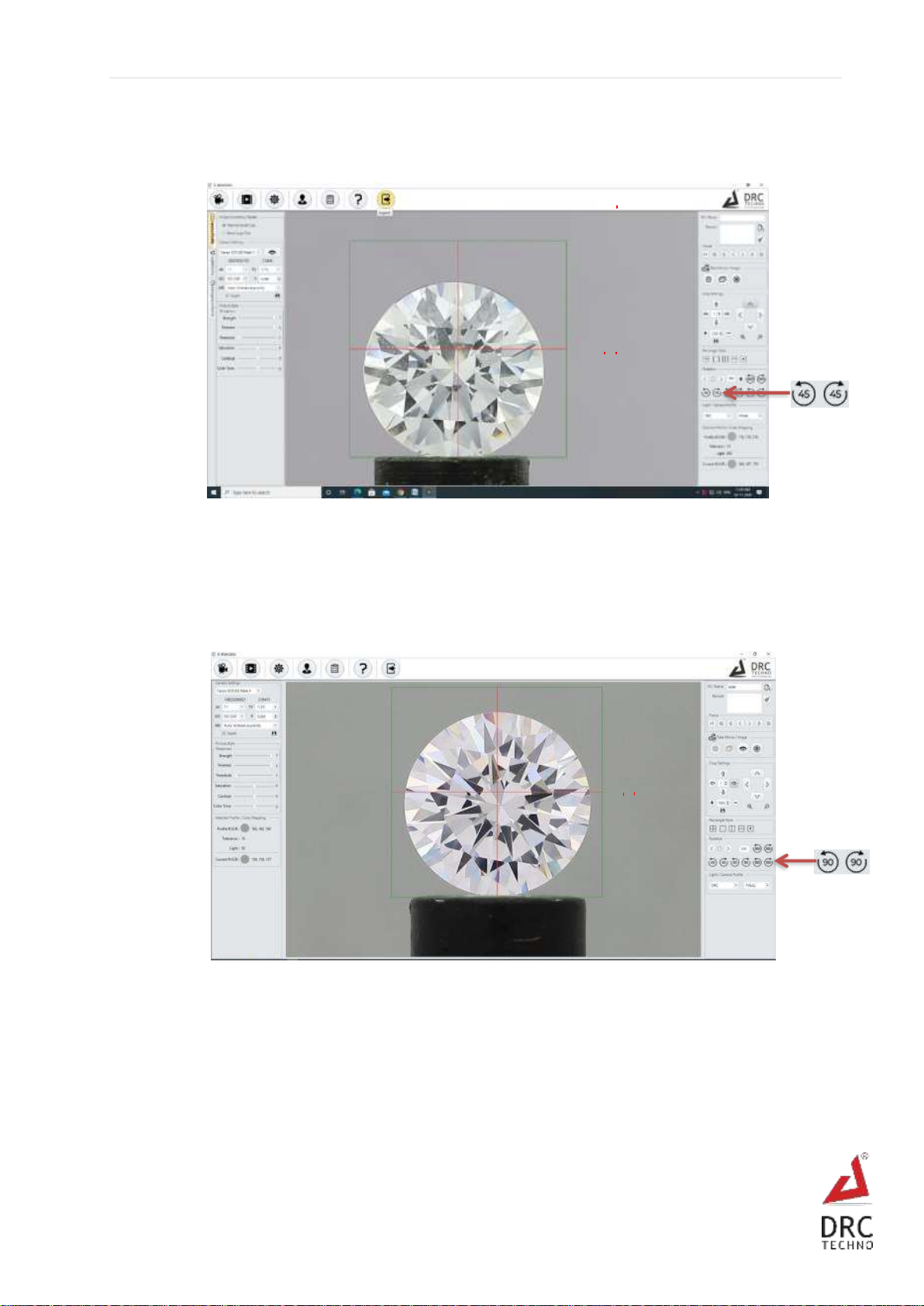

Click on 45 clockwise or anticlockwise Icon to rotate Diamond 450
Click on 90 clockwise or anticlockwise Icon to rotate Diamond 900

P a g e | 19
WWW.DRCTECHNO.COM
7.5 Light/Camera Profile
To view the Heart and Arrow of the Diamond select H&A Setting from the Light/Camera
Profile Region Then Rotate the Diamond.
Click on Show Image Icon to play the Recorded Videos.
