ARM DSTREAM-ST User manual
ARM® DSTREAM-ST
Version 1.0
Getting Started Guide
Copyright © 2017 ARM Limited or its affiliates. All rights reserved.
ARM 100892_0100_00_en
ARM® DSTREAM-ST
Getting Started Guide
Copyright © 2017 ARM Limited or its affiliates. All rights reserved.
Release Information
Document History
Issue Date Confidentiality Change
0100-00 31 March 2017 Non-Confidential First release
Non-Confidential Proprietary Notice
This document is protected by copyright and other related rights and the practice or implementation of the information contained in
this document may be protected by one or more patents or pending patent applications. No part of this document may be
reproduced in any form by any means without the express prior written permission of ARM. No license, express or implied, by
estoppel or otherwise to any intellectual property rights is granted by this document unless specifically stated.
Your access to the information in this document is conditional upon your acceptance that you will not use or permit others to use
the information for the purposes of determining whether implementations infringe any third party patents.
THIS DOCUMENT IS PROVIDED “AS IS”. ARM PROVIDES NO REPRESENTATIONS AND NO WARRANTIES,
EXPRESS, IMPLIED OR STATUTORY, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF
MERCHANTABILITY, SATISFACTORY QUALITY, NON-INFRINGEMENT OR FITNESS FOR A PARTICULAR PURPOSE
WITH RESPECT TO THE DOCUMENT. For the avoidance of doubt, ARM makes no representation with respect to, and has
undertaken no analysis to identify or understand the scope and content of, third party patents, copyrights, trade secrets, or other
rights.
This document may include technical inaccuracies or typographical errors.
TO THE EXTENT NOT PROHIBITED BY LAW, IN NO EVENT WILL ARM BE LIABLE FOR ANY DAMAGES,
INCLUDING WITHOUT LIMITATION ANY DIRECT, INDIRECT, SPECIAL, INCIDENTAL, PUNITIVE, OR
CONSEQUENTIAL DAMAGES, HOWEVER CAUSED AND REGARDLESS OF THE THEORY OF LIABILITY, ARISING
OUT OF ANY USE OF THIS DOCUMENT, EVEN IF ARM HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES.
This document consists solely of commercial items. You shall be responsible for ensuring that any use, duplication or disclosure of
this document complies fully with any relevant export laws and regulations to assure that this document or any portion thereof is
not exported, directly or indirectly, in violation of such export laws. Use of the word “partner” in reference to ARM’s customers is
not intended to create or refer to any partnership relationship with any other company. ARM may make changes to this document at
any time and without notice.
If any of the provisions contained in these terms conflict with any of the provisions of any signed written agreement covering this
document with ARM, then the signed written agreement prevails over and supersedes the conflicting provisions of these terms.
This document may be translated into other languages for convenience, and you agree that if there is any conflict between the
English version of this document and any translation, the terms of the English version of the Agreement shall prevail.
Words and logos marked with ® or ™ are registered trademarks or trademarks of ARM Limited or its affiliates in the EU and/or
elsewhere. All rights reserved. Other brands and names mentioned in this document may be the trademarks of their respective
owners. Please follow ARM’s trademark usage guidelines at http://www.arm.com/about/trademark-usage-guidelines.php
Copyright © 2017, ARM Limited or its affiliates. All rights reserved.
ARM Limited. Company 02557590 registered in England.
110 Fulbourn Road, Cambridge, England CB1 9NJ.
LES-PRE-20349
Confidentiality Status
This document is Non-Confidential. The right to use, copy and disclose this document may be subject to license restrictions in
accordance with the terms of the agreement entered into by ARM and the party that ARM delivered this document to.
Unrestricted Access is an ARM internal classification.
ARM® DSTREAM-ST
ARM 100892_0100_00_en Copyright © 2017 ARM Limited or its affiliates. All rights reserved. 2
Non-Confidential
Product Status
The information in this document is Final, that is for a developed product.
Web Address
http://www.arm.com
Conformance Notices
This section contains conformance notices.
Federal Communications Commission Notice
This device is test equipment and consequently is exempt from part 15 of the FCC Rules under section 15.103 (c).
Class A
Important: This is a Class A device. In residential areas, this device may cause radio interference. The user should take the
necessary precautions, if appropriate.
CE Declaration of Conformity
The system should be powered down when not in use.
It is recommended that ESD precautions be taken when handling DSTREAM-ST equipment.
The DSTREAM-ST modules generate, use, and can radiate radio frequency energy and may cause harmful interference to radio
communications. There is no guarantee that interference will not occur in a particular installation. If this equipment causes harmful
interference to radio reception, which can be determined by turning the equipment off or on, you are encouraged to try to correct
the interference by one or more of the following measures:
• Ensure attached cables do not lie across the target board.
• Increase the distance between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult ARM Support for help.
Note
It is recommended that wherever possible shielded interface cables be used.
ARM® DSTREAM-ST
ARM 100892_0100_00_en Copyright © 2017 ARM Limited or its affiliates. All rights reserved. 3
Non-Confidential
Contents
ARM® DSTREAM-ST Getting Started Guide
Preface
About this book ...................................................... ...................................................... 8
Chapter 1 Introduction to ARM® DSTREAM-ST
1.1 ARM® DSTREAM-ST box contents .......................................................................... 1-11
1.2 The DSTREAM-ST unit ............................................. ............................................. 1-12
1.3 Buy ARM® DSTREAM-ST ........................................................................................ 1-16
Chapter 2 Setting up ARM® DSTREAM-ST
2.1 Installing the USB drivers for the DSTREAM-ST unit .............................................. 2-18
2.2 Updating the DSTREAM-ST firmware .................................. .................................. 2-19
2.3 DSTREAM-ST unit boot sequence .......................................................................... 2-20
2.4 Connecting and powering up the DSTREAM-ST unit .............................................. 2-21
Chapter 3 Working with ARM® DSTREAM-ST
3.1 Debugging with DSTREAM-ST ....................................... ....................................... 3-24
3.2 Hot-plugging the debug cable .................................................................................. 3-25
Chapter 4 Troubleshooting ARM® DSTREAM-ST
4.1 Troubleshooting your DSTREAM-ST unit ................................................................ 4-27
4.2 Restoring a DSTREAM-ST unit ....................................... ....................................... 4-30
ARM 100892_0100_00_en Copyright © 2017 ARM Limited or its affiliates. All rights reserved. 4
Non-Confidential
List of Figures
ARM® DSTREAM-ST Getting Started Guide
Figure 1-1 Rear of DSTREAM-ST unit .................................................................................................... 1-12

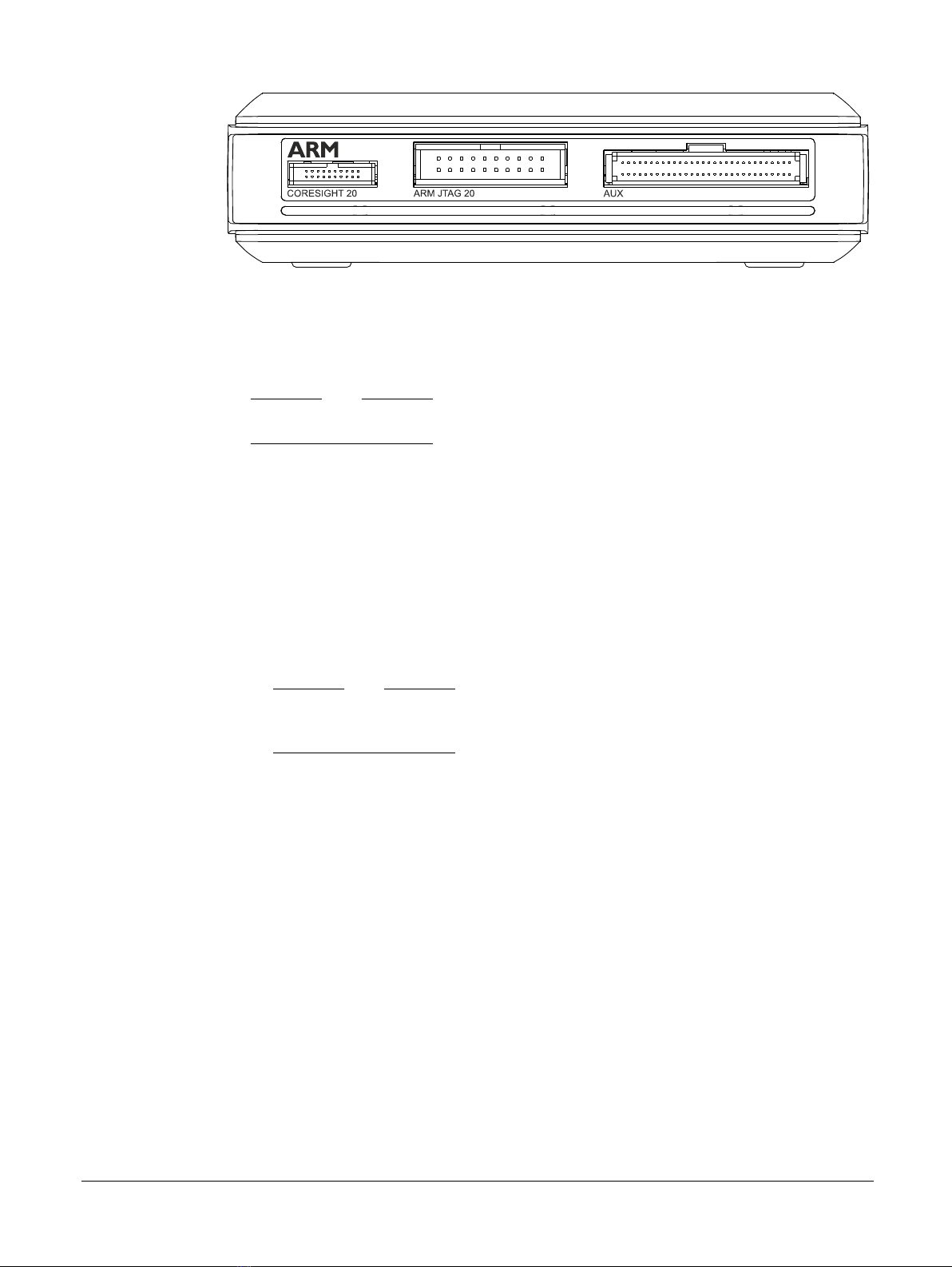

Figure 1-2 Front of the DSTREAM-ST unit ............................................................................................. 1-13

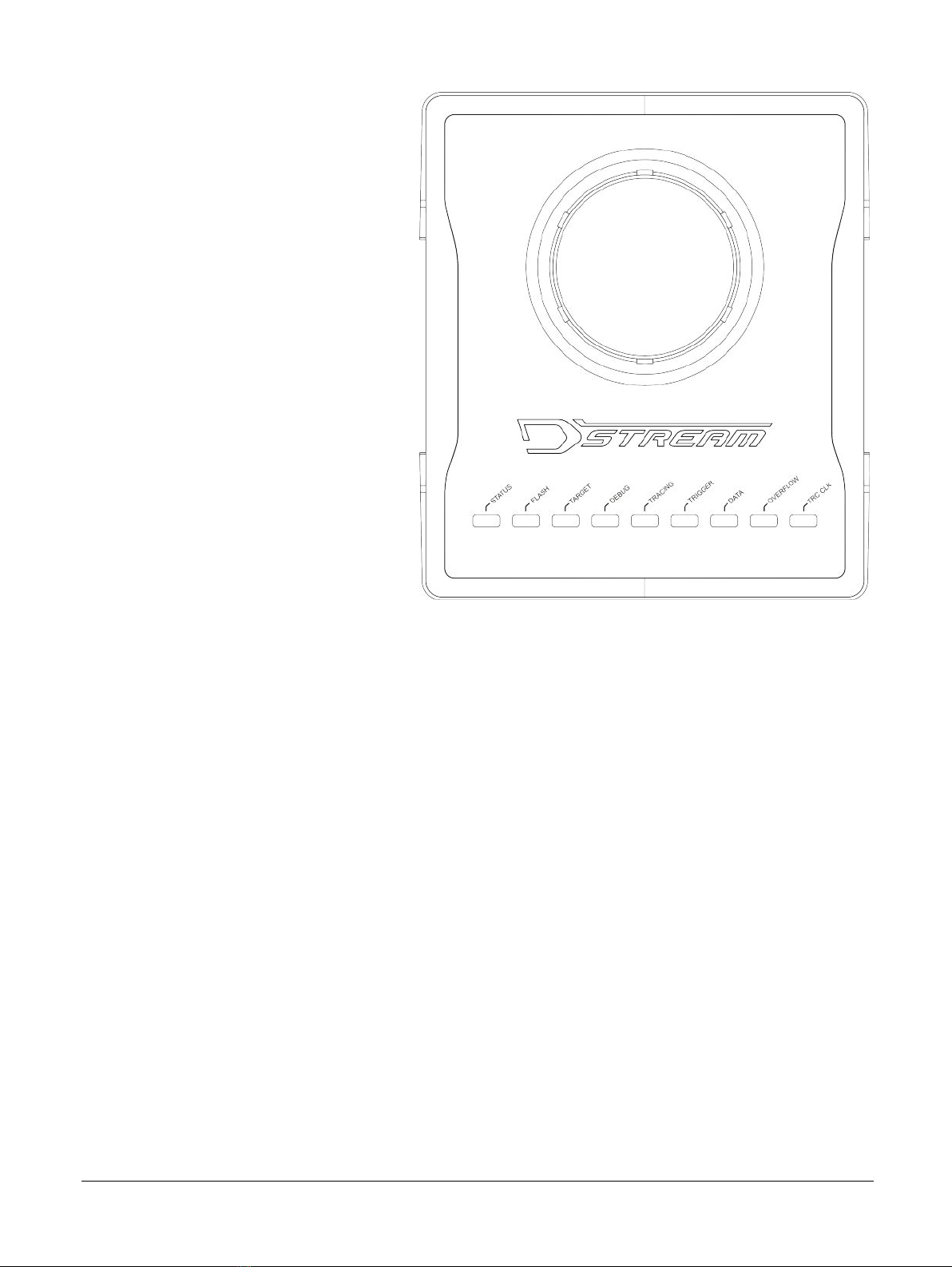

Figure 1-3 Indicator LEDs on the top of the DSTREAM-ST unit ............................................................. 1-14
Figure 2-1 Connecting the DSTREAM-ST unit ....................................................................................... 2-21
ARM 100892_0100_00_en Copyright © 2017 ARM Limited or its affiliates. All rights reserved. 5
Non-Confidential
List of Tables
ARM® DSTREAM-ST Getting Started Guide
Table 4-1 Troubleshooting checklist ...................................................................................................... 4-27
ARM 100892_0100_00_en Copyright © 2017 ARM Limited or its affiliates. All rights reserved. 6
Non-Confidential
About this book
Describes the DSTREAM-ST debug and trace unit which allows you to debug and optimize your
software on ARM® processor-based hardware targets.
Using this book
This book is organized into the following chapters:
Chapter 1 Introduction to ARM® DSTREAM-ST
DSTREAM-ST is a debug and trace hardware unit that enables powerful software debug and
optimization on ARM® processor-based targets.
Chapter 2 Setting up ARM® DSTREAM-ST
This chapter contains instructions for connecting your DSTREAM-ST unit to your host computer
and target system.
Chapter 3 Working with ARM® DSTREAM-ST
ARM DSTREAM-ST is a comprehensive solution for development and debug of complex SoCs.
This chapter explains some of the ways you can use DSTREAM-ST to work with your targets.
Chapter 4 Troubleshooting ARM® DSTREAM-ST
This chapter describes the steps that you need to take when ARM DSTREAM-ST does not
function as expected.
Glossary
The ARM Glossary is a list of terms used in ARM documentation, together with definitions for those
terms. The ARM Glossary does not contain terms that are industry standard unless the ARM meaning
differs from the generally accepted meaning.
See the ARM Glossary for more information.
Typographic conventions
italic
Introduces special terminology, denotes cross-references, and citations.
bold
Highlights interface elements, such as menu names. Denotes signal names. Also used for terms
in descriptive lists, where appropriate.
monospace
Denotes text that you can enter at the keyboard, such as commands, file and program names,
and source code.
monospace
Denotes a permitted abbreviation for a command or option. You can enter the underlined text
instead of the full command or option name.
monospace italic
Denotes arguments to monospace text where the argument is to be replaced by a specific value.
monospace bold
Denotes language keywords when used outside example code.
<and>
Encloses replaceable terms for assembler syntax where they appear in code or code fragments.
For example:
MRC p15, 0, <Rd>, <CRn>, <CRm>, <Opcode_2>
SMALL CAPITALS
Used in body text for a few terms that have specific technical meanings, that are defined in the
ARM Glossary. For example, IMPLEMENTATION DEFINED, IMPLEMENTATION SPECIFIC, UNKNOWN, and
UNPREDICTABLE.
Preface
About this book
ARM 100892_0100_00_en Copyright © 2017 ARM Limited or its affiliates. All rights reserved. 8
Non-Confidential
Feedback
Feedback on this product
If you have any comments or suggestions about this product, contact your supplier and give:
• The product name.
• The product revision or version.
• An explanation with as much information as you can provide. Include symptoms and diagnostic
procedures if appropriate.
Feedback on content
If you have comments on content then send an e-mail to [email protected]. Give:
• The title ARM DSTREAM-ST Getting Started Guide.
• The number ARM 100892_0100_00_en.
• If applicable, the page number(s) to which your comments refer.
• A concise explanation of your comments.
ARM also welcomes general suggestions for additions and improvements.
Note
ARM tests the PDF only in Adobe Acrobat and Acrobat Reader, and cannot guarantee the quality of the
represented document when used with any other PDF reader.
Other information
•ARM Developer.
•ARM Information Center.
•ARM Technical Support Knowledge Articles.
•Support and Maintenance.
•ARM Glossary.
Preface
About this book
ARM 100892_0100_00_en Copyright © 2017 ARM Limited or its affiliates. All rights reserved. 9
Non-Confidential
Chapter 1
Introduction to ARM® DSTREAM-ST
DSTREAM-ST is a debug and trace hardware unit that enables powerful software debug and
optimization on ARM® processor-based targets.
DSTREAM-ST lets you connect DS-5 Debugger to an ARM processor-based target using a hardware
interface such as JTAG or Serial Wire Debug (SWD). It also enables the collection of narrow-port (4-pin)
parallel streaming trace from the device for non-intrusive debug and code optimization.
This chapter describes the DSTREAM-ST hardware.
It contains the following sections:
•1.1 ARM® DSTREAM-ST box contents on page 1-11.
•1.2 The DSTREAM-ST unit on page 1-12.
•1.3 Buy ARM® DSTREAM-ST on page 1-16.
ARM 100892_0100_00_en Copyright © 2017 ARM Limited or its affiliates. All rights reserved. 1-10
Non-Confidential
1.1 ARM® DSTREAM-ST box contents
The DSTREAM-ST product box contains the required components to set up and connect your
workstation to your ARM architecture-based development board.
The items are:
• DSTREAM-ST unit.
• Power supply unit and associated cables.
• Ethernet cable.
• USB3.0 cable.
• CoreSight™ 10/20-way 0.05" pitch ribbon cable.
• JTAG 20-way 0.1" pitch ribbon cable.
• JTAG 14-way Texas Instruments adapter.
• MICTOR 38 adapter.
1 Introduction to ARM® DSTREAM-ST
1.1 ARM® DSTREAM-ST box contents
ARM 100892_0100_00_en Copyright © 2017 ARM Limited or its affiliates. All rights reserved. 1-11
Non-Confidential
1.2 The DSTREAM-ST unit
The DSTREAM-ST unit provides the hardware interface to connect the host computer to your target.
Rear of the DSTREAM-ST unit
The rear of the DSTREAM-ST unit contains ports for connecting to the network, host workstation, and
the power source. It also contains the RESET button and the USER IO port.
USB3.0 portEthernet port User IO port Reset button Power input
Figure 1-1 Rear of DSTREAM-ST unit
Ethernet port
If you want to access your DSTREAM-ST unit over the local area network, use the Ethernet
port.
The green LED indicates that the Ethernet link is up and running. The yellow LED indicates that
activity is taking place. Supported speeds are: 10/100/1000 Mbps.
USB3.0 port
If you want to connect the DSTREAM-ST unit directly to your host workstation.
Note
DSTREAM-ST is a USB3.0 device. To achieve USB3.0 data transfer speeds, your workstation
must have a USB3.0 port and you must use a USB3.0 data cable.
USER IO port
Use the USER IO port to set up custom input or output connections to your target. See the ARM
DSTREAM-ST System and Interface Design Reference Guide for more details.
RESET Button
Press and release the RESET button to reset the DSTREAM-ST unit when required.
Note
If you continue to hold the RESET button for 10 seconds more, the STATUS LED flashes red
rapidly. When you release the RESET button after this point, DSTREAM-ST reboots and
defaults back to factory installed firmware. Use the Debug Hardware Firmware Installer view
in DS-5 to update the firmware of your DSTREAM-ST unit.
Power input
Connect the power adapter provided with the DSTREAM-ST unit to this port.
Front of the DSTREAM-ST unit
The front of the DSTREAM-ST unit contains ports for connecting to your target.
1 Introduction to ARM® DSTREAM-ST
1.2 The DSTREAM-ST unit
ARM 100892_0100_00_en Copyright © 2017 ARM Limited or its affiliates. All rights reserved. 1-12
Non-Confidential
Figure 1-2 Front of the DSTREAM-ST unit
CORESIGHT20
A high-density connector that supports 10-way or 20-way CoreSight standards in addition to a
subset of the MIPI debug connection standards. It provides support for Serial Wire and JTAG
interface modes in a 20-pin (0.05") connector.
Note
To collect trace data, you must use this port.
ARM JTAG 20
The most commonly used debug connector standard for ARM architecture-based target boards.
It provides support for Serial Wire and JTAG interface modes in a 20-pin (0.1") connector.
AUX
This port is included for any potential future enhancement of DSTREAM-ST.
Other connectors
Included with DSTREAM-ST are:
•Texas Instruments 14-way adapter - Used in conjunction with the ARM JTAG 20 cable,
provides debug access to any target with a TI JTAG 14 header.
•MICTOR adapter - Used in conjunction with the ARM JTAG 20 and CoreSight 20 cables,
this adapter provides debug and trace access to any target with a MICTOR socket.
Note
To achieve full MICTOR connectivity, you must use both the ARM JTAG 20 and CoreSight
20 cables.
Optional adapters
The following adapters are also available for use with DSTREAM-ST. Each of these allows
capture of up to 4-bit wide ETM trace and also allow the use of separate debug and trace power
domains.
•MIPI-34 adapter - This adapter connects directly to the front panel of DSTREAM-ST and
is supplied with a MIPI-34 ribbon cable to provide debug and trace access to any target with
a MIPI-34 header.
•MIPI-60 adapter - This adapter plugs into a target's MIPI-60 socket and converts it to a
MICTOR socket for use with the DSTREAM-ST MICTOR adapter.
Indicator LEDs on the top of the DSTREAM-ST unit
When you power up the DSTREAM-ST unit, various LEDs on top of the unit indicate the status of the
unit.
1 Introduction to ARM® DSTREAM-ST
1.2 The DSTREAM-ST unit
ARM 100892_0100_00_en Copyright © 2017 ARM Limited or its affiliates. All rights reserved. 1-13
Non-Confidential
Figure 1-3 Indicator LEDs on the top of the DSTREAM-ST unit
DSTREAM logo
The DSTREAM logo on the top of the unit illuminates and the STATUS LED begins to flash
when you power up the DSTREAM-ST unit. The DSTREAM logo flashes when you press the
Identify button in any of the debug hardware tools provided with DS-5.
STATUS
Illuminates to show that DSTREAM-ST is in its ready state. If a critical error is detected, the
STATUS LED illuminates as continuous red. You must reset the DSTREAM-ST unit to the
factory settings before you can continue using it. See 4.2 Restoring a DSTREAM-ST unit
on page 4-30 for additional information.
FLASH
Illuminates when the unit is accessing its internal flash storage.
TARGET
Illuminates when a valid target VTRef is detected.
DEBUG
Illuminates when debug data transfer takes place.
TRACING
Indicates that DSTREAM-ST is attempting to capture data and synchronize with the trace
stream.
TRIGGER
Indicates that a trigger is detected.
DATA
Indicates that trace synchronization is complete and DSTREAM-ST is capturing trace data.
OVERFLOW
Indicates an error condition during trace capture. An error might occur when it has not been
possible to stream trace data to the host workstation at appropriate speeds, for example, if the
USB port of the host PC is only operating at USB2.0 speeds or if the Gigabit Ethernet (GbE)
bandwidth is not sufficient.
1 Introduction to ARM® DSTREAM-ST
1.2 The DSTREAM-ST unit
ARM 100892_0100_00_en Copyright © 2017 ARM Limited or its affiliates. All rights reserved. 1-14
Non-Confidential
TRC CLK
If the TRC CLK LED is off, then no trace clock is present.
If the TRC CLK LED is green, it indicates that a valid trace clock is detected.
If the TRC CLK LED is red and flashing, it indicates that the received trace clock is not within
the acceptable range (This LED could also indicate that the clock is too slow or too fast.).
1 Introduction to ARM® DSTREAM-ST
1.2 The DSTREAM-ST unit
ARM 100892_0100_00_en Copyright © 2017 ARM Limited or its affiliates. All rights reserved. 1-15
Non-Confidential
1.3 Buy ARM® DSTREAM-ST
ARM has over 100 trusted distributors around the world offering products, training, and support.
You can contact them to buy DSTREAM-ST.
For OEM licenses, contact ARM® directly.
1 Introduction to ARM® DSTREAM-ST
1.3 Buy ARM® DSTREAM-ST
ARM 100892_0100_00_en Copyright © 2017 ARM Limited or its affiliates. All rights reserved. 1-16
Non-Confidential
Chapter 2
Setting up ARM® DSTREAM-ST
This chapter contains instructions for connecting your DSTREAM-ST unit to your host computer and
target system.
It contains the following sections:
•2.1 Installing the USB drivers for the DSTREAM-ST unit on page 2-18.
•2.2 Updating the DSTREAM-ST firmware on page 2-19.
•2.3 DSTREAM-ST unit boot sequence on page 2-20.
•2.4 Connecting and powering up the DSTREAM-ST unit on page 2-21.
ARM 100892_0100_00_en Copyright © 2017 ARM Limited or its affiliates. All rights reserved. 2-17
Non-Confidential
2.1 Installing the USB drivers for the DSTREAM-ST unit
To use the DSTREAM-ST unit with a USB connection, USB device drivers must be installed for your
operating system. The USB drivers for DSTREAM-ST are provided with ARM DS-5.
The drivers for DSTREAM-ST are optionally installed as part of the install process for DS-5. If you have
skipped the driver install process in DS-5, follow these steps to install them.
Procedure
• On Windows:
1. Using administrative privileges, run the driver_install.bat batch file available in
DS-5_install_directory\sw\driver_files directory.
2. In the DS-5 Driver Installation Wizard, click Next and follow the steps.
Note
During installation, you might receive warnings such as Windows can't verify the publisher of
this driver software. You can safely ignore these warnings and continue with the installation.
3. After the drivers are installed, click Finish.
• On Linux:
1. Using root privileges, run the run_post_install_for_ARM_DS-5_vx.x.sh script file available in
the DS-5 install directory. The x.x in the filename denotes the DS-5 version that is installed on
your workstation.
2. Enter yes to confirm the installation.
The USB drivers are now installed on your workstation.
2 Setting up ARM® DSTREAM-ST
2.1 Installing the USB drivers for the DSTREAM-ST unit
ARM 100892_0100_00_en Copyright © 2017 ARM Limited or its affiliates. All rights reserved. 2-18
Non-Confidential
2.2 Updating the DSTREAM-ST firmware
The DSTREAM-ST firmware contains specific sections of code for each ARM processor. These are
called templates. Each template defines how to communicate with the device and the settings that you
can configure for that particular device.
Firmware updates are supplied with ARM DS-5. You must ensure that you align the firmware updates
with the same version used by DS-5.
In DS-5, the latest firmware files are available at: DS-5_install_directory\sw\debughw\firmware\
To install or update the firmware on DSTREAM-ST, use the Debug Hardware Firmware Installer view
in DS-5. To view the Debug Hardware Firmware Installer in DS-5, from the main menu, select
Window > Show View > Other > Debug Hardware Firmware Installer.
2 Setting up ARM® DSTREAM-ST
2.2 Updating the DSTREAM-ST firmware
ARM 100892_0100_00_en Copyright © 2017 ARM Limited or its affiliates. All rights reserved. 2-19
Non-Confidential
2.3 DSTREAM-ST unit boot sequence
Your DSTREAM-ST unit goes through a boot sequence when you power it up. Various LEDs identify
the progress of the boot sequence.
The DSTREAM-ST unit follows this boot sequence:
1. The DSTREAM logo illuminates blue.
2. The FLASH LED flashes as accesses take place.
3. The STATUS LED flashes green and then stays illuminated.
4. If the target is connected to the DSTREAM-ST unit and powered, the TARGET LED illuminates
green.
The DSTREAM-ST unit is now ready for use.
2 Setting up ARM® DSTREAM-ST
2.3 DSTREAM-ST unit boot sequence
ARM 100892_0100_00_en Copyright © 2017 ARM Limited or its affiliates. All rights reserved. 2-20
Non-Confidential
Other manuals for DSTREAM-ST
3
Table of contents
Other ARM Computer Accessories manuals
