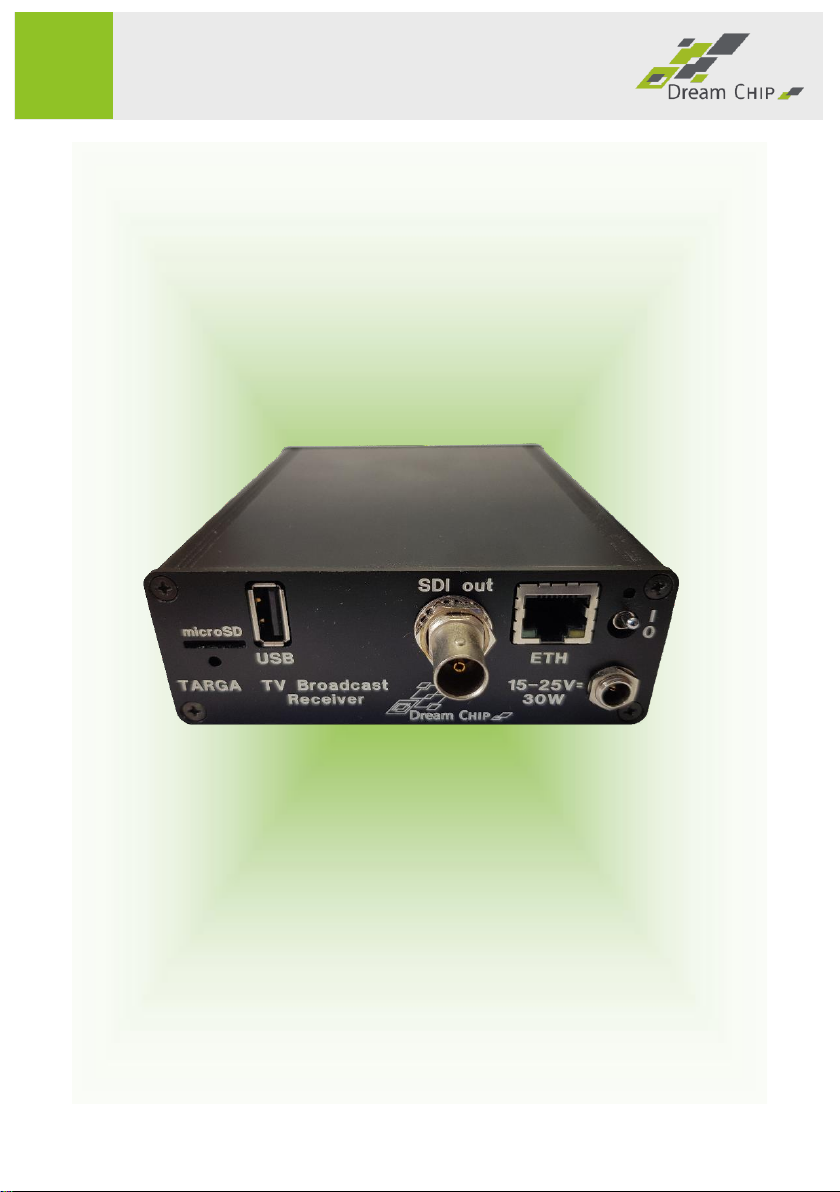

Dream Chip Targa-2 Quick start guide

Operational Manual
1
Dream Chip Technologies
Targa-2 Receiver
TV Broadcast Receiver

Content
2
Table of Content
1 Introduction .............................................................................................. 5
1.1 Quality Policy .................................................................................... 5
1.2 What is Targa-2 Receiver? ................................................................ 6
1.3 Product Overview.............................................................................. 7
1.3.1 Front View................................................................................. 7
1.3.2 Back View .................................................................................. 8
2 Quickstart.................................................................................................. 9
2.1 Connecting Targa .............................................................................. 9
2.2 Power-on from DC Adapter .............................................................. 9
2.3 Power-off in DC Adapter Mode ........................................................ 9
2.4 Configuration of the Transmitter...................................................... 9
2.4.1 Adjusting the Computer’s IP Address ....................................... 9
2.5 Accessing the Web Interface........................................................... 11
2.6 Network Settings............................................................................. 13
2.6.1 Configuration of Ethernet Settings ......................................... 13
2.7 Decoder Configuration.................................................................... 15
2.7.1 Video Settings ......................................................................... 15
2.7.2 Audio Settings ......................................................................... 15
2.7.3 General Settings...................................................................... 16
3 Reference Manual................................................................................... 18
3.1 Status .............................................................................................. 18
3.1.1 Overview ................................................................................. 18
3.1.2 Firewall.................................................................................... 18
3.1.3 Routes ..................................................................................... 18

Content
3
3.1.4 System Log / Kernel Log.......................................................... 18
3.1.5 Processes................................................................................. 18
3.1.6 Realtime Graphs...................................................................... 18
3.2 System............................................................................................. 19
3.2.1 System..................................................................................... 19
3.2.2 Administration ........................................................................ 19
3.2.3 Software.................................................................................. 20
3.2.4 Startup..................................................................................... 20
3.2.5 Scheduled Tasks ...................................................................... 20
3.2.6 Mount Points........................................................................... 20
3.2.7 LED Configuration ................................................................... 20
3.2.8 Backup / Flash Firmware......................................................... 20
3.2.9 Reboot..................................................................................... 20
3.3 Services ........................................................................................... 21
3.3.1 Dynamic DNS........................................................................... 21
3.3.2 OpenVPN................................................................................. 21
3.4 Network .......................................................................................... 21
3.4.1 Interfaces ................................................................................ 21
3.4.2 Static routes ............................................................................ 22
3.4.3 Firewall.................................................................................... 22
3.4.4 Diagnostics .............................................................................. 23
3.5 Targa Decoder................................................................................. 23
3.5.1 Status....................................................................................... 23
3.5.2 Video / Audio .......................................................................... 24
3.5.3 Evaluation................................................................................ 27

Content
4
3.5.4 CAN.......................................................................................... 28
4 FAQ.......................................................................................................... 29
5 Technical Data......................................................................................... 30
6 3 year limited Warranty .......................................................................... 32
7 Disposal ................................................................................................... 33
8 Declaration of Conformity ...................................................................... 34
8.1 For customers in the U.S.A.............................................................. 34
8.2 GPL license ...................................................................................... 34
Release Version 1.0, 10 November 2017, Copyright by Dream Chip
Technologies GmbH
Any of the trademarks, brand names or similar rights that are mentioned, used or cited in this
document are the property of their respective owners. Dream Chip Technologies GmbH is
neither endorsed by nor affiliated with any of the holders of any such rights.

Introduction
5
1Introduction
Dear Customer,
Thank you for purchasing the Dream Chip Technologies Targa-2 Receiver TV
Broadcast Receiver.
This package includes
The Targa-2 Receiver TV Broadcast Receiver
A Power Adapter
This User Manual
This User Manual will provide all information to setup and operate your
Targa-2 Receiver system.
1.1 Quality Policy
Dream Chip Technologies GmbH is committed to the delivery of safe,
effective and reliable products to their consumers, a fundamental element of
our Company’s Targets.
Our mission is to bridge the gap between demand and offer by supporting
our customers with sophisticated technology, thus enabling them to launch
new products without having to neglect their core business. This strategy
ensures business stability and steady growth through product innovations at
the same time.
We have both outstanding engineering knowledge and many years of
experience in the field of consumer and industrial focused semiconductor
development.
Peter Schaper, CEO

Introduction
6
1.2 What is Targa-2 Receiver?
Targa-Receiver is a compact video and audio decoder which is designed for
TV broadcast applications. It is attached to LAN Networks using its Ethernet
port.
Targa-Receiver can decode SD and HD H264 encoded elementary video
streams and AAC audio streams. It features an integrated Deinterlacer and
Scaler, which automatically upscales SD content to HD resolutions.
Targa-Receiver supports professional Video Interfaces like HD-SDI and HDMI
with integrated audio output. Additionally it includes an analog audio output.
When used in combination with a Targa-Transmitter, the Targa Receiver has
several unique functions:
•VPN-Tunnel: The Transmitter can connect to the Receiver over an
encrypted VPN-Tunnel for data security.
•Audio Return Channel: The Receiver can record from analog audio
input and stream it to the Transmitter. This can i.e. be used by
producers to give directions to the camera operators.
•Transparent CAN-Tunnel: Transmitter and Receiver can establish a
TCP-based CAN-Tunnel over which CAN-packets can be relayed. This
can i.e. be used to exchange data between a vehicle and an industrial
controller.
•Latency measurement: The Receiver can measure the capture to
display latency of the video stream.

Introduction
7
1.3 Product Overview
1.3.1 Front View
Interface
Type
Description
Targa Status
LED
green flashing: Targa is booted and running
red flashing: Targa is shutting down
HDMI in
HDMI A
- no function -
HDMI out
HDMI A
HDMI AV Output
AUDIO in
3.5mm audio jack
Analog Audio Input
AUDIO out
3.5mm audio jack
Analog Audio Output
Targa Status LED
HDMI in HDMI out outin
AUDIOTARGA
TV Broadcast
Receiver
.

Introduction
8
1.3.2 Back View
Interfac
e
Type
Description
SDI out
BNC
HD-SDI AV Output
ETH
RJ45
Ethernet Interface 100MBit/s
USB
USB 2.0 - A
Optional USB Interface for recording
microSD
microSD card slot
Optional microSD card for recording
Power
DC Jack,
ID = 2.1 mm
DC Power Input 15V..25V / 30W
Reset
Switch
Resets Targa to factory settings
Reset
Power LED
Power Switch .
TARGA TV Broadcast
Receiver
SDI out
USB
microSD
ETH
15-25V=
30W
I
0

Quickstart
9
2Quickstart
This chapter provides a quick start guide and explains all essential features
and settings to get your Targa device up and running. For an in depth
explanation off all features see chapter 3.
2.1 Connecting Targa
Targa can be connected to a display using the HDMI or HD-SDI output. Analog
audio can be connected over 3.5mm audio in and out jacks.
To receive a video stream connect Targa via the ETH port using an Ethernet
cable and proceed with “Power-on”.
2.2 Power-on from DC Adapter
Connect the DC Adapter to the power connector, then switch on the power
switch.
2.3 Power-off in DC Adapter Mode
Simply switch of the power switch.
2.4 Configuration of the Transmitter
The decoder will need to be configured once using the Ethernet cable.
The default static decoder IP address is: 192.168.1.1
2.4.1 Adjusting the Computer’s IP Address
Configuration is made on the encoder’s web interface. For access, your
computer’s IP address for the Ethernet network connection must be inside
the 192.168.1.XXX subnet (e.g. 192.168.1.2)

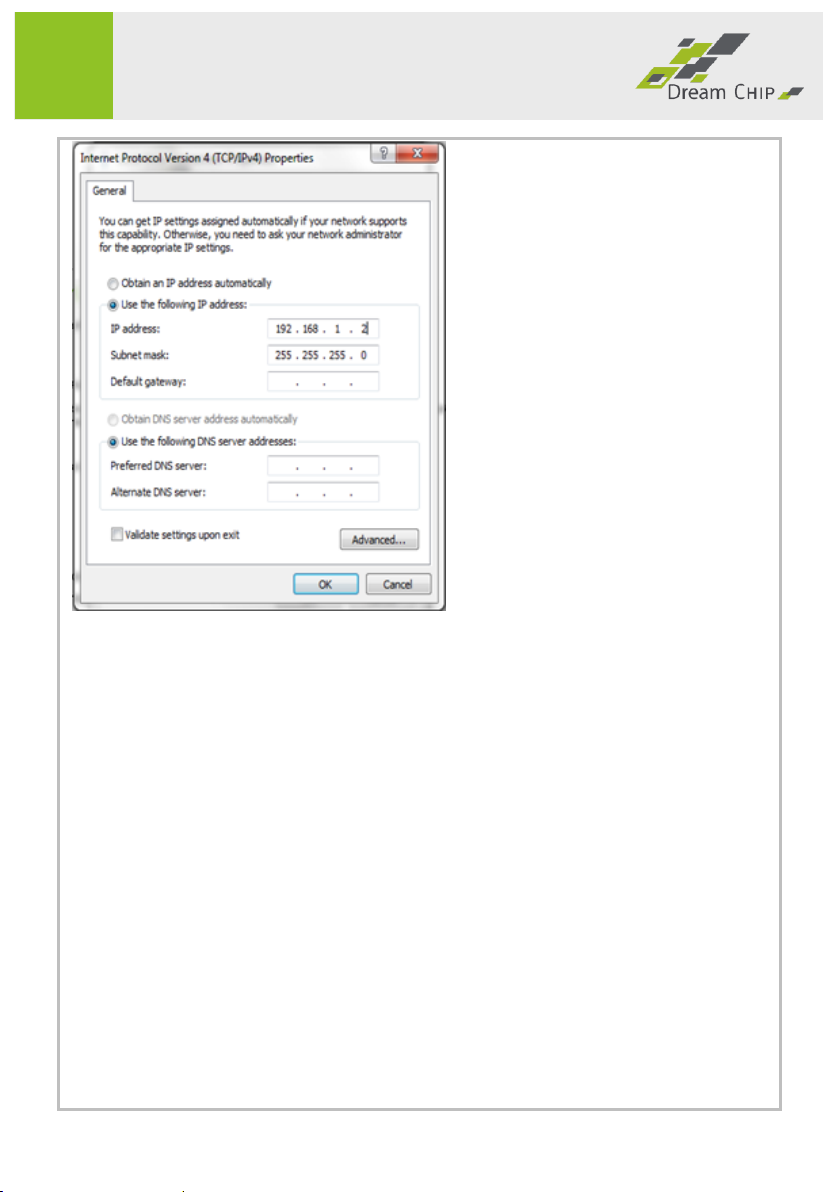

To set the IP address, open your start menu and search for “Network and
Sharing Center”, open it and then click on your current connection (e.g.
“Local Area Connection”). In the next window click “Properties” and then
double-click “Internet Protocol Version 4 (TCP/IPv4)”. Chose “Use the
following IP address” and enter the following numbers:

Quickstart
10

Quickstart
11
2.5 Accessing the Web Interface
Open the web interface of the Targa Transmitter by typing the following URL
in the address bar of your browser: http://192.168.1.1

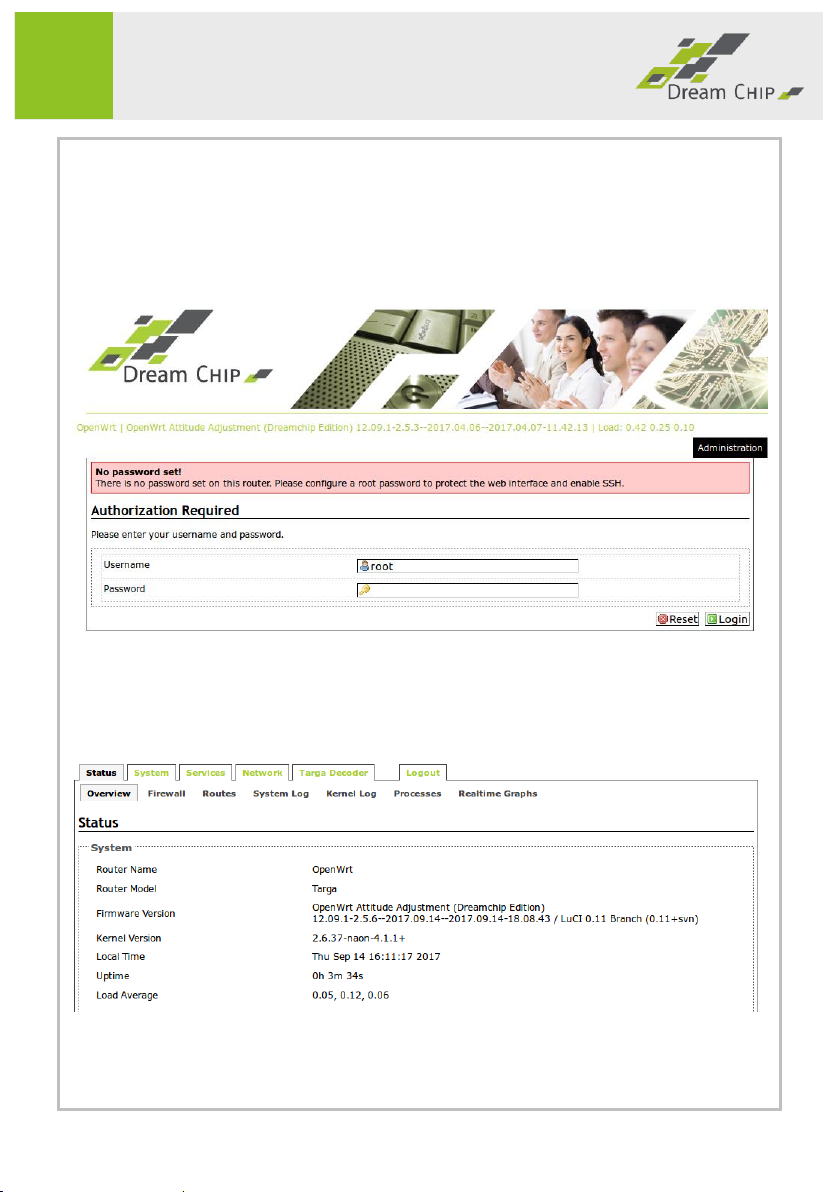

Now, the following login page should be displayed:
If no password is set (which is the default with factory settings), just click on
the Login button without entering a password. This brings you to the Status
page:
A password can be set up on the System  Administration tab. Go to chapter
3.2.2 for more information.

Quickstart
12
The web interface can be used to configure all functions of the Targa
Receiver. It is navigated using the main tabs which are displayed below the
Dream Chip logo and version string. Each tab can have multiple sub tabs with
further settings and information.
On many tabs, the following buttons can be found:
Button
Description
Deletes the related settings (e.g. a streaming
destination). Make sure you don’t need the settings
anymore as you cannot undo this step.
Adds e.g. a streaming destination without changing or
deleting another one.
Resets the related settings to default settings.
Saves the related settings, but does not apply them
Saves and applies the related settings
After making changes to a tab please click on the “Save & Apply” button in
the lower right corner of the tab page. Please note that execution of the new
settings might take a while (especially if settings of the encoder are changed),
because the Targa device has to be reconfigured. The web interface will
inform you with a notification in the top left corner of the tab when the
settings have been successfully applied.

Quickstart
13
2.6 Network Settings

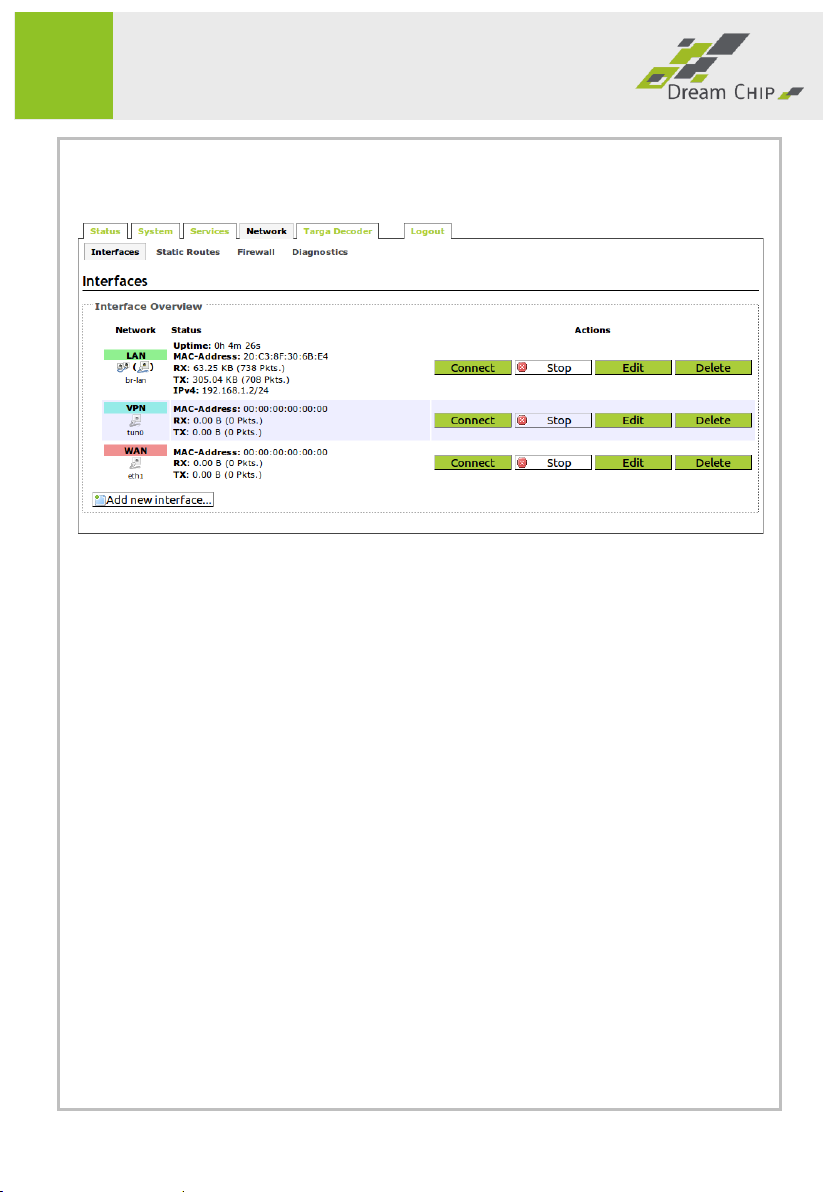

Network settings can be configured in the Network tab:
Here, you can see three network interfaces:
•LAN interface referring to the ETH Port
•VPN interface referring to a virtual network that is used to secure
data transmission (see chapter 3.3.2 for more details)
•By default the WAN interface is not used
The Targa user interface is based on a Linux distribution specifically designed
for IP router applications. As such an experienced user may setup network
settings, firewall and routing rules to his liking. The following chapters
describe the basic setup which will be sufficient for most use cases.
2.6.1 Configuration of Ethernet Settings
To change the local IP address of the transmitter, click on the Edit button of
the LAN interface to configure the IPv4 address (default 192.168.1.1) and
IPv4 netmask (default 255.255.255.0).
If you want to directly stream video and audio to a Targa Receiver from the
internet (e.g. using a Targa Transmitter), make sure that your device is
connected to a public network with internet access. You will then have to

Quickstart
14
enter IP address, netmask and standard gateways according to your internet
service provider. Also make sure that all ports used for sending / receiving
data are opened in any involved firewalls of your network.
Having entered the changes, don’t forget to click on “Save & Apply” in the
respective tab to save your changes.

Quickstart
15
2.7 Decoder Configuration
Connect your display to the transmitter via the HDMI or HD-SDI output. Then
open the Targa Decoder tab and go to the Video/Audio sub tab.
2.7.1 Video Settings
The receiver can decode HD video streams with a resolution of 1280x720
(HD) or 1920x1080 (Full-HD) pixels, SD streams can have resolution of either
448x256, 672x384 or 1024x576 pixels. Set the “Video Mode” to the
resolution of the incoming video stream.
The receiver will scale the incoming video to the selected “Display Timing”.
Please select a timing that matches the framerate of the incoming video
stream.
The video port must match the port of the transmitter.
2.7.2 Audio Settings
You can enable audio playback, which will output the received audio stream
on all three sinks (HDMI, SDI, analog output). Make sure the audio port
matches the transmitter settings.
If you want to transmit an audio return channel from the receiver to the
transmitter, enable the “Audio Return Channel” feature. Only the analog
audio input can be used as source. If the analog audio source is a
microphone, enable the microphone bias by changing the “Micro Mode” (this
will power the microphone with 2 or 2.5V). If you attach an active audio
source (like a DVD player or a smartphone), leave the bias disabled. You can
then adjust the “Capture Volume”, please note that high capture volume
values will lead to high static noise in the recorded signal.
To be able to transmit audio data to a Targa Transmitter which is connected
via LTE you will need to use the VPN feature, because the Receiver cannot
directly reach the IP address of the Transmitter. For further details see
chapter 3.3.2 and 3.5.2.

Quickstart
16
The “Audio Sample Rate” can usually be left at 48 kHz, if your application
requires it, you may change it to 44.1 kHz.
2.7.3 General Settings
Usually you will not need to change the settings listed under “General
Decoder Settings”, for more details on these advanced settings see chapter
3.5.2.
Save your changes by clicking on “Save & Apply”.

Quickstart
17
Congratulations
Congratulations, you have now finished the basic configuration of your Targa
Receiver.
The reference manual which follows on the next pages gives a detailed
overview of all functions provided by the Targa Transmitter.

Reference Manual
18
3Reference Manual
This chapter contains detailed information about all of Targa’s functions.
Please read the Quickstart chapter to perform a first time setup of your
device, before you continue with the advanced settings in this chapter.
For easy navigation the chapters of the reference manual are named
according to the tabs and sub tabs of the web interface.
3.1 Status
The Status tabs give an overview regarding the system, firewall and routing
status and active network connections.
3.1.1 Overview
General system overview. Shows the current firmware version as well as
memory and WAN status information.
3.1.2 Firewall
Shows all currently active firewall chains and rules. Useful for debugging,
when custom firewall rules are used.
3.1.3 Routes
Shows all currently active routes, that includes static, as well as dynamic
rules. If you have connection problems, this page gives a good starting point
for debugging.
3.1.4 System Log / Kernel Log
Only useful for advanced users. Shows a dumps of the system and kernel logs
of the embedded Linux that powers Targa.
3.1.5 Processes
Lists all currently running processes. Useful for debugging.
3.1.6 Realtime Graphs
The realtime graphs show live tracking of different system parameters.

Reference Manual
19
3.1.6.1 Load
Shows a graph of the system load (CPU usage).
3.1.6.2 Traffic
Shows graphs for the inbound and output data traffic that is transmitted over
each network interface. Very handy tool to check the current upload of the
Targa transmitter.
Please note that the “br-lan” network is identical to “eth0”, both refer to the
local LAN port.
3.1.6.3 Wireless
The Wireless tab has no function for this system.
3.1.6.4 Connections
The Connections tab shows IP connections between the Targa and other
devices. This is a very useful debugging tool if you are facing connection
problems.
3.2 System
On the System tab general system settings can be set. It also provides a tab
for firmware updates.
3.2.1 System
In the system sub tab you can configure the device hostname, the timezone
and the logging behavior of the system. In the lower half of the tab an NTP
client can be setup. This can be used to synchronize the system time with a
time server on the internet, or a local time server you provide.
3.2.2 Administration
Here you can set a password for the web interface. As long as no password is
set, you may connect to the transmitter using a telnet session, after you have
setup a password, you have to use SSH access instead. The experienced user
can setup SSH access details on this tab as well. Please do not alter the SSH

Reference Manual
20
settings, if you are unsure what you are doing, because you may lose access
to your device.
3.2.3 Software
The Software sub tab shows an overview of all installed software packages.
Please do not remove any of the installed packages, or your device might
become inoperable.
3.2.4 Startup
This tab lists all scripts and processes that are run during startup. Please do
not modify this list, unless you know what you are doing.
3.2.5 Scheduled Tasks
Shows the system crontab that holds tasks which are scheduled for
execution. This list should be empty.
3.2.6 Mount Points
Here you can check and setup mounted file systems. If you have inserted a
SD storage card, it will be listed here and you can check its free space.
3.2.7 LED Configuration
This tab has no function, as the LEDs of this device cannot be configured by
the user.
3.2.8 Backup / Flash Firmware
If you receive a software update from the customer support, you will be
asked to open this sub tab. To update the firmware click on the “Browse…”
button in the “Flash new firmware image” box and select a firmware file.
Most updates allow for the settings to be kept, in this case check the “Keep
settings” checkbox. If you are experiencing problems after the update, try
flashing it again without keeping the settings.
3.2.9 Reboot
From here you can trigger a reboot of the device. Just click the “Perform
reboot” button.
