Dreamline DL-6150-04 User manual

Cornerview Shower Enclosure, Base & Backwall
SHOWER ENCLOSURE, BASE & BACKWALL INSTALLATION INSTRUCTIONS
For more information about DreamLine®Shower Doors, Tub Doors & Enclosures, please visit DreamLine.com
IMPORTANT
DreamLine® reserves the right to alter, modify or redesign products at any time without prior notice.
For the latest up-to-date technical drawings, manuals, warranty information or additional details please refer
to your model’s web page on DreamLine.com
©2017 DreamLine. All Rights Reserved
CORNERVIEW SHOWER ENCLOSURE, BASE & BACKWALL
STEP 1: Shower Base Installation Instructions
STEP 2: Shower Backwall Installation Instructions
STEP 3: Shower Enclosure Installation Instructions

©2018 DreamLine. All Rights Reserved
SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018
1
SLIMLINE SHOWER BASE
S
HOWER
B
ASE
D
IMENSIONS AND
I
NSTALLATION
I
NSTRUCTIONS
IMPORTANT
DreamLine® reserves the right to alter, modify or redesign products at any time without prior
notice for the purpose of product improvement and customer experience. Please refer to the
model’s web page on DreamLine.com for the latest technical drawings, installation manuals,
warranty information or additional product details.
Please review this entire manual before beginning installation
For more information about DreamLine®products please visit DreamLine.com
Color options:
--- - White
-22- Biscuit
-88- Black
Double Threshold Shower Base with Corner Drain Configuration
shown as an example

©2018 DreamLine. All Rights Reserved
SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018
2

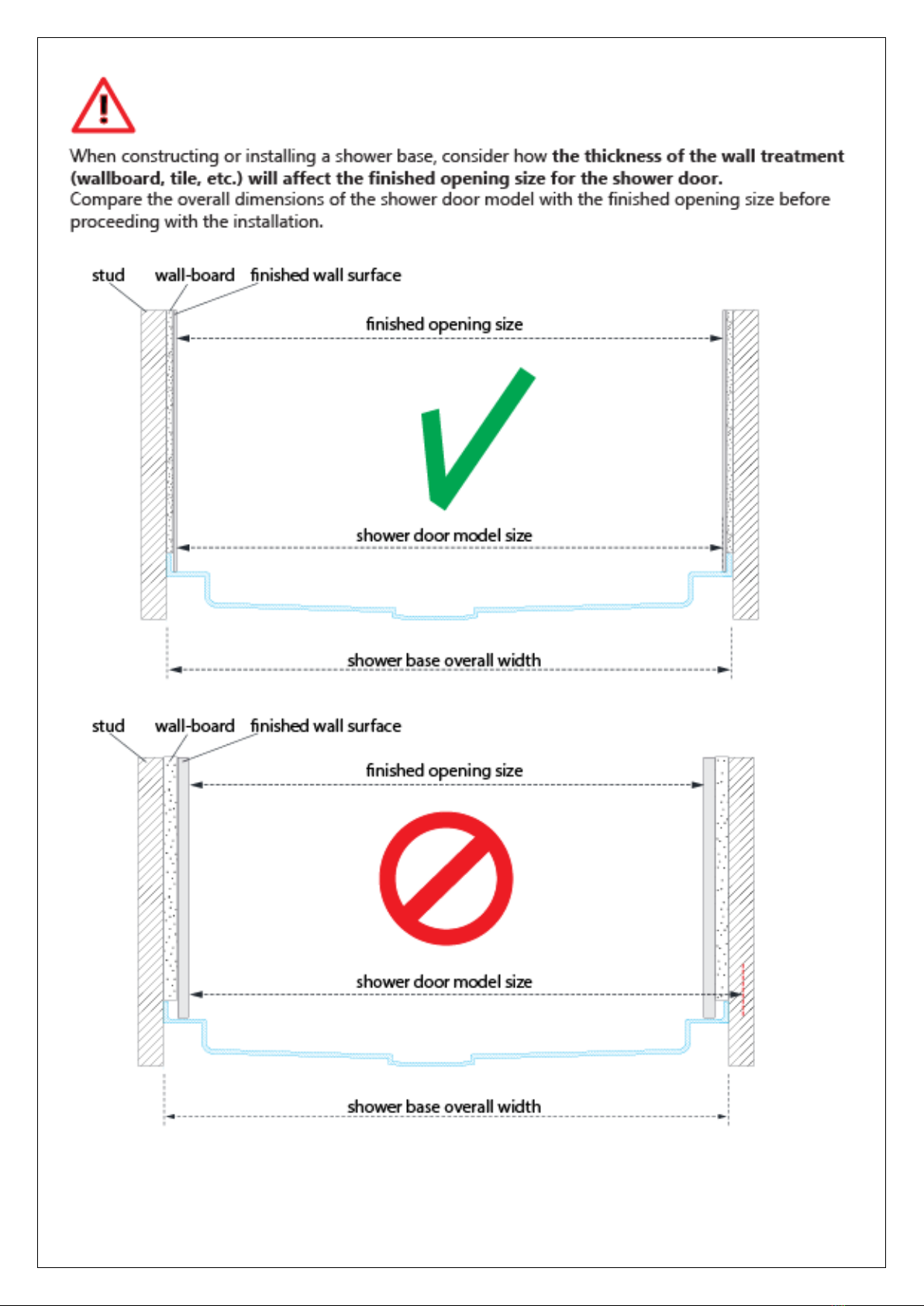

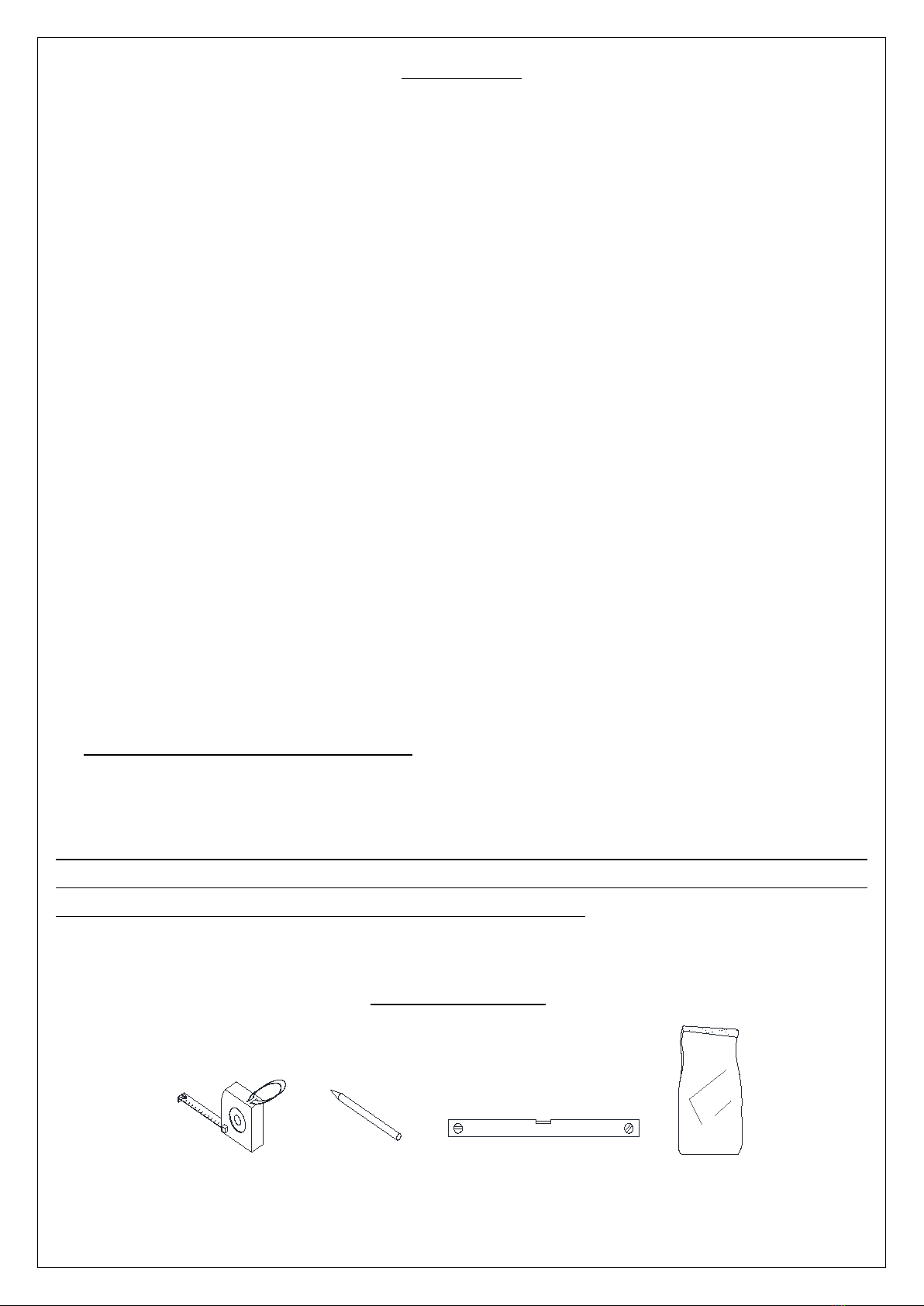

Preparation
1. Prior to installation, examine all boxes and packages for shipping damage and compare the
piece count with your packing slip. After opening all boxes and packages read this introduction
carefully. Check that all of the parts are included in the package by checking off the
components on the parts list. If the unit has been damaged, has a finishing defect, or has
missing parts, please contact our customer support department within 3 business days of the
delivery date. Please note that DreamLine®will not replace any damaged products or
missing parts free of charge after 3 business days or if the product has been installed.
Please contact DreamLine®if with any questions and please provide an order number, job
name or other proof of purchase to help identify the original order.
2. Install all of the required plumbing and drainage before installing the shower base.Use a
competent and licensed (if required by local code) plumber for all plumbing installation.
3. Shower bases must be installed by a licensed plumber. Please note that you should
consult your local building codes with questions on installation compliance standards.
Building and plumbing codes may vary by location and DreamLine®is not responsible for
code compliance standards for your project.
4. Make sure that prior to the installation the installation surface is leveled and solid and will be
able to support the total weight of the unit. Also make sure the walls are at right angles. While
some adjustment in leveling of the tray is possible, irregular installation surface level or
improper angle of side walls will result in serious problems for your installation. Please note
that some adjustments may be necessary during the installation process.
5. Center drain configurations are centered on the width only. See technical drawing tables
for drain locations.
6. Drain not included with this product. The drain opening is 3-3/8” in diameter and accepts a
standard 2” compression fitted drain.
IMPORTANT NOTE:
Dimensions provided are for reference only. Measure the actual shower tray
before installation. This includes overall dimensions and drain location.
Allowed tolerance for center of the drain is +/-1/2".
Tools Required
XXX
Tape
Measure
Pencil
Level
Mortar

©2018 DreamLine. All Rights Reserved
SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018
3

©2018 DreamLine. All Rights Reserved
SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018
4

©2018 DreamLine. All Rights Reserved
SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018
5

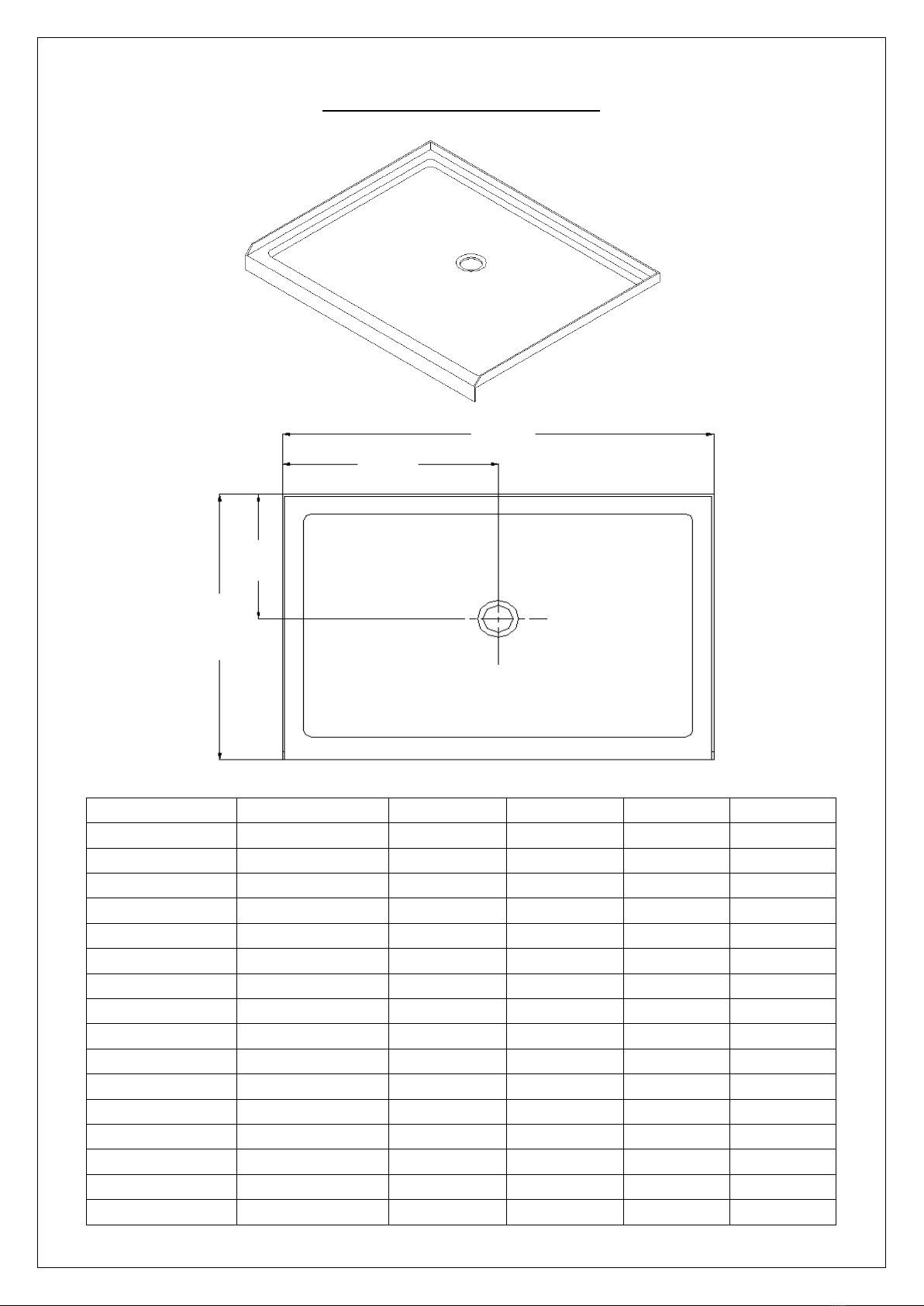

SINGLE THRESHOLD SHOWER BASE
Center Drain Configuration
MODEL
SPECIFICATION
D (in)
W (in)
D1 (in)
W1 (in)
DLT-1132320
32"× 32"
32"
32"
15"
16"
DLT-1136360
36"× 36"
36"
36"
15"
18"
DLT-1132420
32” x 42”
32”
42”
15”
21”
DLT-1134420
34” x 42”
34”
42”
15”
21”
DLT-1136420
36” x 42”
36”
42”
15”
21”
DLT-1142420
42” x 42”
42”
42”
20”
21”
DLT-1132480
32"× 48"
32”
48”
15”
24”
DLT-1134480
34” x 48”
34”
48”
15”
24”
DLT-1136480
36"× 48"
36"
48"
15"
24"
DLT-1132540
32” x 54”
32”
54”
15”
27”
DLT-1134540
34” x 54”
34”
54”
15”
27”
DLT-1136540
36” x 54”
36”
54”
15”
27”
DLT-1130600
30"× 60"
30"
60"
15"
30"
DLT-1132600
32"× 60"
32"
60"
15"
30"
DLT-1134600
34"× 60"
34"
60"
15"
30"
DLT-1136600
36"× 60"
36"
60"
15"
30"
W
D
W1
D1

©2018 DreamLine. All Rights Reserved
SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018
6

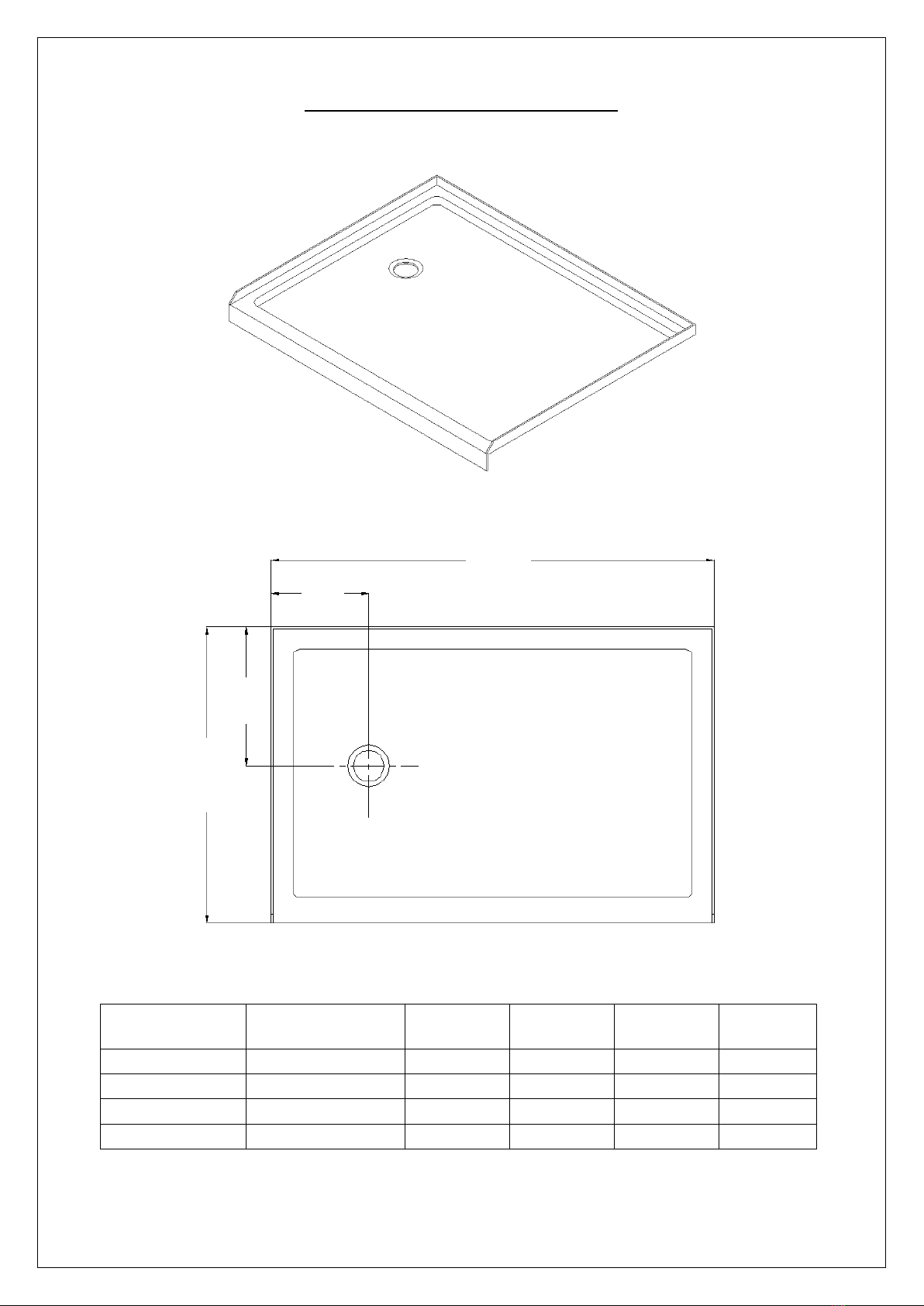

SINGLE THRESHOLD SHOWER BASE
Left-Hand Drain Configuration
MODEL SPECIFICATION D (in) W (in) D1 (in) W1 (in)
DLT-1130601
30"×60"
30"
60"
15"
12"
DLT-1132601
32"×60"
32"
60"
15"
12"
DLT-1134601
34"×60"
34"
60"
17"
12"
DLT-1136601
36"×60"
36"
60"
18"
12"
W
D
D1
W1

©2018 DreamLine. All Rights Reserved
SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018
7

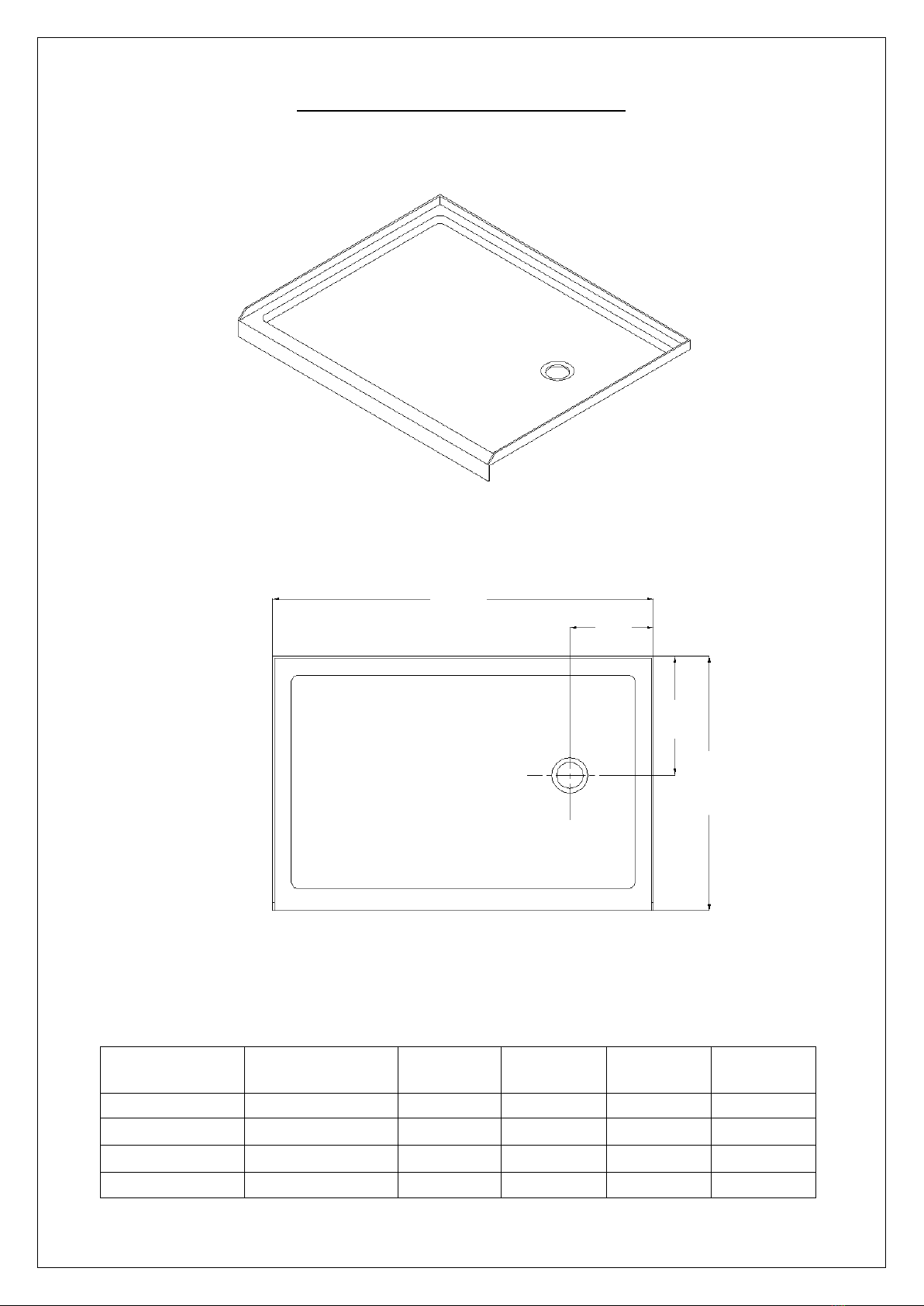

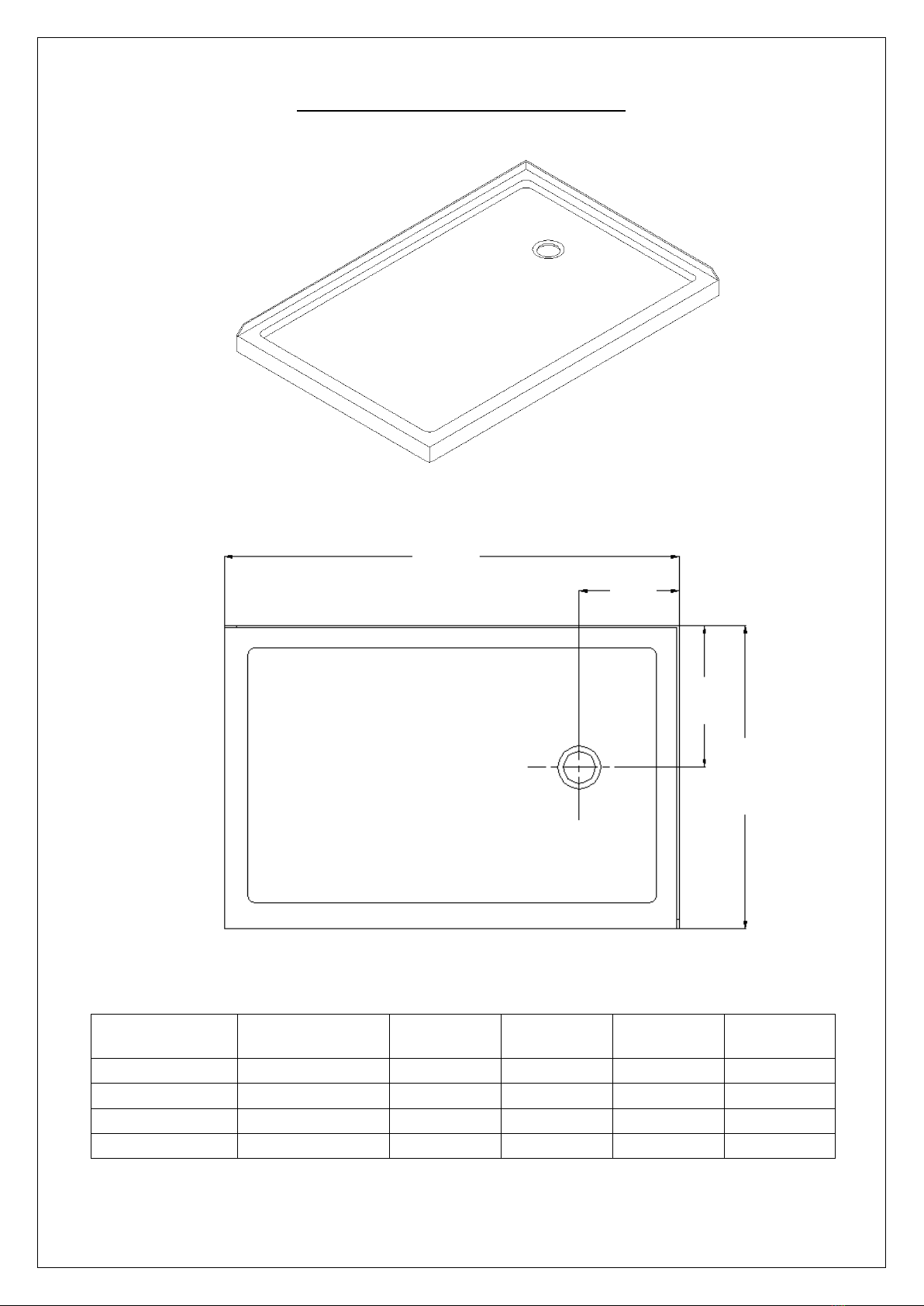

SINGLE THRESHOLD SHOWER BASE
Right-Hand Drain Configuration
MODEL SPECIFICATION D (in) W (in) D1 (in) W1 (in)
DLT-1130602
30"×60"
30"
60"
15"
12"
DLT-1132602 32"×60" 32" 60" 15" 12"
DLT-1134602
34"×60"
34"
60"
17"
12"
DLT-1136602
36"×60"
36"
60"
18"
12"
W1
W
D
D1

©2018 DreamLine. All Rights Reserved
SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018
8

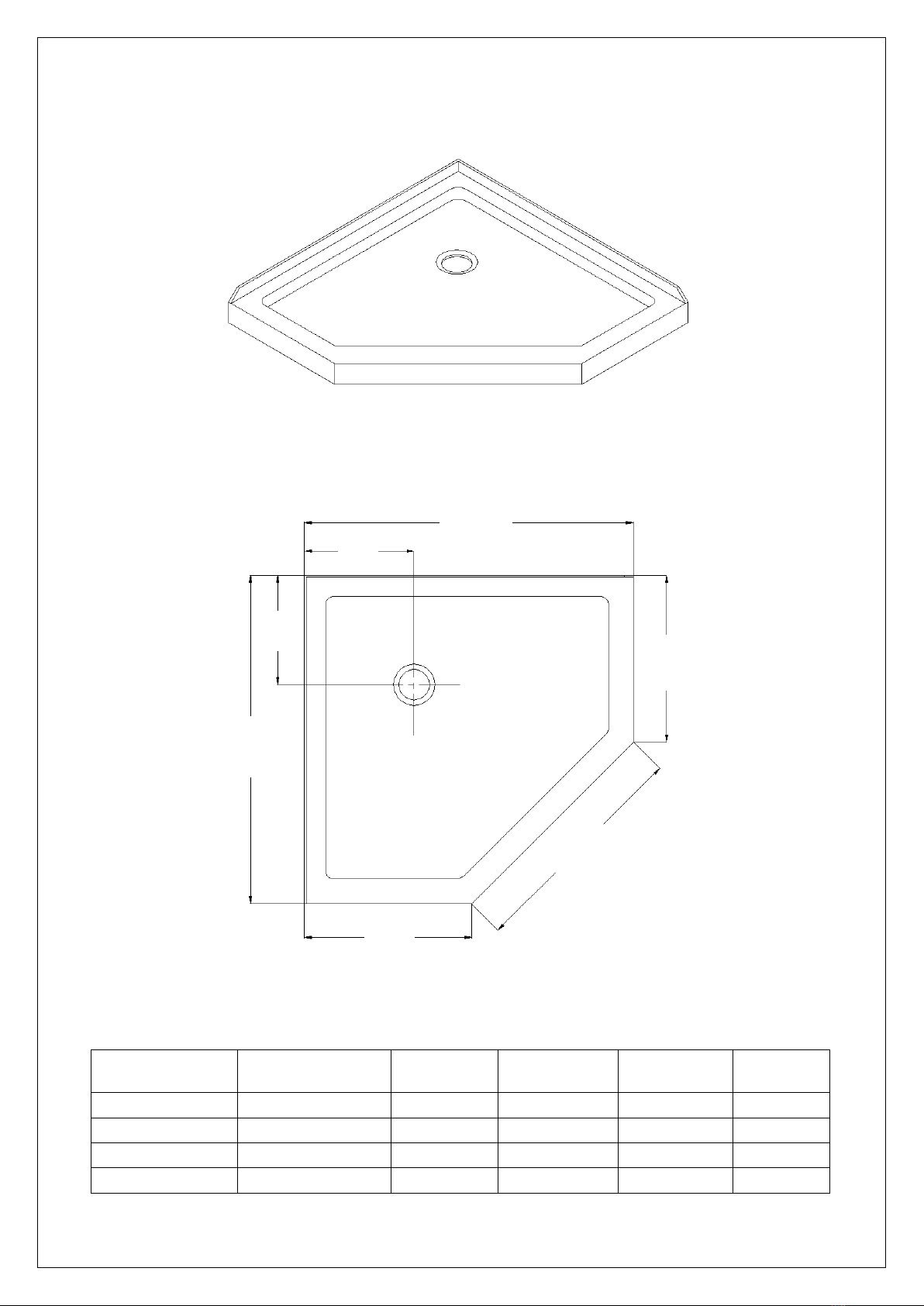

NEO ANGLE SHOWER BASE
MODEL SPECIFICATION W (in) A (in) B (in) C (in)
DLT-2036360
36"×36"
36"
18 5/16"
25"
12"
DLT-2038380
38"×38"
38"
20 5/16"
25"
12"
DLT-2040400
40"×40"
40"
22 5/16"
25"
14 3/8"
DLT-2042420
42"×42"
42"
24 5/16"
25"
14 3/8"
W
W
A
A
C
C
B

©2018 DreamLine. All Rights Reserved
SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018
9

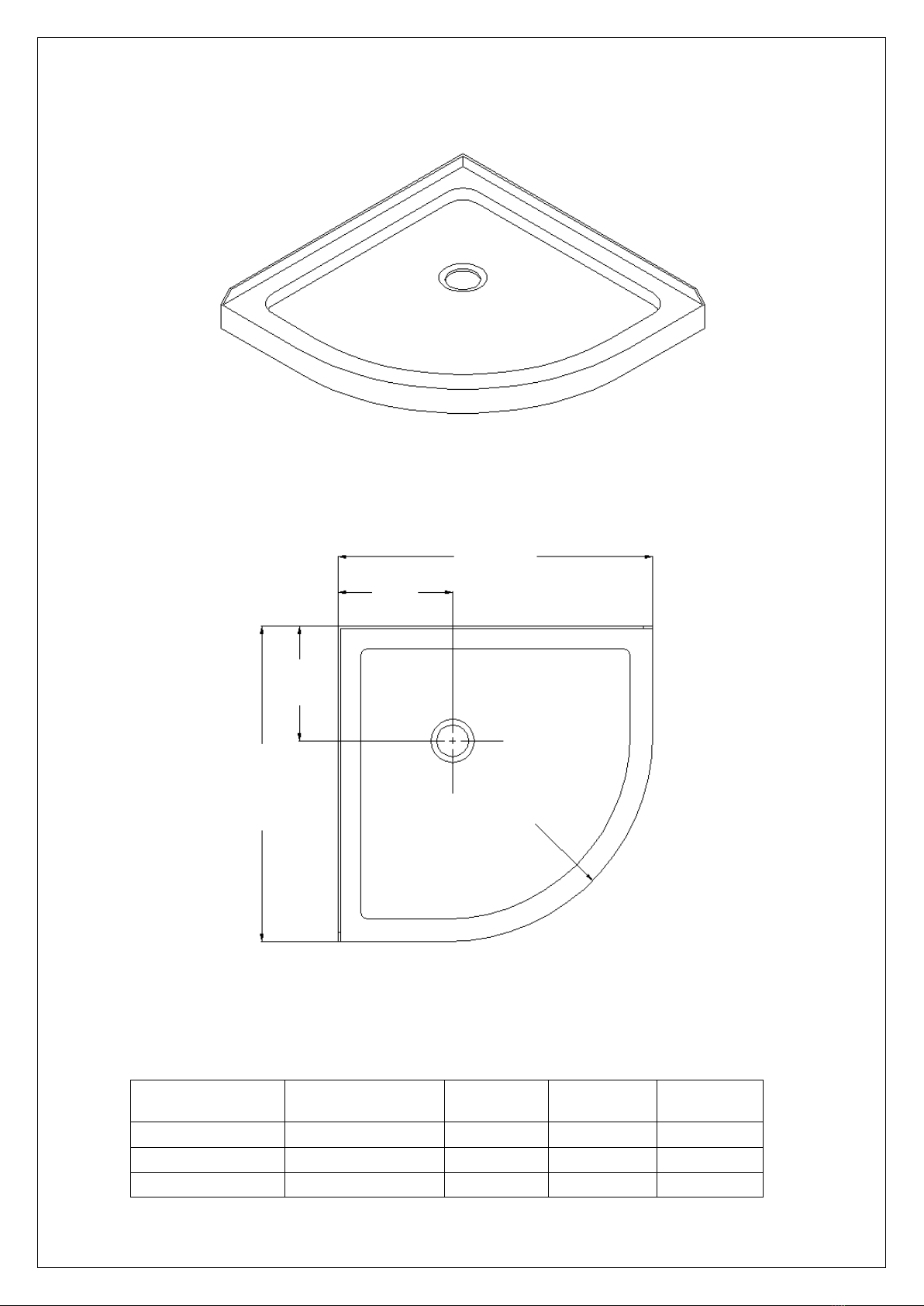

QUARTER ROUND SHOWER BASE
MODEL SPECIFICATION W (in) C (in) R (in)
DLT-7033330
33"×33"
33"
12"
21 5/8"
DLT-7036360
36"×36"
36"
12"
21 5/8"
DLT-7038380
38"×38"
38"
12"
21 5/8"
W
W
C
C
R

©2018 DreamLine. All Rights Reserved
SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018
10

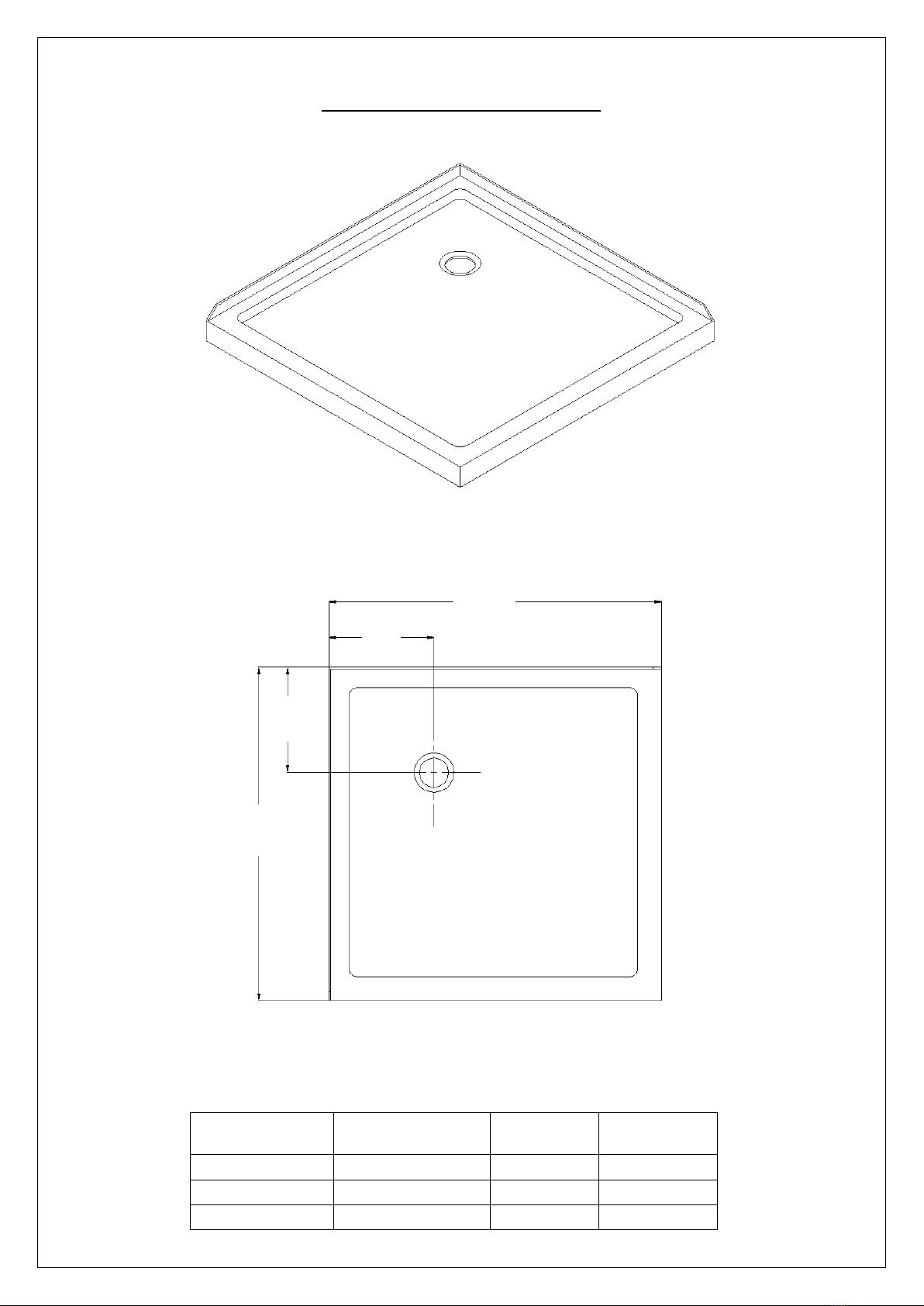

DOUBLE THRESHOLD SHOWER BASE
Corner Drain Configuration
MODEL SPECIFICATION W (in) C (in)
DLT-1032320
32"×32"
32"
12"
DLT-1036360
36"×36"
36"
12"
DLT-1042420
42” x 42”
42”
12”
W
W
C
C

©2018 DreamLine. All Rights Reserved
SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018
11
DOUBLE THRESHOLD SHOWER BASE
Left-Hand Drain Configuration
MODEL SPECIFICATION D (in) W (in) D1 (in) W1 (in)
DLT-1034481
34"×48"
34"
48"
17"
12"
DLT-1036481
36"×48"
36"
48"
18"
12"
DLT-1036541
36"×54"
36"
54"
18"
12"
DLT-1036601
36"×60"
36"
60"
18"
12"
D
W
D1
W1

©2018 DreamLine. All Rights Reserved
SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018
12
DOUBLE THRESHOLD SHOWER BASE
Right-Hand Drain Configuration
MODEL SPECIFICATION D (in) W (in) D1 (in) W1 (in)
DLT-1034482
34"×48"
34"
48"
17"
12"
DLT-1036482
36"×48"
36"
48"
18"
12"
DLT-1036542
36"×54"
36"
54"
18"
12"
DLT-1036602
36"×60"
36"
60"
18"
12"
W
D
D1
W1

©2018 DreamLine. All Rights Reserved
SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018
13
Shower Base Cross Section Diagram
This product should be installed by someone familiar with the construction
requirements for this type of project and the care necessary for the safe
installation and operation of the product.
Finished Wall
Cement board
Shower Base
Mortar
Drain*
(2"×4") Stud
* not included

©2018 DreamLine. All Rights Reserved
SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018
14

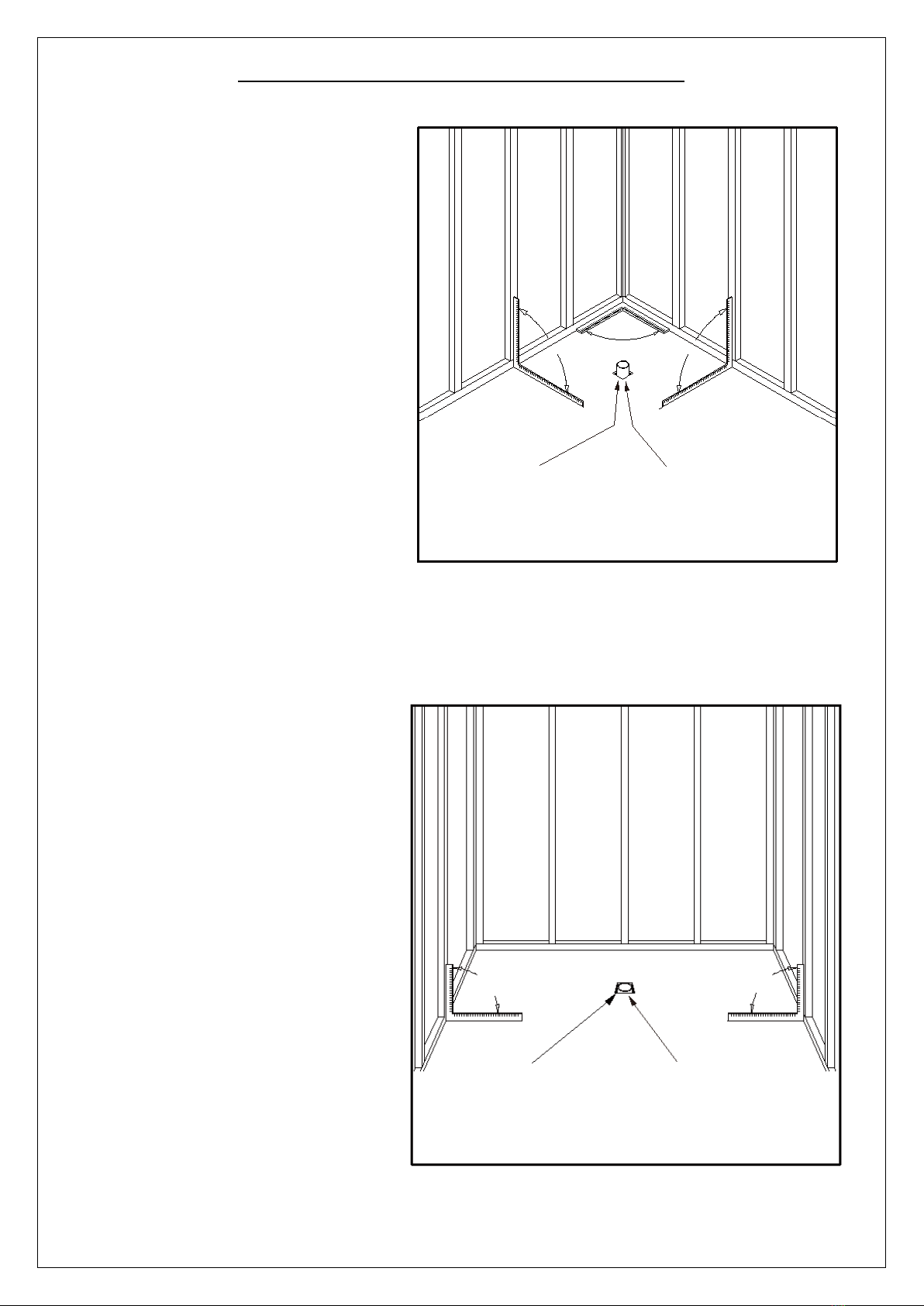

Shower Base Installation - Preparation
1. Ensure that the floor and the studs
are at right angles.
Provide a 5”×5” opening in the sub-
floor for the drain.
The 2” PVC waste pipe should
extend above the surface of the
sub-floor according to the drain
installation instructions and the
height of the Shower base.
Refer to the product drawings and
tables in this installation manual for
the drain location.
(Fig 1a and Fig 1b)
Fig 1a
Fig 1b
(See Product Chart for Drain Location)
(5"×5") Opening
2" PVC Waste Pipe
90°
90°
90°
90°
90°
2" PVC Waste Pipe
(5"×5") Opening
(See Product Chart for Drain Location)

©2018 DreamLine. All Rights Reserved
SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018
15

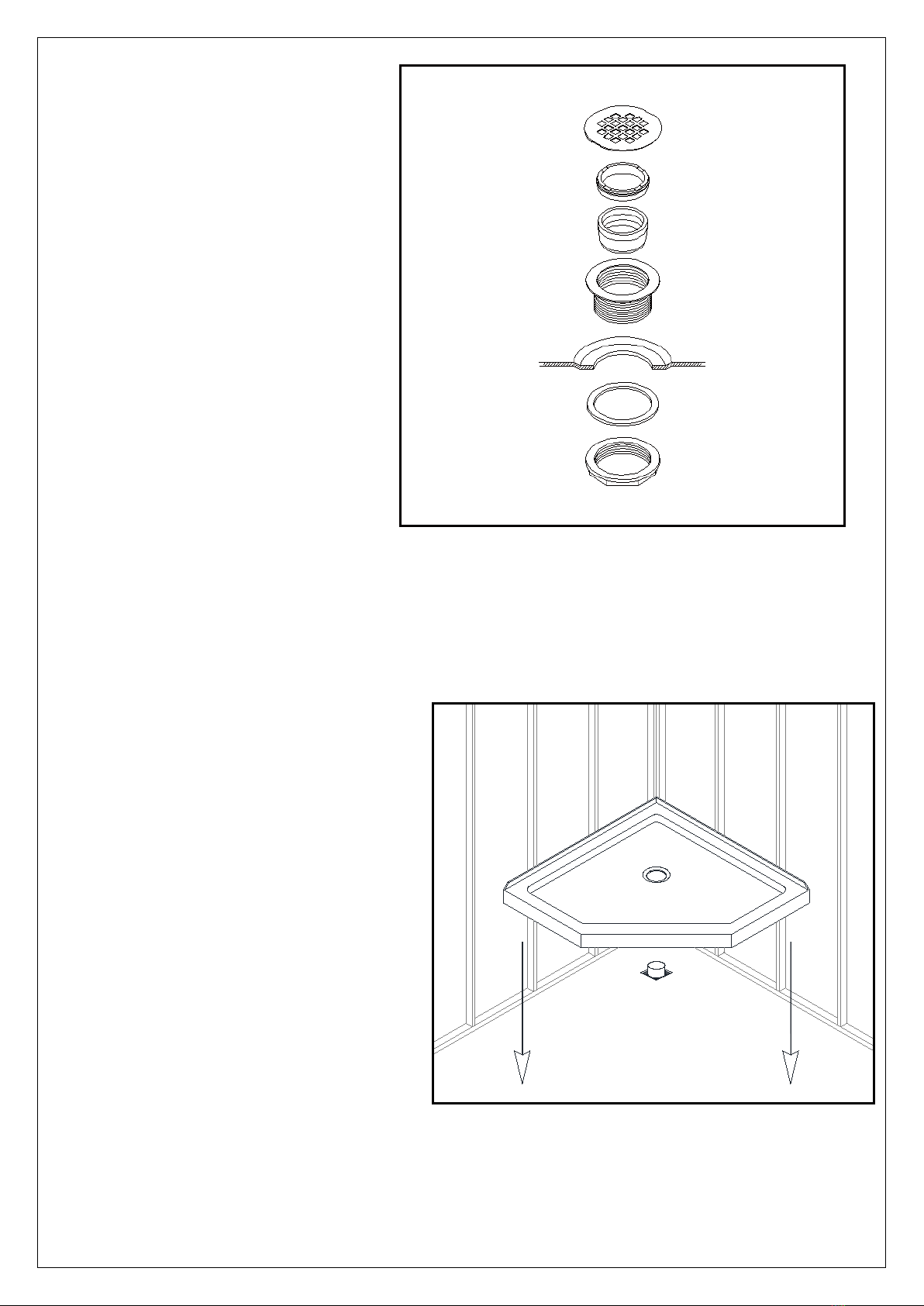

2. Install the shower drain (NOT
INCLUDED)according to the
drain installation manual
(supplied with the drain).
(Fig 2)
Fig 2
3. Place the tray into the designated
position so that the Drain cutout drops
around the Drain Pipe and butt the
Shower Base up against the studs.
(Fig 3)
Lower the base over the drain pipe
and set it into place against the studs.
Fig 3

©2018 DreamLine. All Rights Reserved
SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018
16
4. Level the tray and place marks on the
studs above the upper edge of the tile
flange.
(Fig 4)
5. Mix the bedding material (Mortar,
cement-sand mix, etc.) Concrete
or plaster is not recommended.
Apply enough bedding material
to support the entire bottom of
the shower base. This will add
additional stability and prevent the
base from shifting position.
(Fig 5)
Fig 5
Level base in two directions
Mortar
Fig 4

©2018 DreamLine. All Rights Reserved
SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018
17
6. After the bedding material has been
poured and before it sets, place the
shower base into the position with the
drain assembly sliding over the PVC
waste pipe. It will be necessary to push
the shower base until the top of the tile
flange aligns with the marks drawn on
the studs and the front edge is
contacting the rough floor along the
entire length of the shower base. Ensure
that the base is level in all directions.
You may need to use shims to hold the
tray level until the bedding fully sets.
Remove all excess mortar.
(Fig 6)
7. Allow the bedding material to completely harden before applying weight to the bottom of the
shower base.
Install the cement board (or the wallboard) above the tile flanges and secure it to the studs.
Put the tiles (or other finishing wall material) over the cement board leaving 1/8” gap between
the bottom of the tile or wall kit and the shower base. Use caulk to fill the gap.
(Fig 7a and Fig 7b)
Fig 6
Fig 7a
Waterproof Drywall to
the top of the tile flange
Caulk
Finished wall overlaps the
dry wall and tile flange
Stud
1
2
Waterproof
Drywall
4
3
Side View
1/8”
gap
Base

©2018 DreamLine. All Rights Reserved
SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018
18
Fig 7b

©2018 DreamLine. All Rights Reserved
SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018
19
Product Maintenance
BASES and BACKWALLS: To ensure long lasting life for your acrylic base and/or back walls:
wipe them off after each use with a soft cloth. To clean the acrylic base or back walls use
non-abrasive sprays or cream-based cleaners. Avoid the use of aerosol spray cleaners.
Never use abrasive cleansers, metal brushes or scrapers that could scratch or dull the surface.
GLASS: To ensure long-lasting life for your glass shower products: wipe them off after each use
with a soft cloth. Rinse and wipe off the glass using either a soft cloth or a squeegee to prevent
soap buildup and water spots (Hard water can etch the surface of the glass over time if left to
dry). To prevent scratching the surface: never use abrasive cleaners or cleaning products that
contain scouring agents. Never use bristle brushes or abrasive sponges that may scratch the
surface.
HARDWARE: To ensure a long-lasting finish: wipe off the metal parts after each use with a soft
cloth. Do not use abrasive cleaners or cleaning products containing ammonia, bleach or acid. If
accidentally used, rinse the surface as soon as possible to prevent damage to the finish
(peeling or corrosion). After cleaning the polished finishes, rinse thoroughly and wipe dry with
a soft cloth.
Clean stainless-steel surfaces at least once a week. When applying stainless steel cleaner or
polish to stainless steel hardware, work with (not across) the grain. Never use an abrasive
sponge or cloth, steel wool or wired brush as these may permanently scratch the surfaces.
NOTE: To maximize the life of your door, it is important to regularly inspect the glass
and other hardware for misalignment, proper attachment, and/or damage. Contact
DreamLine with any questions or concerns.
