DROCON Cyclone User manual

Fuselage Length:310.5mm
Overall height: 60mm
Main Rotor Diameter: 138mm
Gross Weight: about 110g
Battery: Li-polymer 3.7V 550 mAh
Charging Time: about 90 minutes
Introduction
The Quad-rotor design ensures a more stable and powerful performance .
The newly-designed structure makes assembly and maintenance much easier.
Product/spare parts included in this packaging
Manual
Description QTY (pc) Description QTY (pc) Description QTY (pc)
Aircraft Propeller Propeller Screw
Protecting Guard
Protecting Guard Screw
1 4 4
4 1
141
1
Remote Controller
USB charging cable
Screwdriver
Adopting 2.4G auto-connection technology, scores of drone can be flown
at the same time.
Equipped with the newest 6-Axis Gyro control system, this drone is
characterized by stable flights and maneuverability.
Fully charged battery can support 6-8 minutes steady flight.
ENGLISH

1
Important statement
Flight safety guidelines
● This drone is not a toy, but a hobby-grade drone. It should be assembled and operated
properly. Pilot must operate this hobby drone in a safe manner. Improper operation may cause
injury or property damage.
● This drone is applicable for pilots aged 14+ who are with skilled flying experience.
● Users are fully responsible for the proper operation of this drone. The manufacturer and
dealers will not accept any responsibility for damages caused by misuse or incorrect operation.
● Keep the small accessories away from kids so as to avoid accidents.
● Stay away from obstacles, crowds, power lines, trees or water bodies.
● Keep the aircraft in a dry environment
Thank you for purchasing DROCON product. Please read this manual carefully before use and
retain it for future reference.
Hobby-grade radio controlled drone can be potentially dangerous if not handled properly. Users
should firmly uphold the principle of safety comes first. Never fly the dronenear airports, above
crowds or in zones storing dangerous goods. Kindly appreciate the potential damage that an
accident may cause by improper operations.
Always choose a wide open area for every flight, that is far away from people and property. Never
fly directly over people or animals. Please do not fly in poor weather conditions such as high
temperature, snow, strong wind(≥level 5), rain or fog. Maintain a 7ft (2m) distance from the
drone when taking off or landing.
● Practice flying together with skillful pilots
Beginners are recommended to practice flying under a skillful pilot’s guidance. Do not fly alone.
● Bear in mind the proper operation and safe flight guidelines
Please peruse the manual thoroughly before flights for important information of product
functions and operation tips, and learn how to use the accessories. Safe flight always come first.
Stay informed of relevant local laws and regulations and strictly abide by them. Keep away from
any non-flight zones and respect other people's privacy.
● Safe flying
● Keep distance from the flying drone
Please make sure you are in good shape mentally before every flight. Fly the drone as per your
flying experience. Never fly under the influence of alcohol or drugs. Keep the remote controller
at least 20 cm away from your body when flying the drone.
Never use your hands to touch a flying drone under any circumstance. Do not approach or
touch a landed drone before its propellers are completely disengaged.
The drone is composed of sophisticated electronic components and mechanical parts. To avoid
damages to these components, please keep the drone in a dry environment and use a clean cloth
to wipe the surface and keep it clean.
Important statement and safety guidelines

2
The Remote controller
Control the function of upward,downward,forward,backward, leftward,rightward and 3D flips
movements as well as manipulations
Main features of the remote controller
Sketch and function switches of the remote controller
Remote Controller(Transmitter)
1.Power switch
9.Right control stick
8.Trimmer D
10.3D Flip
11.Power indicator
7.Trimmer C
4.Left control stick
3.Light switch/Headless
mode/One Key return
switch
5.Trimmer A
6.Trimmer B
2.High/Low speed switch
● Keep away from heat sources
The drone is made of metal, fiber, plastic, electronic material and other component. Please keep
it away from any heat source to avoid deformation or even damage caused by sun exposure
and high temperature.
● Environmental protection requirements
To protect our green planet, please recycle the drone or its parts as per local laws and
regulations.
●Insert batteries according to the correct polarity.
●Non-rechargeable batteries are not to be charged; the transmitter requires 4 X AA batteries for
operation.
●Do not mix old and new batteries.
●Do not mix alkaline,standard(carbon-zinc),or rechargeable(nickel-cadmium) batteries.
●Rechargeable batteries are to be removed from the toy before being charged;
●Rechargeable batteries are only to be charged under adult supervision;
●Exhausted batteries are to be removed from the toy;
●The supply terminals are not to be short-circuited.

3
10
Power
indicator
The indicator light keeps blinking slowly: the
transmitter is not activated.Please push up the throttle
control stick to the top and then push it down to the
bottom to activate the remote controller.The indicator
light keeps flashing rapidly: the transmitter is sending
out connectional signal to the aircraft.The indicator
light keeps on without blinking: the transmitter is
ready for controlling the flight.
3D roll
Keep pressing the 3D rolling button and push the
forward/backward and the leftward/rightward control stick
to the edges to perform the roll actions accordingly.
11
No. Function switch Function description
1
2
3
4
5
6
Trimmer A
Trimmer B
Left stick
This button is null.
Throttle control,turn left/turn right.
Push up the power switch to power on the transmitter;
push down the power switch to turn off the transmitter.
Power switch
Turn left/right trimmer.
There are 2 flight modes for this model: low speed and
high speed.
High/Low speed
switch
Light/headless
mode/one key
return
A single press is light switch; long press for 1.5sec for
headless mode. In headless mode ,a single press
commands the return to home function.
8
9
Trimmer D
Right control
stick
7 Trimmer C
Forward/backward flight trimmer.
Forward/backward/leftward/rightward control stick.
Leftward/rightward flight trimmer.

4
The drone
How to charge the drone
Light
Motor
Propeller
Protecting
Guard
Major parts of the drone
Turn off the aircraft, open the battery door ,unplug the battery cable from the
power wire plug and take out the battery. Insert the USB charger into the USB
interface of the computer or other USB outlet; connect the battery cable with
the USB wire plug, and charging is proceeding with indicator light being red.
Once the battery is full charged, the indicator light of the USB will be off.Full
charging takes about 90 minutes.
How to change new battery for the drone
Note: Please connect the power plug as per the indicated positive and negative polarity.
●Need adult supervision when this aircraft is being played by children.
●Only batteries of the same or equivalent type as recommended are to be used.
●Insert batteries according to the correct polarity.
●Non-rechargeable batteries are not to be charged; the transmitter requires 4 X AA batteries for operation.
●Do not mix old and new batteries.
●Do not mix alkaline,standard(carbon-zinc),or rechargeable(nickel-cadmium) batteries.
●Rechargeable batteries are to be removed from the toy before being charged;
●Rechargeable batteries are only to be charged under adult supervision;
●Exhausted batteries are to be removed from the toy;
●The supply terminals are not to be short-circuited.
●The charing line to be used with the product should be regularly examined for potential hazard,such
as damage to the cable or cord, plug,enclosure of other parts and that in the event of such damage,
the product must not be used until that damage had been properly removed.

5
●To ensure steady flight, please set the value of the Trimmer to the midpoint.
●To avoid any misunderstanding, we have defined the orientation of the drone as follows: The nose of the
drone is defined as the section of the drone facing away from the player and the tail facing the player.
The copter nose direction is termed as the “forward” direction, the tail direction is termed as the “
backward”direction. All the directions that will be mentioned hereafter are subject to the definitions
above.
Preparation for flight
● Make sure that the battery (at the bottom of the drone) is properly
installed and connected with the power wire of drone. The drone
should be OFF.
● Power on the drone; the fuselage light will keep flashing quickly,
the gyro of the drone will be in signal detecting mode.
Lay the drone on a flat surface, and about 4 seconds
later, the fuselage light will stop blinking and
stay “ON”. This means that the signal connection
process has finished and the drone is ready for flight.
● Push up the throttle stick slowly and the drone takes off for flight.
The drone
●Recheck the playground; be sure that it is free from crowd, animals
and other barrier.
●Turn on the remote controller and the
power indicator light flashes rapidly and
sends out connection signal to the drone.
●Slide the throttle control stick up to the top;
then, return the throttle control stick to the
bottom; It will take about 10 seconds to
finish the signal connection process.
Once the signal connection is completed,
the power light will stay "on" without
blinking and the remote controller is
set for flight.
The remote control

6
●
●
●
The blue lights are at the front of the drone; the orange lights are at the back of the drone.
When the drone is on, checking the rotation direction of the rotor blades;the front-left and right-back rotor
blades should be rotating in clockwise direction; the right-front and left-back rotor blades should be
rotating in counter-clockwise direction.
If the drone keeps flying to one side, it can be corrected by adjusting the trimmer on the remote control.
Remarks:
Signal connection between the drone and the remote control is required for the first use.
Set the connection one by one to avoid signal connection error.
To better protect the battery, please unplug the battery cable from the power wire after use.
Clockwise
(Motor 2)
Clockwise
(Motor 4)
(Motor 1)
Counter Clockwise
(Motor 3)
Counter Clockwise
Head of the
drone
Tail of the
drone
Left Right
●
●
●

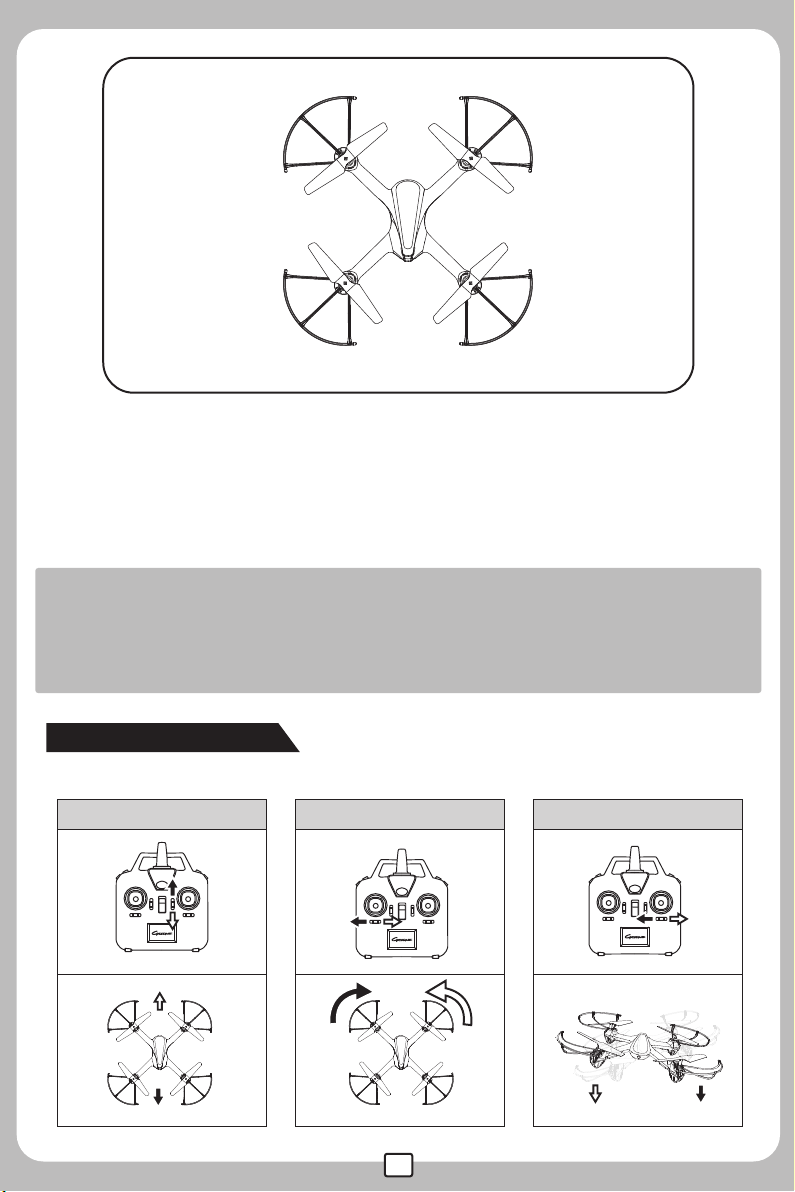

Trimmer Functions
Users may adjust the elevator trim to keep the drone balanced.
Forward/backward trimmer Turn left/ turn right trimmer Leftward/rightward trimmer

7
Operating
Remote controller
Remote controller Aircraft Aircraft
3D Roll
Warm tips：To flip and roll, please press down the 3D rolling button and push the direction control stick to the
edge at the same time.If not, the aircraft will not perform the flip & roll actions as per norm.
Rightward
flips & rolls
Leftward
flips & rolls
Forward
flips &rolls
Backward
flips & rolls
Enter headless mode:
When the transmitter signal connection is completed, press the function button at the top left corner for
2 secs, and a“beep beep” sound will follow. After which the lights of the drone will come on and then
start flashing, this indicates that the drone has entered headless mode.
Headless aircraft:
Down
Up
Forward
Backward

8
Exit headless mode:
When the drone is in headless mode, press the function button at the top left corner for 2 secs, and a
“beep beep beep”sound will follow. The lights of the drone will be turned on followed by flashing until
the blinking comes to a halt. This indicates that the drone has exited the headless mode.
When the drone is in headless mode, drone calibration is needed. Position the drone in such a way that its
front is aligned similarly to your frontal position, turn both of the two control sticks to the lower right corner
for about 2 seconds, the drone’s indicator light will flash slowly until it starts flashing quickly, that is, the
drone calibration is finished.

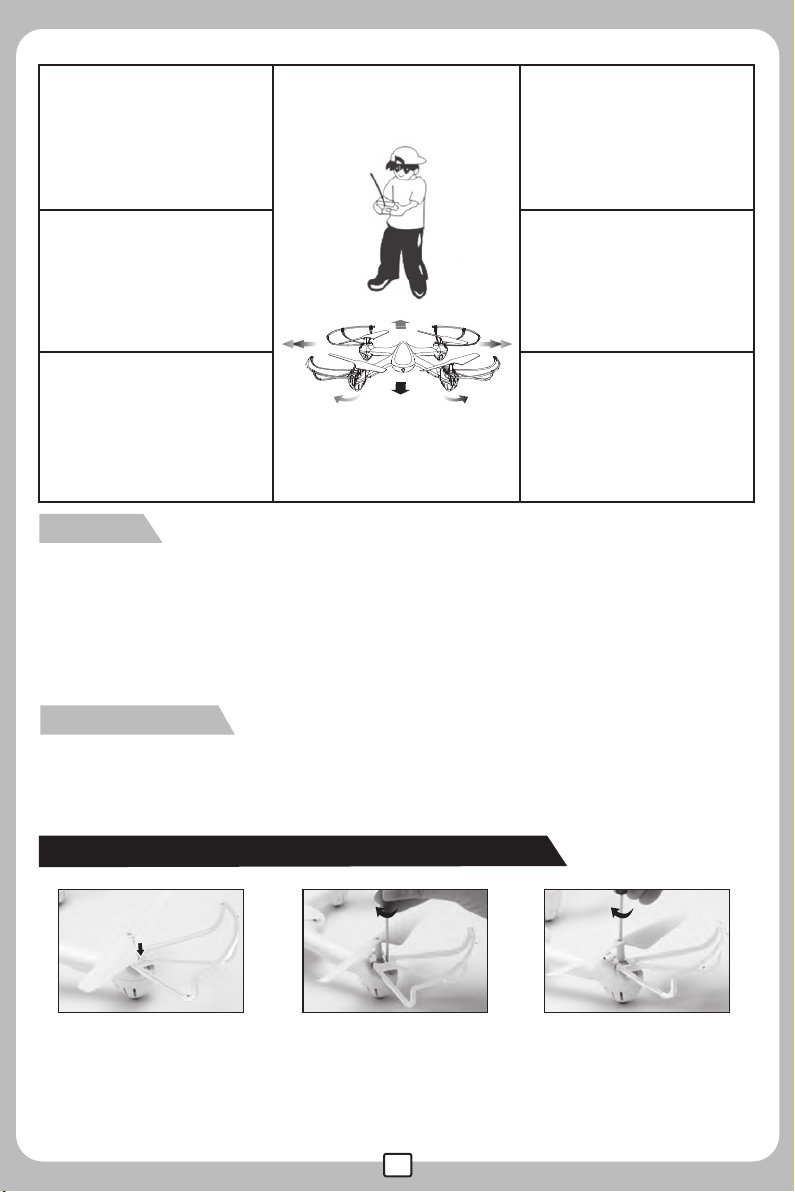

Model calibration in headless mode：
When verifying the flight direction of the drone, set the drone’s nose to point away from the player and its
tail pointing towards the player. At this moment, the drone’s nose is pointing forward; this direction will
always be considered to be the“forward”direction. Therefore, when the forward command is sent from the
remote control, regardless of whichever direction the drone’s nose is pointing,the drone body will go
forward. Flight direction control in headless mode: When the drone is flying in headless mode, player
should keep facing the forward direction. Otherwise,the model will be out of control. The drone control
is illustrated below:
Flight direction control in headless mode:

9
When you take off,make sure
that your front is the aircraft's
front; turn the left control
stick to the left, the aircraft will
turn left.
When you take off,make sure
that your front is the aircraft's
front; turn the left control
stick to the right, the aircraft
will turn right.
When you take off,make sure
that your front is the aircraft's
front; turn the right control
stick to the right, the aircraft
will fly rightward.
When you take off,make sure
that your front is the aircraft's
front; turn the right control
stick to the left, the aircraft
will fly leftward.
When you take off,make sure
that your front is the aircraft's
front; push down the right
control stick, the aircraft will
fly backward.
When you take off,make sure
that your front is the aircraft's
front; push up the right control
stick, the aircraft will fly forward.
Protection frame and propeller installation
2.Affix the protection frame
by screwing clockwise.
3.Fasten the propeller by
turning the screws
clockwise.
1.There are 3 interfaces on
each motor cabinet. Insert
the frame plugs into the
interfaces.
One key return:
When the drone is flying in headless mode, if the one key return button, the drone will fly towards the user.
If the one key return button is pressed again or the forward /backward control stick used, the drone will exit
the one key return function.
Remarks:
●Drone calibration is needed when the drone is about to fly in the headless mode. When verifying the flight
direction, the drone ought to positioned with its nose pointing straight ahead and the tail pointing towards
user. The must always face the direction in which the drone nose is pointing .
●When the drone is flying in headless mode, if the flight direction is inconsistent with the user’s operational
command or there are directional deviations, please stop flying and re-calibrate the drone immediately.
