DS18 HYDRO User manual

SBAR30BT
SBAR35BT
OWNER’S MANUAL
REMOTE CONTROLLER
INCLUDED
REMOTE CONTROLLER
INCLUDED
“L” BRACKETS
INCLUDED
MAST CLAMP
INCLUDED

For ATV /UTV, Golf Cart&Jeeps
30"/35" WaterProof Active SoundBar With BT System
IP65 Marine-Grade Compliant
Continous Power Handing 80 x 2 RMS (SBAR30BT); 100W x 2 RMS (SBAR35BT)
Peak Music Power 160 x 2 Watts MAX (SBAR30BT); 200 x 2 Watts MAX(SBAR35BT)
CLASS D AMP With BT4.2
2 x 1" Titanium Dome PEI Surround Tweeter with Horn Face Plate
6 x 3" (SBAR30BT) / 8 x 3" (SBAR35BT) Speaker for Left and Right Channel
Waterproof Paper Cone with Rubber Surround
Magnet Material:Y35 Ferrite and Neodymium Reversed Magnet
Efficiency: 95dB (SBAR30BT) / 97dB (SBAR35BT) 1W/1M 2.8V
Frequency Response: 63Hz-20KHz
Extursion Aluminium Cabinet with Black Sand Powder Coating
AUX. 3.5mm input & output
DC12-15 Volt Input, 3.8m Input Special Wires (FUSE, AUX IN ,AUX OUT,
RGB input Wires)
2" & 1.75" Clamp for Mast and "L" Braket for Flat Mounting
BT AMP Auto Turn ON/OFF Circuit
BT AMP High Temperature Protection
BT AMP Overload Protection
BT AMP Short-Circuit Protection
USB3.0 Waterproof Port for Remote
Chromed Cover Waterproof Remote Controller With 3M Connect Wires
1 SET Active Sound Bar Marine Grade with BT and LED Light System
2 x “L” Aluminium Braket for Flat Mounting
2 x 2.0” for Mast Mounting Braket
2 x 1.75” for Mast Mounting Braket
2 x “T” Aluminium Base Braket for Mast Mounting
2 x NBR Pad for Mast Mounting
Hardware (Stainless): 2 x M8-28, 2 x M8-55, 2 x M6-14, 2 x M8 (nut),
2 x M8 Washer, 2 x M8 Check Washer
3 mm & 6 mm Hex Wrench
Remote Controller
3.0m USB 3.0 Waterproof Wire
PACKAGE INCLUDE
SBAR30BT
SBAR35BT 200W / 400W
160W / 320W
RMS/ MAXDESCRIPTIONMODEL
HYDRO 30” 2-WAY SOUND BAR WATERPROOF SPEAKER WITH
INTEGRATED RGB LED LIGHT AND BLUETOOTH SYSTEM
HYDRO 35” 2-WAY SOUND BAR WATERPROOF SPEAKER WITH
INTEGRATED RGB LED LIGHT AND BLUETOOTH SYSTEM
816mm / 32.13”
118mm / 4.65”
25mm / 0.98”
745.7mm / 29.36”
123mm / 4.84”
123mm / 4.84”
182mm / 7.16”
44.1mm / 1.74”
110mm / 4.33”

INSTALLATION CONSIDERATIONS:
PREPARING FOR INSTALLATION:
1.Be sure to carefully read and understand the instructions before attempting to install these
speakers.
2.For safety, disconnect the negative battery terminal from the battery prior to beginning ghe
installation.
3.For easier assembly, we suggest you have all your tools handy-Drill,Allen set, Crimp,
Soldering iron, wire strippers,heat-shrink,etc.
4.Use high quality “Water Proof” connectors for a reliable installationand to minimize signal
or power loss.
5.Think before you drill! Be careful not to cut or drill into gas tank, fuel lines, brake or hydraulic
lines, vacuum lines or electrical wiring when working on any vehicle. if installation in a boat,
take care not cut or drill through the main hull.
6.Never run wires near fuel lines or power (if possible).Running the wires inside the hull or car
area provides the best protection.
7.Avoid running wires over or through sharp edges. Use rubber or plastic grommets to protect
any wires routed through metal,especially the tower.
8.Make sure that the mounting clamp or “L”braket are tight before leaving the dock.
9.Decide early what type of LED lighting you want (if any) and wire accordingly (NOTE:if you
want “Dancing Light” look to the WIFI or RF or BT remote controlled LED light box.The easy
way to have lighting ... YOUR way!)
● An electric drill with bits
● Allen / Hex Key / Wrench Set
● Philips head and standard screw drivers
● wire strippers
● Crimping tool
● VOM (electronic volt ohm meter)
● Heat shrink tubing and heat gun
● Soldering iron
● electronic (Rosen not Acid Core)Solder
NOTE:The stainless steel hardware supplied with your soundbar
has been chosen to resist rust and corrosion. If the particular
hardware supplied will not work for your installation purposes,
please be sure to use only appropriate marine grade(stainless
steel)mounting hardware.

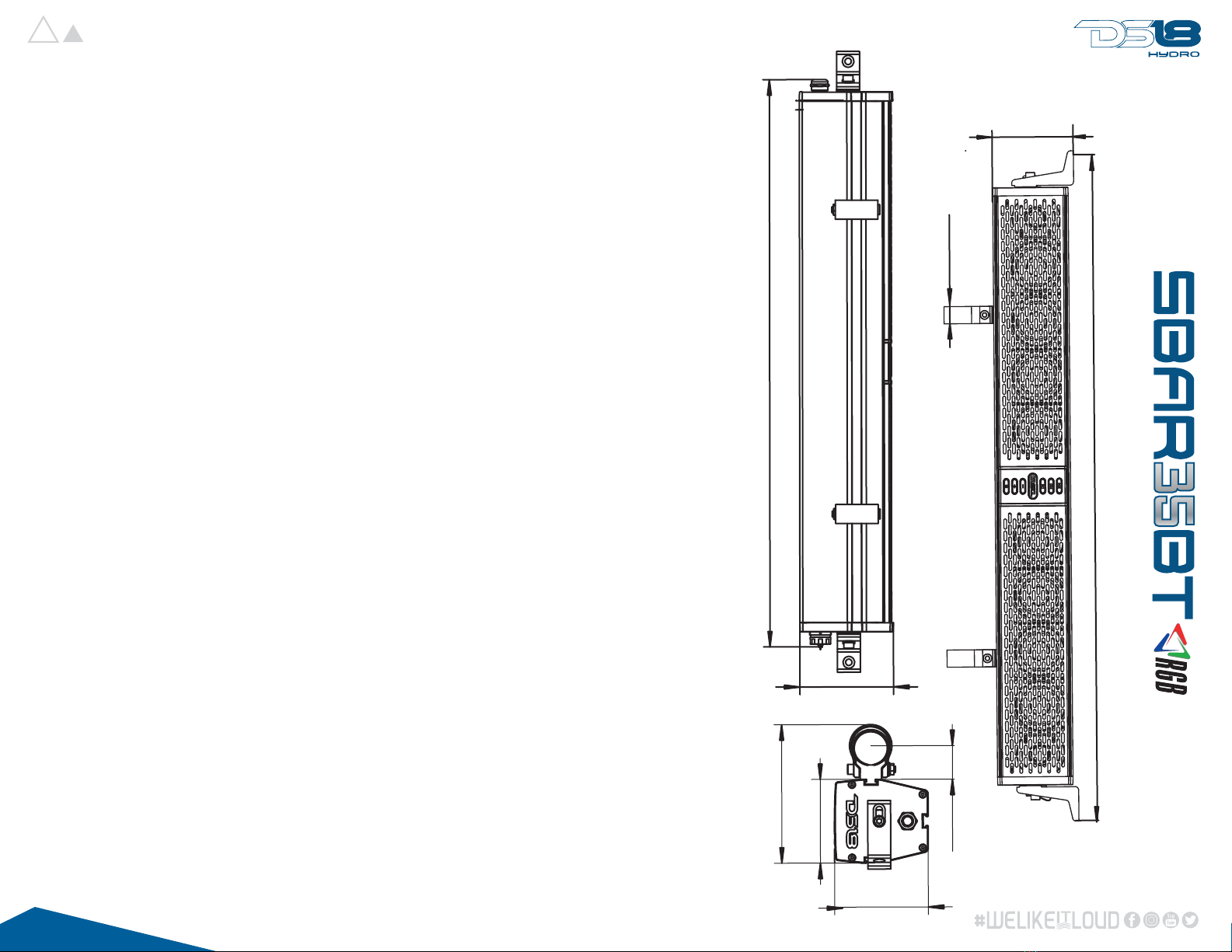

976mm / 38.43”
118mm / 4.65”
25mm / 0.98”
907mm / 35.71”
123mm / 4.84”
123mm / 4.84”
182mm / 7.16”
44.1mm / 1.74”
110mm / 4.33”

L-brackets Mounting Option
Use the supplied hardware to mount the L bracket to the sound bar at thedesired mounting angle.Securely
Explosion View
Bottom Flat Mounting View
Mast Mounting View
Explosion View
Mast Top Mounting
Mast Back Mounting
Top Flat Mounting
Angle Adjust View
Bottom Flat Mounting
Angle Adjust View
tighten all hardware. Thediameter ofthehole in the L- bracket is 3/8 inches.
Clamp bracket Mounting Option
There is asetscrew in themiddle of the Clamp that will lockitintothe sound bar once the clamps are in
place so they will lock in place. Thereis one ofscrews for the clamps can fixed 2” or 1.75” tube size.
Mast Bottom Mounting
If you have an LED Control Module(LED-BTC), Connect as shown in the Following diagram:
To connect without LED Control Module(LED-BTC), Connect as Shown in the Following
Diagram;
Black wire “BK” Connected to battery Positive(+)12V
Green Color Light “G”Connected to Battery Negative(-)
Red Color Light “R”Connected to Battery Negative(-)
Blue Color Light “B”Connected to Battery Negative(-)
Purple Color Light “R”and“B”Connected to Battery Negative(-)
Yellow Color Light “R”and“G”Connected to Battery Negative(-)
Cyan Color Light “B”and“G”Connected to Battery Negative(-)
White Color Light “R”,“B” and “G” three wires Connected to Battery Negative(-)
AWG16
AWG16

POWER WIRING AND SIGNAL CONNECTIONS
AUX INPUT
Red Fuse Wire is the main power lead to be either hooked up to 12-15 volts battery power or 12-15 volt
switched power, it is recommended to hook this power wire directly to the battery for better current and
voltage flow.
BLACK Ground Wire is the ground lead to the soundbar and needs to be a solid ground connection.
sand or scrape the paint away from a solid chassis location and use a screw or bolt with a star washer
for best result,you can also connect the ground wire directly to the battery.
AUX 3.5mm INPUT is the audio input from a source unit that produces 250mv to 1 volts, we use a
3.5mm connector for cell phone or MP3 player, if you need RCA input, there are 3.5mm adaptors available
from your authorized dealer.
AUX 3.5mm OUTPUT is up to a 1volt output to drive an external AMP (subwoofer or full-range) or a
second soundbar, this output is a full-range variable output that is controlled by the soundbar pre-amp.
Connect the external audio input wire to your soundbar,turn the soundbar on by the power button ,press
once,an audioble beep will confirm that the soundbar is powered on, All keys backlight will be turned on,
when the mid of “DS18”button backlight is white , the aux input working,now you can use the main
controller on the soundbar to adjust volume up, down. Track back and forward as well as pause will not
work in aux mode; these fueatures work only in bluetooth mode, in Aux mode these features can only be
operated by you connected device.(Radio,Phone or MP3 Player)
BLUETOOTH INPUT
Connect the external audio by your phone,turn the soundbar on by the power button ,press
once,an audioble beep will confirm that the soundbar is powered on, All keys backlight will be turned on,
press once the mid of “DS18”button,when the backlight is blue light ,the bluetooth mode working,
please turn on your phone’s bluetooth to find the name is “DS18-SBAR30 BT” or “DS18-SBAR35 BT”
whent the phone display the “DS18-SBAR30 BT” or “DS18-SBAR35 BT” connected,an audioble beep
will confirm the soundbar had connected . then can play your music by phone .
AWG16
AWG16
1
3
2
4
7
6
5
REMOTE CONROLLER
CONTROLLER OPERATION
MAIN CONROLLER
Press once the power button ,Power on/off, when power on ,all button backlight will be turned on and
display white.
1)POWER BUTTON
Press once the volume up button momentarily to raise the volume,Along with andible beep,Press the
volume up button repeatedly until the desired volume level is achieved, the Amp will be limit the
volume up.
Press once the volume down button momentarily to lower the volume,Along with andible beep,Press the
volume down button repeatedly until the desired volume level is achieved.
Press once the “DS18”or bluetooth button momentarily to swithch between bluetooth and auxiliary input,
Along with andible beep,press the “DS18”or bluetooth button to pair a bluetooth device if no device is
currently paired, when bluetooth working condition, the button light will be change to blue.
Press once light button controller the soundbar RGB LED light on/off, this light only remote
controller can turn on/off, normally, the lights are on.
Press once pause button will mute music or pause music, again will be keep playing.
Press once track back button momentarily to skip back to the previous song(Bluetooth mode only).
Press once track forward button momentarily to skip to the next song(Bluetooth mode only).
2)VOLUME UP BUTTON
3)VOLUME DOWN BUTTON
4)BLUETOOTH / AUX BUTTON
5)TRACK FORWARD BUTTON
6)TRACK BACK BUTTON
7)PAUSE MUTE BUTTON
8)RGB LED LIGHT BUTTON
(white)
