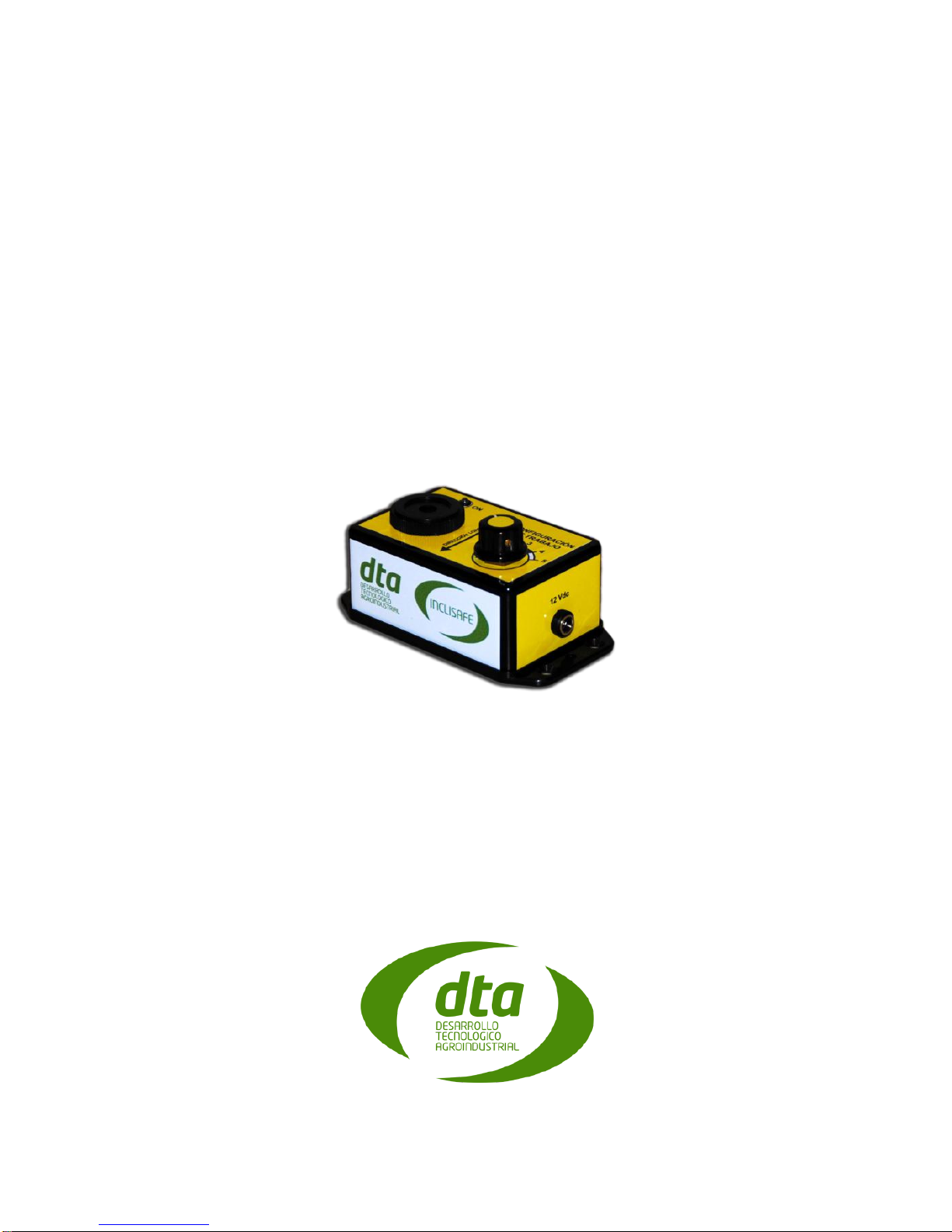

DTA INCLISAFE IS1 User manual

INCLISAFE IS1
SPECIFIC FOR TRACTORS
USER MANUAL

INCLISAFE FOR TRACTORS –USER MANUAL
2
ABOUT THIS MANUAL
This manual contains the instructions for the INCLISAFE rollover risk warning device correct set
up and use.
BEFORE BEGINNING
1. Read these instructions and procedures carefully
2. Read the messages tagged with the Important symbol with special attention.
3. Carefully follow the set up procedure before installing the device on the tractor.
IMPORTANT MESSAGES
Important messages tagged in this manual indicate procedures or instructions which are
especially significant for the correct INCLISAFE operation; therefore they must be obligatory and
carefully followed.
HOW TO OBTAIN TECHNICAL SUPPORT AND ADDITIONAL MANTEINANCE
In case of any incidence, problem or suggestion related to the INCLSIAFE device, do not hesítate
in contacting us. To do so, please email us to [e-mail].
For technical questions related to the technical support or the INCLISAFE guarantee, please
contact us through the technical support email [e-mail], or if you prefer, call us to our
customer service phone number, 957-326155.
BOX CONTENT
Inside the INCLISAFE packaging box you will find the following components:
-1 INCLISAFE IS1 device
-1 Jack-USB connection Cable
-1 12V power supply cable.
-2 CD’s - INCLISOFT for Windows (32-bits and 64-bits versions)
-Velcro® for the binding to the vehicle (4x105 mm strips)
-Configurations Card
-User Manual
-INCLISAFE Configuration Manual –INCLISOFT User Manual
-Tractor Configuration Sheet.
Please verify your INCLISAFE packaging box includes all the components. If any of them was
missing, please contact us as soon as possible in order to provide it to you.

INCLISAFE FOR TRACTORS –USER MANUAL
3
INCLISAFE FOR TRACTORS
INCLISAFE is a UNIVERSAL ROLLOVER RISK WARNING DEVICE. Therefore, it is designed to
warn you about the instability situations that occur while you are driving your tractor. The
INCLISAFE alarm will be more consistent as the instability and the rollover risk increase.
WORKING PRINCIPLE
The big problem regarding tractor safety is the fact that they can roll quite easily. Moreover, the
real rollover limit angle changes in every instant, as a function of the velocity and the
terrain conditions. Due to this, many rollover accidents occur unpredictably when working on
slopes that are lower than the theoretical tractor limit lateral slope.
INCLISAFE takes into account not only the angles, but also the vibrations and the terrain
bumps, in order to calculate the tractor stability and warn you in case of rollover risk.
For example, if you slowly drive over a stone and it does not involve any risk, INCLISAFE won’t
warn you, but if you drive over the same stone with a higher speed, INCLISAFE will warn you
about the instability produced. And if you drive over it with an even higher speed, the INCLISAFE
alarm will increase its frequency. In this way, you can learn about the situations that involve tractor
instability, knowing that if you increase the speed or the terrain becomes bumpier, a rollover could
occur.
The INCLISAFE alarm works with a frequency increasing horn. The alarm frequency increases
along with the instability, reaching a continuous sound alarm in case of imminent rollover.
ALARM
LEVELS
HORN
FREQUENCY
MEANING
MEASURE TO TAKE
1
1 beep/second
Punctual Instability - Bump
None –If driving faster, it will
involve instability risk
2
2 beeps/second
Low instability
Slightly reduce speed
3
4 beeps/second
High Instability
Drastically reduce speed.
Drive towards a lower slope
area.
4
Constant alarm
Imminent Rollover
Drastically reduce speed.
Drive towards a lower slope
area.
USE INDICATIONS
As explained, INCLISAFE measures not only the inclination, but also the dynamics of the vehicle,
that is, the effect of the bumps and the speed on the tractor. This implies that INCLISAFE will emit
the alarm when it detects hard bumps, indicating that these bumps involve a stability loss.
Therefore you should avoid them or drive at a lower speed around these bumpy areas.

INCLISAFE FOR TRACTORS –USER MANUAL
4
PARTS AND COMPONENTS
Alarm Siren
The alarm siren emits the sound that will warn you in case the INCLISAFE detects any sort of
instability, which could lead to a tractor rollover. In order to learn more about the alarm sound
levels, go to paragraph WORKING PRINCIPLE.
Configurations Selector Switch
The 5 positions selector switch allows changing the internal INCLISAFE configuration during
working time. Further forward in this manual you will learn how to load up to 5 working
configurations on the INCLISAFE, for each of which you will be able to choose among several
tractor accessories, implements and counterweights. Thanks to this, if you change your tractor
implement you just have to switch the selector to the proper position, and INCLISAFE will be
automatically configured for this new weight distribution.

INCLISAFE FOR TRACTORS –USER MANUAL
5
0º Level Reset Button
This button is used to re-calibrate the INCLISAFE device to a horizontal reference, in case of a
non-horizontal installation on the tractor. Its functionality is explained further forward, in the
paragraph INCLISAFE INSTALLATION
12V Power Supply Connection
Power input connection for the 12V power supply cable. This cable is provided with the classical
12V plug for the most common 12V connection inside tractor cabins.
Pilot Light
The INCLISAFE pilot light changes to yellow when connecting the INCLISAFE to the 12V power
source. On the other hand, it becomes orange when plugging the INCLISAFE device to a PC
through the USB cable, in order to load the tractor data using the INCLISOFT software.
Configurations Card
This card, supplied with the INCLISAFE device, is provided to write down the working
configurations you load in it, so that you know which one is assigned to each selector switch
position. You can attach it to your device or place it anywhere inside your tractor cabin.
INCLISAFE INSTALLATION
In order to achieve a correct operation of the INCLISAFE device, it is important to configure it
properly; in this way the device will know, at each moment, in which working conditions the tractor
is.
As your might already know, the tractor behavior varies a lot as a function of its implements and
working tools. INCLISAFE is designed to take into account these variations, but it needs to be
configured correctly with this purpose.
Steps to follow to achieve a correct INCLISAFE configuration:
Tractor data.
The first step is to know the tractor weight and dimensions. To do so, INCLISOFT software has a
database with the data of more than 1000 tractor models. If your tractor is not in this database,
refer to your tractor user manual in order to find the data needed. Moreover, the required basic
dimensions can be measured on the tractor itself.
1) Implements and accesories data.
In order to correctly configure the INCLISAFE device, it is necessary to define the implements
weight and position as accurate as possible. To do so, fill in the Tractor Configuration Sheet, in
which you can find all the dimensions needed. You will find inside the INCLISAFE packaging box.
All of these dimensions and distances are the ones that the INCLISOFT software will require in
order to configure the INCLISAFE properly. Moreover, you will find the implement weight indicated
on its characteristics plate and its user manual.

INCLISAFE FOR TRACTORS –USER MANUAL
6
2) Configure your INCLISAFE device using the INCLISOFT software provided. Read the
INCLISOFT Installation and User Guide that you will find inside the INCLISFE packaging box.
INSTALLING THE INCLISAFE ONBOARD
The INCLISAFE device installation inside the tractor cabin is very simple. Follow these steps:
1) Find a nearly horizontal surface inside the tractor cabin. It does not need to be completely
horizontal, since the device allows for a ±10º maximum installation inclination. INCLISAFE is
usually installed below the driver’s seat or even behind it.
2) Clean the surface with a wet cloth, and dry it carefully. In this way, the maximum adhesive
strength is achieved by the Velcro® adhesive.
3) Place the INCLISAFE device on the chosen surface. The device orientation is quite important.
It has to be placed in a way that the arrow on the INCLISAFE surface is oriented along with
the longitudinal direction of the tractor. Use the provided Velcro® strips to fix the device to the
horizontal surface.
4) Connect the 12V power supply cable to the 12V power supply output inside your tractor cabin.
Afterwards, connect the power supply cable to the INCLISAFE input connection. After an
instant, you will hear a beep. This beep means the INCLISAFE device is properly installed.
Important: If INCLISAFE is installed with an inclination higher than 10º, you will hear an
intermittent beep when you plug it in, which won’t stop until it is unplugged. This means that
you have to install the device on a more horizontal surface.
5) Once the INCLISAFE device is plugged in, you need to re-calibrate the device so that it takes
the installation position as the tractor horizontal reference. To do so, press and keep pressed
the RESET button for a few seconds, until you hear a short beep sequence. This means the
device has been re-calibrated correctly.
If you have gone through these steps correctly, you now can start working with your tractor using
the INCLSAFE device.
REMEMBER: INCLISAFE measures not only the inclination but also the dynamics, the effect of
the bumps on the tractor. This implies that INCLISAFE will emit the alarm when it detects hard
bumps, indicating that these bumps involve a stability loss. Therefore you should avoid them or
drive at a lower speed around these bumpy areas.

INCLISAFE FOR TRACTORS –USER MANUAL
7
USE ADVICES, CAUTIONS AND WARNINGS
We recommend re-calibrating the INCLISAFE device every 40 hours of use, or after a long period
of non-use. This will make the device behavior to be as expected even if it has been slightly
moved or inclined.
Do not place the INCLISAFE device anywhere near your ear.
PROBLEMS
In case the INCLISAFE device does not behave correctly:
1. Check that the configurations selector switch corresponds to the working mode and
implements on the tractor.
2. Re-calibrate the device, using the RESET button.
3. Re-Configure the INCLISAFE device using the INCLISOFT software provided, carefully
checking each configuration. Check that the implements weights and measures are
correct.
4. If you keep having problems or doubts, please contact us and we will help you solve the
problem.
GUARANTEE
INCLISAFE is under a 2 year guarantee covering manufacturing defects. For a better
management of the guarantee conditions and client support, we strongly recommend to register in
our website, www.dtaebt.com. You will be asked about your basic info, like your tractor model,
dealer you bought the device from, device serial number, etc. In this way it will be much easier for
us to help you in case you contact us.
In case you don’t have an internet connection available, contact us by telephone and we will make
the registration for you.
RESPONSABILITY EXEMPTION
The INCLISAFE device is a rollover risk WARNING device. As explained along this manual, it
requires an accurate device configuration in order to perform correctly, and the final user is in
charge of this configuration. For this, DTA EBT is not responsible for the device wrong functioning
due to a inaccurate INCLISAFE configuration.
Moreover, DTA EBT does not take responsibility for the device improper use or the lack of
attention the tractor driver pays to the device alarm. It is the tractor driver sole responsibility to pay
attention and follow the INCLISAFE alarm indications, in order to avoid rollover risk situations,
since the INCLISAFE device will never act on the tractor direction or guidance.
Therefore, it is important to remark that the INCLISAFE device does not substitute any sort of
tractor security element or rollover protection systems, such as ROPS.

INCLISAFE FOR TRACTORS –USER MANUAL
8
For all of this, DTA EBT does not take any responsibility for the incidents or accidents involving a
tractor rollover in which the INCLISAFE device was installed onboard. It is the tractor driver sole
responsibility to take the necessary preventive measures (speed reduction, direction change)
when the rollover risk warning alarm is heard.
CE HOMOLOGATION
INCLISAFE fulfills the European CE Standards regarding Product Safety and Electromagnetic
Compatibility (2001/95/CE y 72/245/CEE).
ENVIRONMENTAL ISSUES
INCLISAFE is a Environment-friendly device. It is manufactured under RoHS standards in order to
guarantee the non use of products that could harm the environment.
Moreover, in order to guarantee that the INCLISAFE device does not harm the
Environment during its entire life cycle, DTA EBT has established a waste
management policy, in which we ask INCLSIFE users to contact us if they do not
use the device anymore, instead of throwing it away. In this case, we will pick it up
from you for free, and proceed to its complete recycling.
THE COMPANY
Desarrollo Tecnológico Agroindustrial E.B.T. S.L. (DTA EBT) is a
young company, but involving people with a wide and deep
experience in engineering. DTA EBT focuses on research,
innovation and development of products and technological
services for the agro-industrial sector.
In order to meet the current and future needs of the agro-industrial sector, we research, develop
and offer innovative technological solutions at affordable prices, so that they improve companies’
competitivity, profitability and productivity.
More about us: www.dtaebt.com
More about INCLISAFE: www.inclisafe.com
Contact us: [email protected]om
Talk to us: [phone]
