DTC AEON-LT HEVC 4K User manual

Resource Identifier: 100273
Revision 1.0
AEON-LT HEVC 4K Transmitter
User Guide
Commercial in Confidence
DTC –Solent
Fusion 2
1100 Parkway
Solent Business Park
Whiteley
Hampshire
PO15 7AB
United Kingdom
[phone]

AEON-LT HEVC 4K Transmitter
Commercial in Confidence
Revision: 1.0
The information contained in this document is the property of Domo Tactical Communications (DTC) Ltd.
Any copying or reproduction in any form whatsoever is prohibited without the written permission of DTC.
© 2018 Copyright Domo Tactical Communications (DTC) Limited. All rights reserved.
Page 0-1
0. Preface
0.1 About this Document
This document contains relevant information required to identify, install and control the equipment or
system.
Since the available functions can be licensed and depend on the specific implementation, not all the
functions and or applications contained in this document may be relevant or applicable to the system you
will be working with.
The actual presentation may differ from those in this document due to hardware or software changes.
0.2 Intended Audience
This document is for anyone interested in how the system can be used, but it is of most benefit to:
Operators who are in charge of the daily operation of the equipment
Installers who are responsible for the pre-installation, on-site installation and configuration of the
system in the end-user environment
Maintainers who are responsible for maintaining the equipment or system
0.3 Notice about this Publication
While DTC makes every attempt to maintain the accuracy of the information contained in its product
manuals, the information is subject to change without notice.
Performance specifications included in this manual are included for guidance. All particulars are given by
DTC in good faith, actual performance may vary.
0.4 Text Conventions
This document uses these conventions to identify text that has a special meaning:
Description
Example
Text in capitals represents a key press on a keyboard.
The + sign means hold down the first key while pressing the second
key.
ESC, F1, SHIFT
CTRL+C
<Text> Serves as a placeholder for variable text that is replaced as
appropriate, the text may be written in italics.
Use the filename
<system_name>.sys for…
Text in italics can represent a link to a place in the existing document
(often these are hyperlinks) or a reference to another document.
Refer to section 0.4, Text
Conventions.
Text in bold emphasises a term of significance.
We call this a protocol and its
function is…
Successive software menu selections are shown using arrows to
indicate sub-menus. This is often shown in bold.
Select Configuration>Global
then edit…

AEON-LT HEVC 4K Transmitter
Commercial in Confidence
Revision: 1.0
The information contained in this document is the property of Domo Tactical Communications (DTC) Ltd.
Any copying or reproduction in any form whatsoever is prohibited without the written permission of DTC.
© 2018 Copyright Domo Tactical Communications (DTC) Limited. All rights reserved.
Page 0-2
0.5 Symbols
These symbols are used to highlight important information.
WARNING: A notice of when a situation may result in personal injury or loss of life, or destruction of
equipment.
CAUTION: A notice of when a situation may result in loss of data or damage to equipment or systems.
Note: A notice to draw attention to something or to supply additional information.
0.6 Trademarks
All trademarks or registered trademarks that appear in this document are the property of their respective
owners.
© 2018 Domo Tactical Communications (DTC) Limited
The information contained in this document is the property of Domo Tactical Communications (DTC) Ltd.
Any copying or reproduction in any form whatsoever is prohibited without the written permission of DTC.
0.7 Related Documents
All DTC documents can be downloaded from WatchDox. See section 8.1.
Document
Source
SOLO Concept Guide
DTC
IP Concept Guide
DTC
0.8 Document History
This is a controlled document, written and produced by the DTC Technical Publications team. Changes are
recorded in the table below.
Revision
Date
Author
Summary of Changes
1.0
04/12/2018
IR
First release

AEON-LT HEVC 4K Transmitter
Commercial in Confidence
Revision: 1.0
The information contained in this document is the property of Domo Tactical Communications (DTC) Ltd.
Any copying or reproduction in any form whatsoever is prohibited without the written permission of DTC.
© 2018 Copyright Domo Tactical Communications (DTC) Limited. All rights reserved.
Page 0-3
Contents
0. Preface..................................................................................................... 0-1
0.1 About this Document .................................................................................................................. 0-1
0.2 Intended Audience ......................................................................................................................0-1
0.3 Notice about this Publication......................................................................................................0-1
0.4 Text Conventions......................................................................................................................... 0-1
0.5 Symbols ......................................................................................................................................0-2
0.6 Trademarks.................................................................................................................................0-2
0.7 Related Documents.....................................................................................................................0-2
0.8 Document History........................................................................................................................ 0-2
1. Product Overview...................................................................................... 1-1
1.1 Description..................................................................................................................................1-1
1.2 Features......................................................................................................................................1-1
1.3 Basic Specifications ...................................................................................................................1-1
1.4 Approval Notices .........................................................................................................................1-2
2. Product Package ...................................................................................... 2-3
2.1 Overview ..................................................................................................................................... 2-3
2.2 Parts List .................................................................................................................................... 2-3
2.3 Accessory Options .......................................................................................................................2-3
2.4 Variants ......................................................................................................................................2-4
2.5 Labelling.....................................................................................................................................2-4
2.6 Licensing Options .......................................................................................................................2-4
3. Connections, Controls and Indicators ....................................................... 3-5
3.1 Introduction ................................................................................................................................3-5
3.2 Top Panel ....................................................................................................................................3-5
3.3 Bottom Panel ..............................................................................................................................3-6
3.4 OLED Control Panel .....................................................................................................................3-7
3.5 Camera/Battery Mount................................................................................................................ 3-7
3.6 Pinout .........................................................................................................................................3-8
4. Getting Started......................................................................................... 4-9
4.1 Introduction ................................................................................................................................4-9
4.2 Power ..........................................................................................................................................4-9
4.3 User Control ................................................................................................................................4-9
5. OLED Control and Monitoring.................................................................. 5-10
5.1 Introduction ..............................................................................................................................5-10
5.2 Control Button Functions ..........................................................................................................5-10
5.3 Menu Structure .........................................................................................................................5-10
6. Advanced Operation ............................................................................... 6-15

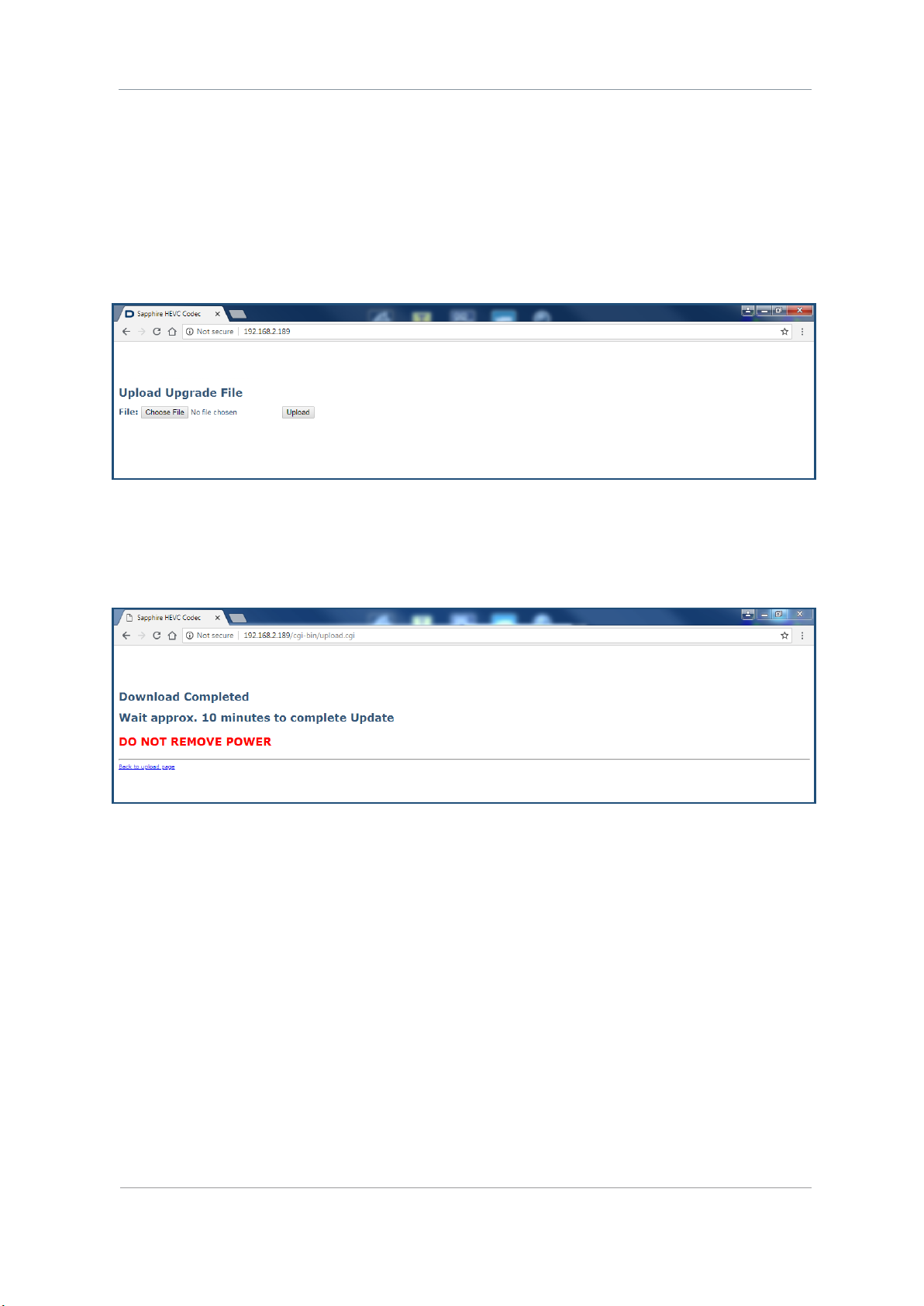

6.1 Software Upgrade .....................................................................................................................6-15
7. Appendix A –Reference Material ............................................................ 7-16
7.1 How to Configure a PC IP Address.............................................................................................7-16
8. Appendix B –After-Sales Support........................................................... 8-17

AEON-LT HEVC 4K Transmitter
Commercial in Confidence
Revision: 1.0
The information contained in this document is the property of Domo Tactical Communications (DTC) Ltd.
Any copying or reproduction in any form whatsoever is prohibited without the written permission of DTC.
© 2018 Copyright Domo Tactical Communications (DTC) Limited. All rights reserved.
Page 0-4
8.1 Documentation and Software....................................................................................................8-17
8.2 Contact Technical Support........................................................................................................ 8-17
8.3 Using the DTC RMA Service.......................................................................................................8-17
9. Appendix C –Safety and Maintenance ................................................... 9-19
9.1 Cautions and Warnings ............................................................................................................9-19
9.2 Repairs and Alterations ............................................................................................................9-20
9.3 Caring for your Equipment........................................................................................................9-20
9.4 Charging...................................................................................................................................9-20
9.5 Working with Lithium Batteries.................................................................................................9-20
9.6 Cleaning ...................................................................................................................................9-21
9.7 Storage .....................................................................................................................................9-21
10. Appendix D –Glossary....................................................................... 10-22

AEON-LT HEVC 4K Transmitter
Commercial in Confidence
Revision: 1.0
The information contained in this document is the property of Domo Tactical Communications (DTC) Ltd.
Any copying or reproduction in any form whatsoever is prohibited without the written permission of DTC.
© 2018 Copyright Domo Tactical Communications (DTC) Limited. All rights reserved.
Page 1-1
1. Product Overview
1.1 Description
A compact COFDM digital video transmitter, specifically designed for high quality wireless link
applications. With proven Domo COFDM and next generation HEVC encoder technology at its core enabling
Ultra High Definition images, the small size and actively cooled enclosure give maximum operational
performance.
Designed to offer future proof connectivity, the unit supports quad 3G-SDI video inputs. Two true balanced
audio inputs are included with phantom power. The transmitter has an integrated control panel with
sunlight-readable display covering all major functions.
The HEVC codec used in AEON products offers a step change in compression efficiency over H.264 systems,
whilst maintaining low end-to-end latency suitable for live events.
1.2 Features
Ultra-low latency HEVC SD, HD and 4K encoding
Video formats up to 2160p60, 10-bit and 4:2:2 chroma sampling, future HDR support
Industry standard DVB-T modulation for interoperability with existing systems
Domo Broadcast UMVL modulation for enhanced high frequency/high speed performance
Controlled via an integrated sunlight-readable display
Available as V-mount, AB-mount or no battery mount options
Designed for sports & events coverage, newsgathering and wireless studio camera applications
Low power consumption and active cooling for extended field performance
1.3 Basic Specifications
DC Input
9.2V to 17.8V reverse polarity protected
Power consumption
30W max
Temperature range
-10°C to +50°C
Humidity
Less than 85% non-condensing
Dimensions
177mm (L), 125mm (W), 50mm (D)
Weight
1080g
Note: Detailed technical specifications are given in the product datasheet. Please see
http://www.domotactical.com/.

AEON-LT HEVC 4K Transmitter
Commercial in Confidence
Revision: 1.0
The information contained in this document is the property of Domo Tactical Communications (DTC) Ltd.
Any copying or reproduction in any form whatsoever is prohibited without the written permission of DTC.
© 2018 Copyright Domo Tactical Communications (DTC) Limited. All rights reserved.
Page 1-2
1.4 Approval Notices
1.4.1 EMC/Safety and Radio Approvals
The equipment has been designed to meet and has been tested against harmonized EMC and safety
standards.
1.4.2 CE Marking
The CE mark is affixed to all DTC products, the CE Declaration of Conformity as well as the technical file is
available on request.

AEON-LT HEVC 4K Transmitter
Commercial in Confidence
Revision: 1.0
The information contained in this document is the property of Domo Tactical Communications (DTC) Ltd.
Any copying or reproduction in any form whatsoever is prohibited without the written permission of DTC.
© 2018 Copyright Domo Tactical Communications (DTC) Limited. All rights reserved.
Page 2-3
2. Product Package
2.1 Overview
Carefully open the packaging and the remove the device and all other items. Verify that all the components
have been included in the package as shown in the packing list. Inspect for shipping damage.
Note: If you don’t have all the parts or you are not happy with the condition of your delivered product,
please call DTC and we’ll get this solved for you. See section 8.2.
Retain the packing list and all the packing materials for storage.
The codes in the packing list mean:
CA –cable assembly
SA –sub assembly
AP –assembly part
The part numbers are useful for identification and if you need to order a new part.
2.2 Parts List
These items will be in the package.
Part Number
Description
CA0579
5-way Lemo to XLR x 2 audio input cable
CA3348 x 4
SDI HD-BNC to BNC cable, 0.25m
SA4329
AEON-LT USB support stick
2.3 Accessory Options
If you have purchased any of these items, they will also be in the package.
Part Number
Description
CA0340
4-way Lemo to 9-way D-type RS232 data cable
CA0579
5-way Lemo to XLR x 2 audio input cable (for second channel)
CA3421
4-way Lemo to 15V 6.0A 90W PSU
PRORXD-8-2RU-AEON
Eight input PRORXD receiver HEVC decoder

AEON-LT HEVC 4K Transmitter
Commercial in Confidence
Revision: 1.0
The information contained in this document is the property of Domo Tactical Communications (DTC) Ltd.
Any copying or reproduction in any form whatsoever is prohibited without the written permission of DTC.
© 2018 Copyright Domo Tactical Communications (DTC) Limited. All rights reserved.
Page 2-4
2.4 Variants
This part number will identify the product; it is also on the label.
Part Number
Description
AEON-LT-V-198270
HEVC 4K transmitter 100mW 1.98-2.7GHz
AEON-LT-V-300370
HEVC 4K transmitter 100mW 3.0-3.7GHz
AEON-LT-V-700750
HEVC 4K transmitter 100mW 7.0-7.5GHz
2.5 Labelling
Product Label
No.
Description
1
Part number –this is the variant explained above.
2
This symbol indicates that the unit should be disposed of in accordance with the WEEE
Directive.
3
The CE mark certifies that a product has met EU consumer safety, health and environmental
requirements.
4
A barcoded, six-digit serial number. This may be required during a support call.
5
Power requirements.
2.6 Licensing Options
Some product functions are enabled by licenses.
Part Number
Description
Silver (base license)
DVB-T, ultra-mobile video link (UMVL), dual pedestal, single HD encoder
LIC-AEON-PSF
PSF video formats

AEON-LT HEVC 4K Transmitter
Commercial in Confidence
Revision: 1.0
The information contained in this document is the property of Domo Tactical Communications (DTC) Ltd.
Any copying or reproduction in any form whatsoever is prohibited without the written permission of DTC.
© 2018 Copyright Domo Tactical Communications (DTC) Limited. All rights reserved.
Page 3-5
3. Connections, Controls and Indicators
3.1 Introduction
This chapter will help identify all the connections and interfaces of the product needed to install, control
and monitor the AEON-LT.

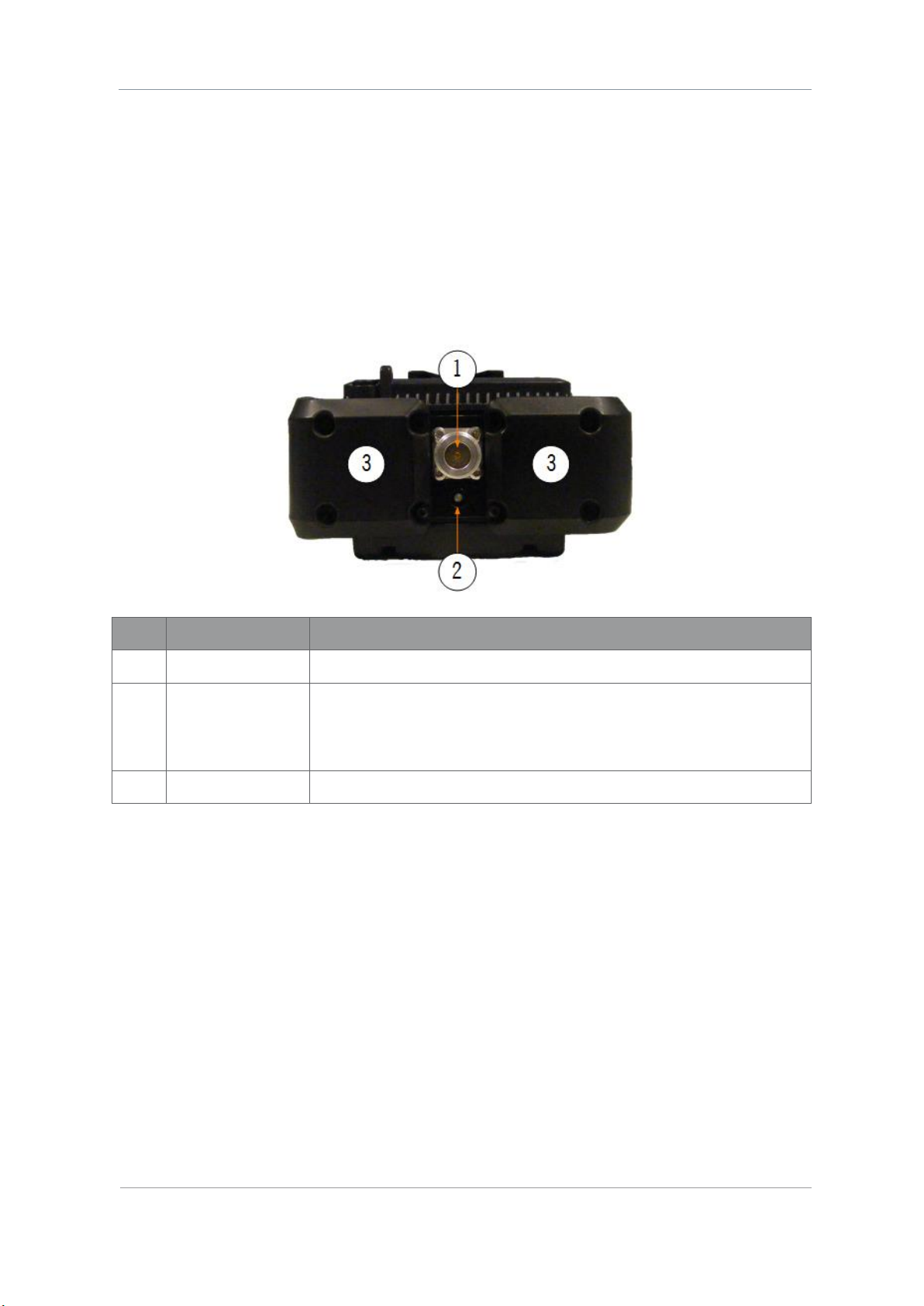

3.2 Top Panel
No.
Item
Connection
1
N-type jack
RF power out. Connect a suitably matched antenna.
2
LED indicator
Power/RF status.
Red = power on/RF off
Green = power on/RF on
3
Fan guard
Two fans guards for safety and rain protection.

AEON-LT HEVC 4K Transmitter
Commercial in Confidence
Revision: 1.0
The information contained in this document is the property of Domo Tactical Communications (DTC) Ltd.
Any copying or reproduction in any form whatsoever is prohibited without the written permission of DTC.
© 2018 Copyright Domo Tactical Communications (DTC) Limited. All rights reserved.
Page 3-6

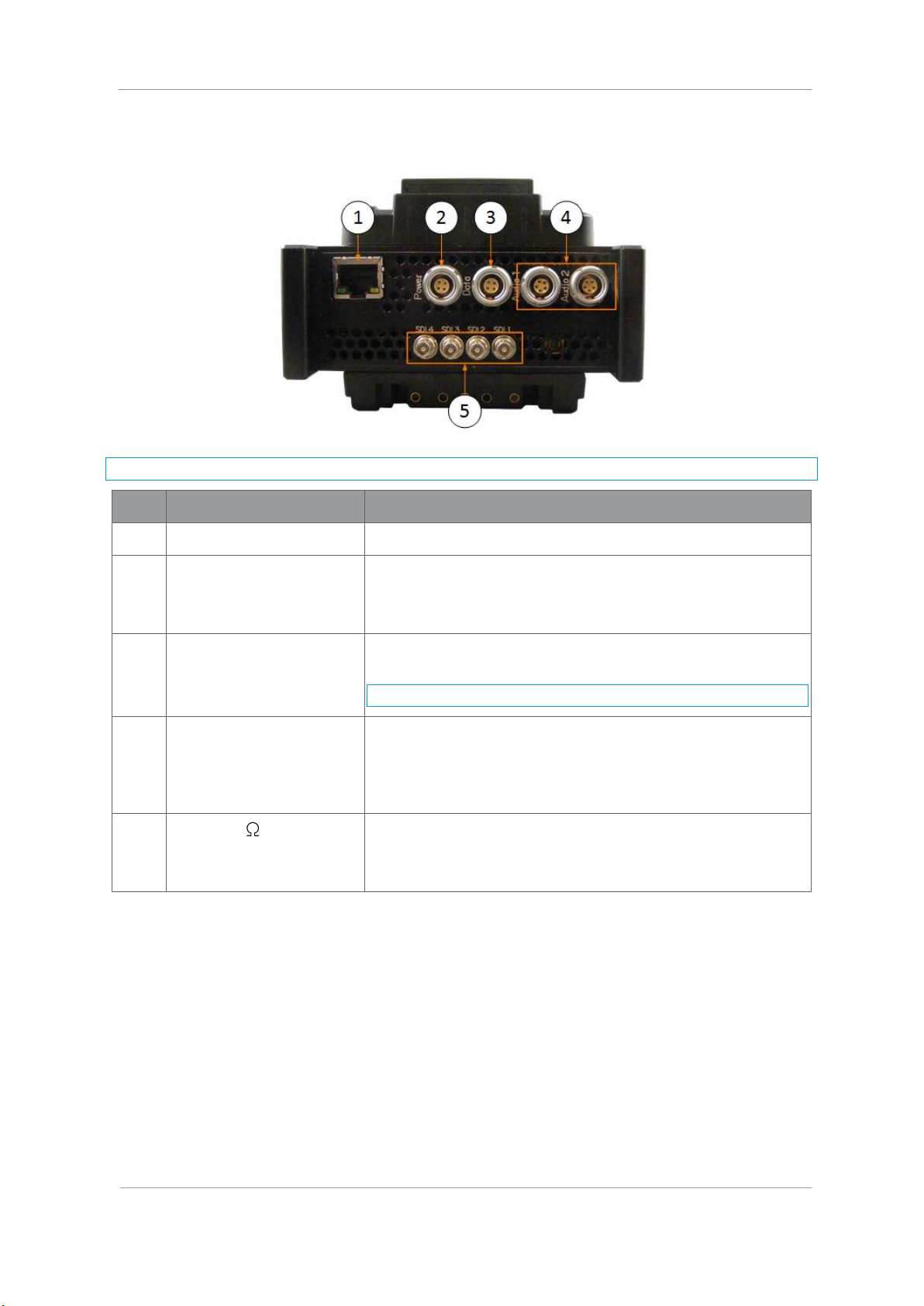

3.3 Bottom Panel
Note: See section 3.6 for item power, data and audio pinout.
No.
Item
Connection
1
RJ45 jack
Ethernet connection for software updates.
2
4-way OB single key jack
9.2-17.8V power connection.
Optional PSU CA3421 can be attached here to provide desktop
power.
3
4-way OB twin key jack
RS-232 data interface. Optional cable CA0340 can be attached
here to provide an RS232 interface.
Note: Not currently functional.
4
5-way OB twin key jack x 2
Audio left and right, channel 1 and 2 balanced input with
switchable 48V phantom power.
Supplied CA0579 audio cable will convert left and right XLR
connections from the audio source.
5
HD BNC 75 jack x 4
SDI video input 1-4 support 3G-SDI (quad input).
The supplied CA3348 cables will adapt the HD-BNC connectors to
BNC.

AEON-LT HEVC 4K Transmitter
Commercial in Confidence
Revision: 1.0
The information contained in this document is the property of Domo Tactical Communications (DTC) Ltd.
Any copying or reproduction in any form whatsoever is prohibited without the written permission of DTC.
© 2018 Copyright Domo Tactical Communications (DTC) Limited. All rights reserved.
Page 3-7

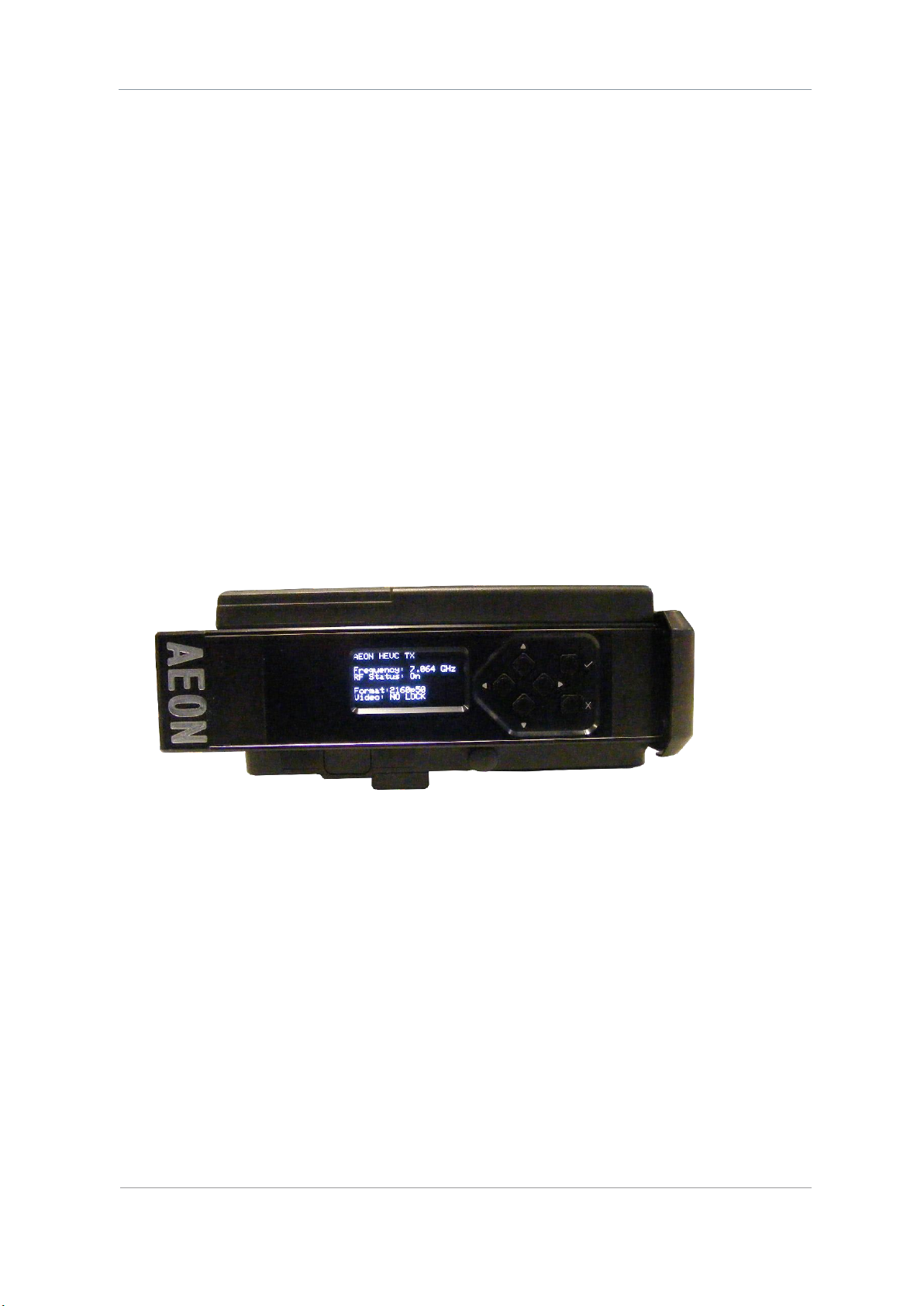

3.4 OLED Control Panel
No.
Item
Connection
1
OLED display
Status monitoring and control for field operation.
2
Control buttons
These buttons allow editing and navigation of the OLED.
3.5 Camera/Battery Mount
3.5.1 V-Mount
The images above show a V-mount camera plate (left picture) and V-mount battery plate (right picture).
The arrow indicates the battery release button.
3.5.2 AB Mount
TBD

AEON-LT HEVC 4K Transmitter
Commercial in Confidence
Revision: 1.0
The information contained in this document is the property of Domo Tactical Communications (DTC) Ltd.
Any copying or reproduction in any form whatsoever is prohibited without the written permission of DTC.
© 2018 Copyright Domo Tactical Communications (DTC) Limited. All rights reserved.
Page 3-8
3.6 Pinout
3.6.1 Power
Lemo EEG.0B.304.CLL single key
Pin
Function
1
VIN
2
VIN
3
GND
4
GND
3.6.2 Data
Note: Note Currently functional.
Lemo EEA.0B.304.CLL twin key
Pin
Function
1
DATA_TX_RS232
2
DATA_RX_RS232
3
No connect
4
GND
3.6.3 Audio 1 and 2
Lemo EEA.0B.305.CLL twin key
Pin
Function
1
AUD_IN_L+
2
AUD_IN_L-
3
GND
4
AUD_IN_R+
5
AUD_IN_R-

AEON-LT HEVC 4K Transmitter
Commercial in Confidence
Revision: 1.0
The information contained in this document is the property of Domo Tactical Communications (DTC) Ltd.
Any copying or reproduction in any form whatsoever is prohibited without the written permission of DTC.
© 2018 Copyright Domo Tactical Communications (DTC) Limited. All rights reserved.
Page 4-9
4. Getting Started
4.1 Introduction
This chapter gives the information required to power up and control an AEON-LT unit.
4.2 Power
There is no power switch, the AEON-LT will start the moment the power supply is connected.
Power can be supplied to the AEON-LT in two ways:
Via an AB or V mount battery, depending on the battery mounting plate
Via a 9.2–17.8VDC input to the power connector on the bottom panel
4.3 User Control
Once power has been supplied, the only method to configure and monitor the AEON-LT is by the OLED
display and control buttons. See chapter 5 for full details.

AEON-LT HEVC 4K Transmitter
Commercial in Confidence
Revision: 1.0
The information contained in this document is the property of Domo Tactical Communications (DTC) Ltd.
Any copying or reproduction in any form whatsoever is prohibited without the written permission of DTC.
© 2018 Copyright Domo Tactical Communications (DTC) Limited. All rights reserved.
Page 5-10
5. OLED Control and Monitoring
5.1 Introduction
An OLED display and control buttons provide full control and monitoring of the AEON-LT. This chapter
describes how to navigate the menu structure and edit settings.

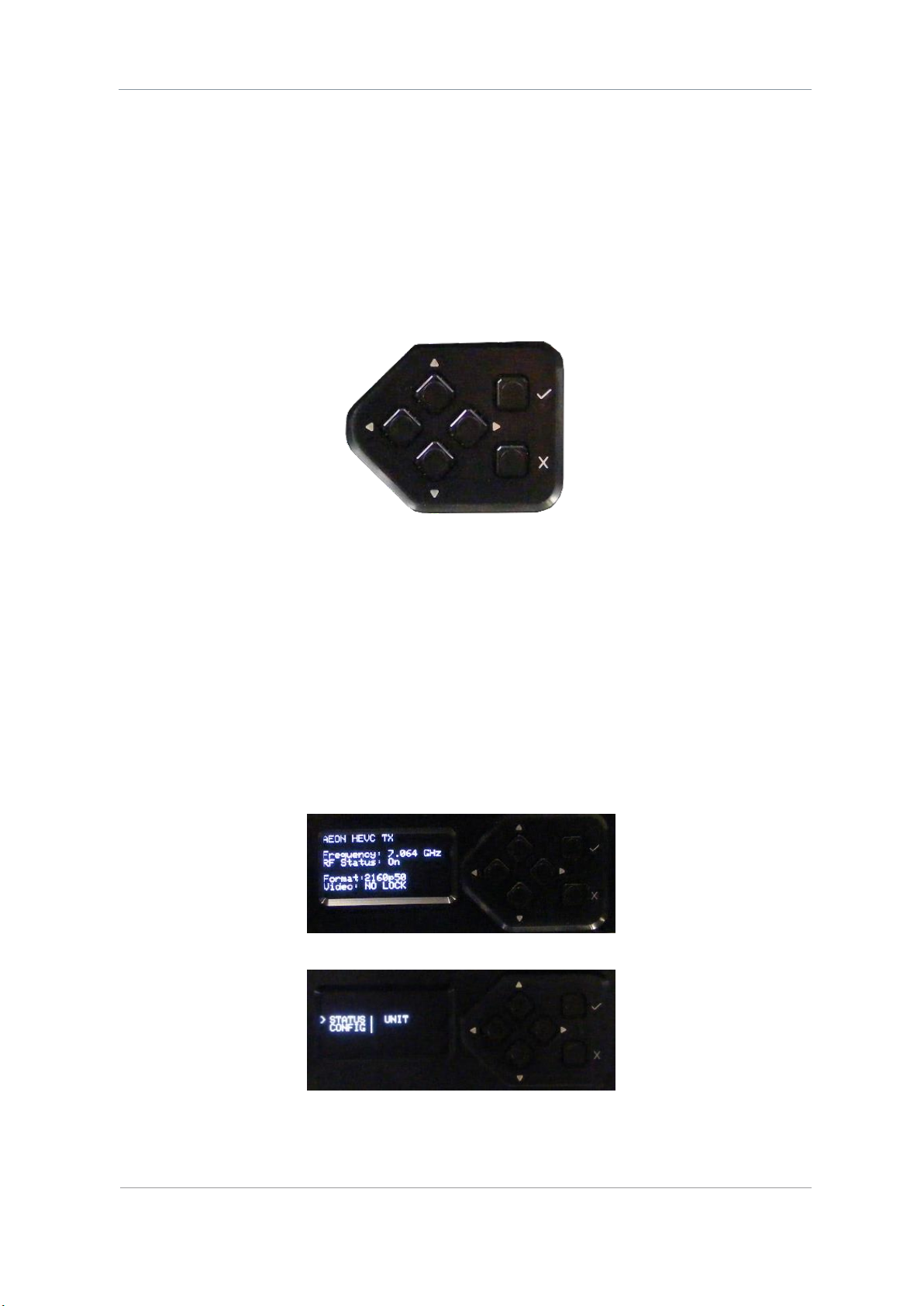

5.2 Control Button Functions
Six control buttons are located to the left of the OLED to let you navigate, select and edit the AEON-LT menu
structure.
The four buttons with arrow indicators are for navigation and editing.
The button indicated with a tick () is for selection and save.
The button indicated with a cross (×) is to go back a menu level, or cancel an edit without saving.
5.3 Menu Structure
5.3.1 Overview
On power up, the AEON-LT OLED will present the Status page after approximately one minute boot up time.
Press the cross (×) button to go to the top-level menu.
Scroll through the top-level menu by pressing the up/down arrow buttons. If you select Status and press the
tick () button, it will take you back to the opening display.
The following sections give an overview of the Status, Config and Unit parameters.

AEON-LT HEVC 4K Transmitter
Commercial in Confidence
Revision: 1.0
The information contained in this document is the property of Domo Tactical Communications (DTC) Ltd.
Any copying or reproduction in any form whatsoever is prohibited without the written permission of DTC.
© 2018 Copyright Domo Tactical Communications (DTC) Limited. All rights reserved.
Page 5-11
5.3.2 Status Menu
The Status menu is displayed on boot up, or select Status from the top-level menu and press the tick
button.
Scroll through the status parameters by pressing the up/down arrow buttons. The status parameters will let
you know how the AEON-TX is setup and how it is performing.
5.3.3 Config Menu
Select Config from the top-level menu and press the tick button.
Scroll through the config parameters by pressing the up/down arrow buttons. The following tables show the
sub-menus that can be edited from the Config menu.
Video
Sub-Menu
Options
Description
Encoding
Mode
H.264 AVC
H.265 HEVC
The video encoding mode.
Video
Format
720p50/59/60
1080i50/59/60
1080p23/24/25/
29/30/50/59/60
2160p23/24/25/
29/30/50/59/60
The video format.
Sample
Format
2SI
SQD
2 Sample Interleave (2SI) –each 3G-SDI link contains a full image at
1/4 resolution.
Square Division (SQD) –each 3G-SDI link contains one quarter of the
original image.
Chroma
Format
4:2:2
4:2:0
The level of chroma sampling required.
Chroma
Depth
10-bit
8-bit
The number of bits per pixel.
Quad Sync
Off
On
Set this On to synchronise four non time-aligned HD sources.
Video
Latency
Normal
Low
Ultra-Low
Improved latency can come at the expense of picture quality.
Manual
Mode
Off
On
If set to On, enables CPB delay.
CPB Delay
09000kb/s
default
Coded Picture Buffer Delay. Used in ultra-low delay mode to improve
picture quality, please contact DTC for guidance.

AEON-LT HEVC 4K Transmitter
Commercial in Confidence
Revision: 1.0
The information contained in this document is the property of Domo Tactical Communications (DTC) Ltd.
Any copying or reproduction in any form whatsoever is prohibited without the written permission of DTC.
© 2018 Copyright Domo Tactical Communications (DTC) Limited. All rights reserved.
Page 5-12
Audio
Sub-Menu
Options
Description
Audio Input Ch1
Audio Input Ch2
Audio Input Ch3
Audio Input Ch4
Test Tone
Embedded
Analogue 1
Analogue 2
The audio source.
Audio Ch1 Mode
Audio Ch2 Mode
Audio Ch3 Mode
Audio Ch4 Mode
Off
MPEG L1
MPEG L2
AAC-LC
LPCM 16-bit
LPCM 20-bit
LPCM 24-bit
The audio encoding format.
Audio Gain Ch1 L
Audio Gain Ch1 R
Audio Gain Ch2 L
Audio Gain Ch2 R
0-40dB
Gain can be applied if the source is at low level.
Audio P48 Ch1 Left
Audio P48 Ch1 Right
Audio P48 Ch2 Left
Audio P48 Ch2 Right
Off
On
48V phantom power can be applied to the microphone, if required.
Audio PTS Offset
0-1000
May need to be adjusted to achieve lip sync.
Service
Sub-Menu
Options
Description
Program
Number
Default –1
Transport streams have programs. This is a number to
identify the program.
Service
Name
Default –Service 1
Transport streams may be made up of several services.
This is a name to identify the service.
Video PID
Default –100
This sets the PID for the video content. The Video PID is
listed in the PMT.
Audio Ch1
PID
Audio Ch2
PID
Audio Ch3
PID
Audio Ch4
PID
Default –200/201/202/203
This sets the PID for the audio content. The Audio PID is
listed in the PMT.
PCR PID
Default –250
This sets the PID for the Program Clock Reference that is
used to synchronize the audio and video. The PCR PID is
listed in the PMT.
PMT PID
Default –251
This sets the PID for the Program Map Table. For each
Program, there is one PMT.

AEON-LT HEVC 4K Transmitter
Commercial in Confidence
Revision: 1.0
The information contained in this document is the property of Domo Tactical Communications (DTC) Ltd.
Any copying or reproduction in any form whatsoever is prohibited without the written permission of DTC.
© 2018 Copyright Domo Tactical Communications (DTC) Limited. All rights reserved.
Page 5-13
TX
Sub-Menu
Options
Description
Frequency
Frequency
dependent
Enter a transmit frequency for the system.
RF Output
Off
On
Sets the RF output on or off.
RF Power
10mW
50mW
100mW
Sets the RF output power level.
Mod Scheme
DVB-T
UMVL/Narrowband
DVB-T modes give excellent data throughput.
Ultra Mobile Video Link uses the same bandwidths as
DVB-T, but will give an advantage at C/X-band in short
range mobile environments.
DVB-T or NB/UMVL
Bandwidth
6MHz
7MHz
8MHz
Sets the RF bandwidth for the transmission of data.
DVB-T or NB/UMVL
Constellation
QPSK
16QAM
64QAM
QPSK –less user data, more robust, more range.
16QAM –more user data, less robust, less range (link
performance reduced by 5db).
64QAM –max user data, least robust, least range.
DVB-T or NB/UMVL
FEC
1/2
2/3
3/4
5/6
7/8
The forward error correction (FEC) rate.
1/2 means 1 bit out of 2 bits is data and thus 1 bit is
used for error correction.
7/8 means 7 bits out of 8 bits are data and thus 1 bit is
used for error correction.
DVB-T or NB/UMVL
Guard Interval
1/4
1/8
1/16
1/32
The guard interval is an extension of the RF symbol period
to give immunity to reflections.
1/32 deals with fast reflections, more data, less range.
1/4 deals with slower reflections, less data, more range.
More user data means better picture quality, but less
error correction means less robust signal and thus less
range.
DVB-T or NB/UMVL
Dual Pedestal
On
Off
DVB-T only. Dual Pedestal mode will double the bitrate by
using two adjacent COFDM channels with 1MHz
separation. i.e. DVB-T 8MHz in dual pedestal mode will
give a total bandwidth of 17MHz.
DVB-T or NB/UMVL
Polarity
Normal
Inverted
DTC equipment operate in Normal.
DVB-T or NB/UMVL
4K Offset
None
+4kHz
-4kHz
DVB-T only. Shifts the spectrum by one carrier (approx.
4kHz) to overcome interference. Only use if needed.

AEON-LT HEVC 4K Transmitter
Commercial in Confidence
Revision: 1.0
The information contained in this document is the property of Domo Tactical Communications (DTC) Ltd.
Any copying or reproduction in any form whatsoever is prohibited without the written permission of DTC.
© 2018 Copyright Domo Tactical Communications (DTC) Limited. All rights reserved.
Page 5-14
5.3.4 Unit Menu
Select Unit from the top-level menu and press the tick button.
Scroll through the unit parameters by pressing the up/down arrow buttons. The following tables show the
sub-menus that can be edited from the Unit menu.
Note: Our devices are shipped to you with the DHCP setting enabled. This means that if the AEON-LT is
connected to a network that is administered by a DHCP server, an IP address will be automatically
allocated to it.
Sub-Menu 1
Options
Description
DHCP
Off
On
See note above. If set to Off, the Static IP, IP Mask and IP
Gateway parameters will need to be set manually.
Static IP
User defined.
Only valid if DHCP is disabled. Enter a valid IP address.
IP Mask
User defined.
Only valid if DHCP is disabled. An IP Mask lets a network
administrator divide a network into smaller more efficient
subnets.
IP Gateway
User defined.
Only valid if DHCP is disabled. A gateway is used when an IP
packet's destination address belongs outside the local
subnet. The default gateway address is usually an interface
belonging to the LAN’s router.
Restore Defaults
Select only
If this is selected, the unit will return all settings to defaults.

AEON-LT HEVC 4K Transmitter
Commercial in Confidence
Revision: 1.0
The information contained in this document is the property of Domo Tactical Communications (DTC) Ltd.
Any copying or reproduction in any form whatsoever is prohibited without the written permission of DTC.
© 2018 Copyright Domo Tactical Communications (DTC) Limited. All rights reserved.
Page 6-15
6. Advanced Operation
6.1 Software Upgrade
Software upgrades for the AEON-LT are loaded via the Ethernet connection on the bottom panel. The IP
address for the encoder can be found in the OLED status menu, see section 5.3.2.
If there is a software upgrade required, DTC will provide an upgrade file.
Open a web browser and enter the IP address of the AEON-LT.
Click Choose File and browse to the saved upgrade file, select Open and click Upload on the web browser.
The web browser page will change from downloading code to an updating page. The power to the AEON-LT
must not be removed at any stage during the update.
Please wait approximately 10 minutes for the upgrade to complete.
