DTS NETIMPRESS avant User manual

Flash Programmer
Hardware Manual
DTS INSIGHT CORPORATION

1
Revision History
Edition Date of Issue Modifications
1st Edition 20 Oct, 2018 Initial publication
2nd Edition 20 Jan, 2020 Correction of errors, Describe QSPI signal
3rd Edition 07 Aug, 2020 Describe SWD signal
4th Edition 14 Oct, 2020 Describe PHX401
5th Edition 22 Jan, 2021 Describe BDM signal
Note
(1) No part of this manual may be reproduced or transmitted in any form or by any means, electronic
or mechanical, without the written permission of DTS INSIGHT CORPORATION.
(2) The contents of this manual are subject to change without prior notice due to improvement of the
functionality.
(3) If any question about the contents of this manual arises, contact DTS INSIGHT CORPORATION.
(4) DTS INSIGHT CORPORATION shall not be held responsible for direct or indirect adverse effects
resulting from operation of this system irrespective of the above item (3).
(5) Product and company names mentioned in this manual are the trademarks of their respective
owners.

2
Introduction
NETIMPRESS avant Hardware Manual (hereinafter “manual”) describes specification of hardware
of NETIMPRESS avant series products, and the precautions.
There is another manual besides this manual for NETIMPRESS avant series products (hereinafter
NETIMPRESS avant). – “NETIMPRESS avant Operation Manual”, which describes how to use
NETIMPRESS avant. Please read the manual along with this manual.
The wording Programming in this manual means writing data into a target microcomputer
flash memory or an external flash memory connected to the target microcomputer.
ICON
The following table describes the meaning of icons used in this guide.
It indicates very important information. Be sure to perform an operation with
extra care.
It indicates useful information and tips for operation.
➥
It indicates references. Please see the referenced chapter of this manual and
other manuals, if you needed.

3
For Your Safety
In order to ensure the proper and safety use of NETIMPRESS avant, please be sure to follow the
safety precaution mentioned below as operating NETIMPRESS avant. DTS INSIGHT
CORPORATION has no responsibility or guarantee for any injuries which occur as a result of the
violation of these safety caution and warnings.
This manual uses the icons as below to use NETIMPRESS avant safety.
It indicates not only that there is a danger to human as well as to the
equipment, but also that it is necessary to refer to the instruction manual.
It indicates a safety ground terminal. As this terminal is on the main unit,
please be sure to connect this terminal to the ground before operating.
Warning
In order to avoid the risk of death or serious injury which may occur as a result
of an incorrect use.
Note
In order to avoid the risk of minor or material damage which may occur as a
result of an incorrect use.
■To avoid the risk of death or serious injury to users, such as electrocution or
any other accidents, as well as the risk of damage to NETIMPRESS avant,
please follow the warnings mentioned below.
Warning
Use in Chemical Gases
Do not use NETIMPRESS avant in an environment where are combustible or explosive gases or
steam.
Using NETIMPRESS avant in such environment is extremely dangerous.
Usage environment
This programmer is only for indoor use. Use it at an altitude of 2000 meters or less.
Available voltage range and power-supply frequency must not exceed the rated voltage ± 10%,
50/60 Hz±2 Hz.
We are assuming NETIMPRESS avant will be used under Overvoltage category II and Pollution Degree
2.
Install it around an electric outlet so that you can unplug it to shut down the power easily.

4
Power
Confirm that the supply-side voltage matches to the rated power supply voltage for a power
supply pack of NETIMPRESS avant.
Use the AC cable provided with NETIMPRESS avant to ensure safe operation.
Do not use damaged AC cable.
Do not remove the case
Only qualified service engineers should remove the case of NETIMPRESS avant because of the
high voltage.
Action to be taken if abnormality is found
If any failure is found, such as smoke or burnt odor, disconnect NETIMPRESS avant and the target.
And then turn off the power of main unit. Contact the support center of DTS INSIGHT Corporation.

5
NETIMPRESS avant is an electronic device which consists of high-precision
electronic components. Please be sure to understand and follow the caution
listed below in order to avoid any accidents and as well as to make the most of
your NETIMPRESS avant.
Note
Power On Sequence
Make sure to follow the switch ON/OFF order of each way of a host computer, NETIMPRESS
avant, and a target system.
The Switch ON / Switch OFF sequence should be followed in order to avoid major damages to a
target system and NETIMPRESS avant itself.
<Power On Sequence>
①Host computer
②NETIMPRESS avant
③Target system
<Power Down Sequence>
①Target system
②NETIMPRESS avant
③Host computer
Connecting the Probe and Connector
All probes and cables are designed to prevent an incorrect connection. Never force them to plug in nor
unplug. Confirm the position and direction.
Insertion and removal of the Cable
Be sure NOT to insert and remove the cable while NETIMPRESS avant is powered on. (Pay special
attention to the insertion and removal of the M12 cable between NETIMPRESS avant and the
adaptor.) Otherwise, it may cause a serious damage to NETIMPRESS avant and a target system.
Disassembling NETIMPRESS avant
Since NETIMPRESS avant contains printed circuit boards with minute patterns, never remove screws
or disassemble NETIMPRESS avant.
If the product is disassembled or modified by the user, it will not be covered under the warranty or
support services Neutralization
Make sure to neutralize the charge before operating NETIMPRESS avant.

6
EU Directive
CE mark
Item Compliant standards
CE Marking
*1
[EMC Directive]
Emissions: EN61326-1 Class A
Immunity: EN61326-
1 Table 2 (for use in
industrial locations)
[RoHS Directive]
EN50581:2012
*1 The product in which CE Marking is indicated on the product serial label is a target.
CAUTION
This instrument is a Class A product, and it is designed for use in the industrial environment.
Please use this instrument in the industrial environment only.
WEEE marking
WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT DIRECTIVE
(2012/19/EU)
Waste Electrical and Electronic Equipment Directive (WEEE) is for EU countries.
NETIMPRESS avant compiles with WEEE Directive (2012/19/EU). Electric/electronic
products carrying this mark must be disposed of separately from normal household
wastes.
Product category:
With reference to the equipment types in the WEEE directive Annex 1, this product
is classified as a “Monitoring and Control instrumentation” product. When disposing
products in the EU, contact your local distributor. Do not dispose in domestic
household waste.

7
IMPORTANT
Thank you for your purchasing “NETIMPRESS avant”.
To make the most of NETIMPRESS avant, please read and understand this manual and other
operation manual before use. After reading this manual, please keep it for the further reference
whenever required. Please ensure that NETIMPRESS avant should be used only by persons who
have read and understood the manuals. We strongly recommend that the first-time users
receive a proper instruction from those who have a good knowledge of NETIMPRESS avant.
NETIMPRESS avant refers to NETIMPRESS avant main unit and other related products
manufactured by DTS INSIGHT Corporation. A target system and the host computer are strictly
excluded.
NETIMPRESS avant is an electronic device which consists of high-precision electronic
components. In order to make the most of NETIMPRESS avant and also to prevent any accidents,
please follow the caution listed below.
A certain repair fee is required regarding the equipment damages resulted from an incorrect use
or connection, etc. Please aware that it may require a few months for repairs.
Regarding software products and manuals, DTS INSIGHT Corporation guarantees only if there
are any damages of media provided by DTS INSIGHT Corporation or manual defects.
If proved that there are failures or that there are problems apart from those listed above, the
action will be taken based on the maintenance agreement.
Warning
Before Switching ON the power supply, be sure to confirm whether the direction of Pin 1 in the
probe tip matches to Pin 1 Socket in a target system.
An incorrect connection may result in an explosion or ignition of NETIMPRESS avant or a target
system.
Be sure to power off NETIMPRESS avant and a target system when inserting and removing the
probe and various cables. In case of inserting and removing during in power-on status, it may
result in the damage and an explosion or ignition of NETIMPRESS avant or a target system.
CAUTION
As particular parts of electronic circuits in the probe and cable tip are exposed, NETIMPRESS
avant should be used only in environments where are protected from a static electricity.
Using NETIMPRESS avant in such environment as without static electric protection may result in
destroying NETIMPRESS avant or a target system.
Be sure to power on NETIMPRESS avant first. Be sure to power on or off a target system while
NETIMPRESS avant is powered on. An incorrect order may result in destroying the circuit of
NETIMPRESS avant and a target system.

8
Glossary
Words & Terms Description
Micom-pack
Package of a parameter file etc. which supports specific MCU. It can be
available from our website. Micom-pack is a self-
extraction file (EXE file).
You can extract the file by double-clicking it.
Contents of Micom-pack are Parameter file (.PRM), manuals
(.PDF), write
control program (.BTP), and readme file etc. Contains of the file vary
depending on the MCU
Definition program MCU-specific program to communica
te each MCU. This is placed the each
YIM folder in the SD card.
Definition license To download
the definition program into YIM folder, a definition license
has to be added into the SD card for each definition program.
This definition license file (.LCT file) can be downloaded if you register
your information in our website by referring to the defini
tion license sheet
provided when you purchased the definition program.
The definition license file can be added onto the dedicated SD card by
using SWX600.
Probe logic license
To connect and communicate with the target system, you need a
communication l
ogic on the main unit side according to the connection
destination. Probe logic license which enables this logic (.LPC) can be
downloaded if you register your information in our website by referring to
the definition license sheet provided when you purchas
ed the definition
program.
The definition license file can be added onto the dedicated SD card by
using SWX600.
Programming Programming means to program the flash memory.

9
Table of Contents
INTRODUCTION ............................................................................................................. 2
FOR YOUR SAFETY ......................................................................................................... 3
EU DIRECTIVE ..............................................................................................................6
IMPORTANT...............................................................................................................7
Glossary ......................................................................................................................... 8
TABLE OF CONTENTS ......................................................................................................9
1. OVERVIEW AND FEATURE ............................................................................................ 10
1.1. Product description ................................................................................................ 10
1.2. Communication Environments .................................................................................. 11
2. GENERAL PRECAUTIONS.............................................................................................. 12
3. NAME AND FUNCTION OF THE COMPONENTS ...................................................................... 13
3.1. Name of Components .............................................................................................. 13
3.2. Function of Components .......................................................................................... 14
4. SPECIFICATIONS ...................................................................................................... 15
4.1. General Specification ............................................................................................... 15
4.2. Interface................................................................................................................ 15
4.3. Compliant standards................................................................................................ 23
4.4. Storage.................................................................................................................. 23
5. ACCESSORY (OPTIONAL) ............................................................................................ 24
5.1. SD card for NETIMPRESS avant ................................................................................ 25
5.2. PROBE HARD.......................................................................................................... 26
5.3. Optional cable......................................................................................................... 51
5.4. Accessary............................................................................................................... 54
6. FAQ .................................................................................................................... 55
Main unit does not work ................................................................................................. 55
7. CONTACT .............................................................................................................. 56

10
1. Overview and Feature
This chapter describes the composition of programming environment, and overview of NETIMPRESS
avant series products.
1.1. Product description
Below illustration is NETIMPRESS avant .
To use this series, you need to purchase accessories and peripherals separately in addition to the
main unit. Please purchase them in accordance with your environment. ➥For details, please see
“5. Accessory (Optional)”.
If there is anything we can help you, please do not hesitate to contact your dealer or the sales
department of DTS INSIGHT Corporation.
AC cable for power-on or SD card are not included in the main unit.
Please purchase them with the main unit.
Remote controller for NETIMPRESS avant (PC software:SWX600) can be downloaded from our
website.
License sheet is necessary to download a Micom-pack, and definition license, and that license
from our website. License sheet is provided when you purchase a definition license.
After unpacking, keep the package box contained the NETIMPRESS avant because it will be used at
the time of maintenance service for the equipment.
Although we give our full attention to the products, if you find anything wrong with the items in the
box, do not operate the product and contact with your dealer or the sales department of DTS
INSIGHT Corporation.

11
NETIMPRESS avant is an in-circuit programmer for high-speed programming flash ROM internal
microcomputer and flash ROM connected to external bus of the micro processor in board mounting
status.
By adding each firm data (definition program file) for programming microcomputer into the SD card
for NETIMPRESS avant, it can support various devices.
Setting conditions are stored in the SD card. Therefore you can use it as a stand-alone (without PC).
1.2. Communication Environments
Standard Ethernet TCP/IP can be used for communication between NETIMPRESS avant and a host PC.
Therefore, a host PC is required to have a corresponding interface. If there is no interface, you need
to add it.
The terminal at the side of NETIMPRESS main unit conforms to the 10BASE-T/100BASE-TX/
1000BASE-T standards.
PHX4xx
You can add the programming target
devices by adding each license.
SWX600 (Remote controller)
SD card
AC cable
NETIMPRESS avant PC
Target system
OCX1xx
OCX401

12
2. General Precautions
(1) Do not use NETIMPRESS avant in dusty areas, where there is direct sunlight or corrosive gas is
generated.
(2) Use NETIMPRESS avant in environments with temperature between 5 and 40℃ and humidity
between 20% and 80% (no condensation).
(3) To insert or remove the SD card, be sure to turn off the power of NETIMPRESS avant.
(4) In case there is noise in the AC power line, use a noise filter to eliminate the noise.
(5) To turn the power on, turn on the power of NETIMPRESS avant first and then a user system. To
turn off the power, follow the reverse order.
(6) NETIMPRESS avant operates with the control module set into the SD card connector.
NETIMPRESS avant does not operate with the SD card being removed.
(7) Use only our designated power cord. Be sure to check power switch of NETIMPRESS avant is
OFF, when connecting the power cord to an electrical outlet.
(8) Be sure to power off before installing or removing the probe on NETIMPRESS avant.
Visit our Web site for information about how to use NETIMPRESS avant and related products, and for
the latest information. Please use it as reference.

13
3. Name and Function of the Components
3.1. Name of Components
Target Connector 1/2
This is the connector to
connect the probe that
connects with a target.
system.
BCR Connector
This is the connector to
connect the probe that
connects with a bar-code
reader.
DIO Connector
This is the connector
to control by Digital
I/O.
SD CARD Slot
Slot for inserting the
SD card.
POWER SW
Power switch for turning on-off.
the power source
AC Inlet
Connector for AC cable dedicated
to NETIMPRESS avant.
LAN Connector
Connector for Ethernet.
LCD
Displays various information,
such as model name of definition
program and address etc.
KEY
This is used when operating
NETIMPRESS avant as a
stand-alone.

14
3.2. Function of Components
Function of each key when operating NETIMPRESS avant as a stand-alone
8 keys are used when operating NETIMPRESS avant as a stand-alone.
Following table describes function of each key and the behavior.
QUIT
QUIT button is used when you want to stop the operation.

When you are operating MENU, it backs to the previous item by
pressing the button.
SET SET button is used when you want to set and execute the settings.
MENU MENU button is used when you want to display the menu window.
EXT1/EXT2 EXT1/EXT2
buttons are used to read corresponding execution file
and sequence it.
▲
(Up)
Arrow key is used when you want to scroll the mode setting menu or
the command setting menu.
This is also used when selecting MENU.
▼
(Down)
Arrow key is used when you want to scroll the mode setting menu or
the command setting menu.
This is also used when selecting MENU.
◀
(Left)
This is also used when selecting MENU.
▶
(Right)
This is also used when selecting MENU.

15
4. Specifications
4.1. General Specification
Item Specifications
Storage environment Ambient temperature -5 to 50℃
Ambient humidity 20 to 80% RH, no condensation
Operation environment Ambient temperature 5 to 40℃
Ambient humidity 20 to 80 % RH, no condensation
Power Supply Input voltage range AC 100 to 240 V 50 to 60 Hz
Consumed power Less than 12W(0.25A)
External dimensions 160 (L) x 110 (W) x 55 (H) mm
Weight 750 g
Installation Lay down horizontally. Do not stack.
Calendar Error per year ±15 minutes/year
4.2. Interface
4.2.1. Host Interface
Item Specifications
LAN port Connector type RJ45
Baud rate 10BASE-T/100BASE-TX/1000BASE-T
4.2.2. Display Interface
Item Specifications
LCD
Characters to be
displayed
8 lines, 21 digits
Backlight yes

16
4.2.3. Target Interface
Item Specifications
Target connector Type M12
Male/female Female
Number of port 2

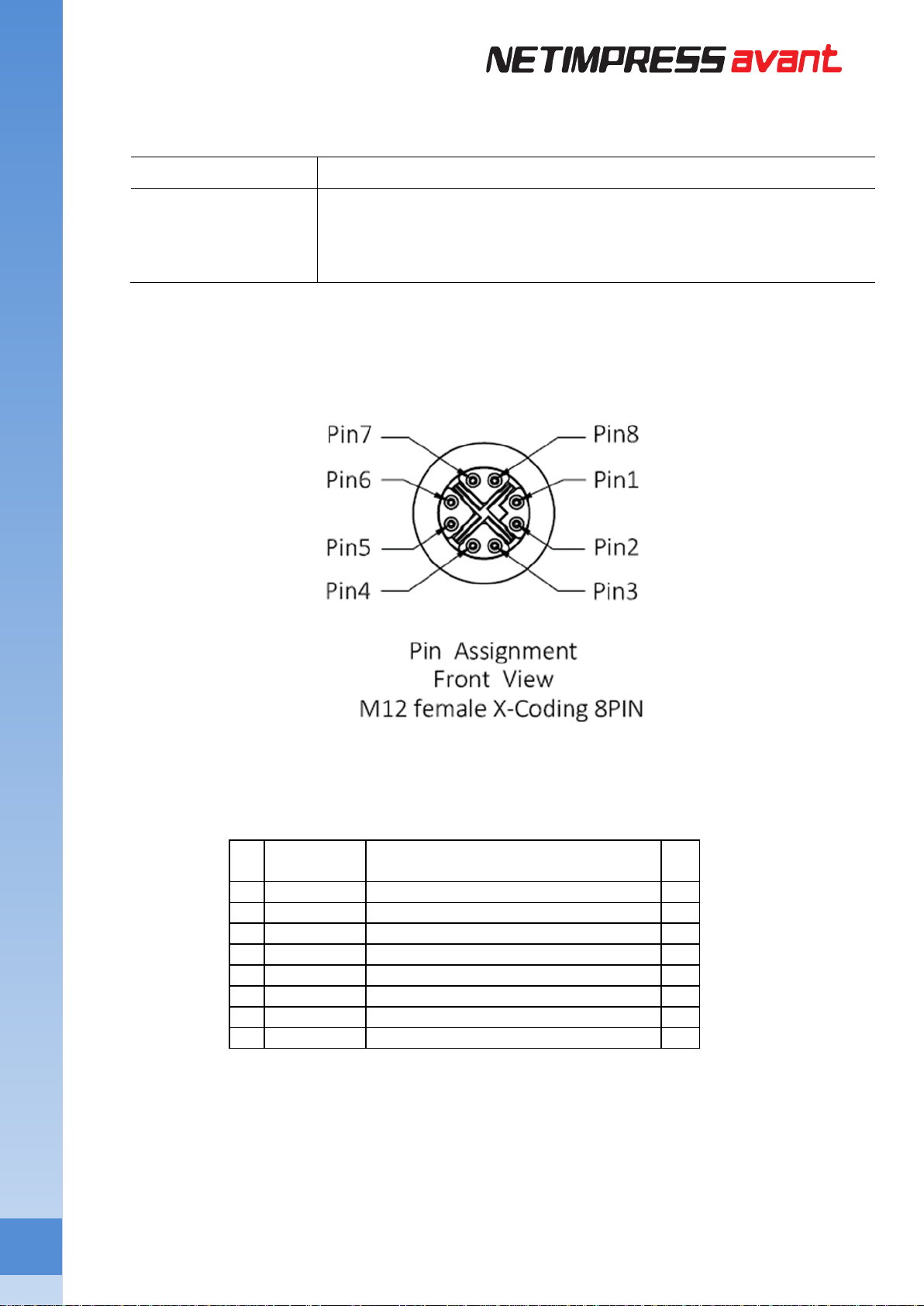

Pin arrangement
Connector pin arrangement (mate side view) Signal Table
Table 1: AFX100 Probe Connector Signal List
pin
No
Signal Name definition I/O
1
TX1+ Send data 1 + Output O
2
TX1- Send data 1 - Output O
3
RX1+ Received data 1 + Input I
4
RX1- Received data 1 - Output I
5
Reserved Reserved signal line -
6
Reserved Reserved signal line -
7
PWR Power O
8
GND GND -

17
4.2.4. DIO Interface
Item Specifications
DIO connector Type HDRA-EA36LFDT-
SLE+ (Honda Tsushin Kogyo
Co.,Ltd.)
Digital output Number of status port 3 (Pass, ERR, RUN)
Number of general
purpose output port
5
Digital input
Number of script
selection port
8 (select from 255 types)
Number of general
purpose port
5
Number of control port 4 (STEP, START, EXT1, EXT2)
Clear signal 1(CLR)
Power input Power for output port DOCOM, DOVCC
Power for input port DICOM, DIVCC
Insulation Between input signal and output signal
Connector type
１
36 19
18
HDRA-EA36LFDT
(Honda Tsushin
Kogyo Co.,Ltd)

18
Pin assignment
PIN
No.
Signal Name
Definition
I/O
Type
(*3)
1, 19
DOCOM
Isolation ground for Digital I/O OUT0 to 4, Pass,
Error, and Run
-
-
2, 20
DOVCC
Power supply of overcurrent protection circuit
-
-
18, 27,
36
DIVCC
Isolation power switch for input
I
B
3
Pass
PASS status output signal
Low: Normal end, Hiz: Other and above
O
A
4
Error
ERROR status output signal
Low: Abnormal end, Hiz: Other than above
O
A
5
RUN
Operation condition output signal
Low: Programming or function execution is currently
being executed Hiz: Other than above
O
A
29
EXT1
EXT1 KEY Pin
I
B
30
EXT2
EXT2 KEY Pin
I
B
31
CLR
RESET KEY Pin/ User clear signal
I
B
34
Digital I/O ST0
Script selection signal 0 (Digital I/O input)
I
B
35
Digital I/O ST1
Script selection signal 1 (Digital I/O input)
I
B
10
Digital I/O ST2
Script selection signal 2 (Digital I/O input)
I
B
11
Digital I/O ST3
Script selection signal 3 (Digital I/O input)
I
B
12
Digital I/O ST4
Script selection signal 4 (Digital I/O input)
I
B
7
Digital I/O ST5
Script selection signal 5 (Digital I/O input)
I
B
8
Digital I/O ST6
Script selection signal 6 (Digital I/O input)
I
B
9
Digital I/O ST7
Script selection signal 7 (Digital I/O input)
I
B
13
Digital I/O IN0
Digital I/O input signal 0
I
B
14
Digital I/O IN1
Digital I/O input signal 1
I
B
15
Digital I/O IN2
Digital I/O input signal 2
I
B
16
Digital I/O IN3
Digital I/O input signal 3
I
B
28
Digital I/O IN4
Digital I/O input signal 4
I
B
6
Digital I/O
OUT0
Digital I/O output signal 0
O
A
21
Digital I/O
OUT1
Digital I/O output signal 1
O
A
22
Digital I/O
OUT2
Digital I/O output signal 2
O
A
23
Digital I/O
OUT3
Digital I/O output signal 3
O
A
24
Digital I/O
OUT4
Digital I/O output signal 4
O
A
32
STEP
Step execution input signal
I
B
33
START
Script signal loading trigger input signal
I
B
17, 25,
26
Reserved
-
-

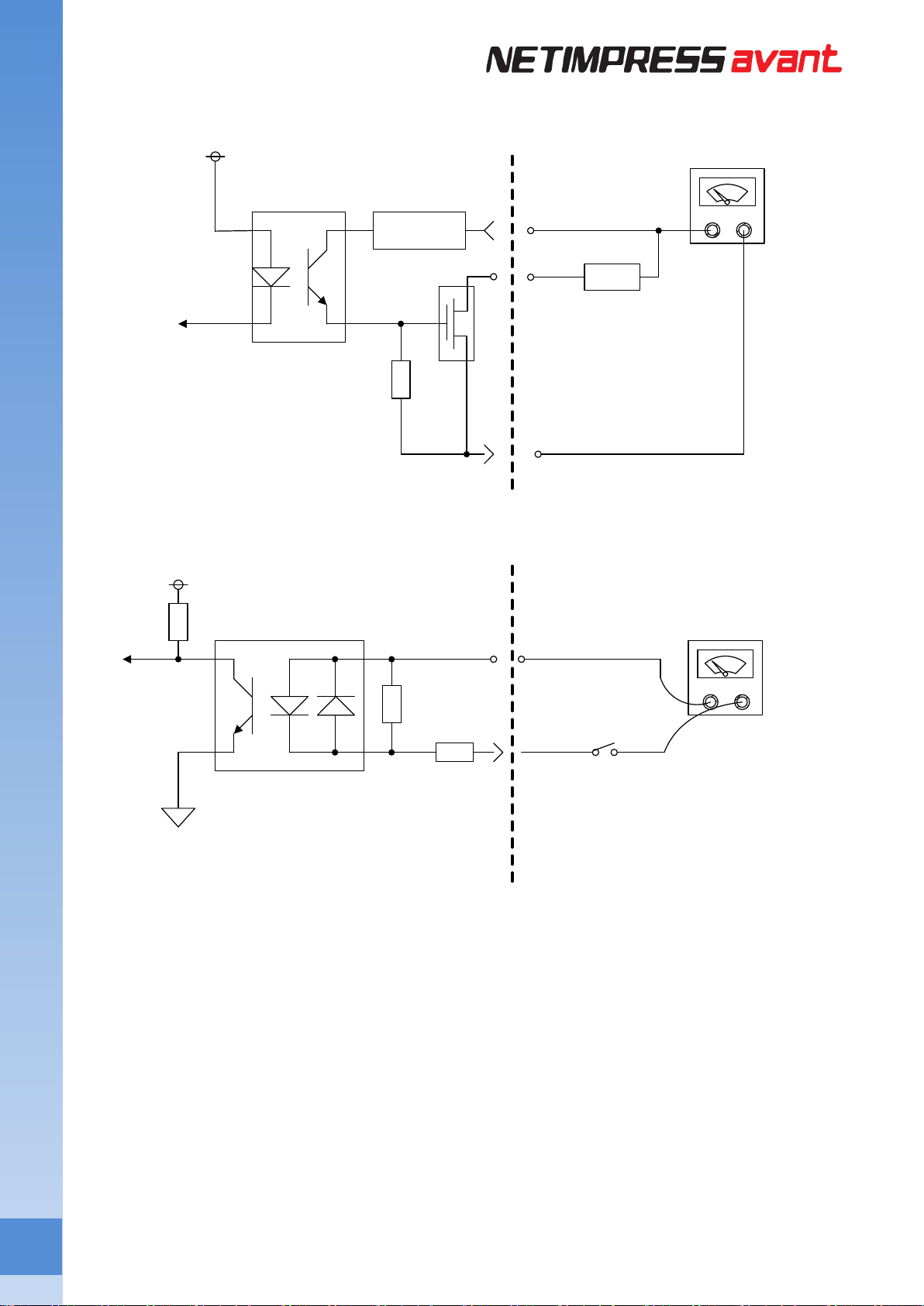

19
PS2801C
[Type A]
＋ー
external power supply
DC+12 to 24V
R
DOVCC
DOCOM
voltage
conversion
R
R
R
1.5K
PS2805C DIVCC
HW RST
EXT1/EXT2
CLR
STEP/START
Digital I/O IN1 to 10
＋ ー
external
power supply
DC+12 to
24V
Relay
[Type B]
5.6K
Load
Pass
Error
Run
Digital I/O OUT＊
[Connection of output signal]
Use it by connecting to devices controlled by current drive, such as relay control or LED.
You can also use it by connecting to devices for current sink output like [Type B].
[Connection of input signal]
Use it by connecting to devices which can be controlled by current drive, like devices having a switch
or transistor output.
