Aaeon PFM-540I User manual

PC/104 CPU Module PFM-540I Rev.B
PFM-540I Rev.B
AMD
®GeodeTM LX 800 Processor
AMD®LX 800 + CS5536
Intel® 82551ER/IT for 10/100Mbps
18/24-bit TFT LCD Panel
4 COM, 4USB
PFM-540I Rev.B Manual 3rd Ed.
December 22, 2014

PC/104 CPU Module PFM-540I Rev.B
i
Copyright Notice
This document is copyrighted, 2009. All rights are reserved. The
original manufacturer reserves the right to make improvements
to the products described in this manual at any time without
notice.
No part of this manual may be reproduced, copied, translated,
or transmitted in any form or by any means without the prior
written permission of the original manufacturer. Information
provided in this manual is intended to be accurate and reliable.
However, the original manufacturer assumes no responsibility
for its use, or for any infringements upon the rights of third
parties that may result from its use.
The material in this document is for product information only
and is subject to change without notice. While reasonable
efforts have been made in the preparation of this document to
assure its accuracy, AAEON assumes no liabilities resulting
from errors or omissions in this document, or from the use of the
information contained herein.
AAEON reserves the right to make changes in the product
design without notice to its users.

PC/104 CPU Module PFM-540I Rev.B
ii
Acknowledgments
All other products’ name or trademarks are properties of their
respective owners.
 Award is a trademark of Award Software International, Inc.
 CompactFlash™ is a trademark of the Compact Flash
Association.
 Intel®, Pentium®M, and Celeron®M are trademarks of Intel®
Corporation.
 Microsoft Windows®is a registered trademark of Microsoft Corp.
 AMD Geode®is a registered trademark of Advanced Micro
Devices, Inc.
 ITE is a trademark of Integrated Technology Express, Inc.
 IBM, PC/AT, PS/2, and VGA are trademarks of International
Business Machines Corporation.
 SoundBlaster is a trademark of Creative Labs, Inc.
All other product names or trademarks are properties of their
respective owners.

PC/104 CPU Module PFM-540I Rev.B
iii
Packing List
Before you begin installing your card, please make sure that the
following materials have been shipped:
 9681540I02
Cable Kit for PFM-540I-B10 (for standard model)
1701160201 VGA cable x 1
1709100201 USB Cable x 1
1700060152 Keyboard & Mouse Cable x 1
1701440350 44-pin IDE Cable x 1
 Quick Installation Guide
 Utility CD
 PFM-540I Rev.B
Note: The PFM-540I Rev.B WiTAS series include the full cable
kit, because the special cables can be used in rigid
environment.
If any of these items should be missing or damaged, please
contact your distributor or sales representative immediately.

PC/104 CPU Module PFM-540I Rev.B
iv
Contents
Chapter 1 General Information
1.1 Introduction................................................................1-2
1.2 Features....................................................................1-3
1.3 Specifications............................................................1-4
Chapter 2 Quick Installation Guide
2.1 Safety Precautions....................................................2-2

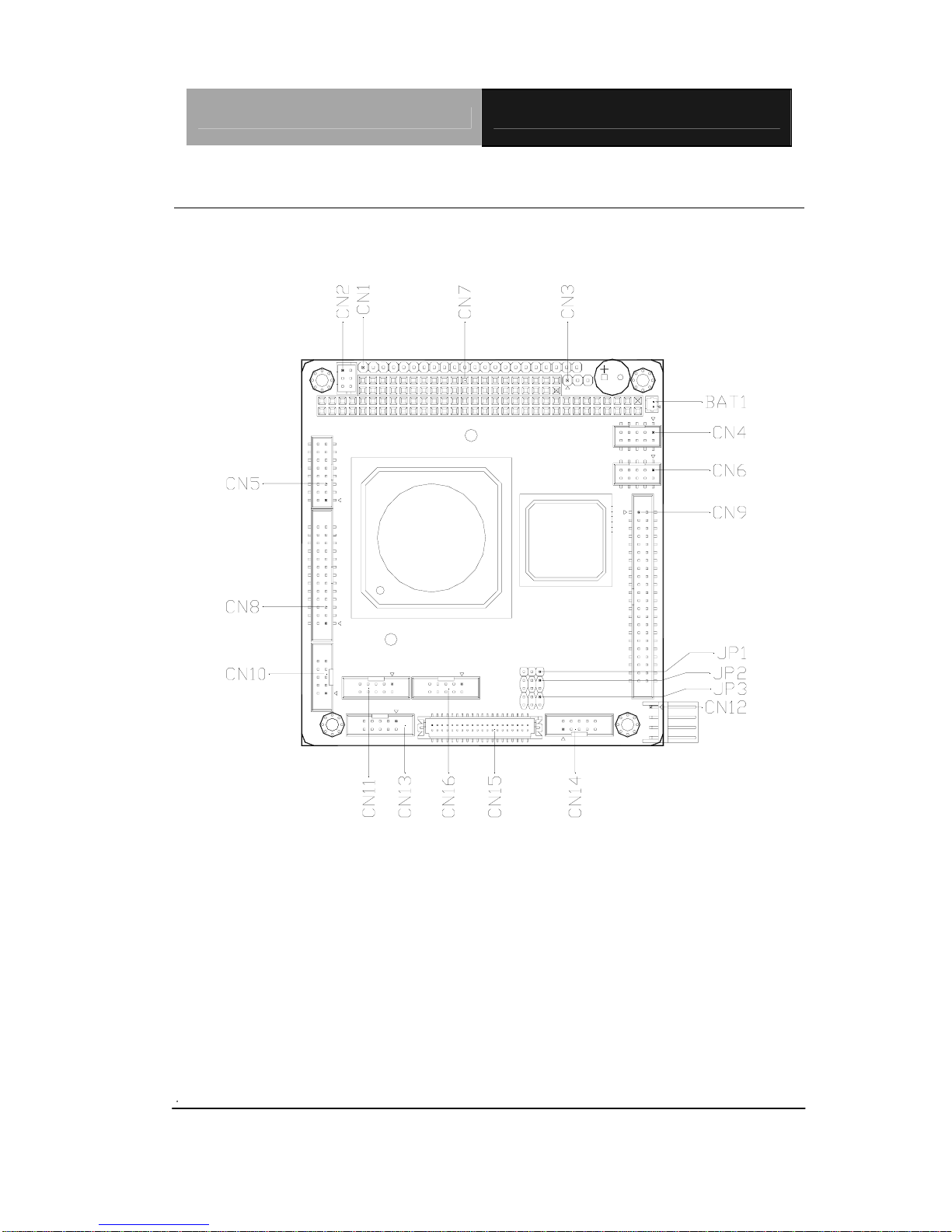

2.2 Location of Connectors and Jumpers .......................2-3
2.3 Mechanical Drawing..................................................2-5
2.4 List of Jumpers..........................................................2-7
2.5 List of Connectors .....................................................2-8
2.6 Setting Jumpers ........................................................2-9
2.7 CFD Master/ Slave Selection (JP1) ..........................2-10
2.8 RS-232 Ring/5V Selection (JP2)...............................2-10
2.9 LCD Clock Selection and Clear CMOS (JP3)...........2-10
2.10 Front Panel Connector (CN1) .................................2-11
2.11 PS2 Keyboard/Mouse Connector (CN2).................2-12
2.12 Optional Power Connector (CN3) ...........................2-12
2.13 USB 3-4 Connector (CN4) ......................................2-12
2.14 VGA Display Connector (CN5)................................2-13
2.15 USB 1-2 Connector (CN6) ......................................2-13
2.16 PC 104 Connector (CN7)........................................2-13
2.17 LPT Port Connector (CN8)......................................2-14

PC/104 CPU Module PFM-540I Rev.B
v
2.18 IDE Connector (CN9)..............................................2-14
2.19 COM1 Connector (CN10)........................................2-15
2.20 COM3 Connector (CN11)........................................2-16
2.21 Power Connector (CN12)........................................2-16
2.22 COM 2 Connector (CN13).......................................2-16
2.23 Ethernet Connector (CN14) ....................................2-17
2.24 LCD Connector (CN15)...........................................2-17
2.25 COM4 Connector (CN16)........................................2-19
2.26 Battery Connector (BAT1).......................................2-19
2.27 DDR 1 SODIMM Slot (SODIMM1)..........................2-19
Chapter 3 Award BIOS Setup
3.1 System Test and Initialization. ..................................3-2
3.2 Award BIOS Setup....................................................3-3
Chapter 4 Driver Installation
4.1 Software Drivers........................................................4-2
4.2 Necessary to know....................................................4-3
4.3 Installing VGA Driver.................................................4-4
4.4 Installing AES Driver .................................................4-5
4.5 Installing PCI to ISA Bridge Driver............................4-6
4.6 Installing Ethernet Driver...........................................4-7
Appendix A Programming The Watchdog Timer
A.1 Programming .........................................................A-2

PC/104 CPU Module PFM-540I Rev.B
vi
Appendix B I/O Information
B.1 I/O Address Map....................................................B-2
B.2 Memory Address Map............................................B-2
B.3 IRQ Mapping Chart................................................B-3
B.4 DMA Channel Assignments...................................B-3
Appendix C Mating Connector
C.1 List of Mating Connectors and Cables.................. C-2

PC/104 CPU Module PFM-540I Rev.B
Chapter 1 General Information 1- 1
General
Chapter
1
Information

PC/104 CPU Module PFM-540I Rev.B
Chapter 1 General Information 1- 2
1.1 Introduction
AAEON Technology, a leading company in embedded boards
manufacturing with a full range of PC/104 CPU Modules,
launches an economic version PC/104 CPU Module-PFM-540I
Rev.B. Its compact size and rich functionality ensures the most
cost effective and compatible module to coincide with your
existing system planning devices.
PFM-540I Rev.B adopts an AMD Geode LX 800 processor that is
more cost effective compared to other PC/104 CPU modules on
the market. This model supports DDR 333 SODIMM Memory
up to 1GB (DDR 400 optional). Although PFM-540I Rev.B is a
small board, it offers the full functions customers demand. The
chipset of PFM-540I Rev.B deploys AMD LX 800 and CS5536
that makes this board achieve high performance. It features
one 10/100Base-TX Ethernet port, four USB 2.0 ports, four serial
ports, one parallel port, watchdog timer and includes PC/104
expansion.
PFM-540I Rev.B is a RoHS compliant product that is fanless and
fully supports ISA and CFD. For Operating Systems, it supports
regular embedded OS, such as WinCE, and WinXP Embedded,
Windows XP Professional for easy compatibility with customers’
existing OS systems.

PC/104 CPU Module PFM-540I Rev.B
Chapter 1 General Information 1 - 3
1.2 Features
 AMD Geode LX 800 (500MHz) Processor
 Onboard DDR SDRAM, Max. 1GB for DDR333 and 512MB
for DDR400
 18/24-bit TFT LCD panel
 CFD Type I, ATA-33
 4 USB 2.0 ports, 4 COM ports and 1 Parallel port
 One 10/100Base-TX Ethernet
 +5V/AT only
 Lead-free & ROHS Compliance
