DTV Solutions Vantage HD6000T/NZ User manual

VANTAGE HD6000T/NZ
USER MANUAL
Version 2.0

C ontents
Safety instructions ................................ 1
Chapter 1
Before You Begin................................... 2
General Features................................. 2
Accessories.......................................... 2
Chapter 2
Controls and Functions ........................ 3
Front Panel .......................................... 3
Rear Panel........................................... 3
Remote Control Unit ............................ 4
Chapter 3
Connections........................................... 5
Location of your receiver........................ 5
Connecting your receiver to antenna ..... 5
Connecting your analog receiver ........... 5
Connecting your receiver to TV.............. 5
Connecting your receiver to VCR
(depending on model) ............................ 5
Connecting external audio/Hi-Fi system ... 5
Connecting digital audio system ............ 5
Chapter 4
Initial Settings and Operations............. 6
Menu Information................................. 6
Getting Started..................................... 7
Selecting the OSD Language................. 7
Auto Scanning........................................ 7
Basic Operation ................................... 8
Switching Channel ................................. 8
Volume Control....................................... 8
Info Bar................................................... 8
Selecting the soundtrack........................ 8
Selecting the OSD teletext, VBI teletext, Subtitle and DVB subtitle
............................................................... 8
MoSAic .................................................. 9
Sleep Timer Function ............................. 9
Zoom Function ....................................... 9
Channel List ........................................... 9
To view channel list in specific order
(Alphabet/Provider/HD).......................... 9
Electronic Program Guide (EPG)........... 9
Chapter 5
Menu Map............................................... 10
Main Menu.............................................. 10
Installation............................................ 11
Auto Scanning........................................ 11
Manual Scanning ................................... 11
Defaults Setting...................................... 11
System Setup....................................... 12
Language Setting................................... 12
OSD Setting ........................................... 12
Media Settings ....................................... 12
Time Setting ........................................... 13
Reservation Setting................................ 13
System Information ................................ 13
Channel Setup ..................................... 14
Delete Channels..................................... 14
Delete All Channels................................ 14
Favorite Channels.................................. 14
Edit Channels......................................... 14
Parental Lock....................................... 15
Channel Lock ......................................... 15
Lock Control........................................... 15
Change Pin Code................................... 15
Game ................................................... 16
Multimedia............................................ 16
Recording Programs............................. 17
Connecting an external Hard Disk Drive 17
Hard Disk Drive Type ............................. 17
Formatting Your Hard Drive.................... 17
Quick record........................................... 17
Recording from EPG.............................. 18
Recording with Parental Lock ................ 18
Catch Play.............................................. 18
Reservation and Timer Settings............. 19
Editing .................................................... 19
Playback options.................................... 19
Software Manager.................................. 20
Troubleshooting .................................... 21
Specifications ........................................ 22

1
S afety Instructions
This product has been manufactured to satisfy the international safety standards.
Please read all of safety and operating instructions before operating the product and keep this manual for future reference.
MAINS SUPPLY
AC 90-250V~, 50/60Hz
Operate your product only from the type of power supply indicated on the marking label. If you are not sure of the type of power supplied
to your home, consult your local power company. Disconnect the STB from the mains before you start any maintenance or installation
procedures.
OVERLOADING
Do not overload a wall outlet, extension cord or adapter as this may result in electric fire or shock.
LIQUIDS
The product should not be exposed to any liquids such as dripping or splashing. No objects filled with liquids, such as vases, should be
placed on the apparatus,
CLEANING
Before cleaning, disconnect the product from the wall outlet, Use a cloth lightly dampened with water (no solvents) to clean the exterior.
VENTILATION
The slots on top of the product must be left uncovered to allow proper airflow to the unit. Do not stand the product on soft furnishings or
carpets. Do not expose the product to direct sunlight, place it near a heater. Do not stack electronic equipment on top of the product.
ATTACHMENTS
Do not use any attachment that is recommended by the manufacturer it may cause a hazard or damage the product.
CONNECTION TO THE TV
Disconnect the product from the mains before connecting or disconnecting the cable from the antenna. Failure to do so can damage the
TV.
LOCATION
Place the product indoors in order not to expose to lightning, rain or sunlight.
Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifier) that product heat.
LIGHTNING, or NOT IN USE
Unplug the product from the wall outlet and disconnect the cable during a lightning storm or when unused for a long time.
SERVICING
Do not attempt service that this product yourself, as opening or removing covers may expose you to dangerous voltage or other hazard.
Refer all servicing to qualified service personnel.
“The mains plug is used as the disconnect device. Then disconnect device shall remain readily operable”

General Features
• Accurate, Brilliant Friendly OSD with Full Function
• MPEG-2 (MP@ML), MPEG-2 (MP@HL), MPEG4 AVC/H.264, HP@L4
• Digital Tuner with Loop-through
• 16 Bit Colors Graphic User Interface
• Multi-language Menu
• 13-digit VFD (Time clock in Stand-by mode)
• OSD Teletext Supported
• EPG (Electronic Program Guide) for On-screen Channel Information
• Installation by Easy Setup Guide
• 10,000 Channels
• User-friendly Data Editing Function
• Favorite Channel and Parental Lock Function
• RS232C Port for Additional Information Service and Upgrading System Software
• S/PDIF OUT Optical and Coaxial
• HDMI
• SVIDEO OUT
•
PVR Ready
• Time-Shift
• USB Port
Accessories
• User’s Manual
• Remote Control Unit
• Batteries
• HDMI Cable
2
B efore You Begin

C ontrols and Functions
Front Panel
Power ( ) button
Turns your receiver On/Off.
Arrow (◄/►)buttons
Adjusts the volume and moves the cursor left/right on the menu
Arrow (▲/▼)buttons
Changes channels or moves the cursor up/down on the menu.
MENU button
Displays the menu
Exits from the current menu or goes to the previous menu
OK button
Confirms selection
DISPLAY
Displays channel information
Displays local time in Standby mode
Rear Panel
RF IN (Optional)
It Connects to the terrestrial antenna for DTV signal.
INPUT signal.
USB
Connects to the External HDD or USB storage with USB cable.
RS-232C
Connect to a PC.
RS232 transfers data to the external computer.
VIDEO OUT
Connects to video input jack on TV or any external Video
system.
AUDIO OUT, LEFT / RIGHT
Connects to audio input jacks on TV or any external audio
system.
Y Pb Pr OUT
Connects to video input jack on TV or any external Video
system.
S-Video OUT
Connects to the TV with S-Video cable
S/PDIF OUT Optical & Coaxial
Connects to a digital audio component with optical cable.
HDMI
Connects to the TV with HDMI cable
3

Remote Control Unit
Power ( ) button for TV & STB
Turns your receiver & TV On/Off.
Numeric (0~9) buttons
Controls the number entry and changes program channel
directly.
Mode ( ) button
Switches between TV and Radio channel list.
Sleep ( ) button
Shows the time setting for the sleep-timer.
MoSAic ( ) button
Displays multi picture section.
Arrow (◄/►)or OK buttons
Adjusts the volume level or moves the cursor left or right on the
menu.
Arrow (▲/▼)or OK buttons
Changes channels or moves the cursor up or down on the
menu.
Menu ( ) button
Displays the menu
Exits from the current menu or goes to the previous menu.
Mute ( ) button
Mutes audio output.
Last button
Shows Viewed Channel List.
Audio ( ) button
Shows the Input Audio information.
OK button
Shows Channel list while watching TV or listening to the Radio.
Guide ( ) button
Shows the TV program guide.
VOL +/- buttons
Adjusts the volume level.
Zoom ( ) button
Zooms in the selected screen.
The Zooming location changes by pressing direction buttons.
(x2 →normal)
Text ( ) button
Changes to the teletext mode.
INFO ( ) button
Displays program information in the screen.
Back ( ) button
Goes to previous menu. The changed values are to be saved.
List ( ) button
Shows channel list.
PR +/- buttons
Changes channel up or down.
Page (+/-) buttons
Moves up or down pages on the menu and TV/Radio List.
FAV (♥)button
Go to the last channel you’ve watched in the Favorite Channel
List 1.
And if pressed angina, you can see the last channel you’ve
watched in the next Favorite Channel List2. Repeat pressing the
button until no more Favorite Channel is found. Then it returns to
the current channel.
REW button
Rewinds the recorded programs to x8.
Play button
Play the recorder programs
Shows the recorded program in the media player.
FWD button
Fast forward the recorded program to x16.
Record button
Starts to record programs.
Stop button
Stops to record the program and to play the program.
Pause button
Pauses and play the program.
V.Format button
Set the Video format.
Media button
Shows Media Player.
Time Shift button
Starts Time shift function.
4

C onnections
L ocation of your receiver
• Install your receiver in horizontal position
• Do not put any heavy stuff such as a TV on your receiver
• Do not install your receiver in the places as follows: Vibrating place, direct sunrays, Humid place, too high or low temperature, and no
ventilated place.
Connecting your receiver with anntenna
After installing your antenna system, connect the coaxial cable from of your antenna to “RF IN” terminal marked at the rear panel of your
receiver. All cable connectors should be finger-tightened; do not use any kind of wrench while tightening connectors.
Connecting your analog receiver
To facilitate the use of analog receivers to view analog channels, this product has been provided with a loop through terminal marked as
“Loop”. Connect the coaxial cable from this terminal to the RF input terminal of your analog receiver. The receiver will pass through signals
to your analog receiver via the “Loop” connection.
Connecting your receiver to TV
To connect your receiver with your television, you can use 4 different methods; via RCA cable, SCART cable, HDMI cable or YUV.
Connect the RF cable to the terminal marked “RF OUT” on the rear panel of your receiver and its other end to the TV RF input socket.
Connect the Video/Audio RCA cables from the Video OUT/AUDIO OUT (LEFT, RIGHT) on the rear of your receiver to the Video INPUT/
AUDIO INPUT (LEFT, RIGHT) jacks on the TV. In the case of connecting your TV through SCART cable, connect the SCART connector
marked TV to the respective SCART port on the TV. (depend on model)
Connect the HDMI cable to the terminal marked “HDMI” on the rear panel of your receiver and its other end to the TV HDMI input.
Connecting your receiver to VCR (depending on model)
To connect a VCR, your receiver has been provided with SCART at the rear marked “VCR”. Using a SCART connector, the VCR can be
connected to your receiver.
Connecting external audio/Hi-Fi system
To connect any external Audio Hi-Fi system, your receiver has been provided with two RCA connectors at the rear panel of your receiver,
marked with AUDIO L and R respectively to connect the left and right Audio on the external audio/Hi-Fi system.
Connecting digital audio system
Connect a cable between S/PDIF OUT at the rear panel of your receiver and S/PDIF INPUT COAXIAL or OPTICAL on the Digital Audio
System.
5

I nitial Settings and Operations
Menu Information
A menu is a field of text shown on the TV screen. Selectable lines are generally activated
(highlighted). No-activated lines cannot be selected. Most of menus show short information at
the bottom of the screen.
This menu consists of 7 main menus:
• Installation • Game
• System Setup • Multimedia
• Channel Setup • Conditional Access
• Parental Lock
1 Using the Arrow (▲/▼)buttons you can move upwards and downwards on the menus.
On the menus, you can search channels using this button.
2When you have reached the required subject menu, press the OK button to confirm your
choice.
3On the menus, you can select menu items using the Arrow (◄/►)buttons.
4When you want to return to the previous menu with saving the change, press the Back (
)button.
5When you want to exit from the current menu, press the Menu ( )button.
6

Getting Started
To start your receiver for the first time, you must select the language for displaying menus and
you should set parameters for system configuration and scan terrestrial channels. Perform the
following setup procedure for scanning the transmition towers. Follow the instructions below
to scan terrestrial channels. You can enjoy watching TV or listening to the Radio after the
procedure completes.
1 Turn on your TV and receiver.
Language Setting menu will appear automatically.
OSD Language is highlighted.
Selecting the On Screen Display (OSD) Language
2Select the OSD language of your choice using the Arrow (◄/►)buttons.
You will see the selected language on the OSD menu.
3Select Installation using the Arrow (◄/►)buttons.
Auto Scanning
1Press the OK button, auto Scanning will start.
2Press the OK button to save the changes.
3Press the Back ( )button to exit from the menu and press the Arrow (▲/▼)buttons to
select the desired channel. Now you can watch TV or listen to the Radio
7

Basic Operation
This section explains various functions while watching TV or listening to the Radio.
Switching Channel
You can switch the current channel by three different methods.
• Method 1: Press the Arrow (▲/▼)buttons or PR+/- buttons.
• Method 2: To select a channel directly, select a channel using the Numeric (0~9) button.
• Method 3:
1To display the channel list, press the OK button.
2Select a channel you want to watch using the Arrow (▲/▼)buttons and then press the
OK button.
• If there are multiple channels, use the Page (+/-) or the Arrow (◄/►)buttons to move
to channels by page.
• Press the Mode ( ) button to switch between the TV and Radio channel.
• Method 4: How to move to the watched channel.
1Press the last button with RCU.
2Press OK button after a channel selection by using the Arrow (▲/▼) with RCU.
3Press OK button to exit.
Volume Control
To control the volume:
• Press the VOL+/- or the Arrow (◄/►)buttons.
• Press the Mute ( )button to turn the sound off.
• Press the Mute ( )button again or the VOL+/- or Arrow (◄/►)buttons to cancel muting.

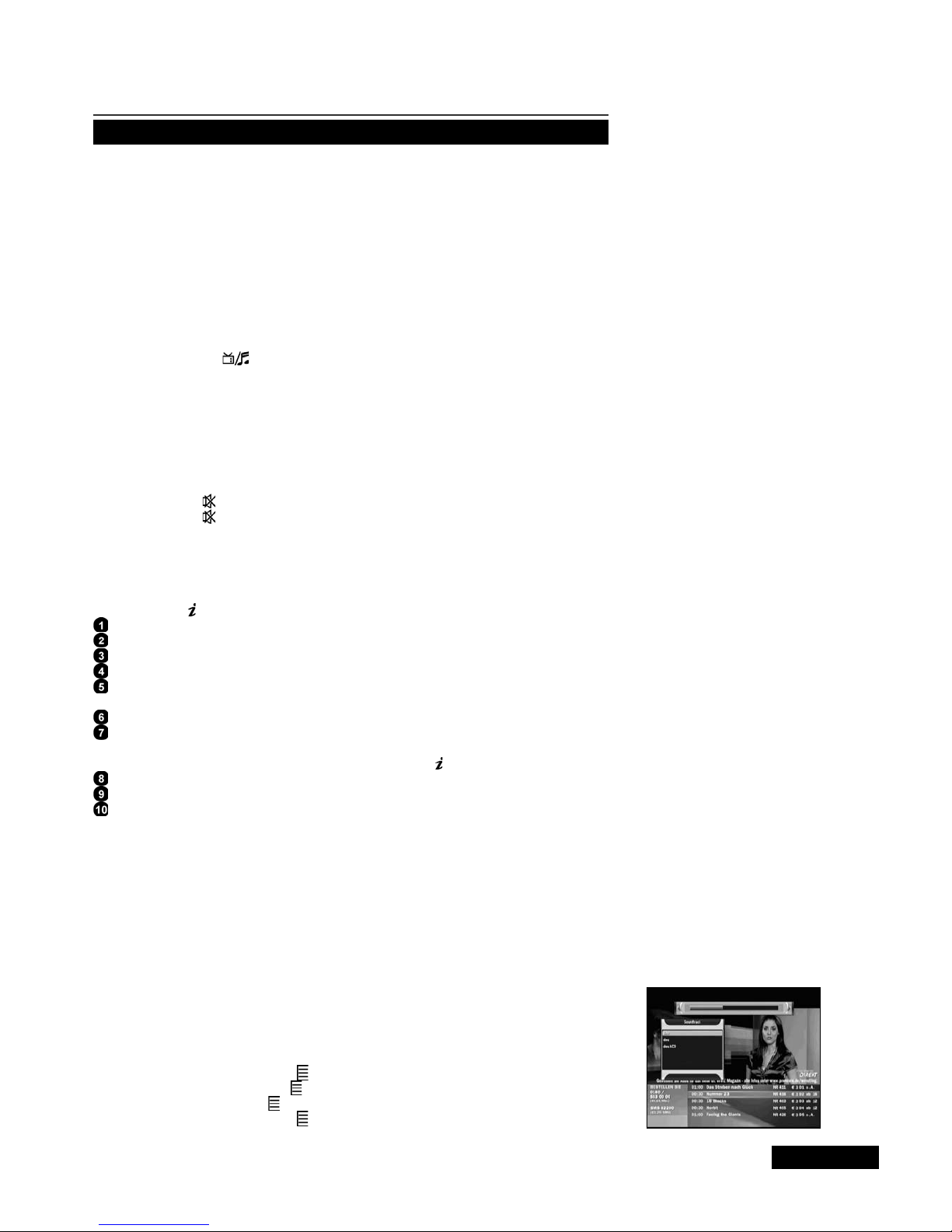

Info Bar
Channel information always appears for a specific period of time whenever you switch
channels.
General Information
Press the INFO ( )button; you can see general information of the current channel.
Channel number and name
Current time
Signal Level
Signal Quality
Icons: HD channel, Locked channel, Radio Channel, Scrambled channel, Subtitle, Teletext
information
EPG information.
Conditional Access
Detailed Channel Information
You can see detailed channel information pressing the INFO ( )button again.
You can see detailed channel information pressing the INFO button again.
Frequency, Video PID, Audio PID, PCR PID
Display the stream information.
Selecting the soundtrack
You can select the audio language, soundtrack, or sound mode.
1Press the Audio (Yellow) button.
2Press the Arrow (▲/▼)buttons to select the audio language or soundtrack and press the
OK button.
3Press the Arrow (◄/►)buttons to select the sound mode from Stereo, Mono left, or
Mono Right.
4Stream information.
Selecting the OSD teletext, VBI teletext, Subtitle and DVB
subtitle
You can choose the OSD teletext, VBI teletext, subtitle and DVB subtitle for the current
live TV program if provided from the broadcasting station.
• OSD teletext: Press the Text () button
• VBI teletext: Press the Text () button twice.
• Subtitle: Press the Text () button three times.
• DVB subtitle: Press the Text () button four times.
8

MoSAic
You can see multi picture by pressing the RED (MoSAic) button.
Sleep Timer Function
Press the GREEN (Sleep) button, you will see the time set for the sleep timer if already set
from the Time Setting menu.

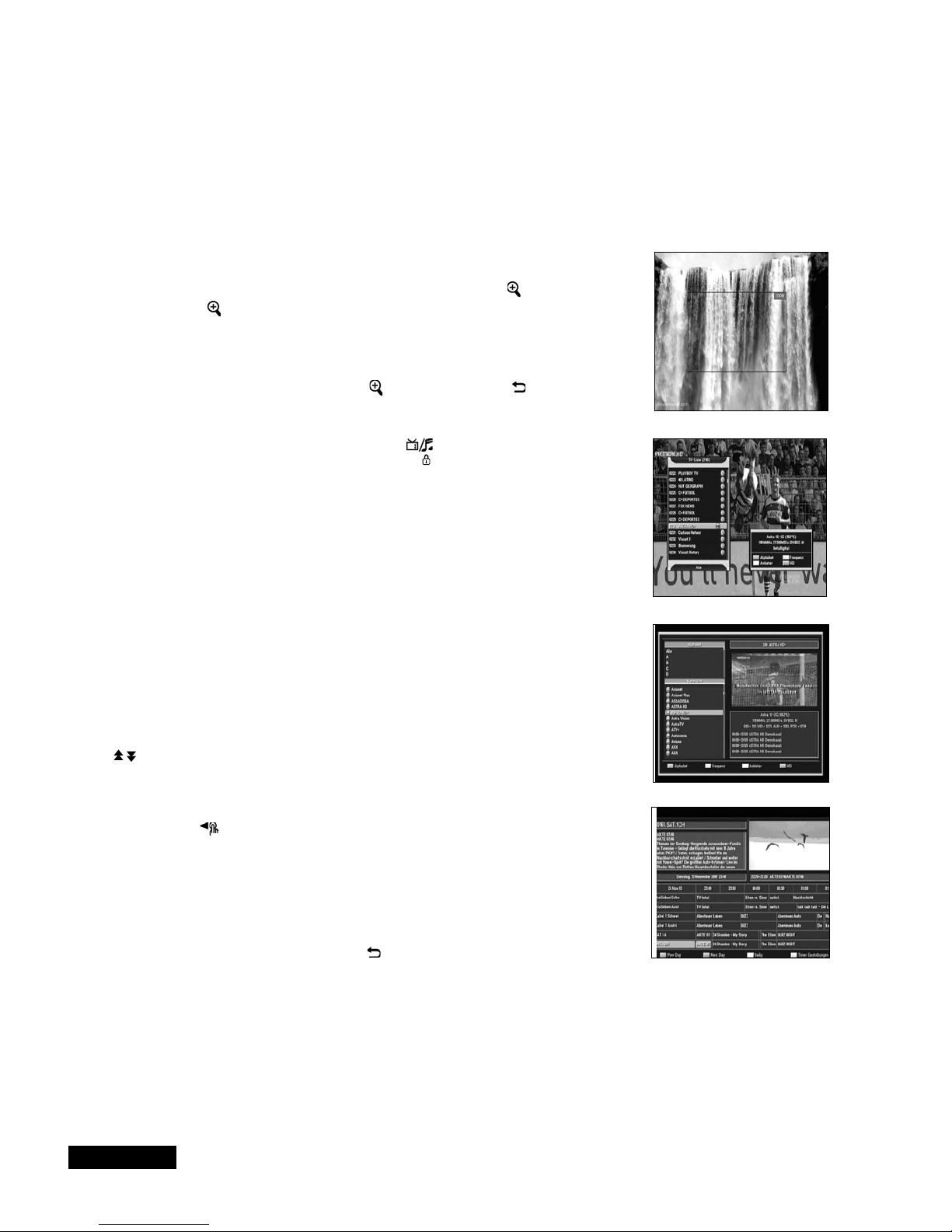

Zoom Function
You can make the picture appear larger on the screen pressing the Zoom ( ) button.
1Press the Zoom ( )button.
2Select the area you want to zoom using the Arrow buttons and then press the OK button.
Picture is enlarged two times.
3Each time you press the Page (+/-) buttons, the picture is enlarged two or four times.
Press the Arrow (▲/▼/◄/►) buttons to change the location at the lower right of display.
4To cancel the Zoom function, press the Zoom ( )button twice or Back ( ) button.
Channel List
You can see the TV or Radio channel list pressing the OK button while watching TV or listening
to the Radio. Switch the channel list pressing the Mode ( )button. The icon (€) behind
the channel name symbolizes scrambled channel, and the ( ) icon behind the channel name
symbolizes indicates a locked channel.
Select channel using the Arrow (▲/▼/◄/►), PR+/-, or Page (+/-) buttons and press the OK
button to watch.
The colored buttons show the channel lists as follows:
• RED (MoSAic) button: by alphabetical order
(alphabetical A-Z)
• GREEN (Sleep) button: by muxes
• YELLOW (Audio) button: by names of broadcasting providers
• Blue (List) button: by HD channels
To view channel list in specic order
(Alphabet/Provider/HD)
1Press the Colored (Red/ Green/Yellow/Blue) button.
Channel list is highlighted.
2Select Alphabet, Provider, or HD using the Arrow (▲/▼)buttons.
The channel list is sorted automatically by your selection.
3Select the channel pressing the Arrow (▲/▼)or Page
(/)buttons and press the OK button to watch it.
Electronic Program Guide (EPG)
EPG displays program information such as program titles, broadcasting schedule,
Program synopsis and such EPG service differ depending on the service provider.
1Press the EPG ( )button while watching TV or listening to the Radio EPG information
appears.
2Select a program for further more information.
• Arrow (▲/▼)buttons: Selects a program by channel
• Arrow (◄/►)buttons:Selects a program by time & date within the same channel.
It displays the program list at 30 minutes intervals.
• You can see the detailed information by pressing Page (+/-) buttons with RCU.
3Press the OK button, detailed information on the selected event appears.
4To exit from the EPG mode, press the Back ( )button.
9

M enu Map
Installation Terrestrial Auto Scanning
Defaults Setting Manual Scanning
System Setup Language Setting OSD Language / Audio 1st Language / Audio 2nd
Language /EPG 1st Language / EPG 2nd Language /
Teletext Language / Subtitle Language
OSD Setting Transparency / Window Trans / Banner Time / Screen
Saver Time/Serial Module
Media Setting TV system / TV Aspect Ratio / Video Aspect Ratio / Video
Signal Type / Video Freeze / Dolby Digital/ Time shift
Time Setting GMT Time / Local Time / Set Time Mode / Time Zone/
Summer Time
Reservation Setting On Time / Off Time / Repetition / Program
System Information
Channel Setup Delete Channels
Delete All Channels
Favorite Channels
Edit Channels
SW Manager
Parental Lock Channel Lock
Lock Control
Change PIN Code
Game A
B
C
D
Multimedia USB
10

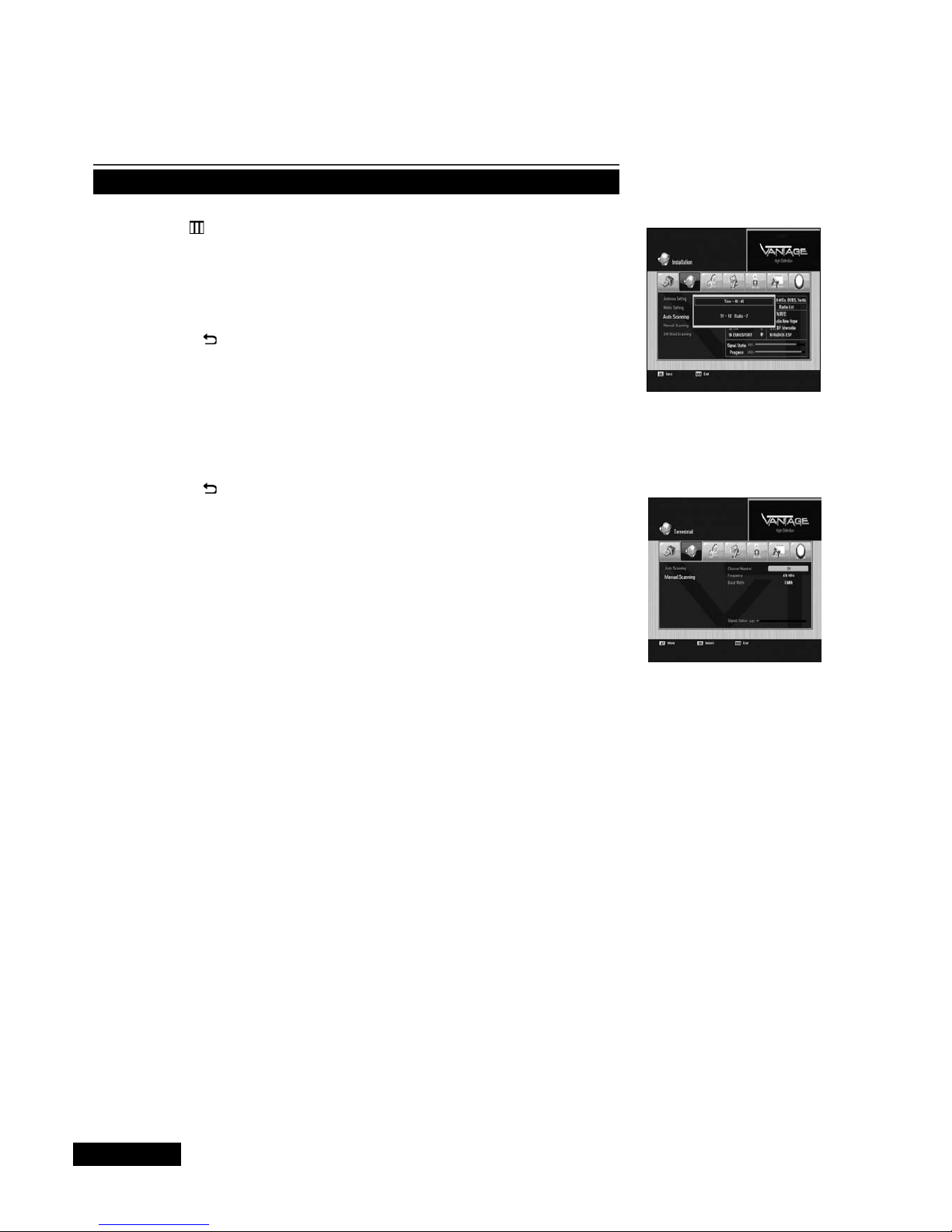

M ain Menu
The menu has been carefully designed from user-friendly point of view to assure easy
operation to your receiver. The main menu is classified into 7 sub menus that will carry out the
various operations individually.
Installation
In the Installation menu, you can customize antenna setting and do channel scanning.
Press the Menu ( )button.
Select Installation using the Arrow (◄/►)buttons on the main menu.
Auto Scanning
1 Press the OK button, Auto Scanning will start.
2 Press the OK button to save the changes.
3 Press the Back ( )button to exit from the menu and press the Arrow (▲/▼)buttons to
select the desired channel. Now you can watch TV or listen to the Radio.
Installation >> Manual Scanning
Manual Scanning
1 Select the channel number using the Arrow (◄/►)
2Press the OK button. Manual scanning will start.
3Press the OK button to save the changes.
4Press the Back ( )button to exit from the menu and press the Arrow (▲/▼)buttons to
select the desired channel. Now you can watch TV or listen to the Radio.
Installation >> Defaults Setting
Defaults Setting
You can restore the default setting in case you have encountered some problems after saving
changes to channel data and others that may be in error.
1Select Defaults Setting using the Arrow (▲/▼)buttons on the Installation menu and
press the OK button.
2Select a defaults option (Factory Defaults, or STB Reboot) using the Arrow (▲/▼)
buttons and press the OK button.
• Factory Defaults: Resets back to the factory-default settings.
If you press the OK button in this menu, you will see a dialog box asking you to confirm
the channel defaults or factory defaults setting.
Select Yes or No, and press the OK button.
• STB Reboot
If you press the OK button in this menu, the Set-top box (STB) reboots.
11

System Setup
You can set the system configuration in this menu. Press the Menu ( ) button.
Select System Setup using the Arrow (◄/►)buttons on the menu.
System Setup >> Language Setting
Language Setting
You can set languages for OSD, Audio 1-2, Teletext, Subtitle, and EPG 1-2
1Select Language Setting using the Arrow (▲/▼)buttons on the System Setup menu and
press the OK button.
2Select any of OSD, Audio1- 2, Teletext, Subtitle, and EPG1-2 languages using the Arrow
(▲/▼)buttons and use the Arrow (◄/►)buttons to select its language.
System Setup >> OSD Setting
OSD Setting
You can adjust OSD Transparency, Window Trans OSD Banner Time, and Screen Saver
Time.
1Select OSD Setting using the Arrow (▲/▼)buttons on the System Setup menu and press
the OK button.
2Select any of Transparency, Window Trans, Screen saver Time, VFD Module and
Display in Standby Mode, and Screen saver Time using the Arrow (▲/▼)buttons and
use the Arrow (◄/►)buttons to make changes.
• Transparency: 0 (opaque) to 100%
• Window Trans: 0 (opaque) to 100%
• Banner Time: 1 to 60 seconds or Always
• Screen saver Time: 1 to 60 minutes or None
• Serial Module: X-crypt or None
System Setup >> Media Setting
Media Setting
You can enter the various media setting for TV System, TV Aspect Ratio, Video Aspect Ratio,
RGB, Y/Pb/Pr or Composite, RF Channel, Broadcasting System, Video Freeze and DVB
Subtitle.
1Select Media Setting using the Arrow (▲/▼)buttons on the System Setup menu and
press the OK button.
2Select Media Setting using the Arrow (▲/▼)buttons and press the Arrow (◄/►)buttons
to make changes.
• TV System: 576p, 720p, 1080i
• TV Aspect Ratio: You can set the aspect ratio of your TV. (4:3,16:9 or Auto)
12

System Setup >> System information
System Information
You can check system information like Model Name, hardware version, Loader version, Main
Software version, and Main Software Build Date.

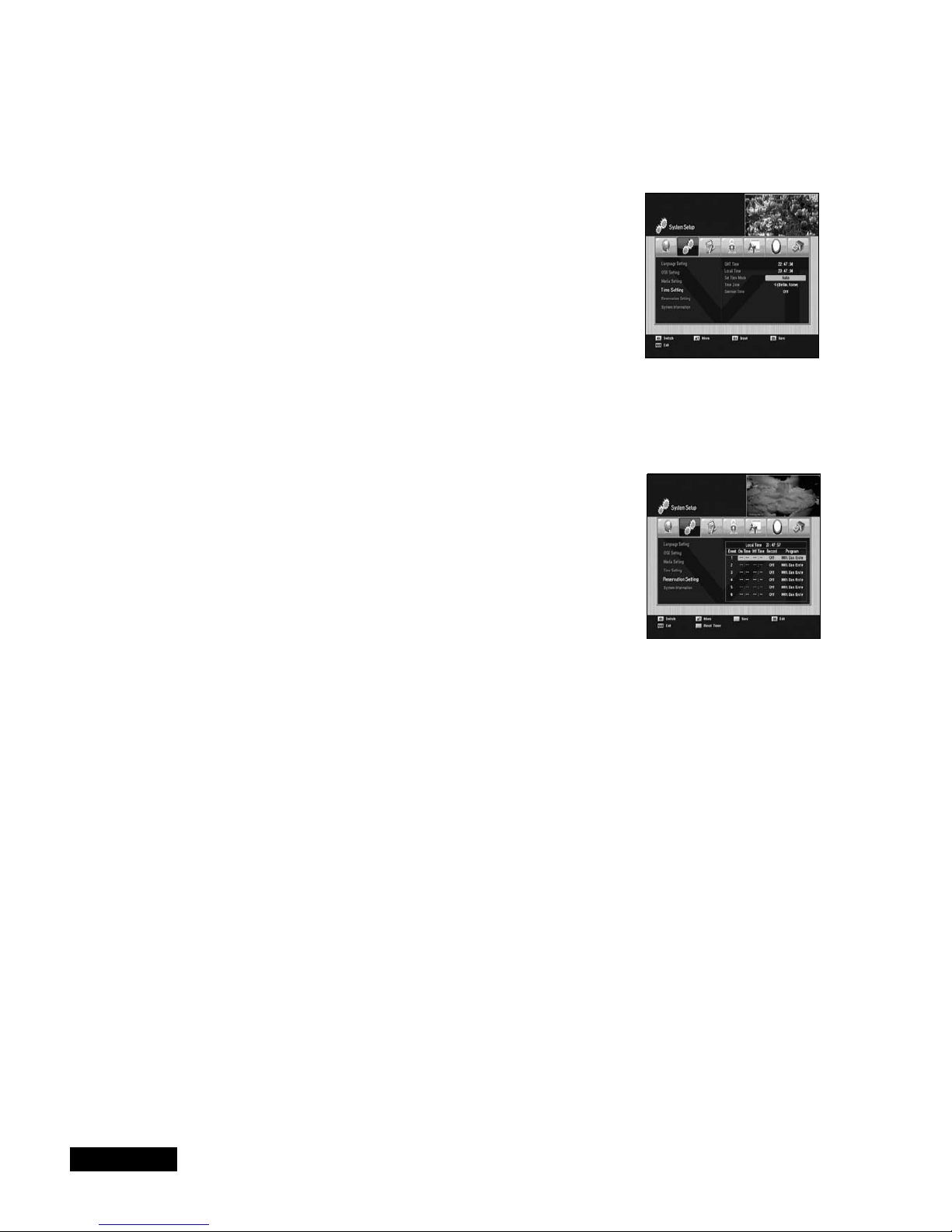

System Setup >> Time Setting
Time Setting
You can set the time zone.
1Select Time Setting using the Arrow (▲/▼)buttons on the System Setup menu and
press the OK button.
Set Time Zone:
Press the Arrow (◄/►)buttons to set time mode for Auto or Manual
Time Zone
Press the Arrow (◄/►)buttons to set the time zone.
The local time will be automatically changed by this setting.
Set the time by using the Arrow (◄/►)buttons in case of Auto set time mode
Input the figures with the numeric keys in case of Manual set time mode
Daylight Savings Time: Select the Daylight Savings time function on or off
System Setup >> Reservation Setting
Reservation Setting
You can set timer of reservation for TV program such as switch on, off and TV program. Select
the Event NO. for the reservation.
• ON time: Input the Switch-ON time with numeric keys.
• OFF time: Input the Switch-OFF time with numeric keys.
• Record: OFF, Once, Daily, Weekly.
• Repetition: Select the Event activation time option
(Once, Daily) with the Arrow (◄/►) buttons.
• Weekly timer record option (Press OK to select each day of the week).
• Program: Select the channel with Arrow (◄/►) buttons and press OK to save.
• Standby: ON/OFF with the arrow (◄/►) buttons.
• Target Device: None/HDD Select the device with Arrow (◄/►) buttons
and press OK to save.
13

Channel Setup
You can edit TV and Radio channels and the favorite channel group in this menu.
Press the Menu ( )button. Select Channel Setup using the Arrow (◄/►)buttons on the
main menu.
Channel Setup >> Delete Channels
Delete Channels
You can delete TV and Radio channels you want.
1Select Delete Channel using the Arrow (▲/▼)buttons on the Channel Setup menu and
press the OK button.
2Select the channel you want to delete using the Arrow (▲/▼)buttons and press the OK
button.
Press the Arrow (◄/►)buttons to switch between TV and Radio List.
You can select multiple channels.
Bulleted list indicates selected channels.
Press the Green (sleep) button for Delete mode by Channel, TP or Satellite.
3Press the RED (MoSAiC) button to delete selected channels.
Channel Setup >> Delete All Channels
Delete All Channels
You can delete all channels.
1Select Delete All Channels using the Arrow (▲/▼)buttons on the Channel Setup menu
and press the OK button. System message dialog box appears asking you to confirm it.
2Select Yes using the Arrow (◄/►)buttons and press the OK button to delete all
channels.
Channel Setup >> Favorite Channels
Favorite Channels
You can edit favorite channels. There are 9 favorite channel groups (News, Sports, Movie,
Music, Shopping, Kids, Adults, Drama, and Education).
1Select Favorite Channels using the Arrow (▲/▼)buttons on the Channel setup menu
and press the OK button.
2 Select channels that you want to edit using the Arrow (▲/▼)or Page (+/-) buttons in the
TV/Radio List and press the RED (MoSAic) button.
Selected channels are listed in the favorite group.
Pressing the TV/Radio ( )button switches between TV and Radio List.
3Press the FAV (♥)button to select another favorite group.
4Select channels that you want to edit using the Arrow (▲/▼)buttons in the TV/Radio List
and press the RED (MoSAic) button. Repeat steps from 3 to 4.
5Press the OK button to confirm.
Channel Setup >>Edit Channels
Edit Channels
You can rename the channel list.
Select Edit Channels using the Arrow (▲/▼)buttons on the Channel Setup menu and
press the OK button.
• FAV (♥)button: Shows Favorite channel lists
• Arrow (◄/►)buttons: Switches between TV and Radio channel lists
To rename the channel list
1Select the channel you want to rename using the Arrow (▲/▼), PR+/-, or Page (+/-)
buttons and press the GREEN (Sleep) button. Font Table will appear.
2Press the BLUE (SAT) button to delete the selected channel name.
3Select characters using the Arrow buttons and press the RED (MoSAic) button to enter
characters.
• YELLOW (Audio) button:Enters space
• BLUE (SAT) button:Hits the back space
• RED (MoSAic) button:Selects the input
4Press the OK button to confirm.
14

Parental Lock
You can lock the channels to prohibit unauthorized users from watching specific channels.
Press the Menu ( )button. Select Parental Lock using the Arrow (◄/►)buttons on the
main munu
Parental Lock >> Channel Lock
Channel Lock
Whenever you want to see the locked channel you will be prompted to enter the PIN Code in
the dialog box.
1Select Channel Lock using the Arrow (▲/▼)buttons on the Parental Lock menu and
press the OK button.
2Select the channel that you want to use the Arrow (▲/▼), PR+/-, Page (+/-), or Numeric
(0~9) buttons and press the OK button.
Selected channel will be displayed with locking-marked. Press it again to clear.
Arrow (◄/►)buttons: Switches between TV and Radio List.
3Press the RED (MoSAiC) button to confirm.
4Press the Blue (SAT) button to move PIG screen.
Parental Lock >> Lock Control
Lock Control
Whenever you want to use the locked system you will be prompted to enter the PIN Code
in the request dialog box. Using Arrow (▲/▼)buttons and press OK button to select a lock
status.
• System Lock: Select Lock or Unlock by using the Arrow (◄/►)button. If Lock is
selected, the front key function will be blocked.
• Menu Lock: Select Lock or Unlock by using the Arrow (◄/►)button submenu Lock
control will be available with PIN code.
• Lock mode: Select Once or Every time mode by using Arrow (◄/►) button.
• Once: Input the pin code once on the channel change with Parental Lock.
• Every time: Input the pin code every time on the channel change with Parental Lock
Save the changes with OK button Press the Blue (SAT) button to move PIG screen
Parental Lock >> Change PIN Code
Change PIN Code
You can create a new PIN code in this menu. “0000” is the default password.
1Select Change PIN Code using the Arrow (▲/▼)buttons on the Parental Lock, System
Lock, Menu Lock and press the OK button.
2
Enter the old PIN code.
3
Enter the new PIN code.
4
Enter the new PIN code again to confirm.
Note
• Please keep in mind that the PIN code must be a four-digit number. In case you forgot
your PIN code, contact your local dealer.
15

Game
This product provides lots of games for your entertaining environment.
Select Game using the Arrow (◄/►)buttons on the main menu.
1Select a game using the Arrow (▲/▼)buttons on the Game menu and press the OK button.
2According to the instruction displayed on screen, you can enjoy games using the Arrow,
Numeric (0~9), and OK buttons.
Multimedia
You can access to the multimedia function with USB.
• Whenever you connect or disconnect USB jack in the STB,You must keep the STB in Stand
by mode.
You can just use power button with RCU and front panel power key.
Please don’t switch off the main plug and on/off switch on the rear panel.
Multimedia >> USB
Connect USB stick or External HDD through USB connector.
16

R ecording Programs
Connecting an External Hard Disk Drive
When attaching an external HDD, we recommend using a named brand HDD to ensure there
is support and connection is reliable.
To connect the HDD to the receiver, plug the power plug into a power socket (if you are using
a 2.5” HDD then you will not need to do this, the receiver will send the required power to the
HDD), plug the USB cable directly into the back of the receiver.
You should then see a box appear on the screen that says “Media is Connected”. Please al-
low up to 2 minutes for the connection to be established.
If you do not get this message within a few minutes refer to the Troubleshooting guide on
page26.
With the Vantage you can use a USB Hard Disk Drive which is either externally powered or
powered by the receiver itself.
When formatting a HDD for use with the Vantage ensure that is formatted as FAT32; FATEX
and NTFS is currently not supported by the Vantage.
Windows XP and Windows Vista do not allow formatting of FAT32 on devices larger than
32gb, so to achieve this a third party programme will need to be used.
Hard Disk Drive Type
Formatting your Hard Disk Drive
Quick Record
For simple recording press Record ( ●) button.
The receiver will ask if you would like the recording to finish at the end of the pro-
gramme.
If “Yes” is chosen the receiver will record for the
duration remaining in the current
programme.
If “No” is chosen the receiver will continue to record until the HDD is full or the recording
time limit has been reached.
To stop a current recording press the Stop button the receiver will ask you for a confir-
mation on which recording to stop.
17

Catch Play
Catch Play is used when one starts a recording and wishes to watch it while the recording
continues.
To activate Catch Play:
1) Simply start the recording using the ( ●) button.
2) Press the “Media” Button on the remote. Once the Media window has opened up go
to Recording => Then find the last recording in the list (This is the current Recording) and
press OK.
3 ) The video will start and the receiver will continue to record, you now have the ability to
pause, fastforward or rewind at your leisure.
Recording with Parental Lock
If you have parental lock enabled, any recordings made will also include the parental lock.
Recording from EPG
You can schedule recordings from the EPG.
Simply highlight the programme you wish to record and press the “Green” button, this will
add the programme to the “Reservation Settings”.
This will automatically set the record duration and also the filename correctly. You can also
change the settings for that particular record to record everyday or even on certain days of
a week.
18
