Du-sung Technology Bodypro 100 User manual
Bodypro 100 User Manual
- 2 - Du-sung Technology co., ltd.
Table of contents
1. Introduction
2. In the box
3. Name and Function of Each Component
4. PAPS_Plus Program Installation
5. Wearing Bodypro
6. Monitoring Environments
7. ZIGBEE router(DS2000, optional) Names and Functions
8. Specifications
9. Battery Replacement
10. CAUTIONS
11. Self-diagnosis
12. Guarantee
☞Caution
▣Do not disassemble or modify the device. Please contact us if there is any trouble using the
device.
▣Do not expose the device on high temperature or high pressure environment as it can damage
the device or the battery.
▣Please avoid any external impact such as vibration and crash. Keep the device in safe position.
▣Please consult your physician or family doctor and stop using Bodypro 100 if you have any
allergic reaction with material or if you have a pacemaker or other implanted electronic device.
Bodypro 100 User Manual
Du-sung Technology co., ltd. -3-
1. Introduction
This product “Bodypro 100” consists of a transmitter(DS100), a chest belt(DS100B), a
receiver(DS1100), and an installation CD. Wrist belts(DS100C) and a zigbee
router(DS2000) are to be purchased as optional devices.
Bodypro 100 is a wireless heart rate monitor which detects multiple heart rates and
measures cardio respiratory endurances. It measures up to 100 signals, and therefore
it eases measurement processes.
In addition, users are able to set desired heart rate zone and train in the zone for
optimal and scientific exercise program.
2. In the box
PRODUCTS NAMES
QUANTITIES
FEATURES
Bodypro
100(10)
Bodypro
100(20)
Bodypro
100(30)
Bodypro
100(40)
In the
box
DS100 Wireless
transmitter 10 20 30 40 Measures HR and transmits
wirelessly (zigbee)
DS100B Chest belt 10 20 30 40 Chest belt
DS1100 Wireless
receiver 1 1 1 1 Multiple bio-signal receiver
(zigbee)
PAPS_Plus
Software
program 1 1 1 1 PAPS_Plus program
/ Hardware driver
User
Manual Manual 1 1 1 1 Device manual
/ warranties
Additional
(not
including)
DS100C Wrist belts 20 40 60 80 Wrist belts
DS2000 Zigbee router 1~3 1~3 1~3 1~3 Increases transmitting range
to over 1.5km
Bodypro 100 User Manual
- 4 - Du-sung Technology co., ltd.

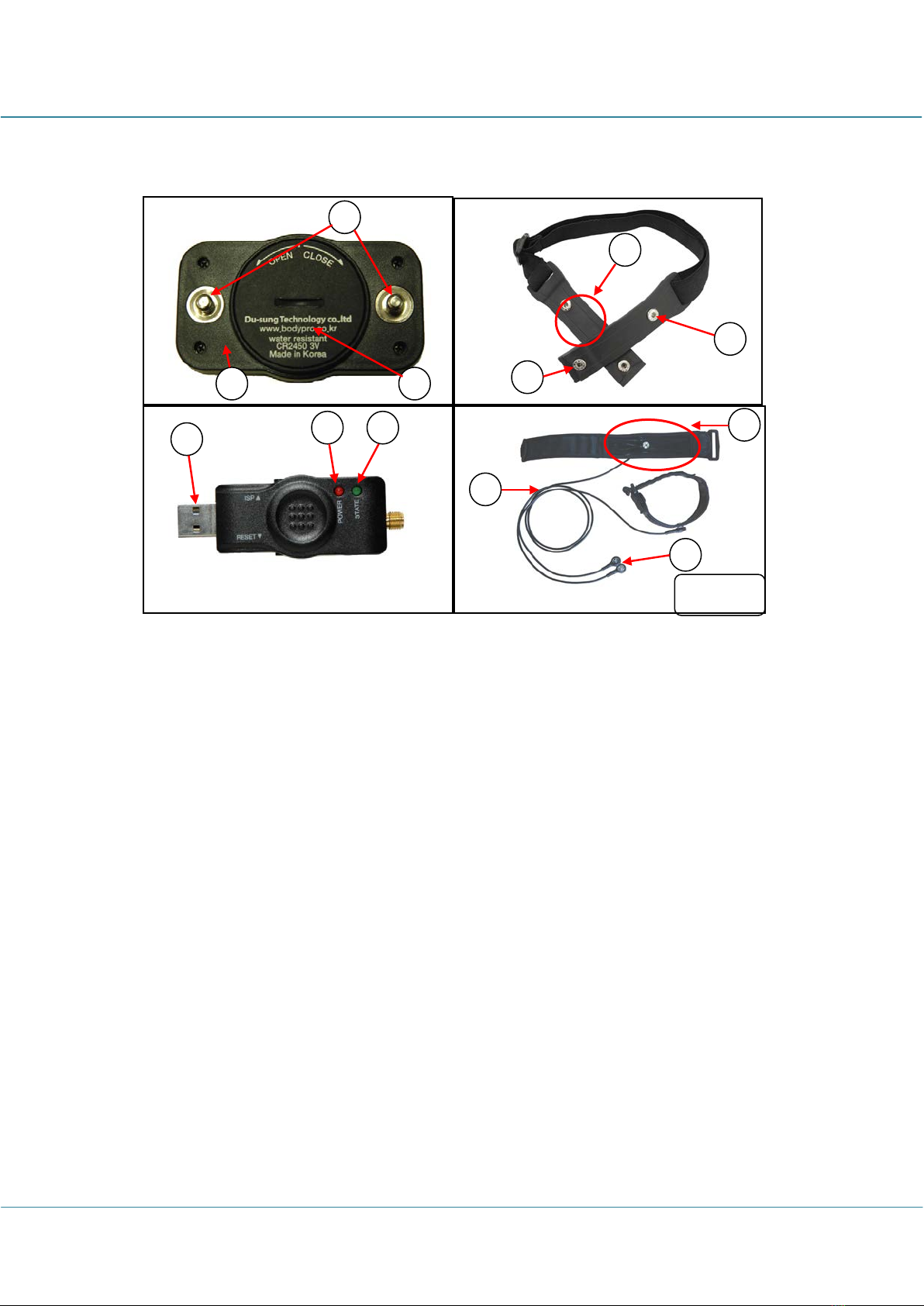

3. Name and Function of Each Component
A. DS100 body : wireless heart rate signal transmitter body.
B. Battery cap : open/close to change battery.
C. Electrode clip : connection/electrode clip to chest belt.
D. Electrode belt : electrode rubber part of chest belt where heart rate signal is
detected. Direct contact to chest.
E. DS100 connection clip : connection clip to transmitter body.
F. DS100C connection clip : connection clip to wrist belts.
G. USB connector : to connect a receiver to PC USB port
H. POWER LED : Indicates power status of receiver.
I. STATE LED : Blinks at each time the heart rate signal is received.
※
If multiple transmitters are connected, it may seem to be turned on.
J. Electrode belt : electrode rubber part of wrist belts where heart rate signal is
detected. Direct contact to wrists.
K. Cable(DS100C) : connection cable for chest belt and wrist belts.
L. DS100B connection clip : connection clip to wrist belts
A
C
B
D
E
F
G H I J
L
K
Optional
Bodypro 100 User Manual
Du-sung Technology co., ltd. -5-
4. PAPS_Plus Program Installation
1) Install a driver for receiver
- to activate a receiver connected to PC.

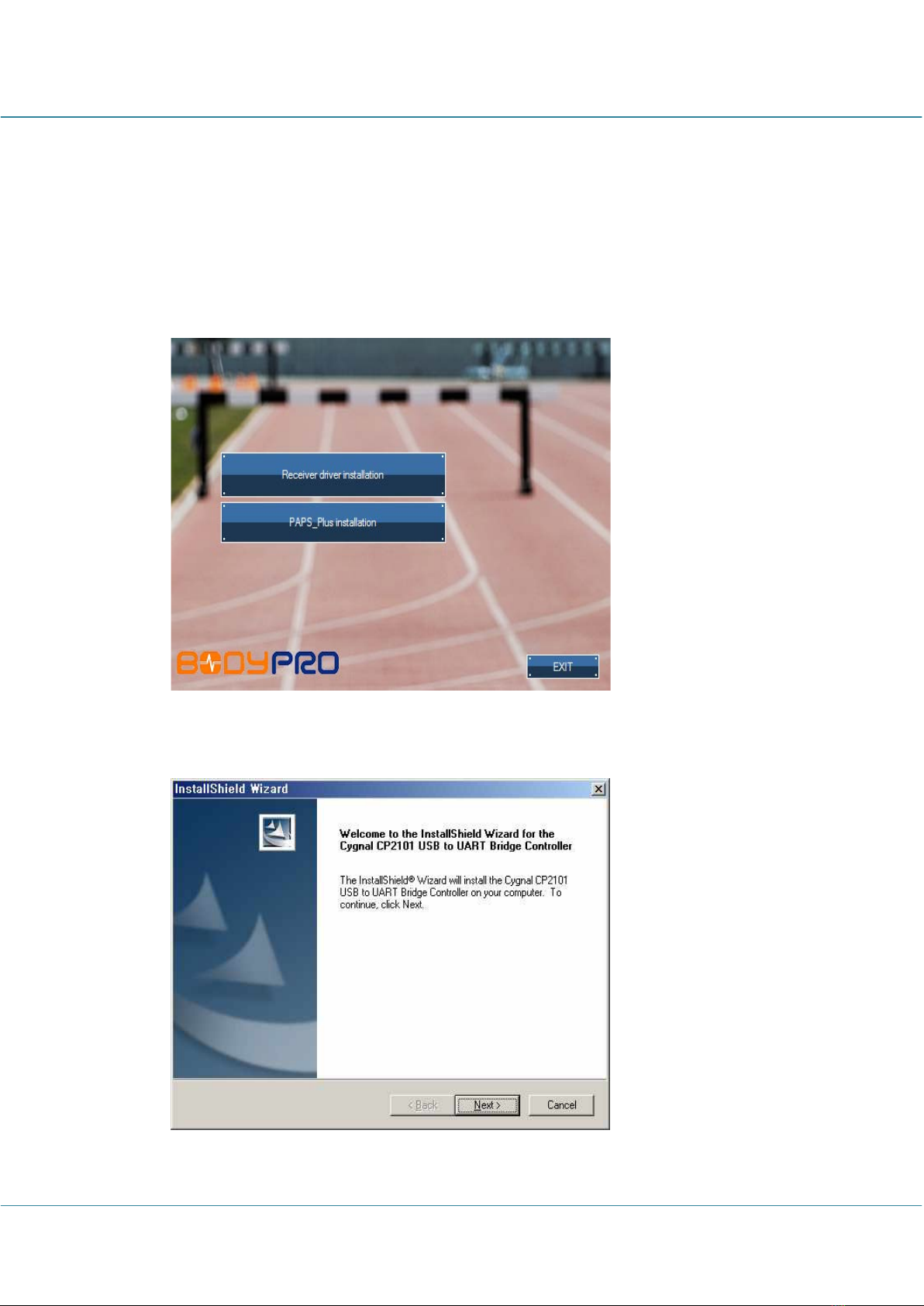

A. Insert CD and click “Receiver driver installation” when the below image
shows up.
B. Click “Next” to proceed.
Bodypro 100 User Manual
- 6 - Du-sung Technology co., ltd.
C. Click ”Yes” to proceed.
D. Click “Next” to start installation.
Bodypro 100 User Manual
Du-sung Technology co., ltd. -7-
E. Click “Finish” to finish installation.
F. Connect receiver to PC.
a. Check “Yes, this time only” and click “Next”.
Bodypro 100 User Manual
- 8 - Du-sung Technology co., ltd.
b. Check ”Install the software automatically [Recommended]” and click “Next”.
The driver will be detected automatically.
※If PC doesn’t detect the driver from this method, check “Install from a list or
specific location [Advanced]” and click “Next”. The below page will show up.
c. Check ”Include this location in the search” and type the directory where the
driver is installed. Click “Next” to search the driver.
- C:\Cygnal\CP2101\WIN
Bodypro 100 User Manual
Du-sung Technology co., ltd. -9-

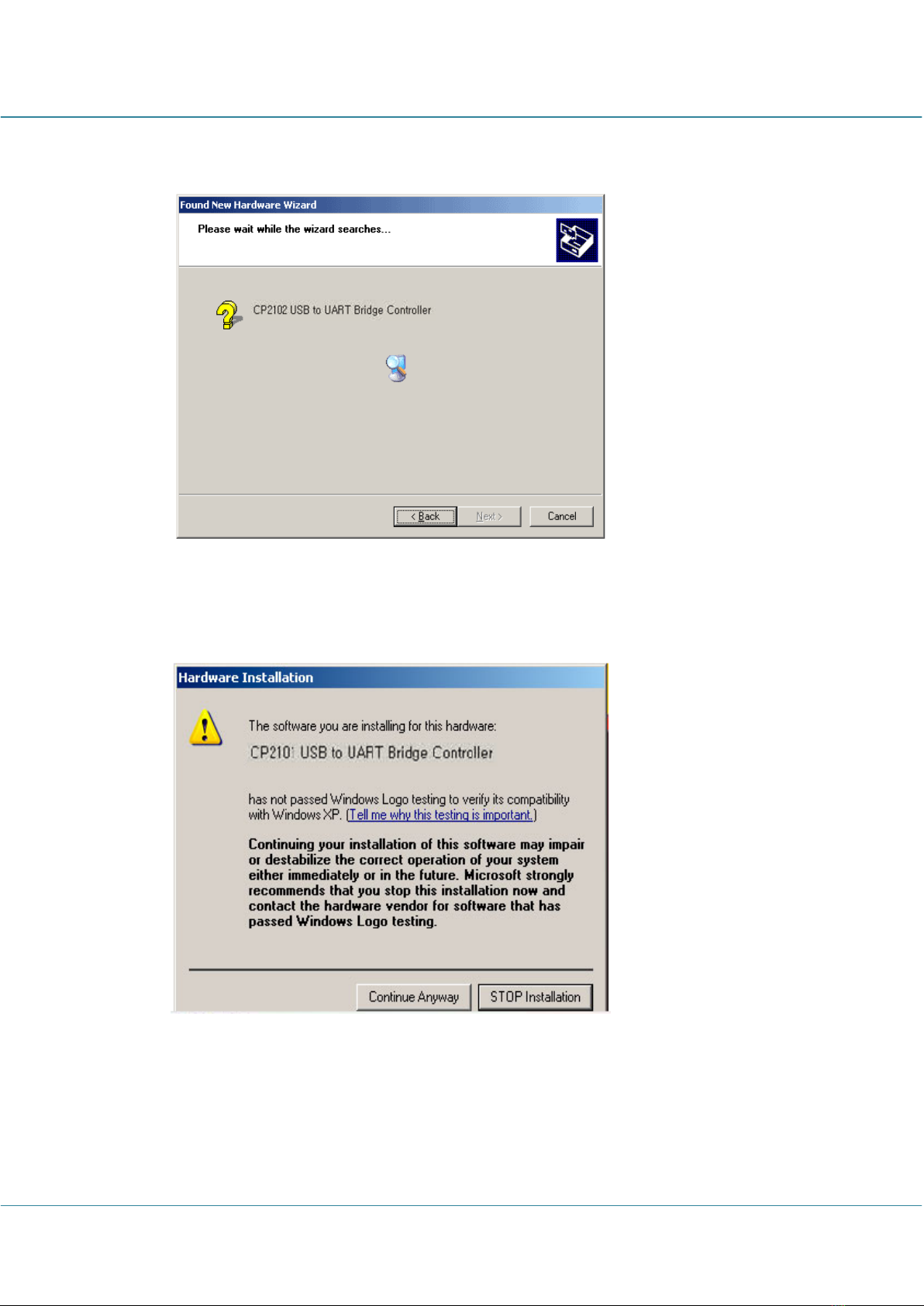

d. If below page show up, it means PC is searching the driver and it will take
some time.
e. The below message will show up as the driver is detected. Click “Continue
Anyway” to proceed.
Bodypro 100 User Manual
- 10 - Du-sung Technology co., ltd.
f. If below page show up, it means the driver for receiver is completed. Click
“Finish” to complete the installation.
※Installation for receiver only needs to be done once for the first time. Later
time, a receiver will be detected automatically without additional installations.
Bodypro 100 User Manual
Du-sung Technology co., ltd. -11-
2) PAPS_Plus Program Installation

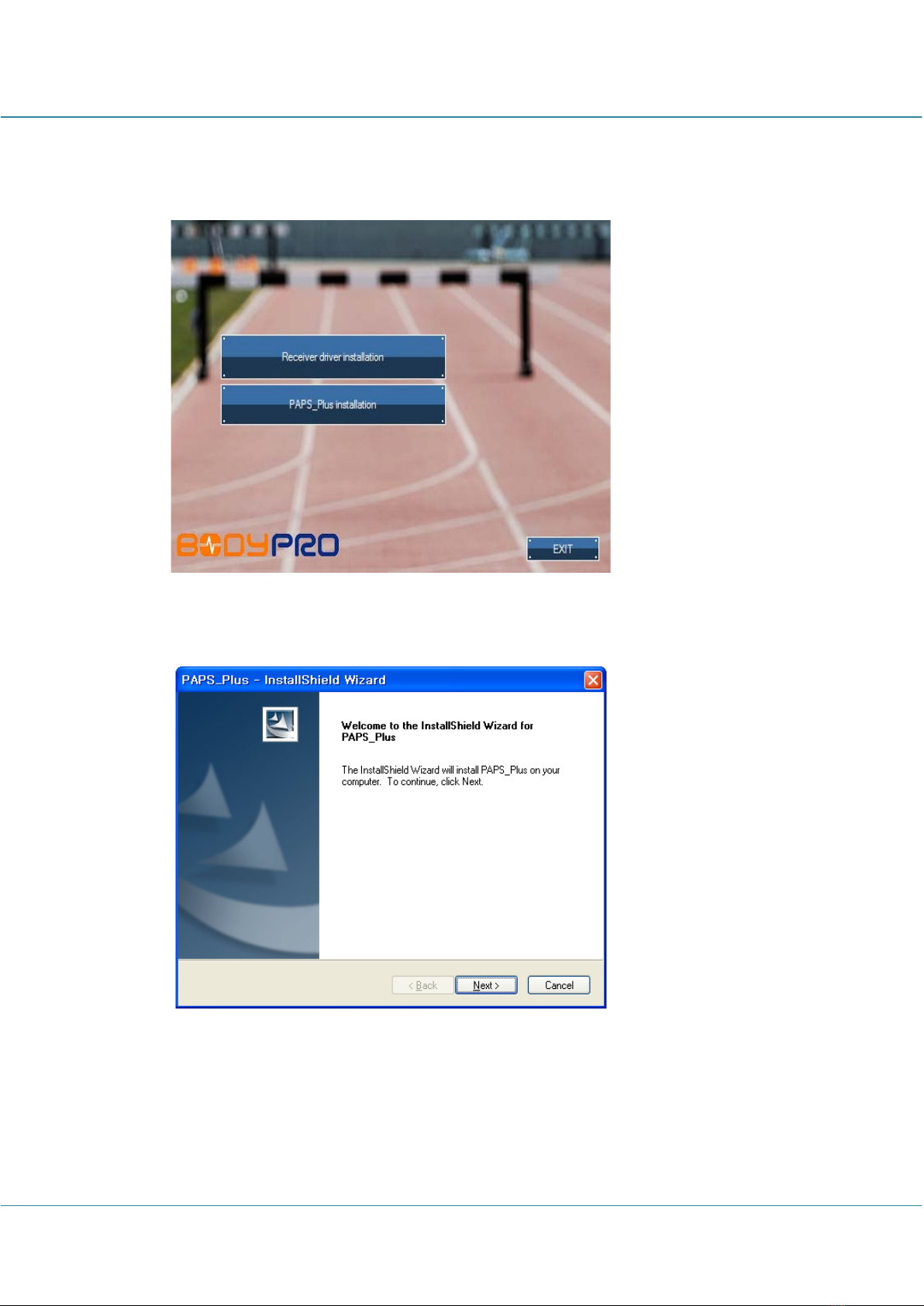

A. Click “PAPS_Plus Program Install”.
B. Click “Next” to proceed.
Bodypro 100 User Manual
- 12 - Du-sung Technology co., ltd.

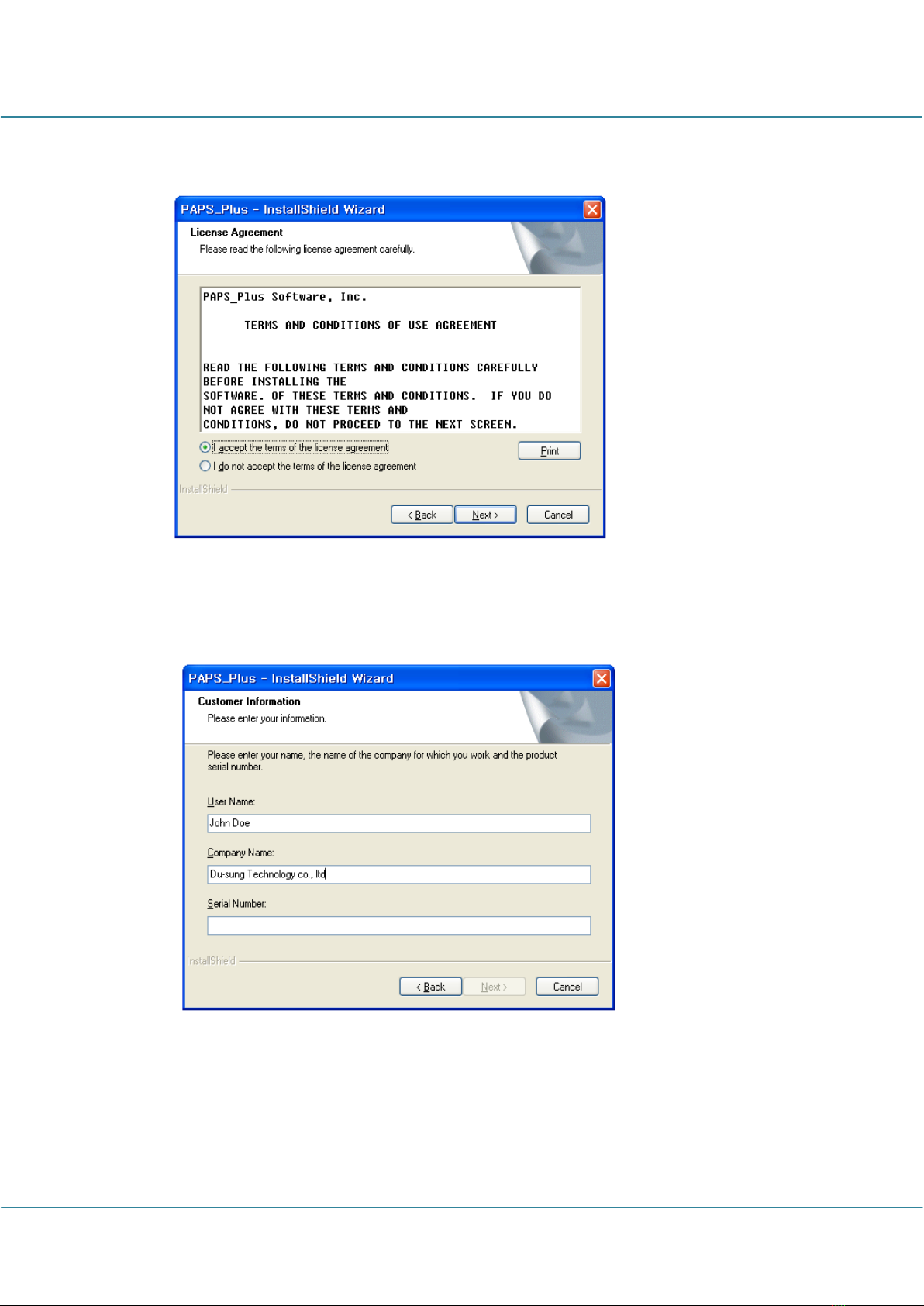

C. Check ”I accept the terms of the license agreement” and click “Next” to
proceed.
D. Type user information and serial number from attached film on CD. Click
Next to proceed.
Bodypro 100 User Manual
Du-sung Technology co., ltd. -13-

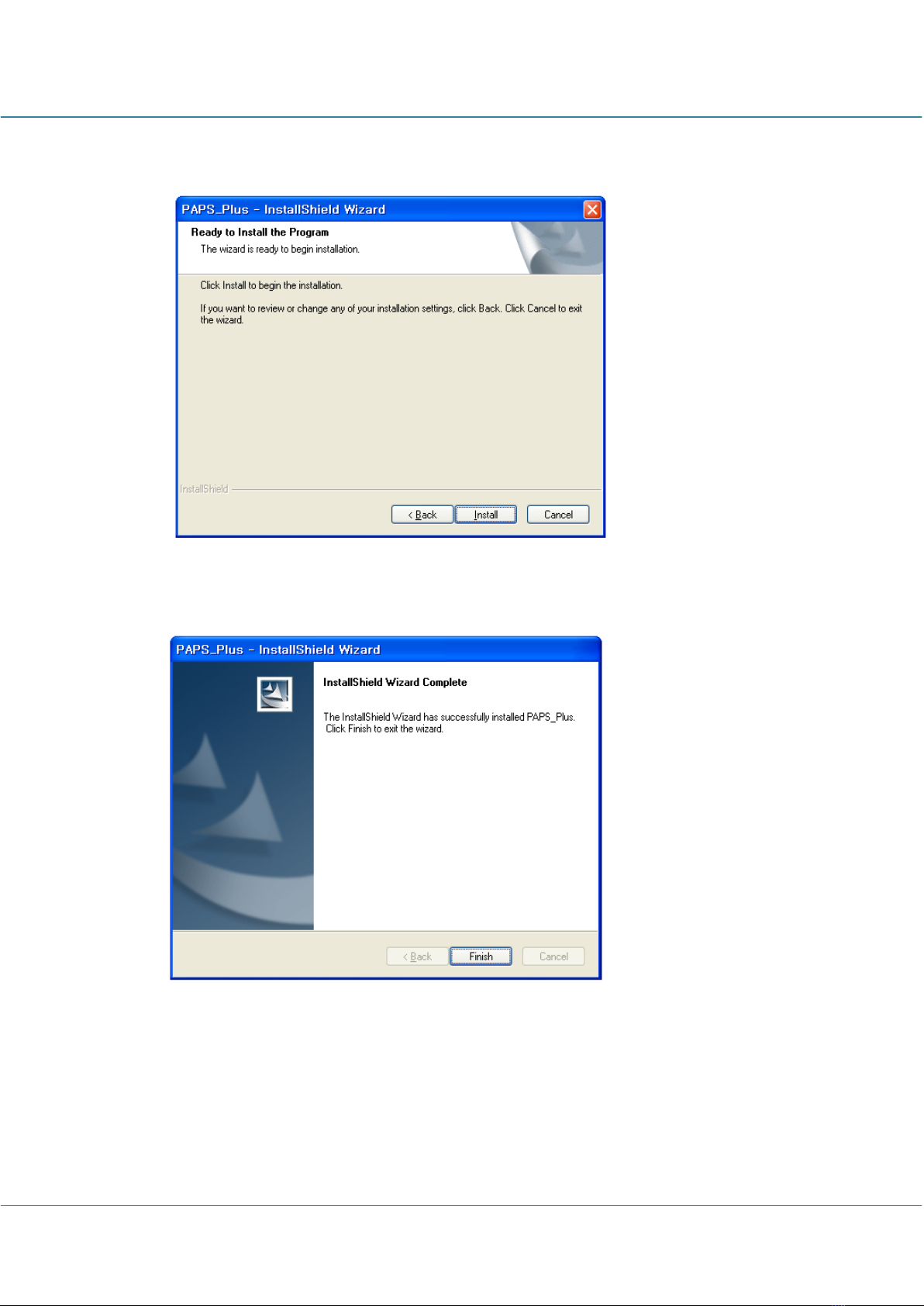

E. Choose desired directory for PAPS_Plus installation and click “Install” to
begin installation.
F. Click “Finish” to complete the installation.
Bodypro 100 User Manual
- 14 - Du-sung Technology co., ltd.
5. Wearing Bodypro
1) Wearing chest belt(DS100B)
A. Using wet tissue or other things, clean and moisten the surface of electrode part
of chest belt at the same time. Connect one side of chest belt and transmitter at
connection clip.
B. Wind the belt around the body to place the transmitter body at the center of
chest as below images.
C. Check with PC program that monitoring heart rate is working correctly.
The number from a transmitter body is the same as the signal number from the
program.
check number
ex)A01=#1
A01
Bodypro 100 User Manual
Du-sung Technology co., ltd. -15-

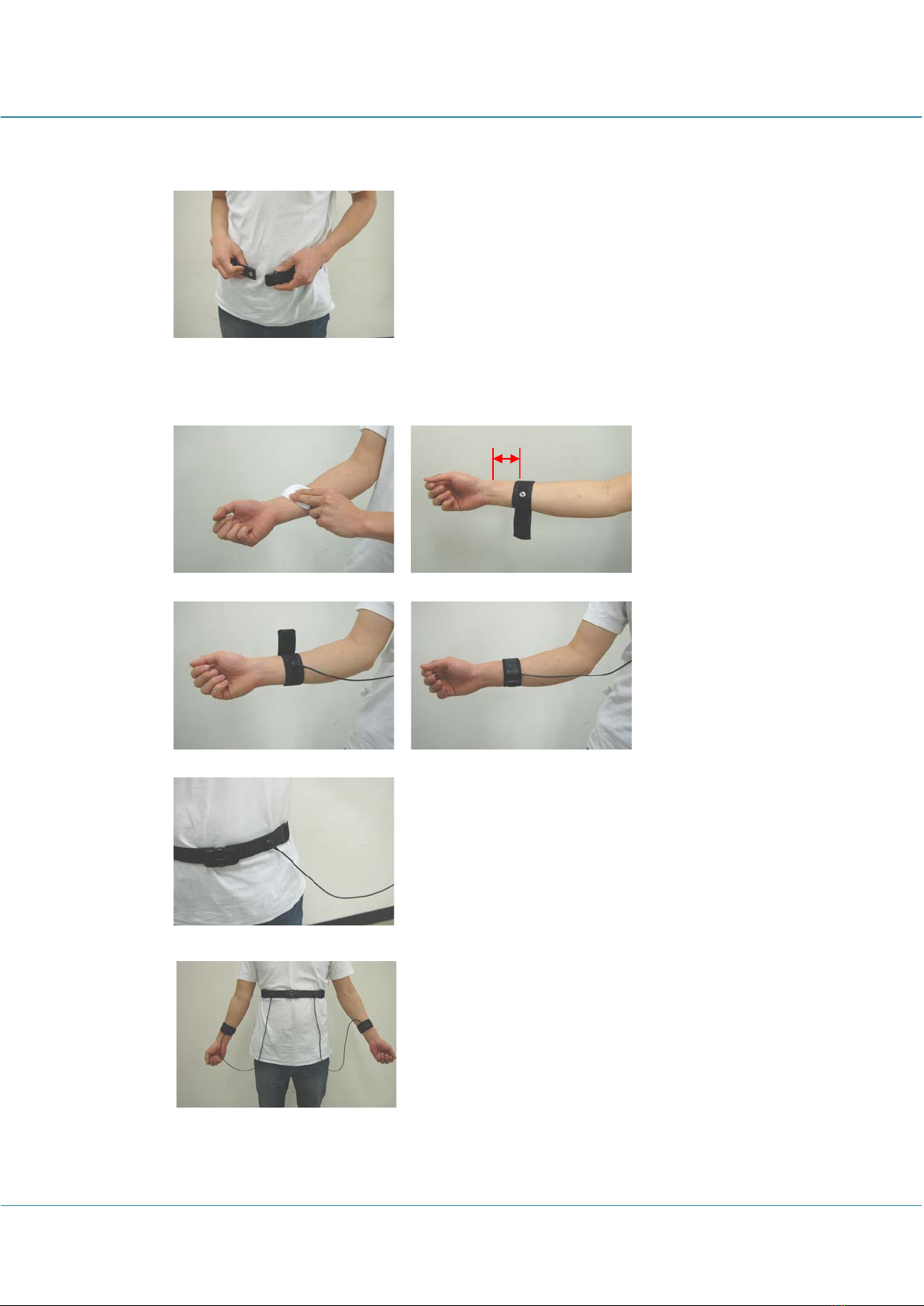

2) Wearing chest belt(DS100B) with wrist belts(DS100C, optional)
A. Wear chest belt with transmitter around the chest or core on outfits.
B. Use wet tissue to moisten wrists and wear wrist belts. Make sure the
electrode parts contact skin.
※CAUTION : wrap the belts 5~7cm above you hands.
C. Connect one end of cable(DS100C) to wrist belt.
D. Connect the other end of cable(DS100C) to chest belt.
E. Check PC program for monitoring process.
5~7cm
Bodypro 100 User Manual
- 16 - Du-sung Technology co., ltd.
6. Monitoring Environments
A. When a transmitter(DS100) faces a receiver(DS1100), the transmission can be
made up to 150m.
B. When a transmitter(DS100)’s back faces a receiver(DS1100), the transmission can
be made up to 30m.
<A> transmitter faces receiver
<B> transmitter’s back faces receiver
In 150m
In 30m
Bodypro 100 User Manual
Du-sung Technology co., ltd. -17-
7. ZIGBEE router(DS2000, optional) name and functions
1) Names
A. Power button : turns on and off the zigbee router(DS2000)
B. Power LED : indicates power status of zigbee router(DS2000)
C. Status LED : blinks at each time heart rate signal is received.
D. Charging LED : indicates charging status of zigbee router(DS2000).
2) Transmission range
●zigbee router(DS2000) ↔receiver(DS1100) : maximum around 1.5km
●zigbee router(DS2000) ↔transmitter(DS100) : maximum around 150m
●receiver(DS1100) ↔transmitter(DS100) : maximum around 150m
A DCB
Bodypro 100 User Manual
- 18 - Du-sung Technology co., ltd.
8. Specifications
1) Transmitter(DS100)
Detail
Detail
Transmission
method ZIGBEE (IEEE 802.15.4)
Frequency
range 2.4 ㎓~ 2.4835 ㎓
Available
channel
numbers
16ch
Transmitting
output 8dBm(6.3mW)
Power save
・On when worn
(automatic)
・Off when not worn
(automatic)
Feature
Transmitting and measuring heart
rate is in one body.
Convenient to wear.
Transmission
range maximum 150m
Power supply 3V lithium battery (CR2450-3V),
replacement type Size
65(W) x 38(L) x
15(H)mm
Measurement
method ECG(EelectroCardioGram) method Weight 30g
Measurement
range
・40~240 bpm(bit per minute)
Bodypro 100 User Manual
Du-sung Technology co., ltd. -19-
2) Chest belt(DS100B)
Detail
Detail
Length
・minimum
490 mm
・maximum
1,100 mm
weight 40g
Feature
It is made of harmless silicon material. Its
unique flexibility makes it easy to wear
and surface enhances comfort when worn.
3) Receiver(DS1100)
Detail
Detail
Transmission
method ZIGBEE (IEEE 802.15.4)
Frequency
range 2.4 ㎓~ 2.4835 ㎓
Reception -98dBm
Reception
range around 150m
Maximum
reception
number
Maximum 100 signals
antenna 2dBi dipole antenna
Power
supply 5V (USB port power) Size 76(L) x 28(W) x 12(H)mm
LED
indicator
・red : supplying power
・green : receiving weight 40g
PC interface USB connection
Bodypro 100 User Manual
- 20 - Du-sung Technology co., ltd.

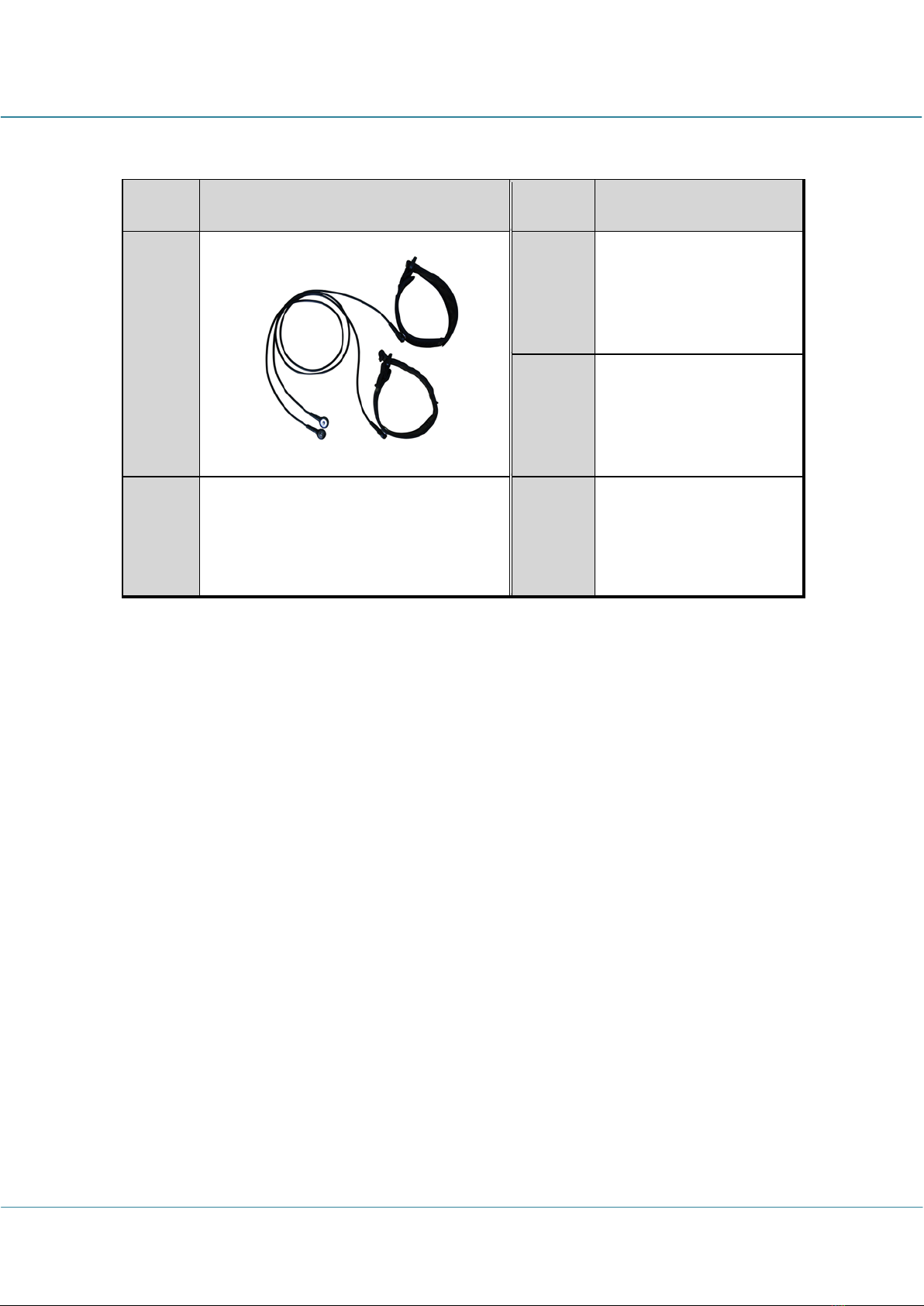

4) Wrist belts(DS100C, optional)
Detail Detail
Length
・wrist band 330 mm
・cable 75 mm
Weight
・wrist band 5g
・cable 5g
Feature
It is made of harmless silicon material. Its
unique flexibility makes it easy to wear
and surface enhances comfort when
worn.
