DUB Edition DUBs240 User manual
DUB Edition Speakers
Installation
Manual
DUBs240
DUBs252
DUBs265
DUBs257
DUBs369

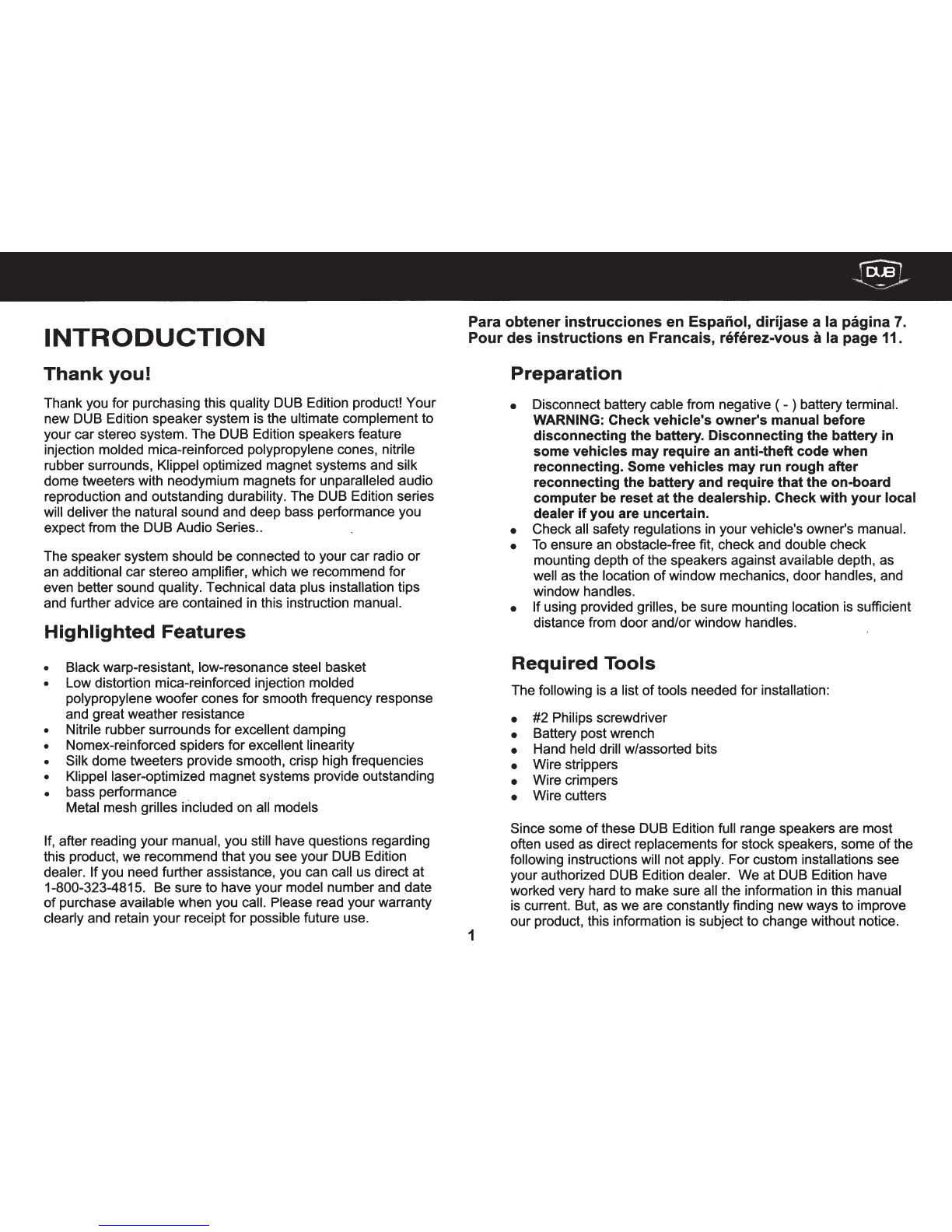

INTRODUCTION
Thank
you!
Thank you for purchasing this quality DUB Edition product! Your
new DUB Edition speaker system is the ultimate complement to
your car stereo system. The DUB Edition speakers feature
injection molded mica-reinforced polypropylene cones, nitrile
rubber surrounds, Klippel optimized magnet systems and silk
dome tweeters with neodymium magnets for unparalleled audio
reproduction and outstanding durability. The DUB Edition series
will deliver the natural sound and deep bass performance you
expect from the DUB Audio Series
..
The speaker system should be connected to your car radio or
an
additional car stereo amplifier, which we recommend for
even better sound quality. Technical data plus installation tips
and further advice are contained
in
this instruction manual.
Highlighted
Features
• Black warp-resistant, low-resonance steel basket
• Low distortion mica-reinforced injection molded
polypropylene woofer cones for smooth frequency response
and great weather resistance
• Nitrile rubber surrounds for excellent damping
• Nomex-reinforced spiders for excellent linearity
• Silk dome tweeters provide smooth, crisp high frequencies
• Klippel laser-optimized magnet systems provide outstanding
• bass performance
Metal mesh grilles included
on
all models
If,
after reading your manual, you still have questions regarding
this product, we recommend that you see your DUB Edition
dealer. Ifyou need further assistance, you can call us direct at
1-800-323-4815. Be sure to have your model number and date
of
purchase available when you call. Please read your warranty
clearly and retain your receipt for possible future use.
Para obtener
instrucciones
en Espanol, dirijase a Ia pagina
7.
Pour
des
instructions
en Francais, referez-vous a
Ia
page 11.
1
Preparation
• Disconnect battery cable from negative ( - ) battery terminal.
WARNING: Check vehicle's owner's manual before
disconnecting the battery. Disconnecting the battery in
some vehicles may require an anti-theft code when
reconnecting. Some vehicles
may
run rough after
reconnecting the battery and require
that
the on-board
computer
be reset
at
the dealership. Check
with
your
local
dealer
if
you
are uncertain.
• Check all safety regulations
in
your vehicle's owner's manual.
•
To
ensure an obstacle-free fit, check and double check
mounting depth
of
the speakers against available depth, as
well as the location
of
window mechanics, door handles, and
window handles.
• If using provided grilles, be sure mounting location
is
sufficient
distance from door and/or window handles.
Required
Tools
The following is a list
of
tools needed for installation:
• #2 Philips screwdriver
• Battery post wrench
• Hand held drill w/assorted bits
• Wire strippers
• Wire crimpers
• Wire cutters
Since some
of
these DUB Edition full range speakers are most
often used as direct replacements for stock speakers, some
of
the
following instructions will not apply. For custom installations see
your authorized DUB Edition dealer. We at DUB Edition have
worked very hard to make sure all the information
in
this manual
is current. But, as we are constantly finding new ways to improve
our product, this information is subject to change without notice.
DUB
Edition
Speakers
-------
--~------------------------
-----
----
-
-------------

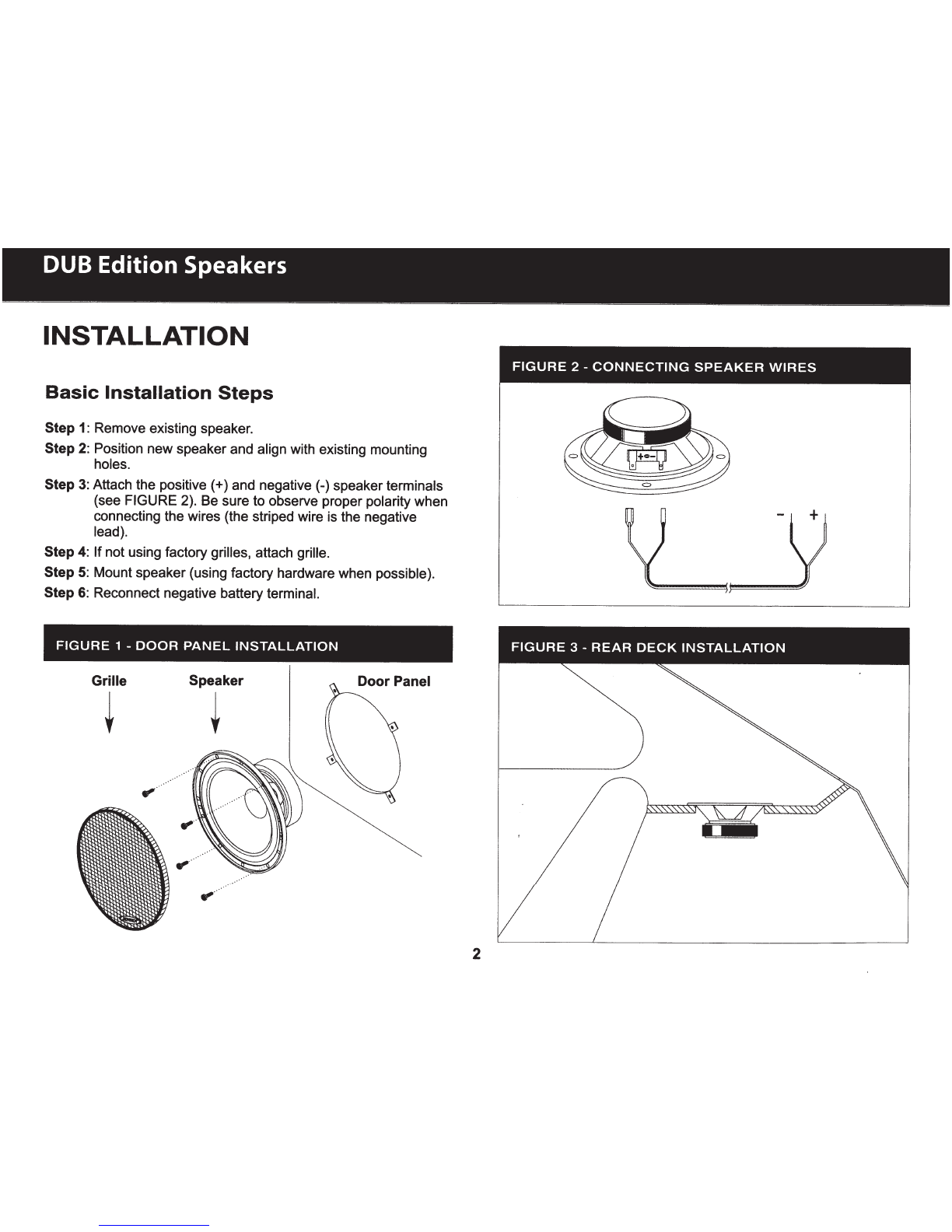

INSTALLATION
Basic
Installation
Steps
Step
1:
Remove existing speaker.
Step
2:
Position new speaker and align with existing mounting
holes.
Step
3:
Attach the positive (+) and negative (-) speaker terminals
(see FIGURE 2). Be sure to observe proper polarity when
connecting the wires (the striped wire is the negative
lead).
Step
4:
Ifnot using factory grilles, attach grille.
Step
5:
Mount speaker (using factory hardware when possible).
Step
6:
Reconnect negative battery terminal.
FIGURE
1 -
DOOR
PANEL
INSTALLATION
Grille Speaker
+ +
.,
.
.,
.
FIGURE
2 -
CONNECTING
SPEAKER
WIRES
2
SPECIFICATIONS
DUBs240 DUBs252 DUBs265 DUBs257 DUBs369
Woofer Diameter
4"
5.25" 6.5" 5x7"
/6x8"
6x9"
Frequency Response
65Hz-
35kHz (-3dB}
45Hz-
35kHz (-3dB}
42Hz-
30kHz (-3dB}
42Hz-
30kHz (-3dB} 32Hz
-35kHz
(-3dB}
Power Handling
45Watts
RMS
60Watts
RMS
70Watts
RMS
70Watts
RMS 100 Watts
RMS
180 Watts Peak 240 Watts Peak
280
Watts Peak 280 Watts Peak 400 Watts Peak
WooferCone Material Mica Impregnated Injection Mica Impregnated Injection Mica Impregnated Injection Mica Impregnated Injection Mica Impregnated Injection
Molded Polypropylene Molded Polypropylene Molded Polypropylene Molded Polypropylene Molded Polypropylene
Woofer Surround Material Nitrile Butadiene Rubber Nitrile Butadiene Rubber Nitrile Butadiene Rubber Nitrile Butadiene Rubber Nitrile Butadiene Rubber
Midrangeffweeter Driver(s} 20mm Silk Dome Tweeter 20mm Silk Dome Tweeter 25mm Silk Dome Tweeter 25mm Silk Dome Tweeter 25mm Silk Dome Tweeter
13mm Silk Dome Supertweeter
Sensitivity (1W/1M} 87dB 90dB 91dB 92dB 91dB
Magnet Weight
6oz
10
oz 13 oz
13
oz
20oz
Xmax 3.0mm 3.0mm 3.4mm 3.4mm 4.5mm
Impedance
4ohms 4ohms
4ohms
4ohms
4ohms
Mounting Depth Mounting 1.9" (48.5mm} 2.0" (51.5mm} 2.05" (52mm} 2.20" (56mm} 3.35" (85mm}
Cutout 3.7" (93mm} 4.45" (113mm} 5.05" (128mm} 5.05" x 7.1" (128 x 181mm} 5.9" x 8.58" (150 x 218mm}
Grille Height 0.79" (20mm} 0.87" (22mm} 1.06" (27mm} 1.0" (25.5mm} 1.15" (29mm}
Tweeter Height 0.63" (16mm} 0.67" (17mm} 0.88" (22.5mm} 0.65" (16.5mm} 0.45" (11mm}
Grilles Included? Yes Yes Yes Yes Yes
3
DUB
Edition
Speakers

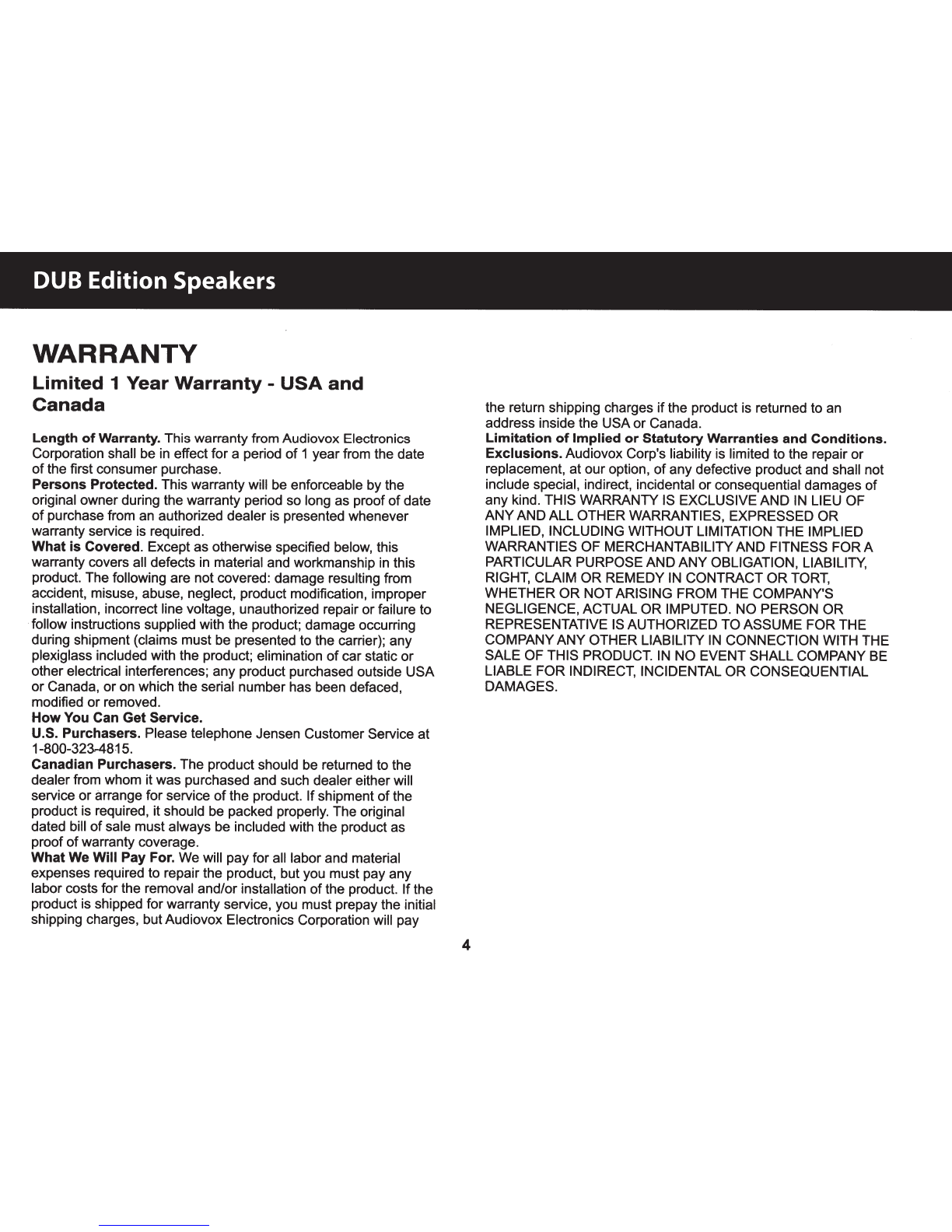

WARRANTY
Limited
1
Year
Warranty
-
USA
and
Canada
Length
of
Warranty. This warranty from Audiovox Electronics
Corporation shall be
in
effect for a period
of
1 year from the date
of
the first consumer purchase.
Persons Protected. This warranty will be enforceable by the
original owner during the warranty period so long as proof
of
date
of
purchase from an authorized dealer is presented whenever
warranty service is required.
What
is
Covered. Except as otherwise specified below, this
warranty covers all defects
in
material and workmanship
in
this
product. The following are not covered: damage resulting from
accident, misuse, abuse, neglect, product modification, improper
installation, incorrect line voltage, unauthorized repair
or
failure to
follow instructions supplied with the product; damage occurring
during shipment (claims must be presented to the carrier); any
plexiglass included with the product; elimination
of
car static
or
other electrical interferences; any product purchased outside
USA
or
Canada,
or
on which the serial number has been defaced,
modified
or
removed.
How
You Can Get Service.
U.S. Purchasers. Please telephone Jensen Customer Service at
1-800-323.-4815.
Canadian Purchasers. The product should be returned to the
dealer from whom it was purchased and such dealer either will
service
or
arrange for service
of
the product. Ifshipment
of
the
product is required, it should be packed properly. The original
dated bill
of
sale must always be included with the product as
proof
of
warranty coverage.
What We Will Pay For. We will pay for all labor and material
expenses required to repair the product, but you must pay any
labor costs for the removal and/or installation
of
the product. Ifthe
product is shipped for warranty service, you must prepay the initial
shipping charges, butAudiovox Electronics Corporation will pay
4
the return shipping charges
if
the product is returned to an
address inside the USA
or
Canada.
Limitation
of
Implied
or
Statutory
Warranties and Conditions.
Exclusions. Audiovox Corp's liability is limited to the repair
or
replacement, at
our
option,
of
any defective product and shall not
include special, indirect, incidental
or
consequential damages
of
any kind. THIS WARRANTY IS EXCLUSIVE AND
IN
LIEU OF
ANY
AND ALL OTHER WARRANTIES, EXPRESSED
OR
IMPLIED, INCLUDING WITHOUT LIMITATION THE IMPLIED
WARRANTIES OF MERCHANTABILITYAND FITNESS FORA
PARTICULAR PURPOSE AND
ANY
OBLIGATION, LIABILITY,
RIGHT, CLAIM
OR
REMEDY
IN
CONTRACT
OR
TORT,
WHETHER
OR
NOTARISING FROM THE COMPANY'S
NEGLIGENCE, ACTUAL OR IMPUTED. NO PERSON
OR
REPRESENTATIVE IS AUTHORIZED TO ASSUME FOR THE
COMPANY
ANY
OTHER LIABILITY
IN
CONNECTION WITH THE
SALE OF THIS PRODUCT.
IN
NO EVENT SHALL COMPANY BE
LIABLE FOR INDIRECT, INCIDENTAL
OR
CONSEQUENTIAL
DAMAGES.
Voxx Electronics Corporation
Hauppauge,
NY
11788
1-800-323-4815
www.jensen.com
© 2014 Voxx Electronics Corporation
Printed
in
Chinallmpreso en China/lmprime en Chine
