Dubgear DUBSTEIN User manual

USER GUIDE

THANK YOU /
HELLO
Thank you for purchasing the DUBSTEIN:
the world’s first Bluetooth®speaker with
beverage integration.
Please equip yourself with your favorite
drink and tunes – and let’s get started.
Cheers!
-The Dub Team

ARCHITECTURE
4
5
1
2
3
6. power/charging indicator light (LED)
7. power button
8. audio thumb control pad
9. Bluetooth®indicator light (LED)
10. Bluetooth®pairing button
11. microphone
6
710
8 11
9
1. removable lid
2. removable drink insert
3. speaker base unit
4. micro-usb charging port
5. auxiliary line-in port

The Red LED charging light
will pulse during charging
and become solid red when
fullycharged.
The red LED charging light
will blink to indicate low
battery level of 20%.
Completely close the port door
after charging.
Playback time is up to 8hours.
(Please note, when the port cover
is open, the DUBSTEIN is no longer
splash proof)
GETTING STARTED
CHARGE UP!
Your DUBSTEIN comes with a
micro USB charging cable.
The charging port is located
on the front of the DUBSTEIN
behind the port cover.
A full charge takes
approximately 2 hours.
POWER UP AND CONNECT!
Once in pairing mode, locate
and select ‘DUBSTEIN’ on
your Bluetooth device
(i.e. smartphone, tablet,
or computer). You should
now be paired (wirelessly
connected) to your DUBSTEIN.
The blue LED light will indicate
a solid blue color when
successfully paired.
Should you choose to connect
directly to your DUBSTEIN,
use the 3.5mm audio cable
provided. The 3.5mm audio
port is located on the front
of your DUBSTEIN behind
the port cover.
(In this mode, with the port cover
open, your DUBSTEIN is no longer
splash proof)
1. Press the Power Button
to turn on your DUBSTEIN.
Your DUBSTEIN will
automatically power down
after 15 minutes of inactivity
or use the power button to
turn your DUBSTEIN off.
2. Press and hold the Bluetooth
Pairing Button until the red &
blue LED lights alternate on and
off. This is pairing mode.
1 2

ENJOY YOUR MUSIC!
Use the audio thumb control pad to enjoy your
music or take a speakerphone call.
VOLUME UP
PREVIOUS TRACK /
DECLINE CALL
NEXT TRACK
VOLUME DOWN
POWER
POWER / CHARGING
INDICATOR LIGHT (LED)
BLUETOOTH
PAIRING
BLUETOOTH
INDICATOR LIGHT (LED)
PAUSE / PLAY,
ANSWER CALL
MICROPHONE

The DUBSTEIN comes with a 395ml, BPA-free drink insert.
You can take your drink with you anywhere in the DUBSTEIN
speaker base unit for the full music + drink experience,
or you can enjoy them separately. Most bottled or canned
beverages will also fit into the speaker base unit.
OVERVIEW
The DUBSTEIN is compatible with most beverage
bottles and cans. Simply remove the DUBSTEIN drink
insert and install a bottle or can into the speaker base
unit until you reach the bottom of the cavity. If your can
or bottle does not fit into the speaker base cavity, simply
pour its contents into the provided drink insert.

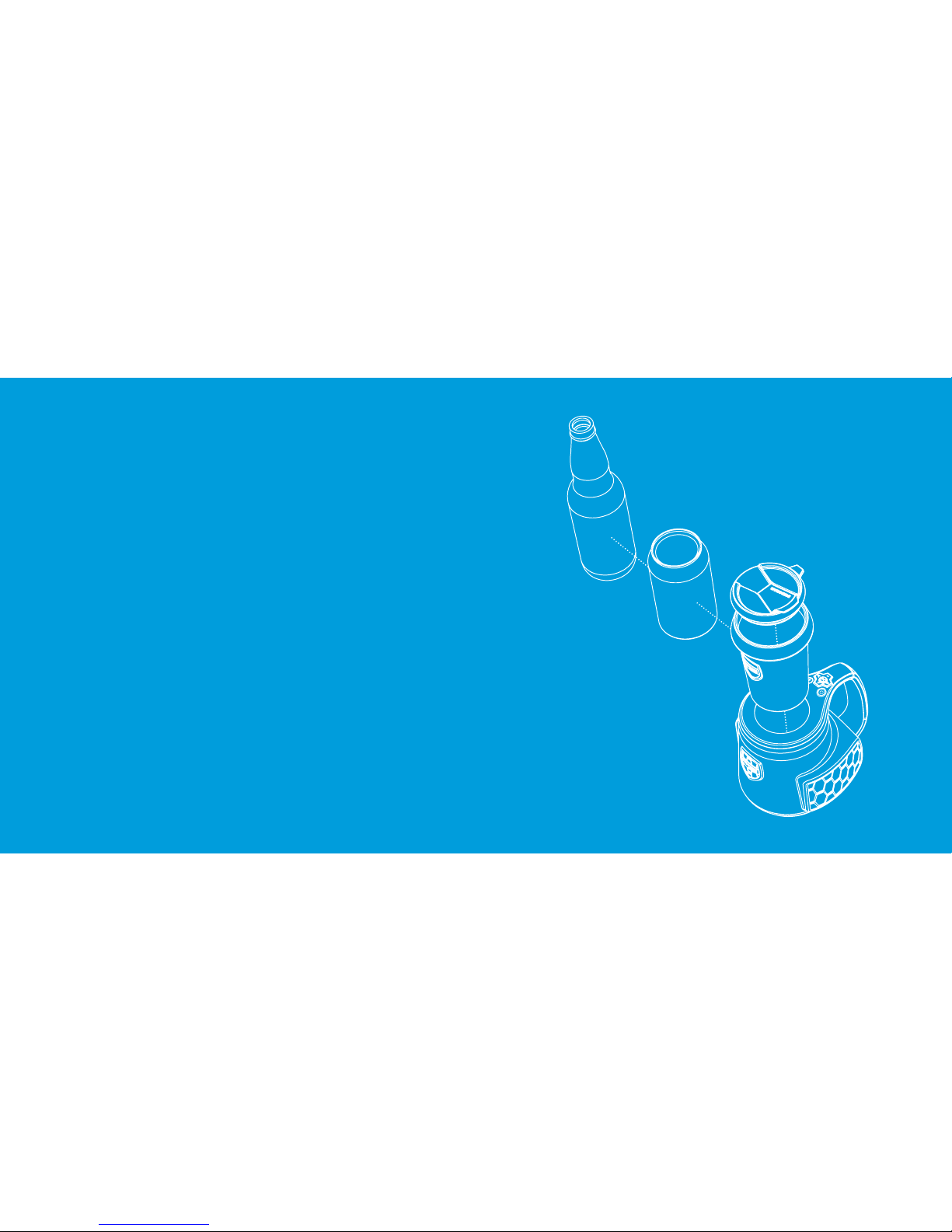

BOTTLES & CANS
The DUBSTEIN drink insert has been custom
designed to fit into the DUBSTEIN speaker base
unit. It is recommended that beverages are poured
into the drink insert when it is NOT inside the
DUBSTEIN speaker base unit.
DRINK INSERT

4
5
1
2
3
1. Remove the DUBSTEIN drink insert from
the DUBSTEIN speaker base unit.
2. Insert your favorite beverage bottle or can.
3. Enjoy!
Please Note:
• The DUBSTEIN can accommodate most can
and bottle sizes. If your can or bottle does not
fit properly, you can simply pour its contents
into the included drink insert.
2 WAYS TO ENJOY YOUR DRINK!
OPTION 1: DUBSTEIN DRINK INSERT OPTION 2: CAN OR BOTTLE
1. Remove the DUBSTEIN drink insert from
the DUBSTEIN speaker base unit.
2. Remove the drink insert lid.
3. Pour your favorite hot or cold beverage into the
drink insert (it is recommended that you first
remove the drink insert from the DUBSTEIN
speaker base unit to pour your drink).
4. Secure the drink insert lid back into place.
5. Open the drink insert flip top and enjoy!
Use the drink insert either with, or without
the DUBSTEIN speaker base unit.
Please Note:
• The DUBSTEIN drink insert is BPA-free
and holds up to 395ml.
• Hand wash your DUBSTEIN drink insert.
Do NOT put your drink insert into the dishwasher.
Dishwashers may cause plastic or rubber to warp.
• Caution: Please use caution when using the drink
insert with hot beverages – use common sense,
just as you would with any hot beverage container.
• Caution: Do NOT put the drink insert or DUBSTEIN
speaker base unit into the microwave.
• Caution: Do NOT put your DUBSTEIN speaker base
unit in the dishwasher, refrigerator, or freezer.
1
2
3

CARE & SAFETY
DUBSTEIN SPEAKER BASE UNIT
• Do not submerge.
• Do not expose to moisture or humidity.
• Do not expose to extremely high or
low temperatures.
• Do not drop, disassemble, modify,
or attempt to repair.
• Do not microwave.
• Do not refrigerate or freeze
• Do not leave in direct sunlight for extended
periods of time.
• Do not leave near sources of heat or
openflame.
• Only charge your DUBSTEIN in a moisture
free location, out of direct sunlight, and at
room temperature.
• Dispose of your DUBSTEIN in accordance
with your local waste disposal regulations.
• Keep the USB port cover completely closed
during wireless operation and when not
charging. The DUBSTEIN has no level of water
resistance when the USB port cover is open
and/or not fully closed. The DUBSTEIN has
no level of water resistance when connected
directly with the 3.5mm audio cable.
• Clean the DUBSTEIN speaker base unit with
a damp cloth and only with the front USB
port cover completely closed. Do not use
detergents and/or cleaning products to clean
the DUBSTEIN speaker base unit.
• Not recommended for children.
• Observe and comply with RF radio frequency
product regulations in locations where you
have and/or use your DUBSTEIN.
• Please consume alcoholic beverages
responsibly. DUBGEAR does not encourage
excessive alcoholic consumption.
CARE & SAFETY
Please observe the following guidelines and you and your DUBSTEIN
will stay happy for as long as possible.
• To clean DUBSTEIN speaker base unit, wipe with damp cloth.
• Do not put the DUBSTEIN drink insert or speaker base unit
into the dishwasher.
• Do not submerge DUBSTEIN speaker base unit.
• Do not put liquids into the DUBSTEIN speaker base unit cavity.
Use the drink insert provided.
• Do not place DUBSTEIN speaker base unit into the freezer
or refrigerator.
• Do not put the DUBSTEIN drink insert or speaker base unit
into the microwave.
NO DISHWASHER DO NOT MICROWAVE NO REFRIGERATOR
OR FREEZER

FOR MORE INFORMATION:
Visit: www.DUBGEAR.com
Call: 1.844.DUB.GEAR (382-4327)
FOLLOW US:
Facebook: www.facebook.com/DUBGEAR.Inc
Twitter: @DUBGEAR
Instagram: @DUBGEAR
PRODUCT RETURNS:
DUBGEAR Inc.
2680 Matheson Blvd E.
Unit #102
Mississauga, ON.
Canada
L4W 0A5
WARRANTY
DUBGEAR warrants it’s products against defects in materials and workmanship for a period of
one (1) year from the date of original retail purchase. If DUBGEAR has determined that a defect in
material or workmanship exists, DUBGEAR, at its discretion, will:
(1) Repair the product at no charge using new or refurbished components, or
(2) Exchange the product with an equivalent product that is new or refurbished, or
(3) Refund the original purchase price.
This warranty does not cover:
• Normal wear and tear
• Dents and scratches
• Damage from water, liquid, or other substance
• Blown speakers
• Loss or theft
• Damage or product failure resulting from abuse, neglect, accident, mistreatment, modification,
disassembly, repair, or customization.
To obtain warranty service, please contact DUBGEAR. Proof of purchase is required to verify
warranty eligibility. The customer is responsible for any costs associated with shipping product to
DUBGEAR for warranty evaluation.
FEATURES /
SPECIFICATIONS
• Bluetooth®4.0 wireless audio –
up to 33 ft range.
• 360 degree, stereo sound
• 2 X 3 watt speaker drivers
• Noise cancelling microphone for
speakerphone calls
• BPA-free, 395ml drink insert
for hot or cold drinks.
• Ergonomic audio thumb controls.
• Rechargeable lithium-ion battery –
up to 8 hours* playtime.
• 3.5mm audio port
• Splash proof IPX-4 rating
* Battery life varies depending on factors such
as volume level used, ambient temperature
conditions, and age of the device/battery.
ADDITIONAL
INFORMATION

© 2015 DUBGEAR Inc. All rights reserved.
Designed in Canada.
Made in China.

1.FCC Statement
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause
undesired operation.
2. Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
