Duct-O-Wire CAS-1RA-O Installation and operating instructions
Your Duct-O-Wire CAS-1RA-O Collision Avoidance Kit comes complete with (1) Sensor Unit, (1) Sensor Unit mounting
bracket and hardware, (1) Plug, (1) Bushing, (2) Grommets, (1) Reflector Array and (1) Instruction sheet.
MAKE CERTAIN POWER SUPPLY IS DISCONNECTED BEFORE INSTALLING, REPAIRING, OR MAKING
ADJUSTMENTS TO THIS DEVICE. THIS DEVICE SHOULD BE INSTALLED BY QUALIFIED ELECTRICAL
PERSONNEL ONLY.
THIS PRODUCT IS DESIGNED FOR OPERATING DISTANCES OF 30 FEET MAXIMUM AND THREE
FEET MINIMUM. DO NOT EXCEED THESE DISTANCES.
1. When mounting the sensor to the bracket, make sure the screw heads are on the bracket side and the
nuts are captive inside the sensor. Do not over tighten the sensor mounting screws.
2. Wire the sensor with a round cable, properly rated for voltage and application. The rubber bushing must
fit tightly around the cable. Always use the provided plug to seal the remaining entrance. As with all
sensors of this type, it is important to keep dust, moisture and contaminants from the inside of the unit.
3. This sensor operates on 120 VAC. Connect power leads to terminals 1 and 2.
4. Terminals 4 and 5 are normally closed and are the ones generally used for Collision Avoidance
applications. They should be wired in series with the direction circuit to be interrupted.

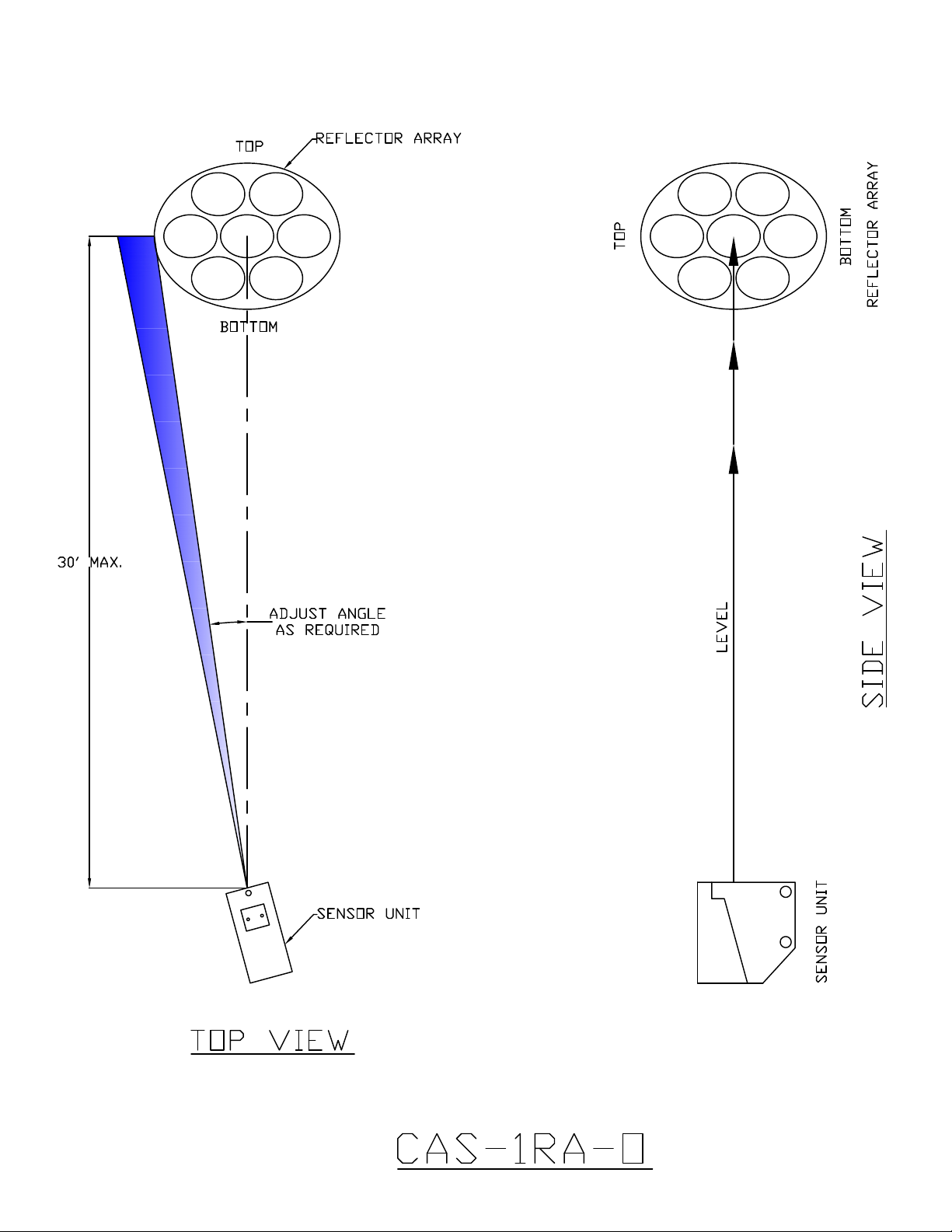

5. Mount the reflector array securely to a solid object. The reflector array must be centered and
aligned both horizontally and vertically on the same plane as the sensor unit. (see diagram)
6. To adjust the trigger point: (A) With the crane positioned at the trigger point, move the sensor unit
so that the visible red light spot is just to the left or right of the reflector array. (B) Slowly move the
sensor unit towards the center of the reflector array until the indicator light on the sensor switches on.
The visible red light spot will be at the edge of the reflector array. (C) Secure the sensor unit in this
position. (D) Check the switching action by moving closer to and further away from the trigger zone.
(E) Slight adjustment of the sensor unit may be necessary to attain desired switching point.
7. Do not adjust the sensitivity on the sensor unit. It must remain in the factory set, full clockwise,
maximum gain position.
8. If multiple photoelectric units are being used in the same proximity, installation locations must be far
enough apart that there is no chance that one sensor will intercept the light beam from another unit.
9. As with all photoelectric sensors, it is necessary to keep excessive dust or dirt from diminishing the
optical effectiveness of the device. Wiping the sensor’s optical surface and the reflector array
occasionally with a moist, not wet, cloth should be made part of a normal maintenance procedure.
Duct-O-Wire CAS-1RA-O Addendum
Collision Avoidance and Reflector Array Kit Instructions
EFFECTIVE NOVEMBER 2013
SENSOR RATING: 3 AMPS MAX
®
du
c
t
-
a
C
A
S
-
1
W
I
R
I
N
G
D
I
A
G
R
A
M
x
i
T
X
2
t
H
I
-
r
n
©
®
©
®
®
The hole size for the cable entry into the sensor unit has been reduced from previous versions. It is
necessary to slide the compression nut and the rubber bushing onto the cable prior to stripping bac
k
the outer jacket for wiring. After wiring, fully tighten compression nut prior to reassembling.
Duct-O-Wire
CAS-2L100 Laser Collision Avoidance Kit
Installation and Operating Instructions
Effective June 1, 2012
►This product incorporates IR Laser Protection Class 2; visible laser light.
►Do Not Stare Into The Laser Beam!
The Duct-O-Wire CAS-2L100 Two Event Laser Collision Avoidance Kit comes with (1) Laser Sensor Unit, (1)
Sensor Mounting Bracket and Hardware, (1) 10 Meter Data Cable, (1) DIN Mounted Power / Relay Module, (1)
Reflector Array with Mounting Hardware, Schematic Sheet and Warning Label.
Laser Class 2 Max Power 4.1 mW Time Base 100 s Pulse Duration 1.3 ms
Wave Length 650 mm Compliance: 21 CFR PART 1040 EN60825-1:2003-10
MAKE CERTAIN POWER SUPPLY IS DISCONNECTED BEFORE INSTALLING, REPAIR, OR MAKING
ADJUSTMENTS TO THIS DEVICE. THIS DEVICE IS TO BE INSTALLED BY QUALIFIED ELECTRICAL
PERSONNEL ONLY.
MOUNTING AND ALIGNMENT
1. Mount sensor and reflector using supplied bracket and hardware to suitable locations for
stability and proper alignment. Use 3 point alignment method to ensure the laser and
reflector are in a straight line, both horizontally and vertically true.
2. Connect the supplied data cable to the sensor and power / relay module per the drawing.
3. Attach the supplied Laser Warning Label in the immediate vicinity of the sensor unit.
4. Connect 110 VAC to the transformer per the schematic drawing.
5. A visible red light will be seen from the sensor to the reflector. Do Not Stare Into the
Laser Light.
SENSOR PROGRAMMING - FEET MODE (Use a pen or small blunt object for improved response)
NOTE: ALL BUTTON PRESSES MUST BE DONE WITHIN 15 SECONDS
1. Press and release the Mode/Enter button until EF is displayed. (multiple presses)
2. Press and release the SET button.
3. Press and release the Mode/Enter button until Uni is displayed. (6 button presses)
4. Press and hold the SET button until FEET is displayed, and release.
5. Press and release the Mode/Enter button once to confirm.
6. Wait 15 to 20 seconds and the unit will return to the “run” mode.
7. When sensor is in Run mode, distance to target is displayed in feet.
SENSOR PROGRAMMING – SET POINT 1 (first event distance)
NOTE: If the desired distance is passed, the counter will need to be advanced until the set
point is displayed again.
ALL BUTTON PRESSES MUST BE DONE WITHIN 15 SECONDS
.
1. Press and release the Mode/Enter button until SP 1 is displayed. (2 presses)
2. Press and hold the SET button until the desired distance for the first event is displayed,
then release.
3. NOTE: Minimum distance is 1 meter (3.28 feet).
4. Press and release the Mode/Enter button once to confirm. The display will show SP 1.
5. Wait 15 to 20 seconds and the unit will return to the “run” mode.
CAS-2L100 Laser Collision Avoidance Kit Installation and Instructions
SENSOR PROGRAMMING – ENABLE SET POINT 2
NOTE: ALL BUTTON PRESSES MUST BE DONE WITHIN 15 SECONDS
1. Press and release the Mode/Enter button until OU2 is displayed. (3 presses)
2. Press and hold SET button until Hno is displayed, then release.
3. Press and release the Mode/Enter button to confirm.
4. Wait 15 to 20 seconds and the unit will return to the “run” mode.
SENSOR PROGRAMMING – SET POINT 2 (second event distance)
NOTE: ALL BUTTON PRESSES MUST BE DONE WITHIN 15 SECONDS
1. Press and release the Mode/Enter button until SP 2 is displayed. (4 presses)
2. Press and hold the SET button until the desired distance for the second event is
displayed, then release.
3. NOTE: Minimum distance is 1 meter (3.28 feet).
4. Press and release the Mode/Enter button once to confirm. The display will show SP 2.
5. Wait 15 to 20 seconds and the unit will return to the “run” mode.
YOUR LASER COLLISION AVOIDANCE SYSTEM SHOULD NOW BE READY TO OPERATE.
PLEASE ENSURE THAT THE LED’s ON THE CONTROL UNIT LIGHT WHEN CRANE IS MOVED TO
EACH SET POSITION.
FACTORY RESET – ONLY IF REQUIRED
1. In the event that improper selections were made during the previous sensor programming
steps, it may be necessary to reset the unit to factory settings. Perform the following
steps ONLY if required or the sensor is not responding as intended.
2. Press and release the Mode/Enter button until EF is displayed. (multiple presses
required)
3. Press and release the SET button once.
4. Press and release the Mode/Enter button until rES is displayed.
5. Press and hold Set button until ---- (4 dashes) is displayed.
6. Confirm by pressing the Mode/Enter button once.
7. After performing the factory reset you must repeat the SENSOR PROGRAMMING steps
outlined in the steps above.
