Duerkopp Adler 910 User manual

910
CNC-Nähanlage für freie Nahtkonturen
CNC sewing unit for free seam contours
Bedienanleitung / Operating Instructions
Aufstellanleitung / Installation Instructions
Serviceanleitung / Service Instructions
Postfach 17 03 51, D-33703 Bielefeld Potsdamer Straße 190, D-33719 Bielefeld Deutsch/Englisch
Telefon [phone] Telefax+49(0)521/9252435www.duerkopp-adler.com
1
2
3
Ausgabe / Edition: Änderungsindex Teile-Nr.:/Part-No.:
04/2007 Rev. index: 01.0 Printed in Federal Republic of Germany 0791 910001

Alle Rechte vorbehalten.
Eigentum der Dürkopp Adler AG und urheberrechtlich geschützt. Jede, auch auszugsweise
Wiederverwendung dieser Inhalte ist ohne vorheriges schriftliches Einverständnis der Dürkopp Adler AG
verboten.
All rights reserved.
Property of Dürkopp Adler AG and copyrighted. Reproduction or publication of the content in any manner,
even in extracts, without prior written permission of Dürkopp Adler AG, is prohibited.
Copyright ã2007 - Dürkopp Adler AG

Foreword
This instruction manual is intended to help the user to become familiar
with the machine and take advantage of its application possibilities in
accordance with the recommendations.
The instruction manual contains important information on how to
operate the machine securely, properly and economically. Observation
of the instructions eliminates danger, reduces costs for repair and
down-times, and increases the reliability and life of the machine.
The instruction manual is intended to complement existing national
accident prevention and environment protection regulations.
The instruction manual must always be available at the machine/sewing
unit.
The instruction manual must be read and applied by any person that is
authorized to work on the machine/sewing unit. This means:
–Operation, including equipping, troubleshooting during the work
cycle, removing of fabric waste,
–Service (maintenance, inspection, repair) and/or
–Transport.
The user also has to assure that only authorized personnel work on the
machine.
The user is obliged to check the machine at least once per shift for
apparent damages and to immediatly report any changes (including the
performance in service), which impair the safety.
The user company must ensure that the machine is only operated in
perfect working order.
Never remove or disable any safety devices.
If safety devices need to be removed for equipping, repairing or
maintaining, the safety devices must be remounted directly after
completion of the maintenance and repair work.
Unauthorized modification of the machine rules out liability of the
manufacturer for damage resulting from this.
Observe all safety and danger recommendations on the machine/unit!
The yellow-and-black striped surfaces designate permanend danger
areas, eg danger of squashing, cutting, shearing or collision.
Besides the recommendations in this instruction manual also observe
the general safety and accident prevention regulations!

General safety instructions
The non-observance of the following safety instructions can cause
bodily injuries or damages to the machine.
1. The machine must only be commissioned in full knowledge of the
instruction book and operated by persons with appropriate training.
2. Before putting into service also read the safety rules and
instructions of the motor supplier.
3. The machine must be used only for the purpose intended. Use of
the machine without the safety devices is not permitted. Observe all
the relevant safety regulations.
4. When gauge parts are exchanged (e.g. needle, presser foot, needle
plate, feed dog and bobbin) when threading, when the workplace is
left, and during service work, the machine must be disconnected
from the mains by switching off the master switch or disconnecting
the mains plug.
5. Daily servicing work must be carried out only by appropriately
trained persons.
6. Repairs, conversion and special maintenance work must only be
carried out by technicians or persons with appropriate training.
7. For service or repair work on pneumatic systems, disconnect the
machine from the compressed air supply system (max. 7-10 bar).
Before disconnecting, reduce the pressure of the maintenance unit.
Exceptions to this are only adjustments and functions checks made
by appropriately trained technicians.
8. Work on the electrical equipment must be carried out only by
electricians or appropriately trained persons.
9. Work on parts and systems under electric current is not permitted,
except as specified in regulations DIN VDE 0105.
10. Conversion or changes to the machine must be authorized by us
and made only in adherence to all safety regulations.
11. For repairs, only replacement parts approved by us must be used.
12. Commissioning of the sewing head is prohibited until such time as
the entire sewing unit is found to comply with EC directives.
13. The line cord should be equipped with a country-specific mains
plug. This work must be carried out by appropriately trained
technicians (see paragraph 8).
It is absolutely necessary to respect the safety
instructions marked by these signs.
Danger of bodily injuries !
Please note also the general safety instructions.

Index Page:
Preface and general safety hints
Part 1: Operating instructions cl. 910
(Edition 04/2007)
1. Description of product .......................................... 5
2. Use in accordance with the requirements.............................. 6
3. Subclass................................................... 6
4. Optional equipment ............................................ 7
5. Stands .................................................... 7
6. Technical data ............................................... 8
7. Operating
7.1 Switchingon-Switchingoff-Safestop................................. 9
7.1.1 Switchingon................................................. 9
7.1.2 Switchingoff................................................. 9
7.1.3 Safestop................................................... 9
7.2 Threading in the needle thread...................................... 10
7.3 Adjusting the thread regulator ...................................... 11
7.4 Winding up the bobbin thread....................................... 12
7.5 Changing the hook thread bobbin .................................... 13
7.6 Adjusting the bobbin thread tension ................................... 14
7.7 Changing the needle ............................................ 15
7.8 Adjustingtheliftingmovementoftheclampingplate......................... 16
7.9 Sewingfootpressure............................................ 16
7.10 Sewingfootheight............................................. 17
8. Operating the control of cl. 910
8.1 The operator terminal ........................................... 18
8.1.1 Thekeys................................................... 19
8.2 Userinterface................................................ 20
8.2.1 Structureofmenu.............................................. 20
8.3 Alteringnumericalvalues,parametervalues,selectionofalternatives.............. 21
8.3.1 Alteringnumericalvalues......................................... 21
8.3.2 Selectionofaparameter.......................................... 22
8.4 Mainmenu.................................................. 23
8.4.1 Submenu Sequences............................................ 25
8.4.2 Submenu Counter.............................................. 26
8.4.3 SubmenuServicemenu(Teach-in) ................................... 28
8.5 CallingupMultitest............................................. 42
1

Index Page:
8.6 Technicianmode .............................................. 49
8.6.1 SubmenuThreadtension......................................... 51
8.6.2 Mechanical adjustment of thread tensions ............................... 52
8.6.3 Calibration.................................................. 53
8.6.4 SubmenuPositions............................................. 54
8.6.5 SubmenuThreadBurnerSettings.................................... 55
8.7 Loading the factory settings........................................ 57
8.8 Saving and loading of programs ..................................... 58
8.8.1 Loading programs into the control .................................... 58
8.8.2 Saving programs on the dongle ..................................... 59
8.8.3 Deletingprogram.............................................. 61
8.8.4 Formatting the dongle ........................................... 62
8.9 Machinefaults................................................ 63
9. Sewing
9.1 Threadbreakagemode .......................................... 68
10. Maintenance
10.1 Cleaning and checking........................................... 70
10.2 Oillubrication................................................ 71

1
1. Description of product
The Dürkopp Adler 910 is a CNC sewing unit for free seam contours.
The seam contours can be programmed directly at the control panel
without any further devices.
Technical features
–DAC control with control panel.
The following functions are available:
–4 free seam contours with a total of 2800 available stitches can
be stored.
The coordinates are entered at the control panel.
No further devices are required.
–4 sewing sample sequence programs with up to 4 sewing
samples per sewing sample sequence program can be created
and memorized.
–The coordinates (teach-in) are entered with a precision of
0.5 or 1 mm respectively.
–Counter of capacity and daily number of pieces.
–The speed can be changed from 0 rpm (manual operation with
full operability of the x-y drive) up to 2500 rpm in
steps of 100 rpm.
–Fabric drive via two step motors.
–Drive of the sewing unit directly at the arm shaft via brushless
direct current motor.
–Maximum sewing field size 120 x 60 mm.
–Thread monitor and thread pulling device.
–Oil wick lubrication of arm shaft and driving shaft by means of two
oil reservoirs.
–Service and maintenance work is supported by comprehensive test
programs.
5

2. Use in accordance with the requirements
Class 910 is a sewing unit determined for processing light to
medium-weight material, i.e. fabrics made of textile fibres or leather.
Such sewing materials are used in the clothing industry and for the
production of home and car upholstery.
Furthermore, this sewing unit can also sew so-called technical seams.
However, in this case the user has to estimate the possible risks
(preferably in cooperation with DÜRKOPP ADLER AG) because on the
one hand such fields of application are comparatively rare and on the
other hand there is an immense variety of possibilities. According to
the result of this estimation suitable safety measures may have to be
taken.
Generally only dry fabrics must be processed on this sewing unit. The
material must not be thicker than 10 mm when compressed by the
lowered fabric clamp. It must not include any hard objects.
In general the seam is produced with sewing threads made of textile
fibres (cotton threads, synthetic threads or core threads) with the
following dimensions:
Class 910 threads of the dimension 15/3 - 120/3
If other threads are to be used, it is indispensable also in this case to
consider the possible risks and to take corresponding safety
measures, if necessary.
This sewing unit must only be installed and operated in dry and
well-kept rooms. In case it is operated in other rooms which are not dry
and well-kept further measures can become necessary which have to
be agreed upon (see EN 60204-31: 1999).
We as manufacturers of industrial sewing machines take it for granted
that at least semi-skilled operators are working with our products so
that we can assume that all usual operations and their risks are known
to them.
3. Subclass
Cl. 910 Single needle lockstitch sewing unit with thread trimmer and thread
pulling device.
Equipped with two sewing feet for general seam contours.
6

1
7
4. Optional equipment
The following optional equipment is available for the sewing unit 910:
Order number Optional equipment
0910 590044 Laser marking (pc.)
9822 510026 Sewing lamp
9822 510027 Table clamp
Needle cooling
Please contact our application centre (APC) for further optional equipment.
5. Stands
The following stand is available for the sewing unit 910:
MG55 400294 Stand package
Table top size 600 x 1060 mm
Stand height 1160 to 1305 mm

6. Technical data
Stitch type: 301
Hook type: oscillating
large capacity hook
Needle system: DPx17 (135x17)
Needle size: 90 - 140 [Nm]
Standard needle size: 120 [Nm]
Thread size: 20/3 - 120/3
Stitch length: dependent on seam
pattern up to 12.7 mm
Max. speed 2500 [min-1]
Max. clamping stroke:18 [mm]
Sewing field size
max. in X-direction: 120 [mm]
max. in Y-direction: 60 [mm]
Number of sewing sample
sequence programs (sequences) 4
Number of sewing samples per
sewing sample sequence program 4
Sewing drive: DC motor
Rated voltage: 1 ~ 230V/ 50/60 Hz
Rated load: 0.45 kw
Noise: Lc = dB (A)
Emission value per work place according to DIN 45635-48-A-1-KL-2
Sewing length: __ mm
Stitches: __
Speed: _____ min-1
Fabric: G1 DIN 23328 2 plies
Sewing cycle: 1.3 sec. On and 1.0 sec. Off
8

7. Operating
7.1 Switching on - Switching off - Safe stop
7.1.1 Switching on
–Switchonthemainswitch1.
–Step the pedal back to reach the initial position of the sewing unit.
The main menu appears in the display.
7.1.2 Switching off
–Switch off the main switch 1.
All drives and the control are immediately separated from the
mains.
7.1.3 Safe stop
The sewing unit has to be switched off or switched to “safe stop” before
carrying out any work on it.
Switching on “safe stop”
–Press key 2.
The key must snap in!
The sewing unit is in “safe stop” condition.
The lamp in the key is shining.
Switching off “safe stop”
–Press key 2 again.
The key must be released.
–Step the pedal back to reach the initial position of the sewing unit.
9
1
21

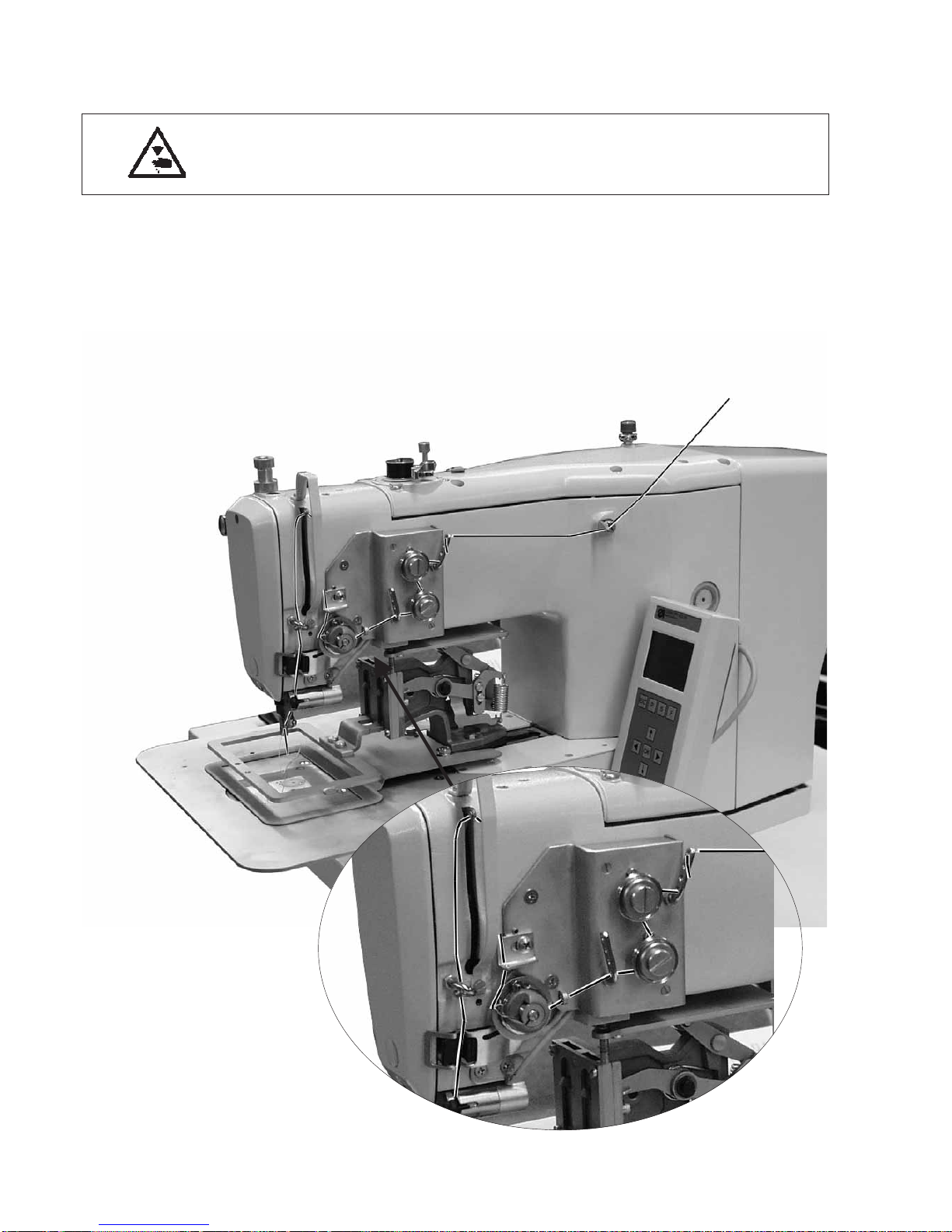

7.2 Threading in the needle thread
Caution: Risk of injury!
Switchthemainswitchoff!
Thread in the needle thread only with the sewing unit switched off.
–Stick the thread reels on the thread reel holder and guide the
needle thread and the
bobbin thread through the unwinding arm.
The unwinding arm must be positioned vertically above the thread
reels.
–Thread in the needle thread as shown in the illustration below.
10

7.3 Adjusting the thread regulator
Caution: Risk of injury !
Switchthemainswitchoff.
Adjust the thread regulator only with the sewing unit switched off.
With the thread regulator 3 the needle thread quantity required for the
stitch formation is regulated.
Only a precisely adjusted thread regulator guarantees an optimum
sewing result.
When the thread regulator is adjusted correctly, the needle thread loop
must slide over the thickest spot of the hook with low tension.
–Loosen screw 1.
–Change the position of the thread regulator 3.
Thread regulator to the left = larger needle thread quantity
Thread regulator to the right = minor needle thread quantity
–Tighten screw 1.
Adjustment hint:
If the largest thread quantity is required, the thread controller spring 2
must be pulled up by approx. 0.5 mm from its lower end position. This
is the case when the needle thread loop passes the maximum hook
diameter.
1
11
32 1

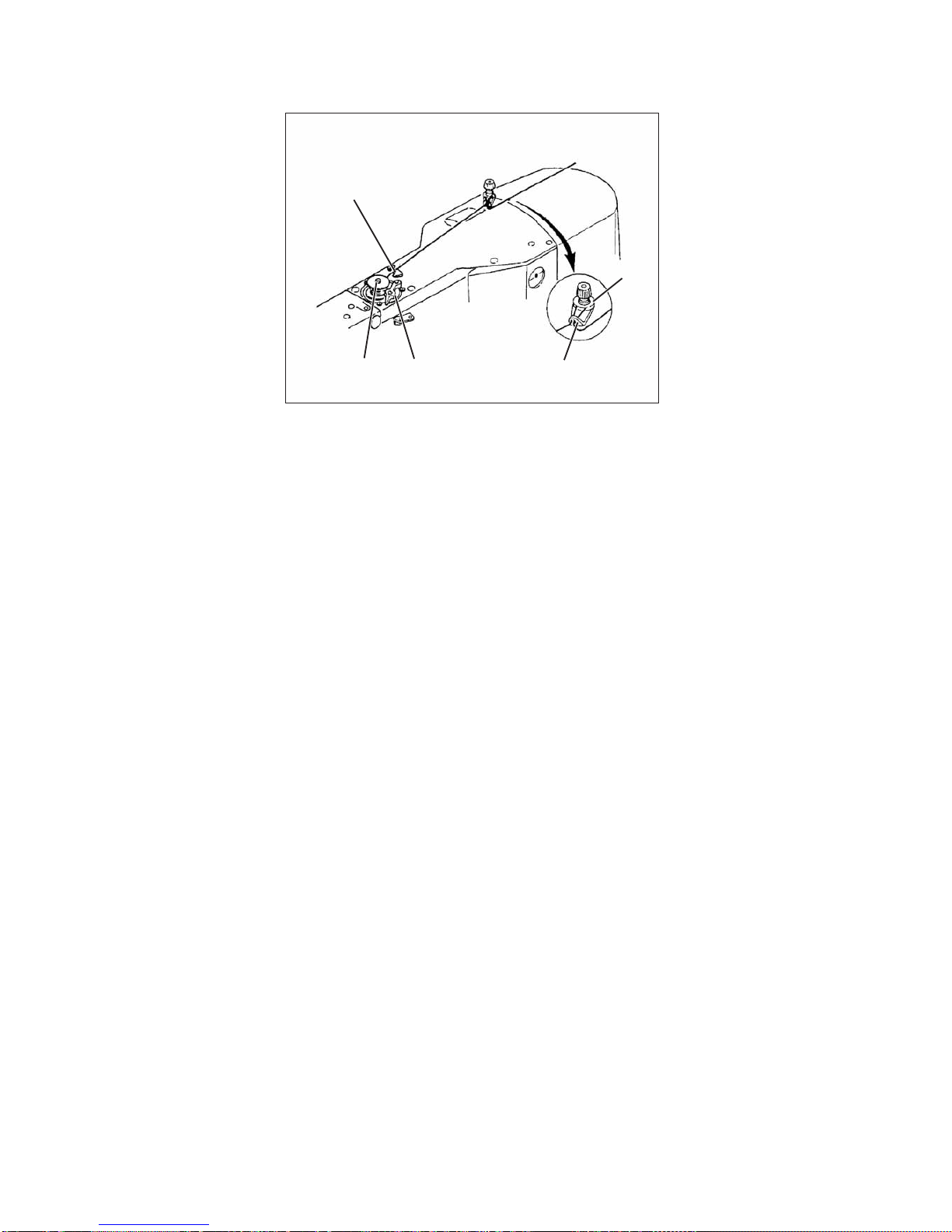

7.4 Winding up the bobbin thread
–Put the bobbin on the bobbin winder 4.
–Pull the thread through the guide 2 and around the tension 1.
–Wind the thread counter-clockwise around the core of the bobbin
(approx. 5 times).
–Press the winder lever 3 into the bobbin.
–Sewing
The winder lever stops the winding process as soon as the bobbin
is full.
–Tear off the thread at the thread clamp 5 after winding up.
12
1
2
3
4
5

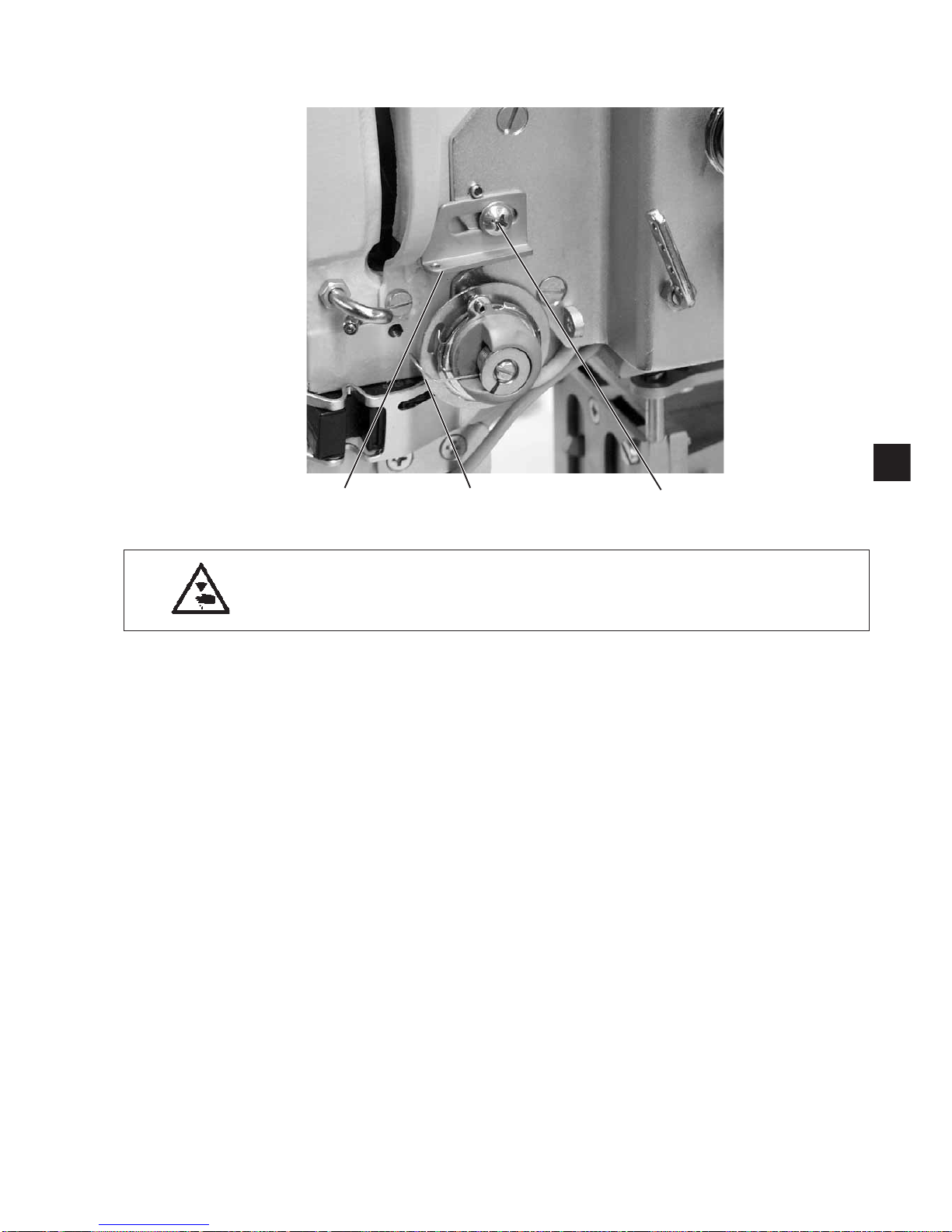

7.5 Changing the hook thread bobbin
Caution: Risk of injury !
Switchthemainswitchoff.
Change the hook thread bobbin only with the sewing unit switched off.
Taking the empty bobbin off
–Pull the hook cover 3 down.
–Lift the bobbin case cover 1.
–Take of the top of bobbin case 2 with bobbin 6.
–Remove the empty bobbin from the top of bobbin case 2.
Inserting the full bobbin
–Place the full bobbin in the top of bobbin case 2.
–Thread the bobbin thread through the slot 5 below the tension
spring 7 in the drill-hole 4.
–Pull the bobbin thread out of the bobbin case 2 for a length of
approx. 2.5 cm.
When winding off the thread the bobbin must turn in the direction of
the arrow.
–Reinsert the bobbin case 2.
–Close the bobbin case cover 3.
1
13
1
2
3
4
7
5
2
6

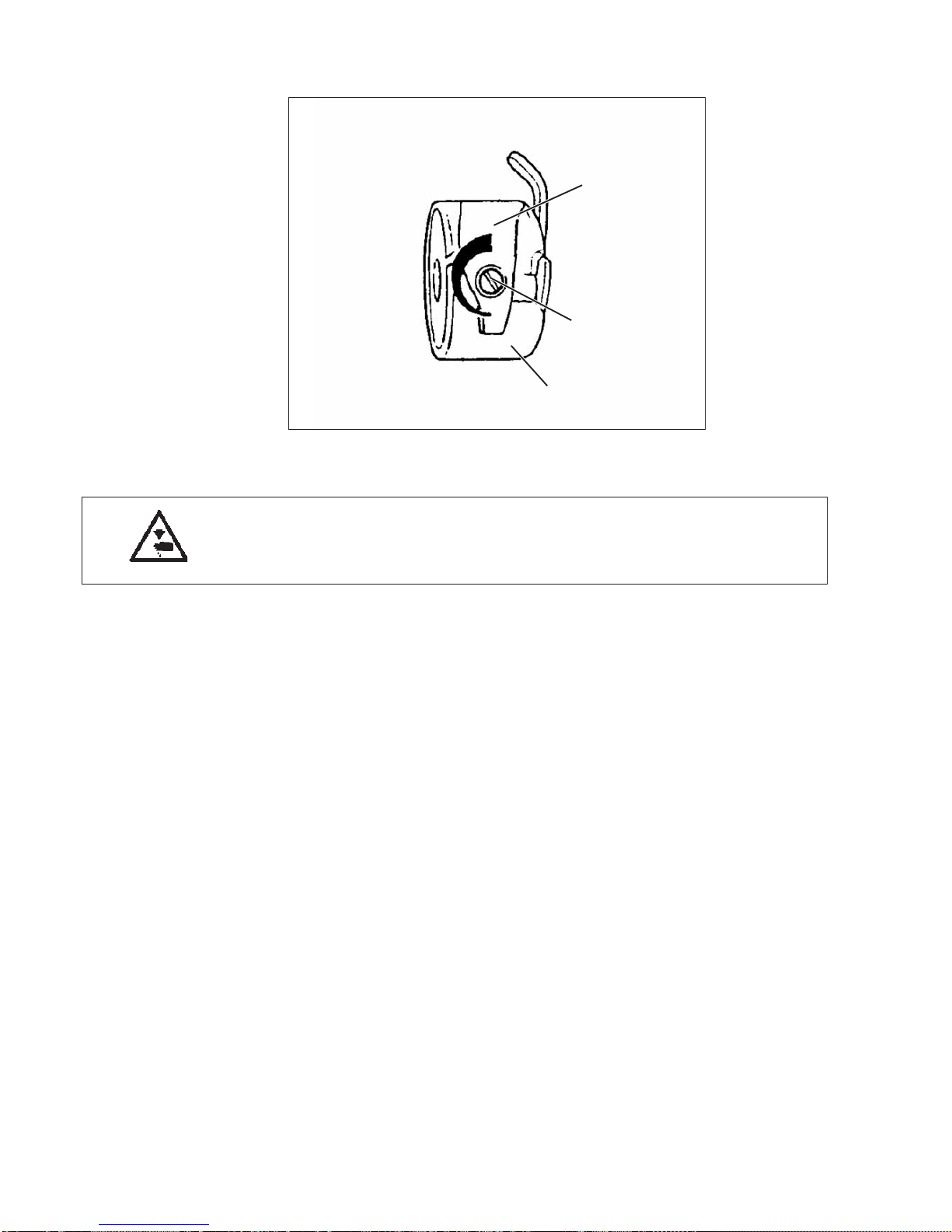

7.6 Adjusting the bobbin thread tension
Caution: Risk of injury !
Switchthemainswitchoff.
Adjust the bobbin thread tension only with the sewing unit switched off.
The required bobbin thread tension is to be produced by the tension
spring 1. The top of bobbin case 3 should drop slowly due to its own
weight when being held at the threaded-in bobbin thread.
Adjusting the tension spring
–Take off the top of bobbin case 3 with the bobbin.
–Adjust the tension spring 1 at the regulating screw 2 until the
required tension value is reached.
–Reinsert the top of the bobbin case.
14
2
1
3

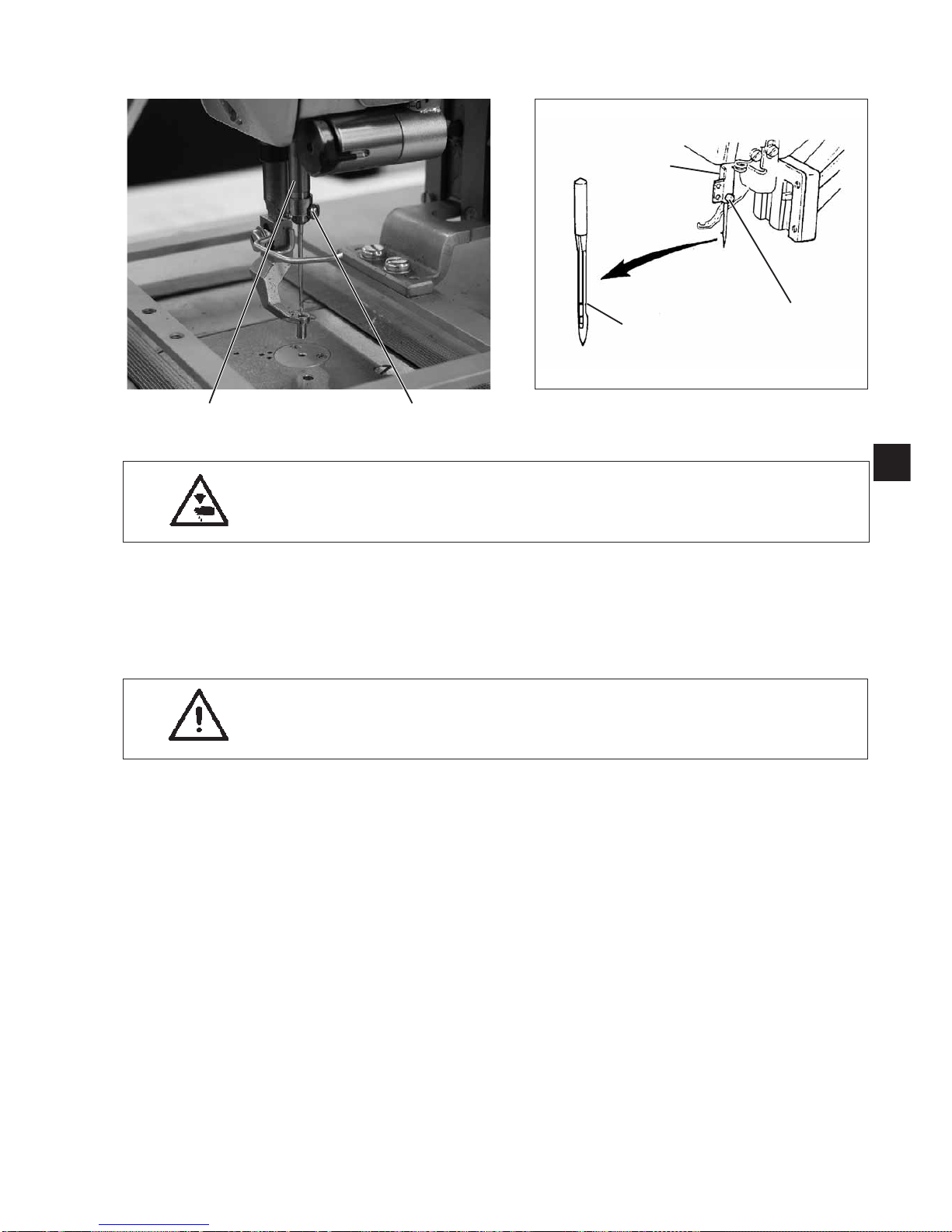

7.7 Changing the needle
Caution: Danger of injury !
Switchthemainswitchoff.
Change the needle only with the sewing unit switched off.
–Loosen the screw 1.
–Push the new needle into the drill-hole of needle bar 2 as far as it
will go.
ATTENTION !
The hollow groove 3 of the needle must point to the hook.
–Tighten the screw 1.
ATTENTION !
After the changeover to another needle size the distance between
hook and needle has to be corrected (see service instructions).
1
15
21
1
3
2

7.8 Adjusting the lifting movement of the clamping plate
The height of the opened clamping plate 1 can be adjusted via the
knurled-head screw 3.
–Loosen the counter nut 2.
–Turn the knurled-head screw 3.
turn to the right = clamping plate 1 opens a little
turn to the left = clamping plate 1 opens wider.
–Tighten the counter nut 2.
7.9 Sewing foot pressure
The desired sewing foot pressure is adjusted by means of the
knurled-head screw 4.
ATTENTION !
The material must not be lifted by the needle movement.
The pressure should not be set too high.
–Loosen the counter nut 5.
–Higher sewing foot pressure = turn the knurled-head screw 4 in
clockwise direction.
–Lower sewing foot pressure = turn the knurled-head screw 4
counter-clockwise.
–Tighten the counter nut 5.
16
321
4
5

7.10 Sewing foot height
The sewing foot height is set by shifting the sewing foot 1.
–Remove needle and thread.
–Feed the material.
–Switch the thread monitor on.
–Start the sewing process and wait until the sewing unit stops
automatically.
–Press “safe stop”.
–Turn the handwheel until the sewing foot 1 is at its bottom position.
–Loosen screw 2.
–Set the height of sewing foot 1.
–Retighten screw 2.
–Release “safe stop”.
17
1
21

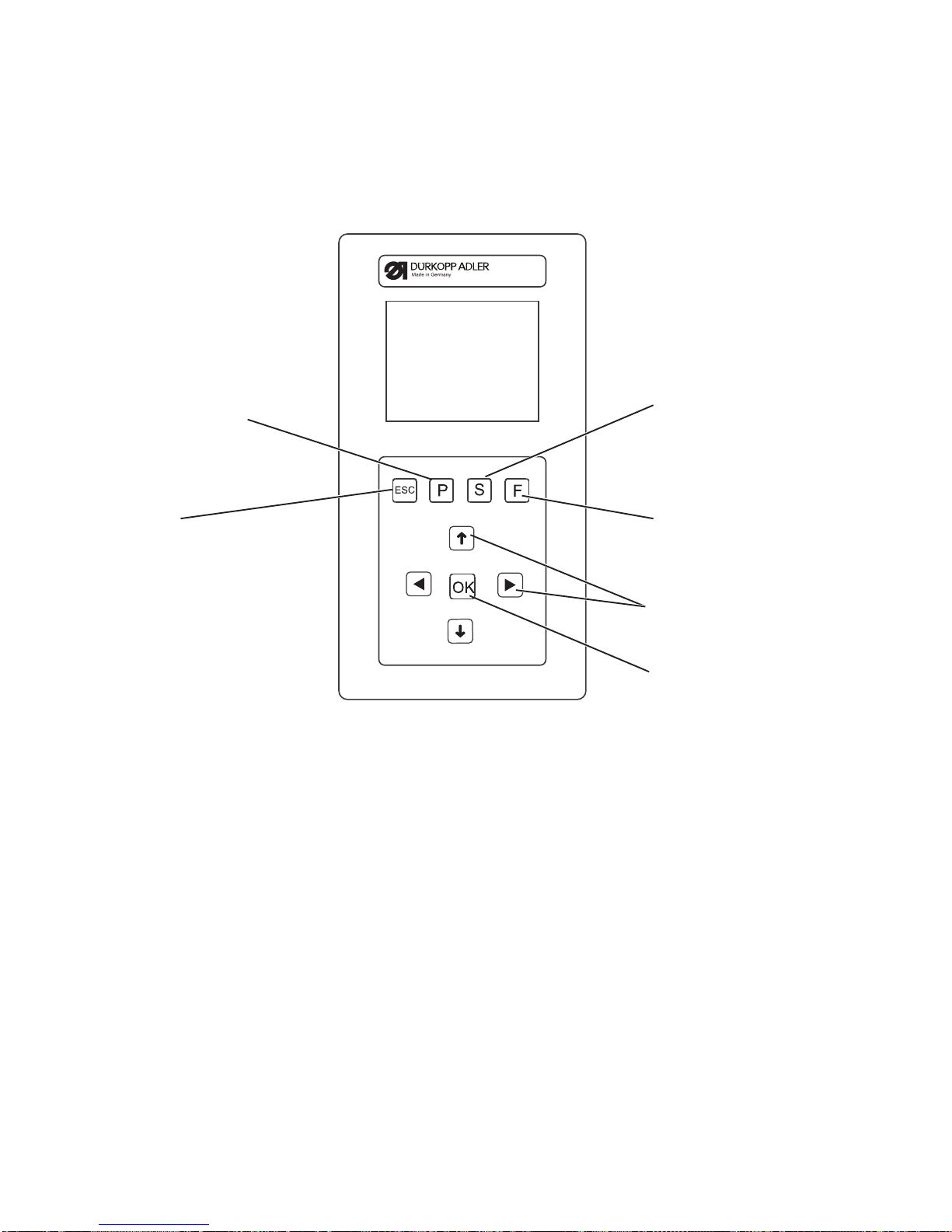

8. Operating the control of cl. 910
8.1 The operator terminal
For the input and output of data an operator terminal with an LCD
display and function keys is used.
P-key S-key
Loading, storing, deleting Select
of programs next program
ESC-key F-key
Select Multitest
Cursor keys
OK-key
18
