AirSlate 1B
Giving you the freedom to interact!

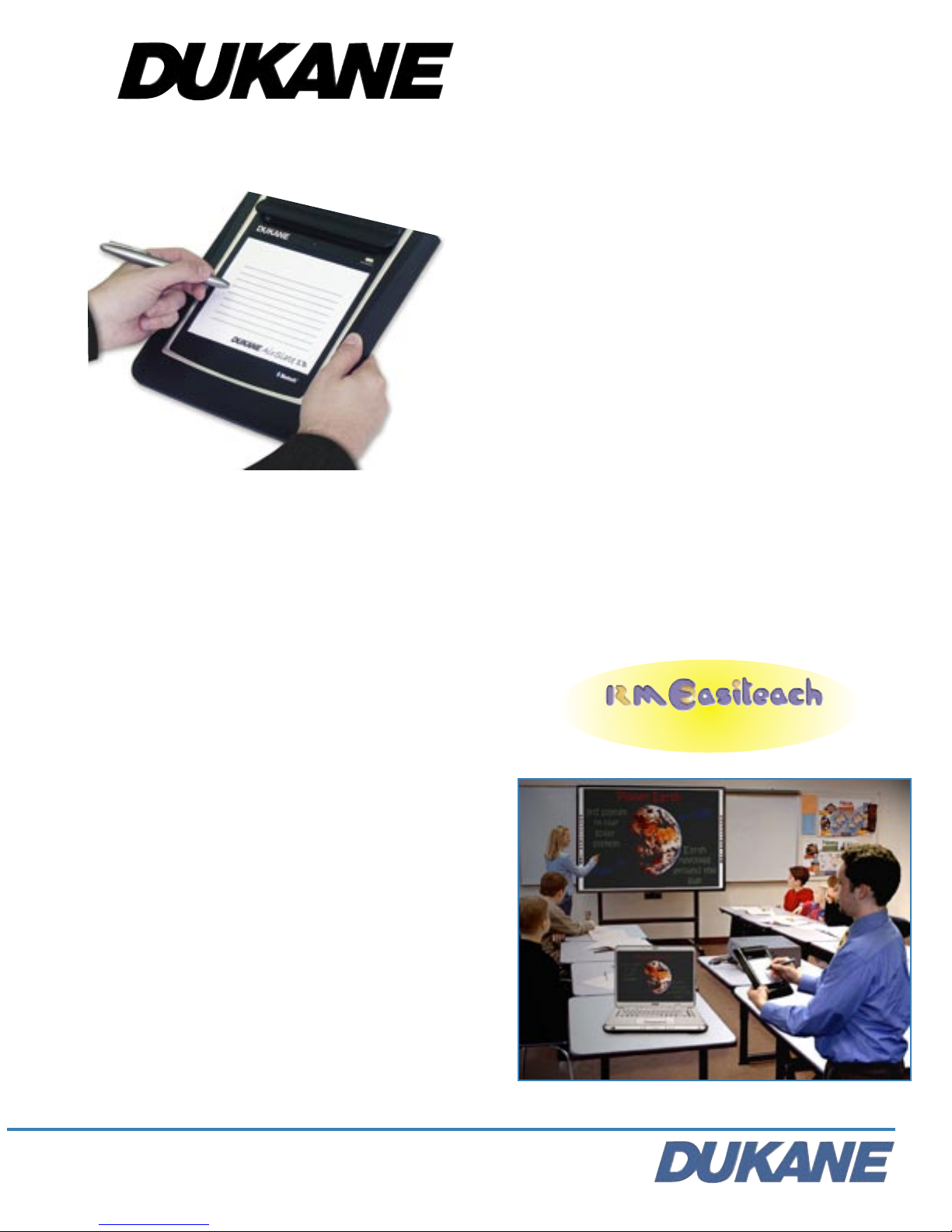

The AirSlate 1B is a wireless annotation and
mouse control tablet that gives the instructor max-
imum interaction with their audience by allow-
ing the freedom to roam around the room while
giving a presentation or a lesson.
• Precise and lightweight cordless pen
provides all the necessary mouse functions.
• Live annotation over presentations,
programs, documents and web pages.
• Clip art library and backgrounds combined
with instructional software program.
• Software to easily capture or expand
your ideas.
• Applicable to all Microsoft Office programs
including PowerPoint, Excel and Word.
• Battery operated cordless tablet.
• One Year Warranty
Audio Visual Products
Toll-free: 800-676-2485 • Web: www.dukcorp.com/av
Fax: [phone] • E-mail: [email protected]
The AirSlate 1B by Dukane communicates with the computer
through a wireless Bluetooth interface. It operates with a comput-
er which has built-in Bluetooth capability or via a small Bluetooth
receiver (dongle) plugged into a USB port. AirSlate 1B allows
you to navigate your computer while roaming the conference
room or classroom. Presenters and teachers no longer need to
stay rooted to one place – behind a lectern or in front of the class.
AirSlate 1B breaks the chains with innovative Bluetooth tech-
nology. Cable-free mobility is yours!
With the AirSlate 1B an instructor can remotely control via the
cursor, any program on the computer such as Microsoft® Word,
Excell, PowerPoint, etc. along with web browsers and other ap-
plications. The Slate can also be used to annotate by a virtual
pencil, brush, or highlighter on any application that is visible on
the PC monitor or screen.
Three annotation (inking) programs provide various levels of an-
notation functionality from the very simple to the ability to record
and replay a time record of the annotation strokes. All this can
be done with the user selecting colors, line widths, and back-
grounds.
Also included is educational software called Easiteach.™ It is a
classroom program used by teachers and easily controlled by
this interactive slate. It helps students master subjects by creating
extremely engaging lessons. Test scores have been shown to in-
crease when using Easiteach.
The software also includes a library of clip art images and back-
grounds that can be easily dragged onto the active window.
Interactive games and lessons provide a fast and simple way for
a teacher to work with students.
You can enjoy a higher level of interaction with your class while
delivering more captivating presentations or lessons with the
AirSlate 1B.
INCLUDED!

Audio Visual Products
2900 Dukane Drive
St. Charles, Illinois 60174
Toll-free: 800-676-2485
Fax: [phone]
E-mail: [email protected]
Web: www.dukcorp.com/av
AirSlate 1B is a registered trademark of Dukane Corporation
General Specifications
Communication Interface Bluetooth HID class (or USB V1.1)
Bluetooth Class 2.4G Class II (10M)
Active Area 6” x 4.5” (152.4 mm x 114.3 mm)
Resolution 500 lpi (20 lines per mm)
Max. Accuracy (w pen) 0.01654” (.42 mm)
Pressure Level 512 levels
Report Rate 125 points/sec
Min. Reading Height 0.4” (8 mm)
Distortion Straight Line + / - 0.0787” (2 mm)
Bluetooth Transmitter Range Up to 32’ (10 m) in open space
USB Type Low Speed HID
USB Connector Mini Connector
LED, Status 1 Green / Red dual
Disconnect Button (1) Used for Bluetooth
Power Supply Tablet: 2AA (1.2V) batteries
Pen: 1AAA (1.5V) battery
Power Consumption Operation: < or = 180mA/3V
(via battery) Standby: < or = 100mA/3V
Suspend: < or = 20mA/3V
Batteries Included 4 x AA rechargeable
1 x AAA
Battery Charger For 4 x AA/AAA
Weight 0.88 lbs. (0.4 kgs) (with batteries)
Dimensions 9.8” x 9.4” x 1.1”
Shipping Weight 3 lbs.
Shipping Dimensions 16” x 11” x 3.5”
(25 cm x 24 cm x 2.8 cm)
Warranty 1 year with product registration
Model # AS1B
#11732-A-07
AirSlate 1B Benefits
• Maximum interaction with students or audience because
the teacher/presenter is not required to remain at the front
of the room to conduct the lesson or presentation
• Great addition to any interactive whiteboard giving the
audience more options to be actively involved.
• Cost effective alternative to an interactive whiteboard
• Up to four AirSlate 1Bs can be used with one computer
AirSlate 1B Carton Contents:
AirSlate 1B Bluetooth tablet
Cordless pressure-sensitive pen
Bluetooth dongle
USB cable and USB extension cable
4 AA rechargeable NIMH batteries
Battery recharger for 4x AA/AAA
1 AAA battery for pen
Installation and driver CD-ROM, with inking software
Easiteach™ CD with Starter Kit.
Power Presenter RE II, CD
Fast Start User's Guide
Minimum System Requirements:
Windows 2000, XP
Pentium 300 MHz (or equivalent) processor or higher
128MB of RAM
CD ROM drive
One free USB Port
Lightweight portable slate
Cordless Pen
Convenient Pen Holder
Drawing Navigation Area
Status LED
Off/On Switch
Bluetooth unpairing
button
Specifications subject to change without prior notice.
