Duke 600183 User manual

Installation Instructions
TSC PROOFER OVEN CONTROLLER
REPLACEMENT INSTRUCTIONS FOR
DUKE KIT# 600183`
CAUTION: Please read this manual completely before attempting
to install, operate or service this equipment
This manual is Copyright © 2017 Duke Manufacturing Co. All rights reserved.
Reproduction without written permission is prohibited. Duke is a registered
trademark of the Duke Manufacturing Co.
Duke Manufacturing Co.
2305 N. Broadway
St. Louis, MO 63102
Phone: [phone]
Toll Free: 1-800-735-3853
Fax: [phone]
www.dukemfg.com P/N 512417
REV E 11/10/2017

2
Installation and Operation of:
TSC Proofer Oven Controller Replacement
TABLE OF CONTENTS
Tools needed for Installation.................................................................................................................. 2
Important Safety Instructions.............................................................................................................. 2-3
Removing Old Control ........................................................................................................................... 4
Installing New Control............................................................................................................................ 5
Electrical shock hazard. Do not wash with water jet or hose.
CAUTION
IMPORTANT SAFETY INSTRUCTIONS
Throughout this manual, you will nd the following safety words and symbols that signify
important safety issues with regards to operating or maintaining the equipment.
WARNING
Indicates a hazardous situation which, if not avoided, could
result in death or serious injury.
CAUTION
Indicates a hazardous situation which, if not avoided, could
result in minor or moderate injury.
CAUTION
Indicates Important Information
Indicates electrical shock hazard which, if not avoided, could
result in death or serious injury and/or equipment damage.
Indicates hot surface which, if not avoided, could result in
minor or moderate injury.
Items required for this installation:
• Phillips screw driver
• Sheet Metal Vise Grips
• ESD Wrist Strap (Included with Kit)
Tools Needed for Installation

3
Installation and Operation of:
TSC Proofer Oven Controller Replacement
In addition to the warnings and cautions in this manual, use the following guidelines for
safe operation of the unit.
• Read all instructions before using equipment.
• For your safety, the equipment is furnished with a properly grounded cord onnector. Do
not attempt to remove or disconnect the grounded connector.
• Install or locate the equipment only for its intended use as described in this manual.
• Do not use corrosive chemicals in this equipment.
• Do not use caustic cleaners, acids, ammonia products or abrasive cleaners or abrasive
cloths. These can damage the stainless steel and plastic surfaces.
• Do not operate this equipment if it has a damaged cord or plug, if it is not working
properly, or if it has been damaged or dropped.
• This equipment shall be serviced by qualied personnel only. Contact the nearest Duke
authorized service facility for adjustment or repair.
• Do not block or cover any openings on the unit.
• Do not immerse cord or plug in water.
• Keep cord away from heated surfaces.
• Do not allow cord to hang over edge of table or counter.
• If the supply cord is damaged, it must be replaced by a special cord assembly available
from Duke Manufacturing Co. or its service agent.
Note: Refer to the specications data plate when ordering or replacing a cord set.
The following warnings and cautions appear throughout this manual and shall be
carefully observed.
• Turn the unit o, disconnect the power source and allow unit to cool down before
performing any service or maintenance on the unit.
• The procedures in this manual may include the use of chemical products. You must read
the Material Safety Data Sheets before using any of these products.
• The unit shall be grounded according to local electrical codes to prevent the possibility
of electrical shock. It requires a grounded receptacle with dedicated electrical lines,
protected by fuses or circuit breaker of the proper rating, in accordance with all
applicable regulations.
• Disposal of the unit must be in accordance with local environmental codes and/or any
other applicable codes.
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
• CAUTION: Never use a high-pressure water wash for this cleaning procedure as water
can damage electrical components

4
Installation and Operation of:
TSC Proofer Oven Controller Replacement
1. Turn unit o with Control Power Switch and turn
o external mains supply disconnect.
Use Lock/Out Tag/Out proceedures if needed.
DO NOT UNPLUG UNIT.
A. Removing The Old Control
2. Loosen 3 screws and remove upper screw on
both sides of the electrical compartment to
access TSC Controller.
WARNING
HAZARDOUS VOLTAGE RISK OF ELECTRIC SHOCK
Remove
Loosen
3. Pull forward then pivot down controller access
cover.
4. Place ESD strap on wrist and tighten. Strap must
be tight around wrist to be eective.
5. Connect ESD Wrist strap to Unit in location
shown.
Attach
ESDÊStrap
toÊflange

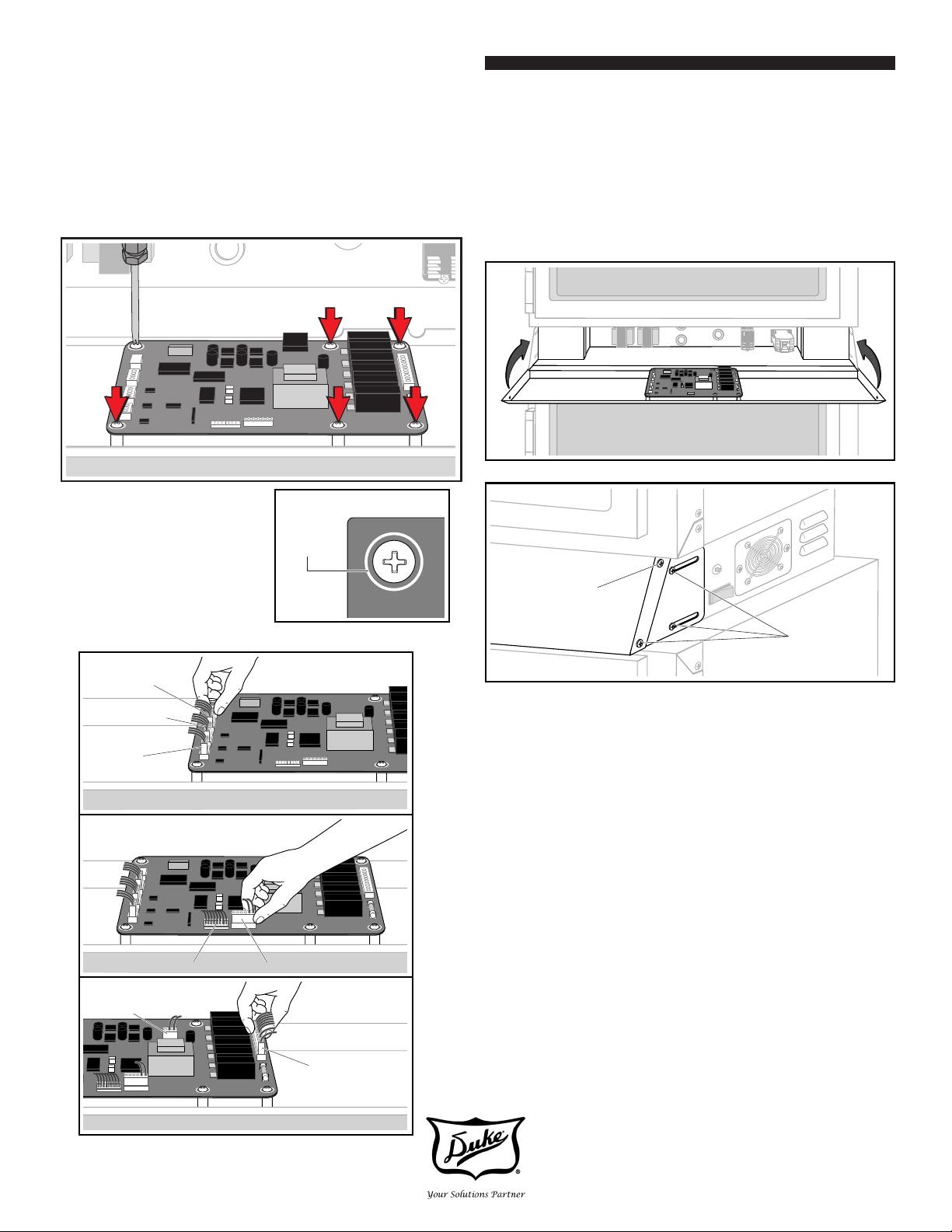

6. Remove 7 Connectors from TSC Control board
starting with the power supply connection. The
power supply connection is on the right side of
the board.
Remove
Power Supply
Connection
Remove
Connectors
7. Remove six screws holding TSC Controller in
place. Remove old controller and set aside.

5
Installation and Operation of:
TSC Proofer Oven Controller Replacement
B. Installing the New Control

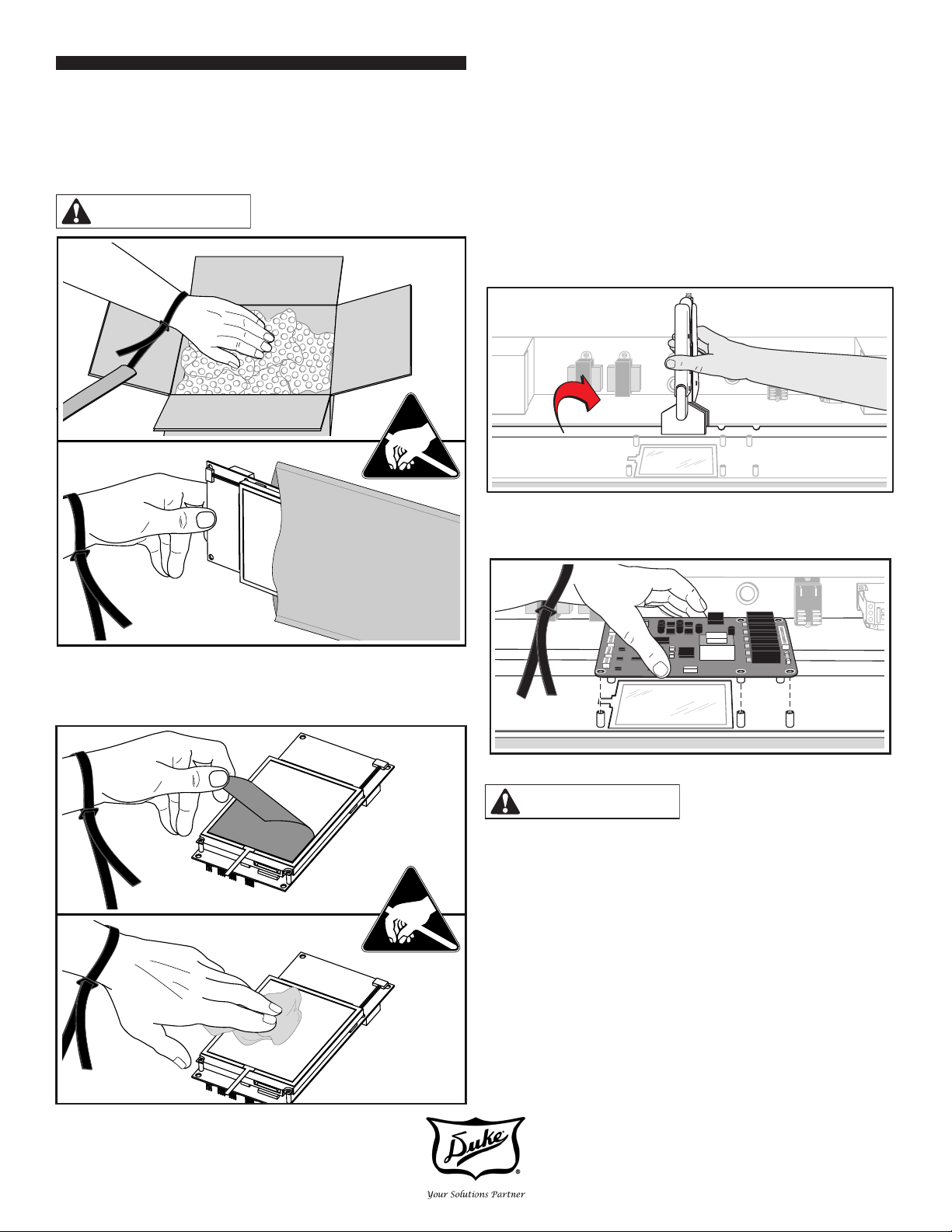

1. Remove new TSC Controller from box and
silver static bag.
GLASS DISPLAY
CAUTION
2. Remove thin plastic protector from glass
if necessary. Make sure display and inner
overlay are clean using a lint free cloth.
3. Using a pair of sheet metal vise grips, bend
the metal ange on the oven to the rear so
the components on the new control board
will not touch the metal ange when closed
up.
4. Set in place on frame.
5. Before securing control board,
conrm that the small circuit board
on the bottom of the main control is
not touching the metal ange at the
bottom of the fold down front panel.
If it is repeat step 3 above until it is not
touching.
CAUTION

6
Installation and Operation of:
TSC Proofer Oven Controller Replacement
B. Installing the New Control - continued
7. Reconnect seven wire harnesses.
Oven RTD
Proofer RTD
Humidity
Sensor
(3-pin)
USB Connection
Sound Device
Connection
Power Supply
Connection
Door Switch
8. Pivot up control housing, push in and replace
two top screws and tighten all 8 screws. Pivot
up control housing, push in and replace two top
screws and tighten all 8 screws.
6. Reinstall six screws. Make sure screws are
centered in white circle outline to insure proper
placement of TSC controller.
Center
screw
in white
circle
NOTE: Proper alignment of
screw in TSC controll
board
Reinstall
Tighten
9. Turn on Mains then turn on Control Power
Switch. Verify display power & software
version. Turn on oven & proofer. Verify lights
turn on. Verify screen contrast. See Contrast
Adjustment Process to make any needed
adjustments.
