Duplo 660P User manual

~ 2 ~
Content
660P HYDRAULIC AND PROGRAMMABLE …………………… 2
OPERATING PROCEDURE ……………………………………… 3
TO ADJUST THE CLAMP PRESSURE ………………………….. 5
TO CHANGE THE KNIFE ………………………………………….. 6
ADJUSTMENT FOR THE SIZE OF REAR POSITION …………. 8
MARK VII OPERATOR MANUAL ………………………………… 9
Control Panel …………………………………………….…… 9
Display Screen …………………………………………….…… 10
Instruction for Keys …………………………………………… 12
How to use Division (÷) Program…………………………………. 24
How to use Addition (+) Program………………………………… 28
How to use in Manual operation ………………………….. 32
Making a new Program ……………………………………… 34
How to use Step and Repeat Program …………………… 39
How to use the Cut & Store Program ………………………… 44
MARK VII Backgauge Speed Adjustment Method ………..,,,,, 48
Error Display …………………………………………….…… 49
Parameter Setting …………………………………………….…… 51
Language and mm & inch Conversion ………………………… 52
SPECIFICATION …………………………………………….…….. 53
660P
Hydraulic and Programmable
1. Mains switch 7. Clamping pressure gauge
2. Operate indicate pilot 8. Clamping pressure adjustment
3. Knife change switch 9. Mark VII control panel
4. Knife depth micro adjustment 10. Foot clamp pedal
5. Back gauge micro adjustment 11. Electronic light guards
6. Cut buttons 12.The alarm pilot
~ 1 ~
9
2
3
1
4
11
6
8
10 5
7
1
2
10

4
OPERATING PROCEDURE

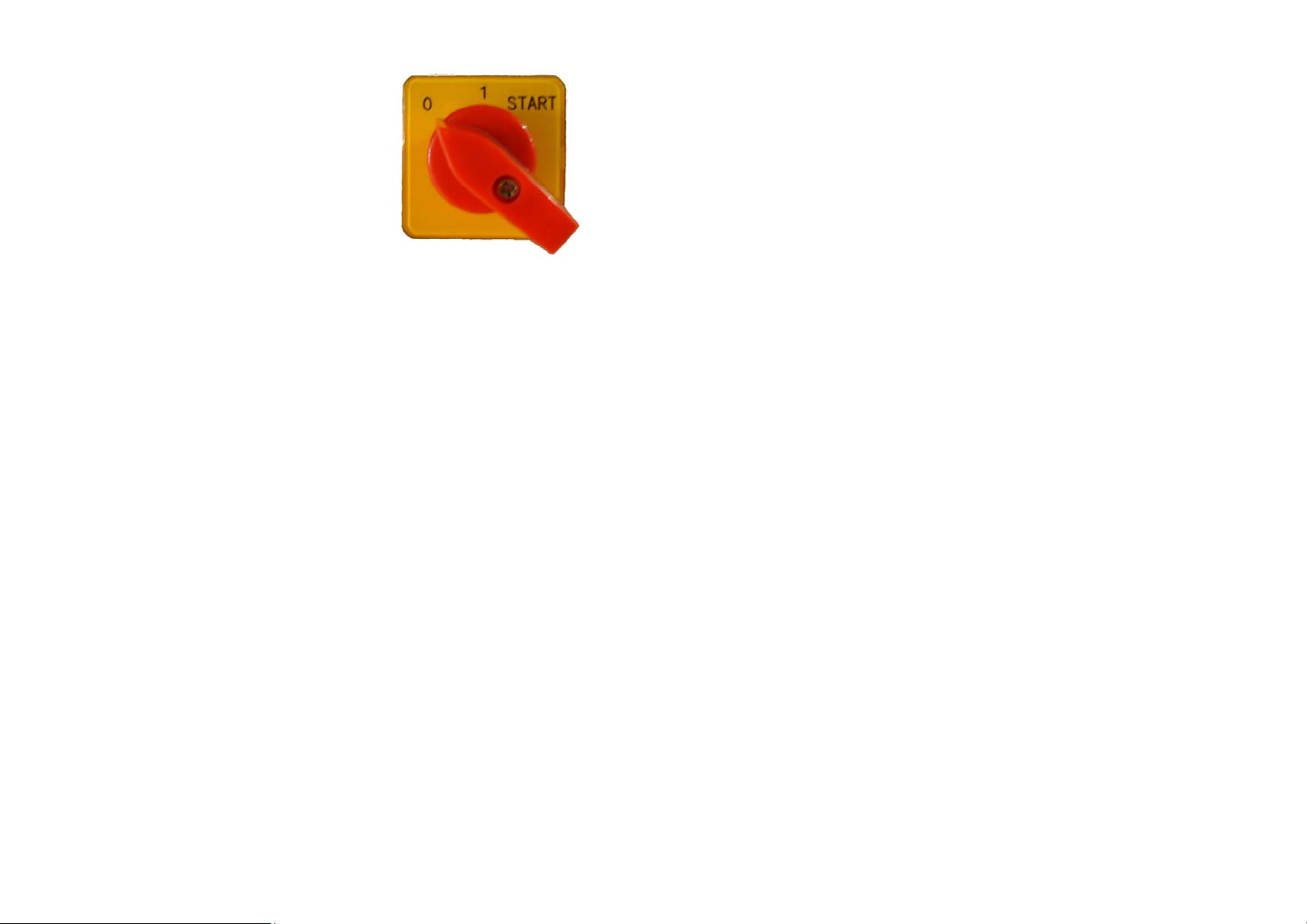

1. Mains Switch
Three positions:
0=Off
1 = Start back gauge drive
Start = Start hydraulic motor
After installation of the mains electric supply, turn the main
switch (1) to position 1, after 4 seconds (PLC control is
scanning), the machine beeps once.
2. To initiate a cut, the main switch must be turned to START
position to start the hydraulic motor, the run operate indicate
pilot (2) glows and the program Mark-VII will start automatically
after one second. Now the machine is ready to operate. At this
time, the back gauge can be moved to any position by using the
Mark-VII control panel (9). Fine adjustments can then be
made using the back gauge micro adjustment (5).
PS: 1) If you don’t start the main motor, the back gauge will
not be functional.
2) After start machine, if it beeps 3 times “PI-PI-PI …”, the
pressure switch is faulty, the program will auto stop
the switch action. And it will beep once for every cut.
3) After start machine, if it beeps “PI” once for every cut,
the pressure switch is faulty, or the pressure of the
sequence valve is lower than the pressure switch.
3. Place the paper against the back gauge and side lay, turn the
backgauge micro adjustment (5) to move the paper, until the
correct position you required.
4. To check whether the paper is in correct position before cutting,
press the hydraulic foot clamp pedal (10) to lower the clamp
until the clamp press the paper. (Depress the foot pedal the
clamp will come down, when the pedal is released the clamp
will go up to top position.)
5. Press the dual cut buttons (7) until the clamp pressed the paper
tightly, the knife will cut the paper automatically. (during
operation, if you release either of the cut buttons, the knife will
stop function. You must reset the cutter by releasing both
buttons and let the blade and clamp return to its home position.)
After completing a cut, the knife will return to its home position
automatically. If the bottom sheets are not cutting through
then adjust the knife micro adjustment (4) clockwise slightly. It
will lower the height of the knife towards the cutting stick.
PS: Dual cut buttons with safety activation margin of 0.5
seconds.
NOTE:
(a) Automatic cut-off: As a further safety precaution, when you
walk away from the machine or do not use the machine
continuously, it will automatically shut off in 15 minutes saving
power.
(b) While operating, if you turn off the guillotine when the blade or
the clamp is not returned to the top position. Once you re-switch
on the machine and start the main motor, the machine keeps
alarming all the time, at this time, you have to press any one of
both cut buttons, then the blade or the clamp will return to its
home position automatically, and you can start cutting.
3

~ 5 ~ ~ 6 ~
TO ADJUST THE CLAMP PRESSURE
1. Press the dual cut buttons (7) simultaneously to lower the
clamp until the clamp press the paper tightly, and read off the
clamp pressure on the clamping pressure gauge (8).
PS: Normal setting: min. 35 kg/cm², max. 50 kg/ cm²
2. Turning the clamp pressure adjustment switch (6):
To increase pressure, turn the adjuster clockwise.※
To decrease pressure, turn the adjuster anti※-clockwise.
Re-press the cut buttons simultaneously until the clamp
presses the paper tightly to read the new revised pressure.
PS: Do not adjust the pressure too low (normal setting: 30 kg/
cm² or more); otherwise, the guillotine will beep.
TO CHANGE THE KNIFE
1) Turn the knife change switch (2), set the Mark-VII control in
“MANUAL” mode.
2) Turn the knife depth micro adjustment (3) anti-clockwise to 0,
(minimum position).
3) Press both cut buttons until the knife down to the bottom
position.
(Don’t release any one of the cut buttons during the
operation, otherwise you will have to re-start the procedure
from the first step.)
4) Using the tools provided, remove all knife holding bolts. Insert
the two knife change handles into the knife through the two
open ended slotted holes in the knife carrier tightly.
5) Turn off the knife change switch, the knife carrier will return to
the top position.
6) Holding the knife change handles and loose it slightly, remove
the knife from the knife carrier.
7) Change the cutting stick to a fresh un-used side.
8) Using the knife change handles to insert the new knife into the
knife carrier and push the knife to the top of the slots and
tighten the handle against the carrier.
9) Turn the knife change switch on.
10) Press both cut buttons until the knife down to the bottom
position.

~ 7 ~ ~ 8 ~
11) Remove the handles and replace with all knife bolts.
12) Trying to put the knife to the left side until the position of knife
beam equal to the cutting stick. Then tighten all knife holding
bolts.
13) Remove all tools. Turn off the knife change switch. The knife
carrier and the clamp will automatically return to its top position.
14) Test cut a full stack of paper. If the bottom sheets are not cut,
then adjust the knife micro adjustment clockwise. This will lower
the knife towards the cutting stick.
Note:
(1) When making a cut and the guillotine is beeping, you need to
check the following:
(a) The knife is blunt.
(b) The clamp pressure adjustment is too low.
(c ) A thick paper pile height (over) is used.
(2) When you turn on the knife change switch, at the same time,
the foot clamp pedal switch is no function.
Warning for Knife Change:
When you complete 3,000 cuts operation, it will beep “PI” “PI” -----
at intervals of one second, at this time you have to replace a sharp
blade for use, after replacing the blade, the alarm will disappear. If
you don’t want to change the blade, please turn on the knife change
switch to the knife change position and then make a knife change
operation, the sound disappears. Then the counter will resets to
zero and re-start.
ADJUSTMENT FOR THE SIZE OF REAR POSITION
If there is a difference between the actual cut size and the back
gauge display size, it indicates the rear position is incorrect. Make
the required adjustment as the following procedure:
1. Re-switch on the machine and move the back gauge to the rear
position, then to measure the size with a rule (by metric system).
Adjust the rear position size by call out program set “0”, adjust
the first setting figure to the correct size.
2. Cut a piece of paper to two even parts. (Cut paper size 200 mm
into two 100 mm paper)
3. Put the outside paper on the inside one and make a comparison
between these two parts.
4. If the inside paper is larger than the outside one, you have to
increase the correction size (i.e. 0.5mm, then do the adding 0.5
to the rear position).
5. If the inside paper is smaller than the outside one, the
correction size should be decreased and do the subtracting.
6. When the correction is made, turn the power off and back on.
inside ＞outside (make the correction to add)
inside ＜outside (make the correction to subtract)

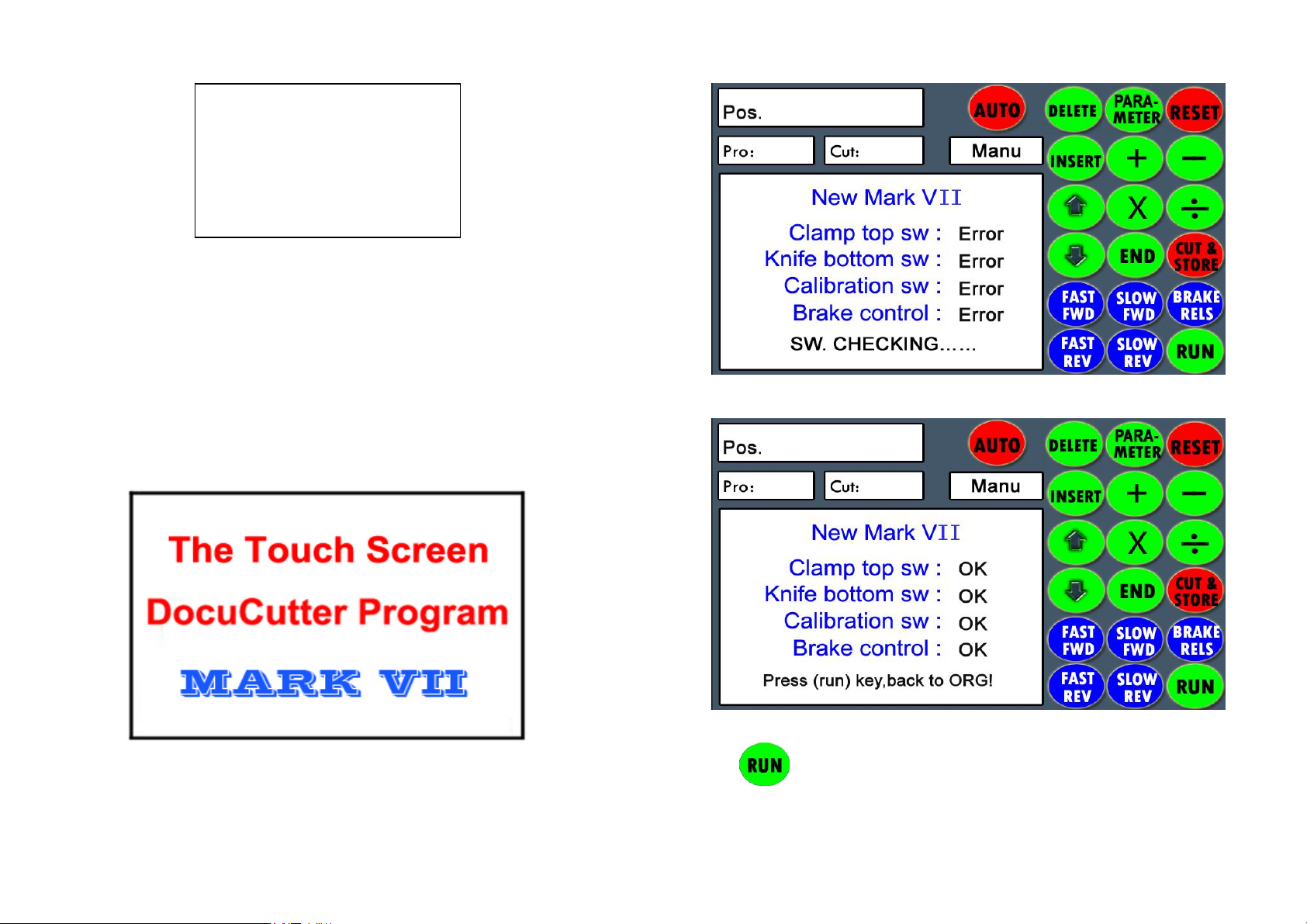

Display Screen
This is the first display it will show on the new MARK VII after the
main power is switched on and it will beeps once.
Control Panel
After detecting, it will beep 2 times ”pi-pi” and display appears:
Press when see above screen, backgauge moves back and
recalibrates the position, you are now ready to run the cutter.
NEW MARK VII
OPERATOR’S MANUAL
~ 9 ~ ~10~
26.000
26.000

~ 12 ~
While calibrating above screen appears, after finish the calibration it
beeps 3 times pi-pi-pi, and the following screen appears, you can
operate the new Mark VII.
New MARK VII allows for 500 programs with 79 cuts each. A
total of 39500cuts can be stored.
Instruction for Keys
~ : To key in a size.
: Press and hold down the key, the backgauge
moves forward slowly, once the key is released
backgauge will stop.
: Press and hold down the key, the backgauge
moves fast forward, once the key is released
backgauge will stop.
: Press and hold down the key, the backgauge
moves slowly to the rear. When release the
key backgauge stops.
: Press and hole down the key, the backgauge
moves fast to the rear. When release the key
backgauge stops.
: Press and hold the key, the brake is released,
you can move the backgauge by turning the
micro adjustment by hand.
: Press as an emergency button, it will
beep once, machine will start again.
: Be sure it displays scissors icon on the screen,
then you can make cut. The scissors icon
won’t be appeared when backgauge is moving.
~ 11 ~
26.000
0 0
0.000
26.000

: First select the program number, press
the screen appears C&S. You can now setup
the required cut size. When the cut size is
selected, make a cut and the cut position will be
auto stored in the memory.
: In AUTO mode, press , it will run (or skip)
over a certain cut size which is not used, and will
go to the next cut in memory.
: Both keys can be used together, they are used
for making multiple cuts into more pieces (i.e.
business cards), or for two cuts trim ( “－” key
can be entered twice).
: Insert a line of data.
1. Move the cursor to the right line you wish to
insert new cut, then press key. (The
flashing line will auto move down to the next,
the cursor is flashing at its place.)
2. Press the cursor, the cuts memory screen will appear, press
~ 13~ ~14~
26.000
1 2
10.100
10.200
10.300
0.000
0.000
0.000
0.000
0.000
0.000
0.000
26.000
1 2
10.100
0.000
10.200
10.300
0.000
0.000
0.000
0.000
0.000
0.000
26.000
1 2
10.100
0.000
10.200
10.300
0.000
0.000
0.000
0.000
0.000
0.000
11.1
10.100
10.200
10.300
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
10.100
0.000
10.200
10.300
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
10.100
0.000
10.200
10.300
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000

Press , the cursor will move to the next cut position
and the following screen appears:
REMARK:
Repeat steps 1 & 2, multiple lines can be inserted.
1）Delete a line of data.
Press , move the cursor to the right line you wish
to delete.
Press , , when the flashing line is deleted the next line will
move up automatically.
REMARK:
Repeat step 1, multiple lines can be deleted.
2) Delete －(subtraction) &×(multiplication)
(I) Deleteone (－) .
Press , move the cursor to the right line you wish to
delete.
~ 15 ~
26.000
1 3
10.100
11.100
10.200
10.300
0.000
0.000
0.000
0.000
0.000
0.000
26.000
1 2
10.100
11.100
10.200
10.300
0.000
0.000
0.000
0.000
0.000
0.000
26.000
1 2
10.100
10.200
10.300
0.000
0.000
0.000
0.000
0.000
0.000
0.000
10.100
11.100
10.200
10.300
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
10.100
11.100
10.200
10.300
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
10.100
10.200
10.300
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
~ 16 ~
26.000
9 3
15.000
－3.000
－0.020
×5.000
12.000
0.000
0.000
0.000
0.000
0.000
18.000
－3.000
－0.020
×5.000
12.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000

Press , it will beep pi-pi-pi three times, press again,
it will beep 3 times again, when the flashing line is deleted the
next line will move up automatically.
When both －&×are used together, if there are two (－),
once 1st one is deleted, it remains one (－) & one (×).
(II) Delete two (－) .
Press , move the cursor to the line you wish to delete.
Press , it will beep pi-pi-pi three times, press again,
it will beep 3 times again, when the flashing line is deleted the
next line will move up automatically.
Press , it will beep pi-pi-pi three times, press again,
it will beep 3 times again, when the flashing line is deleted the
next line will move up automatically.
If the screen only has one (－), once it is deleted, the (×) will
be deleted at the same time.
~ 17 ~
26.000
9 2
15.000
－3.000
－0.020
×5.000
12.000
0.000
0.000
0.000
0.000
0.000
18.000
－3.000
×5.000
12.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
26.000
9 3
15.000
－3.000
－0.020
×5.000
12.000
0.000
0.000
0.000
0.000
0.000
18.000
－3.000
－0.020
×5.000
12.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
26.000
9 2
15.000
－3.000
－0.020
×5.000
12.000
0.000
0.000
0.000
0.000
0.000
18.000
－3.000
×5.000
12.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
26.000
9 1
15.000
－3.000
－0.020
×5.000
12.000
0.000
0.000
0.000
0.000
0.000
18.000
12.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
~ 18 ~

(III) Delete (×).
Press ,move the cursor to the right line you wish to
delete.
Press , it will beep pi-pi-pi three times, press again,
it will beep 3 times again, when the flashing line is deleted the
next line will move up automatically.
When (×)is deleted from the screen, the (－) will be deleted
too.
3) Delete all data.
Press .
Following screen appears:
~ 20 ~
26.000
0 0
0.000
~ 19 ~
26.000
9 1
15.000
－3.000
－0.020
×5.000
12.000
0.000
0.000
0.000
0.000
0.000
18.000
12.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
26.000
9 3
15.000
－3.000
－0.020
×5.000
12.000
0.000
0.000
0.000
0.000
0.000
18.000
－3.000
－0.020
×5.000
12.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000

(1) First press the square box, and press
.
Press and the following screen appears:
(2)Repress &
則出, , the screen will change to:
All data will be deleted and will back to the original screen
automatically.
CAUTION：Operator must be acted this function with discretion!
~22~
55555
~ 21 ~

:Press Pro： the screen appears cuts memory
screen, enter the number.
:Press once, the flash cursor will move to the
previous cut. When in the Auto mode, if the
present cut it not out through, you can adjust the
knife depth, press the button once, backgauge
will move back to the last cut position, redo a cut
after make knife depth adjustment, you can
repeat its movement (this is limited to the cut
which is just used).
: Press once, the flash cursor will move to the next
cut position. If it displays ‘o’, the cursor won’t
be moved.
: Press , it will beep pi-pi-pi three times,
press the key again, it will beep 3 times again, it
will then confirm the entered cuts and store. The
flash cursor will back to Prog (if the is not
pressed twice, the program won’t be stored.)
In confirmation of all cuts are stored, the key is infected
with all cuts in a program. The cutter beeps when the key is
pressed for the first time, make sure all entered cuts are stored,
press the key once, the screen appears 0000.0 at this cut, and
all cut numbers in the back will be cleared.
: You have to confirm the start position of the cursor
before the key is pressed. Press , it will store
the desired cut positions in order.
How to use Division (÷)Program
Turn on the power to the cutter, press wait until the back
gauge moves back and recalibrates the position, the following
screen appears, you can operate the Mark VII.
Select an empty program number from 1-500 (say 3), press
and cuts memory screen appears.
Press and new screen appears:
~ 23
~
~ 24 ~
26.000
0 0
0.000
26.000
3 1
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000

(1) Press the first cut position and the flashing cursor, the cuts
memory screen appears. Press .
Press , the following screen appears, the cursor
will move to the next cut position.
(2)Press .
And press the flushing cursor, cuts memory screen appears:
Press and .
26.000
3 1
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
~ 25~ ~26~
18
26.000
3 2
18.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
26.000
3 2
18.000
÷0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
26.000
3 2
18.000
÷0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
3
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
18.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
18.000
÷0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
18.000
÷0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000

Following screen appears:
(3) After finish the setting, press , it beeps pi-pi-pi three
times, repress to store the program, the flashing cursor
will be back to the first cut position, the screen will change to:
Use Addition (+)Program
Turn on the power to the cutter, press wait until the back
gauge moves back and recalibrates the position, the following
screen appears, you can operate the Mark VII.
Select an empty program number from 1-500 (say 7), press and
cuts memory screen appears.
Press and new screen appears
~ 27 ~ ~ 28 ~
26.000
0 0
0.000
26.000
3 4
18.000
12.000
6.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
26.000
3 1
18.000
12.000
6.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
26.000
7 1
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
18.000
12.000
6.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
18.000
12.000
6.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000

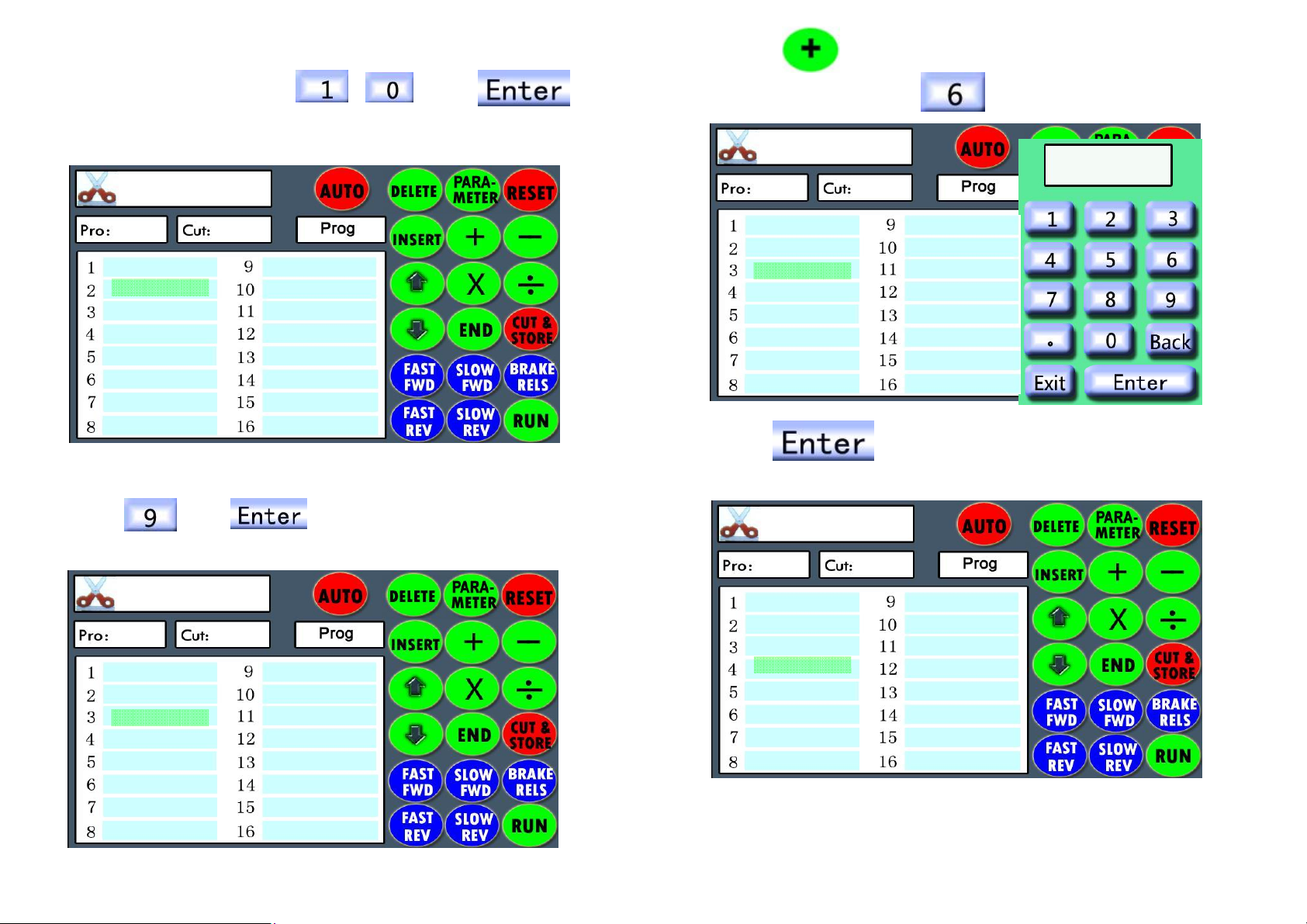

(1) Press the first cut position and the flashing cursor, cuts memory
screen appears. Press and the
following screen appears, the cursor will move to the next cut
position.
(2) Press the 2nd cut position, press the flashing cursor and cuts
memory screen appears.
Press and , the following screen appears, the
cursor move to the next cut position.
(3) Press , and press the flashing cursor, it appears cuts
memory screen, press .
Press the screen appears:
~29~ ~30~
26.000
7 2
10.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
26.000
7 3
10.000
9.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
26.000
7 3
10.000
9.000
＋0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
6
26.000
7 4
10.000
9.000
15.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
10.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
10.000
9.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
10.000
9.000
＋0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
10.000
9.000
15.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000

(4) Press the cut size and the flashing cursor, cuts memory screen
appears. Press and the following

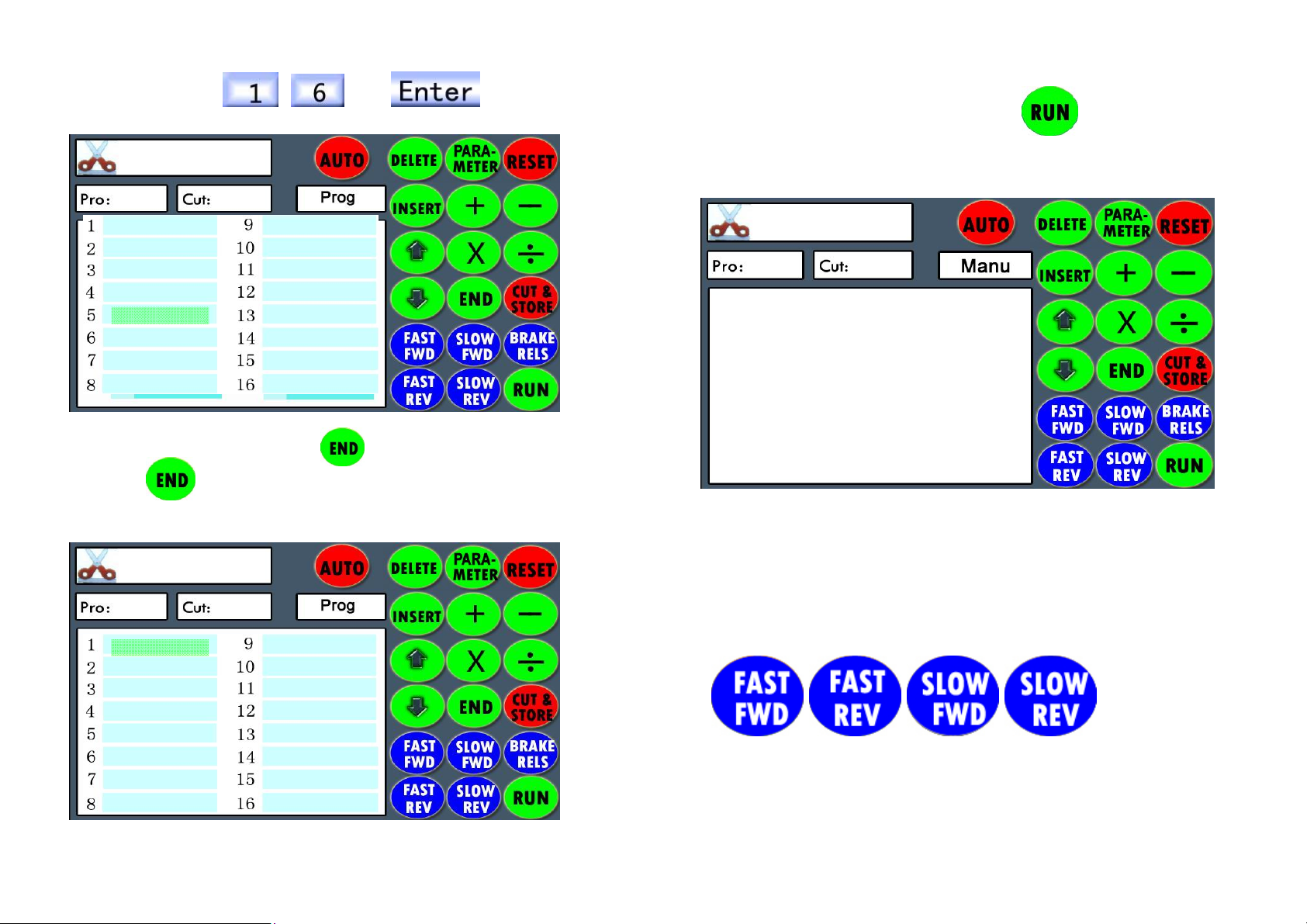

screen appears, the cursor will move to next cut position.
(5) After finish the setting, press , it beeps pi-pi-pi three times,
repress to store the program, the flashing cursor will be
back to the first cut position, the screen will change to:
How to use in MANUAL Operation
Turn on the power to the cutter, press wait until the back
gauge moves back and recalibrates the position, the following
screen appears, you can operate the Mark VII.
Manual mode has two operating controls:
1. The backgauge moves with the manual keys below:
~ 31~ ~ 32 ~
18.000
0 0
0.000
26.000
7 5
10.000
9.000
15.000
16.000
0.000
0.000
0.000
0.000
0.000
0.000
26.000
7 1
10.000
9.000
15.000
16.000
0.000
0.000
0.000
0.000
0.000
0.000
10.000
9.000
15.000
16.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
10.000
9.000
15.000
16.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000

2. Press the empty space where the arrow is, cuts memory screen
will appear, enter the size you require:
Press the size you require, then press , the size will be
appeared on the main screen, press , backgauge will move
to the requested position.
Making a New Program
Turn on the power to the cutter, press wait until the back
gauge moves back and recalibrates the position, the following
screen appears, you can operate the Mark VII.
Press the space where the arrow is, cuts memory screen will appear,
press the number of the program you wish to set up, then press the
whenfinish.
~ 33 ~ ~ 34~
6
26.000
0 0
0.000
26.000
0 0
0.000
26.000
0 0
0.000
8

After choose the program number, press the flashing cursor cuts
memory screen appears, then you can start to enter the sizes of
each cut.
(I) Make the first cut say 16.000.
Press .
(II) Make the second cut say 15.000.
Press .
(III) Make the third cut say 11.000.
Press .
~ 35 ~ ~ 36 ~
26.000
8 1
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
26.000
8 1
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
16
26.000
8 2
16.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
15
26.000
8 3
16.000
15.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
11
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
16.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
16.000
15.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000

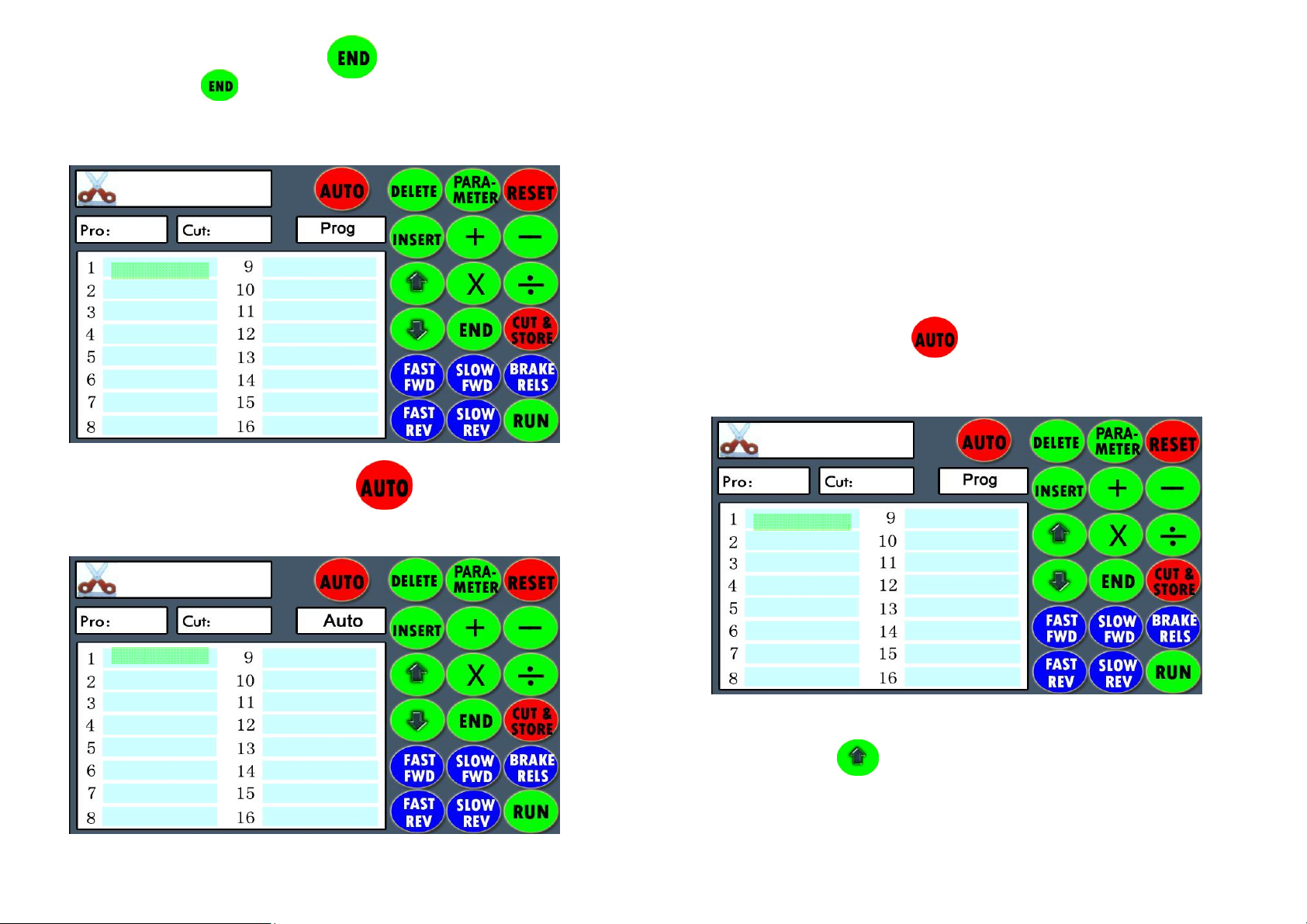

(IV) After finish the setting, press , it beeps pi-pi-pi three
times, repress at once and it will beep 3 times to store the
program, the flashing cursor will be back to the first cut position,
and screen change to:
If you want to get into auto cut, press , backgauge will move
to the 1st cut position and the following screen appears:
Place the paper and make the first cut, when completing the cut,
back gauge will move to the second cut position.
Adjust the paper for the 2nd cut and make a cut, back gauge moves
to the 3rd cut position.
Adjust the paper for the 3rd cut and make the cut, back gauge will
then “push-out” your stack automatically. Then it moves to the first
cut position and readies itself for the next cut cycle.
After finish all cuts, press to remove backgauge automatic
movement, AUTO will disappear on the screen, and new screen
appears:
In Auto mode, if the present cut it not out through, you can adjust the
knife depth, press , backgauge will move back to the last cut
position, redo a cut after make knife depth adjustment, you can
repeat its movement (this is limited to the cut which is just used).
~37 ~ ~ 38 ~
26.000
8 1
16.000
15.000
11.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
16.000
8 1
16.000
15.000
11.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
16.000
8 1
16.000
15.000
11.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
16.000
15.000
11.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
16.000
15.000
11.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
16.000
15.000
11.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000

How to use Step and Repeat Program
(even parts cutting for name card & label etc.)
Turn on the power to the cutter, press wait until the back
gauge moves back and recalibrates the position, the following
screen appears, you can operate the Mark VII.
Press the space where the arrow is, cuts memory screen will appear,
press the number of the program you wish to set up, then press the
whenfinish.
After choose the program number, press the flashing cursor cuts
memory screen appears, then you can start to enter the sizes of
each cut.
If the first cut is at 18.000 and you would like to divide it into 3,000
label for 5 times, please do as follows:
(I) Make the first cut say 18.000.
Press .
~39~ ~ 40 ~
26.000
0 0
0.000
26.000
0 0
0.000
9
26.000
9 1
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
26.000
9 1
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
18
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
0.000
