dupol DP Door-I User manual

DP Door-I Gate Opener 1 EN
DP Door-I Gate Opener
WIFI based remote gate control unit
User manual v2.0

DP Door-I Gate Opener 2 EN
TABLE OF CONTENTS
1Basic information ...............................................................................................................................................3
1.1 Advantages .................................................................................................................................................3
1.2 Operating....................................................................................................................................................3
2Design and connection diagram .........................................................................................................................4
3Settings...............................................................................................................................................................5
3.1 Setting the device Wi-fi connection of DP Door-I........................................................................................5
3.2 Setting the smartphone application............................................................................................................7
3.2.1 Process of opening ..............................................................................................................................9
3.2.2 Process of closing ................................................................................................................................9
4Advance settings ..............................................................................................................................................10
4.1 Modification of the gate opener’s user’s permissions...............................................................................11
4.1.1 Prohibition of control at given users .................................................................................................11
4.1.2 Delete of users ..................................................................................................................................11
4.1.3 Limitation of user information (PUSH notification messages, event list)...........................................12
4.2 Creating command icons on Android ........................................................................................................13
4.3 Restore to factory state ............................................................................................................................13
5Status signals....................................................................................................................................................14
6Technical Specifications....................................................................................................................................14
7Content of the package.....................................................................................................................................14

DP Door-I Gate Opener 3 EN
1Basic information
A DP Door-I Gate Opener is an innovative device, designed to fulfil the modern request of
comfortable environment. Using a local Wi-Fi network, it provides gate control functions on Smartphone
platform through Internet connection.
Major advantages of this solution are:
•Controlling of the gate control unit from unlimited distance
Using Smartphone application, start or stop the gate opening or closing
•Momentary sending the status change information as anything happens
The „push notification” messages are sent on status change (CLOSED, OPENED, ERROR,...)
•Show the animated opening or closing of the gate in the application
The device is monitoring the power of the door engine itself, thus synchronizing the application with the
real gate moving.
Communication of the DP Door-I Gate Opener device with the application is made through
Internet connection, therefore it is necessary to have Internet connection active on device and the
Smartphone that is running the application also. The communication is encrypted with the AES-128
encoding.
1.1 Advantages
•No SIM card and no additional monthly fee for network usage
•Unlimited number of users, signal recipients and distance
•Simple installation (no need for router setting)
•Control and monitor the gate on one platform
1.2 Operating
Device contains output terminals for a dry contact (relay output) with no contact by default (Normally
Open type). On a start signal the output relay is energized for 1 second, providing a contact on output
terminals for that time. This “contact signal” is convenient for „gate START/STOP/REVERSE” input of most
gate drive control unit.
The MOTOR+ and the MOTOR- inputs are monitoring the voltage and polarity of the motor supply itself.
This way, the information of direction for the gate moving is sent to the application. Also, the period of the
applied voltage is also monitored, therefore the position of the gate is determined –for example, if the
voltage was applied for shorter than the gate closing time, the gate did not close completely.
If the motor used for gate is not suitable for the DP Door-I Gate Opener input (if it is 230V AC
Motor) then the isolated contact input (end contact 2) can be used to check the gate closed status. As a
result of opening or closing the gate opener sends information to its users and this way makes the status of
the garage door and who has opened or closed the gate visible.

DP Door-I Gate Opener 4 EN

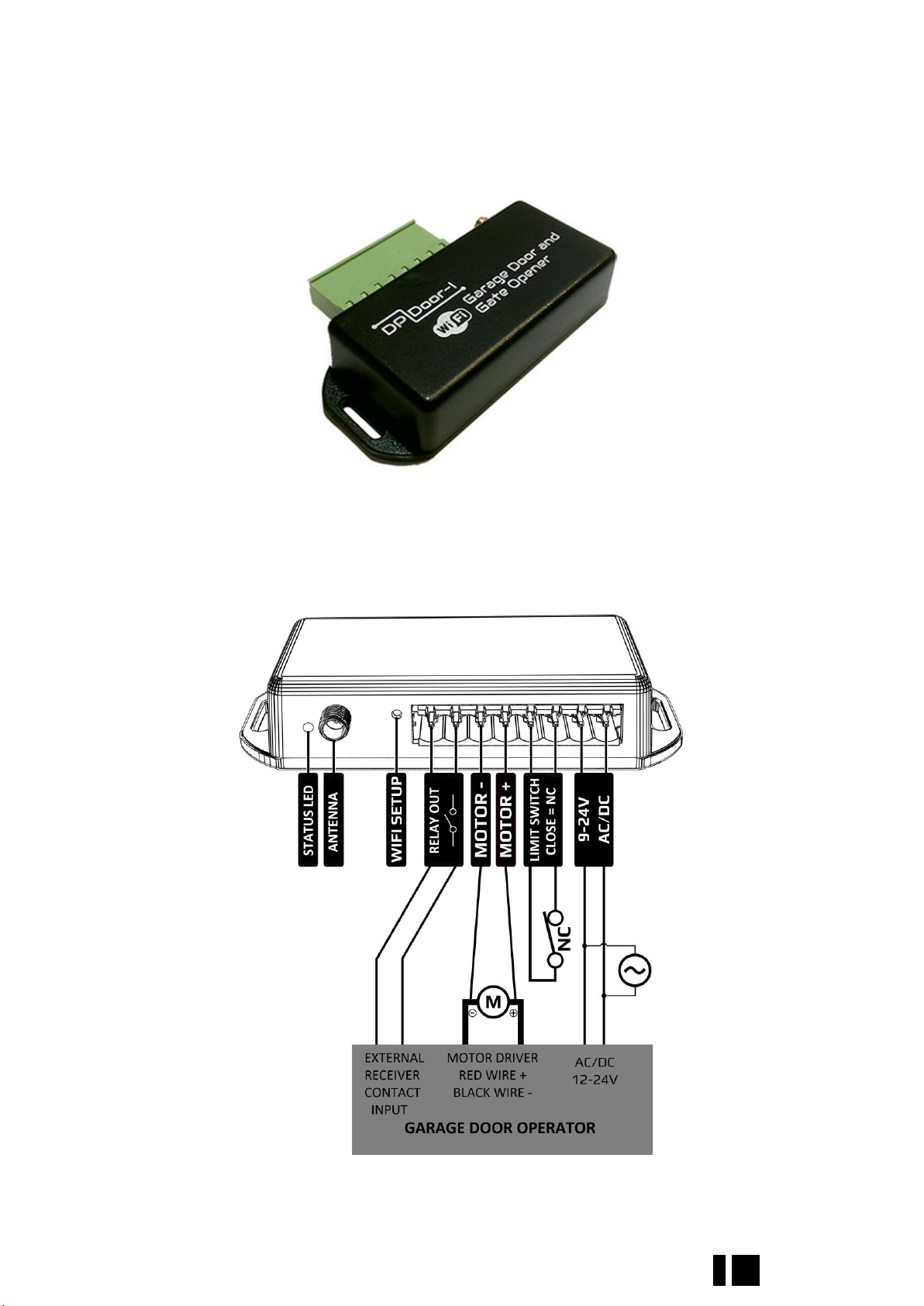

2Design and connection diagram

DP Door-I Gate Opener 5 EN
3Settings
Settings necessary for operation needs to be done both on DP Door-I Gate Opener unit and on the
smartphoone. For the operation continuous internet connecton is necessary so first the name and
password of the local WIFI network needs to be set in the device.
After this PULOWARE mobile application can be downloaded to the user’s smartphone where further
settings can be made. (3.2)
3.1 Setting the device Wi-fi connection of DP Door-I
For the setting it is necessary to reach DP Door-I Gate Opener’s own webpage, which can be done
by shortly pressing the wifi setup button of the device:
Press shortly the WIFI SETUP pushbutton and the green/red LED alternate blinking will be signaling that
device is in „HOTSPOT” mode, it is transmitting a personal WI-fi network with DP DEVICE name.

DP Door-I Gate Opener 6 EN
Connect to DP DEVICE network. (Use any personal device (phone, tablet, PC) to connect to that wireless
network.) After a successful connection open a web browser and enter a site name dpsetup.eu
It is possible to set 2 separate WIFI connections and passwords –a primary and a “backup”. These connections
are alternate with each other: if WIFI1 connection disconnects it changes to WIFI2 and the other way around.
•At successful connection to dpsetup.eu you will see the Type, Serial number and Device ID of the
device.
•By pressing SCAN button the access point can be selected (the wireless network)
•Password: enter the password of the wireless internet to be used
•After this, press SAVE and the device automatically connects to the network and the green LED will
start blinking. (The same steps can be done in the field of WIFI2 as well.)
All other settings for the device operation are available in the smartphone application.
IMPORTANT NOTE: it is important to disable mobile internet connection while settings on
dpsetup.eu is in progress otherwise dpsetup.eu will open via mobile internet and this will hinder
doing the necessary settings.

DP Door-I Gate Opener 7 EN
3.2 Setting the smartphone application
Download the PULOWARE CLIENT application from the below links:
For Android: https://play.google.com/store/apps/details?id=com.puloware.app
For iOS: https://itunes.apple.com/us/app/puloware-control/id1347808507
See the application icon:
When you start the application first time, a setup wizard requires an operator name to be entered. This
name is used for identification in event list (who open the door and when?). After that, a device that you
want to control with this application must be added, entering it’s serial number. There are 2 ways to enter
the serial number: a, manually b, by the QR code reader
This 16-digit combination of letters and numbers can be found on the sticker, placed on the bottom of
device. After the number is typed in, or read-in by the QR code reader you can finish the setup. If you want
to add more devices to the same application, use the „+” sign on the top of screen. This application can be
used to handle more than one device, other devices (different device types as well) can be added within
the same application.

DP Door-I Gate Opener 8 EN
MENU icon and NAME
Device list which can be scrolled horizontally so further devices can
be selected here
Appearance of gate’s status
Time of Opening or Closing and the name of who has
opened/closed it (operator’s name)
Control push button: it has to be pressed for at least 2 seconds for
the control to start
Trash icon: to delete the device from the application
The name of the gate
Modifying the order in the event list of the main screen
Monitoring the status of the gate: from the opening motor/engine
or limit switch
Sending notifications about the given event (push messages)

DP Door-I Gate Opener 9 EN
3.2.1 Process of opening
3.2.2 Process of closing

DP Door-I Gate Opener 10 EN

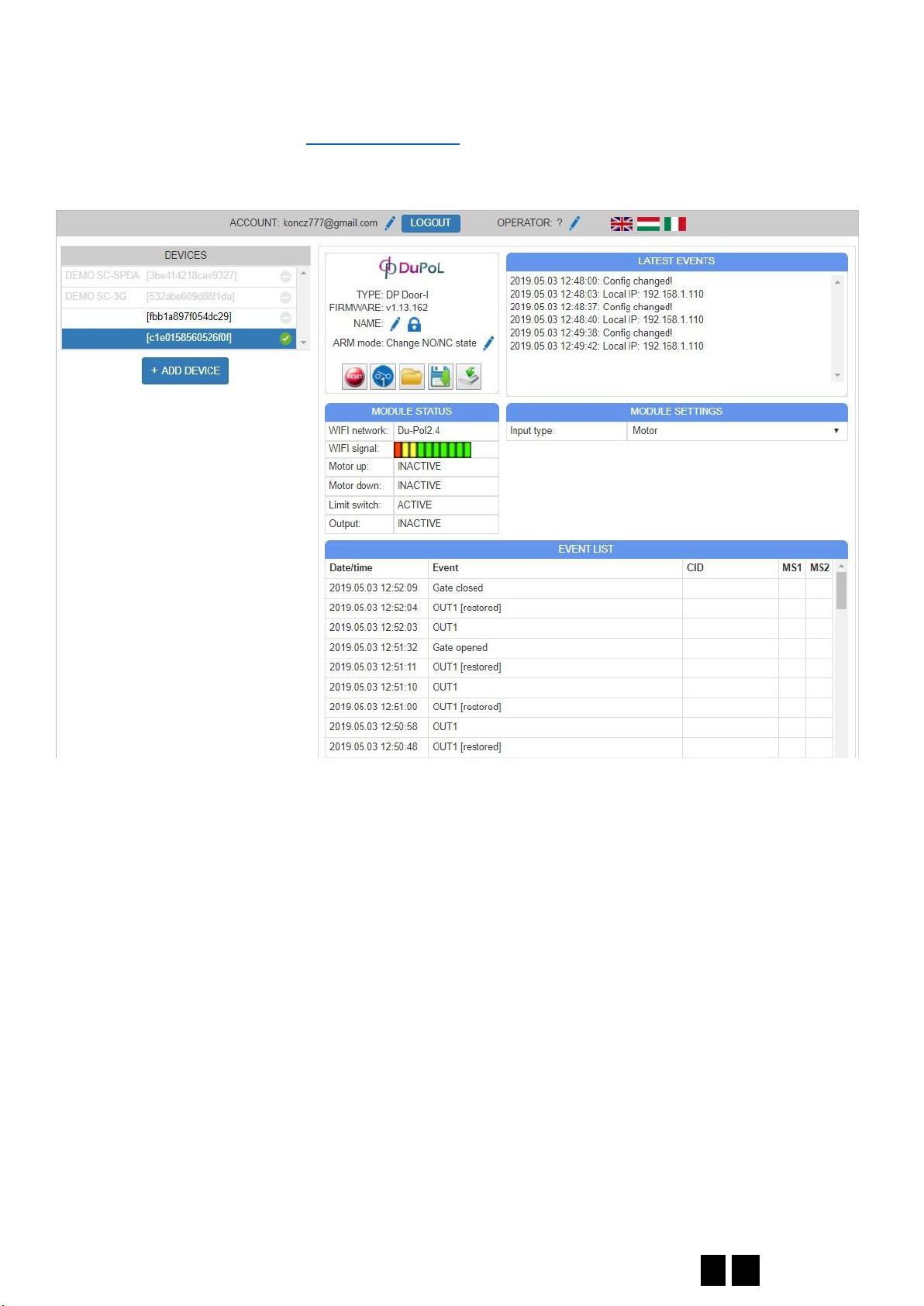

4Advance settings
The communication of DP Door-I Gate Opener is IoT cloud base, so it is possible to monitor and
check the device via the server: www.puloware.com. The use of the webpage requires registration. After
entering the device ID of the device needs to be added to the list so that it can be seen on the server. After
entering the below will be seen:
DEVICES: On the left coloumn the list of devices added to the account can be seen.
MODUL STATUS: During the time of the device’s operation the motor’s movement, direction and the
status of the limit switch can be monitored and seen. Settings and modification of the settings are
synchronised with the mobile application.

DP Door-I Gate Opener 11 EN

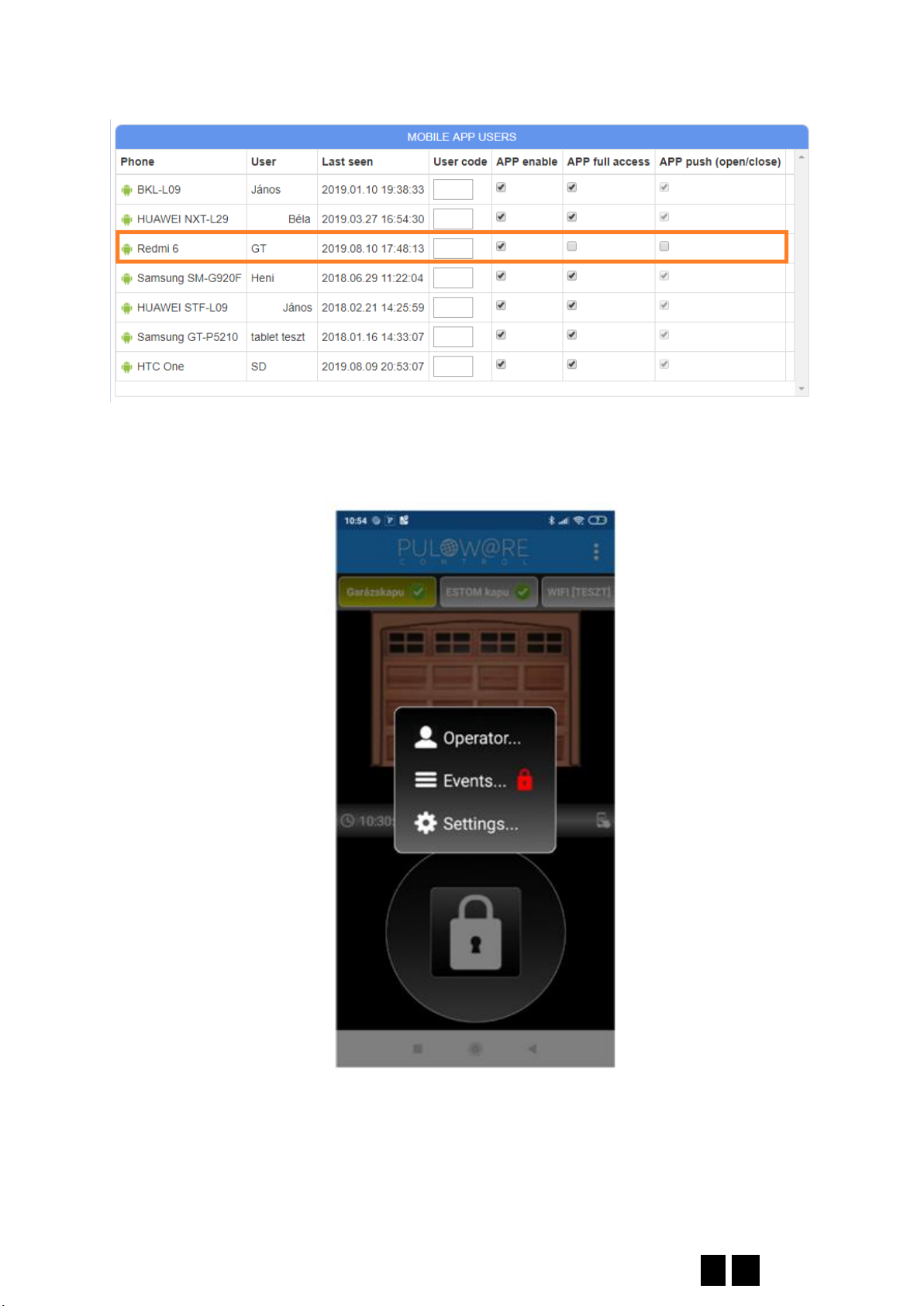

4.1 Modification of the gate opener’s user’s permissions
4.1.1 Prohibition of control at given users
Any user can be prohibited from the user list so that the he/she cannot control the gate. By opening the
application the user can see the fact of opening/closing the gate, but he/she cannot operate the gate and
does not receive any PUSH notification messages about other users’control.
The function is intended for temporary prohibition or suspension.
4.1.2 Delete of users
The mobile phone of any user(s) can be deleted from the user list and this way the owner of the mobile
phone will not have any access. Naturally, at a later time the telephone number can be registered again if it
is necessary.

DP Door-I Gate Opener 12 EN
4.1.3 Limitation of user information (PUSH notification messages, event list)
By setting limitation the user will have the only option of control but will not receive any PUSH notification
messages, so he/she will not see other users’activities. The event list is forbidden so that he/she should
not see and receive any information about others’activities.

DP Door-I Gate Opener 13 EN
4.2 Creating command icons on Android
The system of Android allows that instead of starting the application (assigned to the WIFI device) the gate
could be opened from fast command icons. By touching the command icon the control of the gate will
immediately start but the application will not open.
They can be created in the setting menu.
Below the created icon the gate can be named.
4.3 Restore to factory state
If necessary, it is possible to delete all settings and connections from the device.
This can be done if the device is in idle state and there is stable internet connection, which is shown by the
green led blinking.
For restore WIFI SETUP pushbutton needs to be pressed for 30 seconds, the status will signal the process
of delete by red/green fast blinking and at last continuous red blinking will show that all connections and
settings have been deleted.

DP Door-I Gate Opener 14 EN
5Status signals
Status of the DP Door-I Gate Opener is displayed with LED lights, placed next to antenna, with
following options:
Continuous RED
Setting is faulty or missong
Blinking RED
Connection to the wifi network is in progress
Blinking GREEN
Idle mode, stabile Internet connection
GREEN/RED alternate
HOTSPOT mode, setting in progress
6Technical Specifications
Maximum power consumption 100mA
Operational frequency 2.4 GHz
WIFI protocol IEEE 802.11 b/g/n
Reception sensitivity -98 dBm
Transmitting power +20 dBm
Antenna connection RP-SMA
Relay capacity max. 2A @ max. 60V
MOTOR voltage max. 24VDC
Operational temperature -40…+85°C
Size 80x40x20mm
Environmental protection IP40 (outside protection box is necessary)
7Content of the package
•DP Door-I wifi remote gate control unit
•Terminal block for cabelling
•WIFI antenna 2.4GHz 3dB
•Limit switch (reed relay + magnet + screws) with 3m cable
•User manual
IMPORTANT NOTE: Environmental protection IP40 (outside protection box is necessary)
