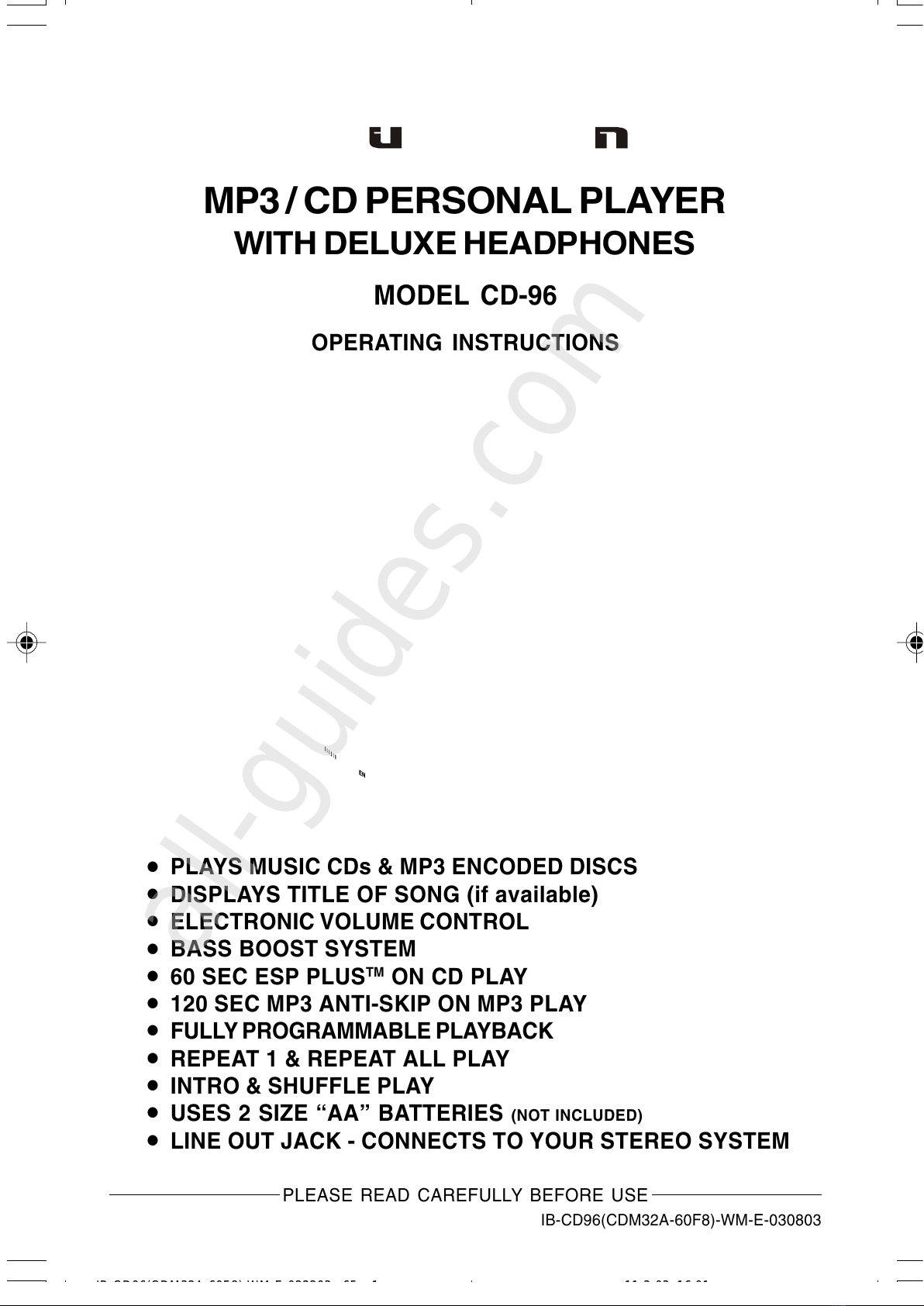

Durabrand CD-96 User manual

IB-CD96(CDM32A-60F8)-WM-E-030803
MODEL CD-96
OPERATING INSTRUCTIONS
PLEASE READ CAREFULLY BEFORE USE
PLAYS MUSIC CDs & MP3 ENCODED DISCS
DISPLAYS TITLE OF SONG (if available)
ELECTRONIC VOLUME CONTROL
BASS BOOST SYSTEM
60 SEC ESP PLUSTM ON CD PLAY
120 SEC MP3 ANTI-SKIP ON MP3 PLAY
FULLY PROGRAMMABLE PLAYBACK
REPEAT 1 & REPEAT ALL PLAY
INTRO & SHUFFLE PLAY
USES 2 SIZE AA BATTERIES (NOT INCLUDED)
LINE OUT JACK - CONNECTS TO YOUR STEREO SYSTEM
MP3 / CD PERSONAL PLAYER
WITH DELUXE HEADPHONES
IB-CD96(CDM32A-60F8)-WM-E-022203.p65 11-3-03, 16:011
All manuals and user guides at all-guides.com
all-guides.com

IB-CD96(CDM32A-60F8)-WM-E-030803
LOCATION OF CONTROLS
1
1
1
1. LCD DISPLAY
2. REPEAT BUTTON
3. 10+ / ALBUM BUTTON
4. BACKWARD SKIP/SEARCH BUTTON
5. FORWARD SKIP/SEARCH BUTTON
6. PLAY/PAUSE AND POWER ON BUTTON
7. CD DOOR OPEN BUTTON (slide to open)
8. VOLUME CONTROL ( ) INCREASE
9. VOLUME CONTROL ( ) DECREASE
10. EQUALIZER AND PROGRAM BUTTON (for programmed play)
11. STOP AND POWER OFF BUTTON
12. BATTERY DOOR
13. AC ADAPTOR JACK (DC 4.5V)
14. BASS BOOST SWITCH
15. LINE OUT JACK (for home stereo connection)
16. PHONES JACK (headphone jack)
IB-CD96(CDM32A-60F8)-WM-E-022203.p65 11-3-03, 16:022
All manuals and user guides at all-guides.com

IB-CD96(CDM32A-60F8)-WM-E-030803
TIPS ON BATTERY USE
Reversing polarities will damage the batteries and possibly your set. Be sure to
follow polarity ( + and - ) as indicated.
Do not mix different types together (Alkaline, Carbon-Zinc, Nickel-Cadmium etc.),
or old batteries with new ones.
When not in use for an extended period of time, or while internal batteries will not
be used, remove them to prevent possible acid leakage or corrosion resulting in
damage to your player.
When the batteries have become discharged, they must be disposed of in a safe
manner that complies with all applicable laws.
Installation of batteries should only be done by an adult (for safety).
WHEN SHOWS IN THE DISPLAY
If the alkaline batteries are weak and discharged, this symbol   shows or
flashes in the display, then the power automatically turns off. If this occurs, replace
the alkaline batteries (also if the display does not show anything, the batteries are
dead).
ALKALINE BATTERY LIFE
Bear in mind that battery life expectancy is based upon volume and bass listening
levels.
Maximum battery power consumption happens at maximum settings. Typical life
for 2 size AA alkaline batteries is above 8 hours of continuous use for CD play.
NOTE: You may use rechargeable batteries on this set. However, because
rechargeable batteries generally have lower voltage (1.2 volts instead of
1.5 volts). Your playing time will be much less than normal fresh alkaline
batteries.
2
POWER SOURCES
Using with Batteries
Power this player by inserting 2 size AA fresh alkaline batteries.
You can also power this CD player by connecting an optional AC adaptor.
AC Adaptor (optional)
Before you buy an AC Adaptor, please note, the only AC ADAPTOR suitable for this player
is DC 4.5V 700mA (or greater mA), with plus center polarity . Others may damage
the player. Please check voltage & current (mA) before buying an AC ADAPTOR.
BATTERY OPERATION
1. Slide the OPEN button to open the CD DOOR, then
open the BATTERY DOOR.
2. Insert 2 size AA fresh alkaline batteries as shown.
NOTE: Player will not work, and batteries will be
drained, if not inserted as shown inside the
Battery Compartment.
3. Close the BATTERY DOOR.
IB-CD96(CDM32A-60F8)-WM-E-022203.p65 11-3-03, 16:023
All manuals and user guides at all-guides.com

IB-CD96(CDM32A-60F8)-WM-E-030803

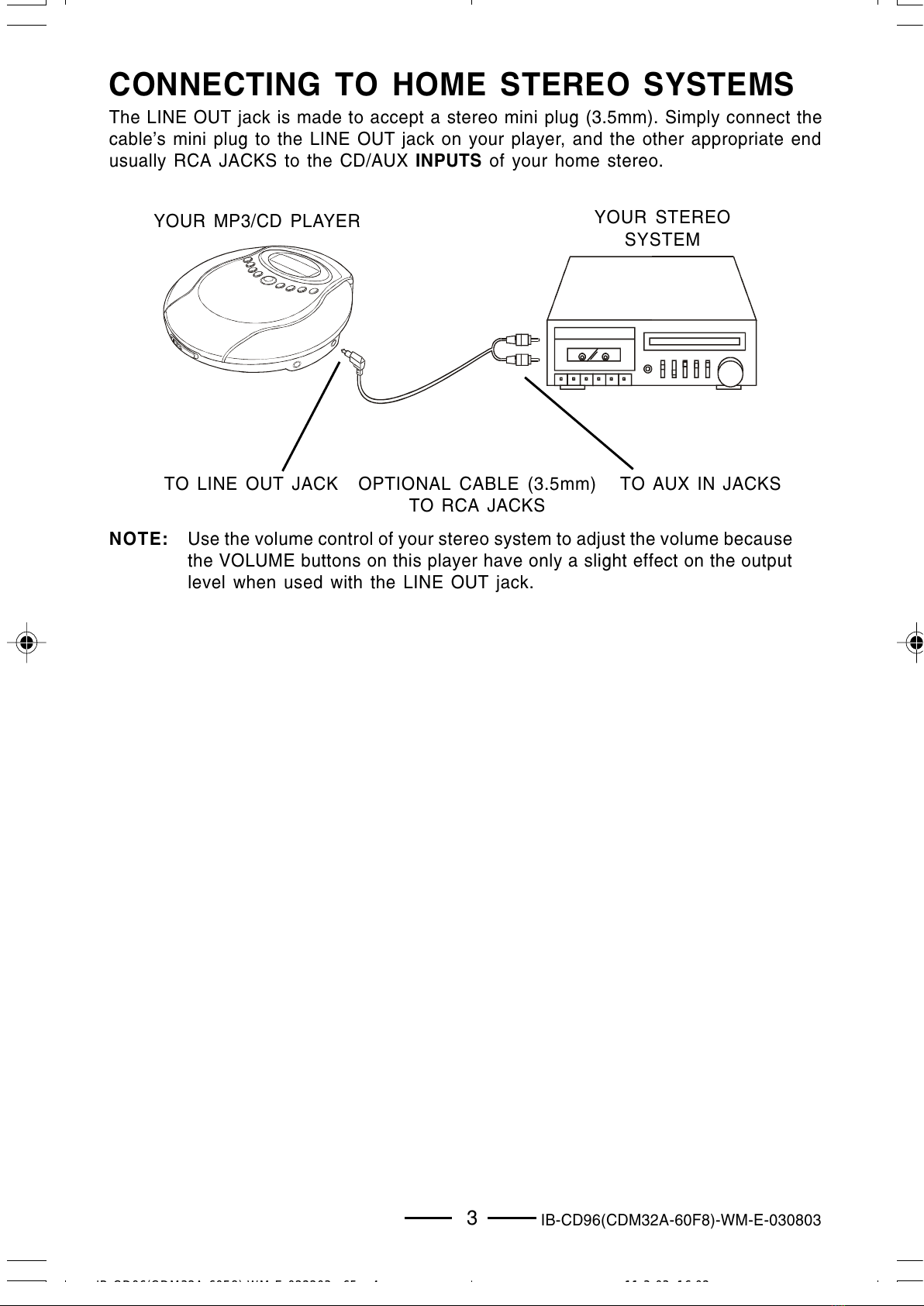

CONNECTING TO HOME STEREO SYSTEMS
The LINE OUT jack is made to accept a stereo mini plug (3.5mm). Simply connect the
cables mini plug to the LINE OUT jack on your player, and the other appropriate end
usually RCA JACKS to the CD/AUX INPUTS of your home stereo.
YOUR MP3/CD PLAYER
TO AUX IN JACKSTO LINE OUT JACK
YOUR STEREO
SYSTEM
OPTIONAL CABLE (3.5mm)
TO RCA JACKS
3
NOTE: Use the volume control of your stereo system to adjust the volume because
the VOLUME buttons on this player have only a slight effect on the output
level when used with the LINE OUT jack.
IB-CD96(CDM32A-60F8)-WM-E-022203.p65 11-3-03, 16:024
All manuals and user guides at all-guides.com

IB-CD96(CDM32A-60F8)-WM-E-030803

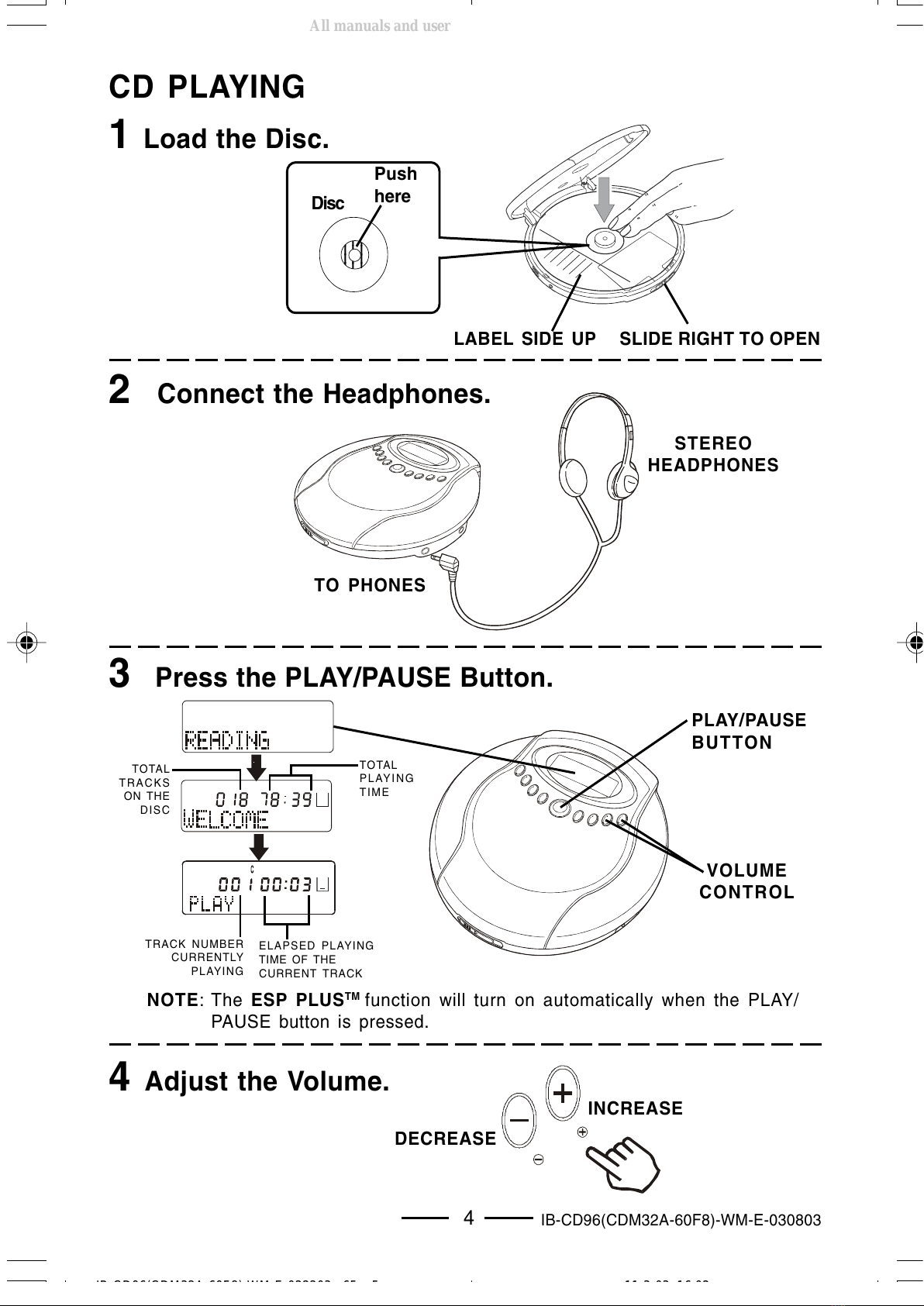

CD PLAYING
4 Adjust the Volume.
1 Load the Disc.
2 Connect the Headphones.
LABEL SIDE UP SLIDE RIGHT TO OPEN
TO PHONES
STEREO
HEADPHONES
PLAY/PAUSE
BUTTON
VOLUME
CONTROL
INCREASE
DECREASE
12345
12345
12345
12345
Push
here
Disc
TRACK NUMBER
CURRENTLY
PLAYING
ELAPSED PLAYING
TIME OF THE
CURRENT TRACK
4
NOTE: The ESP PLUSTM function will turn on automatically when the PLAY/
PAUSE button is pressed.
TOTAL
TRACKS
ON THE
DISC
TOTAL
PLAYING
TIME
3 Press the PLAY/PAUSE Button.
IB-CD96(CDM32A-60F8)-WM-E-022203.p65 11-3-03, 16:025
All manuals and user guides at all-guides.com

IB-CD96(CDM32A-60F8)-WM-E-030803

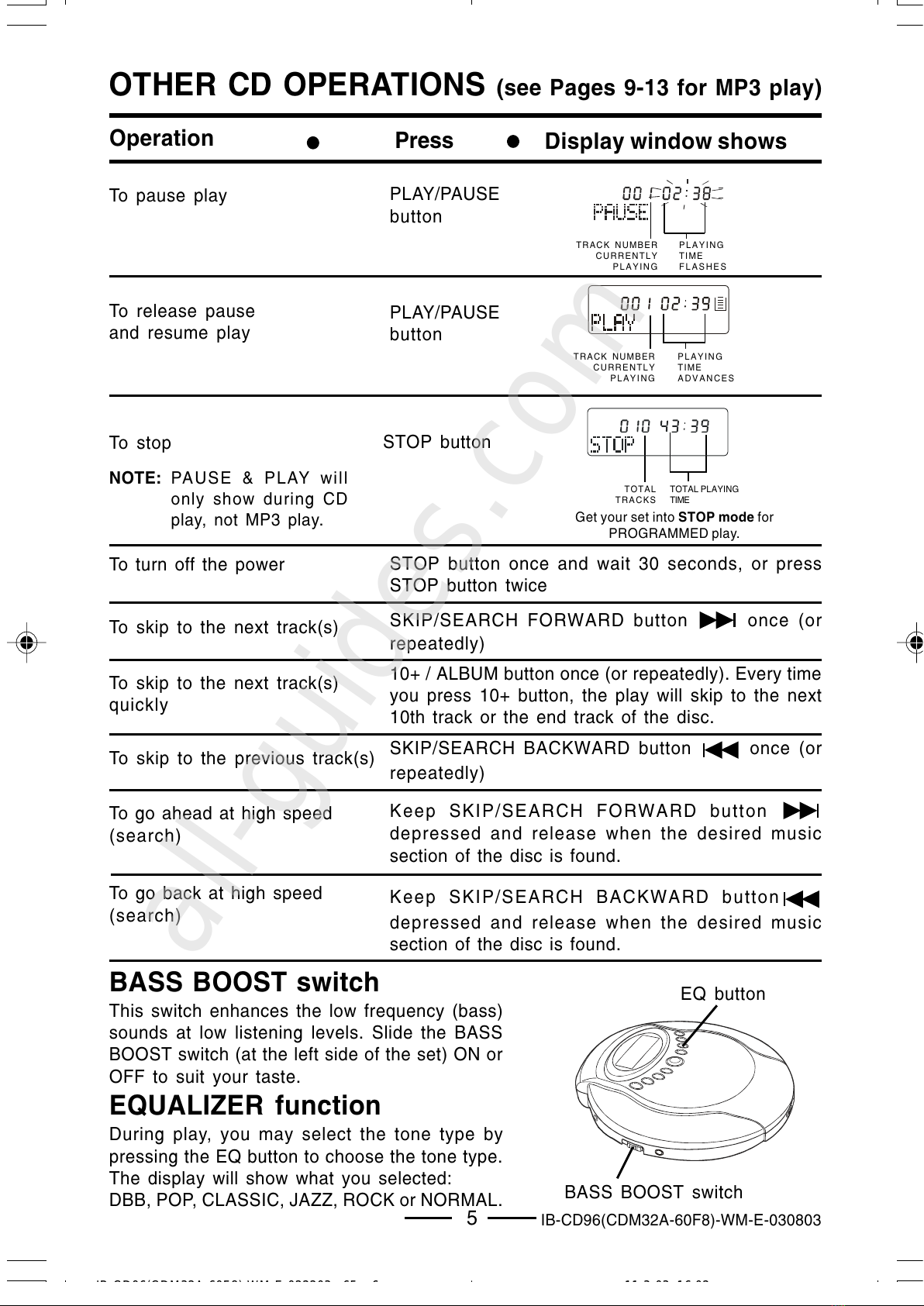

OTHER CD OPERATIONS (see Pages 9-13 for MP3 play)
Operation Press Display window shows
To pause play
To release pause
and resume play
To stop
To skip to the next track(s)
quickly
To skip to the previous track(s)
10+ / ALBUM button once (or repeatedly). Every time
you press 10+ button, the play will skip to the next
10th track or the end track of the disc.
SKIP/SEARCH BACKWARD button once (or
repeatedly)
To go ahead at high speed
(search)
Keep SKIP/SEARCH FORWARD button
depressed and release when the desired music
section of the disc is found.
To go back at high speed
(search) Keep SKIP/SEARCH BACKWARD button
depressed and release when the desired music
section of the disc is found.
BASS BOOST switch
This switch enhances the low frequency (bass)
sounds at low listening levels. Slide the BASS
BOOST switch (at the left side of the set) ON or
OFF to suit your taste.
PLAY/PAUSE
button
PLAY/PAUSE
button
STOP button
To turn off the power STOP button once and wait 30 seconds, or press
STOP button twice
BASS BOOST switch
TRACK NUMBER
CURRENTLY
PLAYING
PLAYING
TIME
FLASHES
TRACK NUMBER
CURRENTLY
PLAYING
PLAYING
TIME
ADVANCES
TOTAL
TRACKS
TOTAL PLAYING
TIME
Get your set into STOP mode for
PROGRAMMED play.
5
To skip to the next track(s) SKIP/SEARCH FORWARD button once (or
repeatedly)
EQ button
EQUALIZER function
During play, you may select the tone type by
pressing the EQ button to choose the tone type.
The display will show what you selected:
DBB, POP, CLASSIC, JAZZ, ROCK or NORMAL.
NOTE: PAUSE & PLAY will
only show during CD
play, not MP3 play.
IB-CD96(CDM32A-60F8)-WM-E-022203.p65 11-3-03, 16:026
All manuals and user guides at all-guides.com
all-guides.com

IB-CD96(CDM32A-60F8)-WM-E-030803
Single Track Repeat (REPT 1 )
Plays one song over and over till you press STOP.
During play, select the song you want to repeat with
either of the SKIP/SEARCH buttons ( or ), then
press the REPEAT button once, the symbol REPT 1
appears in the display.
The song currently playing will repeat over and over,
until you press STOP.
All Tracks Repeat ( REPT ALL )
Plays all songs in order, then repeat, till you press STOP.
During play, press the REPEAT button twice, the symbol
REPT ALL will show in the display.
All songs will keep playing in sequence 1, 2, 3, etc. and
when finished, will start all over again until you press the
STOP button.
CD REPEAT, INTRO AND RANDOM PLAY
You may enjoy repeat, intro or random play using the REPEAT button.
During play or in stop mode, press the REPEAT button several times, and the display
will show the following in turn:
Intro Play (INTRO )
This plays the first 10 seconds of all songs in sequential
order.
1. During play or in stop mode, press the REPEAT button
3 times, the word INTRO will flash in the display.
2. Press the PLAY button. The first 10 seconds of each
song on the CD will play in sequential order.
3. When you find a song you like, press the PLAY button,
normal play will be resumed, that song (and the
following songs) will play NORMALLY until you press
the STOP button.
Random Play ( SHUFF )
This shuffles the songs on the disc in a random order.
1. During play or in stop mode, press the REPEAT button
4 times, the word SHUFF will flash in the display.
2. Press the PLAY button, this will play all of the songs
in random order selected by the CD player.
3. Press the SKIP/SEARCH button to skip to the
next random song.
4. The set will play the songs in random order till you
press the STOP button.
6
REPT 1 --> REPT ALL --> INTRO --> SHUFF --> NORMAL PLAY
X 1
X 2
X 3
X 4
IB-CD96(CDM32A-60F8)-WM-E-022203.p65 11-3-03, 16:027
All manuals and user guides at all-guides.com

IB-CD96(CDM32A-60F8)-WM-E-030803
The tracks (songs) on the disc can be programmed (arranged in advance) to play in
any order you prefer (up to 20 tracks can be programmed).
Programming Example:
Program Number 12 3 4 5 6 7 8
Track Number (song number) 25 8 1 2 4 1 1
etc.
etc.
CD PROGRAM PLAY
During programming, the word PROG shows in the display. To program songs to play in
your preferred order, follow steps below:
1.Press the PROGRAM button in STOP
mode after the disc stops rotating.
The word PROG will show in the Display.
2.Press the SKIP/SEARCH button ( or
) to select track number 2 (example).
T rack number will flash in the display.
Track number
3.Press the PROGRAM button. Track 2 is
now programmed.
Program number 2 will now show in the
display, ready for your next selection of
track.
4.Repeat steps 2 and 3 to program other
tracks till you finish (up to 20 selections).
5.After programming is finished, press
the PLAY button to begin programmed
play. Music begins with PROG shown in
the display.
NOTE:
- The player will stop automatically after
all programmed tracks have been
played.
- To quit programmed play, press STOP
button twice. Then you may press PLAY
button to re-start normal play.
Your programmed memory will be
lost:
When the door is opened.
When the batteries are exhausted or
removed.
When the power is off.
Program number
7
IB-CD96(CDM32A-60F8)-WM-E-022203.p65 11-3-03, 16:028
All manuals and user guides at all-guides.com

IB-CD96(CDM32A-60F8)-WM-E-030803
This set is designed with the latest 60 second ESP PLUSTM (Electronic Skip Protection)
for CD play and 120 second for MP3 - which allows virtually unlimited gentle skip
protection above the normal shock protection.
The ESP PLUSTM function will turn on automatically when the
PLAY/PAUSE button is pressed.
When the PLAY/PAUSE button is pressed, the   (memory
basket) indicator will appear in the display, the digital data
(music) is stored in the read-ahead memory buffer before
it is decoded and played.
The ESP PLUSTM function prevents the sound from skipping by using a buffer memory
that stores music data. This new ESP PLUSTM system can store more music than
normal anti-skip systems.
ESP PLUSTM ANTI-SKIP SYSTEM
This new design allows gentle swaying of the set (as in walking) without music skipping.
This function may not work during heavy jogging.
EMPTY MEMORY
SOME MEMORY USED
FULL MEMORY
8
The   mark changes to the   mark, indicating that the
memory buffer (basket) is full.
If the set is subject to a shock or a bump during play, the
data stored in memory continues to be decoded and played.
This gives the pickup time to stabilize and continue
reading new music. As the data is used from memory, the
indicator changes from   to  . Once the pickup
returns to its original position, new data is stored in memory
and the display changes back to the   mark.
NOTE:
- The music may stop if the player receives continuous
shocking or shaking.
- You may hear noise or skipping if the DISC is dirty or
scratched.
- During ESP play, if you press SKIP/SEARCH button, or
10+ / ALBUM button, the memory basket will empty itself
temporarily in order to read ahead.
If the set is subject to repeated shocks and all the data
stored in memory is used up, the   mark is displayed
and the sound will skip or stop for a brief period until the
memory basket has time to fill up again.
ALL MEMORY USED UP
IB-CD96(CDM32A-60F8)-WM-E-022203.p65 11-3-03, 16:029
All manuals and user guides at all-guides.com

IB-CD96(CDM32A-60F8)-WM-E-030803

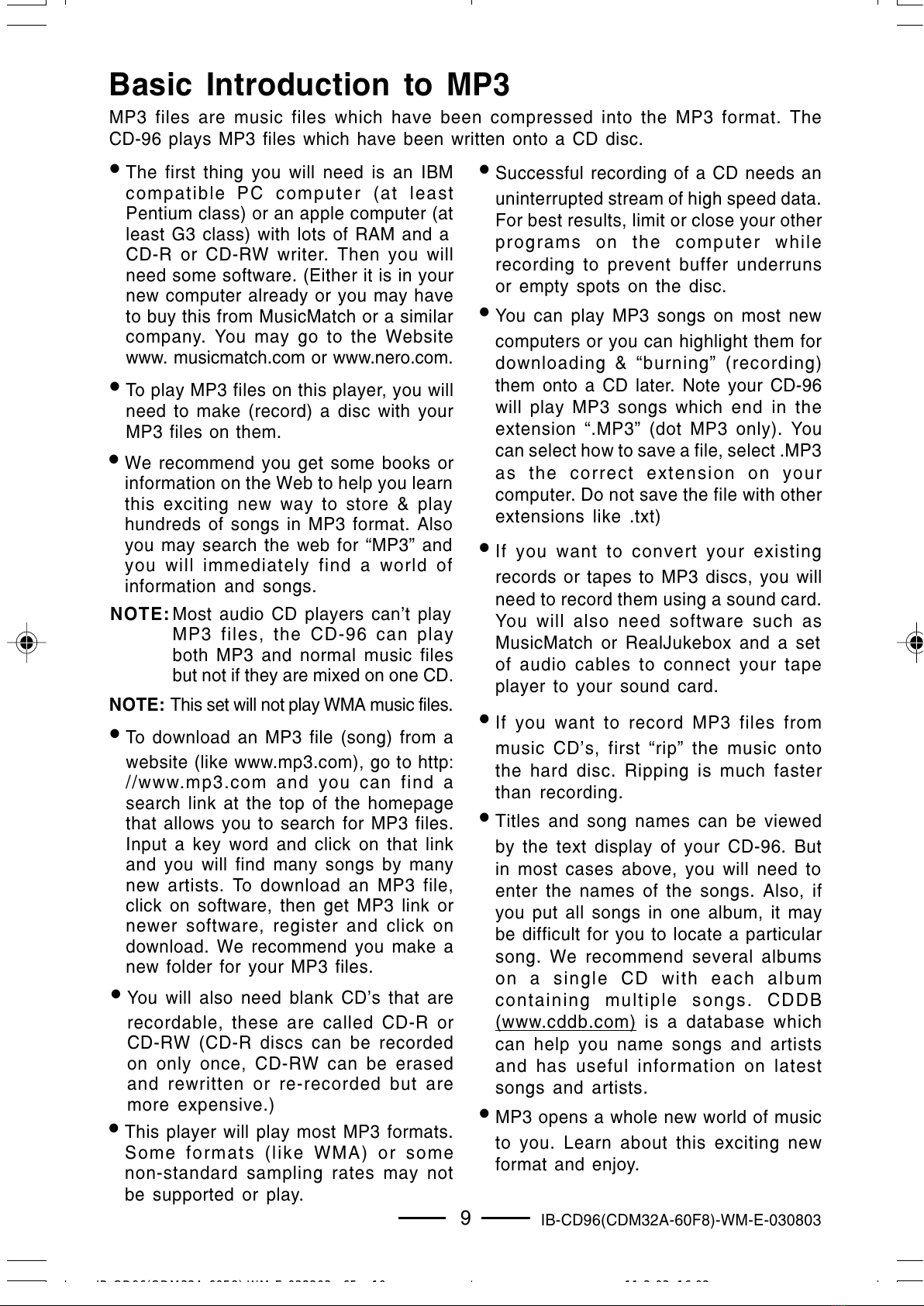

Basic Introduction to MP3
MP3 files are music files which have been compressed into the MP3 format. The
CD-96 plays MP3 files which have been written onto a CD disc.
To play MP3 files on this player, you will
need to make (record) a disc with your
MP3 files on them.
The first thing you will need is an IBM
compatible PC computer (at least
Pentium class) or an apple computer (at
least G3 class) with lots of RAM and a
CD-R or CD-RW writer. Then you will
need some software. (Either it is in your
new computer already or you may have
to buy this from MusicMatch or a similar
company. You may go to the Website
www. musicmatch.com or www.nero.com.
You will also need blank CDs that are
recordable, these are called CD-R or
CD-RW (CD-R discs can be recorded
on only once, CD-RW can be erased
and rewritten or re-recorded but are
more expensive.)
NOTE: Most audio CD players cant play
MP3 files, the CD-96 can play
both MP3 and normal music files
but not if they are mixed on one CD.
To download an MP3 file (song) from a
website (like www.mp3.com), go to http:
//www.mp3.com and you can find a
search link at the top of the homepage
that allows you to search for MP3 files.
Input a key word and click on that link
and you will find many songs by many
new artists. To download an MP3 file,
click on software, then get MP3 link or
newer software, register and click on
download. We recommend you make a
new folder for your MP3 files.
If you want to record MP3 files from
music CDs, first rip the music onto
the hard disc. Ripping is much faster
than recording.
Titles and song names can be viewed
by the text display of your CD-96. But
in most cases above, you will need to
enter the names of the songs. Also, if
you put all songs in one album, it may
be difficult for you to locate a particular
song. We recommend several albums
on a single CD with each album
containing multiple songs. CDDB
(www.cddb.com) is a database which
can help you name songs and artists
and has useful information on latest
songs and artists.
MP3 opens a whole new world of music
to you. Learn about this exciting new
format and enjoy.
Successful recording of a CD needs an
uninterrupted stream of high speed data.
For best results, limit or close your other
programs on the computer while
recording to prevent buffer underruns
or empty spots on the disc.
You can play MP3 songs on most new
computers or you can highlight them for
downloading & burning (recording)
them onto a CD later. Note your CD-96
will play MP3 songs which end in the
extension .MP3 (dot MP3 only). You
can select how to save a file, select .MP3
as the correct extension on your
computer. Do not save the file with other
extensions like .txt)
If you want to convert your existing
records or tapes to MP3 discs, you will
need to record them using a sound card.
You will also need software such as
MusicMatch or RealJukebox and a set
of audio cables to connect your tape
player to your sound card.
9
This player will play most MP3 formats.
Some formats (like WMA) or some
non-standard sampling rates may not
be supported or play.
We recommend you get some books or
information on the Web to help you learn
this exciting new way to store & play
hundreds of songs in MP3 format. Also
you may search the web for MP3 and
you will immediately find a world of
information and songs.
NOTE: This set will not play WMA music files.
IB-CD96(CDM32A-60F8)-WM-E-022203.p65 11-3-03, 16:0210
All manuals and user guides at all-guides.com

IB-CD96(CDM32A-60F8)-WM-E-030803
MP3 PLAYBACK
1 Load your pre-recorded MP3 Disc.
2 Connect the Headphones. LABEL SIDE UP SLIDE RIGHT TO OPEN
1234
1234
1234
1234
1234
Push
here
Disc
4 Adjust the Volume.
3 Press the PLAY/PAUSE Button.
PLAY/PAUSE
BUTTON
VOLUME
CONTROLs
TRACK NUMBER
CURRENTLY PLAYING
SCROLLING TITLE OF
THE CURRENT TRACK
ALBUM NUMBER
CURRENTLY PLAYING
ELAPSED PLAYING TIME
OF THE CURRENT TRACK
NOTE 1: The ESP PLUSTM function will turn on automatically when the PLAY/PAUSE
button is pressed.
NOTE 2: It may take 10 seconds to 30 seconds to fully read the disc depending on
how many titles and songs are recorded on your MP3 disc (please be patient).
NOTE 3: If your MP3 disc was not made properly, the words BAD MEDIA or BAD
DISC will show in the display.
NOTE 4: It is normal for the MP3 disc to stop rotating for a while after reading some
data during play to conserve battery power. The music will continue, just
the rotation will stop at times.
INCREASE
DECREASE
10
TO PHONES
STEREO
HEADPHONES
IB-CD96(CDM32A-60F8)-WM-E-022203.p65 11-3-03, 16:0211
All manuals and user guides at all-guides.com
all-guides.com

IB-CD96(CDM32A-60F8)-WM-E-030803
OTHER MP3 OPERATIONS
Operation Press Display window shows
To pause play
To release pause
and resume play
To stop
To skip to the next track(s)
To skip to the previous track(s)
SKIP/SEARCH FORWARD button once (or
repeatedly)
SKIP/SEARCH BACKWARD button once (or
repeatedly)
To go ahead at high speed
(search)
Keep SKIP/SEARCH FORWARD button
depressed and release when the desired music
section of the disc is found.
To change the ALBUM
Keep SKIP/SEARCH BACKWARD button
depressed and release when the desired music
section of the disc is found.
PLAY/PAUSE
button
PLAY/PAUSE
button
STOP button
To turn off the power STOP button once and wait 30 seconds, or press
STOP button twice
TOTAL TITLE TOTAL PLAYING TIME (minutes)
PLAYING TIME FLASHES
PLAYING TIME
ADVANCES
General Information
1.Usually, you must write your own MP3 disc on your computers CD writer. Or, you
may buy pre-recorded MP3 discs from on line sources.
2.When saving songs (audio files) onto your CD-R (or CD-RW), you must save them
as .MP3 (DOT MP3) files. Do not save them as .DOC, .TEXT or .PDF etc when
downloading, converting or saving files as MP3 files.
3.Do not save TEXT files as .MP3 files because they will not play and they may
interfere with the set.
4.Do not attempt to combine normal CD audio tracks and MP3 tracks onto one CD
because the set will only recognize the audio tracks and only play those.
To go back at high speed
(search)
Press and hold the ALBUM button for 2 seconds until
the album number flashes in the display, then press
SKIP/SEARCH BACKWARD button or SKIP/
SEARCH FORWARD button to choose the
album. Press PLAY to start the selected album play.
To skip to the next track(s)
quickly
10+ (ALBUM) button once (or repeatedly), every time
you press 10+ button, the play will skip to the next
10th track or the end track of the title.
11
IB-CD96(CDM32A-60F8)-WM-E-022203.p65 11-3-03, 16:0212
All manuals and user guides at all-guides.com

IB-CD96(CDM32A-60F8)-WM-E-030803
Single Track Repeat (REPT 1 )
Plays one song over and over till you press STOP.
During play, select the song you want to repeat with
either of the SKIP/SEARCH buttons ( or ), or
the 10+ / ALBUEM button, then press the REPEAT button
once, the symbol REPT 1 appears in the display.
The song currently playing will repeat over and over,
until you press STOP.
All Tracks Repeat (REPT DIR )
Repeats all single album songs in order, till you press STOP.
During play, select the title you want to repeat with either
of the SKIP/SEARCH buttons ( or ), or the 10+/
ALBUM button, then press the REPEAT button twice,
the symbol REPT DIR will show in the display.
All songs of that title or album will keep playing in
sequence 1, 2, 3, etc. and when finished, will start all
over again until you press the STOP button.
MP3 REPEAT, INTRO AND RANDOM PLAY
You may have repeat, intro or random play using the REPEAT button.
During play or in stop mode, press the REPEAT button several times, and the display
will show the followings in turn:
Random Play ( SHUFF )
This shuffles the songs on the disc in a random order.
1. During play or in stop mode, press the REPEAT button
5 times the word SHUFF will flash in the display.
2. Press the PLAY button, this will play all of the songs
in random order selected by the MP3/CD player.
3. Press the SKIP/SEARCH button to skip to the
next random song.
All Tracks Repeat (REPT ALL )
Repeats all songs in order, till you press STOP.
During play, press the REPEAT button 3 times, the
symbol REPT ALL will show in the display.
All songs on the disc will keep playing in sequence 1, 2,
3, etc. and when finished, will start all over again until
you press the STOP button.
Intro Play (INTRO )
This plays only the first 10 seconds of songs in sequential
order.
1. During play or in stop mode, press the REPEAT button
4 times, the word INTRO will flash in the display.
2. Press the PLAY button, the first 10 seconds of each
song on the disc will play in sequential order.
3. When you find a song you like, press the PLAY button.
Normal play will be resumed, that song (and the
following songs) will play NORMALLY.
12
REPT 1 --> REPT DIR --> REPT ALL --> INTRO --> SHUFF --> NORMAL PLAY
X 1
X 2
X 3
X 4
X 5
IB-CD96(CDM32A-60F8)-WM-E-022203.p65 11-3-03, 16:0213
All manuals and user guides at all-guides.com

IB-CD96(CDM32A-60F8)-WM-E-030803

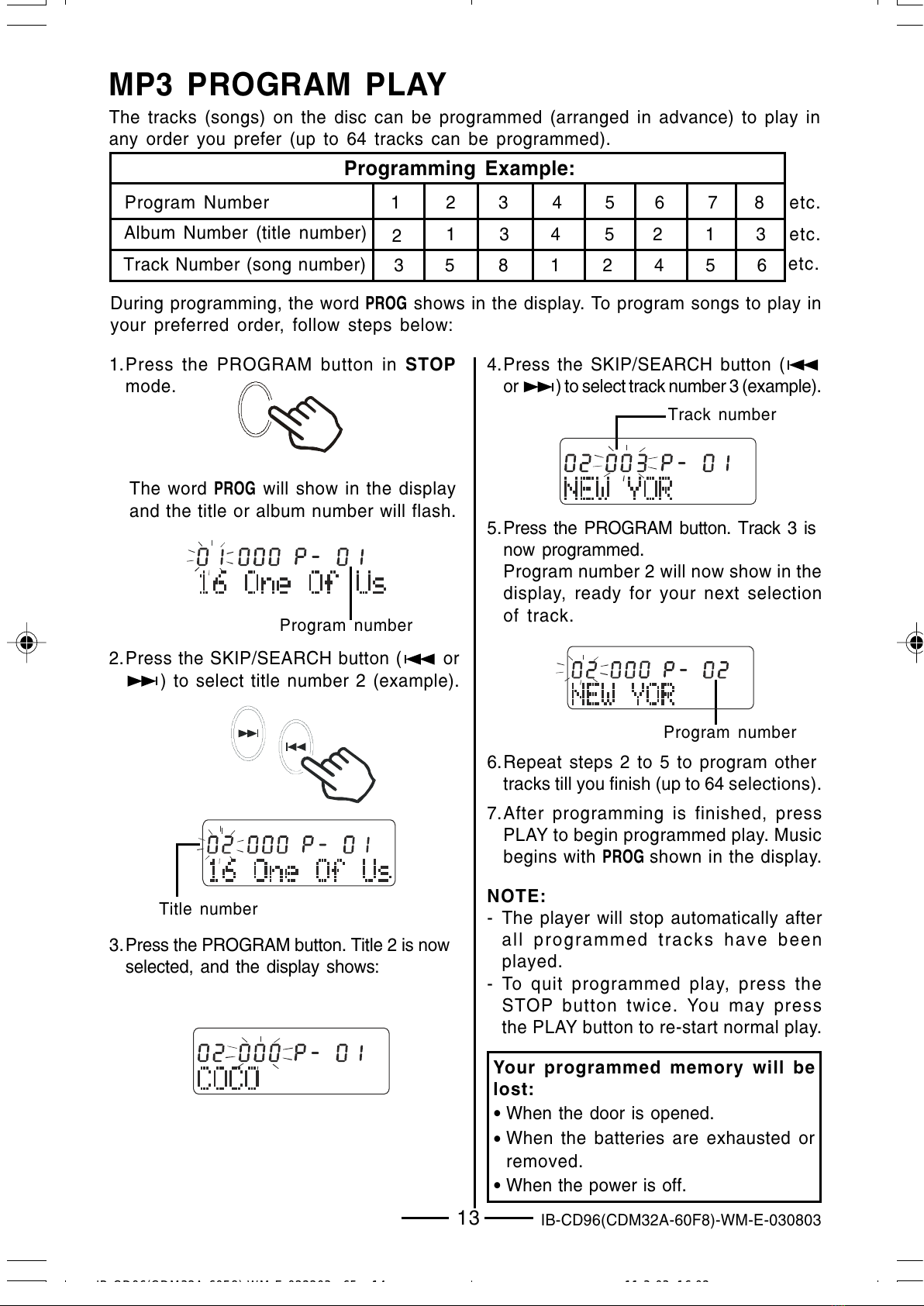

The tracks (songs) on the disc can be programmed (arranged in advance) to play in
any order you prefer (up to 64 tracks can be programmed).
MP3 PROGRAM PLAY
During programming, the word PROG shows in the display. To program songs to play in
your preferred order, follow steps below:
1.Press the PROGRAM button in STOP
mode.
The word PROG will show in the display
and the title or album number will flash.
2.Press the SKIP/SEARCH button ( or
) to select title number 2 (example).
Title number
5.Press the PROGRAM button. Track 3 is
now programmed.
Program number 2 will now show in the
display, ready for your next selection
of track.
6.Repeat steps 2 to 5 to program other
tracks till you finish (up to 64 selections).
7.After programming is finished, press
PLAY to begin programmed play. Music
begins with PROG shown in the display.
NOTE:
- The player will stop automatically after
all programmed tracks have been
played.
- To quit programmed play, press the
STOP button twice. You may press
the PLAY button to re-start normal play.
Your programmed memory will be
lost:
When the door is opened.
When the batteries are exhausted or
removed.
When the power is off.
Program number
4.Press the SKIP/SEARCH button (
or ) to select track number 3 (example).
3.Press the PROGRAM button. Title 2 is now
selected, and the display shows:
Track number
Program number
13
Programming Example:
Program Number 1 2 3 4 5 6 7 8
Track Number (song number)
1
5 8 1 2 4 5 6
etc.
etc.
etc.
2
Album Number (title number)
3
432531
IB-CD96(CDM32A-60F8)-WM-E-022203.p65 11-3-03, 16:0214
All manuals and user guides at all-guides.com

IB-CD96(CDM32A-60F8)-WM-E-030803
Cleaning the cabinet
Wipe with a soft cloth. If the cabinet is
very dirty, dampen (not dripping wet) the
cloth with a weak solution of soapy water,
and then wipe clean.
Cleaning the lens
A dirty lens will cause sound skipping. If
the lens is very dirty, the player may not
work. We suggest using a special cleaning
disk (not included) available in most music
and Hi-Fi stores. However, if you do not
have one, you may use a cotton swab
very slightly dampened with alcohol to
clean the lens.
MAINTENANCE
To remove the Disc
Open the CD DOOR by sliding the DOOR
OPEN button, hold the disc by the edge
while slightly pressing on the center
spindle as illustrated, then lift it from the
edge to release and remove.
Cleaning the Discs
Fingerprints should be carefully wiped
from the surface of disc with a soft cloth.
Unlike conventional records, compact
discs have no grooves to collect dust
and microscopic dirt, so gently wiping
them with a soft cloth should remove
most particles. Wipe in a straight
motion from the center to the edge.
Handling Compact Discs
Dirty, scratched or warped discs may
cause skipping or noise.
Handle the disc only by the edges. To
keep clean, do not touch its surface.
Never use thinner, benzine, record
cleaner or antistatic spray on a compact
disc. Such chemicals can damage its
plastic surface.
Discs should be stored in their cases
after use to avoid scratches.
Do not expose discs to direct sunlight,
high humidity, high temperatures, or
dust, etc. Prolonged exposure to
extreme temperatures can warp the disc
(such as leaving the discs in your car
during summertime).
Do not stick or write anything on either
side of disc. Sharp writing instruments, or
the inks used in some felt-tip pens, may
damage its surface.
NOTE
Always press STOP button and wait for
the disc to stop rotating before sliding the
DOOR OPEN button to remove the disc.
14
IB-CD96(CDM32A-60F8)-WM-E-022203.p65 11-3-03, 16:0215
All manuals and user guides at all-guides.com

IB-CD96(CDM32A-60F8)-WM-E-030803

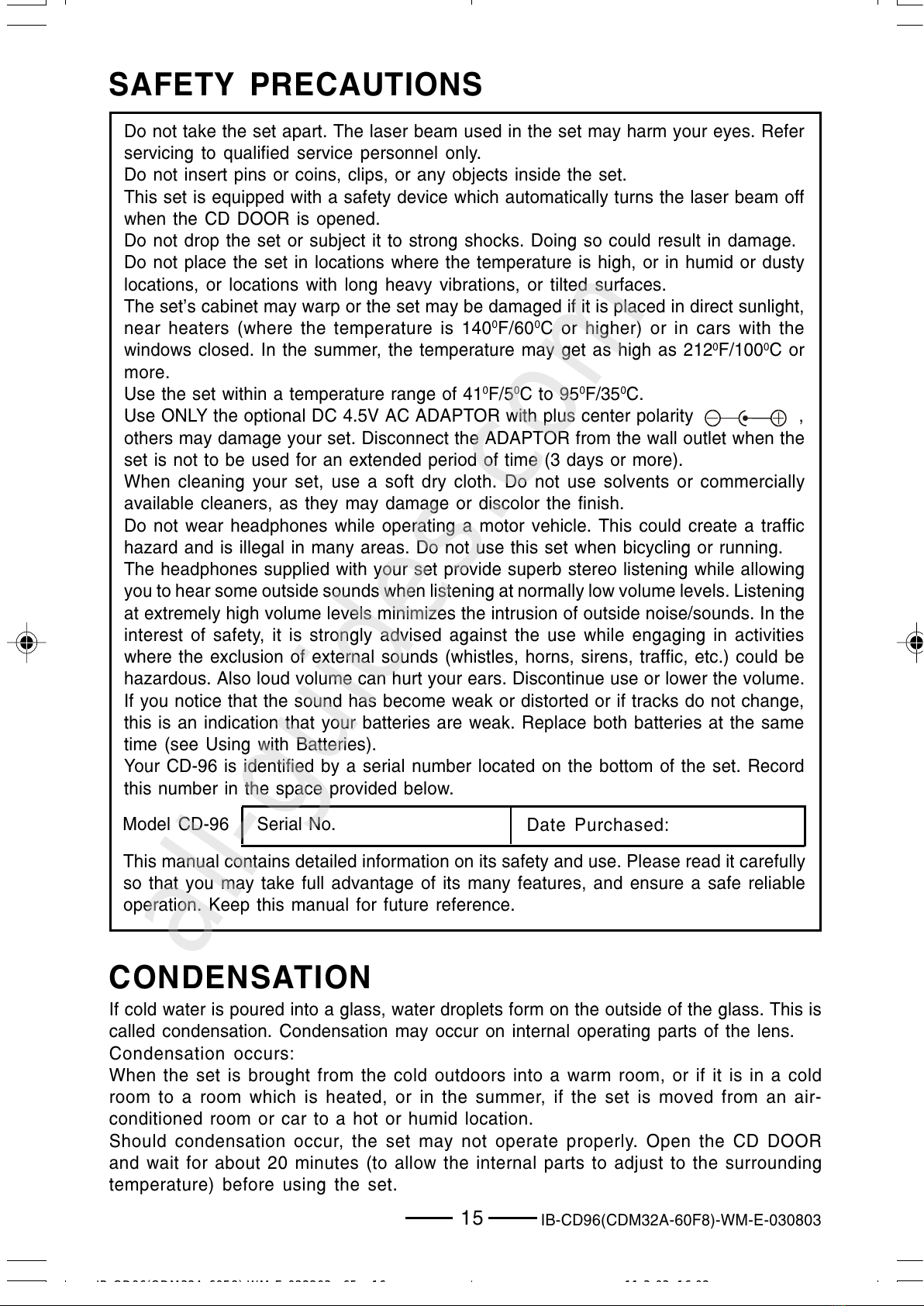

SAFETY PRECAUTIONS
Do not take the set apart. The laser beam used in the set may harm your eyes. Refer
servicing to qualified service personnel only.
Do not insert pins or coins, clips, or any objects inside the set.
This set is equipped with a safety device which automatically turns the laser beam off
when the CD DOOR is opened.
Do not drop the set or subject it to strong shocks. Doing so could result in damage.
Do not place the set in locations where the temperature is high, or in humid or dusty
locations, or locations with long heavy vibrations, or tilted surfaces.
The sets cabinet may warp or the set may be damaged if it is placed in direct sunlight,
near heaters (where the temperature is 1400F/600C or higher) or in cars with the
windows closed. In the summer, the temperature may get as high as 2120F/1000C or
more.
Use the set within a temperature range of 410F/50C to 950F/350C.
Use ONLY the optional DC 4.5V AC ADAPTOR with plus center polarity ,
others may damage your set. Disconnect the ADAPTOR from the wall outlet when the
set is not to be used for an extended period of time (3 days or more).
When cleaning your set, use a soft dry cloth. Do not use solvents or commercially
available cleaners, as they may damage or discolor the finish.
Do not wear headphones while operating a motor vehicle. This could create a traffic
hazard and is illegal in many areas. Do not use this set when bicycling or running.
The headphones supplied with your set provide superb stereo listening while allowing
you to hear some outside sounds when listening at normally low volume levels. Listening
at extremely high volume levels minimizes the intrusion of outside noise/sounds. In the
interest of safety, it is strongly advised against the use while engaging in activities
where the exclusion of external sounds (whistles, horns, sirens, traffic, etc.) could be
hazardous. Also loud volume can hurt your ears. Discontinue use or lower the volume.
If you notice that the sound has become weak or distorted or if tracks do not change,
this is an indication that your batteries are weak. Replace both batteries at the same
time (see Using with Batteries).
Your CD-96 is identified by a serial number located on the bottom of the set. Record
this number in the space provided below.
CONDENSATION
If cold water is poured into a glass, water droplets form on the outside of the glass. This is
called condensation. Condensation may occur on internal operating parts of the lens.
Condensation occurs:
When the set is brought from the cold outdoors into a warm room, or if it is in a cold
room to a room which is heated, or in the summer, if the set is moved from an air-
conditioned room or car to a hot or humid location.
Should condensation occur, the set may not operate properly. Open the CD DOOR
and wait for about 20 minutes (to allow the internal parts to adjust to the surrounding
temperature) before using the set.
This manual contains detailed information on its safety and use. Please read it carefully
so that you may take full advantage of its many features, and ensure a safe reliable
operation. Keep this manual for future reference.
Date Purchased:
Model CD-96 Serial No.
15
IB-CD96(CDM32A-60F8)-WM-E-022203.p65 11-3-03, 16:0216
All manuals and user guides at all-guides.com
all-guides.com

IB-CD96(CDM32A-60F8)-WM-E-030803
Since the CD circuitry may cause interference to other radios nearby, switch this
set off when not in use or move it away from the affected radios.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that
may cause undesirable operation.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
 Consult the dealer or an experienced radio/TV technician for help.
SAFETY CERTIFICATION
This Compact Disc Player is made and tested to meet safety standards of the FCC
requirements and comply with safety performance of the U.S. Department of Health
and Human Services, and also with FDA Radiation Performance Standards 21 CFR
Subchapter J.
IMPORTANT REQUIREMENT BY THE FCC
WARNING
To prevent fire or shock hazard, do not expose this appliance to rain or moisture.
California Proposition 65 Warning:
This product contains chemicals known to the state of California to cause cancer,
and birth defects or other reproductive harm.
Wash Hands After Handling.
LASER SAFETY
THIS SET EMPLOYS AN OPTICAL LASER BEAM SYSTEM IN THE CD MECHANISM,
DESIGNED WITH BUILT-IN SAFEGUARDS. DO NOT ATTEMPT TO DISASSEMBLE.
EXPOSURE TO THIS INVISIBLE LASER LIGHT BEAM MAY BE HARMFUL TO HUMAN
EYES. THIS IS A CLASS-1 LASER PRODUCT. USE OF ADJUSTMENTS OTHER
THAN THOSE SPECIFIED HEREIN, MAY RESULT IN HAZARDOUS LASER LIGHT
BEAM EXPOSURE. THIS COMPACT DISC PLAYER SHOULD NOT BE ADJUSTED
OR REPAIRED BY ANYONE EXCEPT QUALIFIED SERVICE PERSONNEL. THE
LASER MECHANISM IN THE SET CORRESPONDS TO THE STYLUS (NEEDLE) OF
A RECORD PLAYER. ALTHOUGH THIS PRODUCT USES A LASER PICK-UP LENS,
IT IS COMPLETELY SAFE WHEN OPERATED ACCORDING TO DIRECTIONS.
16
IB-CD96(CDM32A-60F8)-WM-E-022203.p65 11-3-03, 16:0217
All manuals and user guides at all-guides.com

IB-CD96(CDM32A-60F8)-WM-E-030803
TROUBLE SHOOTING GUIDE
Symptoms Causes Solutions
Tracks do not
change or set
does not play
normally.
Batteries are weak (they
may test OK on tester but
they are weak for MP3/CD
operation).
MP3/CD Player will
not turn on.
Dead or weak batteries.
The optional AC ADAPTOR
not connected properly.
Replace both batteries with fresh ones.
Check AC ADAPTOR connection at
AC outlet and the rear of the set.
Disc will not play.
Disc inserted incorrectly.
Defective compact disc.
CD DOOR not closed.
Moisture has formed inside
the CD deck.
Re-insert disc with label side facing up.
Try another compact disc.
Take out the disc and leave the CD
Door open for about 20 minutes to
dry the moisture condensation.
No sound from
headphones.
Re-insert headphone plug into
PHONES jack (not LINE OUT).
Increase the volume.
VOLUME control
has less function.
Headphones plugged into
LINE OUT jack.
Plug headphones into PHONES
jack. (NOT THE LINE OUT JACK)
Sound is skipping
or sound stops.
The disc or lens is dirty or
is scratched.
Strong vibrations.
Clean or replace the compact disc
or clean the lens.
BASS BOOST is ON. Slide BASS BOOST switch to OFF.
Weak batteries.
Music is too loud.
Sound is distorted.
Buttons do not
work.
Electronic or static error
caused circuitry to lock.
Remove batteries and the optional
AC ADAPTOR. Wait 15 seconds
and re-insert. Make sure batteries
are fresh or the optional AC
ADAPTOR has power.
Replace both batteries or use an
optional AC ADAPTOR.
Lower the VOLUME control.
Close the door securely.
Headphone plug not
inserted properly.
VOLUME control set to
minimum.
Weak batteries. Replace with fresh batteries or use
an optional AC ADAPTOR.
Place the player on a stable level.
Defective compact disc. Try another compact disc.
Replace both batteries with fresh
alkaline batteries. Battery life with
fresh batteries is above 8 hours
(rechargeable batteries have 1/2 of that
life).
MP3 playback
does not work or
stops.
A transfer error in the
burning process when the
MP3 was burned from a
computer.
Re-burn a fresh MP3 disc from your
computer, test it on your computer
first.
17
MP3 songs were not
recorded properly. Re-record a new MP3 disc.
IB-CD96(CDM32A-60F8)-WM-E-022203.p65 11-3-03, 16:0218
All manuals and user guides at all-guides.com

IB-CD96(CDM32A-60F8)-WM-E-030803
TECHNICAL SPECIFICATIONS
Frequency response ...............................
Sampling frequency .................................
D/A converter ..........................................
Error correction method ..........................
Pickup .....................................................
Laser output less than 44.6mw
Maximum output (stereo headphones) .....
Power Supply
AC adaptor ...........................................
DC .......................................................
Set Dimensions (approximate)
Width ....................................................
Depth ...................................................
Height ..................................................
Weight (approximate) ..............................
Because the products are subject to continuous improvement, Lenoxx reserves the
right to modify product designs and specifications without notice and without incurring
any obligation.
50Hz-15kHz +1/-2dB
44.1kHz
1-bit
CIRC
Optical 3-beam semiconductor laser
(780 nm wavelength)
General
5 1/4 
5 3/4 
5 
270g (set only)
MP3/CD Section
20mW + 20mW
4.5V, 700mA, 120V/60Hz (not included)
3V: Using 2 size AA batteries
(not included)
Laser diode material GaAIAs
18
NOTE: CD-R/CD-RW disc playing capability of this CD/MP3 player may vary
depending on quality of media CD-Burner and application software.
IB-CD96(CDM32A-60F8)-WM-E-022203.p65 11-3-03, 16:0219
All manuals and user guides at all-guides.com

IB-CD96(CDM32A-60F8)-WM-E-030803
© 2003 LENOXX ELECTRONICS CORP.
2 GERMAK DRIVE
CARTERET, N.J. 07008
MADE & PRINTED IN CHINA
For customer service Dial: 1-800-315-5885
(MONDAY - THURSDAY 9:00 AM - 5:00 PM, FRIDAY 9:00 AM - 1:00 PM EST)
http://www.lenoxx.com

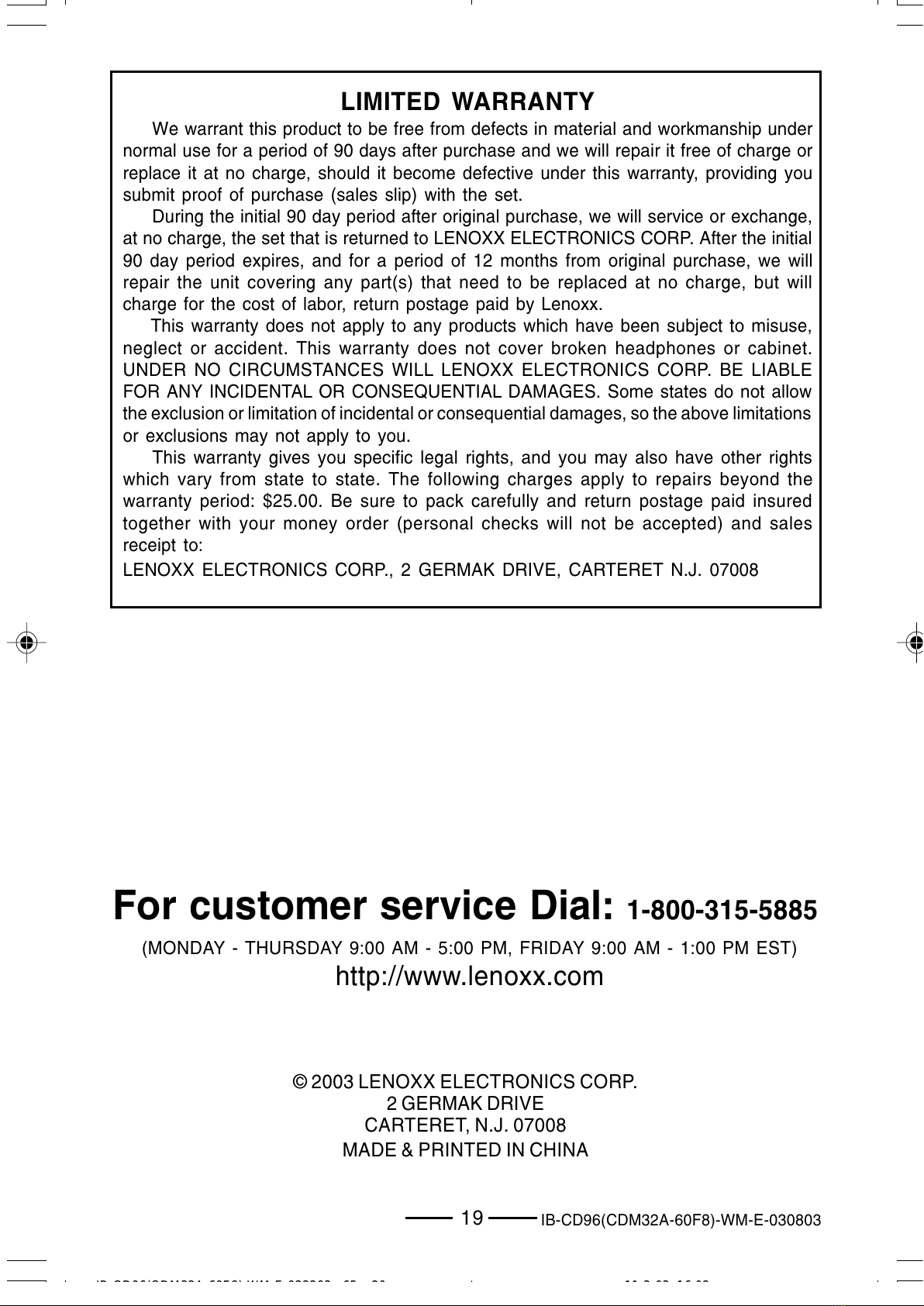

LIMITED WARRANTY
We warrant this product to be free from defects in material and workmanship under
normal use for a period of 90 days after purchase and we will repair it free of charge or
replace it at no charge, should it become defective under this warranty, providing you
submit proof of purchase (sales slip) with the set.
During the initial 90 day period after original purchase, we will service or exchange,
at no charge, the set that is returned to LENOXX ELECTRONICS CORP. After the initial
90 day period expires, and for a period of 12 months from original purchase, we will
repair the unit covering any part(s) that need to be replaced at no charge, but will
charge for the cost of labor, return postage paid by Lenoxx.
This warranty does not apply to any products which have been subject to misuse,
neglect or accident. This warranty does not cover broken headphones or cabinet.
UNDER NO CIRCUMSTANCES WILL LENOXX ELECTRONICS CORP. BE LIABLE
FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do not allow
the exclusion or limitation of incidental or consequential damages, so the above limitations
or exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights
which vary from state to state. The following charges apply to repairs beyond the
warranty period: $25.00. Be sure to pack carefully and return postage paid insured
together with your money order (personal checks will not be accepted) and sales
receipt to:
LENOXX ELECTRONICS CORP., 2 GERMAK DRIVE, CARTERET N.J. 07008
19
IB-CD96(CDM32A-60F8)-WM-E-022203.p65 11-3-03, 16:0220
All manuals and user guides at all-guides.com
