INSTRUCTION MANUAL

Read the ENTIRE instruction manual to become familiar with the features of the productWARNING:
operating. Failure to operate the product correctly can result in damage to the product, personalbefore
property and cause serious injury.
This is a sophisticated hobby product and NOT a toy. It must be operated with caution and common sense
and requires some basic mechanical ability. Failure to operate this Product in a safe and responsible manner
could result in injury or damage to the product or other property. This product is not intended for use by
children without direct adult supervision.
This manual contains instructions for safety, operation and maintenance. It is essential to read and follow
all the instructions and warnings in this manual prior to assembly, setup, or use, in order to operate
correctly
and avoid damage or serious injury.
!
Safety Precautions and Warnings
As the user of this product, you are solely responsible for operating in a manner that does not endanger
yourself and others or result in damage to the product or the property of others. This model is controlled
by a radio signal subject to interference from many sources outside your control. This interference can
cause momentary loss of control so it is advisable to always keep a safe distance in all directions around
your model, as this margin will help avoid collisions or injury.
Age Recommendation: Not for children under 14years. This is not a toy.
• Never operate your model with low transmitter batteries.
•Always operate your model in an open area away from cars, traffic or people.
• Avoid operating your model in the street where injury or damage can occur.
• Never operate the model in the street or in populated areas for any reason.
• Carefully follow the directions and warnings for this and any optional support equipment (chargers,
rechargeable battery packs, etc.) you use.
• Keep all chemicals, small parts and anything electrical out of the reach of children.
• Moisture causes damage to electronics. Avoid water exposure to all equipment not specifically designed
• Never lick or place any portion of your model in your mouth as it could cause serious injury or even death.
and protected for this purpose.
WARNING!

TABLE OF CONTENTS
Kit contents
The spare parts list
Spare parts list content
The illustration of the spare parts
Charging the Flight Battery
Low Voltage Cutoff
Assemble the plane
Install the control horn
Connect the Y harness to the main wing
Install the Horizontal stabilizer
Test the electric device
Band the receiver to the transmitter
Install the receiver
Install the battery
Hook on the linkage rod of the stabilizer
Test the stabilizer control servos
Install the main wing
Install the control rod
Test the retract and the LED set
Install the auxiliary parts
Mount the main wing
Get your model ready to fly
Important ESC and model information
The transmitter and model set up
Check the control throws
Install the propeller set
Install the antenna mast
Check the C.G. (Center of Gravity)
Before the model flying
Find a suitable flying site
Perform the range check of your plane
Monitor your flight time
Flying course
Take off
Flying
Landing
Maintenance
Troubleshooting
AMA
1
1
3
3
4
7
11
14
21
22
23
24

Replacement parts for the Durafly Spitfire are available using the order numbers
in the Spare parts list that follows. The fastest, most economical service can be provided
by your hobby dealer or mail-order company.
101 Fuselage ( With all the plastic parts and rudder installed)
102 Main wing ( With the control horn in stored)
103 Horizontal stabilizer ( With the elevator joiner installed)
104 Wing fairing set
105 Battery hatch cover
106 Under wing radiator set
107 Air scoop ( With the plastic lip installed)
108 Spinner

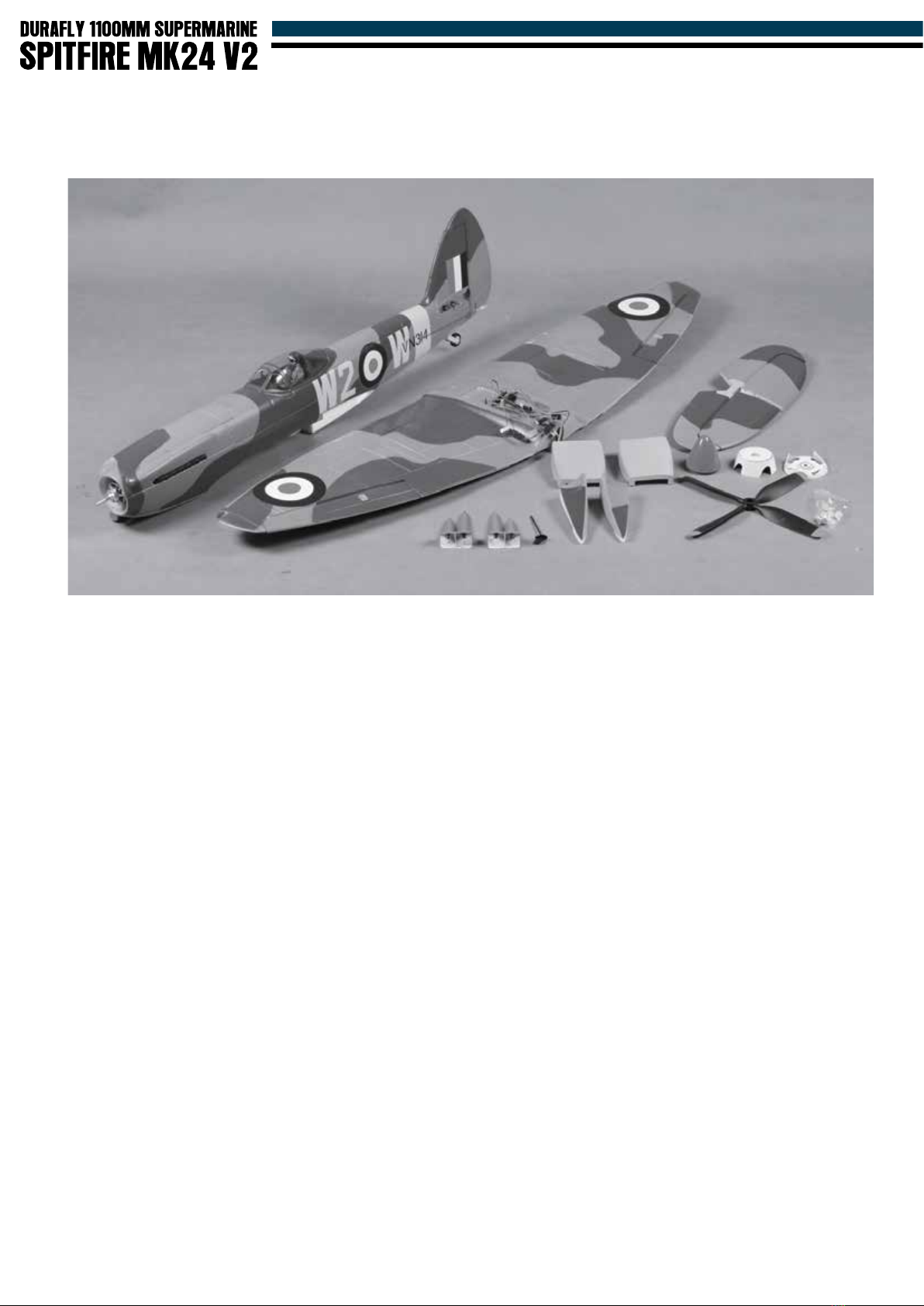

1. The fuselage assembly (With the motor, the canopy, the electronic parts, ESC)
2. Main wing ( With all electric device installed)
3. Horizontal stabilizer with elevator joiner installed
4. Under wing radiator (2 PCS)
5. Air scoop
5. Propeller, spinner set, cannon set and the antenna mast
6. Spare parts bag
7. Wing fairing
Kit contents
The Spare parts list
Spare Parts list content
109 Propeller
110 Motor board
111 Cannon set
Kit contents
P. 1

112 Antenna mast
113 Canopy (Plastic canopy)
114 Motor shaft
115 XMotor base
116 Rear landing gear (With the tire)
117 Main landing gear strut (With the fairings and the tires)
118 Main landing gear system (E-retract with the strut and the tires)
119 E-retract
120 Decal sheet
Note: All of the parts are painted with no decal applied.
101
105
109
113
117
102
106
110
114
118
103
107
111
115
119
104
108
112
116
120
The illustration of the spare parts
P. 2

When a Li-Po is discharged below 3V per cell, it will not hold a charge. The ESC protects
the flight battery from over-discharge using Low Voltage Cutoff. Before the battery charge
decreases too much, LVC removes power from motor in two ways: (1) Reduces power -
ESC reduces motor power (recommended), (2) Hard cutoff - ESC instantly cuts motor
power when the pre-set Low Voltage Protection Threshold value is reached. These
settings can be changed using the ESC programing guide.
Charing the Flight Battery
Low voltage cut off (LVC)
All instructions and warnings must be followed exactly. Mishandling of Li-Po
batteries can result in fire, personal injury, or property damage.
Battery warning:
By handling, charging or using the included Li-Po battery
you assume all risks associated with lithium batteries.
If at any time the batteries begin to swell, or balloon, discontinue use immediately!
Charging or discharging a swelling or ballooning battery can result in fire.
Always store the batteries at room temperature in a dry area to extend the life of
the battery. Always transport or temporarily store the battery in a temperature range
o
40-120 F. Do not store battery or model in a car or in direct sunlight. If stored in
the battery can be damaged or even catch fire.
Never use a Ni-Mh charger. Failure to charge the battery with a compatible charger
cause fire resulting in personal injury and property damage.
Never discharge Li-Po cells to below 3V.
Never leave charging batteries unattended.
Never charge damaged batteries.
Caution:
The Battery Charger is designed to safely charge the Li-Po battery,
Charging the flight battery
When charging the battery, make certain the battery is on a heat-resistent surface, charge
the battery before assembly of the airplane. Install the fully charged battery to perform
control tests and binding.
a hot car,
of
may
P. 3

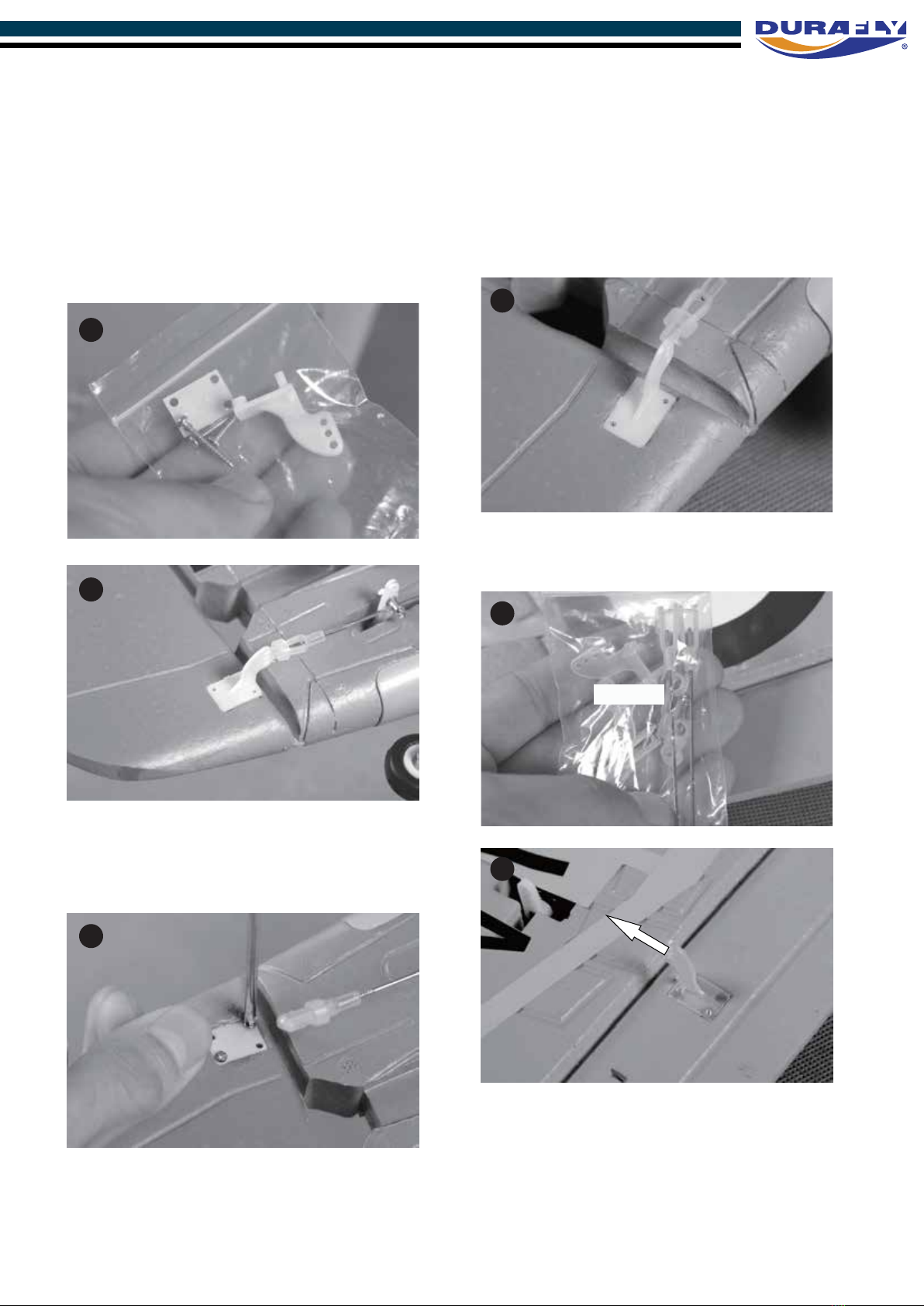

1.
starboard of the rudder with it toward the
hinge line.
Attached the control horn to the 3. Check to make sure the screws are firmly
grabbed into the horns.
2. Secure the horn from the backplate side
using the provided screws.
Note: The longer screws always locate on the
leading edge side of all the control surface.
4. Install the aileron control horn on the
servo side of the main wing with the horn
towards the hinge line as the picture shows.
Assemble the plane
Install the Control horn
1.1
1.2
1.3
3
4.1
4.2
Alieron
P. 4

1. Attach the flap control horn on the servo
side of the main wing with the horn
towards the hinge line.
2. Open the split flap and secure the horn
from the upside of the flap.
Note: No backplate used in this step or
it will stop the flap from fully retract.
3. Connect the wing leads to the harness the
first. Two ailerons servo to the Y harness
labeled AILE (CH1), main landing gears
to the harness with GEAR (CH5), two
LED leads and the flaps to the four way
harness labeled FLAP(CH6). Secure the
connector using the tape.
Assemble the plane
Install Control horn Connect the Y harness to the main wing
1.1
2.1
2
3.1
3.2
3.3
Alierons
Gears
Flaps/LED
Flaps
P. 5

1. Insert the post side half stabilizer fully
into place with the camouflage side face up,
make sure insert the round bar into the
glass fiber socket, the plastic bar with
the eyelet into the square socket on the
stabilizer root.
2. Insert the starboard stabilizer half
into the tail mounting slot the same with
the port side half.
Note: Make sure the elevator connector
interlock to each other before fully slides
the star board stabilizer half into place.
3. Turn over the plane so the bottom of the
plane face up and secure the stabilizer
halves using the provided screws.
(Screws: PA2.6*10 2PCS)
4. Secure the elevator connector halves
together from bottom side of the elevator
using one piece of self tapping screw.
(Screw: PA2.0*8)
Install the Horizontal stabilizer
Assemble the plane
1.1
1.2
2.1
2.2
3
4
P. 6

2. Disconnect the battery from the ESC
after the binding process completed. Turn
off the transmitter and remove the bind
plug as necessary. Plug the elevator and
the rudder servos to the receiver.
1. Remove the battery hatch cover by rising
the band on the rear end of the cover, the
cover is attached into place by four pieces
of magnets on the rear and the foam nose
in front.
1.
with your transmitter. Please refer to your
Transmitter Manual for proper operation.
CAUTION: To prevent personal injury,
DO NOT install the propeller assembly
onto the motor shaft while binding the
receiver to your transmitter and in all the
testing steps until the manual tell you to
do it .
Before getting started, bind your receiver
4. Attach the receiver to the receiver chamber
at the end of the battery hatch using double
side tape or velcro tape
3.
Note: All servo and retract leads have
been specifically labeled for your convenience.
Use the provided Y-harness for situations
where two or three servos are controlled by
one channel; for example ailerons, landing
gear, and flaps. Refer to the diagram bellow
for recommended connections.
Receiver connection diagram.
ReceiverY-harness
Aileron
Aileron
Channel-1
Aile
Elevator Channel-2
Ele
Throttle Channel-3
Thro
Rudder
Steering Channel-4
Rudd
Landing Gear
Landing Gear
Channel-5
Gear
Flap
LED
Flap
LED
Channel-6
Aux1
Bind the receiver to the transmitter
Install the receiver
1
2
4
Test the electric device
P. 7

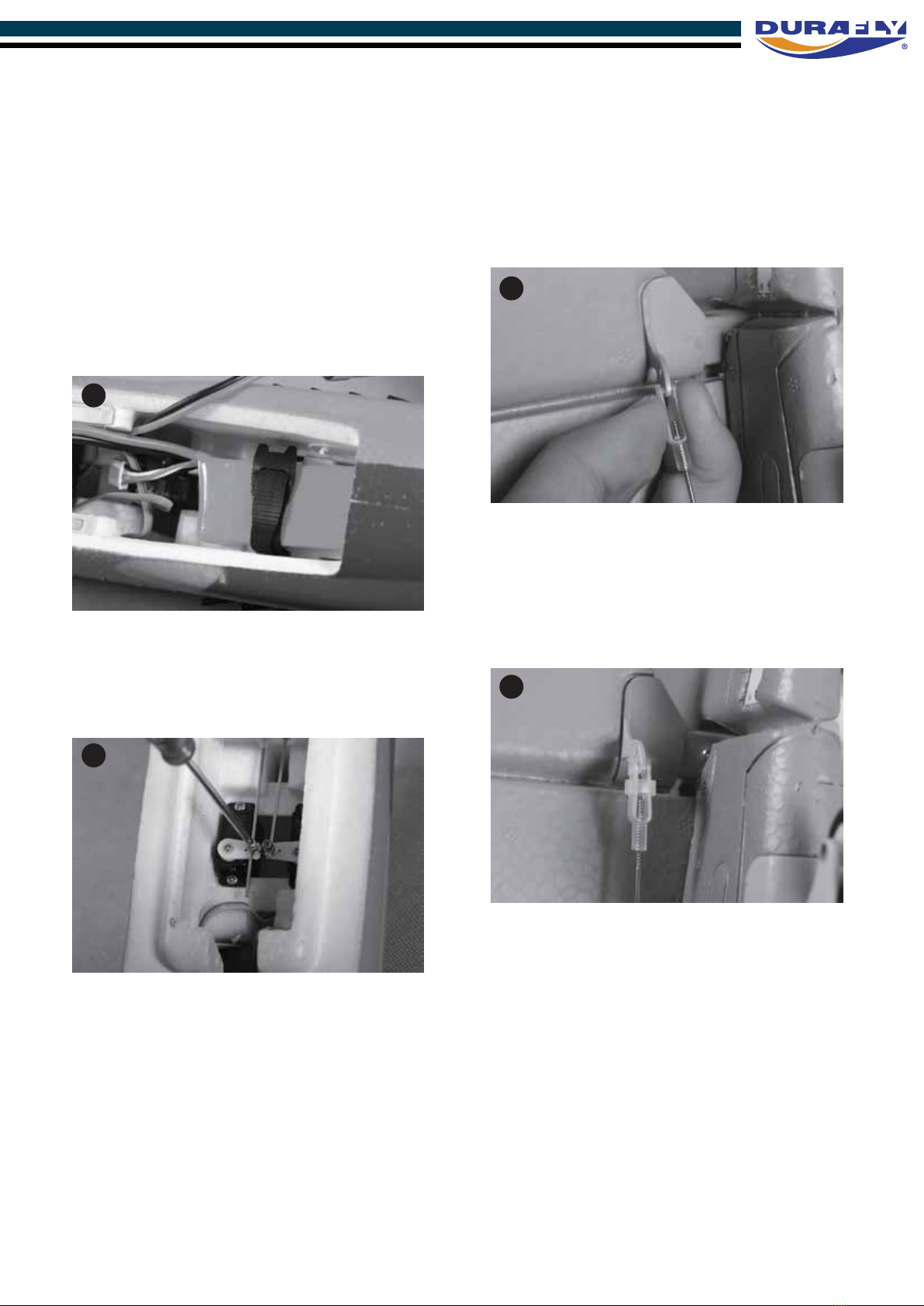

1. Loose the screws on the control connector
which holding the rod into place.
1. Slide the battery into the battery hatch
with the power supply cable toward the
rear end of the plane and secure it using
the pre installed hook and loop tape.
Note: You may need to relocate the battery
position to achieve the correct CG for
your model.
2. Snap the clevis into the elevator surface
control horn.

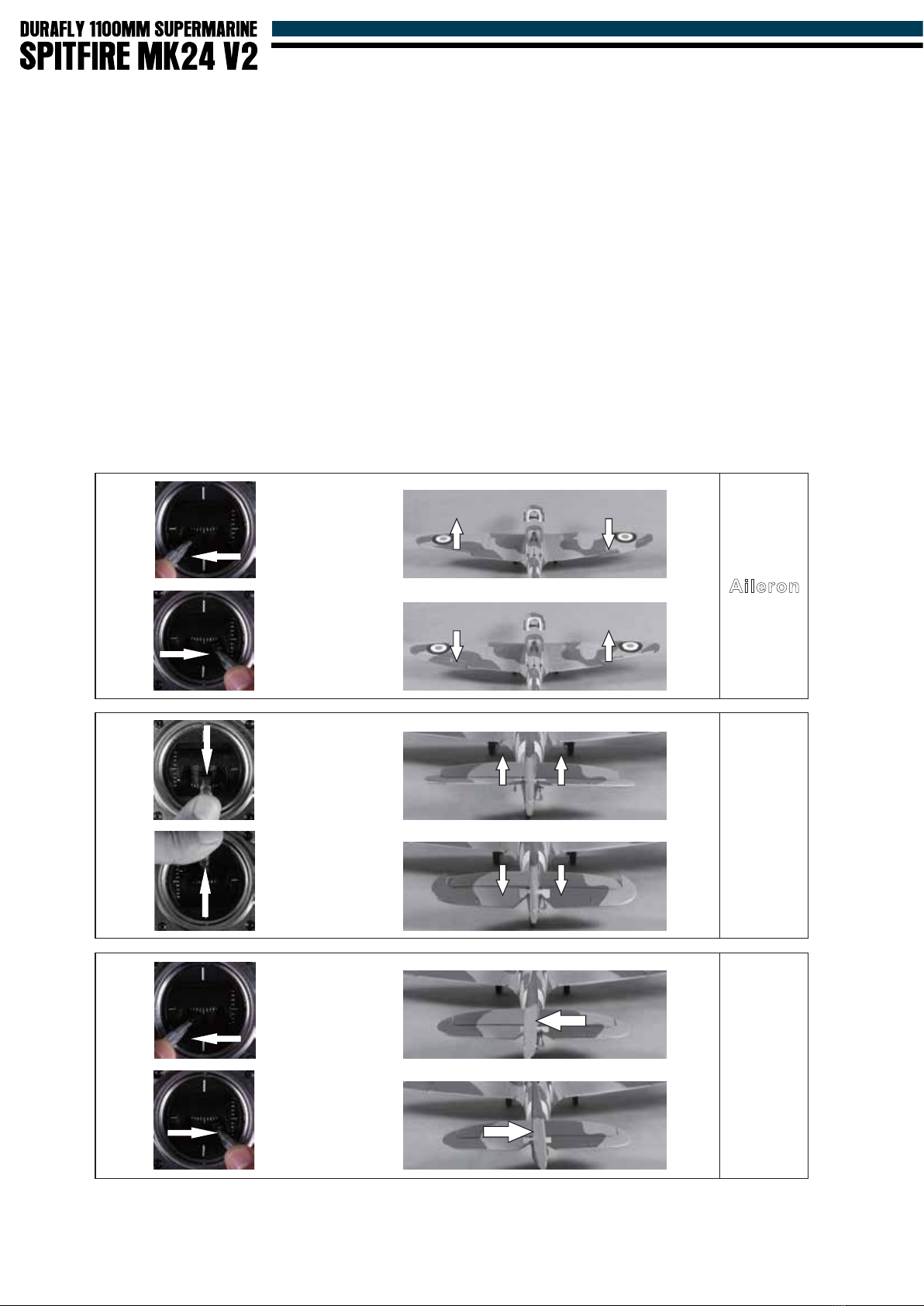

1. Make sure all the control sticks on
your radio are in the neutral position(rudder,
elevator, ailerons) and the throttle in the
OFF position.
move the elevator and
the rudder on the transmitter to make sure
aircraft control surface move correctly. If
controls respond in the opposite direction,
reverse the direction for operation of flight
controls.
Turn on the transmitter and
power on the model,
3. The provided piece of fuel tubing keeps
the clevis closed during flight. Secure all
the linkages the same way.
Note: Do not over slide the securing
tube or it will impede the movement
of the surface control horn. Install all
of the linkages the same way.
4. Repeat the step 2&3 for the all the other
linkage hooking.
Test the electric device
Install the receiver
Hook on the linkage rod of the stabilizer
Test the stabilizer control servos
1
1
3
2
P. 8

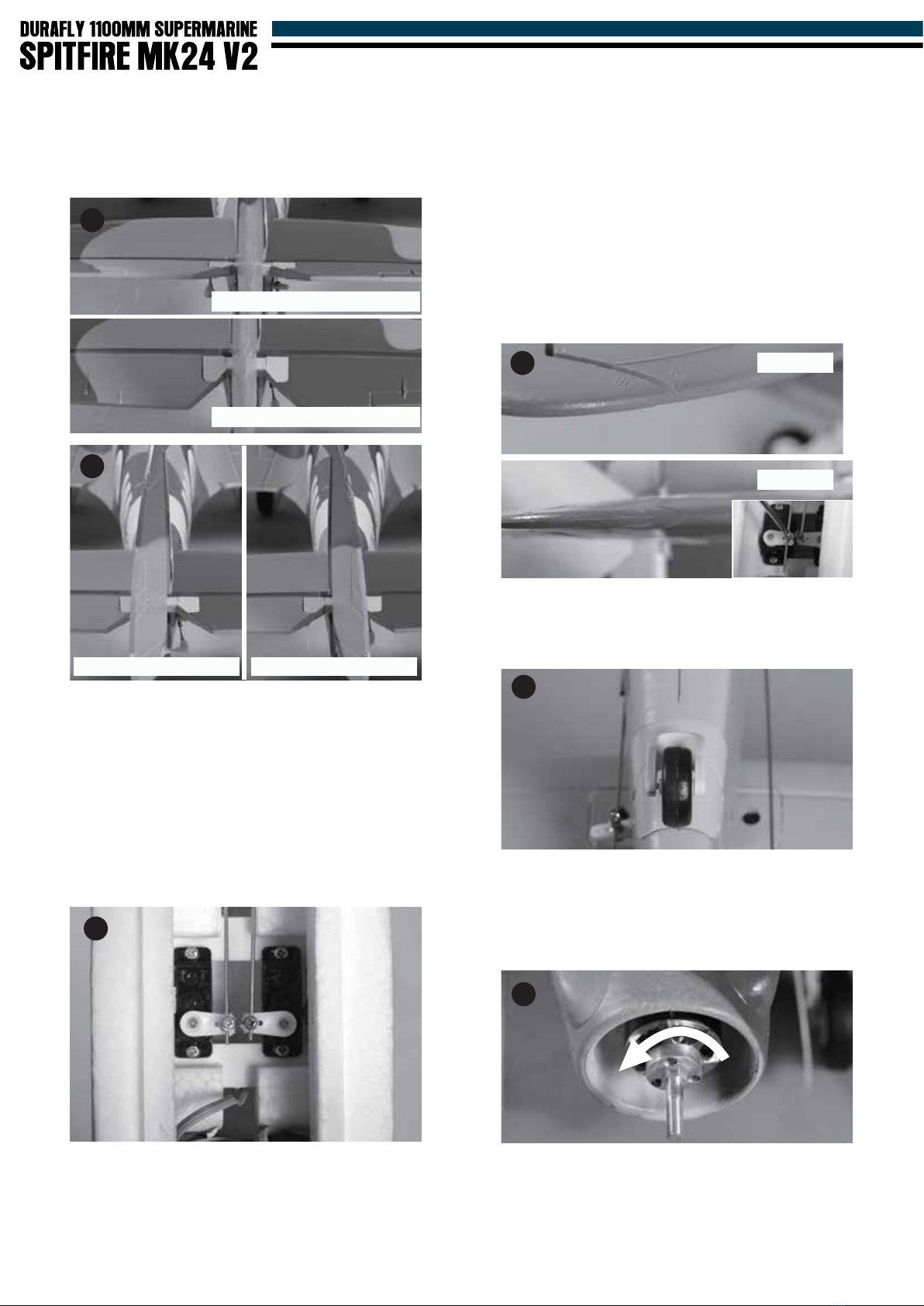

3. Adjust the linkage in the control connector
to make sure the counterbalance leading
edge of the elevator and the rudder level
with the leading edge of the horizon stabilizer
and the vertical fin respectively.
Note: Use a drop of thread lock on the screw
before secure the rod into place.
2.
neutral position, for computerized transmitters,
use the servo/channel sub-trim feature to make
each servo arm fully vertical.
Note: Make sure the trims and the sub trims in
neutral position before making some mechanically
trim. ake
sure all servo arms are as fully vertical with the
servo case as possible. If not, adjust the servo
arm by using the trim function on your radio.
Adjust the servo arms mechanically m
Make sure all the control surface trim in
4. Adjust the control connector on the rear
landing gear steering arm to make sure
the wheel align with the centerline of the
fuselage.
5. The motor should rotate counterclockwise
when viewing the plane from the front.
Or you will have to disconnect any two of
the motor plugs and plug them back to
each other’s socket.
Test the electric device
1.2
1.1
2
5
4
3.1
Rudder
Elevator
Elevator up/Stick Down
Elevator down/Stick up
Ruder left / Stick left Rudder right / Stick right
P. 9

2. Make sure the aileron servo horns are fully
vertical with the servo case and stick Input
the aileron to make sure the servos functions
well. Put the Z-bend end of the linkage into
the desired servo control horn hole of the
main-wing. It is a tight fit and should allow the
linkage to move just slightly within the
hole to avoid binding up. Hook on the clevis
the same with the stabilizer.
1. The standard hole settings for linkage
connections are shown by the black arrows
in the diagram below. You can refer the
recommended control threw setting to
move the linkage to different hole positions
to increase control surface travel and increase
the aerobatics of the airplane.
Increase
Decrease
Decrease
Increase
Servo arm Control horn
Flap servo
in down
position
Flap servo
in up position
3. Toggle switch the flaps channel knob
according to which AUX port that the Y
harness you have inserted into the receiver.
Note: To avoid the “buzz” sound from the
flap servos, install either the flaps linkage
while the servo arm in up position. And
make sure the trailing edge of the flaps
level with the wing root.
4. Thread the folks on the linkage rod clockwise
and counterclockwise to make sure the
spilt flaps are fully seat into the flap bay
when the folk closed.
Install the main wing
Install the control rod
2
3.2
4
3.1
P.10

1. Cycle the retractable main landing
gears several times to ensure proper
function.
1. Fit one of the underwing radiator into
pre notched slot under the main wing.
The small notch on both flanks of the
radiator will let the wire cluster running
freely through. If not you have to fit the
other one.
Note: No glue applied in this step.
2. Make sure the navigation light on port
side(L) wing tip emitting red beams, the
starboard(R) is green.
2. Apply glue to the radiator where it fits
with the main wing using the glue brush
or any other applicator.
3. Fit on of the cannon set into the notch on
the leading edge of the main wing with the
shorter cannon located on the wing tip
side. It will fit perfectly with the notch with
no gap between the cannon and the notch
edge, or you have to fit the other one.
Install the main wing
Test the retract and the LED set
Install the auxiliary part
2
1
2
1
3
L R
P. 11

4. Verify the completed cannon installation.
5. Glue the air scoop into place.
1. Install the main wing fairing fillet by fitting
the proper one into place with no glue applied
the first.
2. Glue the fairing back into place.
Install the main wing
Mount the main wing
5
4
1.1
2.1
1.2
2.2
P.12

1. Seat wing to the wing bay by threading
the leads from the hole at the bottom of
the wing bay to the receiver hatch,
2. Slightly pull the leads from the receiver
hatch before fully fit the main wing into
place to avoid any tangling to prevent the
wing from fully mounting.
3. Check to make sure the main wing before
secure it into place using the provided
self tapping screws, two pieces (A)
to hold the wing front into place. The
PA 2.6*45 pieces are used to secure the
rear side of the wing into place.
PA 2.6*50
Mount the main wing
Install the main wing
2
1
3
AB
P.13

1.
r emit
2.
3.
We recommend the 11.1V 2200mAh 25C(180g/6.3oz)
Li-Po battery. If using another battery, the battery must be at least a 11.1V 2200mAh 25C
battery. Your battery should be approximately the same capacity ,dimension and
weight as the 11.1V 2200mAh 25C Li-Po battery to fit in the fuselage without changing
the center of gravity significantly.
5. The specification of the model list as fellow:
The ESC included with the Spitfire has a safe start. If the motor battery is connected to
the ESC and the throttle stick is not in the low throttle or off position, the motor will not
start until the throttle stick is moved to the low throttle or off position. Once the throttle
stick is moved to the low throttle o off position, the motor will a series of beeps.
Several beeps with the same tune means the ESC has detect the cells of the battery.
The count of the beeps equal the cells of the battery. The motor is now armed and will
start when the throttle is moved.
The motor and ESC come pre-connected and the motor rotation should be correct.
If for any reason the motor is rotating in the wrong direction, simply reverse two of the
three motor wires to change the direction of rotation.
The motor has an optional brake setting. The ESC comes with the brake switched off
and we recommended that the Spitfire be flown with the brake off . However, the brake
could be accidentally switched on if the motor battery is connected to the ESC while the
throttle stick is set at full throttle. To switch the brake off, move the throttle stick to full
throttle and plug in the motor battery. The motor will beep Move the throttle
stick to low throttle or the off position. The motor is ready to run and the brake will be
switched off.
one time.
4. Battery Selection and Installation.
Wing span: 1100mm/43.8in
Length: 970mm/38.6in
Motor : 3536-KV750
ESC : 35A with integrated 3A BEC
Battery : 11.1V 2200mAh 25C
Servo : 9g*6
Approx flying weight: 1200g
Propeller: 10*8 four blades scale propeller
2
Wing area: 21.9dm
2
Wing loading: 54.5 g/dm
Get your model ready to fly
Important ESC and model information
P.14

Before getting started, rebind your receiver with your transmitter if necessary.
: To prevent personal injury, DO NOT install the propeller assembly onto the
motor shaft while testing the control surfaces .
CAUTION
Tips:
elevator, ailerons) and the throttle in the OFF position. Make sure both ailerons
move up and down (travel) the same amount. This model tracks well when the
left and right ailerons travel the same amount in response to the control stick.
1. Move the controls on the transmitter to make sure aircraft control surface move
correctly. See diagrams below. If controls respond in the opposite direction reverse
the direction for operation of flight controls. Refer to your transmitter’s instructions
for changing direction of transmitter flight controls.
Make sure all control sticks on your radio are in the neutral position (rudder,
Aileron
Elevator
Rudder/
Steering
Bank Left
Bank Right
Climb
Descend
Yaw Left
Yaw Right
Get your model ready to fly
The transmitter and model setup
P.15

2. Re hecc k to align the control surfaces well by trim the control channel.
The ailerons align with the trailing edge of the wing tip.
Get your model ready yo fly
2.3 2.4
2.2
2.1
Alierons
Rudder
Elevator
P.16

1. Adjust ATV/travel adjustment on your transmitter until you obtain the following control
surface travel. Do not adjust dual rates until you have correctly adjusted the total travel.
Ailerons: 16mm up and down (both ailerons), measured at the aileron inboard side.
Elevator: 14mm up and down, measured at the counterbalance leading edge.
Rudder: 14mm left and right, measured at the counterbalance leading edge.
Flaps: Full 25mm
2. The dual rates and the Exponential setting for intermediate flyers of are
based on the ATV set in previous step.
Spitfire
High Rate Expo Low Rate Expo
Aileron 100% 16mm up/down 30% 69% 11mm up/down 20%
Elevator 100% 16mm up/down 25% 63% 10mm up/down 20%
Rudder 100% 20mm left/right 25% 75% 15mm left/right 15%
Get your model ready to fly
Check the control throws
2.3 2.4
2.1 2.2
Rudder Flap
ElevatorAlierons
P.17
