Duratuf Wairarapa User manual

Wairarapa
Base size:3600 x 6000
Assembly Instructions
Dura ®
LIFESTYLELIFESTYLE
Kitset care guide:

Page 1
Dura ®
LIFESTYLELIFESTYLE
Wairarapa
Contents
Required tools 2
Before you start 3
Safety precautions 3
Select your site 3
Warranty requirements 3
Parts list 4
Hardware list 6
Base specications 7
1. Timber frame assembly 8
1.1 Back wall assembly 9
1.2 Side walls assembly 10
1.3 Front wall assembly 11
1.4 DPC attachment to bottom plate 12
1.5 Joining walls to each other 13
1.6 Ridge beam and door head flashing attachment 14
1.7 Timber frame to base securement 15
1.8 DPC attachment to studs 17
2. Cladding attachment 18
2.1 Side and back walls cladding attachment 19
2.2 Front wall cladding attachment 21
3. Flashing attachment 23
3.1 Top plate and door flashing attachment 23
3.2 Corner flashings attachment 24
3.3 Spouting assembly 25
3.4 Spouting attachment 26
4.Roof sheets attachment 27
4.1 Layout for fastening roof sheets 27
4.2 Optional clear roof sheet attachment 27
4.3 Roof sheets fastening 28
5. Fascia and barges attachment 31
5.1 Barge support attachment 31
5.2 Barge flashings and fascia attachment 32
6. Roller door installation 34
6.1 Brackets installation 35
6.2 Door placement on brackets 35
6.3 Door positioning 36
6.4 Springs tensioning 36
6.5 Bottom rail stop attachment 37
6.6 Guides installation 37
6.7 Handle fitment 38
6.8 Lift lock centring 38
6.9 Clean-up 38
6.10 Troubleshooting 39
6.11 Spring tension adjustment 40
Duratuf Lifestyle shed warranty 41

Page 2
Dura ®
LIFESTYLELIFESTYLE
Wairarapa
Required tools
Ladder
Cordless drill screwdriver
Adjustable spanner HammerHand saw Level
Flat file
Tape measure String line
Riveter Pipe wrench Caulking gun Tin snips (left
& right hand)
• Hex drive 5/16
• Hex drive 3/8 Philips drill bit Square drive drill bit Slotted drill bit
• Drill bit 3.5mm
• Drill bit 7mm
Hammer drill and
10mm and 12mm
masonry bits
Hacksaw
Utility knife

Page 3
Dura ®
LIFESTYLELIFESTYLE
Wairarapa
• Do not attempt to build your shed in high winds.
• Wear work gloves, and ear and eye protection when assembling.
• Be cautious of sharp edges when handling parts.
• Use electric tools with care. Use a Safety Trip Switch.
• Ensure safety requirements are met when working with ladder. For more information visit:
Before you start
Safety precautions
Select your site
• Site must be level, with appropriate access around shed for installation.
Warranty requirements
https://www.worksafe.govt.nz/topic-and-industry/working-at-height/safe-working-with-lad-
ders-and-stepladders-construction/.
• Read all instructions carefully.
• All dimensions are in millimetres.
• 2 people are required for shed install.
• Ensure all parts are included and you have access to all required tools.
• Engineering drawings and producer statements are available on the Duratuf website.
The following maintenance process needs to be adhered to, to qualify for the steel warranty of your shed.
For more information on the waranty, refer to the back page.
• Using water and soft nylon brush wash all surfaces annually.
• Within 2km of coast, wash every 3 months as above. After a storm, wash the cladding and the gutters
as soon as possible, to remove any highly corrisive salt deposits.
• Volcanic ash fallout: wash as soon as possible, removing fallout from roof and gutters.
• Do not allow manures, chemicals or other corrosive materials to have direct contact with cladding.
• Force majeure or other causes are beyond the control of Riverlea Group.
• All metal filings (swarf) must be removed immediately after assembly.
• Avoid contacting steel with sunscreen or pencil, as this could damage the steel cladding.

Page 4
Dura ®
LIFESTYLELIFESTYLE
Wairarapa

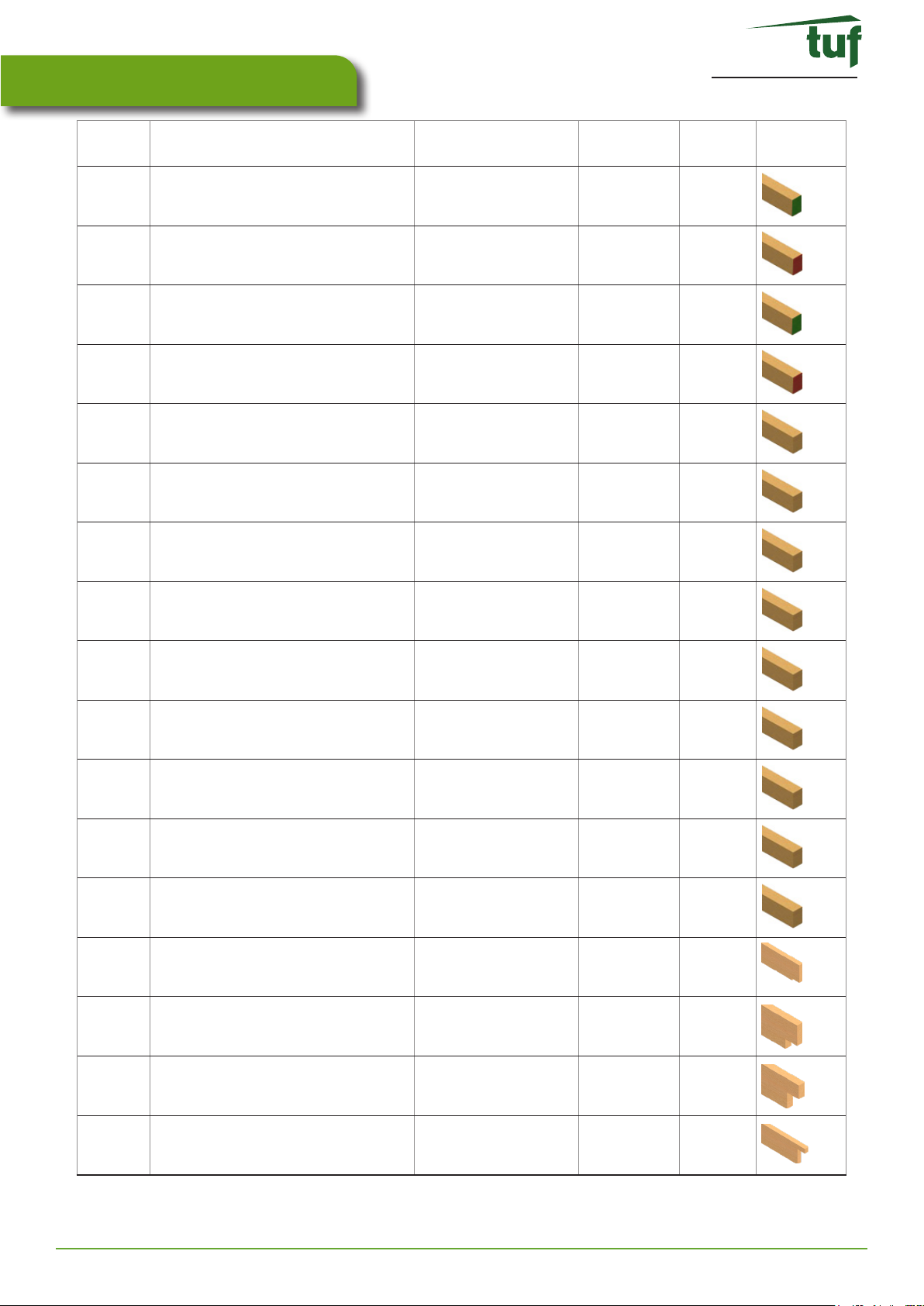

Parts list
Part ID Part name Timber size (mm) Quantity Length
(mm)
Diagram
TB003 Bottom plate-3 (Side) 90x45 2 5820
TT003 Top plate-3 (Side) 90x45 2 5820
TB010 Bottom plate-10 (Front+Back) 90x45 2 3600
TT010 Top plate-10 (Front+Back) 90x45 2 3600
TN002 Nog-2 (Side) 90x45 4 1040
TN004 Nog-4 (Back+Side) 90x45 6 1154
TN010 Nog-10 (Back) 90x45 3 1140
TN011 Nog-11 90x45 2 465
TS001 Stud-1 (Front) 90x45 3 310
TS002 Stud-2 (Front) 90x45 2 2123
TS003 Stud-3 (Back+Side) 90x45 16 2250
TS004 Stud-4 (Front) 90x45 4 2476
TL001 Lintel-1 90x45 1 2490
TR027 Ridge beam (181mm Tongue) 200x45 1 3600
TR028 Ridge beam (136mm Tongue) 200x45 1 3600
TR029 Ridge beam (91mm Tongue) 200x45 1 3600
TR030 Ridge beam (46mm Tongue) 200x45 1 3600

Page 5
Dura ®
LIFESTYLELIFESTYLE
Wairarapa
Part ID Part name Qty Length (mm) Diagram Checked Packed
Front wall half sheet 1 3600
Front wall sheet 6 600
Side wall sheet 6 6000
Back wall sheet 3 3600
Roof sheet 5 6590
Optional clear roof sheet 6590
FDH001 Door head flashing-1 1 2400
FBS005 Spouting-5 1 3725
FS001 Spouting end cap 2
FBC001 Back corner flashing-1 2 2365
FB003 Barge flashing-2 2 6660
FB004 Barge support-2 2 5870
FF006 Fascia-6 1 3725
FDP001 Downpipe cover flashing 1 2170
FDJ001 Door jamb flashing-1 2 2192
FFC001 Front corner flashing-1 2 2588
FFT005 Front top plate flashing-5 1 3600
FDF001 Door top flashing 1 2595
PVC downpipe 1 3000
Steel roller door 1 2400
Damp proof course (DPC) 1
Dropper and sleeve 1
Downpipe bracket 2

Page 6
Dura ®
LIFESTYLELIFESTYLE
Wairarapa
Part name Quantity Diagram
30mm clout nails (cladding) 210 pcs
90mm nails (framing) 190 pcs
Rivets 75 pcs
25mm Hex head Tek Screw (coloured/zinc) 360 pcs
35mm Hex head Tek Screw (zinc) 16 pcs
55mm Hex head Tek Screw (coloured/zinc) 210 pcs
100mm Hex head Tek Screw (zinc) 16 pcs
“L” bracket 4 pcs
M10 x 140 screw bolts (blue head) 4 pcs
M12 X 135 through bolt 16 pcs
Purlin concealed cleats 86x40mm 24 pcs
Brace strapping 1 roll
Dome washer (for clear roof sheet) 20 per clear
sheet
Silicone tube 1
Retouch paint bottle 1
Retouch brush 1
Hardware list

Page 7
Dura ®
LIFESTYLELIFESTYLE
Wairarapa




200
100

150
20






•Concrete to NZS 3101




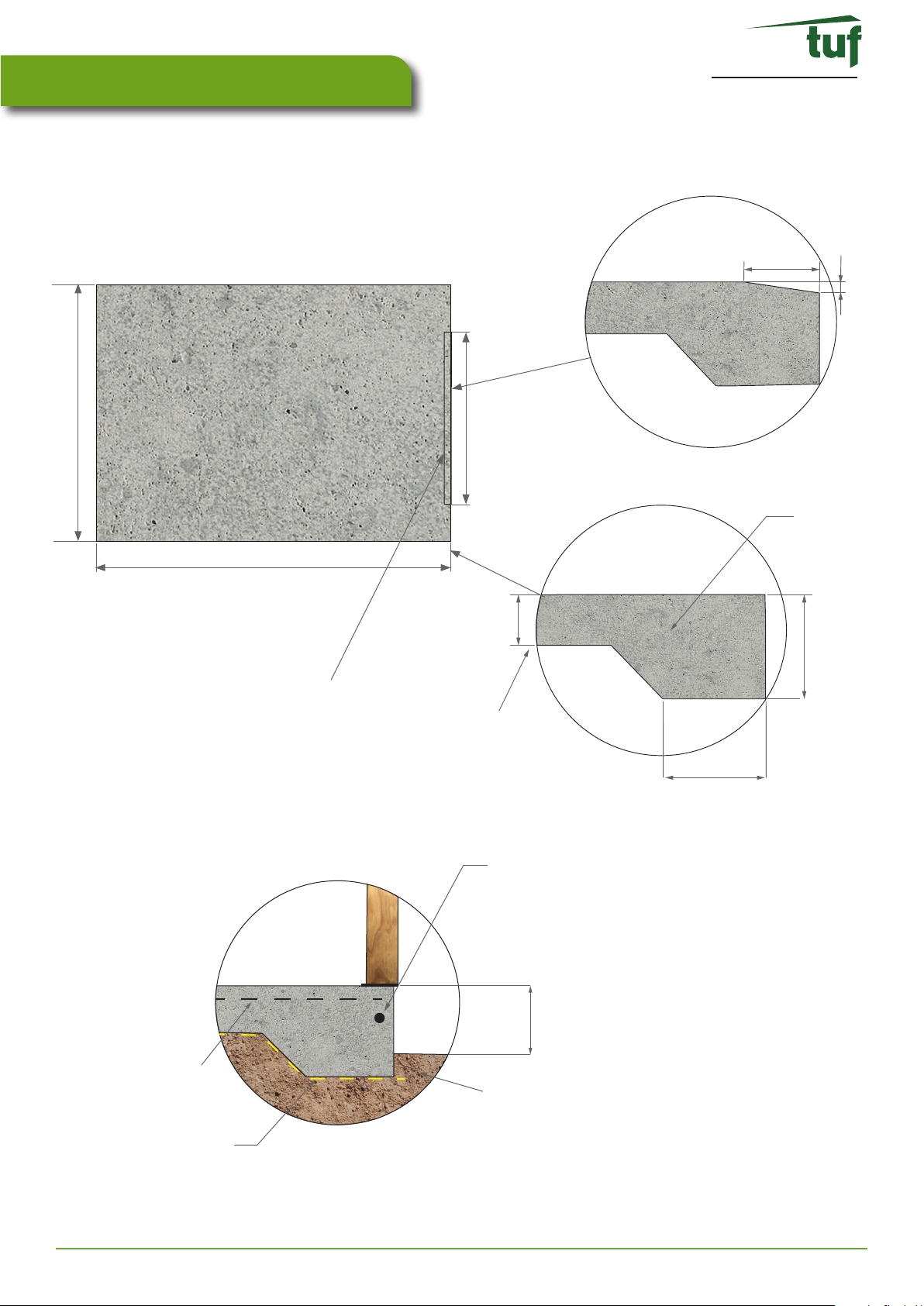

Base specications
Use the below specifications to build a concrete base for shed:
3580
5980
2400




200
100

150
20






•Concrete to NZS 3101







200
100

150
20






•Concrete to NZS 3101



Door slope to be centred

Page 8
Dura ®
LIFESTYLELIFESTYLE
Wairarapa
1. Timber frame assembly
• Arrange the parts specified in the following steps on a flat surface and attach them
together using two 90mm nails at each join.
• Studs should be positioned between top and bottom plates.

Page 9
Dura ®
LIFESTYLELIFESTYLE
Wairarapa
1.1 Back wall assembly
•Regarding Part IDs refer to the Parts list in pages 4 & 5.
TT010
TB010
TS003 TS003
1
2
TS003
1140 1140 1140
3
TN010
1132
Nail top and bottom plates to end studs.
Nail remaining studs in correct position.
Nail in nogs at correct height.
TS003
TN010 TN010

Page 10
Dura ®
LIFESTYLELIFESTYLE
Wairarapa

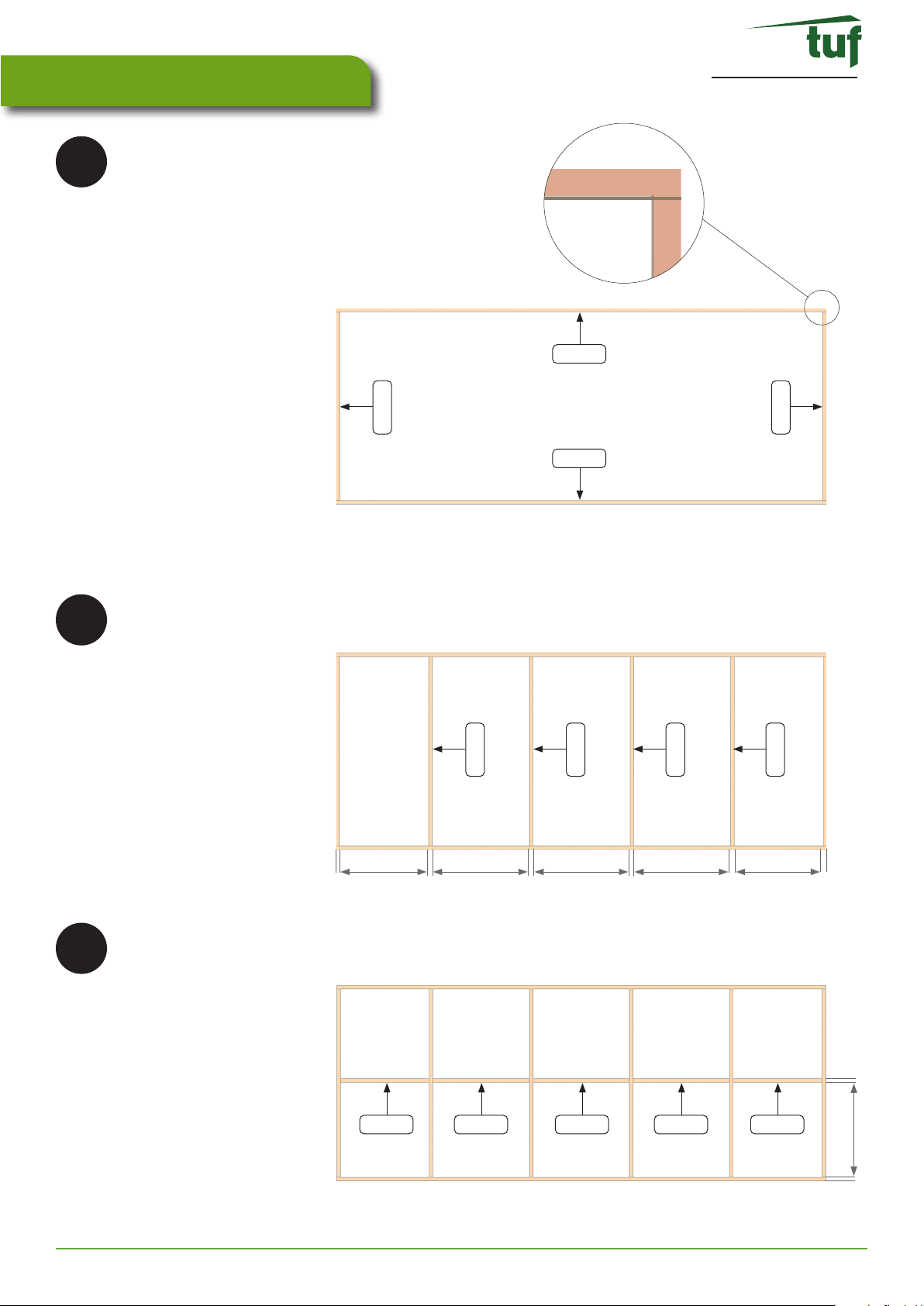

1.2 Side walls assembly
•Regarding Part IDs refer to the Parts list in pages 4 & 5.
TT003
TB003
TS003 TS003
TS003
1040 1154 1154 1040
TN004
1132
TN002
TS003 TS003
TN002 TN004 TN004
1154
TS003
1
2
3
Nail top and bottom plates to end studs.
Nail remaining studs in correct position.
Nail in nogs at correct height.

Page 11
Dura ®
LIFESTYLELIFESTYLE
Wairarapa
1.3 Front wall assembly
•Regarding Part IDs refer to the Parts list in pages 4 & 5.
1
TT002
TB002
TS004 TS004
TS002 TS002
TL001
1132
4
TN011
3
5TS001
589 589
TS004
2
465
Nail top and bottom
plates to end studs.
Nail remaining studs in
correct position.
Nail in nogs at correct
height.
2490
Nail shorter studs each
side of doorway, using
4 nails evenly spaced
into longer stud and 2
nails through bottom
plate. Nail lintel to
studs at each end.
TS004
Nail studs above
doorway to top plate
and lintel.
589 589
TN011

Page 12
Dura ®
LIFESTYLELIFESTYLE
Wairarapa

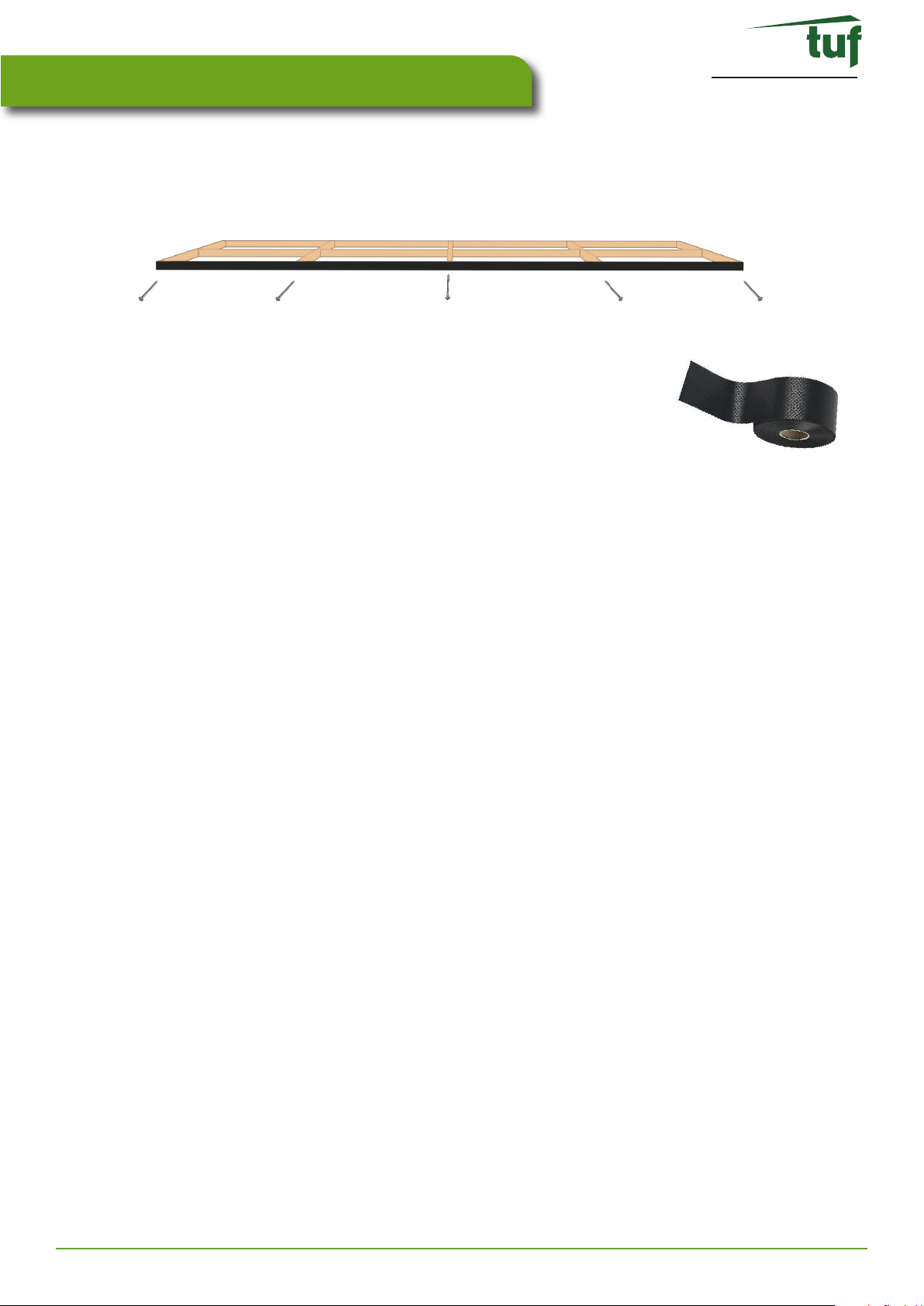

1.4 DPC attachment to bottom plate
Cut pieces of the DPC roll to the length of each wall panel and nail them to
underside of bottom plate on wall panels (using 30mm clouts underneath
each stud, flush with the outside edge of the bottom plate).

Page 13
Dura ®
LIFESTYLELIFESTYLE
Wairarapa
1.5 Joining walls to each other
Back wall
Side wall
Front wall
100
100
100mm Hex head Tek Screw
Even spacing
Pre-drill side wall frames as
shown using 7mm drill bit.
Screw frames together using a
cordless drill screwdriver and four
100mm Hex head Tek Screws at
each corner.
1
2
Back wall
Side wall
Side wall

Page 14
Dura ®
LIFESTYLELIFESTYLE
Wairarapa

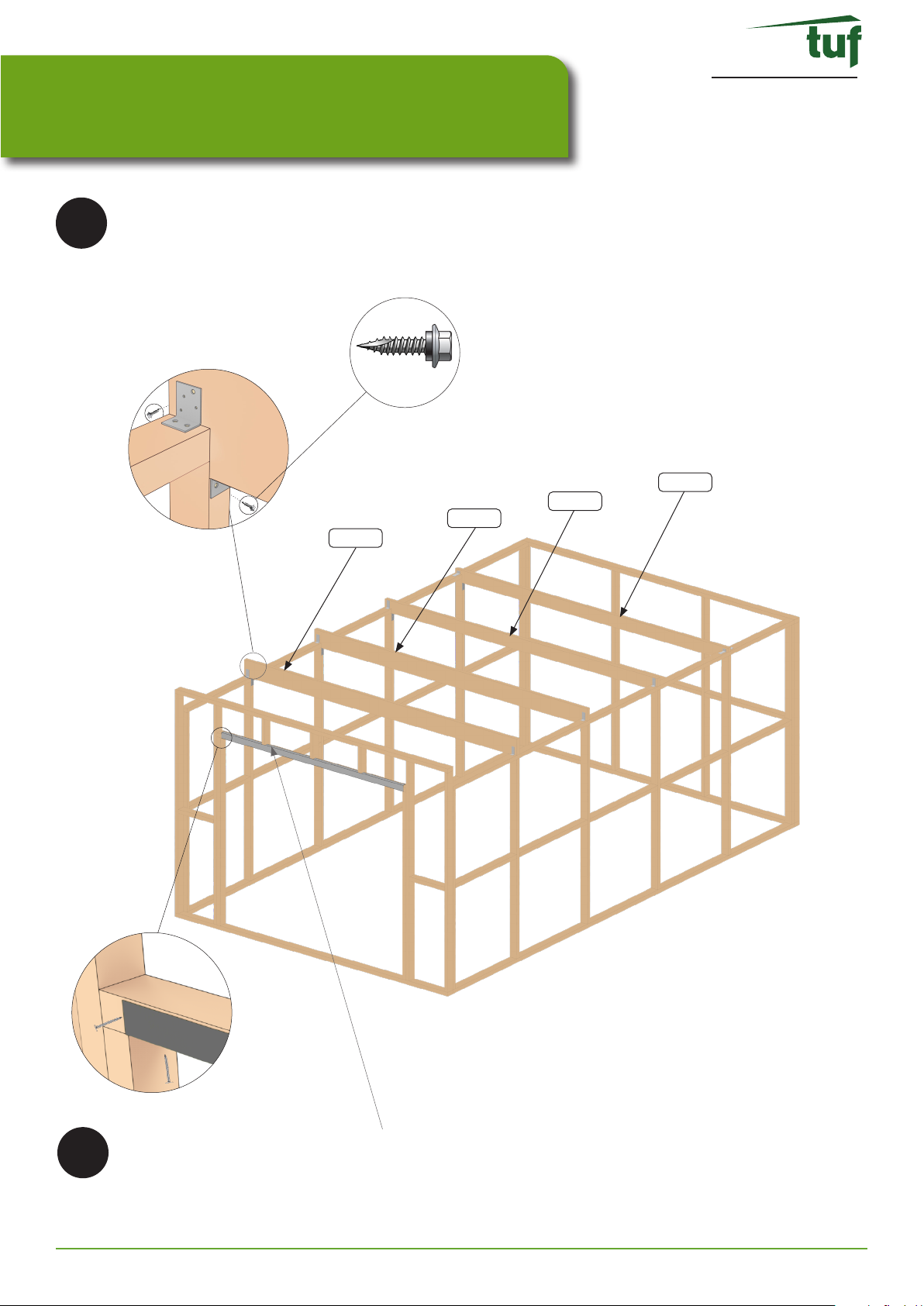

Attach door head flashing (FDH001) to the lintel using six 30mm clouts (3 outside, 3 underside).
Fix each ridge beam’s 2 ends to the side walls above each stud, using 3 cleats (2 at the top and 1
underneath) and four 25mm Hex head Tek Screws, per cleat.
1.6 Ridge beam and door head ashing
attachment
•Regarding Part IDs refer to the Parts list in pages 4 & 5.
1
2
TR027
TR028
TR029
25mm Hex head
Tek Screw
TR030

Page 15
Dura ®
LIFESTYLELIFESTYLE
Wairarapa
1.7 Timber frame to base securement
2
Adjust the frame to get a 10mm overhang on all 4 sides. Then, make sure diagonal measurements as
shown are the same, to ensure frame is straight and square.
1
Only on the front wall, pre-drill 4 holes approximately 35mm from the outermost and innermost
studs through bottom plate and concrete base using hammer drill and 10mm masonry drill bit. Secure
4 “L” brackets to studs using four 35mm Hex head Tek Screws and to the bottom plate using M10 x
140 screw bolts.
10
Pre-drill a hole within 50mm from one side of studs as shown, through timber and concrete base
using hammer drill and 12mm masonry drill bit (16 holes in total). Fasten timber frame to the base
through the holes using M12x135 through bolts.
3

Page 16
Dura ®
LIFESTYLELIFESTYLE
Wairarapa
Cut bottom plate between door studs using a hand saw (flush with inside of front wall studs).
5
Ensure diagonal measurements on front wall are the same. Then attach brace strapping in a cross on
both left and right sides of the front door, using 30mm nails.
4

Page 17
Dura ®
LIFESTYLELIFESTYLE
Wairarapa

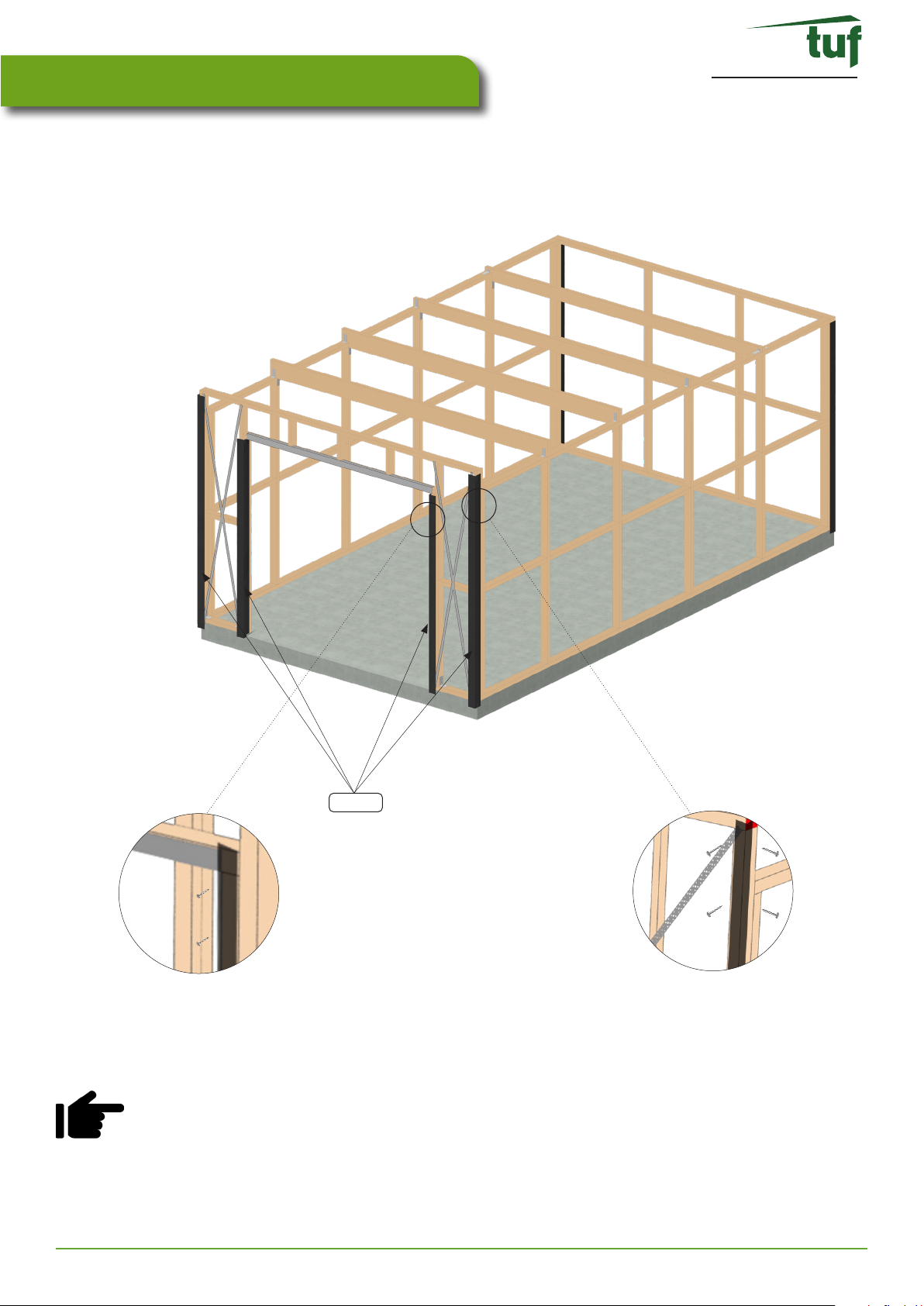

1.8 DPC attachment to studs
• If fitting optional building paper to walls, ensure diagonal measurements on each wall frame
are the same.
• Use packaging timber (or similar) as bracing and nail to inside of frame to temporarily hold
wall panel square.
• Staple building paper to outside of frame and proceed with wall claddings. Once the cladding
is complete, remove timber bracing.
• Using ten 30mm clouts, attach DPC to each corner as shown. DPC should be level with top of top plate
and 20mm below bottom of bottom plate.
• Repeat above, attaching DPC to door studs with top of DPC level with underside of lintel.
DPC

Page 18
Dura ®
LIFESTYLELIFESTYLE
Wairarapa

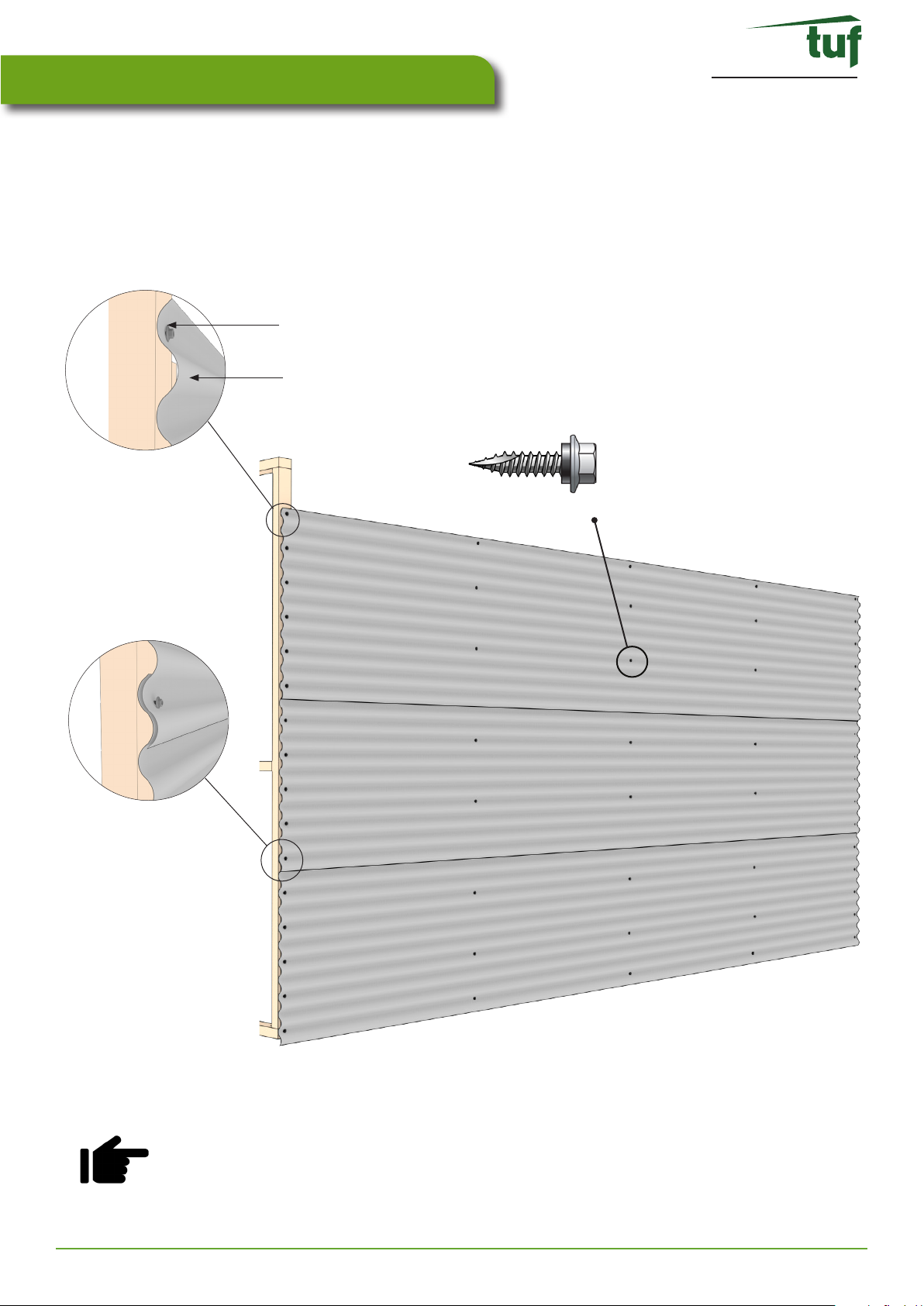

2. Cladding attachment
External edges: use Hex head Tek Screws through every 2nd trough.
Internal edges: use 2 Hex head Tek Screws per sheet, per stud.
Top & bottom plate: use Hex head Tek screws at every stud.
• Top sheet must be flush with the top of the top plate.
• Ends of the corrugated sheets must be flush with outside of studs.
• Ensure metal filings have been removed from between sheets, and between sheets and
fasteners.
• Pre-drill cladding using 3.5mm drill bit for easy fastening.
25mm Hex head
Tek Screw
Always fasten through
the trough of profile.
Ensure top sheet
overlaps bottom sheet.
Trough
Rib
