Durite VID-511 User manual

!
!
!
Mini Dash Mount DVR with GPS & 2nd Camera with 7m cable
12/24VDC
VID-511 (0-776-65)
WARNINGS
Before!using!this!unit!please!read!these!instructions!carefully.!Take!special!care!to!follow!the!warnings!
indicated!on!the!unit!itself!as!well!as!the!safety!suggestions!listed!below.!Keep!these!instructions!for!
future!reference.!
!
!
!
*! Please!ensure!you!are!familiar!and!comply!with!local!traffic!and!driving!regulations. !
!
!
*! Power Source >!The!Mini!DVR!should!be!connected!to!a!12>24!volt!dc!power!supply!only.!
!
*! Water and Moisture >!Do!not!use!the!Mini!DVR!where!it!may!be!subject!to!water!ingress!or!excessive!
moisture.!Do!not!use!outside!the!vehicle!unprotected. !
!
*! Heat >!Do!not!install!the!Mini!DVR!near!a!direct!heat!sources.!
!
*! Ventilation >!The!Mini!DVR!should!be!situated!to!allow!free!circulation!of!air.!
!
*! Foreign Material>!Care!should!be!taken!so!that!objects!do!not!fall!onto!or!into,!and!that!liquids!are!not!
spilled!on!the!Mini!DVR.!
!
*! Mounting Surface >!The!Mini!DVR!should!be!mounted!to!a!strong!secure!surface.!
!
*! Replacement Parts >!Use!only!manufacturers!replacement!specified!parts.!Unauthorised!substitutions!
may!result!in!fire!risk,!electric!shock!or!other!hazards!and!will!void!the!warranty !
!
*! Service >!The!user!should!not!attempt!to!service!this!units!beyond!that!described!in!the!operating!
instructions.!There!are!no!user>serviceable!parts!within!the!unit.!
!
*Screen Protective Film >!Remove!the!LCD!screen!protective!plastic!cover!before!use.!

!
!
!

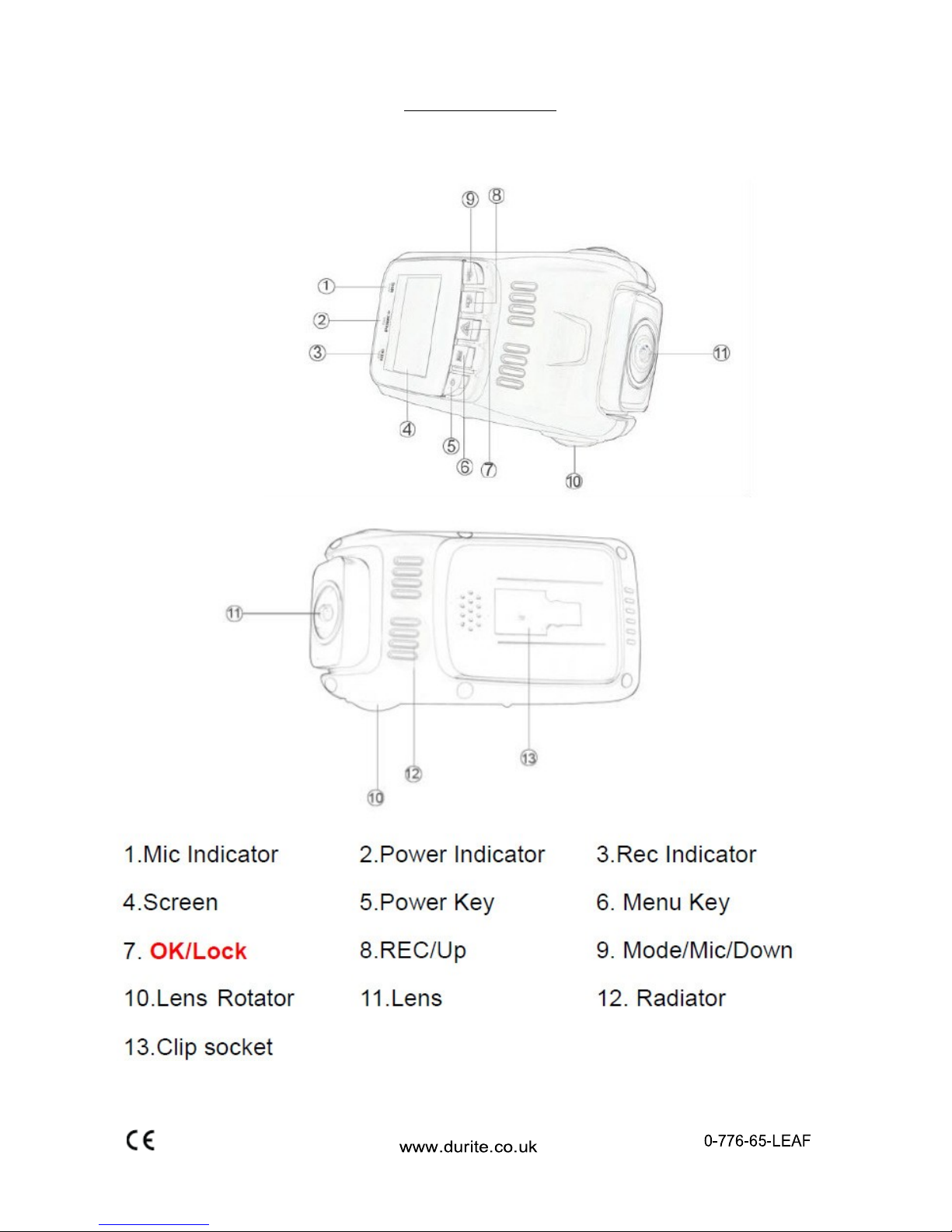

BUTTON LAYOUT

!
!
!
OVERVIEW
This!is!a!vehicle!digital!HD!video!camera!recorder!with!advanced!technology. !
Besides!the!general!function!it!has: !
!
(1)! Two!cameras:!Front!cam!is!1920*1080P!30FPS!and!Back!cam!is!VGA!640*480P!
(2)! Super!capacitor!to!provide!back>up!power !
(3)! 1FPS!as!a!choice,!it!supports!a!longer!time!recording !
(4)! Built>in!G>sensor.!When!it!detects!a!collision!it!will!send!a!signal!to!CPU!to!lock!current !
video. !
(5)! AV!Out!port!to!connect!with!TV!
!
FEATURES
>!Two!cameras:!1080P!+!480P.!
>! 1.5!inch!high!resolution!LCD!Screen !
>! Advanced!H.264!video!compression!technology.!
>170!degree!ultra!wide!angle!3!mega!pixels!lens!
>! Advanced!Wide!Dynamic!technology!
>! Support!AV!Out!transmission.!
>! With!holder!with!3M!sticker,!onveniently!fix!and!use. !
>! G>sensor!to!lock!video!in!collision. !
>! Seamless!loop!recording. !
>! Automaticly!start!to!record!while!driving. !
>! 1FPS!recording!for!longer!recording !
>! Maximum!32GB!TF!card !
!
KEY FUNCTION
Power
>! Press!‘Power’!button!to!start!device!and!press!and!hold!for!3!seconds!to!power!off. !
!
Mode
>! In!the!standby!mode!press!it!shortly!to!shift!between!Video/Photo/Replay !
>! In!the!video!mode!press!it!to!turn!the!MIC!on!and!off. !
!
Menu
>! Press!it!to!enter!menu!in!each!mode: !
>! Photo!Menu,!press!‘Menu’!to!enter!photo!mode!setting.!press!it!again!to!quit. !
>! Video!Menu:!In!mode!of!recording!or!standby!mode!press!it!to!choose!setting.!Press!it!again!to!quit. !
>! Replay!Menu:!In!the!mode!of!replay,!press!it!to!replay!setting!menu.!Press!it!again!to!quit. !
!
Lock
>! During!recording!videos,!press!this!key!to!lock!current!video!to!avoid!it!be!deleted!in!loop!recording.!
it!cannot!be!deleted!in!replay!mode.!But!it!can!be!deleted!when!connecting!to!PC!or!format!TF!card.!In!
menu!setting,!it!is!‘OK’!to!confirm!function!setting. !
!
Rec/Up
>! When!recording!video!press!this!key!to!stop!recording.!In!standby!mode!press!it!to!start!record.!(TF !
card!should!be!insdie).!
>! In!replay!mode!and!Menu!setting!it!is!the!Up!key. !
!
Mic/Down
>! In!Video/Photo!mode,!turn!the!Mic!on/off. !
>! In!replay!mode!and!Menu!setting!It!is!the!Down!key. !
!
TF Card Slot
>! Supports!2GB!>!32GBTF!Card!Class!10!(or!above).!

!
!
!
Reset
>! If!the!device!freezes!press!Reset!to!restart.!
!
AV OUT / GPS
>! AVOUT!function:!By!this!port!and!a!line,!its!video!and!photo!can!be!played!on!player. !
>! GPS:!Included!is!a!GPS!antenna!to!record!the!driving!path!and!speed.!
!
USB Port
>! For!charging!input.!Connect!it!with!car!charger!toi!supply!power!to!this!device. !
>! Connect!USB!cable!to!PC.!The!data!on!the!TF!card!can!be!extracted.!
!
MIC
>! When!it!is!on.!Audio!will!be!recorded. !
!
Speaker
>! When!replaying!the!video,!audio!recorded!by!this!device!will!be!played!back!via!the!speaker. !
!
Lens
>! Image!is!captured!via!the!CMOS!Sensor.!Its!angle!can!be!adjusted.!
!
INSTALLING AND OPERATION
Turn!off!the!DVR.!Insert!the!TF!card!only!while!DVR!is!off.!
Install!suction!mount!bracket!or!stick!on!adhesive!connector!to!the!windscreen. !
Plug!the!car!charger!into!the!car!cigarette!lighter!and!the!other!end!into!the!DVR!USB!interface.!
Adjust!the!lens!position!to!ensure!the!lens!is!paralleled!with!the!ground. !
Start!the!engine!and!check!if!the!machine!has!been!installed!successfully.!
*Be!sure!the!TF!card!is!inserted.!
*Be!sure!the!protected!film!is!removed!from!the!lens. !
!
Operation
Turning!ON!/!OFF!
When!the!vehicle!engine!starts!the!device!will!be!powered!ON!automatically!and!start!to!record!the!video. !
*Precondition !
1.! TF!card!is!inserted.!
2.! Charger!has!been!connected!to!the!cigarette!lighter.!
*When!the!vehicle!starts!electric!current!will!be!increased!suddenly.!In!order!to!avoid!damage!to!this!device !
it!is!better!to!start!your!engine!and!then!connect!car!charger.!
The!DVR!can!be!manually!turned!ON/OFF!>!press!power!button!once!to!power!on!and!press!it!again!to!
power!off.!
!
Charging
12/24VDC!to!USB!5V!1A!Output!
!
Taking Photo’s
Press!OK!key!to!take!photo!
Photo!shooting!setup!option !
Press!MENU!key,!enter!photo!shooting!setup!option. !
!
Manage Files
Press!MODE!key!to!enter!file!management!mode.!There!are!2!types!of!files:!Video!Playback,!Image!Playback.!
The!most!recent!file!will!be!displayed!on!the!LCD.!
!
Video Playback
Press!Up/Down!key!to!select!the!desired!file!for!playback.!
Pres!OK!key!to!start/stop!the!video!playback,!adjust!volume!by!UP!or!DOWN!button!while!playing!the!video.!
Hold!DOWN!to!rewind,!UP!to!fast!forward!and!OK!to!stop!video. !

!
!
!
Image Playback
Press!Up/Down!key!to!select!file.!
While!playing!the!file!back!press!MENU!to!bring!up!settings. !
1.! Delete:!press!OK!key!to!select!action!Single/All/!Select!Delete!File.!
2.! Protect!File:!select!locking!or!unlocking!of!the!file. !
3.! Slide!play:!select!2sec/5ec/8sec!to!play!the!video. !
!
Connect to PC
After!the!USB!cable!is!connected!to!computer,!LCD!display!appear!starts!picture.!Computer!will!automatical> !
ly!detect!the!Micro!SD!card!drive!
*System!requirements:!Windows2000/XP/Vista/7,!MAC!OS!*10.3.6!or!above!
Browse!or!manage!files!through!computer!
Unplug!the!USB!cable!turn!the!device!off. !
!
*Remarks:!If!device!crashes!during!usage,!press!the!RESET!button!and!restart.!
!
!
INSTALLING AND OPERATION
Loop Recording
Firstly,!the!recorded!video!should!be!in!different!clips: !
e.g.:!3min/5min/10min!
Loop!recording!is!the!process!of!recording!video!continuously!to!an!endless!memory!card.!This!process!is!a!
never>ending!one:!at!the!end!of!the!memory!card,!the!latest!video!clip!will!replace!the!earliest!video!clip!to!
save!to!the!memory!card.!This!guarantees!that!the!recorder!will!never!miss!an!action!in!some!live!events.!
!
How to use it?
In!standby!mode,!entering!menu,!using!‘down’!key!to!select!Loop!recording!function,!when!cursor!move!to !
loop!recording,!press!OK!key!to!set!different!clips!time.!
‘3Minutes/5Minutes/10Minutes’!by!UP/Down!key. !
If!select!‘Off’,!loop!recording!function!will!be!off. !
!
Motion Detection
Motion!detection!is!the!process!of!detecting!movement!in!the!lens. !
In!the!standby!status,!when!it!detects!movement!in!the!lens,!it!will!start!to!record!until!the!image!is!still!for!five!
seconds.!It!helps!to!save!memory!space.!It!also!assists!in!the!event!of!a!hit!and!run!with!an!unattended!vehicle.!
!
How to use it?
In!standby!mode,!entering!menu,!set!Motion!Detection!be!ON.!If!it’s!‘Off’,!motion!detection!will!not!work. !
*!Please!set!it!to!“Off”,!when!you!don’t!need!it.!If!not,!autamatic!start!may!not!record. !
!
G Sensor Function
What!is!a!G!Sensor!Function?!
During!loop!recording,!once!the!g>sensor!detect!collision/shaking,!the!device!will!lock!current!video!to!
avoid!deleting!in!the!loop!recording. !
!
How to use it?
In!standby!mode,!entering!menu,!using!‘down’!key!to!select!Gravity!sensing!function,!when!cursor!move!to!
the!Gravity!sensing,!pressing!‘OK!key!to!set!different!sensitivity!‘Low!sensitivity/Medium!Sensitivity/High!
sensitivity’!by!UP/Down!key. !
If!select!‘Off’,!Protect!function!will!be!off. !

!
!
!
Low Beam function
The!Dash!cam!will!check!the!light!intensity.!It!will!then!send!a!signal!to!the!CPU !
in!return!to!indicate!the!luminous!beam!is!low.!The!screen!will!then!display!the!icon!below: !
!
!
Fatigue Warning function
This!depends!on!boot!up!times!to!analyze!the!situation.!The!DVR!will!indicate!the!user!after!it!has!oper>!
ate!for!more!than!4!hours.!The!screen!will!display!an!icon!(drink!coffee!indicator)!please!see!below: !
!
PACKAGE CONTENTS
1!x!1080P!FHD!DVR!
1!x!480P!additional!camera!480P!VGA!with!7m!lead!
1!x!In!car!charging!cable !
1!x!Suction!mount!bracket !
1!x!Adhesive!mount!
1!x!USB!cable!
1!x!User!Manual!
1!x!GPS!Aerial!
SPECIFICATIONS
Built>In!Imaging!Sensor............................3!Megapixel!
View!Angle.................................................170!Degrees!
Shooting!Resolution!!Rate.........................FHD1920x1080!!and!!HD1280x720!
Frame!Rate.................................................30FPS@HD1080P!and!60FPS@HD720P!
2nd!Camera!Resolution!Rate....................VGA!480P!
Video!Compression!Format......................H.264!
Video!Output!Mode...................................NTSC/PAL!
Screen!Size.................................................1.5>Inch!
Storage!Temperature.................................>20°C!!to!+70°C!
Operating!Temperature.............................>10°C!!to!+60°C!
Operating!Humidity...................................15%!to!65%!(RH)!
Max!Memory!Card!Capacity.....................32GB!(TF!Card)!
Standard!Voltage........................................DC5V/12V!
Night!Viewing!Distance..............................5Metres!(with!headlights)!
GPS..............................................................YES!
G!Sensor......................................................YES!
USB!!Cable!Included....................................YES!
12/24V!Cigarette!Cable/Plug!Included.......YES!
Certificate....................................................CE!

!
GPS SOFTWARE IMAGE
The!image!below!is!to!show!an!example!of!the!features!available!in!the!software!provided!with!this!
mini!dash!mount!DVR.!The!software!shows!the!location!of!the!vehicle!via!GPS.!It!also!shows!the!
speed!and!the!G!Force!upon!the!vehicle!as!it!travels.!There!are!many!features!within!this!software!!!
to!help!analyse!any!journey!recorded!by!the!DVR!and!could!be!used!as!evidence!in!the!event!of!an!
accident.!
