DUROMAX DuroStar DS10000E User manual

REV: DS10000E-07252022
DS10000E
USER MANUAL
This manual provides information regarding the
operation and maintenance of these products. We
have made every effort to ensure the accuracy of the
information in this manual. We reserve the right to
change this product at any time without prior notice.
5800 Ontario Mills Pkwy
Ontario, CA 91764 USA
www.duromaxpower.com
Call our Customer Care Team Toll Free 8-5 pm PST Mon-Fri
844-DUROMAX

5. AC Usage ........................................................................................................................ 38
Connecting the Generator to a Home........................................................................ 41
Connecting a Load to the Generator.......................................................................... 42
Choosing the Right Power Cord .................................................................................. 43
DC Usage........................................................................................................................ 44
Voltage Selector Switch ................................................................................................ 46
Idle Control Usage ........................................................................................................ 46
Using the Generator
1. Introduction .................................................................................................................... 6
General Safety Procedures ........................................................................................... 8
Unit and Purchase Information .................................................................................. 12
Carbon Monoxide Safety ............................................................................................. 13
Introduction
4. Check the Oil ................................................................................................................ 30
Check the Gas Level ..................................................................................................... 31
Starting the Generator ................................................................................................. 32
Starting the Generator Using Recoil Start ................................................................. 34
Starting the Generator
3. Shipping Braces ............................................................................................................ 21
Wheel Kit Installation.................................................................................................... 22
Connect the Battery .................................................................................................... 24
Adding Oil ...................................................................................................................... 25
Adding Gasoline ............................................................................................................ 26
Grounding the Generator ........................................................................................... 27
High Altitude Operation .............................................................................................. 27
Generator Setup
2. Generator Components............................................................................................... 16

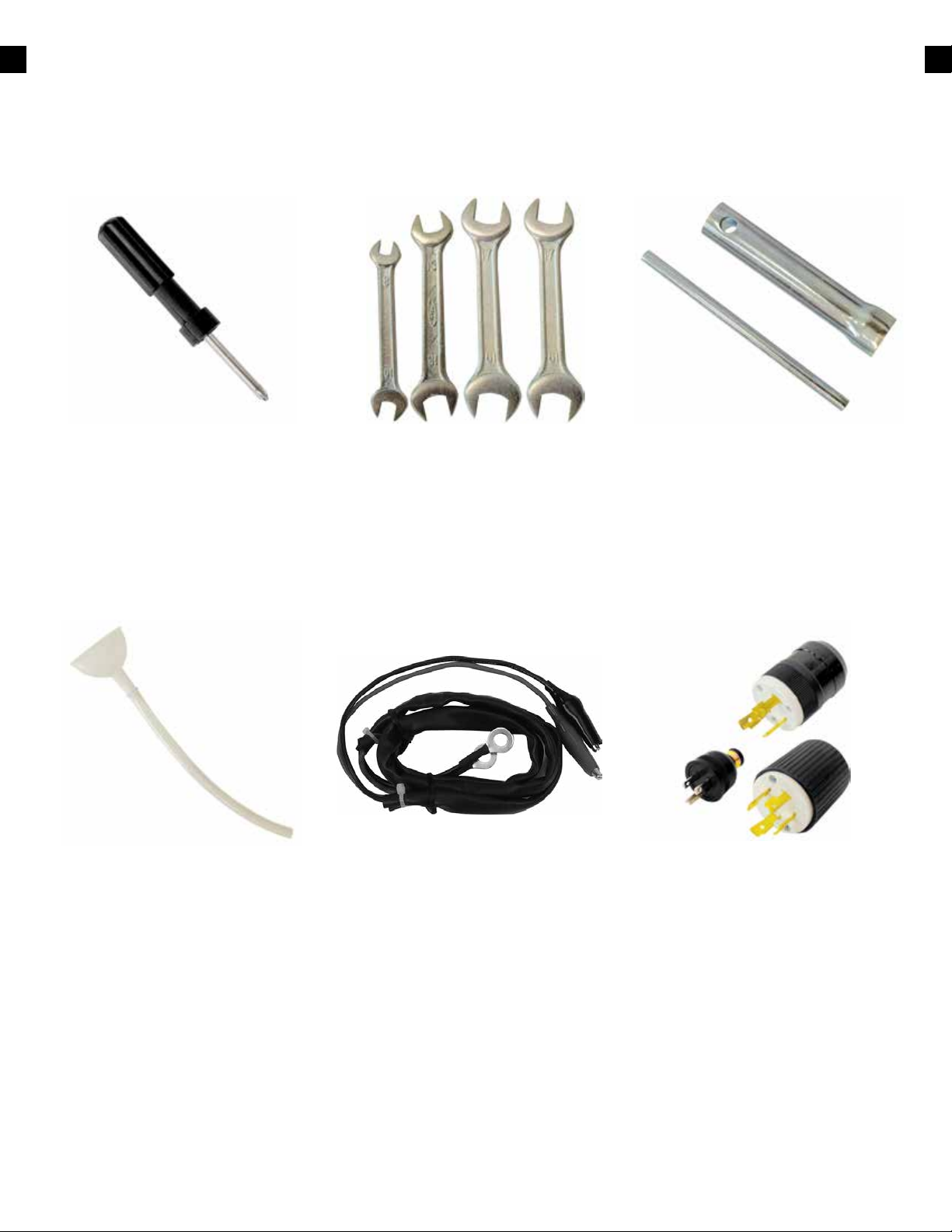

Package Contents ......................................................................................................... 18
Generator Components
CONTENTS

CONTENTS
6.
7.
8.
9.
Maintenance Schedule.................................................................................................. 48
Break-In Period .............................................................................................................. 49
Maintenance Log............................................................................................................ 49
Checking the Oil ............................................................................................................. 50
Changing the Oil............................................................................................................. 51
Cleaning the Air Filter .................................................................................................... 52
Spark Plug Maintenance ............................................................................................... 54
Emptying the Gas Tank ................................................................................................. 56
Cleaning the Fuel Filter Cup.......................................................................................... 58
Transporting the Generator ......................................................................................... 59
Storing the Generator for Same Day Use ................................................................... 60
Storing the Generator for Use Within 30 Days........................................................... 61
Storing the Generator for Longer Than 30 Days........................................................ 62
Specications.................................................................................................................. 64
........................................................................................................................... 74
Basic Troubleshooting................................................................................................... 66
Changing / Inspecting the Carbon Brushes................................................................ 67
Changing / Inspecting the AVR ..................................................................................... 69
Wiring Diagram .............................................................................................................. 72
Maintenance and Care
Warranty
Troubleshooting
......................................................................................................... 78
Customer service

6
THE DUROSTAR WAY
The DuroStar Way is more than just a brand, it is our understanding and appreciation of just how
important power can be to someone without it…
DUROSTAR FOR HOME
Electricity in our home not
only provides comfort but
safety as well. From keeping
the heat or A/C on to keeping
our food cold, power is
essential to our daily lives.
Inevitability when disaster
strikes and we are left without
power for a prolonged period
of time, our way of life is
put at risk. This is by far the
most critical time for reliable
portable power.
DUROSTAR FOR WORK
On the job site, portable
power allows you the ability
to get work done in remote
locations when traditional
power sources are usually
unavailable. Equipment like
table saws, sanders, and
work lights are a necessity
and portable power can
play a critical role in getting
a job done successfully and
eciently.
DUROSTAR FOR PLAY
Camping outdoors in a
remote location can get one
in touch with nature and allow
them to forget the stress of
the day to day grind. Here
portable power can provide
comfort as well as safety. With
portable power, you can keep
your cell phone charged, light
up your campsite, or even
brew a cup of coee, all while
being miles from civilization.
The DuroStar Way is a commitment to excellence. This vision is focused on the quality, reliability,
and durability of our products combined with outstanding customer service. We understand that
having dependable power whenever and wherever you need it provides comfort, safety, and peace
of mind. It is through this philosophy that DuroStar achieves our vision of...

7
INTRODUCTION
DuroStar Power Equipment is headquartered in Ontario, California and is the industry’s leader in
Dual Fuel portable generator technology. In addition to a full assortment of portable generators
ranging from digital inverters to large 15,000-watt portable standby units, their product line
includes pressure washers, engines, pumps, and accessories.
The foundation of our company is built on quality, reliability, durability, and customer service. At
DuroStar our vision is simple, we are committed to Powering Everyone... Anywhere!
STOP
Please do not return
to the store.
DuroMax representatives are ready to help you
with any questions, concerns, or issues about your
new product. We can guide you through assembly,
start up, and how to operate your new generator.
We want you to be able to put your new generator
to use right away!
CALL US BEFORE YOU CONSIDER
RETURNING THE PRODUCT!
1-844-DUROMAX
TOLL-FREE
Engines that are certied to comply with U.S. EPA emission regulations for SORE (Small o Road
Equipment), are certied to operate on regular unleaded gasoline and may include the following
emission control systems: (EM) Engine Modications and (TWC) Three-Way Catalyst (if so equipped).
Notice Regarding Emissions

DANGER:This generator produces poisonous carbon monoxide gas when running. This
gas is both odorless and colorless. Even if you do not see or smell gas, carbon monoxide
may still be present. Breathing this poison can lead to headaches, dizziness, drowsiness,
and eventually death.
●Use outdoors ONLY in non-conned areas.
●Keep several feet of clearance on all sides to allow proper ventilation of the generator.
WARNING: The exhaust from this product contains chemicals known to the State of
California to cause cancer, birth defects, or other reproductive harm.
WARNING: This generator produces heat when running. Temperatures near exhaust can
exceed 150°F (65°C).
●Do not touch hot surfaces. Pay attention to warning labels on the generator denoting
hot parts of the machine.
●Allow generator to cool several minutes after use before touching engine or areas
which heat during use.
GENERAL SAFETY PROCEDURES
Please familiarize yourself with the following safety symbols and words:
●DANGER: Indicates a hazard that will result in serious injury or death if instructions are not
followed.
●WARNING: Indicates a strong possibility of causing serious injury or death if instructions are not
followed.
●CAUTION: Indicates a possibility of personal injury or equipment damage if instructions are not
followed.
SAFETY ALERT SYMBOL
The safety alert symbol is used with one of the safety words (DANGER,
WARNING, or CAUTION) to alert you of hazards. Please pay attention to
these hazard notices both in this manual and on the engine.
8

WARNING: This generator may emit highly ammable and explosive gasoline vapors,
which can cause severe burns or even death. A nearby open ame can lead to an
explosion even if not directly in contact with gasoline.
●Do not operate near an open ame.
●Do not smoke near the generator.
●Always operate on a rm, level surface.
●Always turn the generator o before refueling.
●Allow generator to cool for at least 2 minutes before removing the fuel cap. Loosen
cap slowly to relieve pressure in the tank.
●Do not overll the gas tank. Gas may expand during operation. Do not ll to the top
of the tank.
●Always check for spilled gas before operating.
●Empty the gasoline tank before storing or transporting the generator.
●Before transporting, turn the fuel valve to the o position and disconnect
the spark plug.
WARNING: This generator produces a powerful voltage, which can result in electrocution.
●ALWAYS ground the generator before using it (see the “Grounding the Generator”
portion of the “PREPARlNG THE GENERATOR FOR USE”).
●The generator should only be plugged into electrical devices, either directly or with
an extension cord. NEVER connect to a building electrical system without a qualied
electrician. Such connections must comply with local electrical laws and codes. Failure
to comply can create a backow of power, which may result in serious injury or death
to utility workers.
●Use a ground fault circuit interrupter (GFCI) in highly conductive areas such as metal
decking or steelwork. GFCls are available in-line with some extension cords.
●Do not use uncovered in rainy or wet conditions.
●Do not touch bare wires or receptacles (outlets).
●Do not allow children or non-qualied persons to operate.
9

In addition to the above safety notices, please familiarize
yourself with the safety and hazard markings on the
generator.
GENERAL SAFETY PROCEDURES
DANGER
DO NOT OVERFILL
THE GAS TANK
OVERFILLING CAN RESULT
IN A FIRE, EXPLOSION,
OR DEATH.
1.5”
10

DON’T TOUCH
CAUTION HIGH TEMPERATURE
DANGER HOT EXHAUST
KEEP SAFE DISTANCE
DON’T TOUCH
BURN RISK CARBON MONOXIDE SAFE DISTANCE
11

Serial Number
Serial number format
STAPLE RECEIPT HERE
The serial number will be shown in two parts. The engine
model, followed by the serial number.
Engine Model: _____________________________________________
Serial Number: _____________________________________________
A purchase receipt may be necessary for warranty parts or
service in the future. If you have a paper receipt staple it
here for easy reference.
If you purchased the unit online, save the email receipt
where you can access it, and record your details here for
convenience in the future.
Purchase Date: ____________________________________________
Order Number: ____________________________________________
Retailer Name: _____________________________________________
Serial number
The serial number is located on the engine block, above and
to the left of the oil ll.
UNIT AND PURCHASE INFORMATION
12

As the only safe way to use a portable generator, taking your
generator outside is absolutely mandatory to keep your family
safe from carbon monoxide. But there’s even more you can do.
By educating yourself about all carbon monoxide risks, you’ll
be better prepared to protect your family from this colorless,
odorless threat. Visit takeyourgeneratoroutside.com for more
information.

14

15

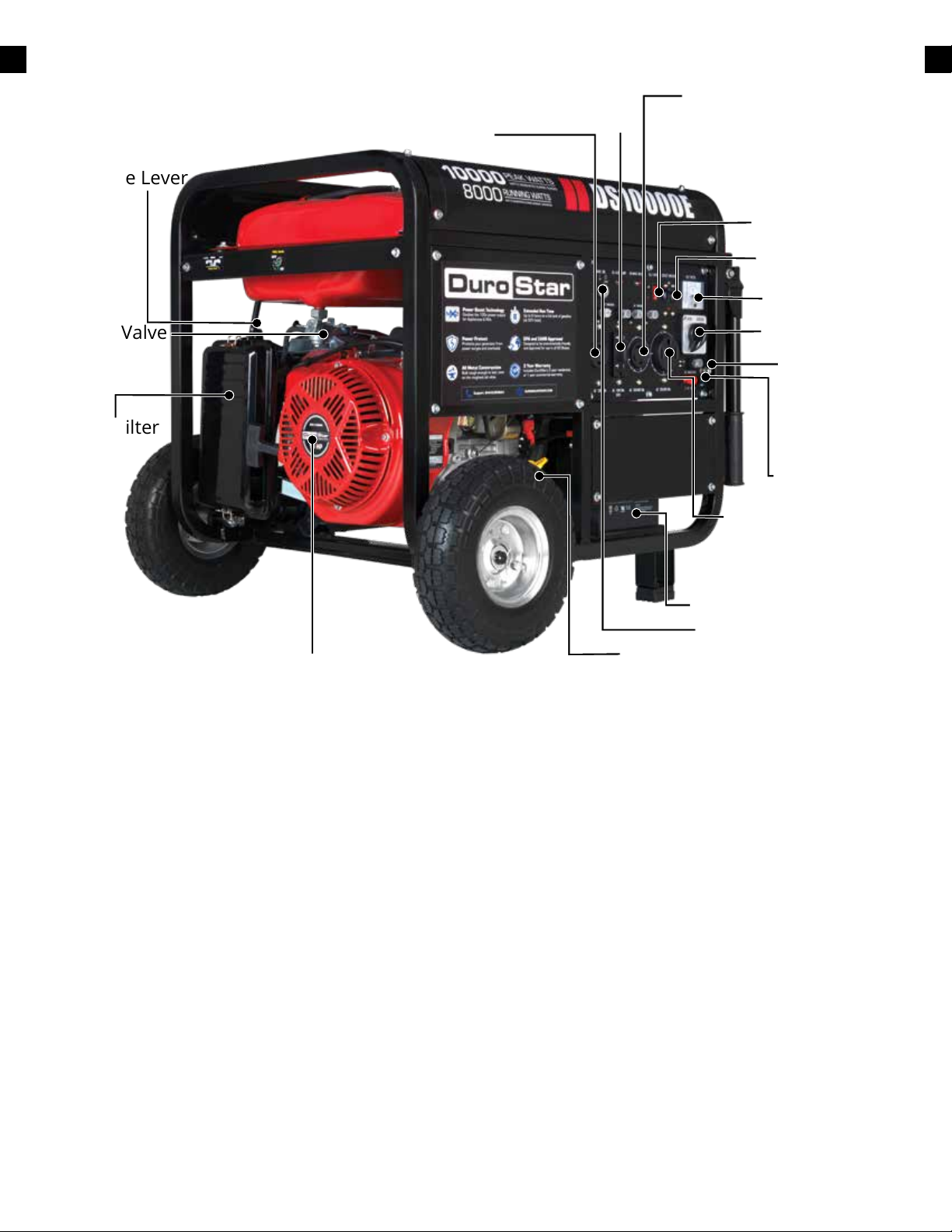

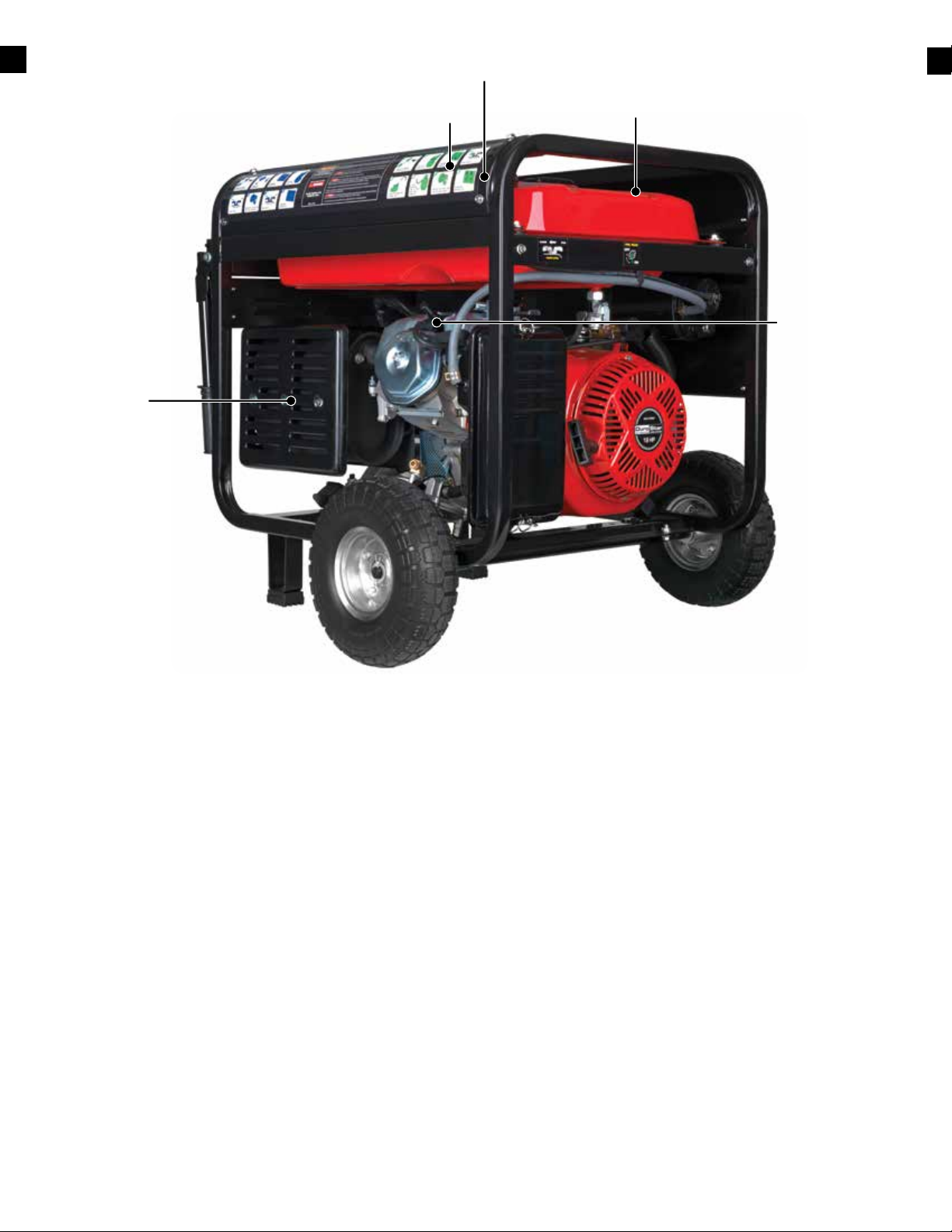

GENERATOR COMPONENTS
To help you get familiar with your new DuroStar generator, please see this component section for
easy reference on all the generator’s individual features.

2. Choke Lever
1. Air Filter
16. Fuel Valve
GENERATOR COMPONENTS
16

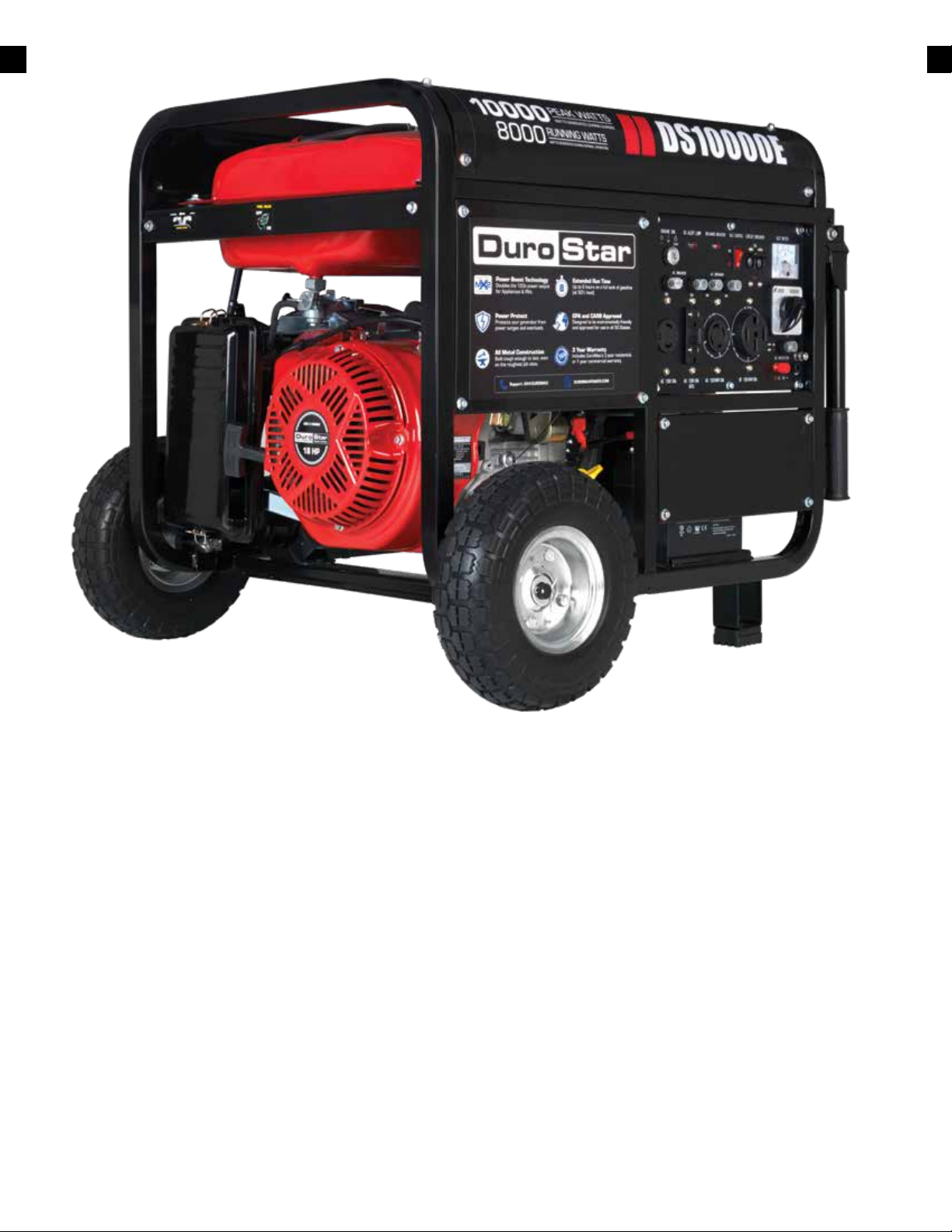

10. Volt Meter
8. 120V 3-Prong
Receptacle
20. 50A Receptacle
19. 120V 3-Prong
Twist Lock
6. 120/240V 4-Prong
Twist Lock
22. Power Boost
5. Circuit Breaker
21. Idle Control
7. Ground
Terminal
9. Battery
12. Oil Fill and Dipstick
13. Engine Switch
14. Recoil Start
11. 12V DC
Charging Posts
1. Air Filter - a removable, cleanable, oiled, element that cleans the air going into the engine.
2. Choke Lever - Allows the airow into the carburetor to be restricted to assist in starting the
engine.
3. Fuel Gauge - Indicates the amount of fuel in the gasoline tank.
4. Fuel Cap - Allows access to ll the gasoline tank.
5. Circuit Breaker - Resettable switch that protects the generator from electrical overload.
6. 120/240V 4-Prong Twist Lock - Use to connect electrical devices that run 120 or 240 Volt, 60Hz,
single phase, AC current (NEMA L14-30).
7. Ground Terminal - Connect a ground wire here to properly ground the generator.
8. 120V 3-Prong Receptacle - Use to connect electrical devices that run 120 Volt, 60 Hz, single
phase, AC current (NEMA 5-20).
9. Battery - 12V DC battery that powers the electric start system.
10. Volt Meter - Provides reading of voltage output.
11. 12V DC Charging Posts – DC output for charging batteries or running small DC powered items.
12. Oil Fill and Dipstick - Use to add or check the oil.
18. Muer

13. Engine Switch – 3 Position Switch to “START”, “RUN”, or turn “OFF” the generator.
14. Recoil Start – Easy pull recoil start to start the engine without the electric start.
15. Fuel Filter Cup - Traps dirt and debris in gasoline before it enters the engine.
16. Fuel Valve - On/O valve that allows fuel into the engine.
17. Spark plug – Provides ignition to the engine.
18. Muer – Reduces engine emissions and reduces noise.
19. 120V 3-Prong Twist Lock - Use to connect electrical devices that run 120 Volt, 60 Hz, single
phase, AC current (L5-30).
20. 50A Receptacle - Use to connect electrical devices that run 120 or 240 Volt, 60Hz, single phase,
AC current (NEMA 14-50).
21. Idle Control - Runs engine at reduced speed when no load is present to save on fuel and
reduce noise levels.
22. Power Boost - Double the 120V power for appliances & RVs.
4. Fuel Cap
15. Fuel Filter Cup
18. Muer
17. Spark Plug
3. Fuel Gauge
17

●Note: Actual tools may dier in appearance or design from image shown.
Your generator comes with the items listed below. Please check to see that all of the following
items are included with your generator.
Double-Sided
Screw Driver
Oil Funnel w/ Hose
Spanner Spark Plug Wrench
Plug Ends
Phillips and slot blade
screwdriver used for generator
maintenance.
Used to add oil to the
generator without messy spills.
Assorted wrenches used in
generator maintenance and
assembly. 10mm/12mm,
13mm/15mm, and
17mm/19mm.
Used in spark plug
maintenance, inspection, and
installation.
Plug heads for the receptacles
found on the generator are
included to make or rewire
your own cords.
DC Charge Cables
Used in conjunction with the
charging posts to charge 12V
automotive style batteries or
small DC appliances.
PACKAGE CONTENTS
18

GENERATOR SETUP
Proper setup of your generator will get you going as soon as possible while making sure you and
your equipment are safe and cared for.

20
