XS-12i
2-Way Install Monitor Quick Start Guide
XS-12i is a versatile, high-performance full range 2-way passive
wedged monitor conceived for professional environments where
portable sound reinforcement is required, delivering a superior audio
reproduction in a convinient format.
XS-12i HF assembly couples a 3˝ compression driver into common
XS Series birch plywood axisymmetric horn with DUTCH ACOUSTICS’s
proprietary design and a premium European, dedicated-design passive
crossover lter provides a smooth, natural transition intro the MLF 12˝
woofer and summing up into a full-range superior audio playback along
the whole usable frequency range.
Like all DUTCH ACOUSTICS models, XS-12i is built with 15 and 18 mm
birch plywood, Aquaforce waterproof paint coating and a high quality
steel grille, creating a rugged, durable and stylish loudspeaker.
The 60° wedged cabinet allows not only to be used as FOH main
system in small venues, bars and AV applications and as a stage
monitor but to seamlessly t into any wall mount xed installation.
XS-12i integrates a bottom Pole Mount 35 mm socket to be congured
on LF Series subwoofers for install applications in venues and clubs.
INSTALLATION ACCESSORIES
XS-12i is tted with threaded M8 inserts for hung permanent
installations and (optional) dedicated U-Brackets and Wall-Mount
accessories are available for seamless integration in any space.

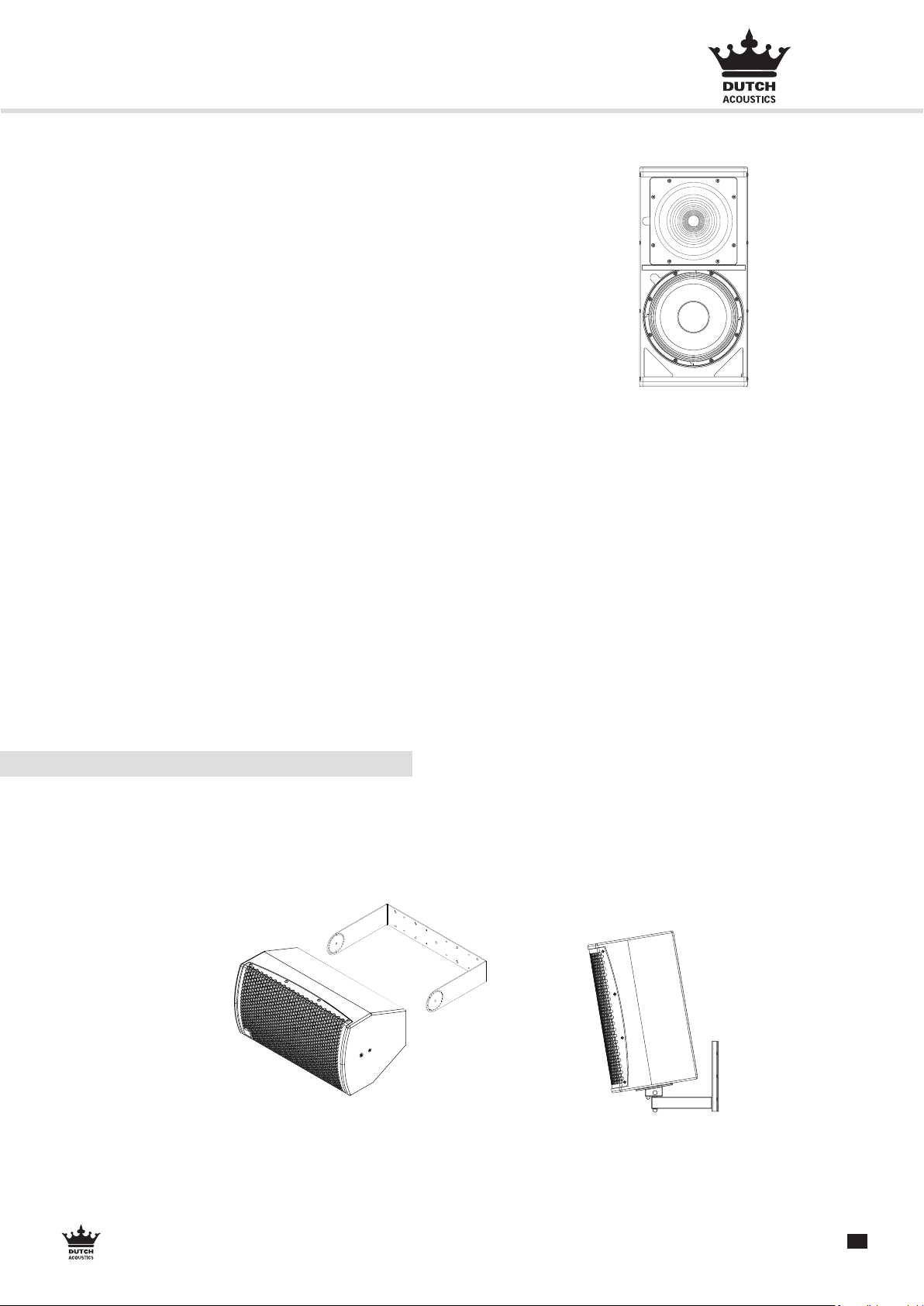

Examples showing
installation options for XS-12i
2
QS_DA_XS-12i_v1.0
TECHNICAL DATA
IEC ltered pink noise with a 6dB crest factor, 2 hours.
*
Frequency range values for recommended factory presets.
**
TECHNICAL DRAWINGS
Enclosure design Wedged cabinet (55˚) · Bass-Reex
LF Transducers 1 x 12˝ High performance woofer
HF Transducers 3” Voice coil Compression Driver (1.4 Exit, 120 mm magnet)
RMS Power Handling * 500 W
Nominal Impedance 8 Ohm
SPL (Continuous/Peak) 122/128 dB SPL
Frequency Range (-10 dB) 55 - 23000 Hz
Frequency Range (-3 dB) 69 - 21000 Hz
Coverage 80° Axisymmetric
Dimensions (WxHxD) 336 x 681 x 361 mm
(13,2 x 26,8 x 14,2 inch)
Weight 23,5 kg (51,8 lbs)
Connectors
+/-1
+/-2
2 x Neutrik speakON® NL-4 in Parallel
Input
Link
Cabinet Construction 15 + 18 mm Birch Plywood
Grille 1.5 mm perforated weatherised steel with protective foam
Finish Aquaforce High Resistance paint coating process
Handles 2 integrated handles
Installation 2 x M8 + 2 x M6 threaded inserts.
Accessories U-Bracket (UB-XS12i-H)
Wall-Mount Accessory (WM-01)
336 mm361 mm
681 mm
LINK
Thisproduct must be installed and/or
operatedby qualified professionals
followingsafe practices and local
regulations.Refer to the owner’s
manualfor instructions and optional
accessories.
PRODUCTOF EUROPE
Madein Spain
Designed,engineered and
manufacturedin Europe
INPUT
XS-12i
FullRange Signal
ParallelSignal
NL-4PINOUT
3
QS_DA_XS-12i_v1.0
DECLARATION OF CONFORMITY
WARNINGS AND SAFETY GUIDELINES
WARRANTY
!
• All DUTCH ACOUSTICS products are guaranteed against any manufacturing defect for a period of 5 years from date of purchase for
acoustical parts and 2 years from date of purchase for electronic devices.
• The guarantee excludes damage from incorrect use of the product.
• Any guarantee repair, replacement and servicing must be exclusively done by the factory or any of authorized service centres.
• Do not open or intend to repair the product; otherwise servicing and replacement will not be applicable for guarantee repair.
• Return the damaged unit, at shipper’s risk and freight prepaid, to the nearest service centre with a copy of the purchase invoice in
order to claim guarantee service or replacement.
• Read this document thoroughly, follow all safety warnings and keep it for future reference.
• The exclamation mark inside a triangle indicates that whatever repairing and component replacement operations must be done by
qualied and authorized personnel.
• No user serviceable parts inside.
• Only use accessories tested and approved by DUTCH ACOUSTICS and supplied by the manufacturer or an authorized dealer.
• Installations, rigging and suspension operations must be done by qualied personnel.
• Only use accessories specied by DUTCH ACOUSTICS, complying with maximum loads specications and following local safety regu-
lations.
• Read the specications and connection instructions before proceeding to connect the system and use only cabling supplied or rec-
ommended by DUTCH ACOUSTICS. Connection of the system should be done by qualied personnel.
• Professional sound reinforcement systems can deliver high SPL levels that may result in hearing damage. Do not stand close to the
system while in use.
• Loudspeaker produce magnetic eld even while they are not in use or even when disconnected. Do not place or expose loudspeakers
to any device that is sensitive to magnetic elds such as television monitors or data storage magnetic material.
• Disconnect the equipment during lightning storms and when it is not to be used for a long time.
• Do not expose this device to rain or moisture.
• Do not place any objects containing liquids, such as bottles or glasses, on the top of the unit. Do not splash liquids on the unit.
• Clean with a wet cloth. Do not use solvent-based cleaners.
• Regularly check the loudspeaker housings and accessories for visible signs of wear and tear, and replace them when necessary.
• Refer all servicing to qualied service personnel.
• This symbol on the product indicates that this product should not be treated as household waste. Follow local regulation for recy-
cling of electronic devices.
• DUTCH ACOUSTICS declines any responsibility from misuse that may result in malfunction or damage of the equipment.
