Introduction
DVDO-KVME-1 is a 4K KVM extender set over IP. It can extend 4K video (with
zero latency) and USB 2.0 signals over long distances. It also supports plug and
play.
Features
IP based, 1 Gigabit network supports 4K video.
Supports video resolution up to 4K@30Hz.
Supports HDCP 1.4.
Supports 7.1-channels audio.
Supports EDID limited copy.
Supports the distance up to 120m (395ft) with Cat 5e/6/6a/7 cable. Using
network switches, the distance can be extended without limit.
Supports up to three USB 2.0 devices connection for full feature USB 2.0
applications.
Supports 4-pin DIP switch for more sets works in a same network up to 16
sets.
Package Contents
Before you start the installation of the product, please check the package
contents as below:
DVDO-KVME-1 (Transmitter Receiver Set) x 1
DC 12V 1A Power Adapters (with US, UK, EU, AU Pins) x 2
USB 2.0 Type-A to Type-B Cable (1.5m) x 1
Mounting Brackets (with Screws) x 4
User Manual x 1

5
DVDO-KVME-1 _V1.0.0
DVDO
DVDO-KVME-1 4K KVM Extender over IP User Manual
Specifications
Transmitter
Technical
Input/Output
1 x HDMI IN (19-pin female HDMI Type-A)
1 x USB HOST (female USB Type-B)
1 x 4-Pin DIP Switch
1 x DC 12V connector with locking
1 x LAN (RJ45)
Input Signal Type
HDMI 1.4b
Input Resolution
Supported
640x4808, 800x6008,10, 1024x7688,10,
1280x7206,7,8,9,10, 1280x7688,10, 1280x8008,10,
1280x9608,10, 1280x10248,10, 1360x7688,
1366x7688, 1440x9008,10, 1600x9008,
1600x12008, 1680x10508,10,
1920x10801,2,3,4,5,6,7,8,9,10, 1920x12008,
3840x2160P2,3,5, 4096x2160P2,3,5
1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97
Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at
60 Hz, 9 = at 100 Hz, 10 = at 120 Hz
Input Audio Format
Supported
PCM 2.0 / 2.1 / 5.1 / 7.1, Dolby Digital 5.1 ch,
Dolby Digital Plus, Dolby TrueHD, DTS 5.1 ch,
DTS-HD High Resolution Audio, DTS-HD Master
Audio
Maximum Data Rate
9 Gbps
Maximum Pixel Clock
300 MHz
Output Signal Type
Compressed IP streams
Transmission Distance
Cat 5e or above: 120m/395ft
HDMI: 15m/49ft
General
Operating Temperature
0 to + 45°C (32 to + 113 °F), 10% to 90%,
non-condensing
Storage Temperature
-20 to +70°C (-4 to +158 °F), 10% to 90%,
non-condensing
ESD Protection
Human Body Model:
±8kV (air-gap discharge)/
±4kV (contact discharge)
Power Supply
DC 12V 1A
Power Consumption
<2.5 W
Unit Dimensions
(W x H x D)
112mm × 17.8mm × 65.2mm / 4.41’’ × 0.70’’ ×
2.57’’
Unit Weight
(without accessories)
0.18kg/0.40lb

6
DVDO-KVME-1_V1.0.0
DVDO-KVME-1 4K KVM Extender over IP User Manual
DVDO
Receiver
Technical
Input/Output
1 x LAN (RJ45)
1 x HDMI OUT (19-pin female HDMI Type-A)
3 x USB DEVICE (female USB Type-A)
1 x 4-Pin DIP Switch
1 x DC 12V connector with locking
Input/Output Signal Type
Compressed IP streams
Output Resolution
Supported
640x4808, 800x6008,10, 1024x7688,10,
1280x7206,7,8,9,10, 1280x7688,10, 1280x8008,10,
1280x9608,10, 1280x10248,10, 1360x7688,
1366x7688, 1440x9008,10, 1600x9008,
1600x12008, 1680x10508,10,
1920x10801,2,3,4,5,6,7,8,9,10, 1920x12008,
3840x2160P2,3,5, 4096x2160P2,3,5
1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97
Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at
60 Hz, 9 = at 100 Hz, 10 = at 120 Hz
Output Audio Format
Supported
PCM 2.0 / 2.1 / 5.1 / 7.1, Dolby Digital 5.1 ch,
Dolby Digital Plus, Dolby TrueHD, DTS 5.1 ch,
DTS-HD High Resolution Audio, DTS-HD Master
Audio
Maximum Data Rate
9 Gbps
Maximum Pixel Clock
300 MHz
Transmission Distance
Cat 5e or above: 120m/395ft
HDMI: 15m/49ft
USB Consumption
Not more than 0.5A per USB port is
recommended
General
Operating Temperature
0 to + 45°C (32 to + 113 °F), 10% to 90%,
non-condensing
Storage Temperature
-20 to +70°C (-4 to +158 °F), 10% to 90%,
non-condensing
ESD Protection
Human Body Model:
±8kV (air-gap discharge)/
±4kV (contact discharge)
Power Supply
DC 12V 1A
Power Consumption
< 4W (without USB Consumption)
Unit Dimensions
(W x H x D)
112mm × 17.8mm × 65.2mm / 4.41’’ × 0.70’’ ×
2.57’’
Unit Weight
(without accessories)
0.18kg/0.40lb

7
DVDO-KVME-1 _V1.0.0
DVDO
DVDO-KVME-1 4K KVM Extender over IP User Manual
Panel Description
Transmitter

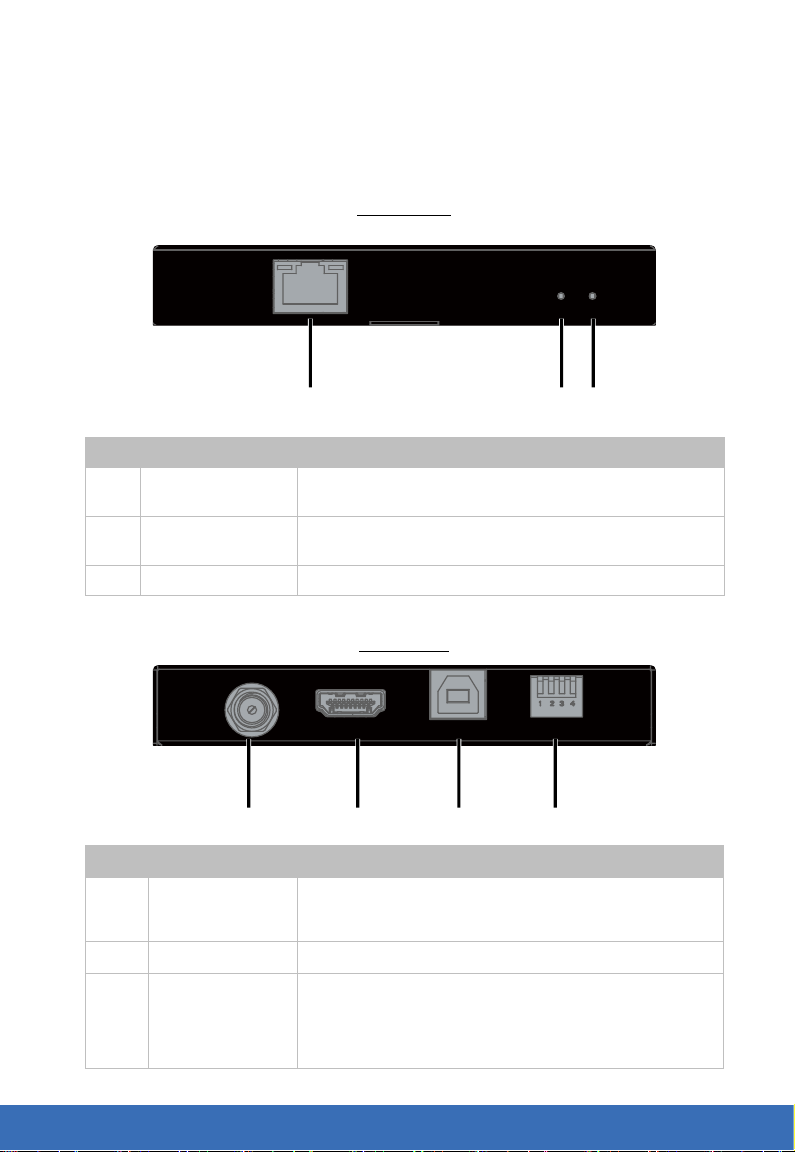

Front Panel
321
No.
Name
Description
1
LAN
Connect to a receiver or an Ethernet Switch for
streaming media output.
2
Link LED
LED On: The transmitter is paired with the receiver
successfully.
3
Power LED
LED On: The device is powered on.
Rear Panel
4321
No.
Name
Description
1
DC 12V
Connect to the DC 12V 1A power adapter
provided.
2
HDMI In
Connect to an HDMI source.
3
USB Host
Connect a type A to type B USB cable between
this port and the USB port of a desktop or a laptop.
This port is USB 2.0 compliant.

8
DVDO-KVME-1_V1.0.0
DVDO-KVME-1 4K KVM Extender over IP User Manual
DVDO
No.
Name
Description
4
Channel ID
This DIP switch consists of four manual switches,
which are used to route the transmitter to receiver
based on their positions. For more information, see
“Using DIP Switch to Perform Routing”section.
Note:
•By default, each individual switch is in the up
position.
•If you change the positions of the DIP
switches on transmitter/receiver, you must
restart the transmitter/receiver for the changes
to take effect.
Receiver
Front Panel
321
No.
Name
Description
1
USB Device
Connect to up to three USB devices (e.g.
keyboard, mouse and Udisk).
2
Link LED
LED On: The receiver is paired with the transmitter
successfully.
3
Power LED
LED On: The device is powered on.

9
DVDO-KVME-1 _V1.0.0
DVDO
DVDO-KVME-1 4K KVM Extender over IP User Manual
Rear Panel
3 421
No.
Name
Description
1
DC 12V
Connect to the DC 12V 1A power adapter
provided.
2
LAN
Connect to a transmitter or an Ethernet Switch for
streaming media input.
3
HDMI Out
Connect to an HDMI display device.
4
Channel ID
This DIP switch consists of four manual switches,
which are used to route the transmitter to receiver
based on their positions. For more information, see
“Using DIP Switch to Perform Routing” section.

10
DVDO-KVME-1_V1.0.0
DVDO-KVME-1 4K KVM Extender over IP User Manual
DVDO
Installation and Wiring
Installation
Note: Before installation, ensure the devices are disconnected from the power
source.
Steps to install the device in a suitable location:
1. Attach the installation bracket to the enclosure using the screws that were
provided in the package separately.
2. The bracket is attached to the enclosure as shown.
3. Repeat steps 1-2 for the other side of the unit.
4. Attach the brackets to the surface you want to hold the unit against using
the screws (provided by others).
5. Repeat above steps for another unit.
Wiring
Application 1 - Connect Transmitter to Receiver Directly

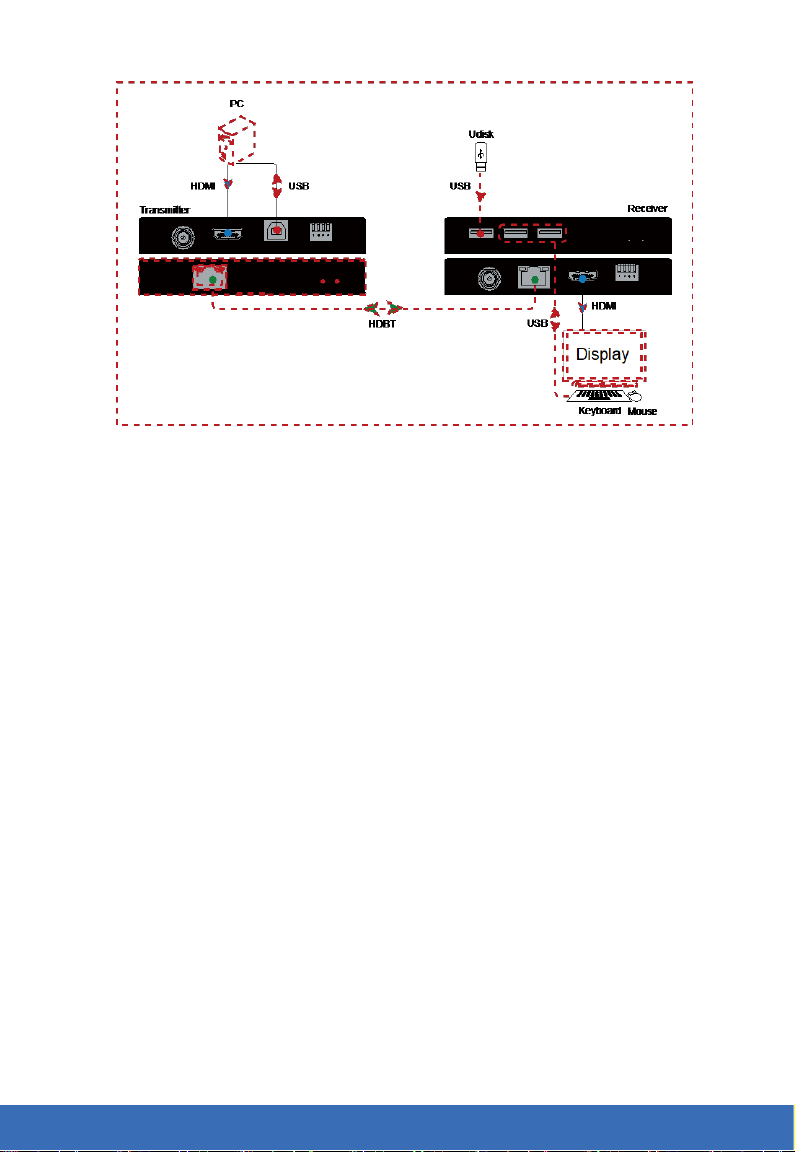

The DVDO-KVME-1 could be connected directly with a Cat 5e or above cable.
As a normal extender set, it extends the HDMI and USB signals over a long
distance up to 120m/395ft.

11
DVDO-KVME-1 _V1.0.0
DVDO
DVDO-KVME-1 4K KVM Extender over IP User Manual
Application 2 - Connect through Ethernet Switch

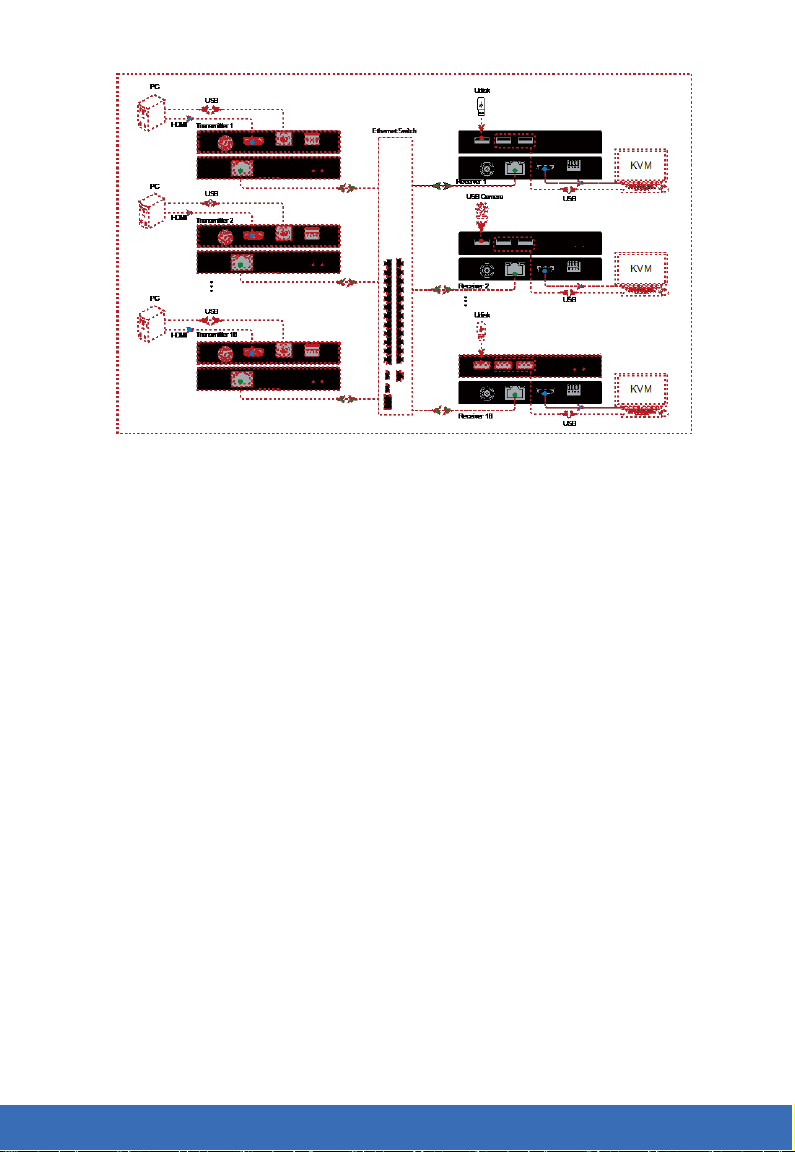

The DVDO-KVME-1 could be connected through one or more network switches.
With the 4-pin DIP switch, it could connect to 16 extender sets in a same network
without the VLAN settings, and extend the HDMI and USB signals to an
unlimited distance.
Note:
HDMI cables’ length must be within 15m/49ft.
One transmitter can only be paired with one receiver individually in the
same network, i.e. only one set DIP switch of transmitter and receiver can
be set to the same position.

12
DVDO-KVME-1_V1.0.0
DVDO-KVME-1 4K KVM Extender over IP User Manual
DVDO

13
DVDO-KVME-1 _V1.0.0
DVDO
DVDO-KVME-1 4K KVM Extender over IP User Manual
Troubleshooting
How to deal with cutting off when you connect USB device to receiver?
Ensure your USB device is working normally.
Connect the power adapter to the receiver’s power port instead of
transmitter since PoE may not provide enough power to your USB device
(e.g. a hard disk).

14
DVDO-KVME-1_V1.0.0
DVDO-KVME-1 4K KVM Extender over IP User Manual
DVDO
Warranty Terms and Conditions
For the following cases we shall charge for the service(s) claimed for the
products if the product is still repairable and the warranty becomes
unenforceable or inapplicable.
1. The original serial number (specified by us) labeled on the product has
been removed, erased, replaced, defaced or is illegible.
2. The warranty has expired.
3. The defects are caused by the fact that the product is repaired,
dismantled or altered by anyone that is not from an authorized service
partner.
4. The defects are caused by the fact that the product is used or handled
improperly, roughly or not as instructed in the applicable User Guide.
5. The defects are caused by any force majeure including but not limited to
accidents, fire, earthquake, lightning, tsunami and war.
6. The service, configuration and gifts promised by sales representative
only but not covered by normal contract.
7. We reserve the right for interpretation of these cases above and to make
changes to them at any time without notice.


Table of contents
Other DVDO Extender manuals
