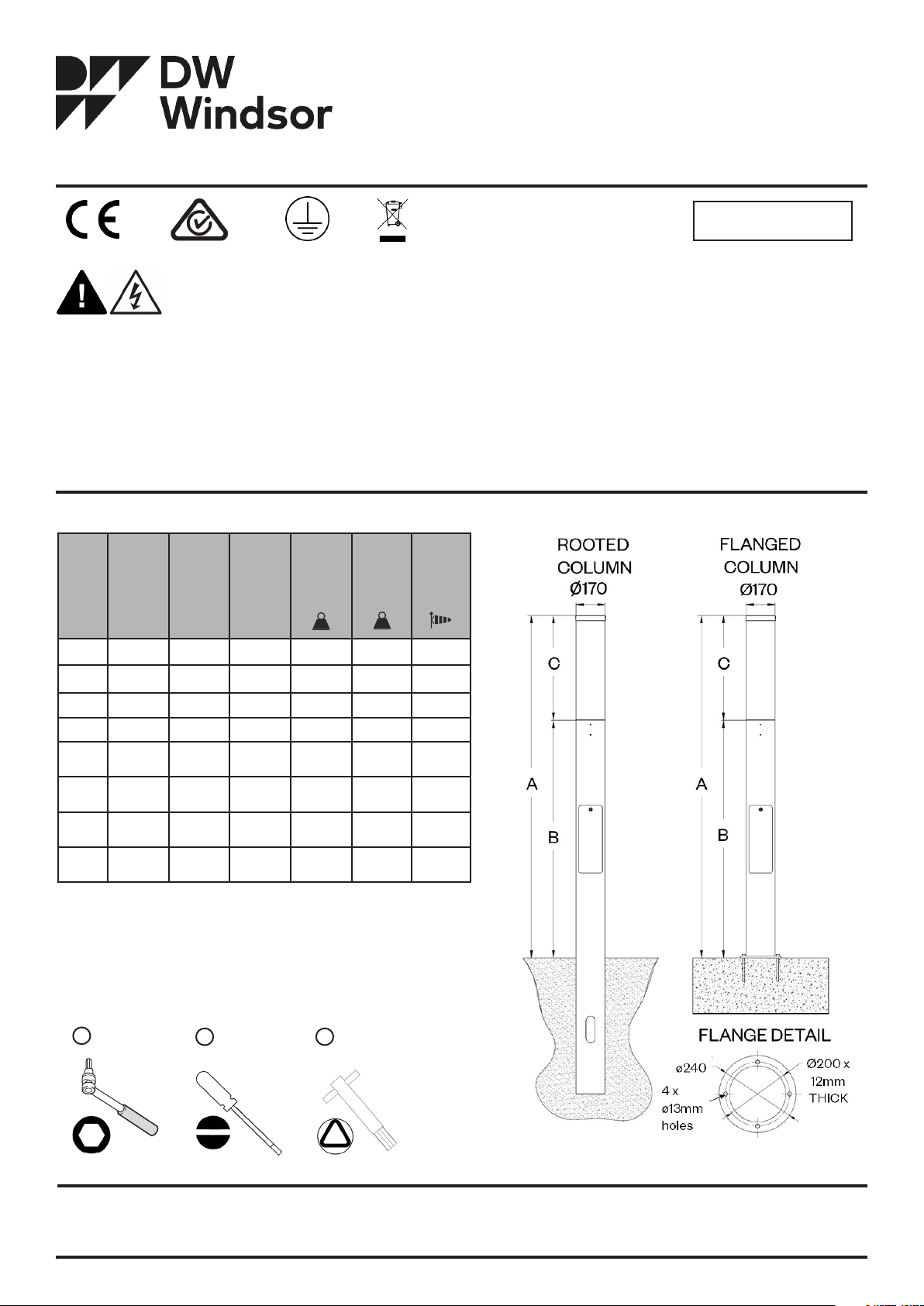

DW Windsor Silka User manual

Sheet 1 of 2
Tools not supplied unless otherwise stated.
Due to continuous product development the details within this document
are subject to change at any time, please contact us for the most up-to-date
information or visit: www.dwwindsor.com
50315-026 REV A
DW Windsor
Pindar Road, Hoddesdon, Hertfordshire, EN11 ODX
T: [phone] | E: [e-mail]
dwwindsor.com
Installation Instructions
IMPORTANT
PRODUCT DETAILS
TOOLS REQUIRED
SUPPLIED PARTS
Silka
Silka Max
1TORQUE WRENCH
+
4mm A/F Allen
Key Bit
STANDARD
COLUMN
DOOR KEY
3
SLOTTED
SCREWDRIVER
2
LUMINAIRE
HEIGHT
(mm)
C
COLUMN
HEIGHT
(mm)
B
OVERALL
HEIGHT
(mm)
A
WEIGHT
(KG)
ROOTED
COLUMN
WEIGHT
(KG)
FLANGED
COLUMN
WINDAGE
(m²)
SILKA 600 1400 2000 21.3 23.3 0.35
SILKA 600 2400 3000 28.3 30.3 0.52
SILKA 600 3400 4000 35.3 37.3 0.69
SILKA 600 4400 5000 43.7 45.7 0.86
SILKA
MAX 1200 1400 2600 16.5 18.5 0.45
SILKA
MAX 1200 2400 3600 23.5 25.5 0.62
SILKA
MAX 1200 3400 4600 30.5 32.5 0.79
SILKA
MAX 1200 4400 5600 37.5 39.5 0.96
230VAC 50Hz
IP66 IK09
• DISCONNECT ELECTRICAL SUPPLY BEFORE INSTALLATION OR SERVICING.
• THIS PRODUCT MUST BE EARTHED.
• THIS PRODUCT IS DESIGNED TO OPERATE OUTDOORS. IF REQUIRED TO BE USED INDOORS PLEASE CONSULT DW WINDSOR.
• THIS PRODUCT IS FITTED WITH HIGH IMPACT RESISTANT GLAZING AND MAY BE MOUNTED AT HEIGHTS UP TO 8m.
• DO NOT STARE AT THE LIGHT SOURCE.
• PERSONNEL TO WEAR PROTECTIVE SAFETY GLASSES COMPLIANT WITH EN166 1F/EN169-5 WHEN COMMISSIONING OR
MAINTAINING THIS PRODUCT.
• LEDS CONTAINED WITHIN THIS LUMINAIRE SHALL ONLY BE REPLACED BY THE MANUFACTURER, THEIR SERVICE AGENT OR
SIMILAR QUALIFIED PERSON.
• THE LIVE SUPPLY IS INSULATED (BASIC) FROM THE DALI CONDUCTOR.
• COLUMN x1 (ROOTED OR FLANGED)
• LUMINAIRE x1 (SILKA OR SILKA MAX)

Sheet 2 of 2
Step 1
Install the column.
For the flanged column, assemble the column base directly to
the foundations using the four fixing holes on the flange plate.
Secure with M10 anchor bolts.
Step 3
Secure the luminaire to the column using a torque wrench.
Tighten the bottom row of grub screws first , and the top row of
grub screws second. Tighten to 16Nm (6 places).
Step 2
Unpack luminaire from carton and remove protective bag.
Feed mains cable and DMX cable down (DMX versions only)
inside column and insert luminaire into column.
Step 4a
Open the column door using a standard column door key.
Terminate the Live, Earth & Neutral wires of the mains cable.
Refer to label attached to mains cable end & Fig 1.
Step 4b (DMX Versions only):
Terminate the + DMX, -DMX wires & Earth screen of the DMX
cable. Refer to label attached to DMX cable end & Fig.2.
50315-026 REV A
DW Windsor
Pindar Road, Hoddesdon, Hertfordshire, EN11 ODX
T: [phone] | E: [e-mail]
dwwindsor.com
B
NL
Fig. 1 Fig. 2
INSTALLATION STEPS
Silka
Silka Max
