Quick Reference Guide

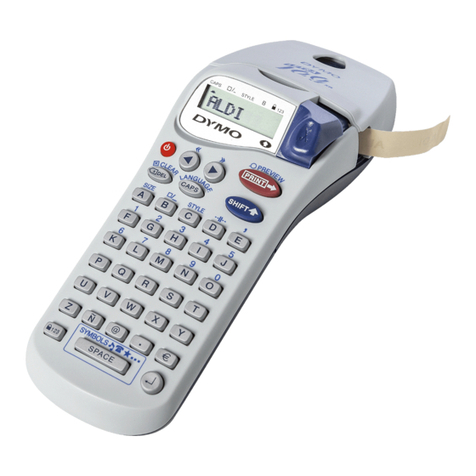

LetraTag XR
This user-friendly product offers great value for money. Offering a
wide variety of label-tapes in the LetraTag range, the LetraTag XR will
fulfil all home labelling needs quickly and easily.
Fetaures
•ABC keyboard
•SMS-style key entry for added characters
•Takes 12mm DYMO LetraTag tape (see LetraTag tape)
•6 character display – up to 70 characters per label
Label Formatting
•4 font sizes
•6 styles
•8 boxes/underline
•45 symbols
•1 and 2 line printing
•Print Preview: View label before printing for error free labelling
Power
•Uses 6 x AA alkaline batteries (not supplied)
Product Code: SD17293
Colour: Light Blue / Navy

LetraTag QX50
The LetraTAG QX50’s creative ergonomic design makes it perfect for
desktop or handheld use. With easy to use QWERTY keyboard and
logical navigation, this labeller makes fast, well-presented labels
attainable for everyone.
Fetaures
•QWERTY keyboard
•SMS-style key entry for added characters
•Takes 12mm DYMO LetraTag tape (see LetraTag tape)
•9 character display – up to 70 characters per label
•Memory: Up to 20 labels / 70 characters
•Multiple copies
Label Formatting
•4 font sizes
•6 styles
•8 boxes/underline
•58 symbols
•1 and 2 line printing
•Fixed length labels
•Print Preview: View label before printing for error free labelling
Power
•Uses 5 x AA alkaline batteries (not supplied)
Product Code: SD17284
Colour: White
LetraTag Tapes
LetraTag label cassettes enclose label tape and black ink-ribbon in the one
easy to load cassette. Available in a variety of matrials and colours there is a
LetraTag label-tape for evry labelling application around the home.
Paper – economical, multi-pupose, indoor use
oWhite 12mmx4m SD91200
Plastic – durable, dishwasher & freezer safe
oWhite 12mmx4m SD91201
oClear 12mmx4m SD12267
oYellow 12mmx4m SD91202
oRed 12mmx4m SD91203
oGreen 12mmx4m SD91204
oBlue 12mmx4m SD91205
Metallic – durable, dishwasher & freezer safe
•Silver 12mmx4m SD91208
•Green 12mmx4m SD91209
Fabric – for clothing, machine washable safe to 60°C
oIron-on 12mmx2m SD18771

LabelWriter 400
With the DYMO LabelWriter 400 and DYMO Label Software, superior
quality label-printing is now easier than ever. The LW is packed full
of the easy to use features expected from a DYMO labeller at a very
low price.
Hardware
•300dpi for super print quality
•Supports 19 styles of label up to 60mm wide (see LabelWriter Labels)
•40 Labels per minute print speed
•Automatic back-up of first label – no label wastage
•Label release feature for easy unloading of labels
•USB connection
•Contemporary look and feel
Software
•PC & Mac compatible
•Compatible with all LabelWriter 400 models
•Add-ins for most popular office software packages: Word, Outlook,
Palm, Excel2006, WordPerfect, CardScan & more.
•51 built-in templates, template design & save feature
•Design labels
•Save & recall labels
•Insert symbols, logos, images, barcodes, text, time & date, incremental
counter
•Import data
•Export data
•Address book – easy to import contacts from other programs
•Smartpaste from databases - no need to ever mail-merge again
•Includes Software Developers Kit (SDK) for integrating LabelWriter into
custom software applications (medical, barcode, paint-matching, photo
processing)
Product Code: SD69400
Colour: Grey/Silver
LabelWriter 400 Turbo
All the features of the LabelWriter 400 - only faster. Printing up to 55
labels per minute, the LW400 Turbo is perfect for those wishing to save
time printing superior quality labels.
Hardware
•300dpi for super print quality
•Supports 19 styles of label up to 60mm wide (see LabelWriter Labels)
•55 Labels per minute print speed
•Automatic back-up of first label – no label wastage
•Label release feature for easy unloading of labels
•USB connection
•Contemporary look and feel
Software
•PC & Mac compatible
•Compatible with all LabelWriter 400 models
•Add-ins for most popular office software packages: Word, Outlook, Palm,
Excel2006, WordPerfect, CardScan & more.
•51 built-in templates, template design & save feature
•Design labels
•Save & recall labels
•Insert symbols, images, barcodes, text, incremental counter
•Import data
•Export data
•Address book – easy to import contacts from other programs
•Smartpaste from databases - no need to ever mail-merge again
•Includes Software Developers Kit (SDK) for integrating LabelWriter into
custom software applications (medical, barcode, paint-matching, photo
processing)
Product Code: SD69410
Colour: Grey/Silver

LabelWriter 400 Twin Turbo
By combining two LabelWriters in one, the DYMO LabelWriter 400
Twin Turbo is the perfect machine for the high volume user who
needs large numbers of labels or the flexibility to choose between
two label styles.
Hardware
•Two label spools – load two types of label to save time switching
between commonly used labels
•Automatic switch between label spools at the end of al roll for large
print runs
•300dpi for super print quality
•Supports 19 styles of label up to 60mm wide (see LabelWriter Labels)
•Automatic switch between r
•55 Labels per minute print speed
•Automatic back-up of first label – no label wastage
•Label release feature for easy unloading of labels
•USB connection
Software
•PC & Mac compatible
•Compatible with all LabelWriter 400 models
•Add-ins for most popular office software packages: Word, Outlook,
Palm, Excel2006, WordPerfect, CardScan & more.
•51 built-in templates, template design & save feature
•Design labels
•Save & recall labels
•Insert symbols, images, barcodes, text, incremental counter
•Import data / Export data
•Address book – easy to import contacts from other programs
•Smartpaste from databases - no need to ever mail-merge again
•Includes Software Developers Kit (SDK) for integrating LabelWriter into
custom software applications (medical, barcode, paint-matching, photo
processing)
Product Code: SD69415
Colour: Grey/Silver
LabelWriter 400 Duo
Combining a LabelWriter with a D1 LMPC, the DYMO LabelWriter
400 Duo is the most versatile label printer in the world.
Top – LabelWriter 400 Turbo
•All the great features and speed of the LabelWriter 400 Turbo
Bottom – LabelManager LMPC
•Uses 6, 9, 12, 18 & 24mm DYMO D1 tape (see D1 tape)
•Automatic cutter
•Easy load tape drawer, with automatic slide door
Software
•Switch between LW Label mode and LM Label-tape mode
•PC & Mac compatible
•Add-ins for most popular office software packages: Word, Outlook,
Palm, Excel2006, WordPerfect, CardScan & more.
•51 built-in templates, template design & save feature
•Design labels
•Save & recall labels
•Insert symbols, images, barcodes, text, incremental counter
•Import data
•Export data
•Address book – easy to import contacts from other programs
•Smartpaste from databases - no need to ever mail-merge again
•Includes Software Developers Kit (SDK) for integrating LabelWriter
into custom software applications (medical, barcode, paint-matching,
photo processing)
Product Code: SD69420
Colour: Grey/Silver

LabelWriter Labels
ADDRESS LABELS DYMO
CODE
STANDARD ADDRESS - PAPER/WHITE 28mm x 89mm 2 Rolls/Box. 130 Labels/Roll SD99010
STANDARD ADDRESS - PAPER/ASST COLOURS 28mm x 89mm 4 Rolls/Box.130
Labels/Roll SD99011
RETURN ADDRESS - PAPER/WHITE 19mm x 51mm 1Roll/Box. 500 Labels/Roll SD11352
LARGE ADDRESS - PAPER/WHITE 36mm x 89mm 2 Rolls/Box. 260 Labels/Roll SD99012
LARGE ADDRESS - PLASTIC/CLEAR 36mm x 89mm 1 Roll/Box. 260 Labels/Roll SD99013
FILING LABELS
SUSPENSION FILE - PAPER/WHITE 12mm x 50mm 1 Roll/Box 220 Labels/Roll SD99017
LEVER ARCH FILE SMALL - PAPER/WHITE 38mm x 190mm 1 Roll/Box 110 Labels/Roll SD99018
LEVER ARCH FILE LARGE - PAPER/WHITE 59mm x 190mm 1 Roll/Box 100 Labels/Roll SD99019
MEDIA LABELS
CD/DVD - PAPER/WHITE 57mm DIAMETER 1 Roll/Box 160 Labels/Roll SD14681
VIDEO SPINE - PAPER/WHITE 19mm x 147mm 2 Rolls/Box 150 Labels/Roll SD99016
3.5" DISKETTE - PAPER/WHITE 54mm x 70mm 1 Roll/Box 320 Labels/Roll SD99015
MULTI PURPOSE LABELS
MULTI PURPOSE - PAPER/WHITE 25mm x 54mm 1 Roll/Box 500 Labels/Roll SD11352
MULTI PURPOSE - PAPER/WHITE 57mm x 32mm 1 Roll/Box 1000 Labels/Roll SD11354
MULTI PURPOSE SQUARE - PAPER/WHITE 25.4mm x 25.4mm 1 Roll/Box 750 Labels/Roll SD30332
MULTI PURPOSE - 2 UP - PAPER/WHITE 13mm x 25mm 1 Roll/Box 1000 Labels/Roll SD11353
NAME BADGE LABELS
NAME BADGE - PAPER/WHITE 54mm x 70mm 1 Roll/Box 320 Labels/Roll SD99015
NAME BADGE NON ADHESIVE- PAPER/WHITE 57mm x 101mm 1 Roll/Box 250 Labels/Roll SD30856
NAME BADGE ADHESIVE- PAPER/WHITE 57mm x 101mm 1 Roll/Box 250 Labels/Roll SD30857
SHIPPING LABELS
STANDARD SHIPPING - PAPER/WHITE 54mm x 101mm 1 Roll/Box. 220 Labels/Roll SD99014
LARGE SHIPPING - PAPER/WHITE 59mm x 102mm 1 Roll/Box. 300 Labels/Roll SD30256
LabelPoint 150
The robust handheld LabelPoint range is the perfect portable Labelmaker
that allows you to organise anything from confidential files to small
containers of critical parts. The LP150 is a general purpose yet highly
sophisticated handheld label machine.
Fetaures
•ABC keyboard
•Uses 9 & 12mm DYMO D1 tape (see D1 tape)
•13 character semi-graphical display – up to 99 characters per label
•180dpi Resolution: For high quality thermal printing
•Prints multiple copies
•Memory: Last 3 labels, 3 label memory and 3 template memory
Label Formatting
•3 fonts, 6 styles, 6 boxes/underline, 70 symbols
•Prints fixed length labels
•1 and 2 line printing
•Print Preview: View label before printing for error free labelling
Power
•Uses 6 x AAA alkaline batteries (not supplied)
Product Code: SD22056
Colour: Black/Silver

LabelPoint 250
The robust handheld LabelPOINT range is the perfect portable
Labelmakerthat allows you to organise anything from confidential files to
small containers of critical parts. The LP250 can easily create distinctive
labels from safety warnings to invoice files.
Fetaures
•ABC keyboard
•Uses 6, 9 & 12mm DYMO D1 tape (see D1 tape)
•13 character semi-graphical display – up to 99 characters per label
•180dpi Resolution: For high quality thermal printing
•Prints multiple copies
•Memory: Last 9 labels, 9 label memory and 9 template memory
Label Formatting
•4 fonts, 7 styles, 6 boxes/underline, 70 symbols
•Prints fixed length labels
•1 and 2 line printing
•Incremental printing: prints sequential labels
•Print Preview: View label before printing for error free labelling
Power
•Uses 6 x AA alkaline batteries or DYMO AC adaptor (not supplied)
Product Code: SD22063
Colour: Black/Silver
Adaptor Product Code: SD40078
LabelPoint 350
The robust handheld LabelPOINT range is the perfect portable
Labelmakerthat allows you to organise anything from confidential files to
small containers of critical parts. The LP 350 is the best, most
sophisticated and state-of-the-art handheld labelmaker available
anywhere.
Fetaures
•ABC keyboard
•Uses 6, 9, 12 & 19mm DYMO D1 tape (see D1 tape)
•16 character semi-graphical display – up to 99 characters per label
•180dpi Resolution: For high quality thermal printing
•Prints multiple copies
•Memory: Last 10 labels, 15 label memory and 10 template memory
•PC Connectable (software supplied) through USB 2.0 port
Label Formatting
•7 fonts, 13 styles, 15 boxes/underline, 175 symbols
•Prints fixed length labels
•Prints up to 5 lines of text on 19mm tape
•Incremental printing: prints sequential labels
•Barcodes – UPC A and E, EAN 8 and 13, Code 39 and 128
•Import data, logos & images from via computer connection
•Print Preview: View label before printing for error free labelling
Power
•Uses 6 x AA alkaline batteries or DYMO
AC adaptor (not supplied)
Product Code: SD22070
Colour: Black/Silver
Adaptor Product Code: SD40078

LabelManager 150
Versatile yet easy to use, the LabelManager range makes professional
presentation in the workplace accessible to everyone. The compact
desktop LM150 has a simple keyboard, logical navigation and clear
instructions to make professional labelling easy.
Fetaures
•QWERTY keyboard
•Uses 6, 9 & 12mm DYMO D1 tape (see D1 tape)
•13 character semi-graphical display – up to 99 characters per label
•180dpi Resolution: For high quality thermal printing
•Prints multiple copies
Label Formatting
•3 fonts, 6 styles, 6 boxes/underline, 70 symbols
•Prints fixed length labels
•Horizontal & vertical labels
•1 and 2 line printing
•Print Preview: View label before printing for error free labelling
Power
•Uses 6 x AA alkaline batteries or DYMO AC adaptor (not supplied)
Product Code: SD18134
Colour: Black/Silver
Adaptor Product Code: SD40078
LabelManager 450
Versatile yet easy to use, the LabelManager range makes professional
presentation in the workplace accessible to everyone. The LM450 is the
ultimate desktop labelmaker with unlimited scope for creative labels
thanks to its PC connectability.
Fetaures
•QWERTY keyboard
•Uses 6, 9, 12, 19 & 24mm DYMO D1 tape (see D1 tape)
•16 character semi-graphical display – up to 99 characters per label
•180dpi Resolution: For high quality thermal printing
•Prints multiple copies
•Memory: Last 15 labels, 10 label memory and 10 template memory
•PC Connectable (software supplied) through USB 2.0 port
•Comes with Dymo LabelManager Software
Label Formatting
•7 fonts, 13 styles, 15 boxes/underline, 175 symbols
•Prints fixed length labels
•Prints up to 5 lines of text on 19 & 24mm tape
•Incremental printing: prints sequential labels
•Barcodes – UPC A and E, EAN 8 and 13, Code 39 and 128
•Import data, logos & images from via computer connection
•Preview: View label before printing for error free labelling
Power
•Uses 6 x AA alkaline batteries or DYMO AC adaptor (included)
Product Code: SD17118
Colour: Black/Silver
Adaptor Product Code: SD40078 (adaptor included)

LabelManager LMPC
Produce labels using your PC with this compact, user-friendly and
attractive unit. PC software is included as well as a printer driver for output
from your favourite windows programs.
Fetaures
•Uses 6, 9, 12, 19 & 24mm DYMO D1 tape (see D1 tape)
•180dpi Resolution: For high quality thermal printing
•PC Connectable (software supplied) through USB 2.0 port
•DYMO LabelManager Software
•Manual tape cutting
•System requirements: Windows 98/ME/2000/XP, USB port
Label Formatting
•All windows fonts styles and effects
•Prints fixed length labels
•Prints up to 5 lines of text on 19 & 24mm tape
•Incremental printing: prints sequential labels
•Barcodes – UPC A and E, EAN 8 and 13, Code 39 and 128
•Import data, logos & images from via computer connection
•Preview: View label before printing for error free labelling
Power
•DYMO AC power adaptor (included)
Product Code: SD18348
Colour: Black/Silver
Adaptor Product Code: SD40078
(adaptor included)
D1 Tapes
•Plastic self-adhesive label tape with a carbon ribbon in one cassette
•Freezer, microwave & dishwasher resistant (water resistant & heat resistant)
•U.V. resistant
•Removable with no sticky residue
•Suitable for stainless steel, glass, powder-coated steel, wood, paper,
cardboard, plastic (matte & glossy) computer casing, formica & Tupperware
•Split backing for easy removal
Red on transparent
Red on white
Blue on transparent
White on black
Black on blue
Black on yellow
Black on white
Black on gold
Black on silver
Black on red
Black on green
Black on fluorescent pink
Blue on white
White on transparent
9MM6MM 19MM12MM 24MM
Available in 5 widths and 15 colour
combinations Black on transparent
