Dyna-Glo DGN405DNC User manual

Serial Number Purchase Date
ATTACH YOUR RECEIPT HERE
70-10-031
Español p. 37
Français p. 19
HEAVY-DUTY
CHARCOAL GRILL
MODEL #DGN405DNC/
#DGN405DNC-D
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-877-447-4768, 8:30 a.m. – 4:30 p.m. CST, Monday – Friday, or
log on to [email protected]
1
Rev. 7/31/13

2
TABLE OF CONTENTS
Package Contents ............................................................................................................... 3
Hardware Contents.............................................................................................................. 4
Preparation.......................................................................................................................... 4
Safety Information ............................................................................................................... 5
Assembly Instructions.......................................................................................................... 6
Operating Instructions ....................................................................................................... 14
Care and Maintenance ...................................................................................................... 16
Warranty ............................................................................................................................ 16
Replacement Parts List ..................................................................................................... 17
Please read and understand this entire manual before attempting to assemble, operate or install the
product. If you have any questions regarding the product, please call customer service at:
1-877-447-4768, 8:30 a.m. – 4:30 p.m. CST, Monday – Friday.
CAUTION
• THIS UNIT IS HEAVY. TWO PEOPLE REQUIRED FOR SAFE ASSEMBLY. Some parts may
contain sharp edges. Wear protective gloves if necessary. Read and follow all safety statements,
warnings, assembly instructions, and use and care instructions before attempting to assemble and
use.
WARNING
• Keep a re extinguisher near this product at all times.
• This grill is for outdoor use only in well-ventilated areas.
• The use of alcohol, prescription or non-prescription drugs may impair the user’s ability to properly
assemble and safely operate this appliance.
SAFETY INFORMATION

3
• Use caution when lifting and moving the unit to avoid back strain or back injury. Do not move the
unit while it is in use.
• DO NOT operate the unit near or under ammable or combustible materials such as decks, porches
or carports. A minimum clearance of 36 in. (91.4 cm) is recommended. DO NOT operate the unit
under overhead construction.
• A minimum clearance to combustible construction is 36 in. (91.4 cm) from sides and back.
• DO NOT use this appliance as a heater.
• Operate the unit on a stable, level, non-ammable surface such as asphalt, concrete or solid
ground. DO NOT operate the unit on ammable material such as carpet or wood deck.
• Use caution when assembling and operating this unit to avoid cuts and scrapes from edges.
• DO NOT use this product in a manner other than its intended purpose. It is NOT intended for
commercial use. It is not intended to be installed or used in or on a recreational vehicle and/or boats.
• DO NOT store this unit near gasoline or other combustible liquids or where other combustible
vapors may be present.
• DO NOT store or operate this product in an area accessible to children or pets. Store this unit in a
dry protected location.
• DO NOT leave the unit unattended while in use.
• DO NOT leave hot ashes unattended until the grill cools completely.
• DO NOT move the unit while in use or while ashes are still hot. Allow the unit to cool completely
before moving or storing.
• NEVER use gasoline or other highly volatile uids as a starter.
• Always cook your food on the grate after the ame is burned out.
• Dispose of cold ashes by wrapping them in heavy-duty aluminum foil and placing in a
noncombustible container. Make sure that there are no other combustible materials in or near the
container.
• If you must dispose of ashes in less time than it takes for the ashes to completely cool down, then
remove the ashes from the unit, using heat-resistant gloves along with long metal tongs or replace
shovel. Place the coals in aluminum foil and soak them completely with water before disposing of
them in a noncombustible container.
• Allow the unit to cool completely before conducting any routine cleaning or maintenance.
CALIFORNIA PROPOSITION 65
• Fuels used in wood and charcoal burning appliances and the products of combustion of such fuels
contain chemicals known to the State of California to cause cancer, birth defects or other reproductive
harm. This product contains chemicals, including lead and lead compounds, known to the State of
California to cause cancer, birth defects or other reproductive harm. Wash hands after handling.
SAFETY INFORMATION

44
PART DESCRIPTION QUANTITY
A Side Shelf 2
BLid and Firebox Assembly 1
CLid Handle Assembly 1
DSmoke Stack Assembly 1
ECharcoal Access Door 1
F Crank Handle 1
G Damper Handle – Right 1
H Damper 2
ISide Shelf Support – Right
Rear/Left Front
2
JAsh Tray 1
KAsh Tray Handle 1
L Cart Brace 2
PART DESCRIPTION QUANTITY
MRight Leg Assembly 1
N Leg Base 2
O Storage Basket 1
PAxle 1
Q Wheel 2
RLeft Leg Assembly 1
SCharcoal Tray 1
T Grate 2
U Warming Rack 1
V Damper Handle – Left 1
W
X
Side Shelf Support – Left
Rear/Right Front
Temperature Gauge
2
1

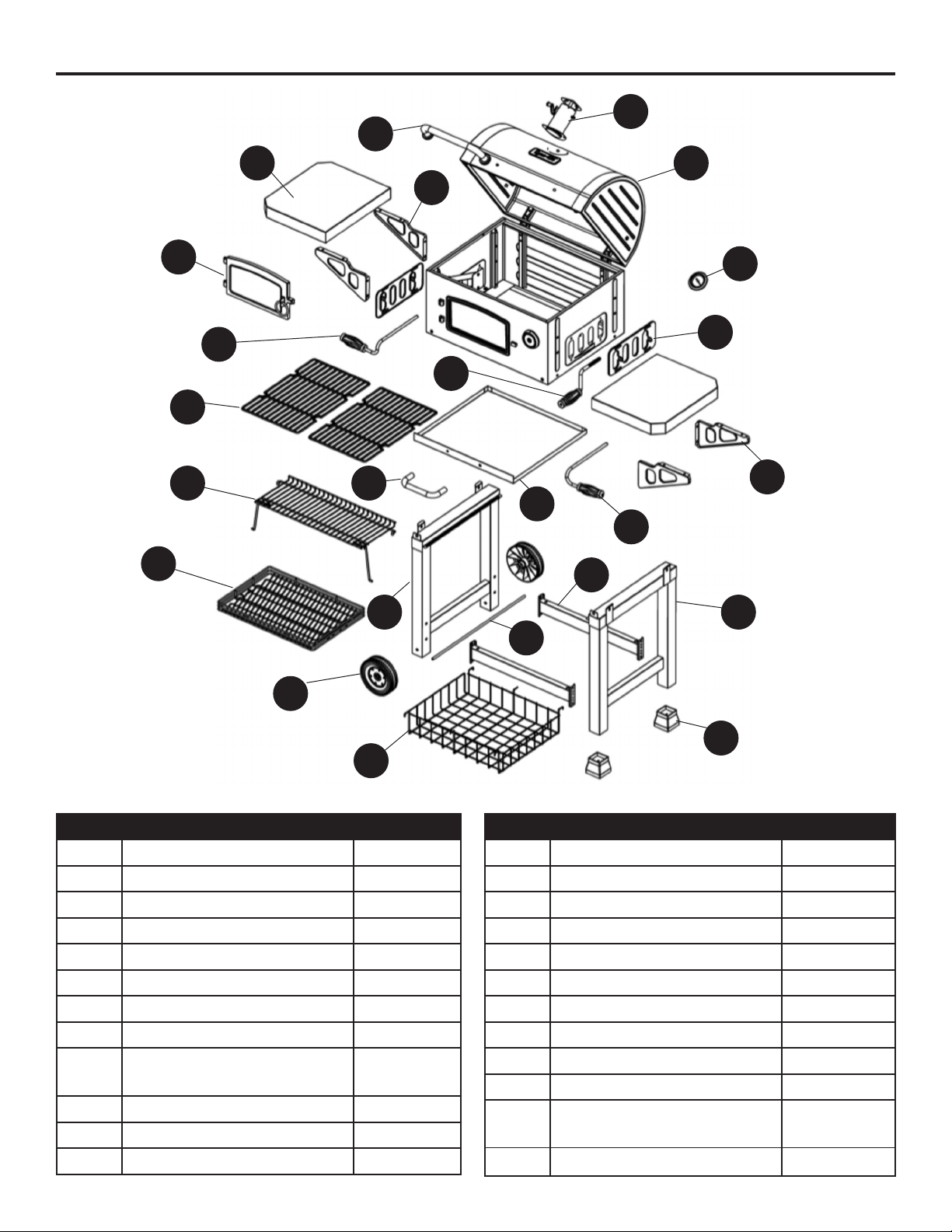

PACKAGE CONTENTS
A
D
C
E
F
G
B
J
I
H
K
L
R
S
Q
O
P
N
M
T
U
V
W
X

5
PREPARATION

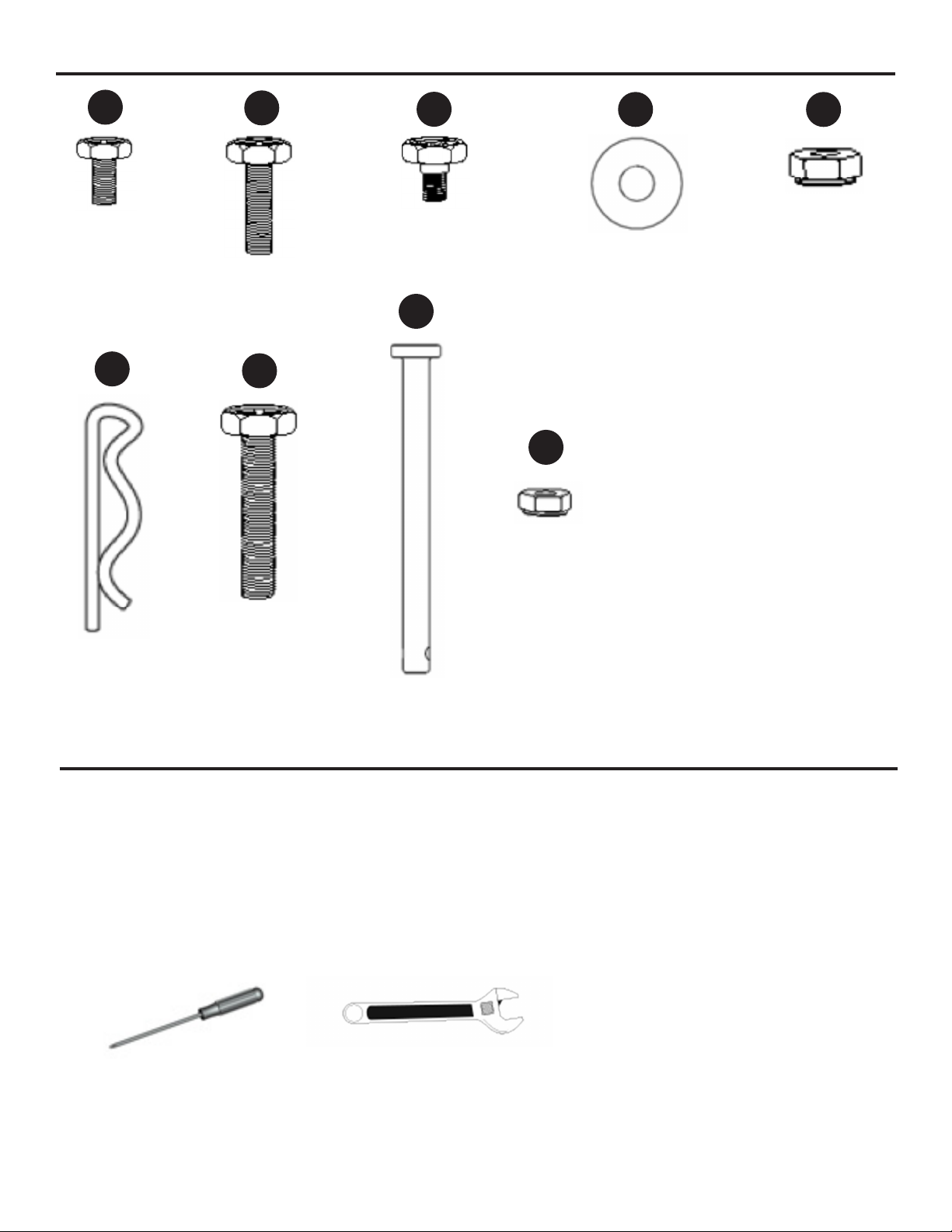

HARDWARE CONTENTS (shown actual size)
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to
assemble the product.
Estimated Assembly Time: 50 minutes with two people
Tools Required for Assembly (not included): Phillips screwdriver, Adjustable wrench
DD EE
AA
FF
BB CC
HH
II
GG
M6x12 Bolt
Qty. 29
M6x20 Bolt
Qty. 14
M5 Shoulder Bolt
Qty. 8 M8 Washer
Qty. 2
M8 Nut
Qty. 2
Cotter Pin
Qty. 7
M6x30 Bolt
Qty. 2
M5 Lock Nut
Qty. 8
Hinge Bolt
Qty. 2

6
ASSEMBLY INSTRUCTIONS

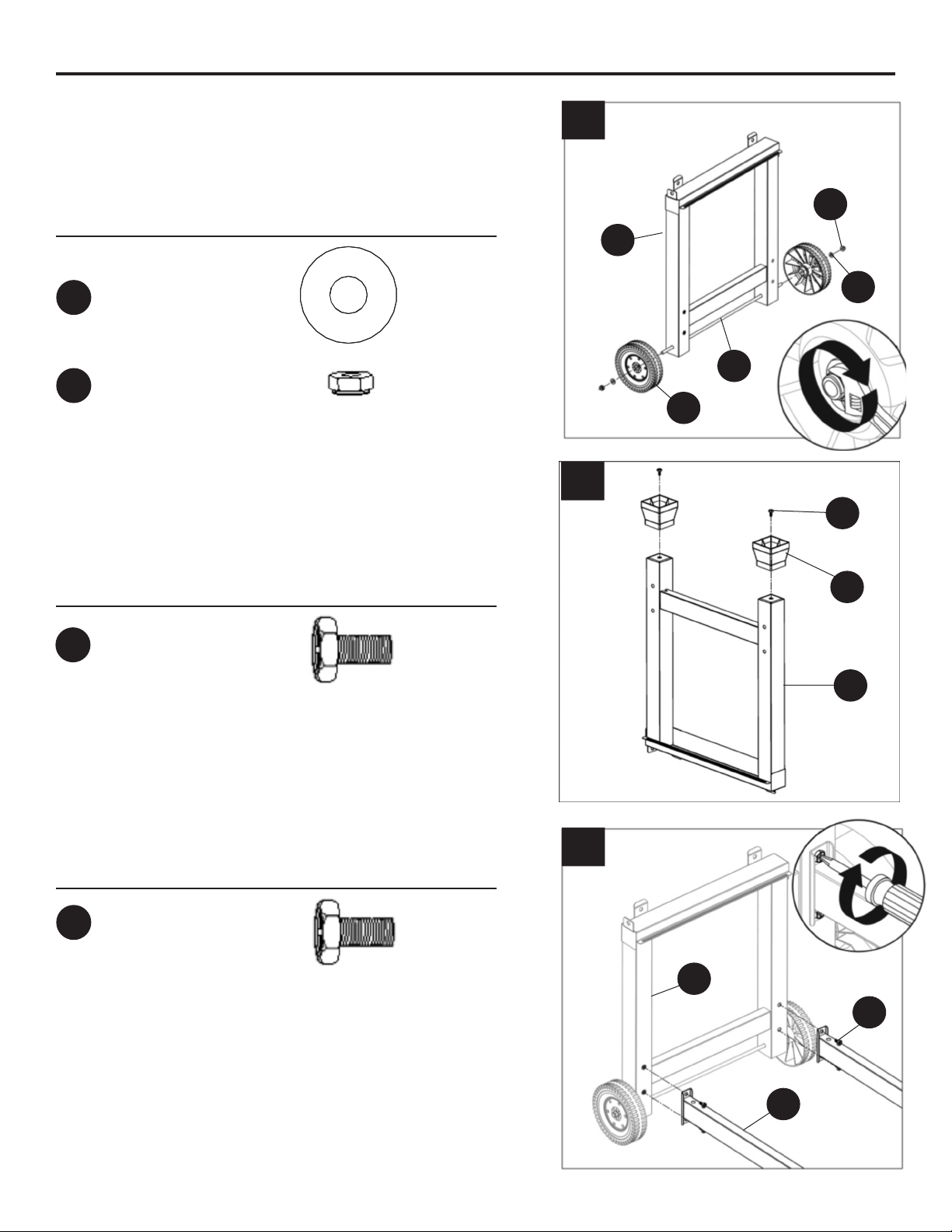

3. Attach two cart braces (L) to left leg assembly (R)
using two M6x12 bolts (AA) on each side.
2. Attach two leg base (N) to right leg assembly
(M) using two M6x12 bolts (AA)
Hardware Used
Hardware Used
M8 Washer
M8 Nut
x 2
x 2
DD
EE
1. Insert axle (P) into left leg assembly (R). Attach
one wheel (Q) to each side of axle (P) using one
M8 washer (DD), and one M8 nut (EE).
M6x12 Bolt
Qty. 27
M6x20 Bolt
Qty. 14
M5 Shoulder
Bolt
Qty. 8
M8 Washer
Qty. 2
M8 Nut
Qty. 2
Wheel Axle
Sleeve
Qty. 2
Hinge Bolt
Qty. 2
M6 Lock Nut
Qty. 3
M5 Lock Nut
Qty. 8
M6x30 Bolt
Qty. 2
AA BB CC DD EE
GG HH II
JJ
LL
Wrench
Qty. 1
Cotter Pin
Qty. 7
FF
KK
Hardware Used
M6x12 Bolt x 4
AA
1
2
3
P
EE
DD
AA
Q
R
M
N
L
AA
R
M6x12 Bolt x 2
AA

7
ASSEMBLY INSTRUCTIONS
6. With the help of a second person, set lid and
rebox assembly (B) on top of left leg
assembly (R) and right leg assembly (M).
5. Attach storage basket (O) to cart braces (L).
NOTE: Make sure four hooks on storage
basket (O) are fully inserted into holes on cart
braces (L).
4. Attach two cart braces (L) to right leg assembly (M)
using two M6x12 bolts (AA) on each side.
Hardware Used
M6x12 Bolt x 4
AA
6
5
4M
R
M
O
AA
L
L
B

8
ASSEMBLY INSTRUCTIONS
7. Secure lid and rebox assembly (B) on top of
left leg assembly (R) and right leg assembly (M)
using six M6x20bolts (BB).
8. Attach damper (H) to inside of lid and rebox
assembly (B) using four M5 shoulder bolts (CC)
and four M5 lock nuts (II). Repeat for remaining
damper (H).
NOTE: For clarity, illustration is shown with front
of lid and rebox assembly (B) removed.
Hardware Used
Hardware Used
M6x20 Bolt
M5 Shoulder Bolt
M5 Lock Nut
x 6
x 8
x 8
BB
CC
II
9. Insert damper handle – right (G) into the two holes
on right side damper (H). Secure with two cotter
pins (FF). Repeat for damper handle – left (V).
Hardware Used
Cotter Pin x 4
FF
7
9
8
G
FF
H
G
B
M
R
BB
II
CC
H
B

9
ASSEMBLY INSTRUCTIONS
11. Attach charcoal access door (E) to lid and
rebox assembly (B). Insert two hinge bolts
(HH) into hinges on charcoal access door (E)
and secure with two cotter pins (FF).
Hardware Used
Cotter Pin
Hinge Bolt
x 2
x 2
FF
HH
10.With shelf upside down, attach side shelf
support – left rear/right front (W) and side shelf
support – left front/right rear (I) to side shelf
(A) using four M6x12 bolts (AA) on each side.
Repeat for remaining shelf (A).
Hardware Used
M6x12 Bolt x 8
AA
12. Attach right side shelf (A) to lid and rebox
assembly (B) using four M6x20 bolts (BB).
Repeat on left side with remaining side shelf (A).
NOTE: First secure two upper M6x20 bolts (BB),
then lower M6x20 bolts (BB).
Hardware Used
M6x20 Bolt x 8
BB
10
11
HH
FF
B
E
A
W
AA
I
12
BB
AB

10
ASSEMBLY INSTRUCTIONS
14. Insert ash tray (J) into lid and rebox
assembly (B).
15. Attach smoke stack assembly (D) to lid and
rebox assembly (B) using three M6x12 bolts
(AA).
NOTE: Make sure the smoke stack damper
adjustment handle faces the front of the grill.
Hardware Used
M6x12 Bolt x 3
AA
13. Attach ash tray handle (K) to ash tray (J) using
two M6x12 bolts (AA).
Hardware Used
M6x12 Bolt x 2
AA
13
14
J
15
BAA
J
B
K
D
AA

Hardware Used
11
ASSEMBLY INSTRUCTIONS

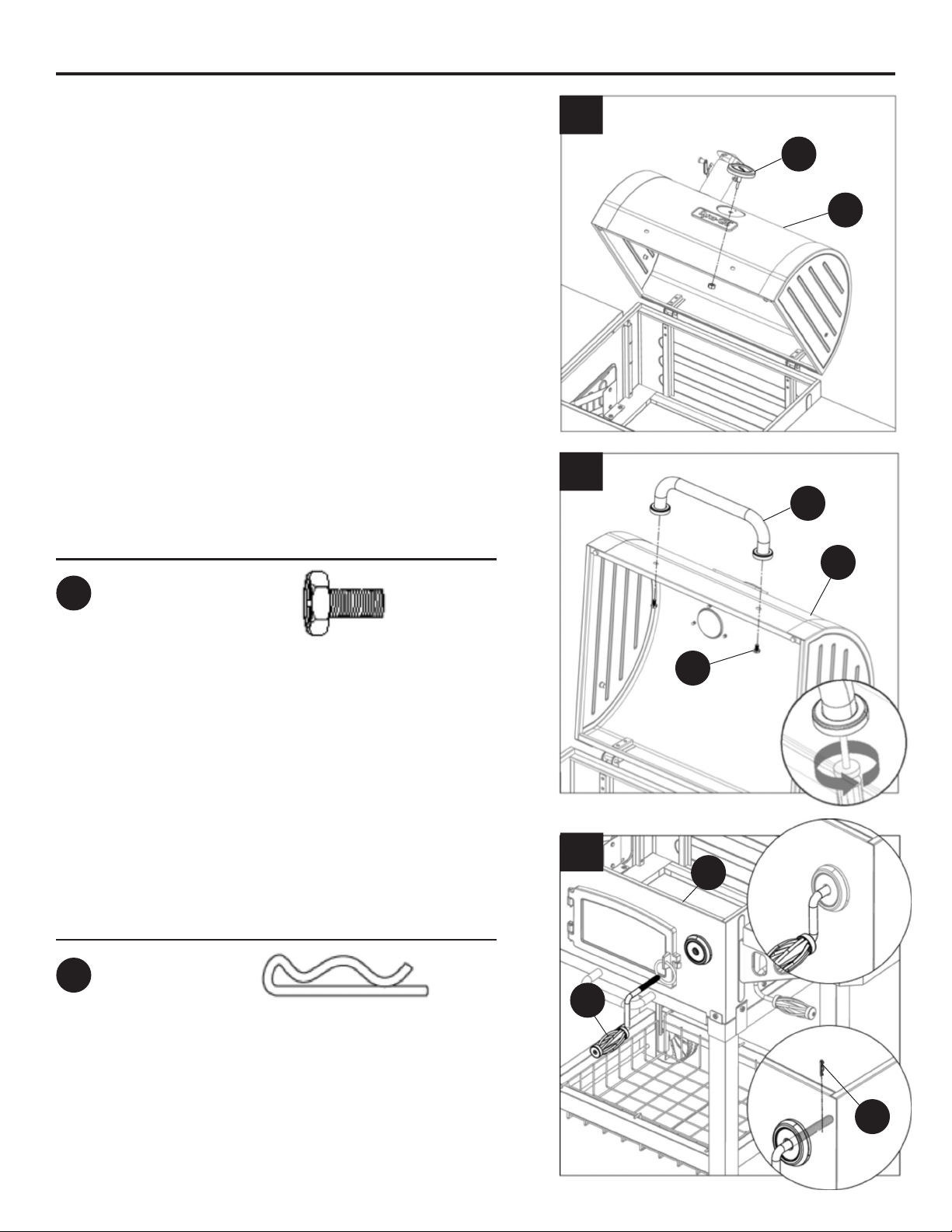

16. Attach temperature gauge (X) to lid and rebox
assembly (B) using pre-assembled nut .
18. Thread crank handle (F) into lid and rebox
assembly (B). Secure with one cotter pin (FF).
Hardware Used
Cotter Pin x 1
FF
17. Attach lid handle assembly (C) to lid and rebox
assembly (B) using two M6x12 bolts (AA).
M6x12 Bolt x 2
AA
16
B
X
18
17
B
AA
C
B
FF
F

12
ASSEMBLY INSTRUCTIONS

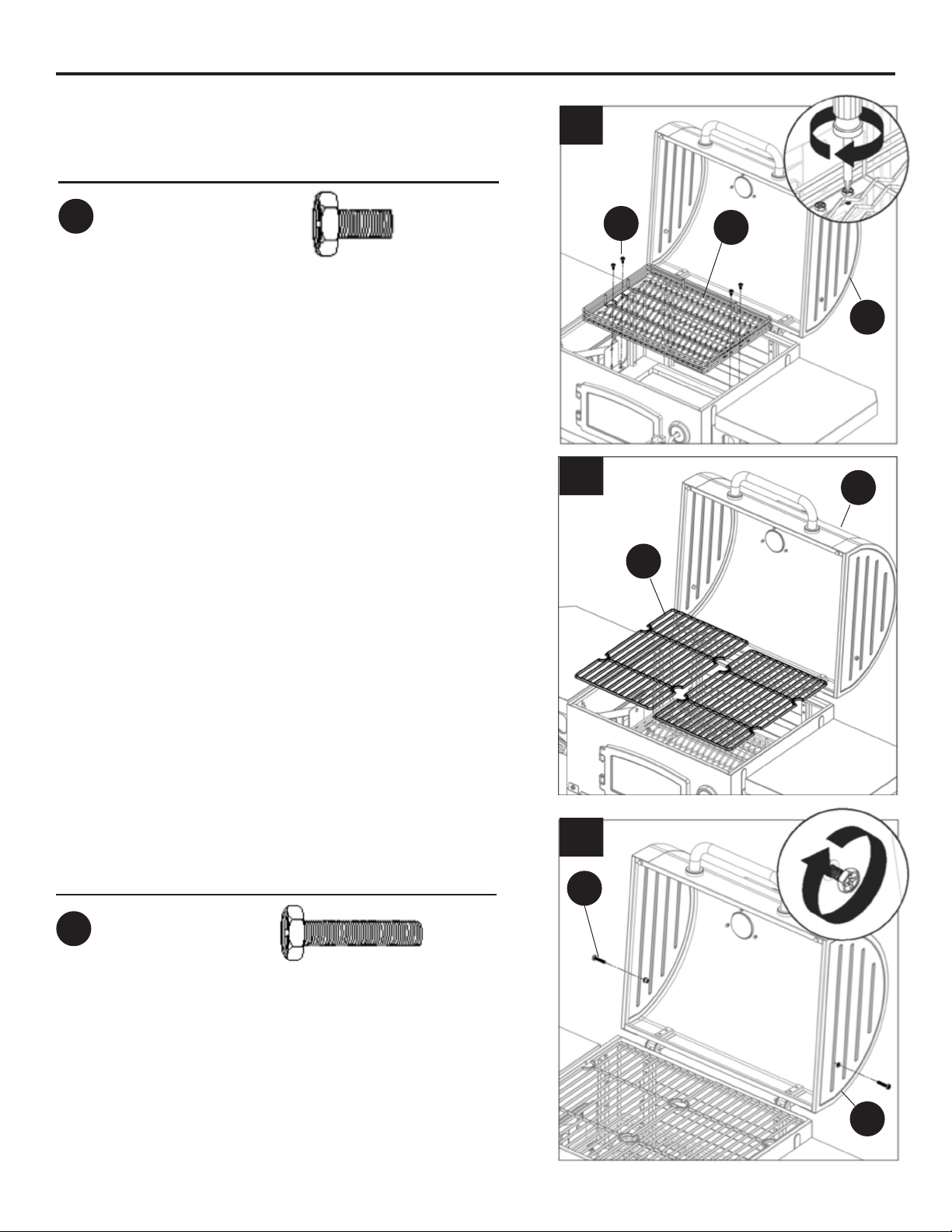

19.Attach charcoal tray (S) to inside of lid and
rebox assembly (B) using four M6x12 bolts (AA).
20. Place two grates (T) on lid and rebox
assembly (B).
21. Attach one M6x30 bolt (GG) on each side of lid
and rebox assembly (B). DO NOT fully tighten.
Hardware Used
M6x12 Bolt x 4
AA
19
S
AA
B
B
T
20
B
GG
21
Hardware Used
M6x30 Bolt x 2
GG

13
ASSEMBLY INSTRUCTIONS

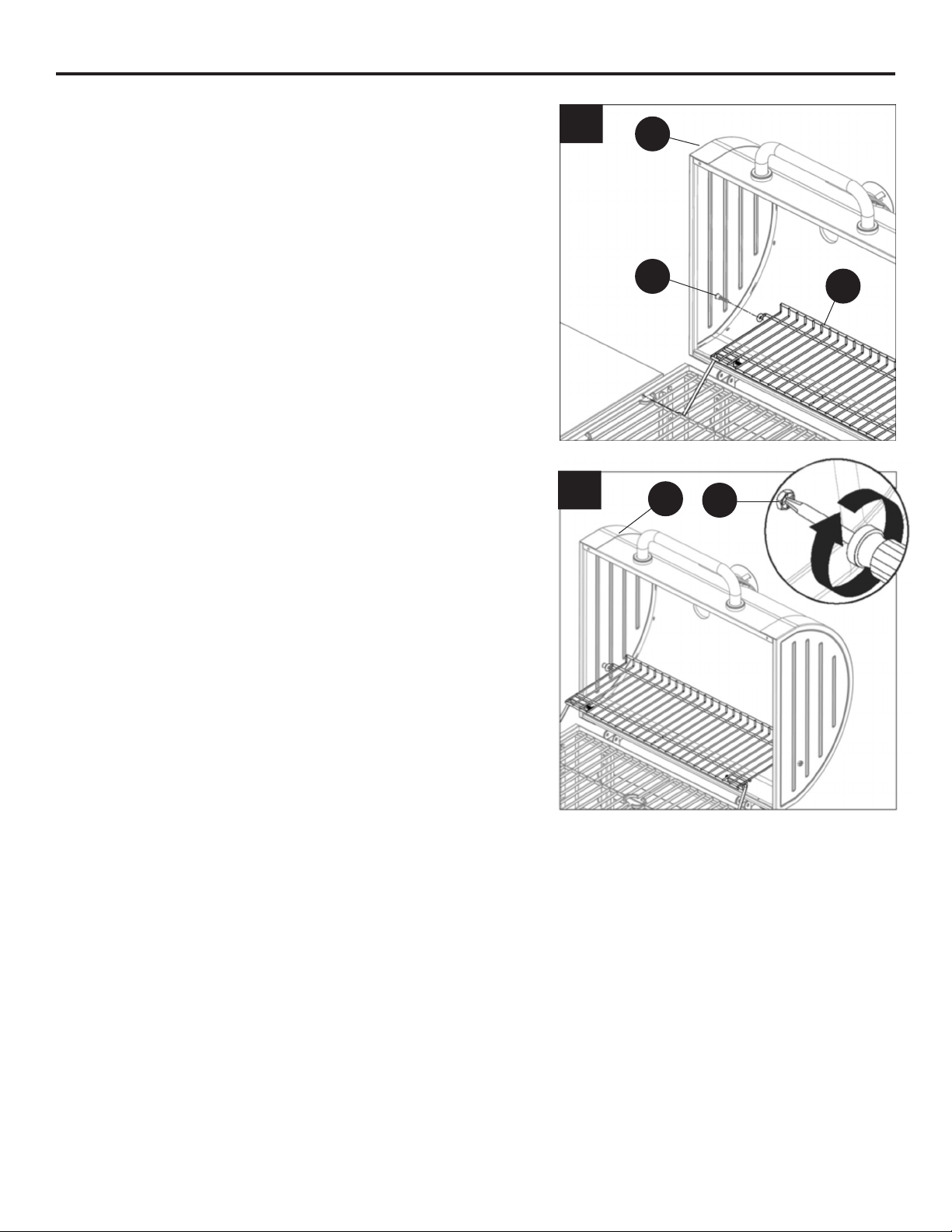

23. Fully tighten M6x30 bolts (GG) on each side of lid
and rebox assembly (B).
22. Insert one end of warming rack (U) onto M6x30
bolt (GG) and into the hole on lid and rebox
assembly (B). Repeat for other side.
22 B
23
U
B
GG
GG

14
OPERATING INSTRUCTIONS
DANGER
• CARBON MONOXIDE HAZARD. Burning charcoal inside can kill you. It gives off carbon monoxide,
which has no odor. NEVER burn charcoal inside homes, vehicles or tents.
This grill has an adjustable charcoal tray. By turning the crank handle, the charcoal tray can be raised
or lowered to desired height. This allows for different heat settings depending on the food you are
cooking and the temperature at which you want to cook. It also allows easy cleaning of the interior of
the rebox after the unit has cooled down completely. It is not recommended to raise a fully loaded
charcoal tray higher than the middle height setting.
NOTE: The grate is coated with porcelain which is a fragile coating. Handle with care to avoid
damage. DO NOT cool the grate in cold water while it is still hot or the coating may crack. Let the
grate cool off by itself.
Charcoal Lighting Instructions
• Open grill top.
• Remove cooking grates.
• Adjust charcoal tray to the center position.
• Place one even row of charcoal briquettes in the charcoal tray. Make sure that charcoal does not go
above the top of the tray.
• Light briquettes.
• Move charcoal tray to the bottom position.
• With the top open, allow the briquettes to fully ignite (to the point where there is no further ame).
• Once the briquettes are lit, put the grates back in the grill using heat-resistant gloves..
• Adjust charcoal tray as required to achieve the proper temperature.
Adjusting Temperature
• For maximum heat/temperature, open both side air vents located on the side of the main body as
required. To reduce the heat/temperature, close the air vents on the side of the main body.
NOTE: The temperature should not go above 500ºF (260°C). If the temperature goes above
500ºF(260°C), you should open the lid and allow the briquettes to cool. The proper cooking
temperature should not exceed 500ºF (260°C).
Seasoning Unit
1. Before your rst cooking you should season the unit to enhance the cooking and to provide better
overall durability. Failure to properly follow these steps may damage the nish and/or impart
metallic avors to foods.
2. Remove all retail hangtags that are on the unit, making sure NOT to remove safety markings from
the unit.
3. Place one even row of charcoal briquettes in the charcoal tray. Make sure that charcoal does not
go above the top of the tray.
4. Coat interior surfaces with vegetable cooking oil.
5. Light briquettes and set charcoal tray at medium height by cranking the crank handle.
6. Sustain burn for about two hours with lid closed and all dampers to 1/4 of the way open. Allow the
unit to cool down properly.
7. Once this is completed, the unit is ready for use.

15
OPERATING INSTRUCTIONS
Rust can appear on the inside of your grill. Maintaining a light coating of vegetable oil on interior
surfaces will aid in the protection of your grill. Exterior surfaces of the grill may need occasional touch
up. We recommend the use of commercially available black high temperature spray paint.
NEVER PAINT THE INTERIOR OF THE UNIT!
Operating The Front Door, Dampers, And Smoke Stack
WARNING: These metal parts could be very hot while grilling. Always operate these parts while
wearing a heat-resistant glove.
• To open the door, lift the door slighty and pull.
• To close the door, lift the door slightly and push the door to the door frame catch.
• To adjust the side dampers, pull or push damper handle until desired air ow is achieved.
• To adjust the smoke stack, move the smoke stack adjustment handle away from the smoke stack
and raise or lower the adjustment handle until the desired air ow is achieved.
Grilling
Charcoal is recommended, however wood or a combination of both may be used as the fuel source
for grilling if the fuel source is placed and ignited on the charcoal pan. Do not build too large a re.
We recommend starting a re with no more than 3 lbs. of charcoal (approximately 56 briquettes) and
adding more as needed during cooking. After allowing the re to burn down, place the cooking grates
in the unit using heat-resistant gloves. Failure to read and follow instructions for lighting charcoal may
result in serious personal injury and or property damage.
WARNING
• Most surfaces on this unit are hot when in use. Use extreme caution. Keep others away from unit.
• Always wear protective clothing to prevent injury.
• Keep children and pets away.
• DO NOT move this unit during operation.
• Never substitute gasoline, kerosene or alcohol for charcoal starter. In some states, the use of
charcoal starter is prohibited by law. In this case, parafn-based starter cubes can be substituted for
charcoal starter. Never use charcoal starter uid with an electric starter.

16
1-Year Limited Warranty
This charcoal grill is warranted for 1 year against broken or damaged parts at the time of purchase. It
is warranted to be free of defects. Paint is warranted to be free of defects except for rust, which may
appear after repeated use.
This warranty does not cover damage or issues related to neglect, abuse, or modications to the
appliance. Repair labor is not covered.
All parts that meet the warranty requirements will be shipped at no charge via the discretion of GHP
Group, Inc (ground shipments, US Mail, or Parcel Post ONLY). Any special handling charges (i.e.
Second Day, overnight, etc.) will be the responsibility of the consumer.
All warranty claims apply only to the original purchaser and require a proof of purchase verifying
purchase date. This service is available by calling toll free 1-877-447-4768, 8:30 a.m. – 4:30 p.m. CST,
Monday – Friday.
NOTICE: Some states do not allow the exclusion or limitations of incidental or consequential damages
or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not
apply to you. This warranty gives you specic legal rights and you may also have other legal rights
which may vary from state to state.
Manufactured by:
GHP Group Inc.
6440 W. Howard St.
Niles, IL, USA
60714-3302
Item Name: Heavy-Duty Charcoal Grill
Model #: DGN405DNC/DGN405DNC-D
WARRANTY
CARE AND MAINTENANCE
Grill Maintenance
Frequency of cleaning is determined by how often the grill is used. Make sure coals are completely
extinguished and the grates are cooled down before cleaning inside of the unit. To remove the stains
on the lid and front panel caused by fumigation while grilling, use of a cleaning pad is recommended.
Wipe out the interior of unit with a cloth or paper towel. Clean the grates with warm water and pat dry.
The coating is fragile. Do not knock, hit or drop the grates.

17
REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-877-447-4768, 8:30 a.m. – 4:30 p.m.
CST, Monday – Friday.
PART DESCRIPTION PART #
Hardware pack
Owner’s/instruction manual
Smoke stack
Lid assembly-WITHOUT handle, temperature gauge/bezel, smoke stack, badge
DynaGlo badge
Temperature gauge – with nut
Lid bumper
Lid pin with cotter pin
Lid handle with hardware
Warming rack with supports
Cooking grate – 1 piece
Charcoal tray
Charcoal tray adjustment arm assembly
Firebox bottom assembly ONLY, WITHOUT – side damper, charcoal pan/tray, arm
assembly to charcoal pan/tray, crank arm assembly, front access door, and bottle opener
Threaded mount for charcoal tray adjustment crank
Charcoal tray adjustment crank handle bezel-with screws
Charcoal tray adjustment crank only
Charcoal tray adjustment crank handle or side damper adjustment crank handle (same)
Side shelf
Side damper adjustment plate - left or right
Side shelf support-left front or right rear (same)
Side shelf support-left rear or right front (same)
Leg base
Storage basket
Charcoal access door
Bottom brace - front or rear (same)
Charcoal access door hinge pin with cotter pin
Side damper adjustment bar – left (without wire grip)
Side damper adjustment bar-right (without wire grip)
Ash pan without handle
Ash pan handle with hardware
Left leg assembly
Right leg assembly
Upper lid hinge
Lower lid hinge
Axle rod for wheels
Wheel
405-03026-00
70-10-031
415-01002-05
405-03003-04
213-02002
213-02005
403-01002-07
404-03002-03
413-03002-02
413-11002-00
405-03007-00
405-01006-00
405-01003-02
415-13003-01
404-02003-10
403-02003-04
403-02003-02
403-02003-05
414-03004-01
403-02003-08
403-01004-01
403-01004-02
403-03001-03
403-01015-00
405-03014-03
404-03014-04
401-01013-03
404-02003-06
404-02003-07
404-03005-01
403-01005-02
403-03001-01
403-03001-05
404-03002-04
404-03002-02
403-01018-00
405-01019-00
n/a
n/a
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35

18
REPLACEMENT PARTS LIST
Printed in China
1
3
6
47
16
9
2
32
22
21
14
12
5
17
15
10
30
34
23
20
18
11
13
19
8
25
28
31
26
27
24
35
29
33

70-10-031
ROBUSTE BARBECUE
AU CHARBON
MODELE #DGN405DNC
#DGN405DNC-D
19
JOIGNEZ VOTRE REÇU ICI
Numéro de série_____________________________ Date d’achat _____________________
Des questions, des problèmes, des pièces manquantes? Avant de retourner l’article
au détaillant, appelez notre service à la clientèle au 1-877-447-4768, 08:30-16 heures 30,
HNC, du lundi - vendredi ou par e-mail à [email protected].

20
Assurez-vous de lire et de comprendre l’intégralité de ce manuel avant de tenter d’assembler,
d’utiliser ou d’installer le produit. Si vous avez des questions concernant ce produit, veuillez
téléphoner au service à la clientèle au 1-877-447-4768, 08:30-16 heures 30, HNC,
du lundi - vendredi.
ATTENTION
• Cette unité est lourde. DEUX PERSONNES DE SÉCURITÉ POUR ASSEMBLAGE REQUIS.
Certaines pièces peuvent comporter des bords tranchants. Portez des gants si nécessaire. Lisez
et suivez toutes les instructions de sécurité, les avertissements et les instructions de montage,
utilisation et d'entretien avant d'essayer d'assembler et à utiliser.
AVERTISSEMENT
• Gardez un extincteur à proximité de ce produit à tout moment.
• Ce gril est pour usage extérieur seulement dans des zones bien ventilées.
• L'utilisation de médicaments d'alcool, d'ordonnance ou en vente libre peuvent nuire à la capacité
de l'utilisateur à assembler correctement et en toute sécurité lors faire fonctionner cet appareil.
CONSIGNES DE SÉCURITÉ
TABLE DES MATIÈRES
Consignes de sécurité ................................................................................................................ 20
Contenu de l’emballage .............................................................................................................. 22
Quincaillerie incluse .................................................................................................................... 23
Préparation ................................................................................................................................. 23
Instructions pour l’assemblage ................................................................................................... 24
Mode d’emploi ............................................................................................................................. 32
Entretien ...................................................................................................................................... 34
Dépannage .................................................................................................................................. 34
Liste des pièces de rechange .................................................................................................... 35
