Dynacraft 24V PRINCESS CARRIAGE User manual

this manual contains important safety, performance and
maintenance information. read the manual before taking your
first ride or allowing your child to ride your new electric
ride-on toy. keep the manual handy for future reference.
24V PRINCESS CARRIAGE
OWNER’S MANUAL
FOR AGES 3+
MAXIMUM WEIGHT: TOTAL 130lb (59 kg), 65lb (29.5kg) per seat
DO NOT RETURN THIS ITEM TO THE STORE
CONTACT DYNACRAFT CUSTOMER SERVICE FOR ASSISTANCE
dynacraftwheels.com/contact
or 1-800-551-0032 8 AM – 5 PM ET
NOTE: Illustrations in this Manual are for reference purposes only and may not reflect the
exact appearance of the actual product. Specifications are subject to change without notice.

1
AIntroduction, Safety and Warnings . . . . . . . . . . . . . . . . 2

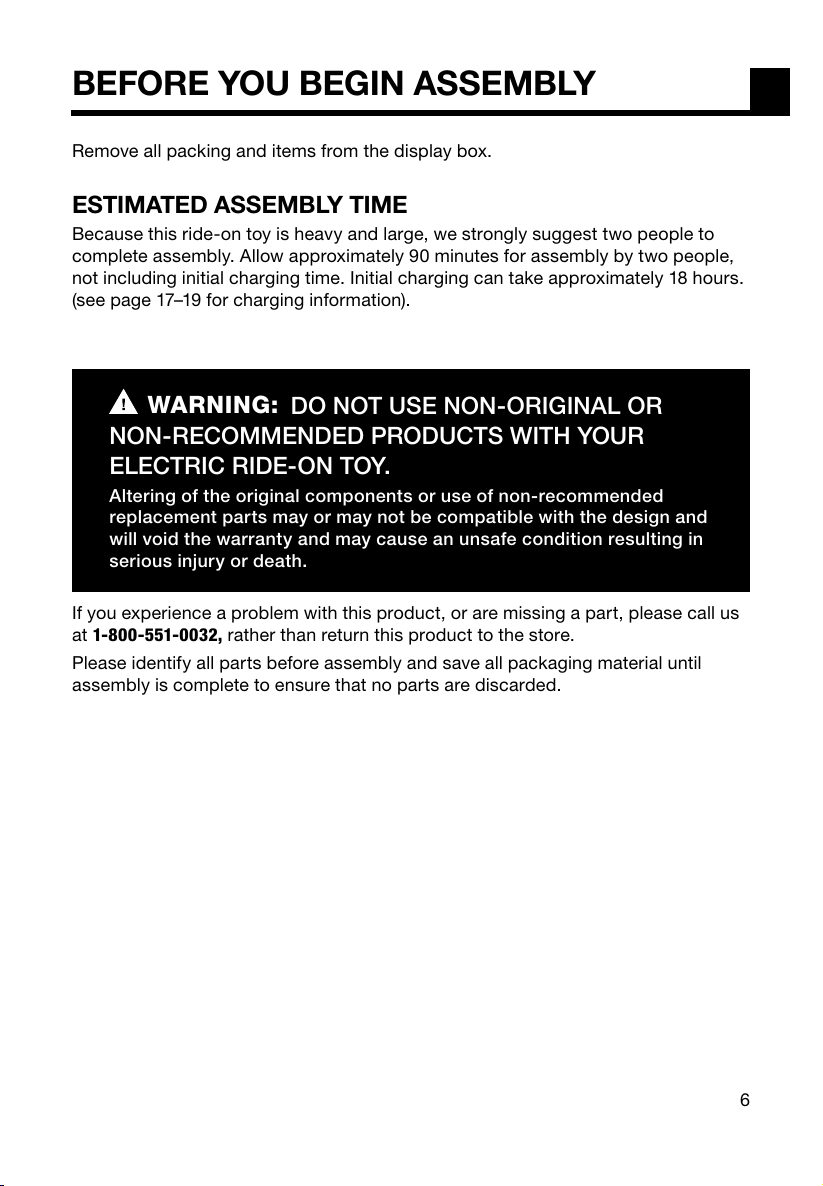

BBefore You Begin Assembly . . . . . . . . . . . . . . . . . . .6

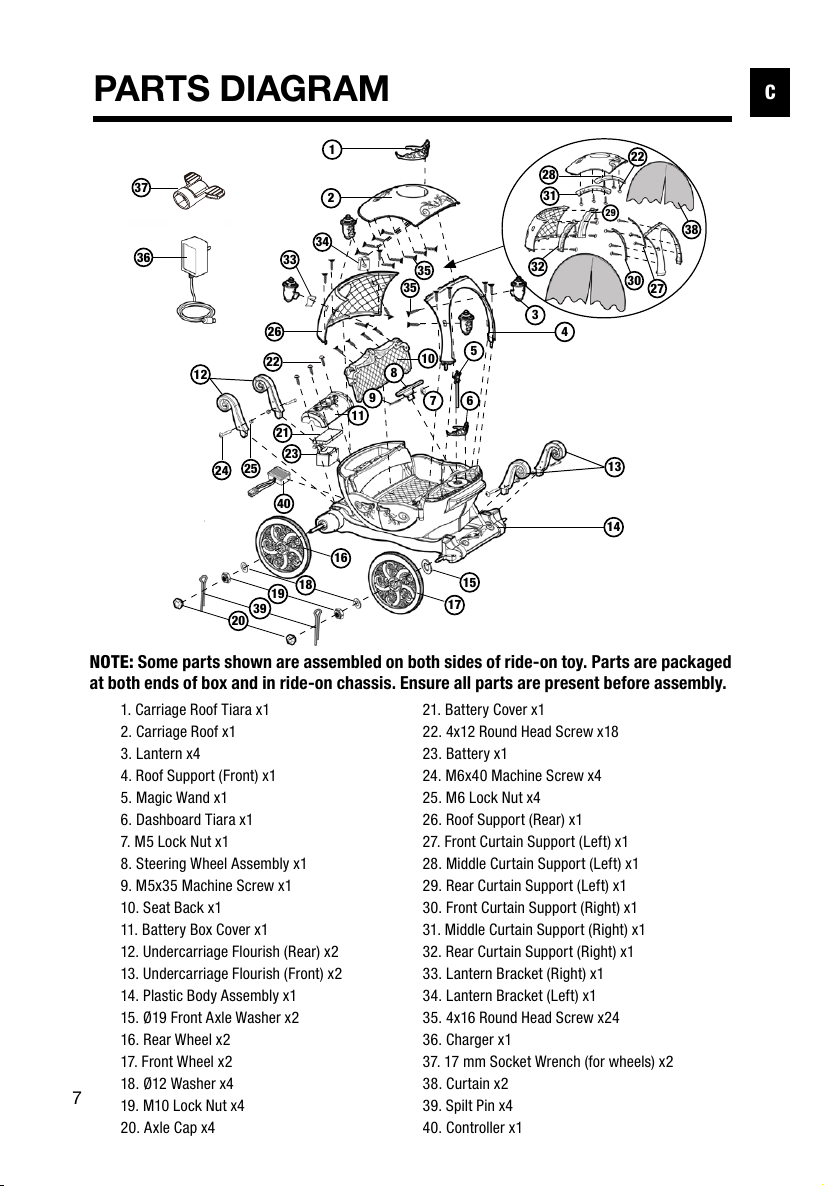

CParts Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . 7
DAssembly . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
EHow to Use Your Ride-on toy. . . . . . . . . . . . . . . . . . 20
FDetailed Maintenance and Repair . . . . . . . . . . . . . . . 23
GTroubleshooting Guide . . . . . . . . . . . . . . . . . . . . . 29
HLimited Warranty . . . . . . . . . . . . . . . . . . . . . . . 32
SUITABLE AGE . . . . . . . . . . . . . . . . . . . . . . . . . . 3+
CAPACITY. . . . . . . . . . . . . . . . . . . . Up to 130 lb (59 kg)
MAX SPEED. . . . . . . . . . . . . . .Low 2.5 MPH/High 5.0 MPH
CHARGER / INPUT. . . . . . . . . . . . . . . . . . .AC120V /60HZ
OUTPUT. . . . . . . . . . . . . . . . . . . . . . . . . .DC 24V/1A
CHARGING . . . . . . . . . . . . . . . . . . . . . . . 12-18 Hours
BATTERY . . . . . . . . . . . . . . . . . . . . 24V 7AH, 1x Battery
SIZE. . . . . . . . . . . . . . . . . . . . . 1510 x 830 x 1300 mm
AVERAGE BATTERY LIFE . . . . . . . . . . . . . . . . 300 Charges
TABLE OF CONTENTS
ELECTRIC CAR SPECIFICATIONS

ABOUT THIS MANUAL: This Manual was written to help you and your child get
the most performance, comfort, enjoyment and safety when riding your new
electric ride-on toy. It is important for you to understand your new electric ride-on
toy. By reading this manual before you let your child go out on his/her first ride,
you will know how to get the most from your new electric ride-on toy. It is also
important that you or your child’s first ride be in a controlled environment, away
from cars, obstacles, and other riders.
INTRODUCTION, SAFETY AND WARNINGS A
GENERAL WARNING: Riding an electric ride-on toy can be a dangerous
activity, even under the best of circumstances. Proper maintenance of your new ride-on toy is
your responsibility and helps reduce the risk of injury. Certain conditions may cause components
to fail without fault of the manufacturer. The ride-on toy can and is intended to move, and it is
therefore possible to lose control, fall off and/or get into dangerous situations that no amount of
care, instruction or expertise can eliminate. If such a thing does occur, your child can become
seriously injured or die, even when using safety equipment and other safety precautions.
WARNING: To reduce risk of injury, adult supervision is required. Never use in
roadways, near motor vehicles, on or near steep inclines or steps, swimming pools or other
bodies of water; always wear shoes, and never allow more than two (2) riders.
WARNING: CHOKING HAZARD–Small parts not suitable for children under 3 years old.
WARNING: This toy is unsuitable for children under 3 years due to its maximum speed.
WARNING: This toy should be used with caution since skill is required to avoid
falls or collisions causing injury to the user or third parties. Parents must make sure that
children can operate the ride-on toy safely before letting them ride it.
WARNING: Do not ride in rain, snow, or mud, or store the ride-on toy outside without
covering. Water can damage components, including the motor, electrical system, and battery.
WARNING: This ride-on toy is intended to be ridden on smooth, level ground. Do
not ride in loose dirt, sand, or gravel, which could damage moving parts, the motor, or the
electrical system.
NOTE: Store the ride-on toy indoors when not in use or in a covered location. Avoid long
term exposure to rain, excessive sun, or other inclement weather.
RIDE AT YOUR OWN RISK AND ALWAYS USE COMMON SENSE. This manual
contains many warnings and cautions concerning the consequences of failing to inspect,
maintain or properly use your electric ride-on toy. Because any fall can result in serious
injury or even death, we do not repeat the warning of possible serious injury or death each
time such a possibility is mentioned in this manual or the risk of falling leads to a warning.
ALWAYS USE PROPER RIDING ATTIRE. Always wear appropriate clothing and shoes.
Never ride barefoot or in sandals and make sure that shoelaces or other fasteners are tied
and kept away from the wheels and drive system of the ride-on toy.

3

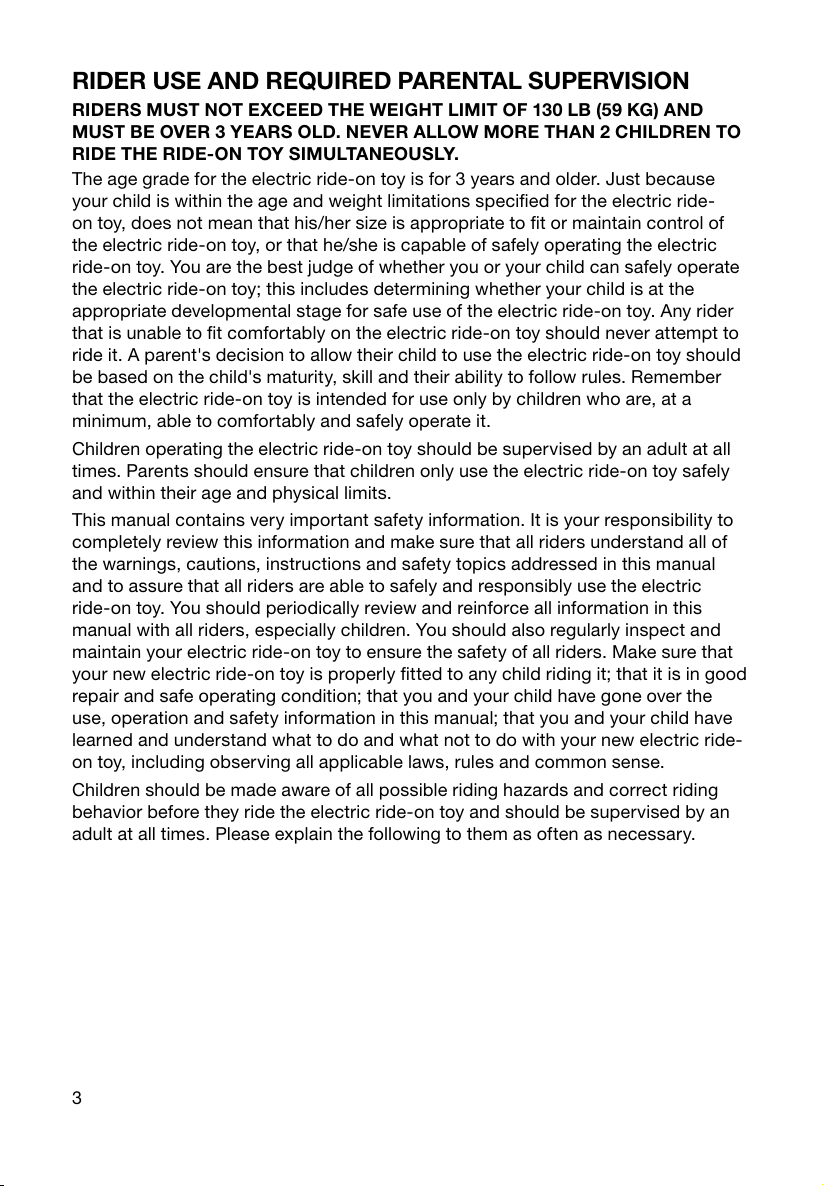

RIDER USE AND REQUIRED PARENTAL SUPERVISION
RIDERS MUST NOT EXCEED THE WEIGHT LIMIT OF 130 LB (59 KG) AND
MUST BE OVER 3 YEARS OLD. NEVER ALLOW MORE THAN 2 CHILDREN TO
RIDE THE RIDE-ON TOY SIMULTANEOUSLY.
The age grade for the electric ride-on toy is for 3 years and older. Just because
your child is within the age and weight limitations specified for the electric ride-
on toy, does not mean that his/her size is appropriate to fit or maintain control of
the electric ride-on toy, or that he/she is capable of safely operating the electric
ride-on toy. You are the best judge of whether you or your child can safely operate
the electric ride-on toy; this includes determining whether your child is at the
appropriate developmental stage for safe use of the electric ride-on toy. Any rider
that is unable to fit comfortably on the electric ride-on toy should never attempt to
ride it. A parent's decision to allow their child to use the electric ride-on toy should
be based on the child's maturity, skill and their ability to follow rules. Remember
that the electric ride-on toy is intended for use only by children who are, at a
minimum, able to comfortably and safely operate it.
Children operating the electric ride-on toy should be supervised by an adult at all
times. Parents should ensure that children only use the electric ride-on toy safely
and within their age and physical limits.
This manual contains very important safety information. It is your responsibility to
completely review this information and make sure that all riders understand all of
the warnings, cautions, instructions and safety topics addressed in this manual
and to assure that all riders are able to safely and responsibly use the electric
ride-on toy. You should periodically review and reinforce all information in this
manual with all riders, especially children. You should also regularly inspect and
maintain your electric ride-on toy to ensure the safety of all riders. Make sure that
your new electric ride-on toy is properly fitted to any child riding it; that it is in good
repair and safe operating condition; that you and your child have gone over the
use, operation and safety information in this manual; that you and your child have
learned and understand what to do and what not to do with your new electric ride-
on toy, including observing all applicable laws, rules and common sense.
Children should be made aware of all possible riding hazards and correct riding
behavior before they ride the electric ride-on toy and should be supervised by an
adult at all times. Please explain the following to them as often as necessary.

4
SAFE RIDING PRACTICES AND WARNINGS
• Check and obey all local laws or regulations which may be in effect in the
locations where the electric ride-on toy may be used.
• Always wear appropriate clothing and shoes.
• Observe the age and weight limitations on the cover of this manual.
• Always stay seated while riding the electric ride-on toy.
• Children must be supervised by an adult at all times to be safe.
• Always be alert and ride your electric ride-on toy defensively. Watch out for
obstacles that could catch one of the electric ride-on toy's wheels or force you to
turn suddenly and/or lose control. Be careful to avoid pedestrians, persons using
other wheeled products (including roller or in-line skates, skateboards, scooters,
bikes, etc.), children or animals who may enter your path. Always respect the
rights and property of others.
• Do not activate the foot pedal unless you are seated in the ride-on toy and in a
safe, outdoor environment that is suitable for riding your electric ride-on toy.
• Do not attempt or perform any stunts or tricks on the electric ride-on toy. It is not
made to withstand such misuse and abuse.
• Keep both hands on the steering wheel at all times.
• Do not touch the motor on the electric ride-on toy when in use or directly after
use as these parts can become extremely hot.
• Never allow more than two persons to ride the electric ride-on toy at one time
and never try to tow anything.
• Do not use near steps, water, or swimming pools.
• Do not ride in wet weather.
• Never immerse the electric ride-on toy in water; electrical and drive components
could be damaged by water or create other potentially unsafe conditions.
• Keep your fingers and other body parts away from the motor, steering system,
wheels and all other moving components.
• Never hitch onto another vehicle or let yourself be pulled or pull anyone or
anything while riding the electric ride-on toy.
• Ride only on smooth, flat, dry surfaces such as pavement or level ground without
loose debris, such as sand, leaves, rocks or gravel. Water, mud, ice, bumpy,
un-even, slick, or rough surfaces could impair traction and contribute to possible
loss of control.
• Do not ride on or near hills or steep inclines. Ride only on level ground to avoid
tip over.
• Avoid sharp turns, bumps, drainage grates, and other obstacles.
• Do not ride at night or where there is limited visibility.
• Do not ride indoors or on surfaces that could become damaged such as carpet
or flooring.
• Do not ride on streets, around cars, or in foot or vehicle traffic.
• Regularly check the electric ride-on toy and its components. If any parts are
broken or worn, do not ride the electric ride-on toy until you have fixed or
replaced the broken or worn parts.

5

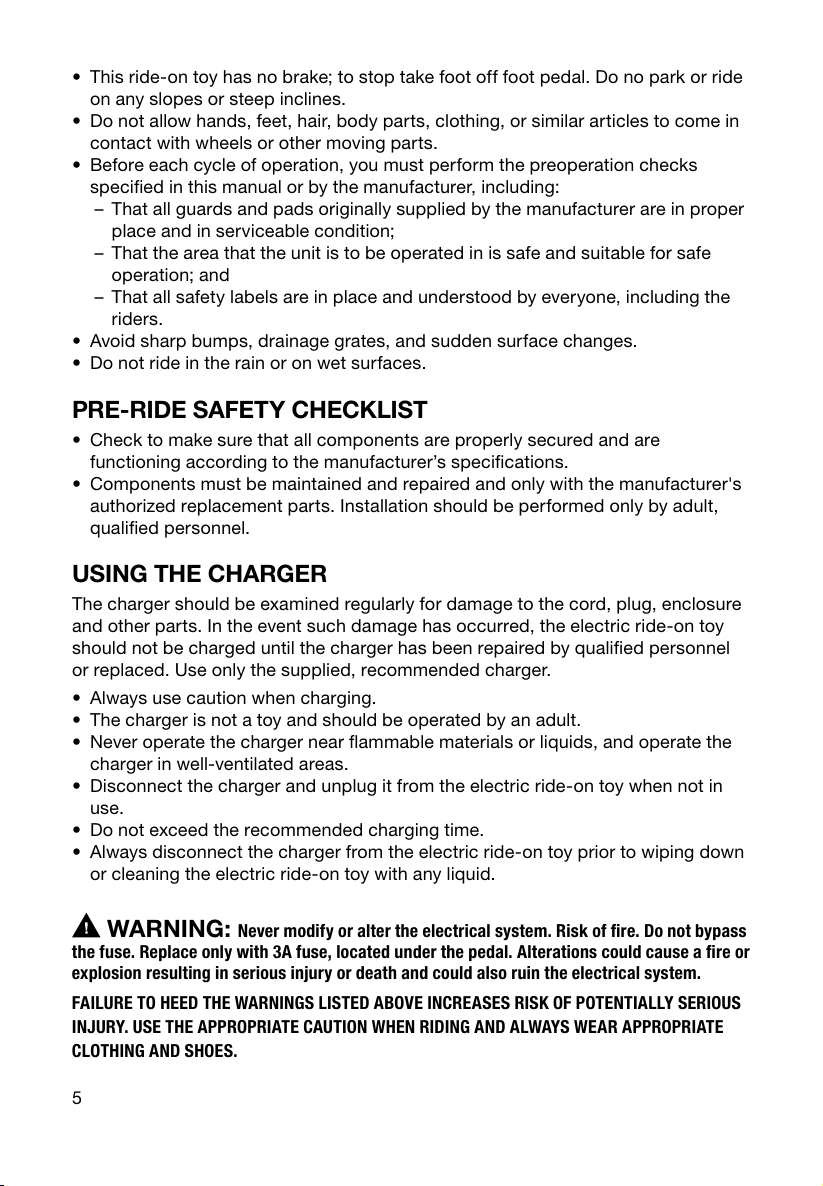

• This ride-on toy has no brake; to stop take foot off foot pedal. Do no park or ride
on any slopes or steep inclines.
• Do not allow hands, feet, hair, body parts, clothing, or similar articles to come in
contact with wheels or other moving parts.
• Before each cycle of operation, you must perform the preoperation checks
specified in this manual or by the manufacturer, including:
– That all guards and pads originally supplied by the manufacturer are in proper
place and in serviceable condition;
– That the area that the unit is to be operated in is safe and suitable for safe
operation; and
– That all safety labels are in place and understood by everyone, including the
riders.
• Avoid sharp bumps, drainage grates, and sudden surface changes.
• Do not ride in the rain or on wet surfaces.
PRE-RIDE SAFETY CHECKLIST
• Check to make sure that all components are properly secured and are
functioning according to the manufacturer’s specifications.
• Components must be maintained and repaired and only with the manufacturer's
authorized replacement parts. Installation should be performed only by adult,
qualified personnel.
USING THE CHARGER
The charger should be examined regularly for damage to the cord, plug, enclosure
and other parts. In the event such damage has occurred, the electric ride-on toy
should not be charged until the charger has been repaired by qualified personnel
or replaced. Use only the supplied, recommended charger.
• Always use caution when charging.
• The charger is not a toy and should be operated by an adult.
• Never operate the charger near flammable materials or liquids, and operate the
charger in well-ventilated areas.
• Disconnect the charger and unplug it from the electric ride-on toy when not in
use.
• Do not exceed the recommended charging time.
• Always disconnect the charger from the electric ride-on toy prior to wiping down
or cleaning the electric ride-on toy with any liquid.
WARNING: Never modify or alter the electrical system. Risk of fire. Do not bypass
the fuse. Replace only with 3A fuse, located under the pedal. Alterations could cause a fire or
explosion resulting in serious injury or death and could also ruin the electrical system.
FAILURE TO HEED THE WARNINGS LISTED ABOVE INCREASES RISK OF POTENTIALLY SERIOUS
INJURY. USE THE APPROPRIATE CAUTION WHEN RIDING AND ALWAYS WEAR APPROPRIATE
CLOTHING AND SHOES.

6
Remove all packing and items from the display box.
ESTIMATED ASSEMBLY TIME
Because this ride-on toy is heavy and large, we strongly suggest two people to
complete assembly. Allow approximately 90 minutes for assembly by two people,
not including initial charging time. Initial charging can take approximately 18 hours.
(see page 17–19 for charging information).
If you experience a problem with this product, or are missing a part, please call us
at 1-800-551-0032, rather than return this product to the store.
Please identify all parts before assembly and save all packaging material until
assembly is complete to ensure that no parts are discarded.
BEFORE YOU BEGIN ASSEMBLY
WARNING: DO NOT USE NON-ORIGINAL OR
NON-RECOMMENDED PRODUCTS WITH YOUR
ELECTRIC RIDE-ON TOY.
Altering of the original components or use of non-recommended
replacement parts may or may not be compatible with the design and
will void the warranty and may cause an unsafe condition resulting in
serious injury or death.
B

7
1
2
3
4
5
9
8
10
76
11
12
13
14
15
23
21
22
35
26
33
34
24
37 31
28
30 27
32
29
25
36
16
17
20
19 18
40
38
35
22
39
PARTS DIAGRAM C
NOTE: Some parts shown are assembled on both sides of ride-on toy. Parts are packaged
at both ends of box and in ride-on chassis. Ensure all parts are present before assembly.
1. Carriage Roof Tiara x1
2. Carriage Roof x1
3. Lantern x4
4. Roof Support (Front) x1
5. Magic Wand x1
6. Dashboard Tiara x1
7. M5 Lock Nut x1
8. Steering Wheel Assembly x1
9. M5x35 Machine Screw x1
10. Seat Back x1
11. Battery Box Cover x1
12. Undercarriage Flourish (Rear) x2
13. Undercarriage Flourish (Front) x2
14. Plastic Body Assembly x1
15. Ø19 Front Axle Washer x2
16. Rear Wheel x2
17. Front Wheel x2
18. Ø12 Washer x4
19. M10 Lock Nut x4
20. Axle Cap x4
21. Battery Cover x1
22. 4x12 Round Head Screw x18
23. Battery x1
24. M6x40 Machine Screw x4
25. M6 Lock Nut x4
26. Roof Support (Rear) x1
27. Front Curtain Support (Left) x1
28. Middle Curtain Support (Left) x1
29. Rear Curtain Support (Left) x1
30. Front Curtain Support (Right) x1
31. Middle Curtain Support (Right) x1
32. Rear Curtain Support (Right) x1
33. Lantern Bracket (Right) x1
34. Lantern Bracket (Left) x1
35. 4x16 Round Head Screw x24
36. Charger x1
37. 17 mm Socket Wrench (for wheels) x2
38. Curtain x2
39. Spilt Pin x4
40. Controller x1

8
TOOLS REQUIRED:
ASSEMBLY
Your new ride-on toy requires adult assembly. Because your new ride-on toy is
heavy and large, we strongly suggest using two people to finish assembly. Set
aside around 90 minutes for assembly. Identify all parts before assembly and save
all packaging material until assembly is completed to ensure that no parts are
discarded.
17 mm Socket Wrench
(included)
WARNING: Children can be harmed by small parts, sharp edges and sharp points
in the ride-on toy's unassembled state, or by electrical items. In the unassembled state, this
package contains small parts. Adult assembly is required; children should not handle parts,
or help in assembly of the ride-on toy.
Phillips Screwdriver
(not included)
• Find the other set of two pieces labeled
“Front”, remove the M6x40 machine screw
and nut on them, and insert the front
flourishes into the front of carriage body.
Follow the previous instructions to tighten
the front undercarriage flourishes.
1. UNDERCARRIAGE FLOURISH
ASS EMB LY
• Remove all parts inside the carriage body
(put them aside for later use).
• Find the four pieces of the undercarriage
flourish in the accessories pack.
• Find one set of two pieces labeled “Rear”,
remove the M6x40 machine screw and nut
on them, and insert the rear flourishes into
the back of the carriage body.
• Insert the M6x40 machine screw and M6 nut
and tighten them with a Phillips screwdriver.
NOTE: There are left and right side undercarriage
flourishes; the side with screws should face inside.
M6x40
Machine
Screw
M6x40
Machine
Screw
Rear
Front
M6 Nut
M6 Nut
Needle-Nose Pliers
(not included)
D

9
3. REAR WHEEL ASSEMBLY
• First, remove all washers and nuts from the
rear axle and make sure the axle exposure
at the left and right ends are equal.
• Find a wheel labeled “Rear”, apply a bit of
white grease into center hole of the rear
wheel and make sure the rear wheel cover
pattern rotation is the same as the front
wheel.
• Slide the wheel onto the rear axle and make
it match up with the gear box.
• Insert a Ø12 washer onto the axle.
• While holding the rear axle with a 17 mm
socket wrench, fit the M10 locknut to the
Rear Axle
Rear Wheel
Ø12
Washer
Axle Cap
M10
Lock Nut

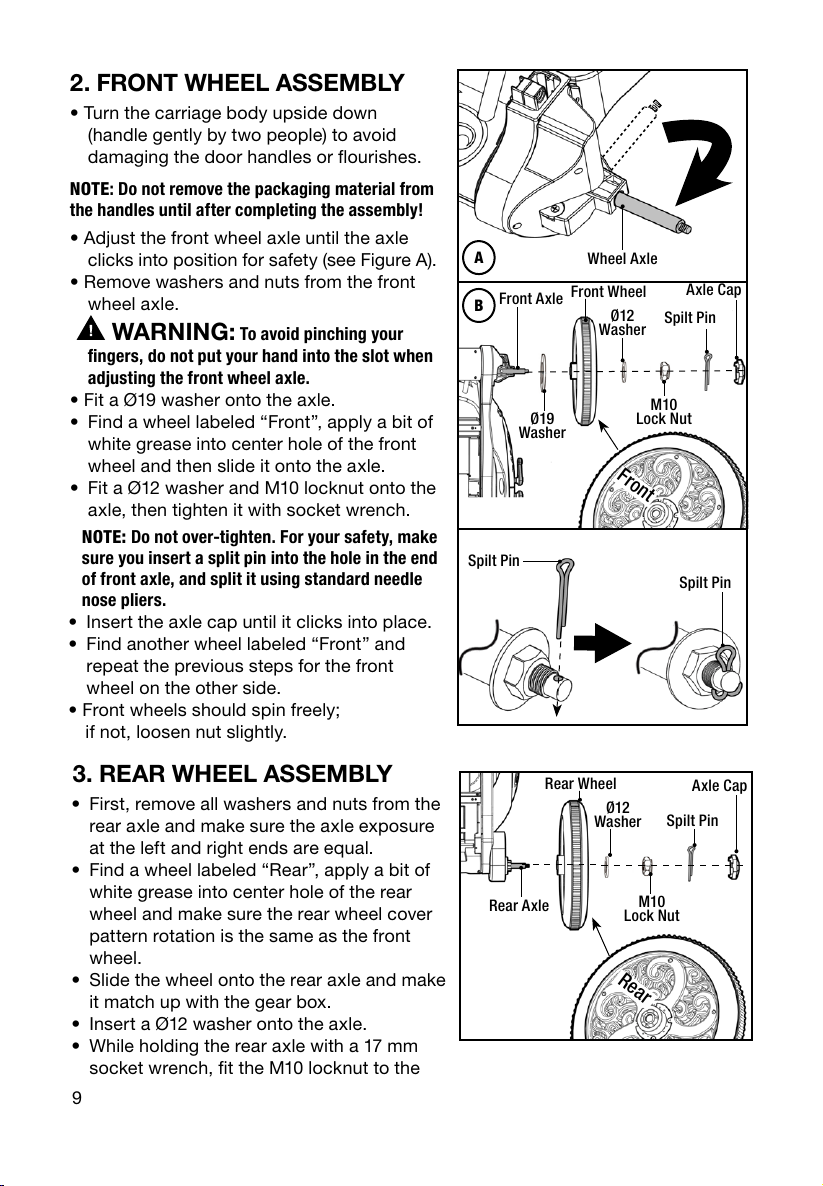

2. FRONT WHEEL ASSEMBLY
• Turn the carriage body upside down
(handle gently by two people) to avoid
damaging the door handles or flourishes.
NOTE: Do not remove the packaging material from
the handles until after completing the assembly!
• Adjust the front wheel axle until the axle
clicks into position for safety (see Figure A).
• Remove washers and nuts from the front
wheel axle.
WARNING: To avoid pinching your
fingers, do not put your hand into the slot when
adjusting the front wheel axle.
• Fit a Ø19 washer onto the axle.
• Find a wheel labeled “Front”, apply a bit of
white grease into center hole of the front
wheel and then slide it onto the axle.
• Fit a Ø12 washer and M10 locknut onto the
axle, then tighten it with socket wrench.
• Insert the axle cap until it clicks into place.
• Find another wheel labeled “Front” and
repeat the previous steps for the front
wheel on the other side.
• Front wheels should spin freely;
if not, loosen nut slightly.
Front Axle
Front
Rear
Wheel Axle
Front Wheel
Ø12
Washer
Ø19
Washer
Spilt Pin
Spilt Pin
Spilt Pin
Spilt Pin
M10
Lock Nut
Axle Cap
A
B
NOTE: Do not over-tighten. For your safety, make
sure you insert a split pin into the hole in the end
of front axle, and split it using standard needle
nose pliers.

10
• Find another wheel labeled “Rear” and repeat the previous steps on the other
side to install the other rear wheel.
• Insert the axle cap.
• For your safety, insert a split pin into the hole in the end of rear axle, and split
it using standard needle nose pliers. (Refer to the drawings illustrated for front
wheel at page 9).
end of the rear axle with another 17mm socket wrench. DO NOT over tighten; the
rear axle ends are supposed to be exposed; 1-2 threads exposed is acceptable.
Gap

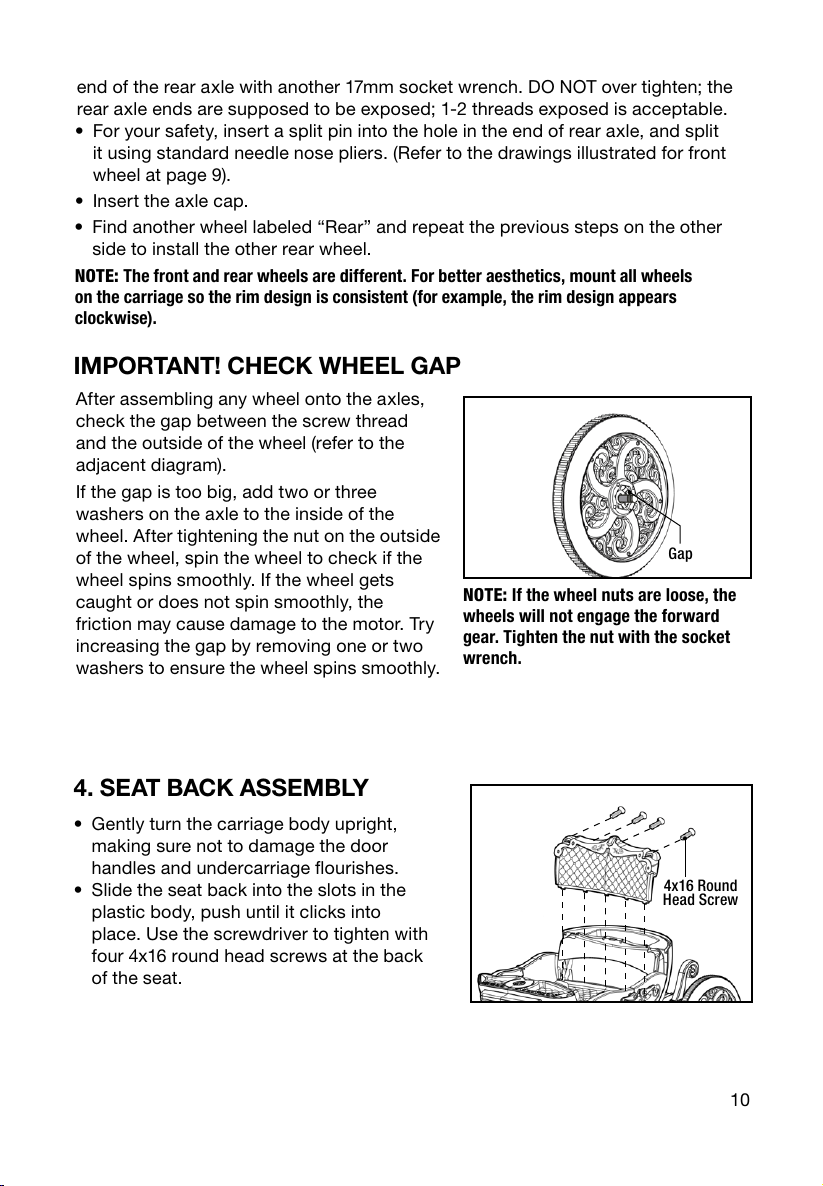

IMPORTANT! CHECK WHEEL GAP
After assembling any wheel onto the axles,
check the gap between the screw thread
and the outside of the wheel (refer to the
adjacent diagram).
If the gap is too big, add two or three
washers on the axle to the inside of the
wheel. After tightening the nut on the outside
of the wheel, spin the wheel to check if the
wheel spins smoothly. If the wheel gets
caught or does not spin smoothly, the
friction may cause damage to the motor. Try
increasing the gap by removing one or two
washers to ensure the wheel spins smoothly.
NOTE: If the wheel nuts are loose, the
wheels will not engage the forward
gear. Tighten the nut with the socket
wrench.
NOTE: The front and rear wheels are different. For better aesthetics, mount all wheels
on the carriage so the rim design is consistent (for example, the rim design appears
clockwise).
4. SEAT BACK ASSEMBLY
• Gently turn the carriage body upright,
making sure not to damage the door
handles and undercarriage flourishes.
• Slide the seat back into the slots in the
plastic body, push until it clicks into
place. Use the screwdriver to tighten with
four 4x16 round head screws at the back
of the seat.
4x16 Round
Head Screw

11
STEERING WHEEL BATTERY SAFETY INFORMATION:
Batteries may leak fluids that can cause chemical burn, injury or ruin your product.
To avoid battery leakage:
• Install batteries correctly, observing the polarity (+/-) signs to avoid leakage.
• Do not mix old and new batteries.
• Do not mix batteries of different types: alkaline, standard (carbon-zinc) or
rechargeable (NiMH).
• Remove the batteries from the battery compartment when the unit will not be
used for an extended period of time.
• Always remove exhausted batteries from the battery compartment.
• Do not dispose of batteries in fire.
• Do not short circuit the supply terminals.
• Replace the batteries when the horn sounds become distorted.
• Non-rechargeable batteries should not be recharged.
• Use only batteries of the same or equivalent type as recommended.
• If rechargeable batteries are used, they should only be charged by an adult.
• Remove rechargeable batteries from the product before charging.
• Battery chargers used with toys must be examined regularly for damage to the
cord, plug, enclosure and other parts. In the event that such damage is found, the
toy must not be used with the battery charger until the damage has been repaired.
6. STEERING WHEEL BATTERIES
INSTALLATION
NOTE: Batteries are not included.
• Unscrew the screw in the steering wheel and
remove the cover.
• Insert 2x1.5V size AA AM-3 or LR6
batteries.
• Replace the cover and tighten the screw
to secure it in place.
Battery Compartment
Door
NOTE: Make sure the steering wheel is mounted in correct direction.

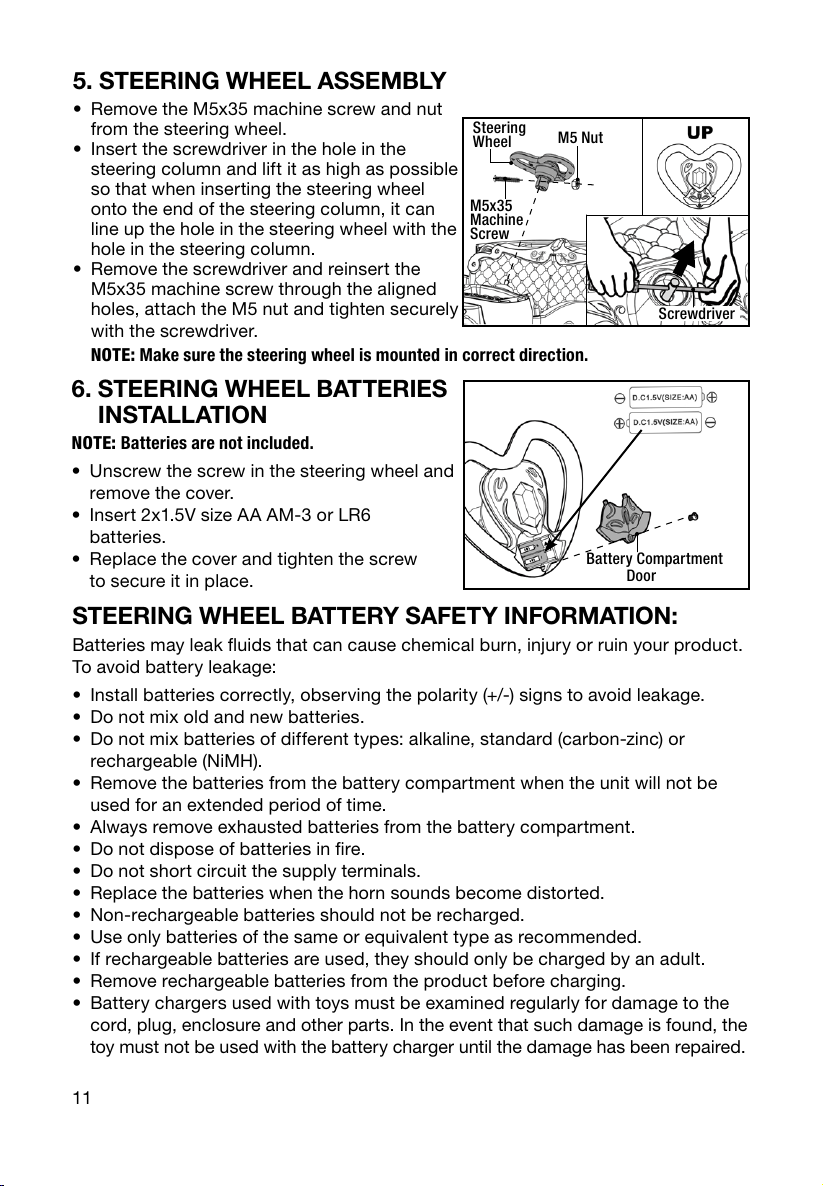

5. STEERING WHEEL ASSEMBLY
• Remove the M5x35 machine screw and nut
from the steering wheel.
• Insert the screwdriver in the hole in the
steering column and lift it as high as possible
so that when inserting the steering wheel
onto the end of the steering column, it can
line up the hole in the steering wheel with the
hole in the steering column.
• Remove the screwdriver and reinsert the
M5x35 machine screw through the aligned
holes, attach the M5 nut and tighten securely
with the screwdriver.
Steering
Wheel
Screwdriver
M5x35
Machine
Screw
M5 Nut

12
7. FRONT ROOF SUPPORT
ASS EMB LY
• Find the front roof support (labeled 4
inside) and the roof (labeled 2inside).
• Slide the front roof support into the slots
on the carriage roof and push until it clicks
into place.
• Insert four 4x16 round head screws and
tighten with a screwdriver.
8. REAR ROOF SUPPORT
ASS EMB LY
• Find the rear roof support (labeled 26
inside).
• Slide the rear roof support into the slots
on the carriage roof and push until it clicks
into place.
• Insert five 4x16 round head screws and
tighten with a screwdriver.
4x16 Round
Head Screw
4x16 Round
Head Screw
2
4
26
9. CARRIAGE ROOF ASSEMBLY
• Slide the rear roof support into the slots
on the back of the carriage body; then,
slide the front support into the front of
the carriage body (make sure the smaller
black metal tube of the front roof support
is inserted into the bigger metal tube of
the carriage body) and push until they click
into place.
4x16 Round
Head Screw
Find the six curtain supports and line up into
two parts (left and right).
10. CURTAIN ASSEMBLY Front
27
28
29 32
31
30
2
• Use three 4x16 round head screws to secure the rear roof support to the carriage body.
• Use four 4x16 round head screws to secure the front roof support to the carriage body.

13

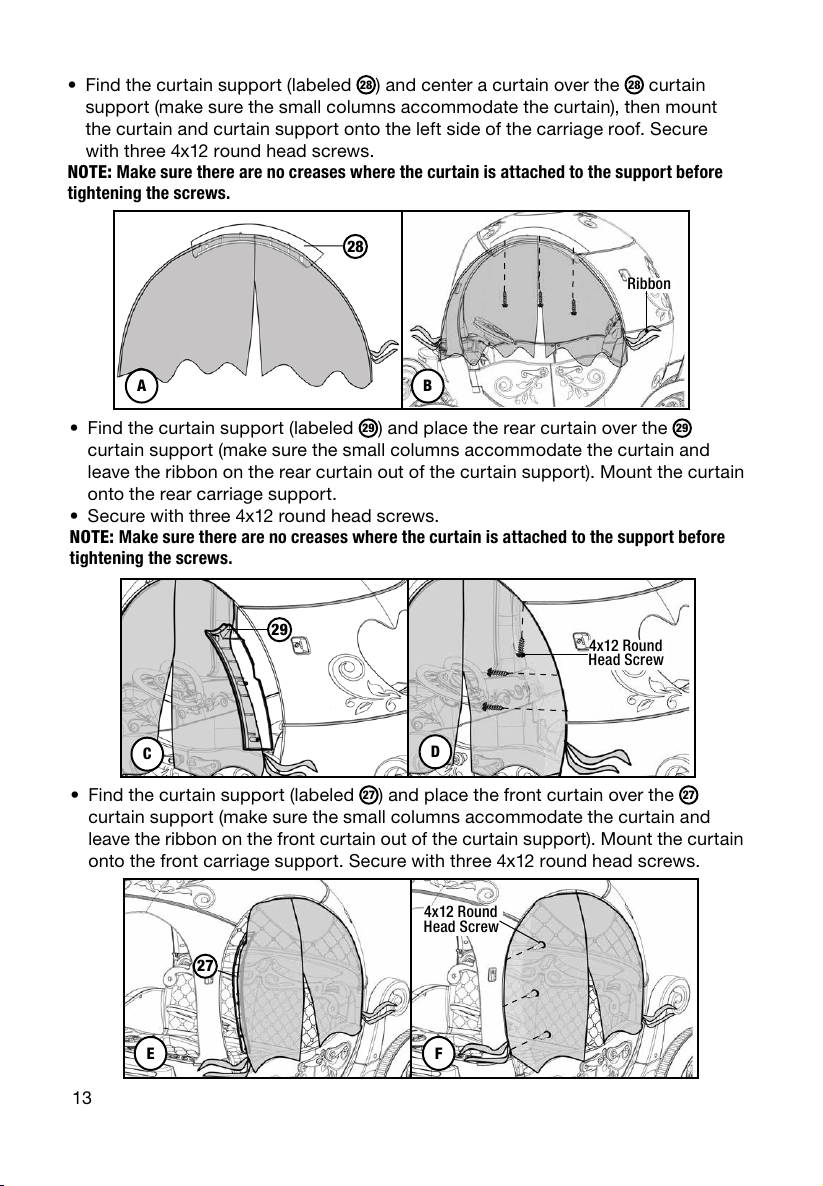

• Find the curtain support (labeled 28 ) and center a curtain over the 28 curtain
support (make sure the small columns accommodate the curtain), then mount
the curtain and curtain support onto the left side of the carriage roof. Secure
with three 4x12 round head screws.
NOTE: Make sure there are no creases where the curtain is attached to the support before
tightening the screws.
• Find the curtain support (labeled 29 ) and place the rear curtain over the 29
curtain support (make sure the small columns accommodate the curtain and
leave the ribbon on the rear curtain out of the curtain support). Mount the curtain
onto the rear carriage support.
• Secure with three 4x12 round head screws.
NOTE: Make sure there are no creases where the curtain is attached to the support before
tightening the screws.
• Find the curtain support (labeled 27 ) and place the front curtain over the 27
curtain support (make sure the small columns accommodate the curtain and
leave the ribbon on the front curtain out of the curtain support). Mount the curtain
onto the front carriage support. Secure with three 4x12 round head screws.
Ribbon
A B
28
4x12 Round
Head Screw
CD
29
4x12 Round
Head Screw
E F
27

14
11. FRONT LANTERN ASSEMBLY
• Align the lantern holder with the mounting
hole on the front of the carriage body, and
tighten it with a 4x16 round head screw.
• Repeat the steps for the other front lantern.
12. REAR LANTERN ASSEMBLY
• Find the small lantern bracket and slide it into
the lantern (separate Left and Right). Align
the bracket with the mounting hole in the rear
of carriage body.
• Secure the lantern with a 4x16 round head
screw.
• Repeat the steps for the other rear lantern.
4x16 round
Ribbon
Head Screw
4x16 Round
Head Screw
• Repeat the previous steps to mount the right side curtain. Find the curtain
supports and center the right side curtain over the curtain support 31 (making
sure the small columns accommodate the curtain), then mount the curtain with
curtain supports 32 and 30 onto the right side of the carriage roof. Secure with
three 4x12 round head screws.
GHI
31
32 30
NOTE: Make sure the left and right ribbons on the curtain remain outside so you can tie the
curtain.
WARNING: Make sure to tie the curtains back before riding the carriage. Do not
ride in the carriage without tying the curtains back, as doing so would reduce visibility and
increase the risk of a crash or fall.

15
LANTERN BATTERIES SAFETY INFORMATION:
Batteries may leak fluids that can cause chemical burn, injury or ruin your product.
To avoid battery leakage:
• Install batteries correctly, observing the polarity (+/-) signs to avoid leakage.
• Do not mix old and new batteries.
• Do not mix batteries of different types: alkaline, standard (carbon-zinc) or
rechargeable (NiMH).
• Remove the batteries from the battery compartment when the unit will not be
used for an extended period of time.
• Always remove exhausted batteries from the battery compartment.
• Do not dispose of batteries in fire.
• Do not short circuit the supply terminals.
• Replace the batteries when the horn sounds become distorted.
• Non-rechargeable batteries should not be recharged.
• Use only batteries of the same or equivalent type as recommended.
• If rechargeable batteries are used, they should only be charged by adult.
• Remove rechargeable batteries from the product before charging.
• Battery chargers used with toys must be examined regularly for damage to the
cord, plug, enclosure and other parts. In the event that such damage is found,
the toy must not be used with the battery charger until the damage has been
repaired.
13. LANTERN BATTERIES
INSTALLATION
NOTE: Batteries are not included.
• Unscrew the two 3x10 round head screws
at the bottom of the lantern socket.
• Remove the lantern wick and insert 2x1.5V
size AAA or LR03 batteries.
• Replace the socket and tighten the screws
to secure in place.
DC 1.5V (SIZE:AAA)
DC 1.5V (SIZE:AAA)
Lantern Socket
3X10 Round
Head Screw

16
14.ROOF TIARA ASSEMBLY
Insert the carriage roof tiara (larger size) into
the slots in the roof until it clicks into place.
15. DASHBOARD TIARA
ASS EMB LY
Insert the dashboard tiara (smaller size) into
the slots in the dashboard until it clicks into
place.
16. MAGIC WAND ASSEMBLY
• Insert the magic wand into the hole
located on the dashboard tiara.
• Press the wand to activate the carriage
lights.
Hole
NOTE: The magic wand powers the LED light switch.
To avoid damage, do not insert any other objects
into the hole on the dashboard tiara.

17
BATTERY CHARGING
IMPORTANT! Before first time use, charge the battery for at least 18 hours.
Charge the battery for at least 12 hours after each use of the ride-on
toy. Never charge the battery longer than 30 hours. Overcharging or
undercharging the battery may shorten battery life and decrease ride-on
toy running time.
WARNING: The battery can fall out and injure a child if the ride-on toy tips over.
Always use the battery cover.

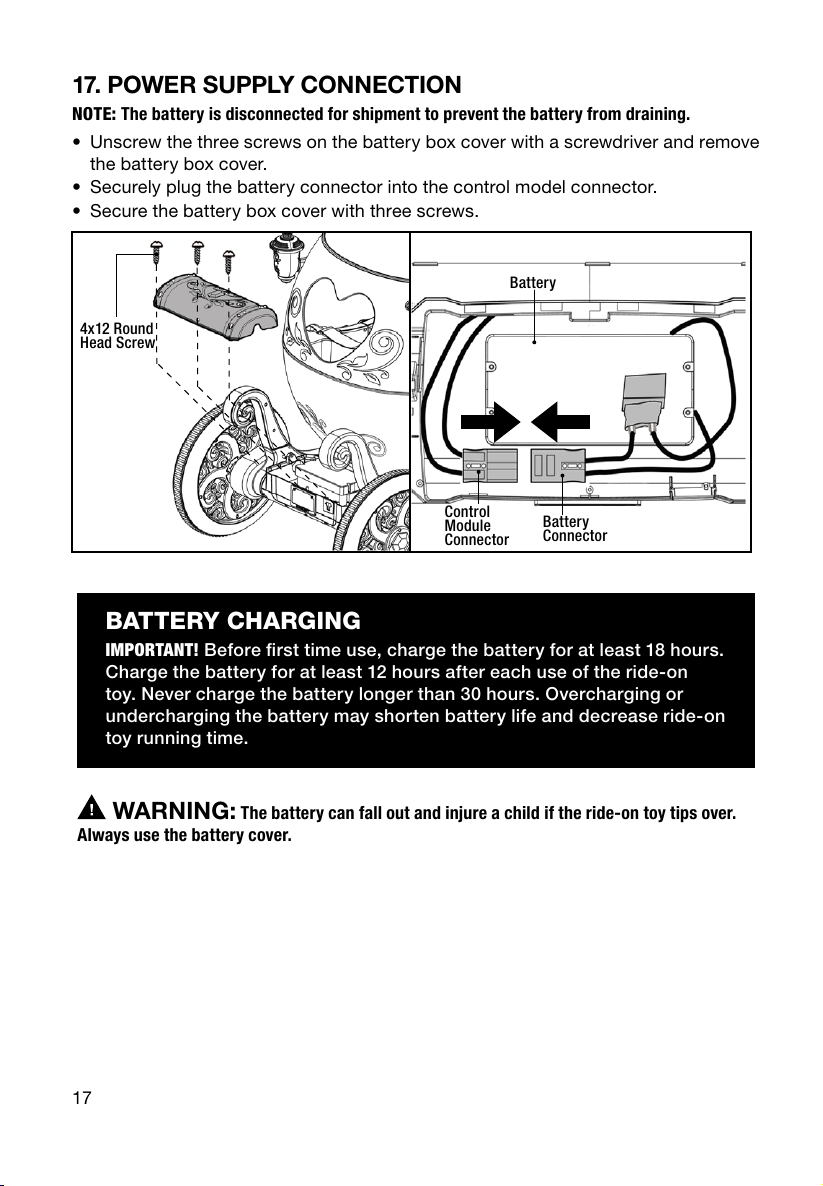

17. POWER SUPPLY CONNECTION
NOTE: The battery is disconnected for shipment to prevent the battery from draining.
• Unscrew the three screws on the battery box cover with a screwdriver and remove
the battery box cover.
• Securely plug the battery connector into the control model connector.
• Secure the battery box cover with three screws.
Control
Module
Connector
4x12 Round
Head Screw
Battery
Connector
Battery

18
PREVENT FIRE
• Never modify the electrical system.
• Alterations could cause a fire resulting in serious injury and could also ruin the
electrical system.
• Use of the wrong type battery or charger could cause a fire or explosion resulting
in serious injury.
• Use of non-original components on this ride-on toy could cause overheating, fire
or explosion.
• The battery must be handled by adults only.
• The battery is heavy and contains sulfuric acid (electrolyte).
• Dropping the battery could result in serious injury.
• Never allow children to charge the battery.
• Battery charging must be done by adults only. A child could be injured by the
electricity involved in charging the battery.
• Never lift or carry the battery by the wires or connector, this can damage the
battery and possibly cause a fire resulting in serious injury. Lift and carry the
battery by the case only.
• Read the safety instructions on the battery.
• Examine the battery, charger and their connectors for excessive wear or damage
each time you charge the battery.
• If damage or excessive wear is detected, do not use the charger or the battery
until you have replaced the worn or damaged part.
WARNING: Use the charger in dry locations only.
1. Plug the charger port into the input socket (the socket is at back of the carriage).
2. Plug the charger plug into a wall outlet. The battery will begin charging.
NOTE: Red LED light indicates the battery is charging and a green LED light indicates battery
is fully charged. If the lights on the charger do not light up, check the power to the outlets.
Charging Input
Socket
1
2

19
IMPORTANT NOTE
• The battery must be upright while charging.
• The charger is not a toy.
• Do not short-circuit the battery.
• You do not need to remove the battery from your ride-on toy to recharge it.
• Before charging the battery, examine the battery case for cracks and other
damage which may cause sulfuric acid (electrolyte) to leak during the charging
process. If damage is detected, do not charge the battery or use it in your ride-
on toy. Battery acid is very corrosive and can cause severe damage to surfaces
it contacts.
• Use only an original charger (AC 120V 60Hz) with an output of DC 24V (1A) to
charge your ride-on toy battery.
• NOTE TO ADULTS: Regularly examine the charger for damage to the cord, plug,
housing or other parts that may result in the risk of fire, electric shock or injury.
• If your battery is old and will not accept a charge, do not leave it in the ride-on
toy. Always remove a dead battery from the ride-on toy.
• After the first charge, recharge the battery for at least 12 hours after each use.
Never charge the battery longer than 30 hours. Charge the battery after each
use, regardless of how long the ride-on toy was used.
• Do not allow the battery to run down completely before charging.
• Charge the battery before storing the ride-on toy.
• Charge the battery at least once per month, even if the ride-on toy has not been
used.
NOTE:
• This product has CHARGING PROTECTION: when charging, all the functions will
be cut off.
• Initial charge – At least 18 hours, and never charge the battery longer than 30
hours.
• When the ride-on toy begins to run slowly, recharge the battery.
• After each use or once a month at minimum if not used, recharge the battery for
at least 12 hours, but never more than 30 hours at most.
WARNING: Use the charger in dry locations only.
