Introduction
3
1Introduction
The TOUGH-Link Remote Intelligence Gateway unit TL-3600 is a mobile device
that resides in private, commercial or government industrial engine equipment. The TL-
3600 is a single box enclosure incorporating a processor, a GPS receiver, a wireless
data modem, and a vehicle-rated power supply. The TL-3600 also supports inputs and
outputs to monitor and react to the equipment environment and/or operator actions.
The TL-3600 collects, stores and transmits equipment and location data over a
designated wireless network including LTE and HSPA. Equipment and location data are
transmitted to a customized software application that has been designed to receive,
acknowledge, process, store, and respond to this data. Unit location and equipment
information is sent at pre-determined intervals, on demand, or when pre-programmed
equipment conditions are met. Transmission of data are sent immediately when in
wireless network coverage and stored for later transmission when out of the wireless
coverage area. SMS messaging can be used as an alternative or redundant
communication backup.
The TL-3600 is designed to support a variety of custom applications starting with
basic automatic equipment monitoring, third party security monitoring, dynamic reporting
routines, and an array of exception alerts.
Typical installations include hook-up to power, ignition, and ground. TL-3600s
and the corresponding wiring are almost always hidden from view and general access.
Placement of the units is usually within enclosures or on top of equipment canopies.
2 Pin Diagram and Description
2.1 Pin Numbering
TOUGH-Link TL-3600 © 2019 Dynagen Technologies Inc.
1
17
18
34
Fig. Mating Plug on the wire harness
Fig. Connector receptacle on the
TL-3600

Pin Diagram and Description
4
2.1.1 Pin Description and Colors (When supplied with Harness Part Number TBD)
Pin
Signal Name
Wire Color
1
Input_0 Ignition
Red
2
AUX1 Switched 3.3V
Black
3
AUX2 Switched 3.3V
White
4
1BB
Pink
5
CAN2_L_8
Brown/ Red
6
ISO_KLINe_7
Brown/ Orange
7
CAN1_H
Black
8
AUX2_RX
Brown/ Green
9
AUX2_TX
Brown/ Blue
10
CAN2_H
Yellow/ Red
11
J1850+
Yellow/ Orange
12
SWCAN
Yellow/ Green
13
Output_0
Yellow/ Blue
14
Output_1
Blue
15
GND
Orange
16
Vin Primary
Violet
17
Vin2
Gray
18
Input_1
Green/ White
19
Input_2
Blue/ White
20
Input_3
Black/ White
21
Input_4
Green/ Black
22
ADC_1
Black
23
K/L Line_15
Orange/ Black
24
CAN1_L
Green
25
AUX1_TX
Brown
TOUGH-Link TL-3600 © 2019 Dynagen Technologies Inc.

Pin Diagram and Description
5
26
AUX1_RX
Yellow
27
CAN2_L_11
Blue/ Orange
28
J1850
White/ Yellow
29
KLINE_12_HDn
Red/ Green
30
J1708L
Orange/ Green
31
J1708H
Black/ Red
32
Output_2
White/ Red
33
VIN_VBUS
Orange/ Red
34
Switched_12V_OUT
Blue/ Red
2.1.2 Status of LEDs
LED
Status
Color
1
AUX
Blue
2
COM
Orange
3
GPS
Green
4
VEH
Red
2.1.2.1 COM LED- Orange Identification
Condition
LED
Modem Off
Off
COM On - Searching
Slow Blinking
Network Available, Not yet registered
Fast Blinking
Registered but no Acknowledgement
Alternates from Solid to Fast blinking
From TOUGH-Link.com
every 1 sec
Registered and received
Acknowledgement from
TOUGH-Link.com
Solid
TOUGH-Link TL-3600 © 2019 Dynagen Technologies Inc.

Pin Diagram and Description
6
2.1.2.2 GPS LED- Green Identification
Condition
LED
GPS Off
Off
GPS On
Slow blinking
GPS Time Sync
Fast blinking
GPS Fix
Solid
2.2 General Wiring Instructions
Following are the important wiring guidelines to be followed:
TL-3600 contains a TVS to protect I/Os and internals from a transient on a main battery
(the battery the TL-3600 is powered from). If you have I/O connected to other batteries or
power supplies, those I/Os must contain their own voltage transient protection. Otherwise
the I/O and/or TL-3600 can be damaged if the transient exceeds the maximum rated
voltage of the I/O. A device that provides this kind of protection is known as a TVS or a
varistor.
Fusing: A fuse should be placed in line with the battery +ve wire going to the TL-3600 unit
power. A 10 A fuse is suggested.
TOUGH-Link TL-3600 © 2019 Dynagen Technologies Inc.

Installation
7
3 Installation
3.1 Preparation
TL-3600 Components needed:
TL-3600 to be installed
Power Harness
34-pin I/O connector
Optional components:
o Input and Output cables
o Relays
3.2 Protection from heat
It is best not to place the TL-3600 unit in an unusually warm location such as directly
near heater vents, near hot engine components or in direct sunlight.
TOUGH-Link TL-3600 © 2019 Dynagen Technologies Inc.
Technologies Inc.

Installation
8
3.3 Size and placement of TL-3600 Unit
The dimensions of the TL-3600 should be taken into account, particularly when installing:
When you intend to place the TL-3600, be sure that it will fit before drilling any
holes or running cable
Be certain that the cables running to the TL-3600 will not be bent or constricted.
Damage to the cables may impede the TL-3600’s performance.
Be certain that the installation point will not violate any of the TL-3600’s
environmental specification (Temperature, moisture, etc…) as improper installation
of the TL-3600 may void the warranty.
3.4 Replacement of SIM (Subscriber Identity Module) Card
When used in a LTE or HSPA, each TL-3600 uses a Subscriber Identity Module (SIM)
card, which is already installed in TL-3600. The SIM card is attached to the main-board
inside the housing of the TL unit.
At some future time, you might need or want to replace the SIM card with a different one,
so try to install the TL-3600 in such a way that the cover can be removed to make the
SIM card accessible.
There are 6 Torx screws that attach the cover to the case. The cover houses the
connector. The whole PCB board slides out and the SIM holder is on the PCB board.
The cover can be removed without unmounting the device from the asset. It is sealed
with a gasket that is reusable. Screw driver required is TORX T8.
TOUGH-Link TL-3600 © 2019 Dynagen Technologies Inc

Installation 9
3.5 Placement of Combination and Internal Access
When dealing with combination antennas such as the internal antennas in the TL-3600, it
is more important to consider GPS performance over cellular communications
performance. GPS signal strengths are much lower than those typically seen by cellular
networks supported by the TL3600. In order to maximize the performance, the TL-3600
should have as a clear view of the sky as possible. When installing the GPS antenna in a
system, make sure that there are as few obstructions as possible close to the TL-3600
that might block the view 360° to the horizon. As with stand-alone GPS antennas,
nothing should not block the combination antenna beyond 5° above the horizon with the
best location being near the center of the canopy.
Normally the TL-3600 label should be oriented with the label facing upwards toward the
sky. It is not recommended to mount the TL-3600 perpendicular to the horizon but it may
be acceptable depending on the unit has a good view of the sky. It is recommended to
run few tests on the actual engine equipment based on the LED lights (GREEN) and see
how long it takes to go SOLID in different orientations or by measuring the signal
strength using the serial port on the TL-3600.
3.6 Backup Battery
The TTU-3640™ supports a Lithium-Ion 1000 mAh backup battery input to be used when
primary power is lost; the supported voltage range is 9 to 16 VDC.
3.7 Warranty
12 months
TOUGH-Link TL-3600 © 2019 Dynagen Technologies Inc.

Activation 10
4 Activation Procedure
4.1 Adding a new device to your subscription service
1. Your TL-3600 intelligent gateway uses a cellular data connection to communicate with
the TOUGH-Link.com cloud. The cellular service is activated and tested prior to
shipping.
To receive a login to the TOUGH-Link.com cloud service or to add new devices to
your existing account, please email [email protected] or call our sales contact
at 1-888-396-2436.
You will need to provide the device Electronic Serial Number (ESN) found on the top
of the TL-3600 and the email address to associate with your account. Your device will
then be added to your account.
For new TOUGH-Link.com accounts, users will receive login invitations at the email
addresses provided. Email invitations will include instructions for your account.
TOUGH-Link TL-3600 © 2019 Dynagen Technologies Inc.
Electronic Serial number is in the
format of
467#######

Activation 11

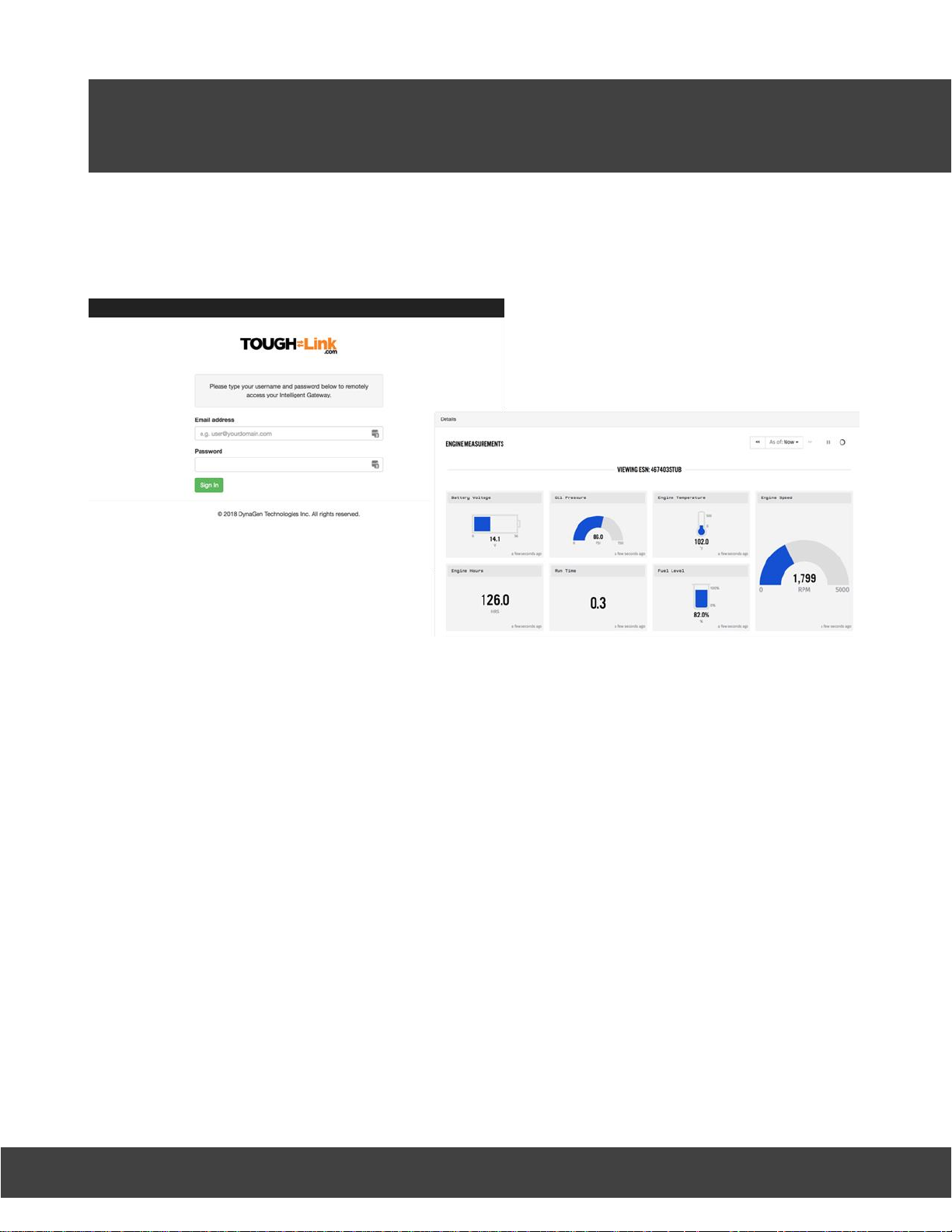

2. Once your device has been added to your account, login to the cloud at https://tough-
link.com to view it.
TOUGH-Link TL-3600 © 2019 Dynagen Technologies Inc.
