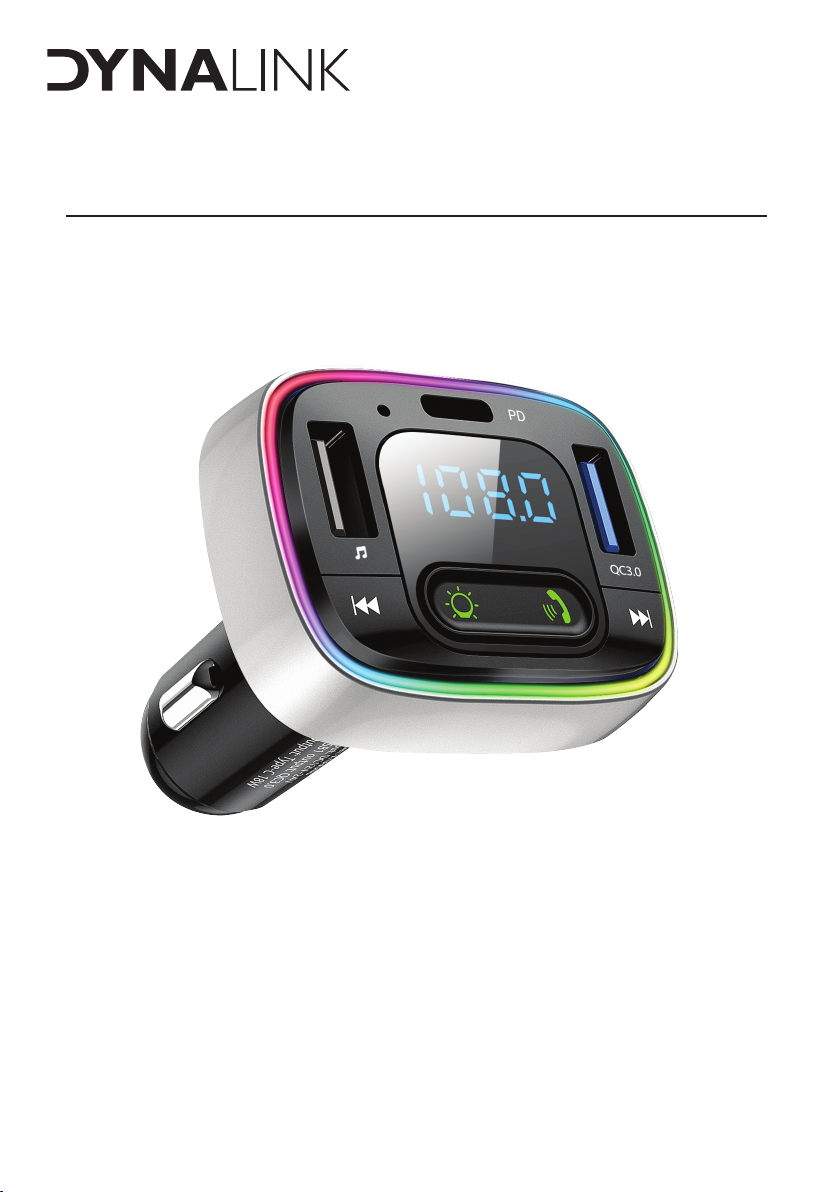

Dynalink X 0604B User manual

Hands Free Bluetooth Car Kit
Operating Instructions
X 0604B
Make hands-free calls and play music directly through
your car speakers via FM radio. Features the follow-
ing USB ports; 1x USB Type A QC3.0, 1x USB Type C
PD3.0 and a USB port for playing music.

Introduction
Make hands-free calls and play music directly through your car speak-
ers via FM radio. Simply pair with your phone using Bluetooth and
connect to your car stereo using FM transmission, instantly! Tune an
unused FM frequency (87.5-108MHz) on your car stereo & match it to
the X 0604B. It will even mute the music when a call comes in. Call
audio is routed through your car speakers and a mic picks up your
voice. The car accessory also features the following USB ports; 1x USB
Type A QC3.0, 1x USB Type C PD3.0 and a USB port ideal for playing
music.
Features
FM transmitter
Easily Portable
Dual USB car charger : QC3.0 + PD3.0
USB port for playing music from a ash drive
Intelligent output current managment
Colorful LED light strip
Supports TF card playing
Car battery voltage monitor
SAFETY INSTRUCTIONS
• Please read this manual carefully before using product
• Follow these instructions whilst using product
• Don’t try to disassemble this product by yourself
• Keep your attention on road and do not operate this prod-
uct whilst driving
• Don’t expose product directly to sunlight or open ames as
both will cause potential damage

Features
FM transmitter
Easily Portable
Dual USB car charger : QC3.0 + PD3.0
USB port for playing music from a ash drive
Intelligent output current managment
Colorful LED light strip
Supports TF card playing
Car battery voltage monitor
Product Overview
1. Type-C charging port
2. LED Display
3. Microphone
4. Previous Song
5. Next Song
(1)
(7)
(3)
(6)
(2)
(4) (5)
(10)
(9)
(8)
6. USB charging port
7. USB Flash drive & music play port
8. TF card slot
9. Colour Selection
10. Call button
LED Indicator
107.6
13.5
Status
Car Battery voltage
FM transmitting frequency
X 0604B bluetooth ready to pair
Default mode: Rainbow Effect
Keep pressing the lightbulb icon to cycle through the solid colour
options. When car is turned back on after being off the transmitter will
revert back to default mode.

Operating Instructions
FM107.6
/
1. Plug X 0604B into your cars cigarette lighter socket
2. The LED dispaly will show 13.5 - 107.6
3. Bluetooth Connect: After LED displays “ ” it indicates X 0604B
is ready to pair with a voice prompt: “Waiting for connection”. On
your smart phone, enable the bluetooth function. Then, search
available devices and select “X0604B” to pair. Once connected there
is the following voice prompt: “Bluetooth connection success”.
4. Turn on FM on your car radio and nd a vacant (unoccupied)
channel. Then, go to adjust the frequency on X 0604B to match the
frequency on your car radio.
5. Adjust the FM transmitter frequecny by pressing the “CH” button
until the frequency display is ickering. Press the “ ” buttons
to adjust the FM transitting frequecny to be the same as your car
radio.

Play/Pause
Volume u30
Previous/Next Track
Press
Press
Press
Play/Pause
Previous/Next Track
Press
USB ash drive ready to play
(when you plug in a USB ash drive)
Press
Volume (U00-U30)
001
Long press (5 seconds)
Song 001 playing
TF card ready to play
(when you insert a TF card)
/
/
/
Playing music through your phone
After steps 1-5 you can start playing music on your smart phone, the
music will be streaming through the bluetooth A2DP functions.
Playing music from USB ash drive
Plug your USB ash drive into the usb port with the music icon. The
bluetooth transmitter will recognize the ash drive and start playing
automatically.
USB

Answer an incoming call
Reject an incoming call
Press
Press and hold
Recall last incoming/outgoing call
Hang up a call Press
Quickly press twice
Playing music from TF card
Insert TF card into the designated TF card slot. The transmitter will
recognize the card. All operations are the same as the USB ash
drive music play mode.
TF card
64GB
TF
Hands Free call
After you have got X 0604B ready to play, you can start using the
hands free function.
Under music playing status ( / / ash drive), if there is a
call coming in, the transmitter will switch to call mode automatically.
After the call has ended the transmitter will switch back to playing
mode automatically.

Specications
Bluetooth Version: .................... V5.0
Bluetooth distance: .................. 10m
Output: ..................................... 36W
Input Voltage: ........................... 12V/24V
USB Type A: .............................. QC3.0 2.4A/5V,2A/9V,1.5A/12V
USB Type C: .............................. QC3.0 PD18W
Frequency: ................................ 87.5-108.0 MHz
FM transmit distance: ............... ≥2m
USB Capacity: ........................... ≤64GB
Audio Formats: ......................... MP3, WMA, FLAC, WAV
Charging your device
The transmitter has one USB Type C port and two USB Type A ports. The
total output max is 3.6A in the intelligent current sharing mode.
Type-C : PD 18W with PPS Support PD3.0/ PD2.0
QC4.0/QC3.0/QC2.0/SFCP/FCP/VOOC/AFC/ Apple18W/
Apple2.4A/BC1.2/SAMSUNG2.0A
USB 2: 5V/2.4A charging port
USB 1: 5V/1A Max & USB ash drive port. This port is
mainly used for music playing however can be used to
charge low demand current devices.
/
