DYNASTY GAS COOKTOP
MODEL DSCT -36-6
PLEASE READ THIS MANUAL COMPLETELY AND CAREFULLY BEFORE PROCEEDING,
NOTE TO THE INSTALLER: Please leave this manual with the cooktop for the consumer.
NOTE TO THE CONSUMER: Please retain this manual for future reference.
7355E. SLAUSONAVENUE,COMMERCE,CALIFORNIA 90040
MADE IN USA
PartNo. 24-546
9/00

-Do not storeorusegasolineor otherflammablevaporsandliquids in the vicinity of this or anyother
appliance.
-WHAT TO DO IF YOU SMELL GAS
.Do not try to light anyappliance.
.Do not touchanyelectricalswitch;do notuseanyphonein thebuilding.
.Immediately call yourgassupplierfrom a neighbor'sphone.Followthegassupplier'sinstructions.
.H youcannotreachyourgassupplier,callthe fire department.
.Installation andservicemustbeperformedbyaqualifiedinstaller,serviceagencyorthegassupplier.
Do notusethisapplianceasa supplementto yourfurnace/heater.It is notdesignedto
heatthe kitchennor anyotherroom.Usingthisapplianceotherthan itsintendeduse
couldbedangerous.
Checkthatthecontaineris upright.Checkfor visible
damageonthecarton.If thereis damageonthe
carton,contactthecarrier,andrequestaninspection.
Do notrefuseshipmentbutfile theappropriate
freightclaims.Responsibilityfor shippingdamageis
withthecarrieranddealerorenduser.
Remove,unwrapandtemporarilylayasideanypart
or accessoryshippedwith theunitandmakesurethat
therearenohardwareoraccessoriesleft inthebox
for accidentaldisposal.Makesureall packing
materialandliteratureareremovedfromthe
appliancebeforeconnectinggasandelectrical
supply.
Cuttheshippingstrapsandcarefullylift thecarton
upfromthecooktop.Checkthe cooktopfor visible
damage.
2

,.
DSCT -36-6 SPECIFICATIONS
~-
BACK GUARD ~
OPTIONAL
FORUSEWHENINSTALLEDAGAINST
COMBUSTIBLEREARWALLS
\.
,,-
..~
:::::
9'/,
y
ELECTRICAL CHARACTERISTICS: 120v, 1-phase, 60 cycles
10 amp
Circuit breaker rating:
3

recommend30"distancefromthebottomof the
hoodto thecooktopsurface.
TheDynastyGasCooktopmustbeinstalledin
accordancewiththeminimumclearancesas
illustrated.Avoid placingcabinetsdirectlyabovethe
cooktopin orderto reducethehazardsin reaching
overtheappliance.Wheninstalled,themaximum
depthof theoverheadcabinetsis 13inches.If the
cabinetsareto beinstalledabovea cooktopwitha
charbroilersection,thebottomofthecabinetsmust
beprotectedwithnoncombustiblematerials.Note
thattheminimumverticaldistancebetweenthe
cooktopsurfaceandthecombustiblecabinetsabove
thecooktopis40". If a ventilatinghoodisused,we
Becauseofthehighburnerinputrateofthe Dynasty
GasCooktop,we stronglysuggestthataprofessional
ventilatinghoodbeinstalledabovetheappliance.
Pleasereferto thechartfor therecommended
ventilatinghoodsizes.
><-.:;.
RecommendedSize ZERO CLEARANCE
Ventilating Hood
Model
DSCT-36-6 VentHoodSize600
CFM
y
'<
Thehoodwidth mustbeatleastthesamewidthas
thecooktop.Thehooddepthmustbe 19"minimum.
IMPORTANT: Any openingin the wallbehindthe
applianceandin thecabinettopundertheappliance
mustbesealed.
4

operatior1

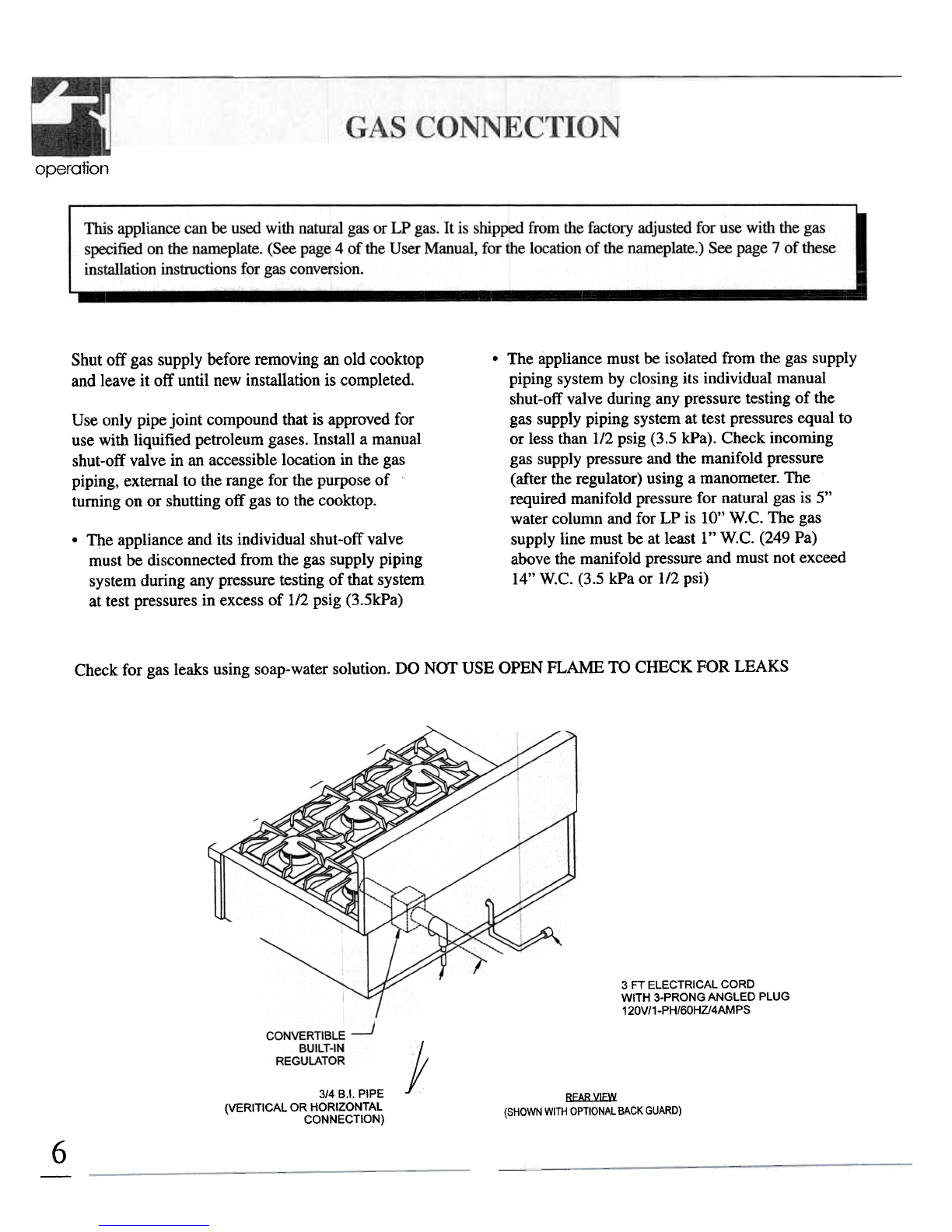

Shutoff gassupplybeforeremovinganold cooktop
andleaveit off until newinstallationis completed.
Useonlypipejoint compoundthatis approvedfor
usewith liquified petroleumgases.Installa manual
shut-offvalvein anaccessiblelocationinthegas
piping,externalto therangefor thepurposeof
turningonor shuttingoff gasto thecooktop.
.The applianceandits individualshut-offvalve
mustbedisconnectedfromthegassupplypiping
systemduringanypressuretestingof thatsystem
attestpressuresin excessof 1/2psig(3.5kPa)
.The appliance mustbe isolated from the gas supply
piping systemby closing its individual manual
shut-off valve during anypressuretesting of the
gas supply piping systemat testpressuresequalto
or lessthan 1/2 psig (3.5 kPa). Check incoming
gas supplypressureandthe manifold pressure
(after the regulator) using amanometer.The
required manifold pressurefor natural gasis 5"
water column and for LP is 10"W.C. The gas
supply line mustbe at least 1" W.C. (249 fa)
abovethe manifold pressureand must not exceed
14"W.C. (3.5 kPa or 1/2 psi)
Checkforgasleaksusingsoap-watersolution.DONOT USEOPENFLAME TO CHECKFORLEAKS
3 FT ELECTRICAL CORD
WITH 3-PRONG ANGLED PLUG
120V/1-PH/60HZ/4AMPS
f
3/4 B.I. PIPE
(VERITICAL OR HORIZONTAL
CONNECTION)
RFAR VIEW
(SHOWNWITHOPTIONALBACKGUARD)
6

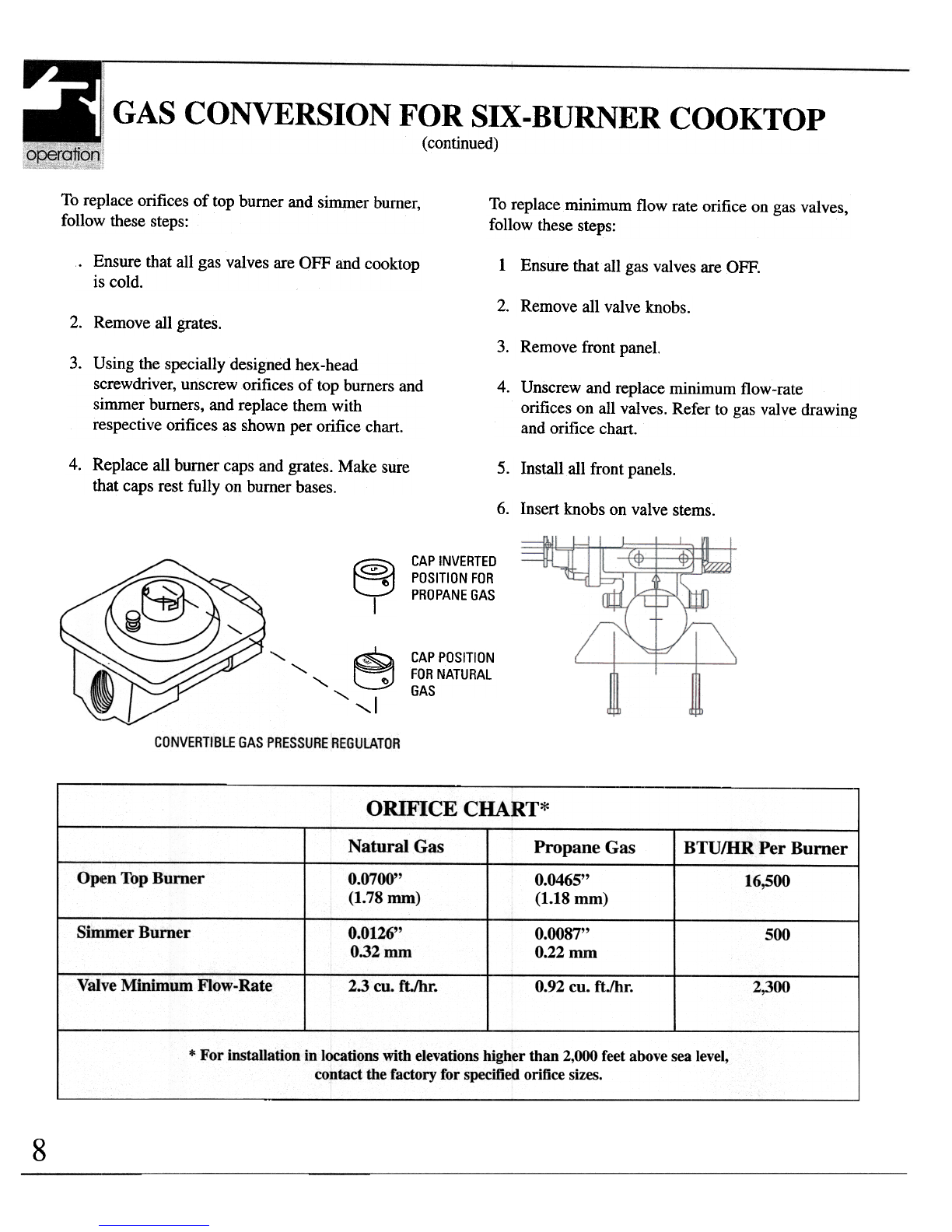

GAS CONVERSION FOR SIX-BURNER COOKTOP
(continued)
Toreplaceorificesof topburnerandsimmerburner,
follow thesesteps: Toreplaceminimumflow rateorifice ongasvalves,
follow thesesteps:
.Ensure that all gasvalves are OFF and cooktop
is cold. 1Ensure that all gasvalves are OFF.
2. Removeallvalveknobs.
2. Removeallgrates. 3. Remove front panel.
4. Unscrewandreplaceminimumflow-rate
orificesonallvalves.Referto gasvalvedrawing
andorifice chart.
3. Usingthespeciallydesignedhex-head
screwdriver,unscreworificesof topburnersand
simmerburners,andreplacethemwith
respectiveorificesasshownperorificechart.
4. Replaceall burnercapsandgrates.Makesure
thatcapsrestfully onburnerbases. 5. Installall frontpanels.
6. Insertknobsonvalvestems.
CAPINVERTED
POSITIONFOR
PROPANEGAS
~
I
~
"'",I
CAPPOSITION
FORNATURAL
GAS
'""'"
ORIFICE CHART*
Natural Gas PropaneGas BTU/HR PerBurner
OpenTopBurner 0.0700"
(1.78mm) 0.0465" (1.18mm) 16,500
SimmerBurner 0.0126"
0.32mm 0.0087"
0.22mm 500
ValveMinimum Flow-Rate 2.3cu.ft./hr. 0.92cu.ft.lhr. 2,300
* For installationin locationswith elevationshigherthan2,000feetabovesealevel,
contactthe factory for specifiedorifice sizes.
8

CC..C!coperaflon
; cc'ccCcc""c
I-~isconnect powerbeforeinstallingtherange.Beforeturning-;ower ON,bes-::;:~hatthecontrols~~
I in~h~-OFFposition. ~
(C
~
~
-.
~
~
~
=
=
=
~
~
f8Ifo.
_.
=
=
0-\ ~~G
L
L2
JADEPRODUCTSCO
MODEL:DSCT36-6
PIN
9

PLEASEREMEMBER:Theseburnersproducea lot
of heatatHI setting.DO NOT OPERATETHE
BURNERSWITHOUT COOKWAREONTHE
GRATES.THE PORCELAINONTHEGRATES
i
MAY CHIPIF BURNERSOPERATEFORAN
EXTENDEDPERIODOFTIME WITHOUT
COOKWAREONGRATES..

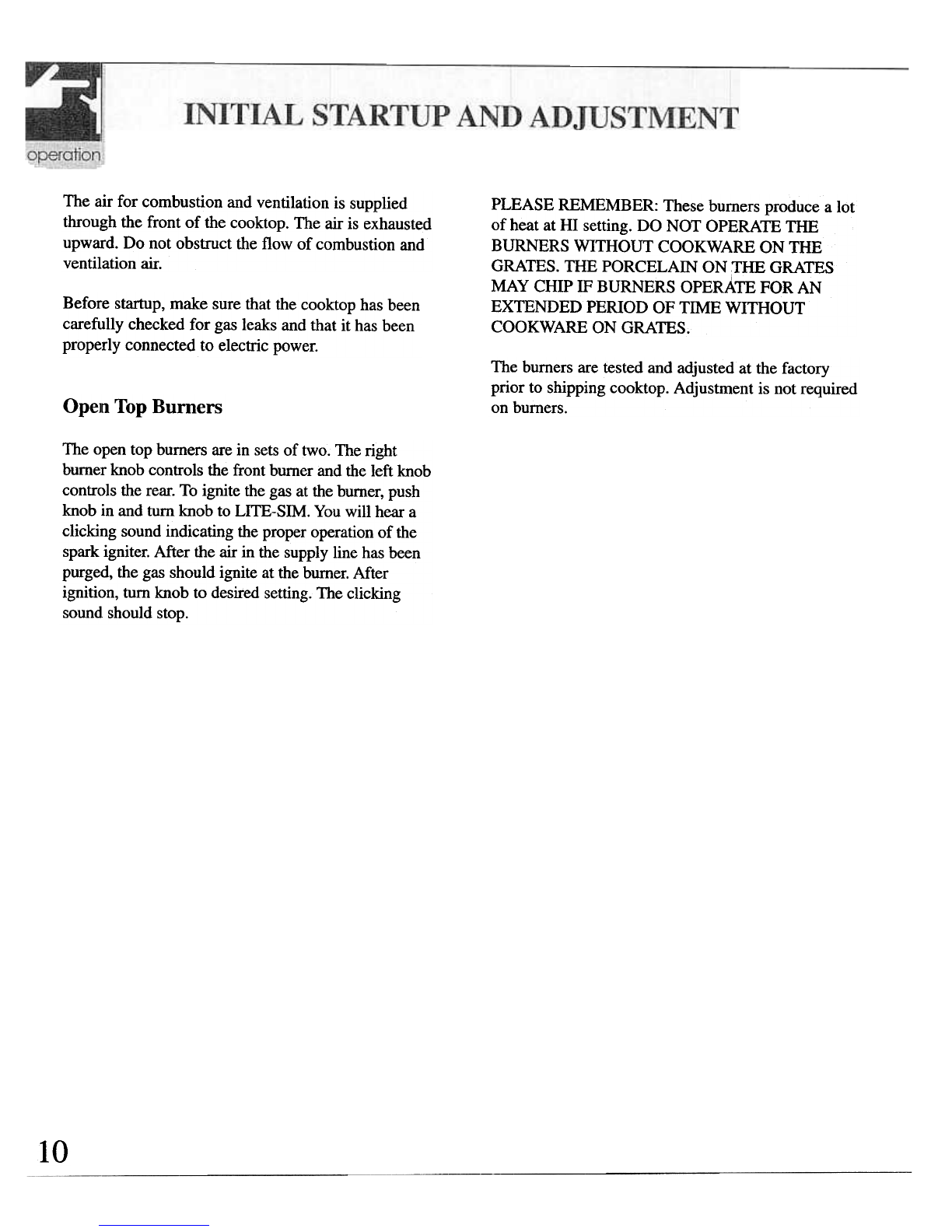

Theair for combustionandventilationis supplied
throughthe front of thecooktop.Theair is exhausted
upward.Do notobstructtheflow of combustionand
ventilationair.
Beforestartup,makesurethatthecooktophasbeen
carefullycheckedfor gasleaksandthatit hasbeen
properlyconnectedto electricpower. Theburnersaretestedandadjustedatthefactory
priorto shippingcooktop.Adjustmentis notrequired
onburners.
OpelrlTop Burners
Theopentopburnersareinsetsoftwo.Theright
burnerknobcontrolsthefrontburnerandtheleft knob
controlstherear.Toignitethegasattheburner,push
knobinandturnknobtoLITE-SIM.Youwill heara
clickingsoundindicatingtheproperoperationof the
sparkigniter.Aftertheair inthesupplylinehasbeen
purged,thegasshouldigniteattheburner.After
ignition,turnknobto desiredsetting.Theclicking
soundshouldstop.
10
