Dynex DX-C114200 User manual

PC/Mac USB File Transfer Adapter
DX-C114200
USER GUIDE
DX-C114200_11-0231_MAN_ENG_V1.fm Page 1 Thursday, March 3, 2011 3:51 PM

2
DX-C114200_11-0231_MAN_ENG_V1.fm Page 2 Thursday, March 3, 2011 3:51 PM

3
Dynex DX-C114200
PC/Mac USB File
Transfer Adapter
Contents
Important safety instructions ............................................3
Introduction.......................................................................4
Features.............................................................................5
Package Contents...............................................................5
System Requirements........................................................5
LED status..........................................................................6
Installing and using the adapter........................................7
Specifications...................................................................22
Legal notices....................................................................23
One-year limited warranty ..............................................25
Important safety
instructions
Always read the safety instructions carefully:
• Keep this User's Manual for future reference
• Keep this equipment away from humidity
DX-C114200_11-0231_MAN_ENG_V1.fm Page 3 Thursday, March 3, 2011 3:51 PM

4
• If any of the following situation arises, get the
equipment checked by a service technician:
• The equipment has been exposed to moisture.
• The equipment has been dropped and damaged.
• The equipment has obvious sign of breakage.
• The equipment has not been working well or you
cannot get it to work according to the User's
Manual.
Introduction
This PC/Mac USB File Transfer Adapter is a premier file and
data sharing solution for PC and MAC users. The Dynex Link
utility software is already embedded on the adapter and will
automatically load onto your system. Transfer e-mail, music,
photos, videos, and document files from one computer to
another, at speeds up to 480 Mbps. Compatible with Windows
2000, Windows XP, Windows Vista, Windows 7, and MAC
operating systems, the adapter is ideal for transferring data
files from one computer to another, which could be PC-to-PC,
or PC-to-MAC.
DX-C114200_11-0231_MAN_ENG_V1.fm Page 4 Thursday, March 3, 2011 3:51 PM

5
Features
• Simple USB2.0 Plug-n-Play functionality.
• Bi-directional data transfer between two computers or
different operating systems:
• Notebooks and desktops
• Windows 2000, Windows XP, Windows Vista, and
Windows 7 operating system compatible (For PC-
to-PC)
• Windows and MAC operating system compatible
(For PC-to-MAC)
• Fast transfer rate of up to 16MB/second.
• Two easy steps of operation - simply connect and
transfer.
• No file size or media capacity limitations such as those
found with external media cards.
• Dynex Link software program loads automatically.
Package Contents
• PC/Mac USB file transfer adapter
System Requirements
• Windows 2000/Windows XP/Windows Vista/
Windows 7 (For PC-to-PC)
• Windows and MAC OS X v10.4 or later (For PC-to-MAC)
DX-C114200_11-0231_MAN_ENG_V1.fm Page 5 Thursday, March 3, 2011 3:51 PM

6
LED status
LED
color LED status Description
Green On USB ports are connected to hosts.
Flashing fast Data is being transferred.
DX-C114200_11-0231_MAN_ENG_V1.fm Page 6 Thursday, March 3, 2011 3:51 PM

7
Installing and using the
adapter
To install and use on Windows 2000, Windows XP,
Windows Vista, and Windows 7 (PC-to-PC):
1Plug one end of the USB adapter into your local PC and
the other end into your remote PC. The following work
area opens, showing the local and remote computers.
- OR -
DX-C114200_11-0231_MAN_ENG_V1.fm Page 7 Thursday, March 3, 2011 3:51 PM

8

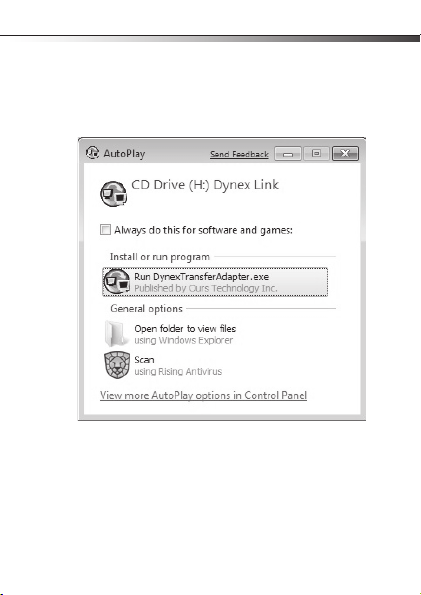

If you are using Windows Vista or Windows 7, when the
message box opens, click Run Dynex Transfer
Adapter.exe to start.
DX-C114200_11-0231_MAN_ENG_V1.fm Page 8 Thursday, March 3, 2011 3:51 PM

9

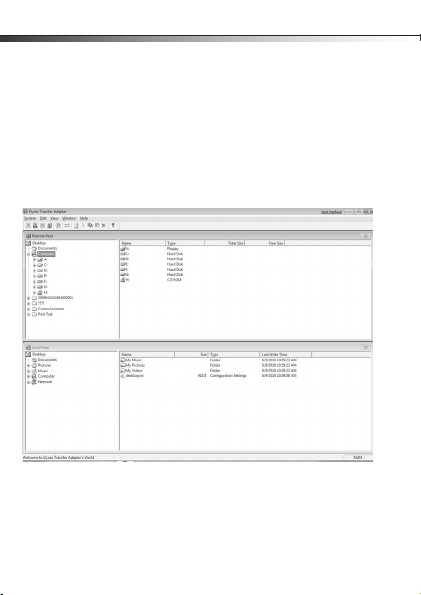

The following work area opens, showing the local and
remote computers.
2To transfer files, click and drag the files from one side to
the other side.
When the file appears on the other side, it is available
for use.
Note: If you close the program, or the program fails to
autorun, you can start it from My Computer by
double-clicking Dynex Link.
DX-C114200_11-0231_MAN_ENG_V1.fm Page 9 Thursday, March 3, 2011 3:51 PM

10

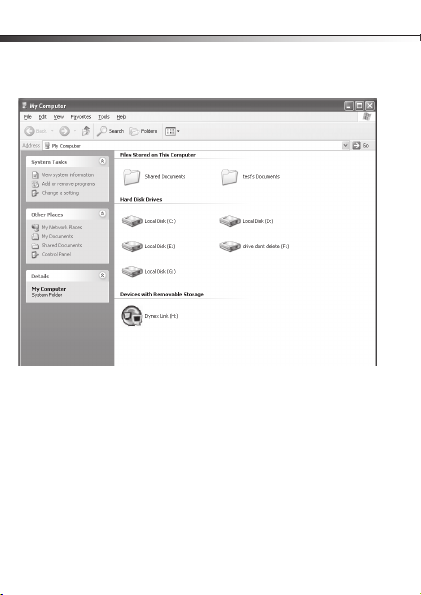

Under Windows XP/2000
DX-C114200_11-0231_MAN_ENG_V1.fm Page 10 Thursday, March 3, 2011 3:51 PM

11
Under Windows Vista or Windows 7
DX-C114200_11-0231_MAN_ENG_V1.fm Page 11 Thursday, March 3, 2011 3:51 PM

12
To install and use from Windows 2000, Windows
XP, Windows Vista, or Windows 7 to Mac (PC-to-
Mac):
1Plug one end of the USB adapter into your local PC and
the other end into your Mac. The following User
Interface screen opens for your PC, showing the local
PC and remote MAC.
- OR -
DX-C114200_11-0231_MAN_ENG_V1.fm Page 12 Thursday, March 3, 2011 3:51 PM

13
If you are using Windows Vista or Windows 7, whenthe
message box opens, click Run Dynex Transfer
Adapter to start.
DX-C114200_11-0231_MAN_ENG_V1.fm Page 13 Thursday, March 3, 2011 3:51 PM

14
The following work area opens, showing the local PC and
remote MAC on your PC.
2Double-click Dynex Link on your Mac desktop.
DX-C114200_11-0231_MAN_ENG_V1.fm Page 14 Thursday, March 3, 2011 3:51 PM

15
3When the pop-up window opens, double-click Dynex
Transfer Adapter.
DX-C114200_11-0231_MAN_ENG_V1.fm Page 15 Thursday, March 3, 2011 3:51 PM

16
4The following work areas open in your local Mac,
showing the remote PC computer.
Mac side
DX-C114200_11-0231_MAN_ENG_V1.fm Page 16 Thursday, March 3, 2011 3:51 PM

17
5To transfer files on the PC side, click and drag the files
from one side to the other. When the file appears on
the your PC or your Mac, it is available for use.
OR -
PC side
DX-C114200_11-0231_MAN_ENG_V1.fm Page 17 Thursday, March 3, 2011 3:51 PM

18
To transfer files on your Mac, you can click and drag the files
from the remote computer to your Mac or from your Mac to
the remote computer. When the file appears on your PC or
Mac, it is available for use.
Notes: If you close the program or the program fails to
autorun, on the PC side you can start it from My
Computer by double-clicking Dynex Link, then
repeat the above steps in "Under PC Interface." On the
Mac side, double-click Dynex Link on the desktop
and repeat the above steps in "Under Mac Interface.”
DX-C114200_11-0231_MAN_ENG_V1.fm Page 18 Thursday, March 3, 2011 3:51 PM

19
To install and use from Mac OS X v10.4 or later
(Mac-to-Mac):
1Double-click the Dynex Link on your Mac desktop.
2When the pop-up window opens, double-click Dynex
Transfer Adapter.
DX-C114200_11-0231_MAN_ENG_V1.fm Page 19 Thursday, March 3, 2011 3:51 PM

20
3The following work areas open, showing the local and
remote Mac computers.
