Dynex DX-26LD150A11 User manual

DX-26LD150A11
DX-32LD150A11
TV stand cover
12 M4 screws with washers
9 M4 screws
with washers
2 M3 screws
TV stand
TV stand
TV stand column
TV stand column
26“/32” LCD TV / DVD combo
QUICK SETUP GUIDE
DX-26LD150A11/DX-32LD150A11
HDMI cable
(not included)
HDMI device
AUDIO IN
Component video device
Component
video cable
Video device
S-video cable
Remote
control and 2
AAA batteries
Component
video cable
AC power
cord
Quick Setup Guide
Front and side features
Installing the stand
1Remove the stand from the box and place it on a table or bench.
2
Secure the stand column to the stand with the four screws with washers provided.
3Lay your TV/DVD combo face down on a soft, dry, and lint free surface.
Align the bottom side of theTV/DVD combo with one edge of the table.
4Slide the stand column into the slot in the bottom of the TV/DVD combo.
5For DX-26LD150A11, secure the stand column to the TV/DVD combo with
the ve screws and washers provided. For DX-32LD150A11, secure the
stand column to the TV/DVD combo with the eight screws and washers
provided, then secure the stand cover to the TV/DVD combo with the two
screws provided.
Installing a wall-mount bracket
1Carefully place your TV screen face-down on a cushioned at, clean
surface to protect the screen from damages and scratches.
2Remove the screws holding the TV to its stand column, then remove the
stand column.
3Secure the wall-mount bracket to the back of yourTV by using
the screws
provided with the wall mount.
Setting up your remote control
1While pressing the release button on the battery compartment cover on
the back of the remote, lift the cover o the remote.
2Insert two AAA batteries into the battery compartment. Make sure that the
+ and – symbols on the batteries align with the + and – symbols in the
battery compartment.
3Replace the cover.
To program your existing universal remote control to work with your new
Dynex TV, see the table below for common codes. If you have problems
programming your remote or need a dierent remote control code, visit
www.dynexproducts.com for the latest remote .
Connecting a DVD or Blu-ray DVD player, cable
box, satellite receiver, or game station
Using HDMI (best)
Connecting an antenna
Connect a 75 ohm cable (not included) to the
ANT/CABLE IN jack on the back of the TV/DVD combo, then
connect the other end of the cable to the antenna, cable TV or
satellite TV box jack.
Connecting a home theater system
Using analog audio cable:
Note: Cable connectors and jacks are often color-coded.

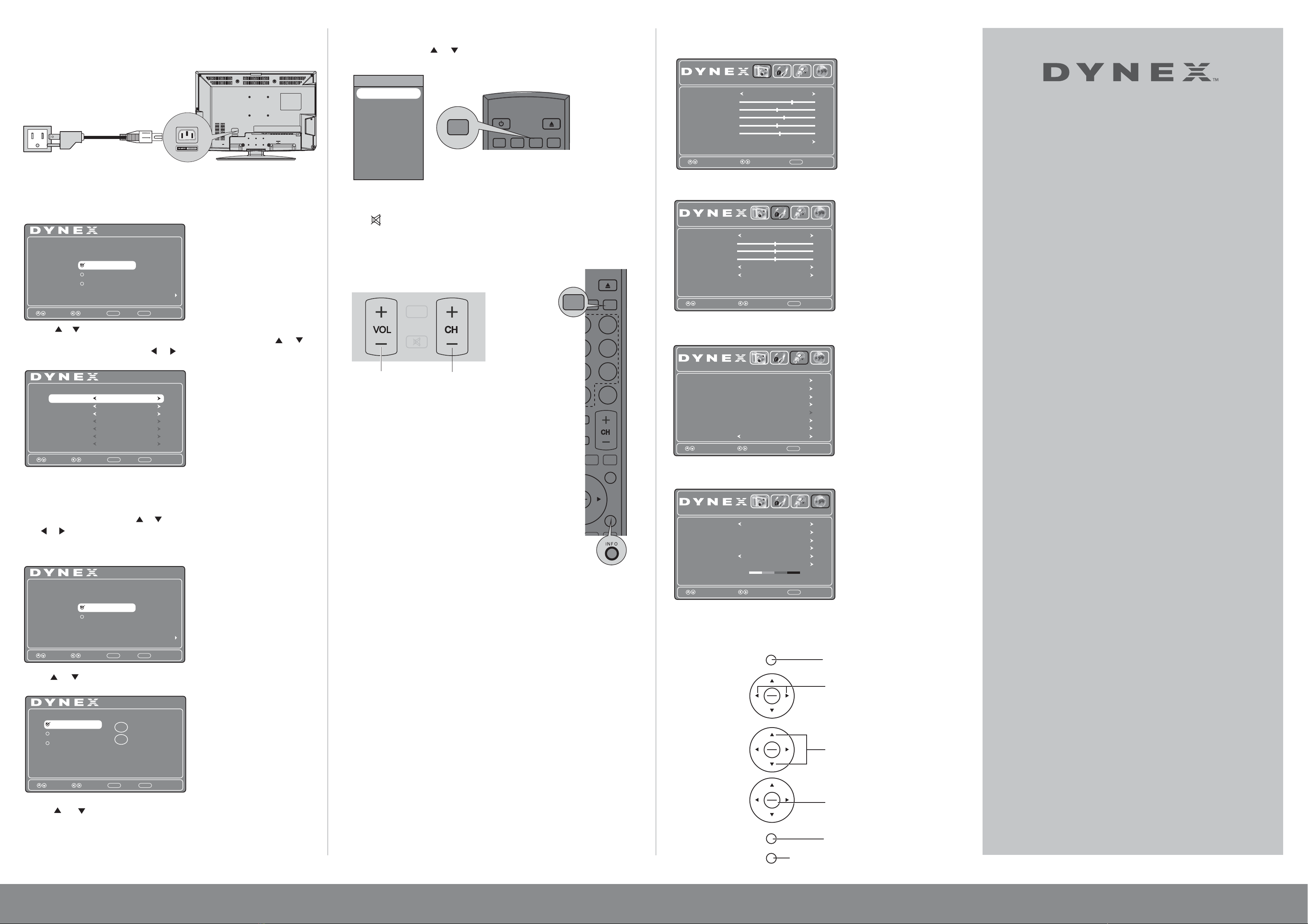

Connecting power
Connect the power cable to the AC INPUT on the back of theTV, then
connect the other end to a power outlet.
Turning on your TV for the rst time
1. Plug in your TV and turn it on. The initial Setup Wizard opens to the
Choose your menu language screen.
2. Press or to select English, French, or Spanish, then press OK/ENTER
to conrm. The Time screen opens with Mode highlighted.Press or to
highlight an option and press or to change the setting.
Options include:
Mode-Select Custom to set date/time manually or
Auto to have them set automatically.
DST-If your area uses daylight savings
Time Zone-Select your time zone
If you select Custom, press or to highlight an option, then press
or to change the setting.
3 When you are done, press OK/ENTER to move to the next screen.
The Choose your Picture Mode screen opens.
4Press or to highlight Home Mode (recommended) or Retail Mode.
If you selected Home Mode, the Choose your TV source screen opens.
5 Press or to highlight Antenna, Cable, or Cable/Satellite Box,
then press OK/ENTER . If you selected Antenna or Cable, your TV
automatically scans for available channels. If you selected
Cable/Satellite Box, auto scan is not necessary and will not appear.
6 Press EXIT to close the menu, then select the input source through
the INPUT SOURCE menu.
Selecting the video input source
1Press INPUT, press or to highlight a source, then press OK/ENTER.
You can also press any of the video source buttons directly.
Adjusting the volume
• Press VOL+ or VOL- to change the volume.
• Press MUTE to turn o the sound.
Selecting a channel
• To move to a different channel in the channel list, press CH + or CH - .
OR
• Enter the channel number directly using the number
buttons.
Viewing channel information
• Press INFOtoshowaninformationbanner.Theinformation
bannershowscurrentprograminformationsuchaschannel
numberandresolution
•Digitalsignalinformation—Displayschannelnumber,
channellabel(ifpreset),broadcastprogramname,
TVrating,DTVsignal strength,audioinformation,resolution,
CCmode,currenttime,andcurrentprogramstartandend
timeswhenwatchingadigitalchannel.
•Analogsignalinformation—Displayschannelnumber,
channellabel(ifpreset),audioinformation,andresolution
whenwatchingananalogchannel.
•
PressGUIDEtodisplayprograminformationinawindowwith
liveprogramcontentforthechannelyouarewatching.
Pressortoviewinformationaboutfutureprogramsonthe
selectedchannel.PressGUIDEorEXITtoexitthisfeature.
On-screen menu overview
PICTURE menu
AUDIO menu
SETUP menu
CHANNEL menu
Navigating menus with your remote control
Universal remote control TV codes (for all Dynex TVs manufactured after Jan. 1, 2007)
Philips
PHDVD5, PH5DSS,
PMDVR8, PDVR8
115
DirectTV
RC23
10463
RCA
RCU807
135
One for All
URC-6690
0464
Sony
RM-VL600
8043
Comcast
M1057
0463
Dish Network
VIP508, VIP622
720
Motorola
DRC800
0463
TIVO
Series 3, HD
0091
Universal remote control makers and models Set-top box makers and models
Using S-video (fair)
Connecting a Computer
Using component (better)
Back of TV / DVD combo
Audio Cable
Audio Cable
Back of TV / DVD combo
Back of TV / DVD combo
Back of TV / DVD combo
Back of TV / DVD combo
Back of TV / DVD combo
1 3
654
7 8 9
0
2
TV DVD
RECALL
MTS/SAP
FAVORITETV MENU
INPUT GUIDE
CCD
OK
ENTER
EXIT
TITLE
MENU SETUP
REPEAT
SUBTITLE RETURN AUDIO
INFO
A-B
ZOOM
AUDIO
L/R Audio cable
Audio Cable
VGA Cable
Remote control
sensor
Power
indicator
VOL
VOL
INPUT
MENU
CH
CH
Disc label towards front

Press to move the cursor
on the screen or to
adjust a selected icon.
Press to open the
on-screen menu.
Press to return to the
previous menu.
Press to select
menu options.
Press to conrm a
selection or to enter
a sub-menu.
Press to close the menu.
26” • 32” LCD TV / DVD combo I QUICK SETUP GUIDE I DX-26LD150A11/DX-32LD150A11
TV MENU
TV MENU
OK
ENTER
OK
ENTER
OK
ENTER
EXIT
1 3
654
7 8 9
0
2
TV DVD
RECALL
MTS/SAP
FAVORITETV MENU
INPUT GUIDE
CCD
OK
ENTER
EXIT
TITLE
MENU SETUP
REPEAT
SUBTITLE RETURN AUDIO
INFO
A-B
ZOOM
AUDIO
Setup Wizard
Choose your TV Picture Mode
Retail Mode
Next
Previous
MENU
Next
ENTER
Move Select
Home Mode
INPUT SOURCE
AV
S-Video
Component1
Component2
DVD
HDMI1
HDMI2
HDMI3
VGA
USB
TV
Front and side features
Installing the stand
1Remove the stand from the box and place it on a table or bench.
2
Secure the stand column to the stand with the four screws with washers provided.
3Lay your TV/DVD combo face down on a soft, dry, and lint free surface.
Align the bottom side of theTV/DVD combo with one edge of the table.
4Slide the stand column into the slot in the bottom of the TV/DVD combo.
5For DX-26LD150A11, secure the stand column to the TV/DVD combo with
the ve screws and washers provided. For DX-32LD150A11, secure the
stand column to the TV/DVD combo with the eight screws and washers
provided, then secure the stand cover to the TV/DVD combo with the two
screws provided.
Installing a wall-mount bracket
1Carefully place your TV screen face-down on a cushioned at, clean
surface to protect the screen from damages and scratches.
2Remove the screws holding the TV to its stand column, then remove the
stand column.
3Secure the wall-mount bracket to the back of yourTV by using
the screws
provided with the wall mount.
Setting up your remote control
1While pressing the release button on the battery compartment cover on
the back of the remote, lift the cover o the remote.
2Insert two AAA batteries into the battery compartment. Make sure that the
+ and – symbols on the batteries align with the + and – symbols in the
battery compartment.
3Replace the cover.
To program your existing universal remote control to work with your new
Dynex TV, see the table below for common codes. If you have problems
programming your remote or need a dierent remote control code, visit
www.dynexproducts.com for the latest remote .
Connecting a DVD or Blu-ray DVD player, cable
box, satellite receiver, or game station
Using HDMI (best)
Connecting an antenna
Connect a 75 ohm cable (not included) to the
ANT/CABLE IN jack on the back of the TV/DVD combo, then
connect the other end of the cable to the antenna, cable TV or
satellite TV box jack.
Connecting a home theater system
Using analog audio cable:
Note: Cable connectors and jacks are often color-coded.
Connecting power
Connect the power cable to the AC INPUT on the back of theTV, then
connect the other end to a power outlet.
Turning on your TV for the rst time
1. Plug in your TV and turn it on. The initial Setup Wizard opens to the
Choose your menu language screen.
2. Press or to select English, French, or Spanish, then press OK/ENTER
to conrm. The Time screen opens with Mode highlighted.Press or to
highlight an option and press or to change the setting.
Options include:
Mode-Select Custom to set date/time manually or
Auto to have them set automatically.
DST-If your area uses daylight savings
Time Zone-Select your time zone
If you select Custom, press or to highlight an option, then press
or to change the setting.
3 When you are done, press OK/ENTER to move to the next screen.
The Choose your Picture Mode screen opens.
4Press or to highlight Home Mode (recommended) or Retail Mode.
If you selected Home Mode, the Choose your TV source screen opens.
5 Press or to highlight Antenna, Cable, or Cable/Satellite Box,
then press OK/ENTER . If you selected Antenna or Cable, your TV
automatically scans for available channels. If you selected
Cable/Satellite Box, auto scan is not necessary and will not appear.
6 Press EXIT to close the menu, then select the input source through
the INPUT SOURCE menu.
Selecting the video input source
1Press INPUT, press or to highlight a source, then press OK/ENTER.
You can also press any of the video source buttons directly.
Adjusting the volume
• Press VOL+ or VOL- to change the volume.
• Press MUTE to turn o the sound.
Selecting a channel
• To move to a different channel in the channel list, press CH + or CH - .
OR
• Enter the channel number directly using the number
buttons.
Viewing channel information
• Press INFOtoshowaninformationbanner.Theinformation
bannershowscurrentprograminformationsuchaschannel
numberandresolution
•Digitalsignalinformation—Displayschannelnumber,
channellabel(ifpreset),broadcastprogramname,
TVrating,DTVsignal strength,audioinformation,resolution,
CCmode,currenttime,andcurrentprogramstartandend
timeswhenwatchingadigitalchannel.
•Analogsignalinformation—Displayschannelnumber,
channellabel(ifpreset),audioinformation,andresolution
whenwatchingananalogchannel.
•
PressGUIDEtodisplayprograminformationinawindowwith
liveprogramcontentforthechannelyouarewatching.
Pressortoviewinformationaboutfutureprogramsonthe
selectedchannel.PressGUIDEorEXITtoexitthisfeature.
On-screen menu overview
PICTURE menu
AUDIO menu
SETUP menu
CHANNEL menu
Navigating menus with your remote control
Press to
change the
volume.
Press to
change the
channel.
09-0xxx
One-year limited warranty
Visit www.dynexproducts.com for details.
Need additional help?
See your User Guide!This comprehensive guide includes
everything from basic how-to steps to more advanced
features.
We’re here for you
www.dynexproducts.com
For customer service, call:
1-800-305-2204 (U.S./Canada markets)
01 800-926-3020 (Mexico market)
Distributed by Best Buy Purchasing,LLC
7601 Penn Avenue South, Richeld, MN USA 55423-3645
Best Buy Imports, S. de R.L. de C.V. Av. Santa Fe 485, Segundo Piso, Colonia
Cruz Manca, Programa Parcial de Desarrollo Santa Fe, Delegación
Cuajimalpa, Distrito Federal, México 05349
RFC#BBI0802114Q2
© 2010 BBY Solutions, Inc.
All rights reserved. DYNEX is a trademark of BBY Solutions, Inc.
Registered in some countries. All other products and brand names are
trademarks of their respective owners.
09-1091
MTS/SAP
1
3
6
54
7 8
9
0
2
TV DVD
RECALL
MTS/SAP
FAVORITE
TV MENU
INPUT GUIDE
CCD
OK
ENTER
EXIT
TITLE
MENU SETUP
REPEAT
SUBTITLE RETURN AUDIO
INFO
A-B
ZOOM
AUDIO
Setup Wizard
Time
DST Off
Pacific
1980
1
6
Year
Month
Day
Time
Time Zone
Auto
Mode
0 AM12 :
Previous
MENU
Next
ENTER
Move Select
Setup Wizard
Choose your TV source
Cable
Cable/Satellite Box
Digital Channels
0
Analog Channels
0
Antenna
Previous
MENU
Next
ENTER
Move Select
Picture Mode
Contrast
Brightness
Color
Tint
Sharpness
Advanced Video
Picture Audio Setup Channel
70
50
60
0
55
Energy Saving
Move Select Exit
MENU
Parental Controls
Time
Closed Caption
Menu Settings
VGA Settings
Input Label
Restore Default
Audio Only
Picture Audio Setup Channel
Move Select Exit
MENU
Off
GUIDE
INPUT
Previous
MENU
Next
ENTER
Setup Wizard
Move Select
Choose your menu language
Español
Next
Français
English
Sound Mode
Bass
Treble
Balance
Picture Audio Setup Channel
50
50
50
Standard
RAWtuptuOlatigiD
Audio Language English
Move Select Exit
MENU
TV Source
Auto Scan
Favorites
Show/Hide
Channel No.
Channel Label
DTV Signal : Good
Picture Audio Setup Channel
Antenna
8.1
WFAA-DT
Move Select Exit
MENU
