Dynex DX-24E310NA15 User manual

CABLE
BEST
GOOD
GOOD
HDMI video/audio
Composite video and analog audio (AV)
Coaxial video/audio
JACK TYPE CABLE CONNECTOR
VIDEO QUALITY
1 2 3
4 5 6
7 8
0
9
INPUT
MENU EXIT
CCD
FAV
HOME
ASPECT
VOL
ENTER
CH
INFO*
AUDIO MTS/SAP SLEEP
DX-RC5NA-15
Which cables do you have?
Your TV has several dierent jacks for connecting devices. For the
best video quality, use the best available connection.
Note: You can also connect a DVI device to your TV. See your online User Guide for
connection instructions. This TV only supports DVI video.
Note: Images do not necessarily represent the exact design of your television.
Thank you
for purchasing this state-of-the-art
Dynex television. We hope you enjoy
the quality and reliability of this
television for years to come.
FIND YOUR
USER GUIDE ONLINE!
We are going green so a copy of your
User Guide is not provided in the box
but is available online.
Go to www.dynexproducts.com,
click Support & Service, enter your
model number in the box under Manual,
Firmware, Drivers & Product Information,
then click Search.
OVER
STOP!
Do not plug your
power cord in until all
other devices have
been connected.
Using an HDMI cable (BEST)
How do I connect my TV to an antenna or cable wall jack?
MAKING CONNECTIONS
How do I watch TV (cable or satellite box) and/or connect a device such as a
DVD or Blu-ray disc player, game station, or camcorder?
- OR -
Before using your new product, please read these instructions to prevent any damage.
HDMI2 HDMI1/DVI
VIDEO
USB AUDIO OUT
SERVICE
PORT ANT/
CABLE IN
DC IN
(12V)
DIGITAL
OUTPUT
(COAXIAL)
L IN R
AV IN
HDMI2 HDMI1
(DVI)
HDMI2 HDMI1/DVI
QUICK
SETUP GUIDE
24" LED TV
DX-24E310NA15
Included accessories
AUDIO/VIDEO
OUT
Features
Front view
Back view
Multi-purpose jacks: You can plug any
device that uses HDMI into either HDMI
jack. However, certain devices must be
connected to the DVI jack. See the
instructions that came with your DVI
device for more information.
Note: This TV only supports DVI video.
AV cable option
ANT/
CABLE IN
How do I prepare my TV for wall mounting (not for use with a TV stand)
A Lay the TV down on a soft surface, then remove the three screws and the stand column.
B Attach the wall-mount bracket to your TV using either the four provided M4 × 8 mm or the
M4 x 28 mm screws that came with the TV.
WARNING:Do NOT use the screws that came with the wall mount because they may be too long.
If your wall mount uses spacers, use the M4 x 28 mm screws. If your wall mount does not use spacers,
use the M4 x 8 mm screws.
CSee the instructions that came with the wall-mount bracket for information about how to
correctly hang your TV.
START HERE
How do I attach the stand to my TV? (not for wall mounting)
You’ll need: Phillips screwdriver and a soft surface to lay the TV on.
A Carefully place your TV face-down on a cushioned, clean surface.
B Find the front of the TV stand. Hook the tab on the stand column
through the slot on the stand, then push the stand into place.
C Secure the TV stand to the stand column with the provided M4 (12 mm) screw.
Remote control
and two AAA batteries
Power Cord
TV stand
M4 screws
(12 mm length) (3 pcs.)
Remote control sensor
Power indicator
HDMI2 HDMI1/DVI
VIDEO
USB AUDIO OUT
SERVICE
PORT ANT/
CABLE IN
DC IN
(12V)
DIGITAL
OUTPUT
(COAXIAL)
L IN R
AV IN
HDMI2 HDMI1
VIDEO
USB AUDIO OUT
ANT/
CABLE IN
DC IN
(12V)
DIGITAL
OUTPUT
(COAXIAL)
L IN R
AV IN
HDMI2 HDMI1
VIDEO
USB AUDIO OUT
SERVICE
PORT
ANT/
CABLE IN
DC IN
(12V)
DIGITAL
OUTPUT
(COAXIAL)
L IN R
AV IN
Using an AV cable (GOOD)
Wall mount installation guide
(not included)
C
A
Front
ABC
M4 (12 mm)
screws
SERVICE
PORT
Use these screws for wall-mounting.
Do NOT use the screws that came
with the wall mount because they
may be too long.
Wall mounting hardware
M4 screws (8 mm length) (4 pcs.)
M4 screws (28 mm length) (4 pcs.)
B

V3 ENGLISH 14-0766
INPUT SOURCE
AV
HDMI1
HDMI2
USB(Photos)
TV
English
Choose Your Menu Language
Français
Español
Set menu language to English,
Français, or Español
Move Select Back
MENU Exit
EXIT
Setup Wizard
Enter
24" LED TV IQUICK SETUP GUIDE I DX-24E310NA15
1 2 3
4 5 6
7 8
0
9
INPUT
MENU EXIT
CCD
FAV
HOME
ASPECT
VOL
ENTER
CH
INFO*
AUDIO MTS/SAP SLEEP
DX-RC5NA-15
4
On your TV, set the Digital Audio/SPDIF
option on the Audio menu to PCM.
Adjust settings to affect sound quality
Move Select Back
MENU Exit
EXIT
Picture Audio SettingsChannels USB
Sound Mode
MTS/SAP
Audio Language
Digital Audio/SPDIF
Balance
Bass
Treble
Standard
50
50
50
PCM
English
Mono
Reset Audio Settings
One-year limited warranty
Visit www.dynexproducts.com for details.
Need additional help?
See your online User Guide! This
comprehensive guide includes everything
from basic how-to steps to more advanced
features. A copy of your User Guide is not
provided in the box but is available online.
Go to www.dynexproducts.com, click
Support & Service, enter your model
number in the box under Manual,
Firmware, Drivers & Product Information,
then click Search.
We’re here for you
www.dynexproducts.com
For customer service, call:
800-305-2204
(U.S./Canada markets)
DYNEX is a registered trademark of BBY Solutions, Inc.
Registered in some countries.
Distributed by Best Buy Purchasing, LLC,
7601 Penn Ave South, Richfield, MN 55423 U.S.A.
©2014 BBY Solutions, Inc.
All Rights Reserved
1-800-305-2204
www.dynexproducts.com
Made in China.

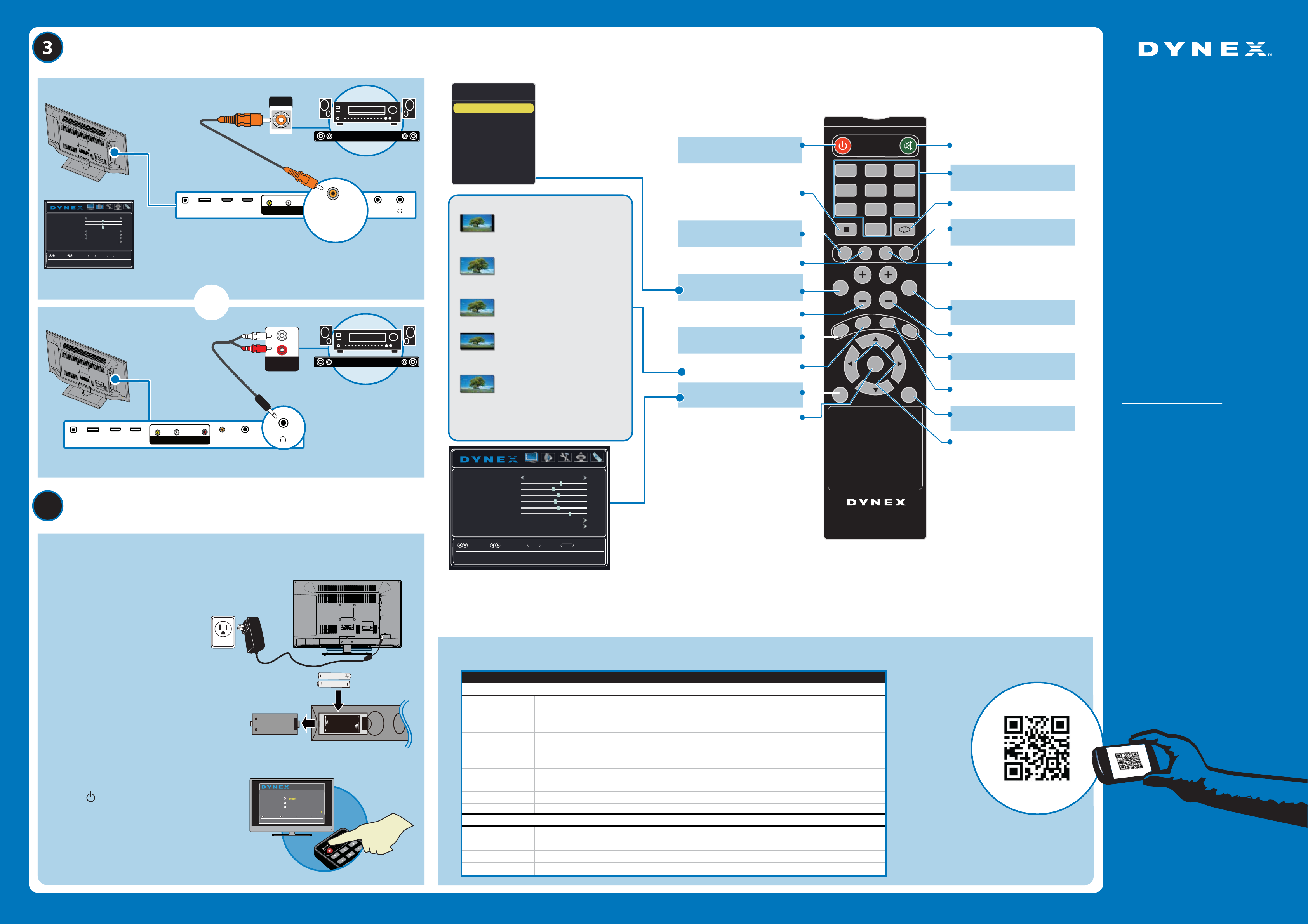

Using digital audio
