Dyon SONIC User manual
EN
DYON SONIC
- 1 -
Important Safety Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with a dry cloth.
7) Do not block any ventilation openings, install in
accordance with the instructions.
8) Do not install near any heat sources such as radiations,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9) Do not alter the safety purpose of the polarized plug. If
the provided plug does not fit into your outlet, consult an
electrician for replacement.
10) Protected the power cord from being walked on or
pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the
manufacturer.
12) Unplug this apparatus during lighting storms or when
unused for long periods of time.
13) Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as damage to the power-
supply cord or plug, liquid or other objects have entered
the apparatus, the apparatus has been exposed to rain
or moisture, the apparatus does not operate normally,
or has been dropped.
14) Removing the plug from the main outlet will completely
disconnect the device from its electrical source. While in
use, the main outlet must be free of all obstruction to
insure readily accessibility.
15) The ventilation openings should be free at all times. Do
not cover the ventilation openings with items, such as
newspapers, table-cloth, curtains, etc.
16) Do not place items or open flames (candles, etc) on this
V1.0
EN
DYON SONIC
- 2 -
apparatus.
17) Attention should be drawn to the environmental aspects
of battery disposal.
18) Use this apparatus only in moderate climates.
WARNING: To reduce the risk of fire or electric shock, do not
expose this apparatus to rain or moisture.
WARNING: The batteries should not be exposed to excessive
heat such as direct sunlight, fire or other heat sources.

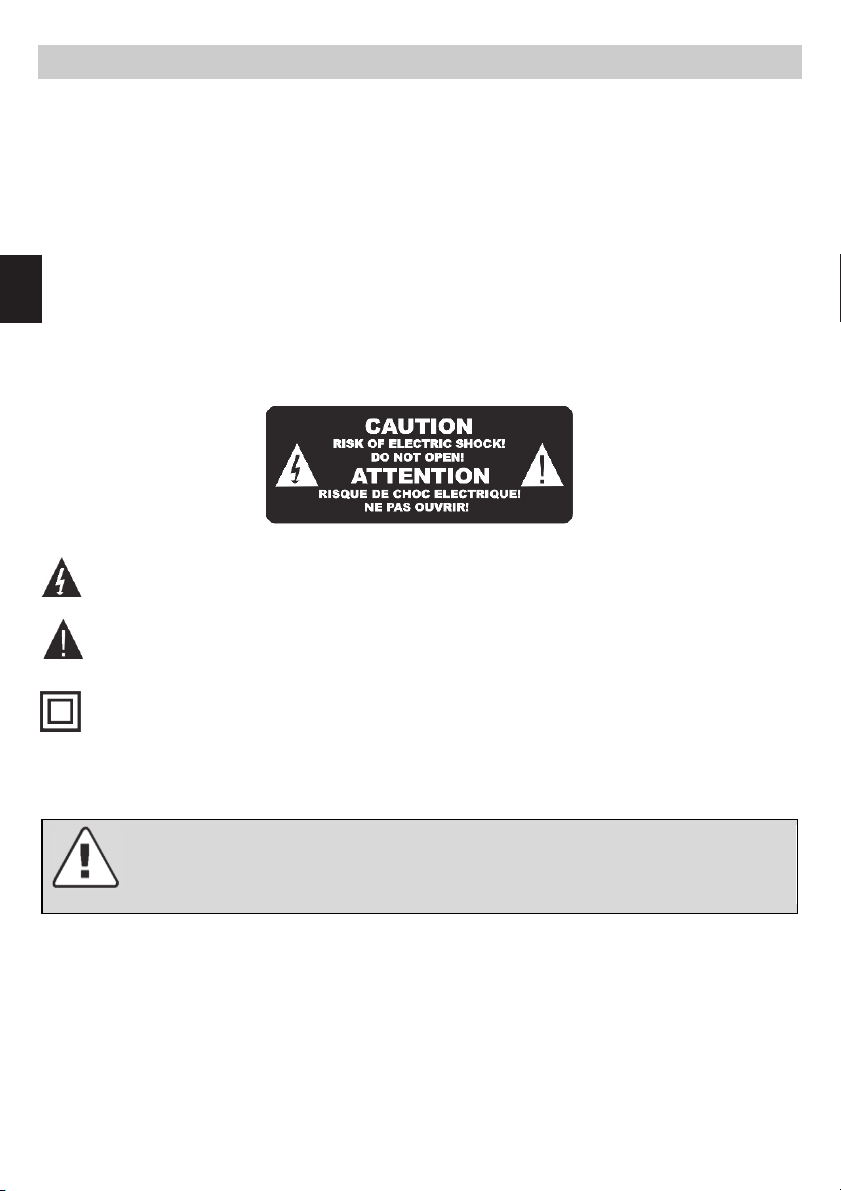

The symbol indicates that dangerous voltages and risk of electric
shock are present within this unit.
The symbol indicates important operating and maintenance
instructions within the literature accompanying this unit.
The symbol indicates that this product incorporates double
insulation between hazardous mains voltage and user accessible
parts. When servicing use only identical replacement parts.
CAUTION:
Should the apparatus be exposed to electrostatic
electricity, it may malfunction and may require a reset.
EN
DYON SONIC
- 3 -
Tips regarding environmental protection
At the end of its operating life, this product may not be
disposed of by way of your normal household waste.
Instead, it must be delivered to a collection point for
recycling electrical and electronic equipment. The
icon on the product, in the operating instructions or on
the packaging, indicates this.
The materials used in manufacturing this product are
recyclable, depending on their identifying markings.
By recycling this equipment, by recycling its
components, or through other procedures of re-using
outdated equipment, you are making an important
contribution to the protection of our environment.
Please ask you local municipal administration for the
location of the corresponding recycling point.
Support
URL: http://www.dyon.eu
See our website for the latest information concerning this product,
other products manufactured by our company and our company itself.
If you have questions or problems, please read the FAQs on our
website or contact our customer support service center:
support@dyon.eu
Manufacturer
Axdia International GmbH
Formerweg 9
D-47877 Willich (Germany)
Tel: +49(0) 2154 / 8826-0
Fax: +49(0) 2154 / 8826-100
Support-Hotline:
+49 (0)2154 / 8826-101
Web: www.dyon.eu
E-Mail: info@axdia.de
EN
DYON SONIC
- 4 -
Appropriate use
Device is designed for playing music in commonly used formats and
transferring sound from a Music or Sound source to its speakers using
a cable or Bluetooth connection. It is exclusively meant for this purpose
and must only be used for the same.
This also includes paying attention to all information contained in this
operating manual, especially in the safety instructions. Any other usage
is considered to be improper and may lead to material damages and
even personal injuries. Moreover, it will result in the immediate loss of
guarantee. The manufacturer does not bear any liability for damages
caused due to improper use.
This manual may not reflect your actual device’s operation. All
information is subject to change without prior notification. Please follow
your actual device’s operational procedures.
EN
DYON SONIC
- 5 -
Content
Content .......................................................................- 5 -
1CONFORMITY ....................................................- 6 -
2SPECIFICATIONS ..............................................- 7 -
3PACKAGE CONTENTS ......................................- 7 -
4MAIN UNIT..........................................................- 8 -
5Remote Control .................................................- 10 -
6Install remote control batteries ..........................- 11 -
7Connections ......................................................- 12 -
8Connect Power..................................................- 17 -
9Basic Operations...............................................- 18 -
10 BLUETOOTH Operation....................................- 20 -
11 NFC (Near Field Communication) Operation.....- 22 -
12 Listen to Music from Bluetooth Device ..............- 23 -
13 Troubleshooting ................................................- 24 -
14 Warranty condition ............................................- 25 -
EN
DYON SONIC
- 6 -
1 CONFORMITY
We, Axdia International GmbH, hereby declare
that this device corresponds to the basic
requirements and relevant regulations outlined in
guideline 1999/5/EG.
The CE declaration of conformity for this product
may be found on the following link: www.dyon.eu
– Service – Downloads
(http://www.dyon.eu/web/page_mp_2_ump_20.html)
EN
DYON SONIC
- 7 -
2 SPECIFICATIONS
1) Compatible with bluetooth devices and other devices containing
AUX output connections.
2) Easy operation using the buttons located on the top of the device.
3 PACKAGE CONTENTS
DYON SONIC, Manual, remote control, 3,5 mm audio cable, power
cord.
EN
DYON SONIC
- 8 -
4 MAIN UNIT
Top View
1. Power
Press this button to turn on or switch to Eco Power standby mode.
2. SOURCE
Switch between different modes
3.
Plays /pauses /resumes playback in Bluetooth mode.
Press and hold this button to activate the pairing function in
BLUETOOTH mode and disconnect the existing paired Bluetooth
device.
4. VOL+/VOL-
Adjust the volume.
5. MP3 LINK Socket
6. NFC Sensing Area
EN
DYON SONIC
- 9 -

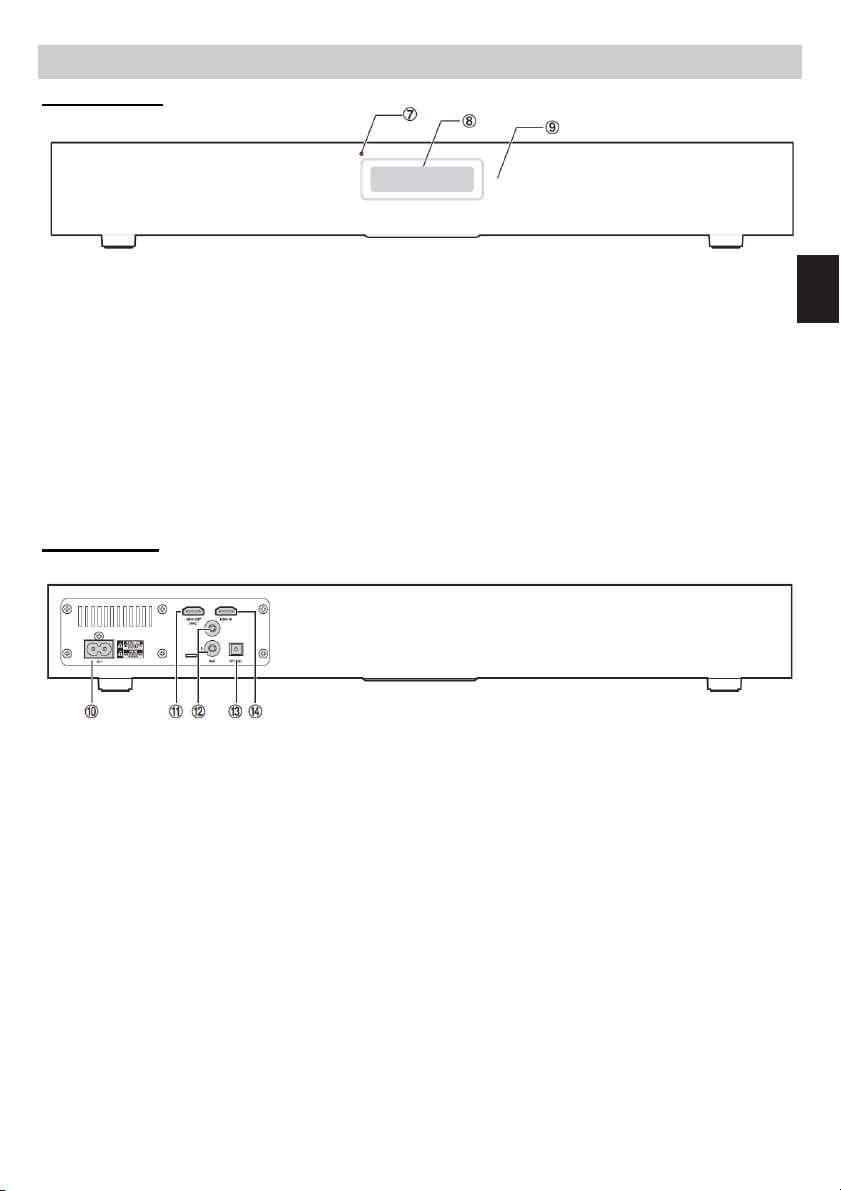

Front View
7. Power light
In Standby mode lights up red
8. Display Panel
Shows current status
9. Remote Control Sensor
Back View
10. AC~
Connect to power
11. HDMI OUT (ARC) Socket
12. AUX (R/L) Socket
Connect to an external audio device.
13. Optical Socket
Connect to an external audio device.
14. HDMI IN Socket
EN
DYON SONIC
- 10 -
5 Remote Control
1 Turn on this product or switch to Eco Power
standby mode.
2 SOURCE Select a function.
3
V
OL+/VOL- Increase or decrease volume level.
4 In Bluetooth Mode: Skip to previous track/next
track.
5 / Pair Plays/pauses/resumes playback in Bluetooth
mode.
Press and hold this button to activate the pairing
function in BLUETOOTH mode and disconnect the
existing paired Bluetooth device.
6 DIM Adjust display brightness.
7 MUTE Mute or resume sound.
8 EQ Select a preset sound effect
EN
DYON SONIC
- 11 -
6 Install remote control batteries
For First-time use:
The player has a pre-installed lithium
CR2025 battery. Remove the protective tab
to activate the remote control battery.
1. Pull out the battery tray and remove the old battery.
2. Place a new CR2025 battery into the battery tray with correct polarity
(+/-) as indicated.
3. Insert the battery tray back into the slot.
EN
DYON SONIC
- 12 -
7 Connections
Use OPTICAL socket
Remove the protective cap of the OPTICAL socket, then connect an
OPTICAL cable (not included) to the TV’s OPTICAL OUT socket and
the OPTICAL socket on the unit.
Note: If there is no sound comes out of the sound bar and display
shows "PLEASE CHANGE YOUR SOURCE DEVICE TO PCM MODE
UNDER AUDIO OUTPUT SETTING". Make sure the audio setting of
your source player (e.g. DVD player, game player, TV) is set to PCM
with optical input.
EN
DYON SONIC
- 13 -
Use HDMI socket

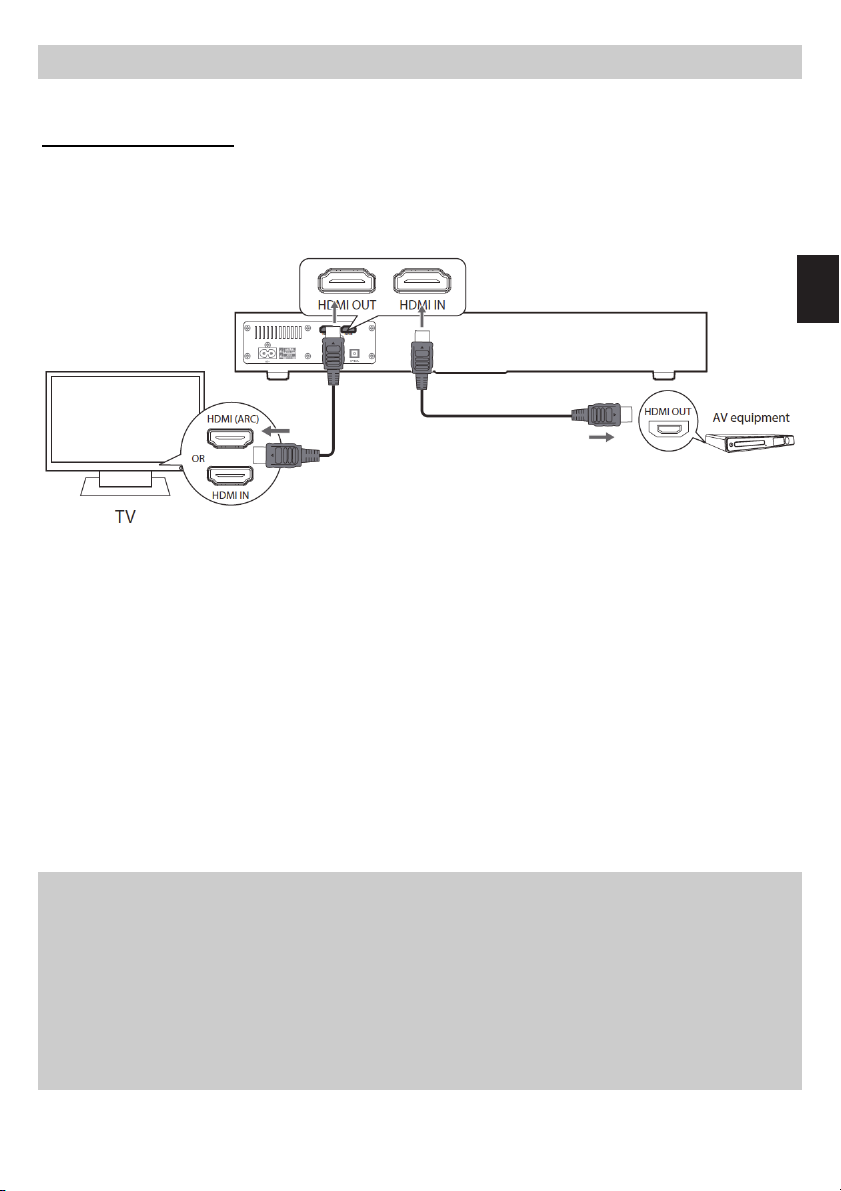

Using HDMI to connect the main unit, AV equipment and TV:
Method 1: ARC (Audio Return Channel)
- With the ARC (Audio Return Channel) function, it allows you to send
audio input from your ARC-compliant TV to ARC-compliant audio
devices (e.g. sound bar) without the need to connect an optical
cable.
- To enjoy the ARC function, make sure main unit the HDMI OUT
socket is connected by an HDMI 1.4 cable to the HDMI (ARC) socket of
your ARC-compliant TV. Then, just use your TV remote control to adjust
the volume output (VOL +/– and MUTE) of the connected audio device.
Note:
• Your TV must support the HDMI-CEC and ARC function and the
HDMI-CEC and ARC must be set to On.
• The setting method of HDMI-CEC and ARC may differ depending on
the TV. For details about ARC function, please refer to the owner’s
manual.
• Only HDMI 1.4 cables can support the ARC function.
• Only use connecting cable with a maximum length of 25cm.
EN
DYON SONIC
- 14 -
Method 2: Standard HDMI
- If your TV is not HDMI ARC-compliant, connect the main unit to the TV
through a standard HDMI connection.
1. Use an HDMI cable (not included) to connect the main unit HDMI
OUT socket to the TV’s HDMI IN socket.
2. Use an HDMI cable (not included) to connect the main unit HDMI IN
socket to the TV’s HDMI OUT socket.
Note:
• Only use connecting cable with a maximum length of 25cm.
EN
DYON SONIC
- 15 -

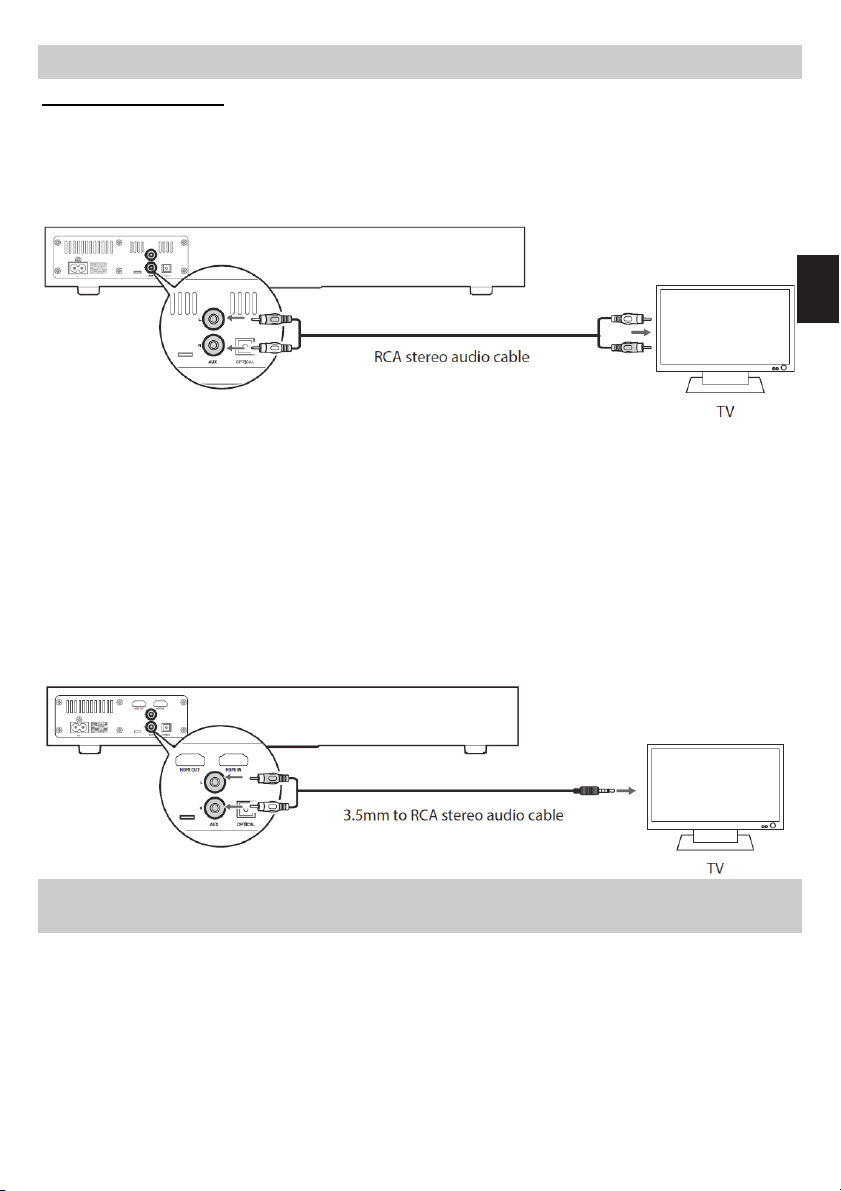

Use AUX socket
- Use a RCA stereo audio cable (not included) to connect the TV’s
audio output sockets to the AUX (R/L) socket on the unit.
- Use a 3.5mm to RCA audio cable (included) to connect the TV’s
headphone socket to the AUX (R/L) socket on the unit.
Note:
• Only use connecting cable with a maximum length of 25cm.
EN
DYON SONIC
- 16 -
Use MP3 Link socket
Connect 3.5mm to 3.5mm audio cable (included) to the MP3 LINK
socket on the unit and the audio output socket on external audio device
(e.g.MP3 player, iPhone...).
Note:
• Only use connecting cable with a maximum length of 25cm.
EN
DYON SONIC
- 17 -

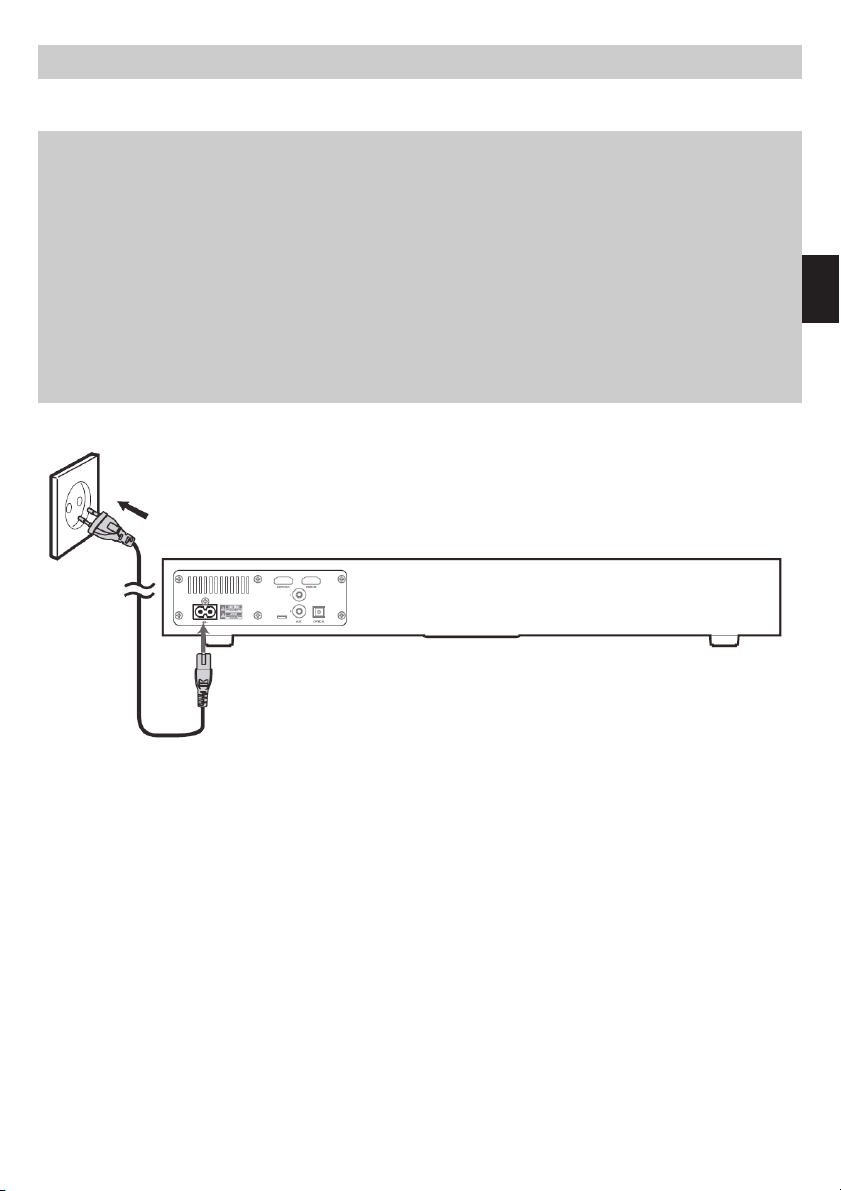

8 Connect Power
Caution: - Risk of product damage! Ensure that the power supply
voltage corresponds to the voltage printed on the rating label on the
back or the underside of the unit.
- Before connecting the AC power cord, ensure you have completed all
other connections.
- Be sure to unplug the power cord from the outlet when the system is
not in use for an extended period of time.
- Connect the AC power cord to the wall socket.
- Connect the power to the AC~ socket on the unit and a wall outlet.
- Please only use the provided power cord.
EN
DYON SONIC
- 18 -
9 Basic Operations
Power:
You can use all the functions on this player or remote control after
connecting to power supply (called Standby Mode).
Turning the System On:
Press the button to turn the system on from standby mode.
Note: The set will switch to last selected source.
Turning the System Off:
Press button again to turn the system off and go to ECO Power
Standby Mode.
Note: Be sure to unplug the power cord from the outlet when the
system is not in use for an extended period of time.
Select the Modes:
Press SOURCE button repeatedly on the unit or on the remote control
to switch between AUX, MP3 LINK, OPTICAL, BLUETOOTH, HDMI IN
and HDMI ARC modes.
Note: If there is no signal under the AUX, OPTICAL, MP3 LINK,
BLUETOOTH, HDMI IN and HDMI ARC mode, the unit will
automatically switch off within 15 minutes.
Adjust Volume Level:
During play, press the +/- buttons to increase/decrease the volume
level.
Mute Sound:
During play, press the MUTE button to mute sound. Press this button
again or VOL + button to resume sound.
EN
DYON SONIC
- 19 -
Select a Preset Sound Effect:
During play, press the EQ button repeatedly to select: Music, TV and
Movie
Adjust brightness of display panel:
Press the DIM button repeatedly to select different levels of brightness
for the display panel.
AUX/MP3 LINK/OPTICAL/HDMI IN/HDMI ARC Operation:
1 Ensure that the unit is connected to the TV or audio device.
2 While in ON mode, press the SOURCE button repeatedly on the unit
or on the remote control to select AUX or MP3 LINK or OPTICAL or
HDMI IN or HDMI ARC mode.
3 Operate your audio device directly for playback features.
4 Press the VOL +/– button to adjust the volume to your desired
level.
EN
DYON SONIC
- 20 -
10 BLUETOOTH Operation
You can listen to tracks from a media device if connected to the unit via
Bluetooth.
Pair Bluetooth-enabled Devices
The first time you connect your bluetooth device to this player, you need
to pair your device to this player.
Note:
- The operational range between this player and a Bluetooth device is
approximately 8 meters (without any object between the Bluetooth
device and the unit).
- Before you connect a Bluetooth device to this unit, ensure you know
the device’s capabilities.
- Compatibility with all Bluetooth devices is not guaranteed.
- Any obstacle between this unit and a Bluetooth device can reduce the
operational range.
- If the signal strength is weak, your Bluetooth receiver may disconnect,
but it will re-enter pairing mode automatically.
1. During ON mode, press the SOURCE button repeatedly on the unit
or on the remote control to select Bluetooth mode. “NO BT” will
show on the display if the unit is not paired to any Bluetooth device,
the system has entered pairing mode.
2. Activate your Bluetooth device and select the search mode. “DYON
SONIC” will appear on your Bluetooth device.
3. Select “DYON SONIC” in the pairing list. Display panel shows
“BLUET” while the pairing succeeds.
Table of contents
