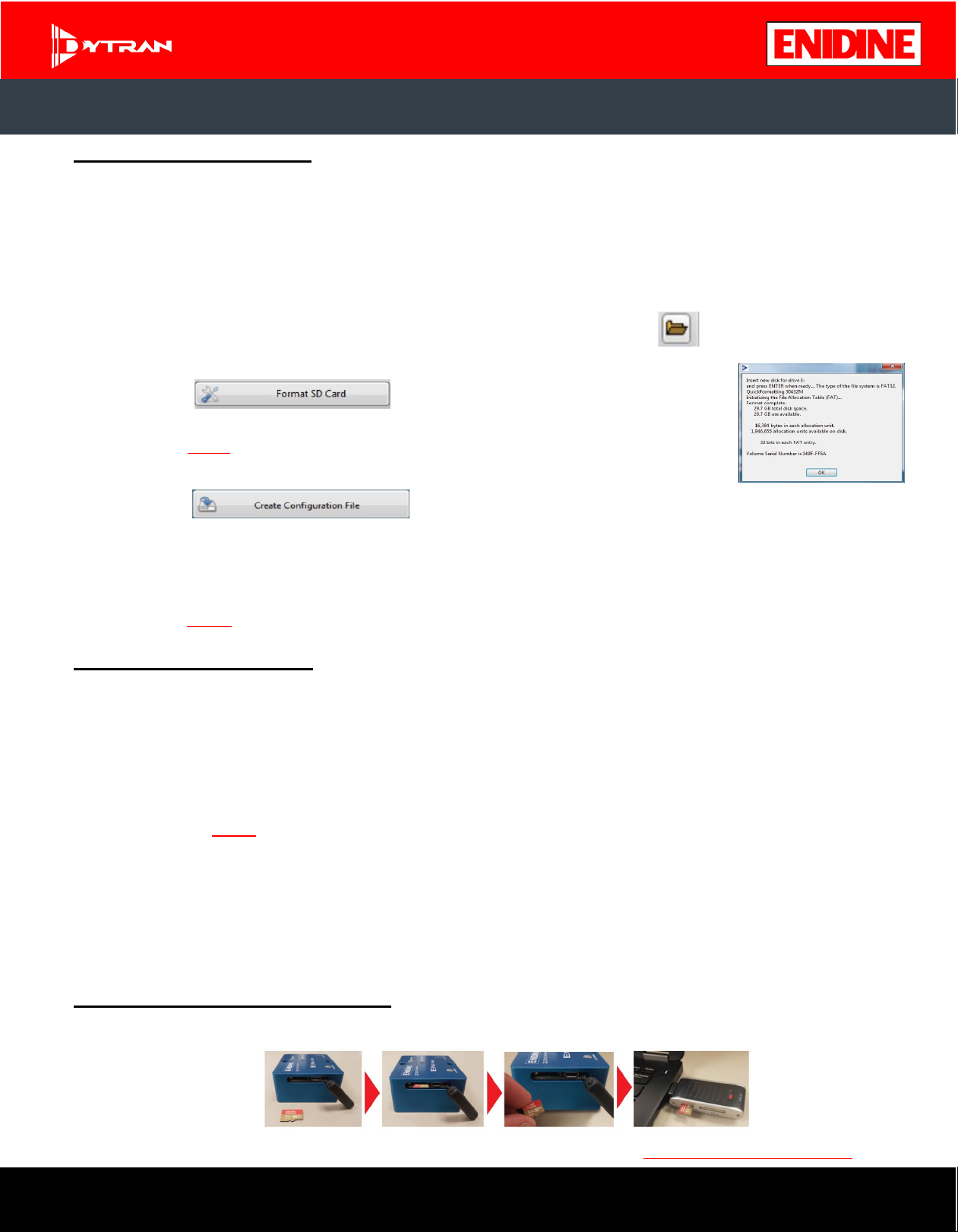

ENI-VIBE™Configuration:
Refer to the Operating Guide for comprehensive instructions for various scenarios. One scenario is outlined below:
1. Before data recording can begin, a configuration file must be created on the Micro-SD®card. To create the
configuration file, insert the Micro-SD®card into PC via Micro-SD®card slot or external Micro-SD®card
device reader, open the Eni-Vibe™ Analysis Software Toolkit and select the SD card drive.
a. Open the Eni-Vibe™ software and click the Create Configuration File tab
b. Go to the File Explorer window and locate the SD Card Drive.Click and
navigate to the Eni-Vibe™ drive. Click Select Folder.
c. Click and the formatting confirmation window will
appear (See image on the right) Click OK.
NOTE: For the purposes of this quick start guide, default setting values will be used. For
details on selecting different value settings, refer to the Operating Guide.
d. Click at the bottom of the screen and select Current Folder. You can
verify the presence of the configuration file by opening your File Explorer window; it will be listed in
the Eni-Vibe™ drive.
2. After creating the configuration file, remove the Micro-SD®card and insert into the Eni-Vibe™ device
NOTE: Ensure the Eni-Vibe™ is powered off before inserting Micro-SD®card to avoid file corruption.
ENI-VIBE™Data Collection:
1.To turn on the device, press the Power button
2.The Check/Ready light will blink to indicate the presence of the Micro-SD®card and the configuration file that
was just created
3. Once the device is satisfied with setup requirements, the Recording Status is ready when the light turns
green shortly after the Check/Ready light flashes.
NOTE: If
Recording Status
is not flashing, refer to the Operating Guide for troubleshooting
a. To start recording, press the Record button. The Recording Status light will turn orange.
4. To stop recording, press the Record button again
5. The device will then save the current file and the Recording Status light will turn green to indicate that
the device is ready to record the next file
6. To turn off the device, press the Power button
ENI-VIBE™Data Transfer to Enidine:
1. To view the data, eject the Micro-SD®card from the device and insert into the computer.
2. Open the folder, drag and drop the data file into an email, and send to indust[email protected]om.
CONTACT US:
818-700-7818
www.dytran.com
Quick Start Guide
ENI-VIBE®MODEL 33VC4400B
Operating Guides can be located on the Enidine B2B website at: b2b.ittcontroltech.com
ENI-VIBE™Software:
1. Visit the Dytran website and select Products > Advanced Sensing > Express Data Acquisition
2. Select desired series (4400) and scroll down to More Details. Click link under Software Download and
download .zip file to the PC.
3. Run the setup.exe file. Once completed, a Vibracorder™icon will appear on the desktop.
View ENI-VIBE™Data:
1. To view the data, eject the Micro-SD®card from the device and insert into the computer
2. In the Eni-Vibe™ Analysis Software Toolkit, click the Read Vibracorder Data tab, then click
and select the file. If you want to view various files at once, use the
bu
tton
.
3. In order to analyze a data clip, select the boundaries of the data you want to analyze by using the axis
cursors. If cursors are not visible, click to re-center
cursor locations.
4. Once the data clip is selected, click . The Data Analysis tab will open automatically.
Analysis:
The analysis tools are on the right side of the screen
(refer to the Operating Guide for more details on
howto use these tools)
CONTACT US:
818-700-7818
www.dytran.com
Quick Start Guide
ENI-VIBE
®MODEL 33VC4400B
Operating Guides can be located on the Enidine B2B website at: b2b.ittcontroltech.com
