E-Broh QUATTRO LETE User manual

USER
MANUAL
MANEBROHQ01EN

2
Thank you for buying your Electric Scooter.
In order to keep your scooter in working condition, before use
please read carefully these instructions.
The scooter has an attractive and stylized design. All our electric
scooters have a reliable and safe structure. They stand out for their
easy handling and are equipped with a premium engine.

3
TABLE OF CONTENTS
1. Warnings to the user 4
2. Precautions 4
3. Safety tips 5
4. Safety symbols 6
5. Component description 7
6. Operating and running instructions 8
7. Assembly 17
8. Cleaning and care 20
9. Frequently asked questions and troubleshooting 23
10. Maintenance 26
11. Maintenance program 20
12. Inspection log 27
13. Warranty policy 28
14. Vehicle modifications + SERIES Nº 29
15. Technical information 30
16. Vehicle authorisation 32
17. Warranty card 33
18. Maintenance record sheet 34

4
WARNINGS TO THE USER
PRECAUTIONS
1. Please read this manual carefully before using the vehicle for correct use.
2. Please carefully check that the components are listed in the product manual before using your vehicle for safety reasons. If any components are
missing or damaged, contact your supplier.
3. Please follow the traffic rules. Reduce speed on days of rain or snow with slippery ground.
4. In the case of traffic on rainy days, snow or on slippery floors. Increase the braking distance as a safety measure.
5. We recommend not to dismantle the scooter by your own means. Please contact an authorized Ebroh service to replace or purchase original components.
6. Do not leave your Quattrolete to those people who do not have the ability to drive a Ebroh scooter for safety for the driver and other road users, and
unnecessary damage to the vehicle.
7. Please keep this manual and warranty card properly.
8. Do not conceptualize or disconnect the battery when the contact of the scooter is activated. 11724092
1. Driver and passenger. The Quattrolete is not designed to carry more than 1 person.
2. Road conditions. The Quattrolete is suitable for road traffic. As we have different speeds, we will always have to move at a pace in accordance with
the passage of other pedestrians in order not to pose a risk.
(CAPÍTULO IV Peatones Artículo 121. Circulación por zonas peatonales)
3. Please read this maintenance manual carefully.
Danger. Failure to comply with the above instructions may cause serious damage.
Caution. Failure to comply with the above instructions may result in personal and component damage.
Attention. Useful information about the vehicle.
4. This manual should be considered a permanent document of the Quattrolete. If the Quattrolete is given to other people, this manual must be
included next to the scooter. Reproduction or reprinting of any part of this manual is prohibited without Ebroh’s consent.

5
1. Know your Quattrolete. Your driving skills and mechanical skills are the foundation for safe driving. It is recommended to practice in open spaces
and know the mechanical performance and handling first.
2. Evaluate your driving skills. Know your driving skills according to the handling of the Ebroh scooter to prevent accidents.
3. Pay attention to driving on rainy days. You should pay attention to the stopping distance on rainy days which should be double that on sunny
days. Always avoid circulating on painted marks, oil stains and registration caps to prevent slipping. Pay special attention when crossing metal
surfaces. Reduce speed in low visibility conditions.
4. The same traffic rules for pedestrians apply to the use of this scooter. For your safety and that of others, please respect the rules that
apply to pedestrians:
Circulate on pavement / sidewalk, park roads or pedestrian areas.
Just ride your scooter on the road when you cross or if there are no existing sidewalks.
At the end of a sidewalk, be aware of the traffic on the road.
Be very careful when driving your scooter where there is plenty of traffic and busy pedestrian areas.
Do not use your scooter after drinking alcohol, when feeling tired or under medication.
Do not use your scooter at night.
Always follow the traffic lights.
6. Do not drive faster than the maximum permitted speed. When circulating on the road, we must always circulate at a pace consistent with
the passage of other pedestrians so as not to pose a risk. (CHAPTER IV Pedestrians Article 121. Pedestrian traffic)
SAFETY TIPS

6

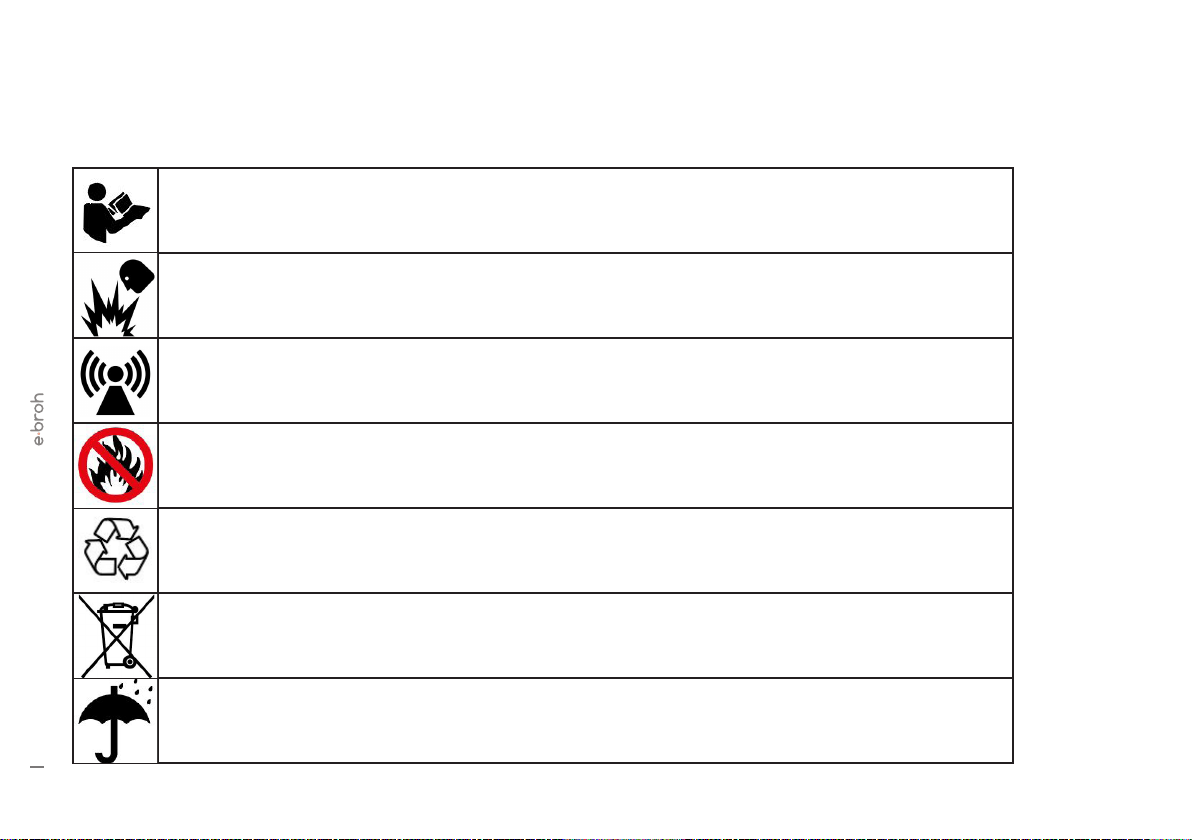

SAFETY SYMBOLS
The symbols below indicate in the vehicle those components and areas where a hazard may exist. It is important to read and understand these indications
and prohibitions.
Read and understand this manual before using the product.
In the battery danger of explosion by misuse.
Complies with EC regulations.
Do not approach or throw the battery into the fire.
In battery and machine.
Upon completion of your life cycle or use deposit at a clean point according to current legislation
Do not throw the battery into garbage containers. They must be deposited at authorized recycling points.
Battery: Do not expose to rain or water.

7
COMPONENT DESCRIPTION
BATTERY
PLUG
BURDEN
FUSE
ELECTRIC LEVER./MANUAL
BUMPER
FORWARD
SHOCK ABSORBERS
FORWARD
ARMREST
SUPPORT
SEAT
TURN CONTROL
SEAT
WHEEL
FOCUS
ANGLE CONTROL
HANDLEBAR
BASKET
BATTERY CHARGE
INDICATOR
KEY
BOWLER
SWITCH
LIGHTS
AUDIBLE
WARNING
SETBACK
ACCELERATOR
INDICATOR
IGNITING
INDICATOR
SPEED SLIDER
HANDLEBAR
COMMAND
SEAT
SHAFT
ADJUSTMENT
SEAT

8
INSTRUCTIONS, OPERATION AND CIRCULATION
DANGER. Always check your vehicle before going out!
If you discover a malfunction or damage during this inspection, consult your Ebroh dealer or authorized official service!
Inspection before movement
According to the traffic regulations, the driver is responsible for the conditions of his vehicle. The essential properties of your vehicle can change even
after a short stop.
Damage, pressure loss, or sudden leakage of tires may be caused by external causes. These changes can cause a hazard to the driver and other road
users. To minimize it, a visual inspection before going out to circulate is essential.
Use
This vehicle is designed to move only one person comfortably and safely in their seat on pedestrian or specially adapted roads as long as national,
regional and local regulations allow it. The Quattrolete has four wheels that guarantee good stability for people with reduced mobility at low speed.
The impulse system is electromechanical provided by a lithium battery connected to the electric motor. The electric motor itself allows braking from the
rear of this scooter. It is possible to configure, by means of a lever, the disconnection of the electromechanical propulsion so that another person can
push or transport the vehicle with or without its passenger.
Check at least the following points
before circulating
State of charge of your battery.
Tyre pressure and drawing.
Operation of the acceleration and brake
system.
General structure.

9
BATTERY CHARGE
Due to the transport and shop, the new electric scooter could be low battery. Please fully charge the scooter before the first trip. Use only the supplied
lithium battery charger. Using different chargers can cause serious injury and damage to the battery. Any consequences caused by this is the sole
responsibility of the user. Charge the battery on the scooter. Normally the battery is in the best condition after 10-12 times charging. Charge the battery
each month if you do not use it for a long time.
Loading procedure
1 Check the charging voltage with the battery and also with your local standard, and pay attention if the output voltage and the plug have the correct
rating and type of voltage.
2 Make sure to place the charger and battery on a flat surface and keep them in a well ventilated area. First connect the charger output plug to the electric
scooter charging socket, then connect the charger input plug to your local power outlet. Make sure the plugs and socket are secure.
3 When charging, the indicator lights are red. After 4-6 hours of charging (depending on the remaining electrical amount, the indicator lights change
from red to green, meaning the battery is fully charged. Now the battery can be charged more than 1-2 hours to ensure it is fully charged. Normally
each charge cannot exceed 12 hours.
4 After charging, first remove the charger input plug from the local power outlet, then remove the charger output plug from the electric bicycle outlet.
Without being charged, it is forbidden to connect the charger to the socket.
Cargo care
1 Due to the transport and shop, the new electric scooter could be low battery. Please fully charge the scooter before the first trip. The charger should be
used indoors with dry and good ventilation. Do not place anything on the charger or battery during charging.
2 Non-professionals are prohibited from opening the charger because it has high voltage inside. Do not change the plug and cable without authorization
to avoid accidents.
DANGER. Familiarize yourself with the vehicle’s performance and properties before using it.
Do not operate the vehicle indoors.
The owner is responsible for the safety of the vehicle. You will achieve maximum road safety and the best conditions of your vehicle thanks
to regular inspections, adjustments and lubrication. To do this, make the inspections specified in the maintenance schedule carried out by
authorized personnel for the maintenance of your vehicle.

10
3 Keep the charger in a place that cannot be reached by young children. Do not place the battery upside down or use it without full charge, as it will
seriously affect the battery life. It is strictly forbidden to turn on the switch when the battery is charging.
4 If a peculiar odor or excess temperature occurs, stop charging it immediately and send it to the authorized service center.
5 Use only the supplied lithium battery and charger.
BATTERY
In order to extend the life of the lithium battery:
1. Vehicles should be charging immediately after each battery use, rather
than waiting for their capacity to fall below 20%.
2. When the lithium battery capacity is below 20%, shelving or storage is
prohibited.
3. When the capacity of the lithium battery is less than 20% (the on
indicator of battery capacity shortage) should be immediately charged
the lithium battery.
4. For shelving or short-term storage of less than a week, the capacity of
the lithium battery must be maintained at more than 20%.
5. When using the vehicle, try to avoid that the capacity of the lithium
battery is at 0% (discharge of the lithium battery in protective state).
6. Making the discharge of the battery is often in a protective state, will
speed up the aging of the battery, and will shorten your lifespan.
7. If the vehicle does not have to be used for a long period of time, please
store it in a cool, dry place away from the flames. When stored, the
lithium battery should have at least 50% battery and be charged every
30 days.

11
Maintain good charging habits, give better vitality to the battery.
The vehicle is charged with a 24V 20Ah lithium battery.
The lithium battery is self-contained, enclosed in a metal housing and
is mounted on the vehicle chassis.
Attention.
1. If the battery runs out and cannot be recharged in a short time or remains in storage in a short period of time (e.g. one
week), or maintains its charging capacity below 20%, it could result in the loss of battery storage capacity and, therefore,
the loss of its guarantee. Do not charge the battery for more than 12 hours.
2. When in a long-term storage, the capacity of the lithium battery is less than 50% or not in accordance with the prescribed
time recharge, resulting in the death of the battery,
3. there is no guarantee.
4. The power outlet overload can cause a fire!
5. When recharging, make sure the charging socket is properly connected and attached to the vehicle charging socket.

12
DANGER.
Once the battery is broken or deformed, it must be removed from the vehicle immediately, placed in an open place, away from people and
flammable objects, to avoid causing fire or explosion.
Unauthorized private manipulation can cause people to be electrocuted or burned. Short-circuit batteries can set fire or explode.
Use only the supplied charging cable and scooter charger.
Make sure there are no metal objects near the charging socket!
Vehicles in the process of being loaded are not suitable for people with physical limitations (including children). With sensory and
mental abilities, or lack of experience and/or knowledge, unless supervised by the person responsible for their safety or who has received
instructions on how to use the equipment.
Do not load vehicles in high temperature environments.
It is prohibited to load a vehicle in a narrow and unventilated environment.
It is forbidden to load vehicles with non-original chargers.
It is prohibited to use AC sockets below 15 A for charging vehicles.
During charging, the vehicle should be away from flammable materials and disconnected from the AC connection cable as soon as
possible after charging.
AC connection cables should be placed out of the reach of children.Do not load vehicles in high temperature environments.
It is prohibited to load a vehicle in a narrow and unventilated environment.
It is forbidden to load vehicles with non-original chargers.
It is prohibited to use AC sockets below 15 A for charging vehicles.
During charging, the vehicle should be away from flammable materials and disconnected from the AC connection cable as soon as
possible after charging.
AC connection cables should be placed out of the reach of children.

13
RANGE OF USE
It is difficult to demonstrate a precise range of use due to the influence of many factors:
1. State of charge of batteries
2. Gradient
3. Tyre pressure
4. Driver’s weight and baggage
5. Headwind
6. Road conditions
7. Age/use of batteries
8. Ambient temperature
The maximum possible stored energy and therefore the range of use decreases as the batteries age. Note that ambient
temperature has a decisive influence on range and power. A considerable power drop is expected with temperatures
below 0º.
BATTERY MAINTENANCE
In the process of use, there must be a certain temperature difference in the battery. The temperature difference leads to the inconsistency of the battery’s
internal resistance and the inconsistency of the current distribution. The difference continues to expand, leading to a sharp drop in battery capacity.
Therefore, it is very important to maintain the battery regularly.
Battery maintenance is recommended every 6 months. Maintenance can bridge the gap between individual cells, improve battery cycle performance, and
extend battery life.
DANGER. Battery maintenance must be performed by an authorized dealer or trained personnel.
Please keep the battery test data before and after maintenance in the customer vehicle information file.

14
TYRE DRAWING DEPTH - 2 mm.
The legally prescribed minimum drawing may differ from country to
country.
TYRE
The tyre is one of the important parts of the vehicle; being directly in contact with the road, in a joint work with the suspension, this ensures that your
vehicle has good driving comfort and stability, ensuring also that the wheel has good grip, improving traction and braking ability of the scooter.
DANGER.
Driving with worn or damaged tires can lead to loss of vehicle control and injury accidents.
Have the tyres changed immediately in case of insufficient drawing or obvious damage or cracks.
Check the conditions of your tyres and periodically check the tyre pressure before you start driving. The tires of the Quattrolete are nylon tube type without
internal inflatable air chamber.

15
USE OF THE SCOOTER
GETTING ON THE SCOOTER
1. Make sure the ignition key is not inserted.
DANGER. Never get on or off the scooter with the key in the ignition. Remove the key from dashboard first.
This will prevent the vehicle from moving during the driver’s up or down operation.
2. Get on the side of the scooter.
3. Press up and release the lever of rotation of the seat. Without releasing the remote turn the seat until it is in front of you. Release the remote
and make sure it stays locked without turning.
4. Make sure the controller is firmly in position
5. Get in the seat and sit comfortably and safely.
6. Press the rotation knob of the seat again and turn with the seat until it is placed with the handlebar just in front. Release the knob.
7. Make sure that when you release the turning knob the seat is locked (no longer rotating) in front of the handlebar.
8. Place your feet firmly on the vehicle floor.
ADJUSTMENTS AND CHECKS BEFORE CIRCULATION
- Is the seat at the right height. Remember that the feet should be well supported on the floor of the scooter once seated.?
- Is the seat secured on your platform?
- Is the handlebar shaft firm on your platform? Is the handlebar adapted to your grip position to steer?
- Have you inserted the key into the ignition and put it in its “ON” position? If this is not the case, insert the wrench into the cockpit and rotate
clockwise to the “ON” position
- Do the indicators and controls of the handlebars work correctly?
- He has planned his route avoiding difficult terrain and with great inclination.
To adjust the scooter for your added safety and comfort read the COMFORT SETTINGS section

16
SCOOTER DRIVING
ATTENTION. The following indications may affect the stability and direction of the vehicle in circulation and therefore the physical safety
of the driver, pedestrians, pets and street furniture. For your safety do not perform the following actions:
Driving with a pet on a leash.
Carry passengers (including pets).
Hanging objects from the handlebars.
Towing or being pushed by another.
While circulating grab with each hand left and right handlebars and feet on the footrest platform of the scooter. This position is what allows you greater
control and safety over the vehicle.
Set the desired speed in the control box.
Press (forward) with your thumb against the right acceleration lever. The left reverse lever will reverse. This combined movement prevents the movement
of the scooter from being activated at the same time.
The electromechanical parking brake disc is automatically uncoupled and the scooter accelerates smoothly to the selected speed in the regulator.
Pull with the left hand of the handlebar to rotate or steer the vehicle to the left.
Pull with the right hand of the handlebar to rotate or steer the vehicle to the right.
Centre the handlebars in relation to the vehicle to run straight.
To stop (STOP), slowly stop pressing the throttle control. The electronic brakes will automatically connect and the scooter will stop.
WARNING: The reverse or recoil of the scooter is slower than the advance set in the regulator.

17
The Quattrolete can be assembled by your dealer or specialist store for delivery.
In case it has been delivered directly without assembly follow the following steps.
1. Open the box and check that all the components are in perfect condition. If not, please contact your dealer.
2. Remove the cardboard separating the handlebar from the main structure and lift the handlebar by loosening the lower knob. Tighten again.
3. With the help of someone else grabbing the front and rear handlebars, remove the Quattrolete from the box. If you do not have help cut the sides of
the box careful not to damage the structure.
4. Place the rotation axis of the seat at the base of the seat in the centre of the scooter. Screw to an average height.
5. Place the seat base inside the rotating shaft. You can rotate the seat by raising its side lever until it is frontally. Lift the seat up.
6. Insert both armrests into the side frames and tighten their knobs until they are in the desired position.
7. Place the basket on the front of the scooter matching both guides.
8. Insert the wrench into the handlebar cylinder and check that the test is carried out correctly without any problem.
ASSEMBLY AND DISASSEMBLY

18
AUTOMATIC SHUTDOWN
Your Quattrolete scooter is equipped with an energy saving system. The Quattrolete has a timer that in case of leaving the ignition key in its ignition
position (“ON”) for more than 20 minutes without circulating the scooter turns off.
If you wish to resume circulation you must perform the following operations:
1. Remove the key from the bowler hat.
2. Reinsert the key and turn to restart the scooter.
COMFORT SETTINGS
ADJUSTMENT OF THE ANGLE OF THE HANDLEBAR
DANGER. Remove the key from the bowler before adjusting the handlebar. Never try to adjust the seat or handlebar while moving.
Your Scooter is equipped with an adjustable handlebar at its base to zoom in or away from the passenger.
1. While holding the scooter, rotate counter-clockwise the knob at the base of the handlebar to loosen.
2. Move the handlebars to a position where the driver can access and drive comfortably from the seat.
3. Turn the handlebar knob clockwise to secure it in position.
To fully fold the handlebars for transport or storage, you must first remove the battery and then
completely disassemble the seat.
ADJUSTMENT OF SEAT ROTATION AND FEED
The seat rotation control is on the right side under the seat. This control block in different positions of the axis of
rotation the seat.
1. Pull up the rotation control of the seat to release the axle.
2. Rotate the seat to the desired position without releasing the control.
3. Release the control to secure the seat. The end of the control must be wedged between the axle teeth.
4. Press the front lever under the seat to bring it closer or separate it from the handlebars.
ADJUSTMENT OF THE SPACE BETWEEN ARMRESTS
The arms can be adjusted towards the inside of the seat or towards the outside to allow a support adapted to the driver.
1. Loosen the armrest adjustment knobs on each side of the seat.

19
2. Stretch the knob to remove the locking pin.
3. Slide the tube inwards or outwards as desired.
4. Align the holes in the seat frame and those in the arm, re-insert the locking pin.
5. Tighten the knob.
To get on or off the scooter without turning the seat can raise the armrest on the side because it will go
down.

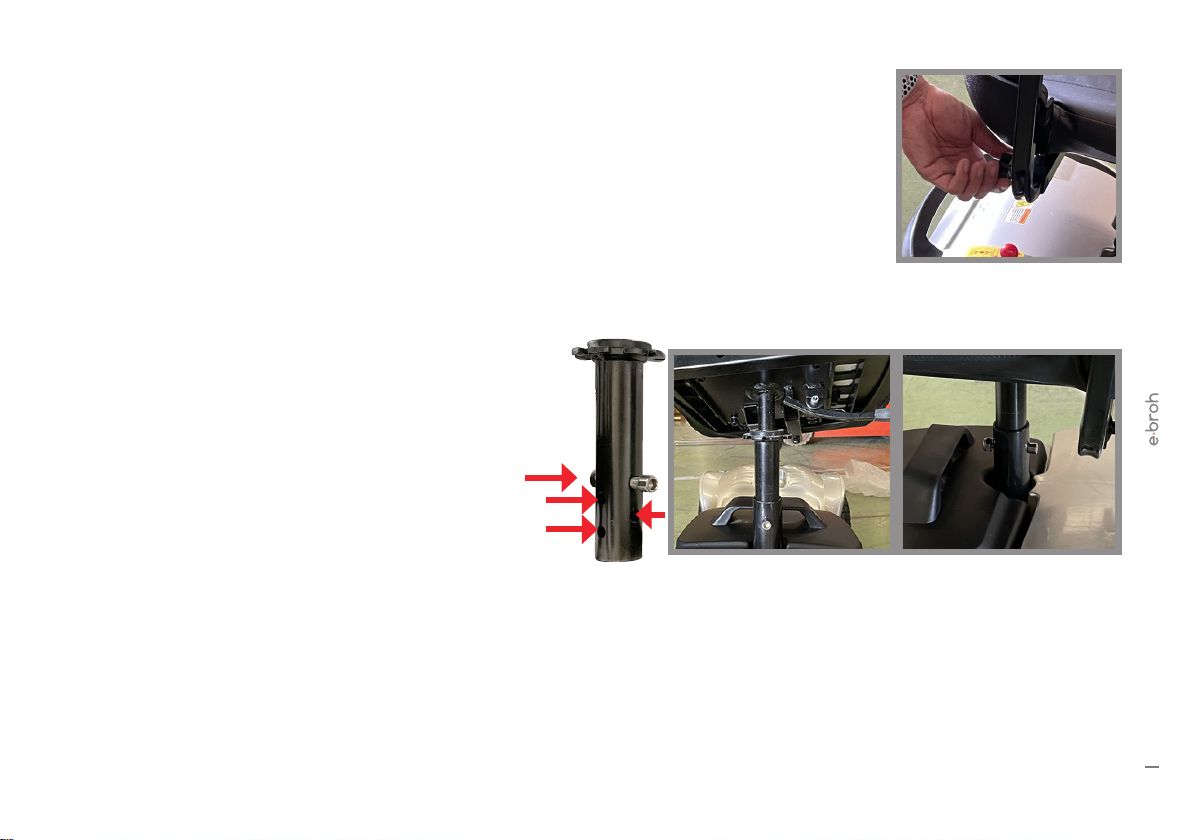

ADJUSTMENT OF THE SEAT HEIGHT
The seat can be placed at four different heights.
1. Remove the battery from its compartment so as not to damage it during operation.
2. Remove the seat from the support.
2. Remove the screw through the tube from the seat base.
3. Raise or lower the seat to the required height.
4. While raising the seat align the holes of the seat with those
of the seat base. To access the intermediate holes you can
rotate the seat 90º. The holes are arranged at different height
and angle alternately.
5. With the holes in the base and the tube aligned, re-insert the
bolt until it exits from the other end and tighten firmly.
6. Return battery and seat
FRONT TRANSPORT BASKET
Your scooter has a front transport basket that can be removed if you need it for storage.
Pull the basket up to remove it.

20
Regular and proper cleaning is an important factor for the maintenance of your vehicle.
It is important to maintain the full functioning of the main parts of the vehicle.
1. Aggressive or penetrating solvents can damage rubber or plastic parts.
Use only mild cleaners or water with neutral soap.
2. If you are using cleaning agents, observe the manufacturer’s
specifications.
Quick guide to cleaning
1. Clean the wheels and engine with a gentle cleaner.
2. Clean the panels only with a gentle cleaner.
3. Treat painted and chrome parts regularly with products
4. suitable for your care.
5. Do not clean instruments and buttons with solvents or detergents.
6. Use only warm water, perhaps with a few drops of liquid soap.
7. Moisten the most embedded dirt or insects by applying a wet dishcloth
on them.
8. Dry wet surfaces properly.
9. Repair minor damage with a paint marker.
DANGER.
Always try the controls and impluse control.
Use only car wash products which comply with the laws on washing and cleaning agents, and are registered with the Environment
Agency. They must be composed of active and biodegradable substances (detergents).
Keep leftover care and cleaning products in their original packaging and take them to a collection point.
LIMPIEZA Y CUIDADO
